High-Density Fiber Cable rau Server Rooms, Enterprise Networks thiab Cloud Infrastructure
Evolux muab kev sib txuas tsis zoo rau cov ntaub ntawv chaw fiber ntau cabling tej yaam num, suav nrog LC thaj qaum, MPO/MTP cable sib dhos, OM3 thiab OM4 multimode cables, OS2 ib leeg- hom cables, fiber ntau adapters thiab pigtails. Qhov ntau yam suav nrog cov khoom siv patching, cov khoom sib txuas, cov pob txha caj qaum, kev hloov pauv thiab cov txheej txheem cabling txav, ntxiv thiab hloov pauv. Cov neeg khiav dej num hauv chaw zov me nyuam, cov koom ua ke hauv network, cov neeg cog lus cabling thiab cov neeg xa khoom tuaj yeem yuav cov khoom lag luam, thov cov qauv lossis npaj ib qhov project BOM rau me me -batch thiab ntau lawm. Raws li cov ntaub ntawv chaw fiber ntau cabling chaw tsim tshuaj paus thiab OEM fiber optic cable los ua ke tsum, Evolux tuaj yeem tshuaj xyuas cov kev sib txuas ua ke, hom fiber ntau, polish, ntev, tsho, xim, daim ntawv lo thiab ntim. Cov neeg yuav khoom npaj siab - qhov ceev MPO / MTP cabling daws yuav tsum xa cov transceiver interface, suav fiber ntau, poj niam txiv neej thiab polarity nrog RFQ.
Data Center Fiber Cable Cov Khoom Siv nrog Cov Lus Qhia Ua Tau Zoo
Cov ntawv teev lus hauv qab no siv cov npe, cov kev xaiv thiab cov lej muaj txiaj ntsig luam tawm ntawm Evolux cov nplooj ntawv khoom. Cov lus hais zaum kawg yuav tsum txheeb xyuas cov qhab-nees uas tau xaiv, txuas daim duab qhia chaw thiab siv cable vim tsis yog txhua qhov kev xaiv siv rau txhua lub rooj sib txoos.

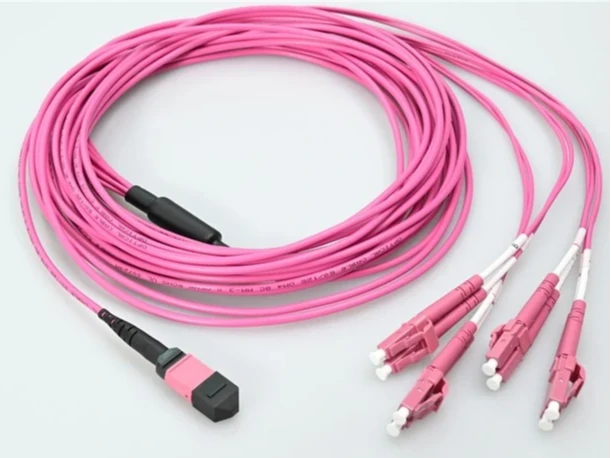

MTP Poj Niam rau 4 × LC UPC Duplex, 8-Fiber OM4
- OM 4 50/125 µm; 850/1300 nm
- MTP IL 0.35 dB max; LC IL Tsawg dua lossis sib npaug rau 0.2 dB
- 3.0 hli OFNP cable; 150m ntawm 40/100G thiab 850 nm

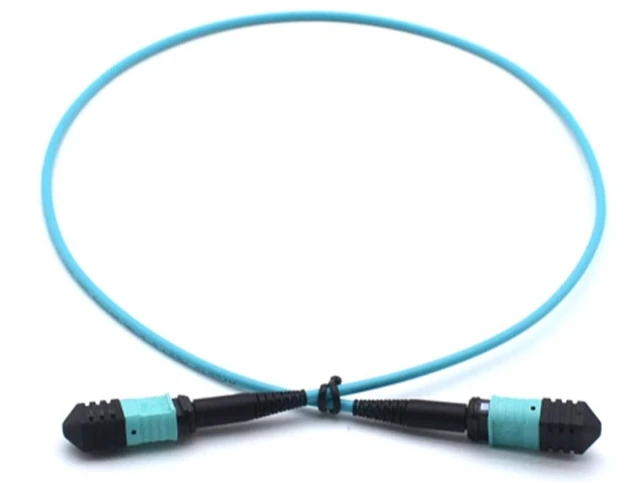

MPO/MPO-OM3-12F-3.0MM-LSZH-1M
- 12-fiber OM3 sib dhos
- 3.0 hli LSZH cable; luam tawm 1 m configuration
- MM qis- poob IL: raug<0.30 dB; max <0.5 dB

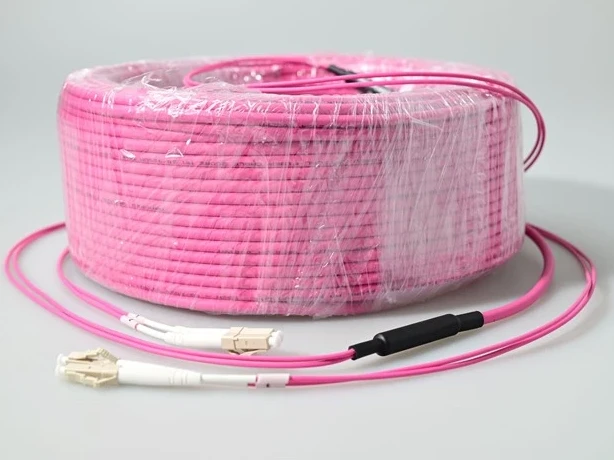

LC rau LC OM4 Multimode Duplex Patch Cord
- 1.25 mm me -form-factor ferrule
- IEC 61754-20 connector interface
- Riser, plenum thiab customized cable xaiv tau teev tseg
LC UPC OM3 Uniboot Multimode Patch Cable
- OM3 laser - optimized 50/125 µm fiber ntau
- 10G ncav cuag 300 m ntawm 850 nm
- OFNR thiab OFNP; standard lengths 0.5 m rau 30 m
Customized LC/UPC Tib -Mode Patch Cable
- 9/125 µm ib leeg - kev xaiv hom
- IL Tsawg dua lossis sib npaug rau 0.30 dB IEC Qib C; Tsawg dua lossis sib npaug rau 0.15 dB IEC Qib B
- 0.9 / 2.0 / 3.0 hli; PVC, LSZH los yog OFNP
MTP / MPO Adapter nrog Twj Tes Tsho
- Insertion poob 0.2 dB max
- Yam tsawg kawg 1,000 mating cycles
- Flanged / flangeless; simplex / duplex; RoHS hais

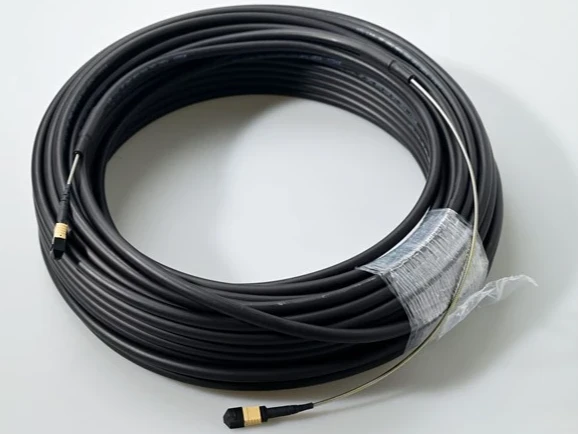

MPO / MTP Armored Fiber Optic thaj Cord
- OS2, OM3 or OM4; 8, 12, 24, 48, 72 lossis 144 fibers
- Kauv stainless-steel daim kab xev armor
- IEC 61754-7 thiab TIA 604-5
LC / LC Duplex Multimode Adapter
- LC adapter hom; duplex lub cev
- UPC polish interface
- Multimode; tsis muaj -flange configuration

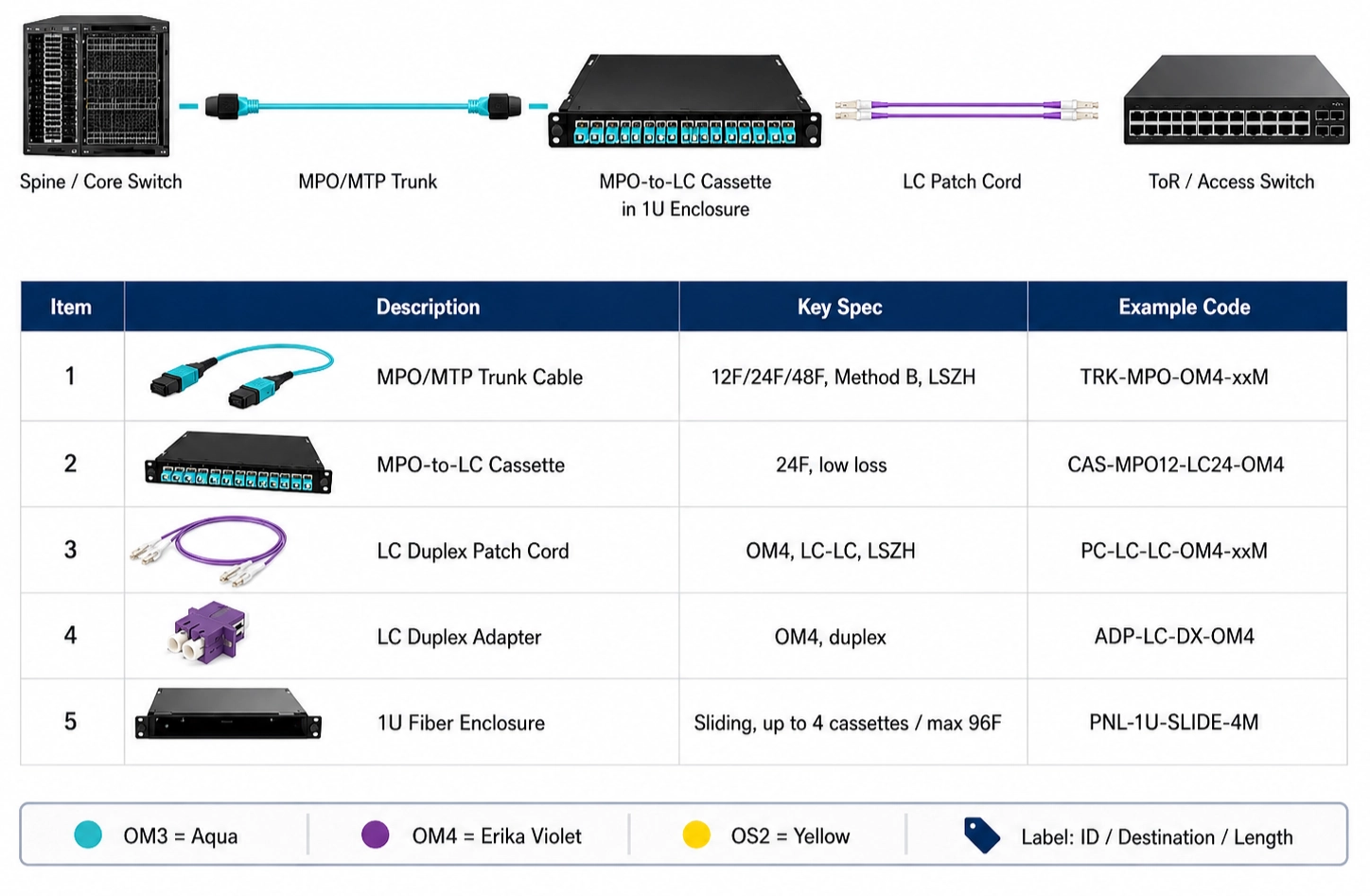

High-Density Data Center Fiber Cabling Architecture los ntawm Link Role
Ib txoj kev npaj muaj txiaj ntsig zoo pib nrog cov ntsiab lus sib txuas, tsis yog daim ntawv teev cov kab ke dav dav. Daim ntawv qhia cov khoom siv interface thiab patching txoj kev nyob rau txhua theem, ces muab connector poj niam txiv neej, polarity, fiber ntau qib thiab lub tsho rau lub tiav channel.
Server lossis Storage
Paub meej tias LC duplex lossis ncaj qha MPO / MTP transceiver interface thiab qib fiber ntau yuav tsum tau ua.
01
ToR / EoR Hloov
Siv LC patching rau duplex ports los yog MPO/MTP breakout rau parallel - mus rau - duplex conversion.
02
Rack Patch Field
Match LC duplex lossis MPO/MTP adapters rau tus neeg yuav khoom -cov vaj huam sib luag tshwj xeeb lossis cov cassette hneev taw.
03
Kab / Kab laug sab
Ua ntej-MPO/MTP cov rooj sib txoos ua ke sib sau ua ke cov fibers thiab txo cov chaw ua haujlwm.
04
MDA / Hla-Txuas
Khaws cov ntawv sau npe, polarity thiab poob - cov ntaub ntawv nyiaj txiag thoob plaws txoj kev cabling.
05
| Qhov project mob | Pom zoo kab kev taw qhia | Tus neeg yuav khoom yuav tsum paub meej | Muaj feem xyuam Evolux Scope |
|---|---|---|---|
| Duplex khoom patching | LC-rau-LC duplex lossis uniboot cable | Fiber qib, polish, ntev, tsho, chaw nres nkoj labeling | OM3/OM4 multimode thiab 9/125 µm ib leeg -hom LC sib dhos |
| Parallel caj qaum | MPO / MTP lub cev | 8/12/24-fiber tsim, poj niam txiv neej, polarity, qhov tseem ceeb orientation, poob chav kawm | MPO/MTP sib dhos hauv OS2, OM3 thiab OM4 configurations |
| Parallel-rau-duplex migration | MTP/MPO-rau -LC breakout | Transceiver mapping, LC khub xaj, poj niam txiv neej thiab tag nrho cov channel poob | 8-fiber OM4 MTP poj niam rau plaub LC UPC duplex sib dhos |
| High - tsheb khiav los yog txoj kev raug | Armored ntau-fiber sib dhos | Fiber suav, cable geometry, txoj kev txwv thiab khoov tswj | Kauv stainless- steel armored MPO/MTP xaiv |
| Vaj huam sib luag los yog cassette coupling | LC lossis MPO / MTP adapter | Hneev taw, flange, qhov tseem ceeb orientation, hom thiab polish compatibility | LC duplex thiab MTP / MPO flanged lossis flangeless adapters |
MPO/MTP Data Center Fiber Cabling rau Compact Trunks thiab Breakout Txuas
Evolux tau tshaj tawm ntau yam txhawb nqa ob lub luag haujlwm MPO / MTP hauv kev teeb tsa:multi-fiber trunking ntawm cov ntsiab lus faibthiab breakout sib dhos uas nthuav tawm duplex connectors rau cov khoom siv.
8 fibers → 4 LC duplex khub
Breakout kev ua tau zoo yog teev ntawm ob hom connector
Lub 8-fiber OM4 sib dhos siv MTP poj niam connector thiab plaub LC UPC duplex kawg. Nws tau tshaj tawm txwv cais MTP interface ntawm 0.35 dB qhov siab tshaj qhov nkag los ntawm LC interface ntawm tsawg dua lossis sib npaug li 0.2 dB, yog li tus neeg yuav khoom tuaj yeem tso txhua qhov kev sib txuas rau hauv cov nyiaj siv nyiaj poob qis es tsis txhob cia siab rau ib qho kev thov "tsawg-tsawg".
8-144 fibers luam tawm
Standard thiab armored kev tsim kho nyob rau txawv txoj kev
Tus qauv MPO/MPO-OM3-12F-3.0MM-LSZH-1M cov khoom tsim nyog rau kev cog lus sab hauv tsev, thaum lub armored MPO/MTP ntau ntxiv muab kauv stainless-steel daim kab xev.Armoring yuav tsum tau xaiv rau cov neeg kho tshuab raug; nws tsis hloov qhov yuav tsum tau kom paub meej tias khoov tswj, connector poob, polarity los yog vaj huam sib luag compatibility.
LC Data Center Fiber Cabling rau Dense Hloov thiab Server Patching
LC cov rooj sib txoos haum cov khoom siv chaw nres nkoj thiab thaj chaw thaj chaw uas txhua qhov txuas siv ib qho kev sib txuas / tau txais khub. 1.25 hli LC ferrulemuab lub interface me dua li SC, thaum kev tsim kho uniboot txo cov naj npawb ntawm cov kab hluav taws xob xa mus los ntawm cov khib nyiab.
OM3: 10G txog 300m ntawm 850nm
Siv OM3 qhov twg lub transceiver thiab ncav cuag nws
Cov luam tawm LC UPC OM3 uniboot cable siv laser - optimized 50/125 µm fiber ntau thiab muaj nyob rau hauv OFNR thiab OFNP versions. Evolux teev cov qauv ntev ntawm 0.5 m mus rau 30 m thiab lees txais qhov ntev ntawm kev cai, tso cai rau BOM tswj kev pabcuam -loop tshaj es tsis txhob siv ib qhov ntev rau txhua txoj haujlwm khib.
OM4 los yog 9/125 µm ib leeg -hom
Xaiv cov qib fiber ntau los ntawm optics, tsis yog xim ib leeg
LC portfolio suav nrog ib qhoOM4 multimode duplex khoomthiab customizable 9/125 µm ib zaug - hom kev sib dhos nrog PVC, LSZH lossis OFNP cable xaiv. Jacket xim tuaj yeem txhawb kev txheeb xyuas, tab sis qhov kev yuav khoom tshwj xeeb yuav tsum muaj lub xeev hom fiber ntau, polish, lub tsho ntsuas thiab ntsuas IL / RL cov cai kom meej.
Poob-Cov peev nyiaj, Polarity thiab Interface Controls rau Data Center Fiber Cabling
Dab tsi ua rau ua ntej - txiav tawm lub rooj sib txoos siv tau yog qhov kev pom zoo ntawm txhua tus cwj pwm txuas. Cov kev kuaj xyuas no yuav tsum tau daws ntawm daim duab pom zoo lossis BOM ua ntej tsim khoom.
Optical poob nyiaj txiag
Ntxiv cov lus hais txuas thiab adapter poob ntawm txhua khub niam txiv, ntxiv rau fiber ntau attenuation thiab engineering margin. Thov daim ntawv qhia IL/RL nrog cov lus tsocai.
MPO / MTP polarity
Txhais qhov kawg -rau- xaus daim ntawv qhia fiber ntau thiab kev taw qhia tseem ceeb. "MPO/MTP tau tshaj" ib leeg tsis txheeb xyuas seb cov channel khaws cia thiab tau txais txoj hauv kev.
Connector poj niam txiv neej
Daim ntawv qhia pinned thiab unpinned interfaces ntawm transceivers, trunks, adapters thiab cassettes. Ob tus pinned connectors tsis tuaj yeem sib raug zoo.
Fiber qib thiab optics
Match OM3, OM4 lossis OS2 rau wavelength, cov ntaub ntawv tus nqi thiab ncav cuag ntawm cov ntaub ntawv transceiver. Tsis txhob hloov cov qib fiber ntau yam tsis tau kuaj xyuas cov channel.
Jacket thiab txoj kev
Lub xeev LSZH, OFNR, OFNP lossis lwm yam kev tsim kho, nrog rau txoj kab uas hla, routing ib puag ncig thiab kev tiv thaiv txhua yam xav tau.
Daim phiaj qhia txog tus kheej
Muab qhov chaw nres nkoj naming convention, cov ntawv sau los ntawm qhov kawg, lub tsho lossis khau khiab xim, lub sijhawm ntev thiab cov pab pawg ntim khoom xav tau rau kev teeb tsa ua ntu zus.
Xa ua tiav Passive Fiber Cable BOM rau kev tshuaj xyuas
Tus thawj tswj hwm lossis tus kws tsim khoom lag luam yuav tsum muab cov ntaub ntawv txaus los txheeb xyuas txhua qhov kev sib koom ua ke thiab txhua qhov kev lag luam sib txawv. Qhov no txo qis cov ntsiab lus nthuav dav thiab ua rau cov qauv ntsuas muaj txiaj ntsig.
Daim ntawv thov thiab topology:neeg rau zaub mov, chaw cia khoom, ToR/EoR, qaum, MDA los yog hla- txuas lub luag haujlwm.
Interfaces:connector hom, polish, MPO / MTP fiber ntau suav, poj niam txiv neej, kev taw qhia tseem ceeb thiab polarity.
Optical media:OM3, OM4 lossis OS2, wavelength, cov ntaub ntawv tus nqi, ncav cuag thiab xav tau cov chav kawm poob.
Mechanical tsim:cable ntev, txoj kab uas hla, breakout ntev, tsho ntsuam xyuas, armor thiab rub yuav tsum tau.
Cov ntaub ntawv lag luam:kom muaj nuj nqis los ntawm kev teeb tsa, qauv kom muaj nuj nqis, cov ntawv lo, logo, ntim thiab cov ntaub ntawv xav tau.
Custom Data Center Fiber Cabling Configuration thiab Drawing Review
Evolux hais tias kev sib txuas ntawm cov khoom sib txuas, qhov ntev cable, hom fiber ntau, hom polish, cable qauv, lub tsho thiab khau khau xim, cov ntawv lo thiab ntim tuaj yeem tshuaj xyuas rau qhov project-raws li cov khoom siv.
Specification thiab kos duab txhawb nqa
Muab cov duab kos, cov qauv khoom, cov lus qhia uas twb muaj lawm lossis topology. Kev tshuaj xyuas yuav tsum kaw lub connector mapping, breakout qhov ntev, ntev kam rau ua, lub tsho, daim ntawv lo txoj hauj lwm thiab packing unit ua ntej ib tug qauv tsim.
- BOM thiab topology tshuaj xyuas
- Connector thiab fiber ntau sib phim
- Standard los yog kev cai configuration
Qauv, me me -batch thiab bulk mov
Lub vev xaib lees paub cov qauv ntsuas, me me -batch customization thiab bulk ntau lawm. Nws tsis luam tawm ib qho kev ruaj ntseg MOQ lossis lub voj voog ua piv txwv rau txhua lub rooj sib tham hauv cov ntaub ntawv vim tias kev teeb tsa thiab qhov ntau cuam tshuam rau qhov kev txiav txim.
- Compatibility qauv
- Kev ntsuas kev ua haujlwm
- Pom zoo qauv raws li kev siv ntau lawm
Private daim ntawv lo thiab installation tus kheej
Muaj kev hloov kho muaj xws li lub tsho thiab khau khiab xim, cov cim cable, cov ntawv cim khoom, logos, ntim nruab nrab thiab cov neeg siv khoom- ntim tshwj xeeb. Txhais cov ntawv, hom ntawv barcode thiab xaus -A/end-B convention nyob rau hauv cov artwork pom zoo.
- Kev cai cable thiab cov ntawv cim khoom
- Logo thiab ntim tshuaj xyuas
- Xim coding los ntawm qhov project
Cov qauv thiab cov ntaub ntawv zoo rau Fiber Cable Assembly Procurement
Cov ntaub ntawv pov thawj zoo tshaj plaws yog khi rau cov khoom siv thiab cov khoom siv. Evolux cov nplooj ntawv luam tawm cov qauv kev sib txuas hauv qab no, cov ntsiab lus ntawm cov khoom siv thiab cov kev xaiv xeem; Cov neeg yuav khoom yuav tsum thov cov ntaub ntawv siv tau tawm tsam SKU.
IEC 61754-7 thiab TIA 604-5
Tshaj tawm rau MPO / MTP armored los ua ke thiab MPO / MTP adapter ntau yam. Cov ntawv pov thawj no txhais tau tias muaj ntau -fiber connector interface thiab txhawb kev txheeb xyuas kev sib raug zoo.
Telcordia GR-326 thiab JIS
Sau rau ntawm 0.2 dB qhov siab tshaj plaws -poob MTP/MPO nplooj ntawv adapter. Paub meej tias qhov kev tsim nyog los yog daim ntawv ua raws cai rau lub adapter configuration raug txiav txim.
OFNP cable tsho
Tshaj tawm rau 8-fiber OM4 MTP-rau-LC sib dhos. Qhov no qhia tau hais tias plenum cable tsim; tus tsim qhov project tseem muaj lub luag haujlwm rau kev lees paub hauv zos.
IEC 61754-20: Cov
Tshaj tawm rau LC OM4 duplex thaj qaum. Nws txheeb xyuas qhov LC connector interface siv hauv SFP, XFP thiab SFP + cov khoom sib txuas.
RoHS cov ntaub ntawv ua raws
Hais rau MTP/MPO adapter. Rau cov ntaub ntawv kev yuav khoom, thov daim ntawv tshaj tawm tam sim no uas txheeb xyuas cov khoom siv lossis cov khoom siv hauv tsev neeg.
Insertion-poob / rov- poob ceeb toom
Evolux hais tias IL/RL cov ntaub ntawv tuaj yeem muab tau. Qhia meej wavelength, txwv, xeem txoj kev, sampling hauv paus thiab seb serialized tau yuav tsum tau.
Evolux hais tias nws tau tsim nyob rau hauv 2013 thiab muaj ntau tshaj li 10 xyoo ntawm fiber optic kev lag luam kev. Tsis muaj cov ntaub ntawv -center- cov khoom xa tuaj tshwj xeeb lossis lub npe hu ua cov ntaub ntawv chaw pov thawj tau tshaj tawm rau ntawm nplooj ntawv tshuaj xyuas, yog li nplooj ntawv daws teeb meem no tsis muab qhov kev xa tawm tsis raug suav rau hauv cov ntaub ntawv chaw.
Data Center Fiber Cabling Solution FAQ
Cov ntaub ntawv dab tsi yuav tsum suav nrog hauv cov ntaub ntawv chaw fiber ntau cable RFQ?
Muab lub luag haujlwm txuas, transceiver lossis khoom siv interface, hom connector, fiber ntau, suav fiber ntau, polarity, connector poj niam txiv neej, polish, cable ntev, tsho ntsuam xyuas, kom muaj nuj nqis los ntawm qhov ntev, daim ntawv lo thiab ntim. Ib qho topology, BOM, kos duab, qauv lossis cov lus qhia tam sim no pab Evolux xyuas cov khoom sib haum ua ntej hais.
Thaum twg cov ntaub ntawv chaw yuav tsum siv LC duplex hloov MPO/MTP?
Siv LC duplex qhov twg cov cuab yeej siv thiab thaj teb nthuav tawm cov chaw nres nkoj LC duplex thiab qhov txuas nqa ib qho kev xa tawm / tau txais khub. Siv MPO/MTP rau ntau-fiber trunks, parallel-optics ports lossis siab-kev sib sau ua ke; MPO/MTP-rau-LC harness lossis cassette hloov pauv tuaj yeem txuas ob hom kev sib txuas.
Yuav ua li cas cov neeg yuav khoom xaiv ntawm OM3, OM4 thiab OS2?
Muab cov fiber ntau rau cov transceiver specification, wavelength, ncav cuag thiab ntsia cov nroj tsuag. Evolux teev OM3 thiab OM4 50/125 µm multimode sib dhos thiab OS2 9/125 µm ib leeg- hom kev xaiv; paub meej tias qib pes tsawg tiv thaiv cov ntaub ntawv cov khoom siv tsis yog xaiv los ntawm lub tsho xim ib leeg.
Cov ntaub ntawv MPO / MTP twg yuav tsum tau lees paub ua ntej ntau lawm?
Paub meej tias fiber ntau suav, poj niam txiv neej connector, kev taw qhia tseem ceeb, txoj kev polarity, UPC lossis APC polish, qib fiber ntau, poob chav kawm thiab kawg - mus rau -kawg daim ntawv qhia. Cov cwj pwm no ua haujlwm raws li ib qho kev ua haujlwm, yog li hom cable raug nrog qhov tsis ncaj ncees lawm polarity lossis poj niam txiv neej tseem tuaj yeem tiv thaiv qhov txuas ntawm kev ua haujlwm.
Dab tsi yog MOQ thiab qauv coj lub sij hawm rau kev cai cov ntaub ntawv chaw fiber ntau cables?
Evolux hais tias nws txhawb nqa cov qauv, me me -batch customization thiab bulk ntau lawm, tab sis lub website tsis luam tawm ib tug tas luav MOQ los yog qauv coj lub sij hawm rau cov tshuaj no. Ob leeg yuav tsum tau lees paub tom qab lub connector, fiber ntau, ntev, lub tsho, daim ntawv lo, xeem- qhia thiab kom muaj nuj nqis raug tshuaj xyuas.
Evolux puas tuaj yeem muab cov khoom ntiag tug -label cables thiab cov ntaub ntawv xeem?
Cov kev cai luam tawm muaj xws li lub tsho thiab khau raj xim, cov cim kab, cov ntawv cim khoom, logos, nruab nrab lossis cov neeg siv khoom- cov ntim tshwj xeeb thiab cov khoom tsim. Cov ntaub ntawv thiab cov ntaub ntawv tso tawm - poob / rov qab los - kev xeem tsis tau - qhia txog kev txhawb nqa kuj tau hais; txhais seb cov ntawv ceeb toom puas yog batch-raws li lossis serialized nyob rau hauv qhov kev txiav txim pom zoo specification.
Tsim Koj Cov Ntaub Ntawv Chaw Fiber Cabling BOM Nyob ib puag ncig tiag tiag
Xa cov topology, transceiver interfaces, connector mapping, OM3 / OM4 los yog OS2 yuav tsum tau, ntev, lub tsho, kom muaj nuj nqis thiab daim ntawv lo npaj. Evolux tuaj yeem tshuaj xyuas cov kab txuas txuas txuas txuas thiab cov khoom siv hluav taws xob tiv thaiv kev xa tawm.
