FTTH ODN Kev daws teeb meem rau kev ceev thiab txhim khu kev qha Fiber Access Deployment
Evolux muab ib qho - nres passive fiber optic Cheebtsam rau FTTH, FTTx thiab PON nkag network, suav nrog SC/APC connectors, adapters, pigtails, thaj qaum, PLC splitters thiab lub thawv davhlau ya nyob twg.
FTTH ODN Kev daws teeb meem rau kev ceev thiab txhim khu kev qha Fiber Access Deployment
Evolux muab ib qho - nres passive fiber optic Cheebtsam rau FTTH, FTTx thiab PON nkag networks - SC/APC connectors, adapters, pigtails, thaj qaum, PLC splitters thiab lub thawv davhlau ya nyob twg.
Los ntawm lub hauv paus chaw ua haujlwm patching mus rau qhov kawg - mais cov neeg yuav khoom poob qis, peb cov khoom siv FTTH daws pab cov neeg siv xov tooj, cov neeg cog lus thiab cov neeg xa khoom tsim kom ruaj khov, ua kom muaj zog thiab yooj yim- rau- nruab qhov muag sib txuas.
Pob ntseg Fiber Optic Supply Experience
Fiber Optic Connectors muab
FTTH & FTTx Project Orders Supported
Labeling & Packing Muaj

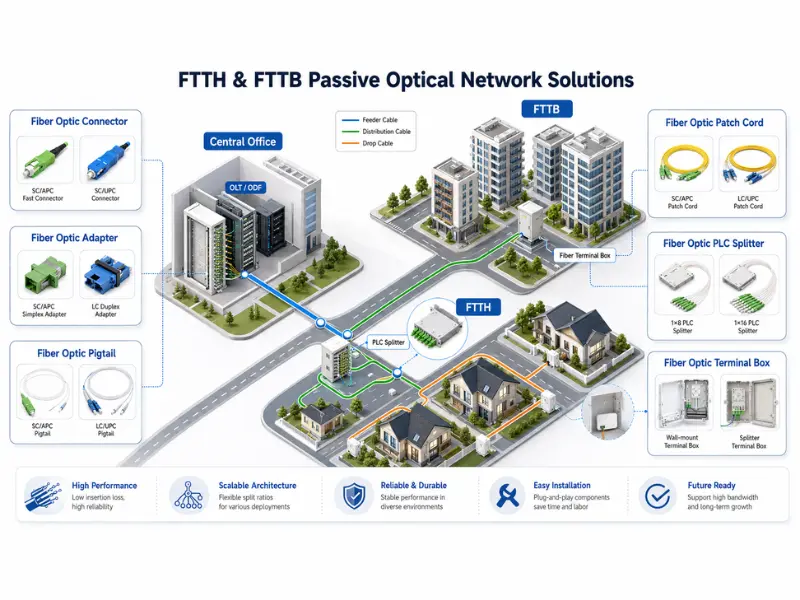

Hom FTTH ODN Network Architecture
Nyob rau hauv ib tug raug FTTH PON network, passive optical Cheebtsam txuas lub hauv paus chaw ua hauj lwm rau cov neeg siv kawg yam tsis muaj active khoom nyob rau hauv txoj kev tis. Evolux muab cov khoom tseem ceeb passive siv rau kev sib cais, splicing, patching, txiav thiab kev sib txuas ntawm cov neeg siv khoom.
OLT
Central Office
01
ODF / txee
Feeder Cable
02
PLC Splitter
1×4 – 1×64
03
Terminal Box
Kev faib tawm
04
Poob → ONT
Subscriber
05
Txhua ntu ntawm FTTH network xav tau cov khoom siv sib xyaw ua ke. Connector hom, splitter ratio, davhlau ya nyob twg lub thawv muaj peev xwm, fiber ntau hom thiab installation ib puag ncig cuam tshuam rau network kev ua tau zoo thiab installation efficiency. Evolux pab cov neeg siv khoom xaiv cov khoom sib xws raws li qhov project topology, cov neeg siv khoom kom muaj nuj nqis thiab xa tawm qhov xwm txheej.
Pom zoo FTTH Khoom Tsev Neeg
Evolux muab lub ntsiab passive fiber optic khoom tsev neeg siv nyob rau hauv FTTH thiab PON nkag network. Cov khoom no tuaj yeem muab rau tus kheej lossis ua ke rau hauv FTTH qhov project BOM.
Fiber Optic Connector
SC / APC ceev connector, SC / UPC connector thiab LC connector rau teb txiav, ONT kev twb kev txuas, davhlau ya nyob twg lub thawv thiab patching.
Siv nyob rau hauv: teb termination · ONT · patching
Fiber Optic Fast Connector Sc Apc
Fiber Optic Sc Connector
Fiber Optic Lc Connectors
Fiber Optic Adapter
SC / APC simplex adapter, LC duplex adapter thiab flange adapter rau lub thawv davhlau ya nyob twg, cov thawv xa khoom, ODF thiab cov thawv cais.
Siv nyob rau hauv: terminal box · ODF · splitter box

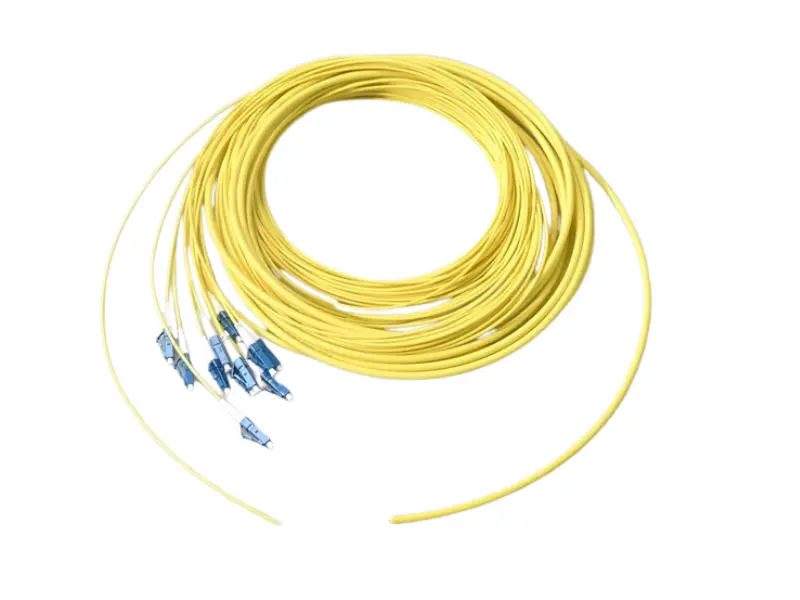

Fiber Optic Pigtail
SC/APC thiab LC/UPC pigtails nyob rau hauv OS2 G.657A1/A2 fiber ntau rau splicing cov ntsiab lus, davhlau ya nyob twg thawv thiab tis thav ntawv.
Siv nyob rau hauv: splice cov ntsiab lus · terminal box · ODF

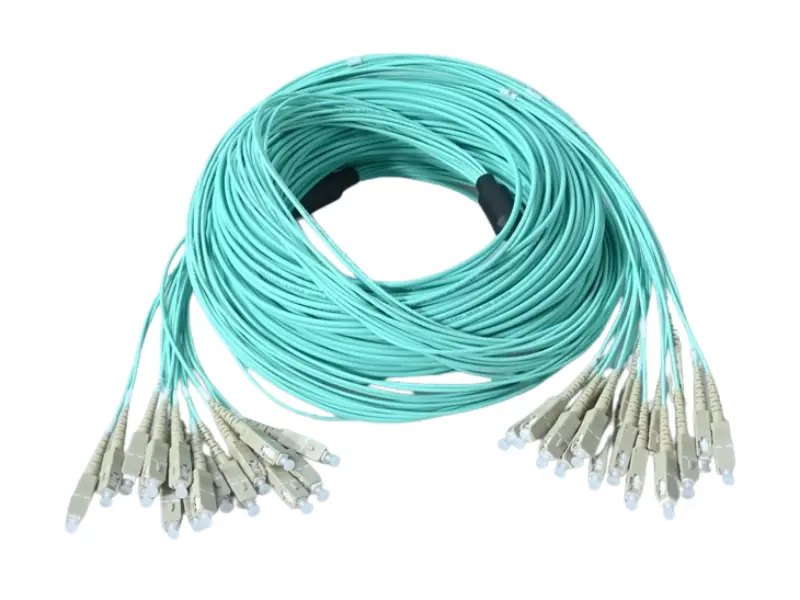

Fiber Optic Patch Cord
SC / APC simplex, LC thiab armored thaj qaum rau OLT, ODF, splitter, davhlau ya nyob twg lub thawv thiab ONT txuas.
Siv hauv: OLT · ODF · splitter · ONT

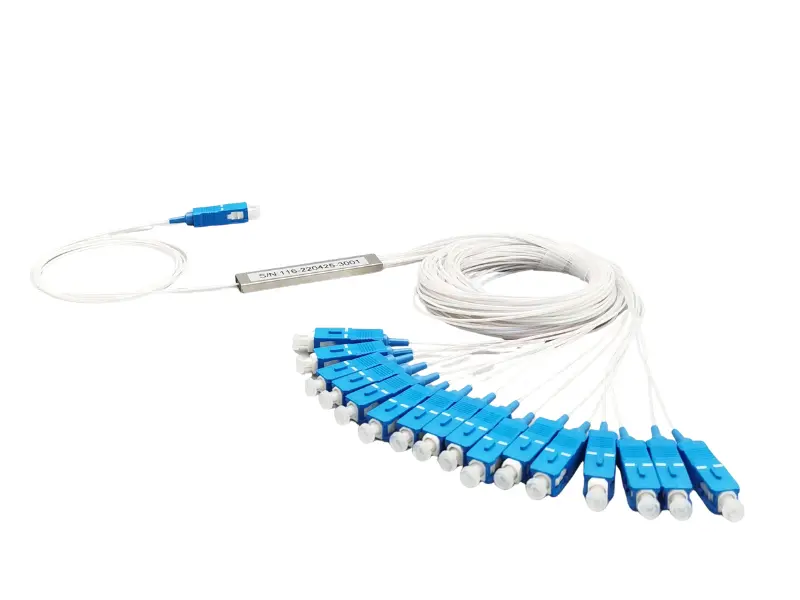

Fiber Optic PLC Splitter
1 × 4, 1 × 8, 1 × 16, 1 × 32 thiab 1 × 64 PLC splitters rau PON teeb liab splitting, centralized thiab theem nrab splitting.
Siv hauv: PON splitting · centralized · Secondary
Fiber Optic Terminal Box
2 mus rau 24 core terminal boxes, splitter lub thawv thiab phab ntsa-mount thawv rau txoj kev hauv tsev, phab ntsa, ncej thiab cov neeg siv khoom nkag.
Siv rau hauv: txoj kev hauv tsev · phab ntsa / ncej · cov ntsiab lus nkag
Txawm hais tias koj qhov project xav tau tus qauv SC / APC thaj cords lossis tag nrho cov thawv davhlau ya nyob twg, PLC splitters, adapters thiab pigtails - Evolux txhawb cov khoom hloov pauv hloov pauv rau cov qauv FTTH sib txawv.
FTTH Kev daws teeb meem rau kev xav tau sib txawv
Cov phiaj xwm FTTH sib txawv yuav tsum muaj txoj hauv kev sib txawv. Evolux txhawb nqa kev sib txuas -raws li FTTH, ua ntej- txiav FTTH thiab MDU lub tsev fiber ntau cov kev daws teeb meem.

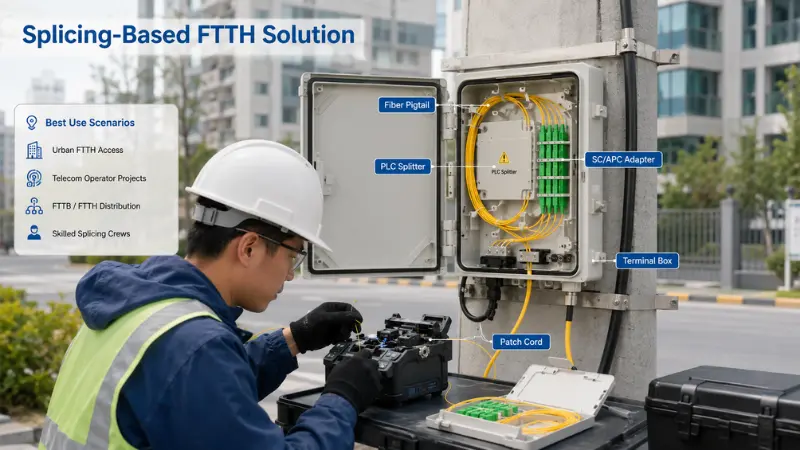

Splicing -Raws li FTTH Solution
Rau cov phiaj xwm FTTH ib txwm muaj, tus nqi - nkag mus tau yooj yim thiab xa mus rau qhov chaw fusion splicing yog xav tau.
Cov txiaj ntsig tseem ceeb:ruaj khov kev sib txuas thiab hloov tau yooj yim routing - ua tau rau ntev - lub sij hawm tsau nkag networks.
Fiber pigtails yog fusion spliced nrog feeder los yog tis fibers, thaum adapters thiab davhlau ya nyob twg lub thawv muab kev koom tes, tiv thaiv kev sib txuas cov ntsiab lus - zoo tagnrho rau tej yaam num xav tau kev ruaj khov ntev - lub sij hawm kev ua tau zoo thiab hloov tau yooj yim onsite routing.
- SC/APC Adapter
- PLC Splitter
- Terminal Box
- Patch Cord
Qhov zoo tshaj plaws siv scenarios
- Nroog FTTH nkag tau rau hauv tes hauj lwm
- Telecom tus neeg ua haujlwm cov haujlwm
- FTTB / FTTH faib cov ntsiab lus
- Pab pawg nrog cov kws tshaj lij splicing crews

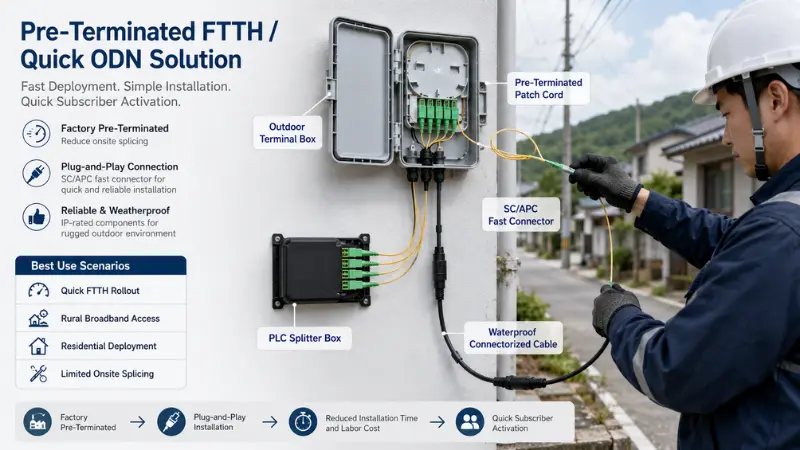

Ua ntej-Terminated FTTH / Quick ODN
Rau kev ua kom cov neeg siv ceev ceev, qis- nce thaj chaw nyob, nyob deb nroog thiab kev lag luam nrog cov nqi zog siab.
Cov txiaj ntsig tseem ceeb:txo thaj tsam splicing, yooj yim installation thiab ua kom cov neeg siv khoom kom nrawm.
Factory-tawm cables, connectors thiab davhlau ya nyob twg lub thawv txhim kho kev xa mus ceev thiab txo cov teeb meem kev teeb tsa - haum rau ceev FTTH rollouts qhov twg installation efficiency thiab zoo ib yam tseem ceeb tshaj.
- Kev piav qhia Description
- Specifications
- Nta
- Daim ntawv thov
Qhov zoo tshaj plaws siv scenarios:
- Quick FTTH rollout
- Nyob deb nroog broadband
- Kev xa tawm hauv zej zog
- Txwv cov peev txheej ntawm qhov chaw splicing

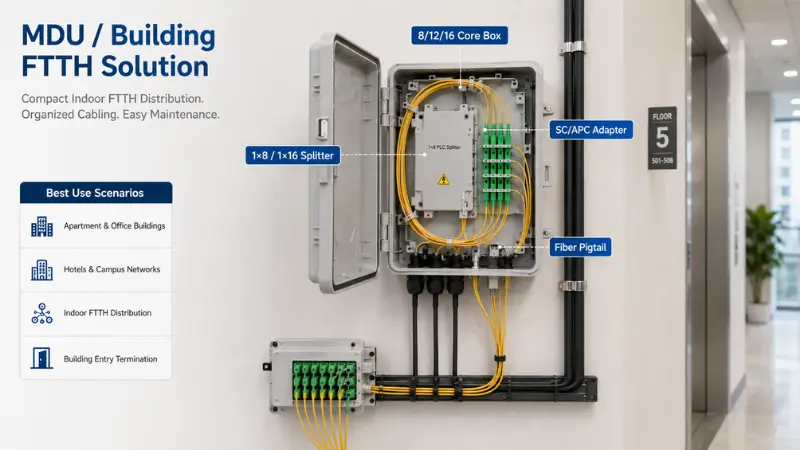

MDU / Tsev FTTH Solution
Rau cov tsev, chaw ua haujlwm, tsev so, tsev kawm ntawv thiab ntau- tsev nyob.
Cov txiaj ntsig tseem ceeb:compact fiber ntau faib rau ntau- cov tsev nyob thiab cov ntsiab lus nkag hauv tsev.
Rau MDU thiab lub tsev FTTH, kev faib tawm me me thiab kev saib xyuas yooj yim yog qhov tseem ceeb. Evolux muab cov thawv ntawv davhlau ya nyob twg, cov khoom sib cais, cov khoom hloov pauv, cov pigtails thiab sab hauv tsev patch cords rau txoj kev hauv tsev, pem teb - theem thiab cov neeg siv khoom - cov ntsiab lus sab hauv.
- 8/12/16 Core Box
- 1 × 8 / 1 × 16 Splitter
- SC/APC Adapter
- Fiber Pigtail
Qhov zoo tshaj plaws siv scenarios
- Apartment & chaw ua haujlwm tsev
- Tsev so & tsev kawm ntawv networks
- Sab hauv tsev FTTH faib
- Lub tsev kaw nkag
Yuav Ua Li Cas Xaiv FTTH Cov Khoom Rau Koj Qhov Haujlwm?
Txoj cai FTTH configuration nyob ntawm lub network qauv, splitter tsim, installation ib puag ncig thiab cov neeg siv khoom kom muaj nuj nqis. Siv phau ntawv qhia no los xaiv cov khoom siv tsis zoo ua ntej thov cov lus hais.
| Qhov project condition | Cov lus qhia | Cov ntaub ntawv kom paub meej |
|---|---|---|
| Centralized Splitting | PLC splitter txee / ABS / LGX | Splitter piv, chaw nres nkoj kom muaj nuj nqis, connector hom, installation qhov chaw |
| Secondary Spliting | Terminal box nrog splitter | User density, floor quantity, maintenance method |
| Sab nraum phab ntsa / Ncej Mounting | IP65 Sab nraum zoov Terminal Box | Waterproof theem, cable nkag kev taw qhia, mounting txoj kev |
| Txoj kev hauv tsev / Sab hauv tsev | Compact box + pigtail + thaj qaum | Nplaim taws- qhov yuav tsum tau muaj retardant, khoov vojvoog, lub thawv loj |
| Kev ua kom nrawm nrawm | Ua ntej- txiav tawm txoj hlua khi | Cable ntev, connector hom, rub lub qhov muag, waterproofing |
| PON Network Txuas | SC / APC connector + PLC splitter | Splitter piv, optical zog pob nyiaj siv, OLT / ONT interface |
Rau feem ntau FTTH PON tes hauj lwm, SC / APC connectors feem ntau yog siv los pab txo kev xav. Txawm li cas los xij, hom connector kawg yuav tsum yeej ib txwm phim OLT, ONT, splitter thiab project specification. Evolux tuaj yeem pab paub meej tias cov khoom sib raug zoo ua ntej ntau lawm.
Engineering Control Points rau FTTH ODN Deployment
FTTH tej yaam num xav tau ntau tshaj kev yuav khoom. Kev ua haujlwm kho qhov muag, ib puag ncig kev teeb tsa, kev sib txuas sib txuas thiab cov ntaub ntawv xeem yuav tsum tau txiav txim siab ua ntej lees paub cov npe khoom kawg.
TXOJ CAI 01

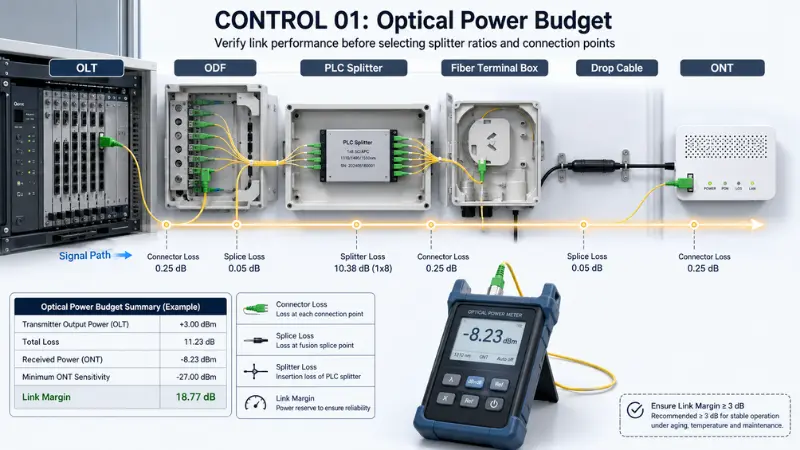

Optical Power Budget
Paub meej tias splitter poob, connector poob, splice poob thiab link margin ua ntej xaivsplitter ratiosthiab cov ntsiab lus txuas. Cov peev nyiaj siv hluav taws xob tsim nyog ua kom cov teeb liab ruaj khov ntawm OLT rau ONT.

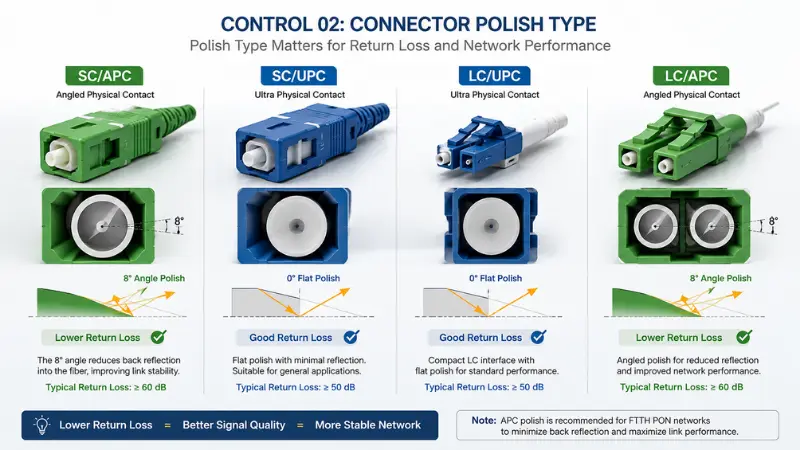

TXOJ CAI 02
Connector Polish Hom
PON tes hauj lwm feem ntau siv SC / APC vim APC polish txo rov qab poob. SC/UPC, LC/UPC lossis LC/APC kuj tseem siv tau - saibPC vs UPC vs APC polish.
TSEV 03

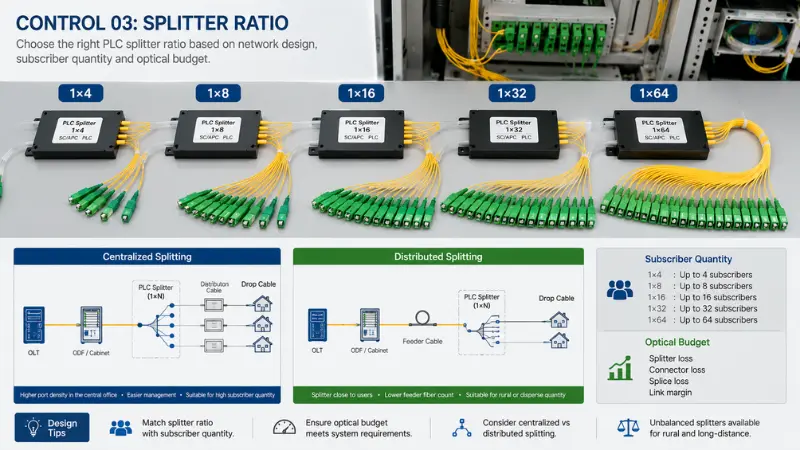

Splitter Ratio
Feem ntau PLC piv yog 1 × 4, 1 × 8, 1 × 16, 1 × 32 thiab 1 × 64. Xaiv los ntawm tus neeg siv khoom kom muaj nuj nqis, pob nyiaj siv kho qhov muag thiab qhov nruab nrab vs cov qauv tsim tawm - suav nrogtsis sib npaug sib caisrau haiv neeg.

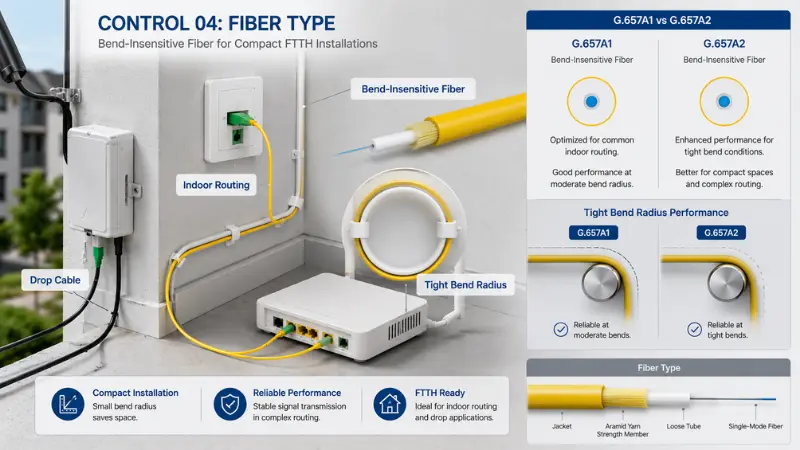

TSEV 04
Hom Fiber
Rau kev poob cable thiab sab hauv tsev routing, khoov-insensitive fibers xws li G.657A1 / G.657A2 yog nyiam rau qhov chaw compact thiab nruj khoov vojvoog. Sib pivsingle-mode vs multimode.

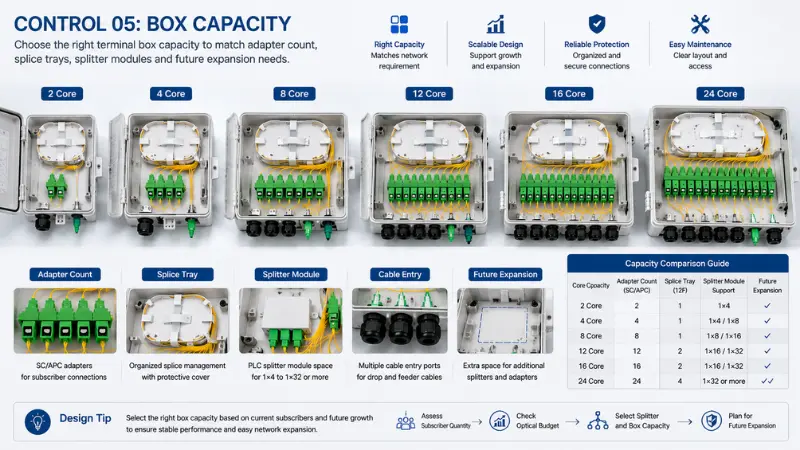

TXOJ CAI 05
Lub thawv muaj peev xwm
Sib twterminal lub thawvmuaj peev xwm rau adapter suav, splice tais, splitter modules thiab yav tom ntej expansion. Feem ntau xaiv: 2, 4, 8, 12, 16 thiab 24 core.

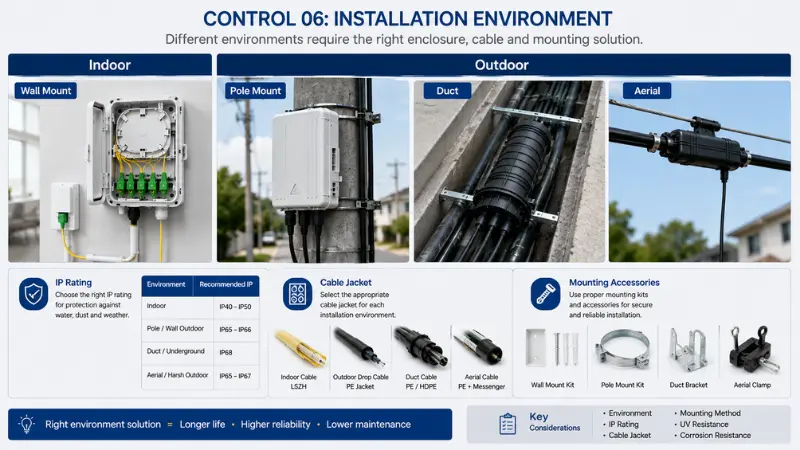

TSEV 06
Installation Ib puag ncig
Sab hauv, sab nraum zoov, phab ntsa, ncej, duct thiab huab cua puag ncig tej zaum yuav xav tau cov cable sib txawv, cov ntaub ntawv hauv lub thawv, kev ntsuas IP thiab cov khoom siv txuas ntxiv. Saibsab hauv tsev & sab nraum zoov installation.
FTTH Procurement & Engineering Guides
Cov ntaub ntawv siv los pab koj pab pawg npaj PON splitting, xaiv cov khoom sib txuas thiab npaj ua tiav FTTH passive tivthaiv BOM.
Customized FTTH Khoom Matching & BOM Kev them nyiaj yug
Txhua qhov project FTTH muaj qhov xav tau sib txawv. Evolux txhawb nqa cov khoom hloov pauv hloov pauv thiab hloov kho kom koj tuaj yeem npaj cov ntaub ntawv tsim nyog rau kev nkag mus rau kev xa tawm network.
Connector: SC / APC, SC / UPC, LC / UPC, LC / APC
Cable ntev & cable tsho
PLC splitter ratio
Terminal box muaj peev xwm
Sab hauv lossis sab nraum zoov nruab hom
Adapter ntau & vaj huam sib luag config

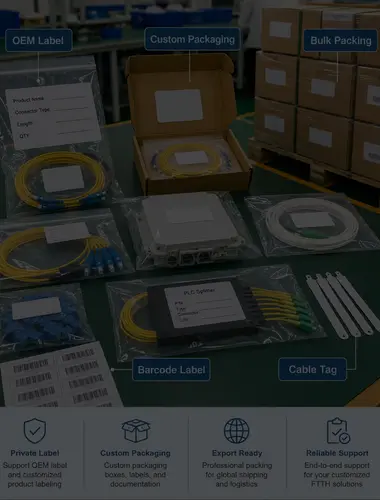

OEM daim ntawv lo & ntim
Datasheet & IL/RL test report
Xa koj lub network topology, cov neeg siv khoom kom muaj nuj nqis, cov phiaj xwm splitter thiab ib puag ncig kev teeb tsa - peb pab neeg yuav pom zoo cov connectors sib xws, adapters, pigtails, patch cords, PLC splitters thiab davhlau ya nyob twg thawv rau koj qhov project FTTH.
FTTH ODN Solution FAQ
Q: Cov khoom dab tsi feem ntau xav tau rau qhov project FTTH ODN?
A: Ib qho FTTH ODN qhov project yuav xav tau fiber ntau optic connectors, adapters, pigtails, thaj cords, PLC splitters, davhlau ya nyob twg thawv, poob cables thiab lwm yam accessories. Daim ntawv teev cov khoom kawg yog nyob ntawm lub network topology, splitter ratio, installation ib puag ncig thiab cov neeg siv khoom kom muaj nuj nqis.
Q: Evolux puas tuaj yeem muab FTTH cov khoom tiav BOM?
A: Yog. Cov neeg siv khoom tuaj yeem xa peb lub network topology, cov neeg siv khoom kom muaj nuj nqis, cov phiaj xwm splitter thiab ib puag ncig kev teeb tsa. Evolux tuaj yeem pom zoo kom tsim nyog FTTH passive tivthaiv BOM raws li qhov yuav tsum tau ua.
Q: Hom connector twg yog feem ntau siv hauv FTTH PON tes hauj lwm?
A: SC / APC feem ntau siv hauv FTTH PON tes hauj lwm vim nws pab txo qhov kev xav ntawm qhov muag. Txawm li cas los xij, hom connector kawg yuav tsum phim OLT, ONT, splitter thiab project specification. Saib peb SC/APC connector qhia.

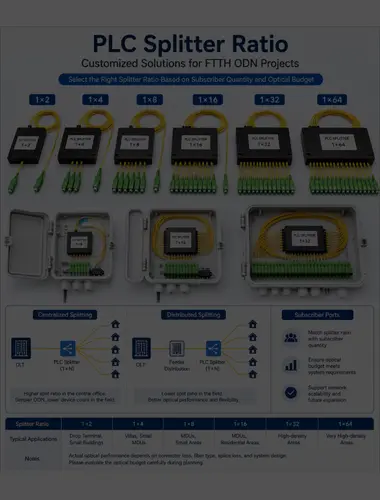

Q: PLC splitter ratio yog dab tsi?
A: Feem ntau PLC splitter piv suav nrog 1 × 2, 1 × 4, 1 × 8, 1 × 16, 1 × 32 thiab 1 × 64. Lwm qhov kev teeb tsa tuaj yeem sib tham raws li qhov xav tau ntawm qhov project. Xauj txhua PLC splitters.
Q: Koj puas tuaj yeem txhawb nqa ua ntej -tawm FTTH cov kev daws teeb meem?
A: Yog. Evolux tuaj yeem txhawb nqa ua ntej- txiav cov hlua txuas, cov khoom sib txuas ceev ceev, cov thawv ntawv davhlau ya nyob twg thiab cov khoom siv tsis sib xws los pab txo qis ntawm qhov chaw sib txuas thiab ua kom yooj yim rau kev teeb tsa.
Q: Koj puas tuaj yeem muab cov khoom rau sab hauv thiab sab nraum zoov FTTH installation?
A: Yog. Evolux muab cov thawv sab hauv tsev thiab sab nraum zoov, thaj cords, pigtails, adapters thiab lwm yam FTTH passive Cheebtsam. Kev siv sab nraum zoov tej zaum yuav xav tau cov thawv dej tsis muaj dej, cov tsho cable tsim nyog thiab cov khoom siv txuas kom zoo.
Tsim koj qhov FTTH ODN Project nrog Matched Passive Fiber Cheebtsam
Txawm hais tias koj xav tau tus qauv FTTH cov khoom lag luam lossis ib txoj haujlwm tsim kho BOM, Evolux tuaj yeem pab koj sib tw cov khoom sib txuas, cov khoom sib txuas, cov pigtails, thaj cords, PLC splitters thiab lub thawv davhlau ya nyob twg rau koj lub network xa tawm.
