Khoom Taw Qhia

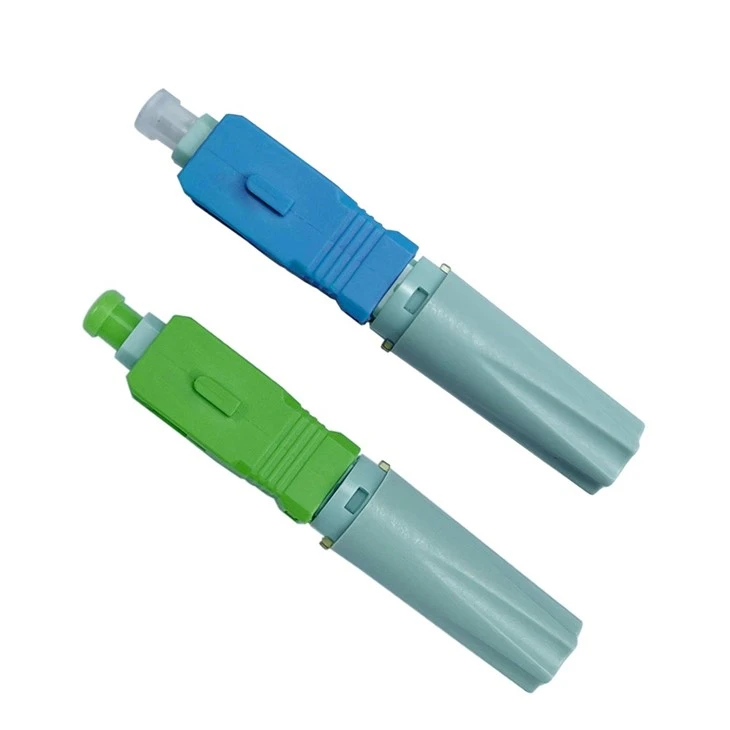

Fiber Optic Fast Connector (Field Assembly Connector lossis Field terminated fiber connector, fast assembly Fiber connector) yog ib qho kev hloov pauv ntawm qhov chaw nruab nrab ntawm cov khoom siv kho qhov muag uas yuav tsum tsis muaj epoxy thiab tsis muaj polishing. Tus tsim tshwj xeeb ntawm patented mechanical splice lub cev suav nrog lub Hoobkas-mounted fiber ntau stub thiab pre-polished ceramic ferrule. Siv qhov kev sib dhos ntawm qhov chaw
optical connector, nws yog ib qho ua tau los txhim kho qhov yooj yim ntawm optical thaiv kev tsim thiab txo lub sij hawm xav tau rau fiber ntau.
kev txiav txim. Fast connector series twb yog ib qho kev daws teeb meem rau kev kho qhov muag hauv cov tsev thiab hauv pem teb rau LAN & CCTV daim ntawv thov thiab FTTH
Khoom Specifications
|
Hom hom |
SC / APC (UPC) Connector |
Muaj feem xyuam rau |
{{0}}.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
|
Optical fiber ntau |
SM (9/125), MM (50/125, 62.5/125) 125μm (657A & 657B)
|
Tight buffer txoj kab uas hla |
250μm |
| Fiber hom | Tib hom | Lub sijhawm ua haujlwm | Txog 100s (tsis muaj fiber ntau txiav) |
| Ntxig poob | Tsawg dua los yog sib npaug rau 0.3dB(1310nm & 1550nm) | Rov qab poob | >50db(PC),> 55db(UPC),> 65db(APC) |
| Fastening lub zog ntawm liab qab fiber | >5 N | Fastening lub zog ntawm liab qab fiber tuav | >10 N |
| >50 N | Siv qhov kub thiab txias | -40 ~ +75 degree | |
|
IL Tsawg dua lossis sib npaug rau 0.5dB RL Tsawg dua lossis sib npaug rau 5dB |
Mechanical durability (500 zaug) |
IL Tsawg dua lossis sib npaug rau 0.5dB RL Tsawg dua lossis sib npaug rau 5dB |
Nta
Optical fiber ntau fast connectors yog ib qho kev nce qib hauv ntiaj teb kev sib txuas lus, muab ntau yam nta uas txhim khu kev sib txuas thiab kev ntseeg siab ntawm fiber ntau optic tes hauj lwm. Nov yog qee qhov tseem ceeb ntawm cov khoom siv kho qhov muag fiber ntau txuas.
Yooj yim siv
Tso cai rau kev txiav tawm sai thiab yooj yim ntawm fiber ntau optic cables. tsis xav tau cov cuab yeej tshwj xeeb lossis khoom siv, lawv tuaj yeem ntsia tau yooj yim los ntawm txhua tus neeg uas muaj kev paub txog fiber ntau optic cabling.
Kev ua haujlwm siab
Kev ua haujlwm siab, nrog kev poob qis qis thiab rov qab poob siab.Muab kev sib txuas ruaj khov thiab zoo ib yam, txawm nyob hauv qhov xav tau ib puag ncig.
Ntau yam
Haum rau siv nrog ntau hom fiber ntau optic cables, suav nrog ib hom thiab multimode fibers. hloov tau yooj yim thiab ntau yam kev daws teeb meem rau ntau yam kev siv.
Nqi siv tau
Kev daws teeb meem pheej yig rau kev txiav cov fiber ntau optic cables, Kev xaiv zoo rau cov lag luam thiab cov koom haum ntawm txhua qhov ntau thiab tsawg.
Txuag sij hawm
Quck thiab yooj yim rau nruab, txuag lub sij hawm thiab txo qis downtime.
Daim ntawv thov
Txhua-fiber kev sib txuas
Telecom faib thiab hauv cheeb tsam network
FTTH thiab FTTX
Passive optical networks (ATM, WDM, Ethernet)
Broadband, Cable TV (CATV)
