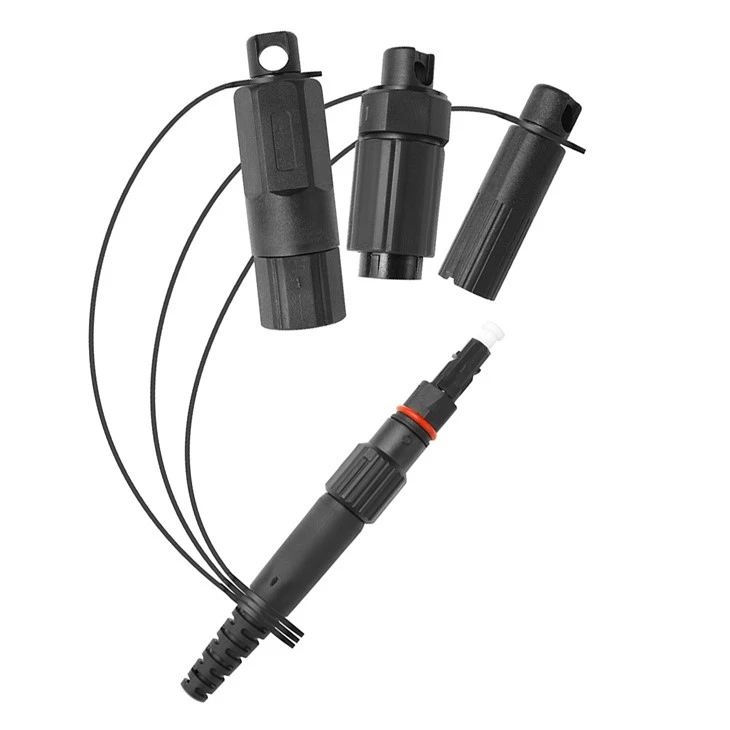

Nyob rau hauv lub tshav pob ntawm optical fiber connectivity, lub3 hauv 1 IP68 Waterproof Connectoryog tus hloov pauv kev ua si. Cov ntaub ntawv kis tau tus mob tau lees tias yuav txhim khu kev qha txawm nyob rau hauv cov xwm txheej nyuaj tshaj plaws ua tsaug rau qhov kev daws teeb meem tshiab no tsis muaj kev tiv thaiv tiv thaiv ya raws, plua plav, thiab huab cua ib puag ncig. Lub connector no zoo tagnrho rau ntau yam kev siv, suav nrog kev sib txuas lus thiab cov chaw khaws ntaub ntawv, kev lag luam automation, thiab cov chaw kho mob, ua tsaug rau nws cov qauv tsim thiab kev ua haujlwm zoo tshaj plaws.
Vim li cas thiaj xaiv US?
Ntawm Shenzhen Evolux Fiber Co., Ltd, peb tau mob siab rau muab cov kev daws teeb meem kho qhov muag fiber ntau uas ua raws li cov qauv zoo tshaj plaws thiab kev ua tau zoo. Peb pab neeg muaj kev paub dhau los tsim cov khoom tsim los kom dhau qhov kev cia siab ntawm cov neeg siv khoom thiab txhawb kev lag luam kev vam meej. Los ntawm kev xaiv peb3 hauv 1 IP68 Waterproof Connector, koj tuaj yeem ntseeg siab tau txais cov khoom lag luam txhawb nqa los ntawm ntau xyoo kev txawj ntse thiab kev cog lus rau kev ua tau zoo.
Khoom Specifications
|
Daim ntawv thov cable |
Φ3.0mm, 5.0 hli Round cable; 2 * 3mm, 2 * 5mm Flat cable. |
Dej tsis sib haum |
IP68 |
|
Insertion poob |
Tsawg dua lossis sib npaug rau {{0}}.3dB(Hom: 0.2dB) |
Rov qab poob |
Ntau dua lossis sib npaug rau 60 (8 degree Angled) |
|
Rov ua dua |
Tsawg dua lossis sib npaug rau 0.2dB |
Hloov pauv tau |
Tsawg dua lossis sib npaug rau 0.2dB |
|
Mechanical Durability |
500 zaug-△IL Tsawg dua lossis sib npaug rau 0.2dB |
Lub zog muaj zog |
Ntau dua lossis sib npaug rau 60N(Φ5.0mm Round cable); Ntau tshaj lossis sib npaug rau 100N (2 * 3mm, 2 * 5mm Flat cable); Ntau dua lossis sib npaug rau 200N(Φ5.0mm Round cable). |
|
Attenuation hloov tom qab traction |
Tsawg dua lossis sib npaug rau 0.1dB |
Ua haujlwm kub |
-40-+85 degree |
Khoom nta

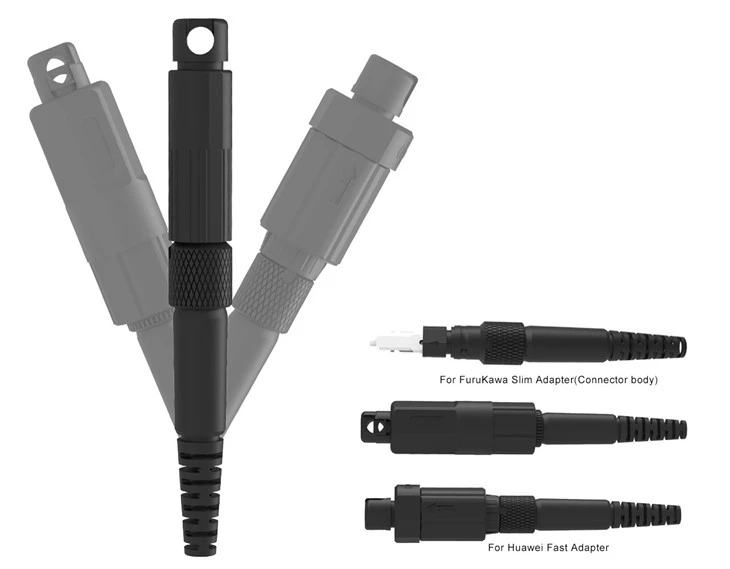

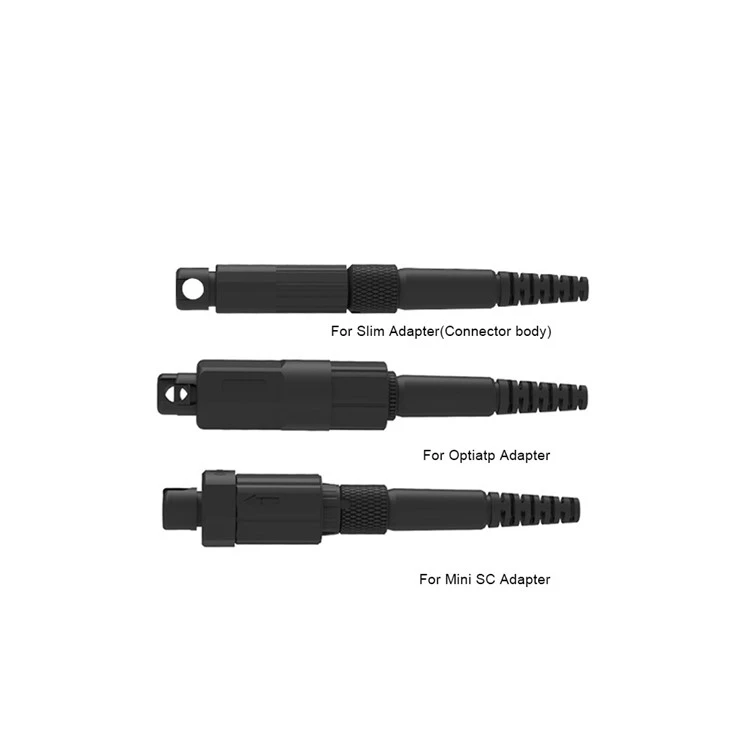

IP68 tiv thaiv los ntawm ya raws, plua plav, thiab corrosion yog sib xws nrog Huawei FAST, Corning OPT, thiab FuruKawa Slim adapters. Nws yog tsim nyog rau siv nyob rau hauv ducts, underground, thiab aerial daim ntaub ntawv thiab ua raws li SC-APC tus qauv (IEC61754-4) Dav khiav hauj lwm kub ntau yam (-40 degree rau +85 degree ).
Cov khoom siv
Fiber-to-the-Home (FTTH) thiab Fiber-to-the-X (FTTX) technologies ua lub luag haujlwm tseem ceeb hauv kev sib txuas niaj hnub. Passive Optical Networks (PON) suav nrog ntau yam qauv, suav nrog ATM, WDM, thiab Ethernet, ua kom cov ntaub ntawv xa mus tau zoo. Cov kab ke no yog ib qho tseem ceeb rau kev xa xov tooj sib txuas lus thiab kev sib txuas hauv cheeb tsam hauv cheeb tsam, ua kom yooj yim rau kev sib txuas lus ceev. Tsis tas li ntawd, lawv txhawb nqa cov kev pabcuam dav dav thiab Cable TV (CATV) cov tshuab, kom ntseeg tau tias kev xa xov xwm zoo. Tsis tas li ntawd, cov kev daws teeb meem fiber ntau yog qhov tseem ceeb rau kev lag luam automation thiab tswj kev sib koom tes, txhim kho kev ua haujlwm zoo thoob plaws ntau yam haujlwm.
Kev Tswj Xyuas Zoo
Peb qhov tseem ceeb tshaj plaws ntawm Shenzhen Evolux Fiber Co., Ltd. yog qhov zoo. Peb siv cov kev tswj xyuas qhov zoo tshaj plaws los ntawm peb cov kev sib koom ua ke kom lav tias txhua yam ua tiav peb cov lus qhia meej. Peb tuaj yeem xa cov khoom lag luam uas muaj kev ntseeg siab, ua kom ntev, thiab ua tau zoo tshaj plaws hauv kev ua haujlwm ua tsaug rau peb cov neeg ua haujlwm tau txais kev cob qhia thiab cov chaw ua haujlwm.
Kev Pabcuam OEM
Peb muab cov kev daws teeb meem OEM uas haum rau koj cov kev xav tau tshwj xeeb. Cov khoom sib txuas uas ua tau raws li koj cov kev xav tau tshwj xeeb tuaj yeem tsim thiab tsim los ntawm kev sib koom tes nrog peb cov neeg ua haujlwm paub txog. Peb muaj kev yoog raws thiab kev txawj ntse los muab qhov tseeb uas koj xav tau, txawm tias koj xav tau ib qho kev teeb tsa tshwj xeeb lossis kev tsim khoom lag luam.
FAQ
Txog Peb
Shenzhen Evolux Fiber Co., Ltd. Peb tau cog lus los ua kom tau raws li qhov kev xav tau ntawm kev lag luam kev sib txuas lus thoob ntiaj teb nrog kev tsom mus rau kev tsim kho tshiab thiab kev ntseeg siab. Peb pab pawg neeg txawj ntse tau mob siab rau kev ua haujlwm kho qhov muag fiber ntau thiab muab cov khoom lag luam uas tsis tu ncua tshaj li cov neeg siv khoom xav tau.
Yog xav paub ntxiv txog peb3 Hauv 1 IP68 Waterproof Connectorlos yog ib qho ntawm peb lwm cov kev daws teeb meem fiber ntau optic, thov hu rau peb pab neeg muag khoom ntawmsales@evoluxfiber.comthiabshanna@evoluxfiber.com. Peb tos ntsoov yuav pab koj cov kev xav tau kev sib txuas ntawm fiber ntau.
