Evolux Fiber: Koj tus kws tshaj lij Fiber Optic Connector Chaw tsim tshuaj paus!
Shenzhen Evolux Fiber Co., Ltd yog ib tug thawj coj ntawm kev txiav -ntug kho qhov muag fiber ntau cov kev daws teeb meem, tshwj xeeb hauv kev tshawb fawb, kev tsim kho, kev tsim khoom, thiab kev faib khoom ntawm qib siab - fiber ntau optic khoom. Tsim nyob rau hauv 2013 xyoo, thiab headquartered nyob rau hauv Shen Zhen, Tuam Tshoj, peb tau tshwm sim raws li ib tug ntseeg lub npe nyob rau hauv lub teb ntawm fiber optics. Nrog rau kev tsom mus rau kev tsim kho tshiab thiab kev ntseeg siab, peb siv zog ua kom tau raws li qhov xav tau hloov zuj zus ntawm kev lag luam kev sib txuas lus thoob ntiaj teb.
Peb Qhov Zoo
Ntau yam khoom Portfolio
Peb muab ntau yam khoom siv kho qhov muag fiber ntau, los ntawm ib qho -hom thiab ntau- hom optical fibers mus rau cov khoom siv kho qhov muag tshwj xeeb rau cov kev siv tshwj xeeb, suav nrog cov fiber ntau optical cables, connectors, transceivers, adapters, thiab lwm yam khoom siv kom tau raws li cov kev xav tau ntawm peb cov neeg siv khoom.
Kev Pab Txhawb Cov Neeg Siv Khoom Zoo
Peb tau sib sau ua ke pab pawg kws tshaj lij uas tau npaj los txhawb peb cov neeg siv khoom. Lawv pab cov neeg siv khoom xaiv txoj kev daws teeb meem fiber ntau thiab coj cov txheej txheem kev siv, tso cai rau cov neeg siv khoom txaus siab rau kev ua ntej - kev sib tham txog kev muag khoom los tshaj tawm - kev muag khoom thiab kev pab cuam.
Advanced R & D Facilities
Xeev- ntawm-- cov chaw R&D kos duab, khoom siv, thiab cov chaw sim tshwj xeeb muab qhov chaw zoo tshaj plaws rau kev txiav- kev tshawb fawb, kev sim, thiab kev sim cov khoom siv fiber ntau, kev tsim, thiab kev tsim khoom.
Kev Customization Services
Peb muab cov kev xaiv customization uas tso cai rau cov neeg siv khoom los txiav cov khoom siv fiber ntau rau lawv cov kev xav tau tshwj xeeb. Fiber txoj kab uas hla, txheej khoom, los yog connector hom tuaj yeem hloov kho tau yooj yim.
Product Categories
Latest Products

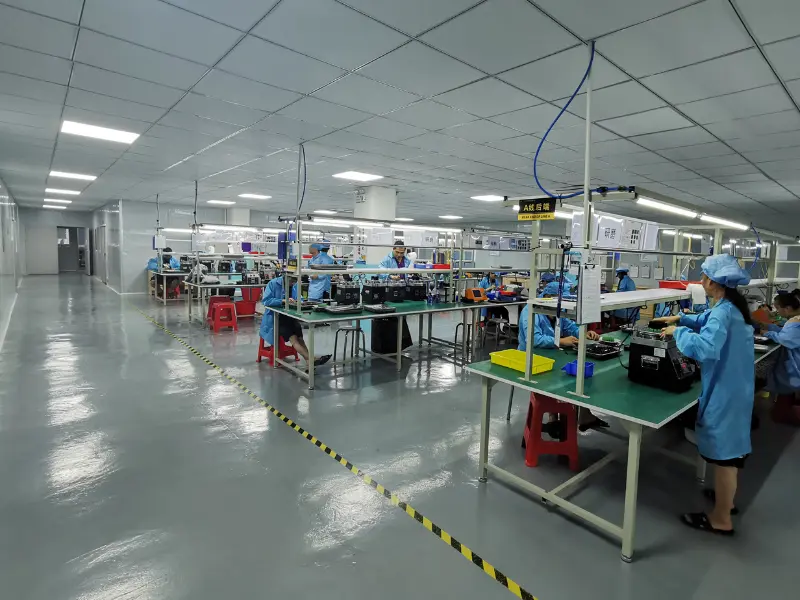

Yuav Ua Li Cas Fiber Optic Connectors Manufactured?
Fiber optic connector manufacturing yuav tsum raug fiber ntau sib dhos, tswj kev sib dhos thiab ua haujlwm zoo ib yam. Txawm tias me me variations nyob rau hauv ferrule qhov ntev, fiber ntau positioning los yog kawg -fab geometry tej zaum yuav cuam tshuam rau qhov poob, rov poob thiab ntev -lub sij hawm kev twb kev txuas stability.
Cov txheej txheem tsim khoom raws nraim nyob ntawm tus qauv tsim. Cov khoom siv fiber ntau optic ib txwm koom nrog kev npaj fiber ntau, sib txuas, kho thiab xaus - ntsej muag polishing. Field-installable fast connectors feem ntau yog siv lub Hoobkas- npaj fiber ntau stub, ib tug precision alignment qauv thiab Performance index- txuam technology kom yooj yim txiav ntawm qhov chaw installation.
Ntawm EVOLUX, cov kev xav tau ntau lawm tau lees paub raws li cov khoom sib txuas, hom polish, hom fiber ntau, cov qauv cable sib xws thiab lub hom phiaj kev ua haujlwm. Tsis yog txhua yam khoom ua raws nraim tib yam txheej txheem, tab sis cov theem hauv qab no qhia txog seb peb tswj cov khoom sib txuas ntawm cov khoom tuaj mus rau cov khoom tiav.
Raw Material Inspection
Ferrules, vaj tse, springs, khau boots, fiber ntau thiab ntim cov ntaub ntawv raug tshuaj xyuas ua ntej ntau lawm.
Cov tshev yuav suav nrog:
- Ferrule qhov ntev thiab qhov tsos
- Cov khoom siv vaj tsev thiab xim
- Mechanical Cheebtsam
- Fiber Cheebtsam
- Daim ntawv lo thiab ntim
Cov ntaub ntawv uas tsis yog - raug txheeb xyuas thiab sib cais ua ntej sib dhos.
Component thiab Ferrule Kev Npaj
Cheebtsam yog npaj raws li kev pom zoo connector specification.
Cov txheej txheem yuav muaj xws li:
- SC, LC, FC lossis ST cov qauv
- PC, UPC lossis APC configurations
- Tib - hom lossis ntau hom kev xaiv
- 1.25mm los yog 2.5mm ferrules
- Simplex, duplex lossis ceev connector tsim
Cov ntaub ntawv raug teeb tsa raws li cov ntaub ntawv pov thawj pom zoo.

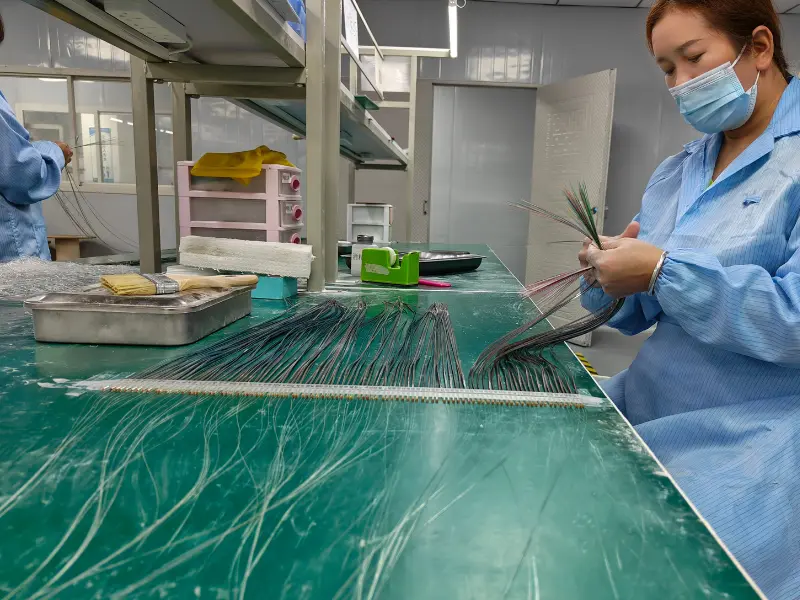

Fiber Preparation lossis Pre-Embedded Assembly
Cov txheej txheem sib txawv ntawm cov pa thiab teb -installable connectors.
Nws tuaj yeem suav nrog:
- Fiber stripping thiab tu
- Kev npaj fiber ntau
- Ferrule insertion
- Ua ntej-polished fiber ntau-stub installation
- Precision sib dhos sib dhos

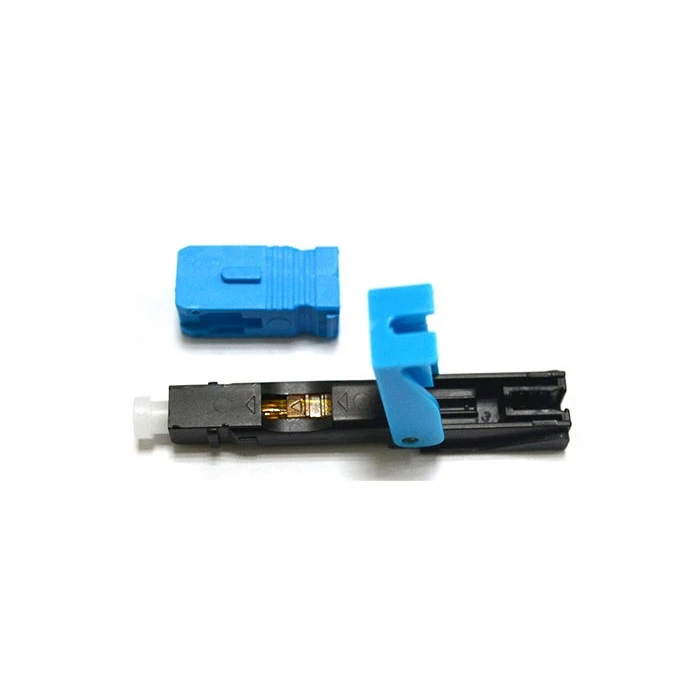

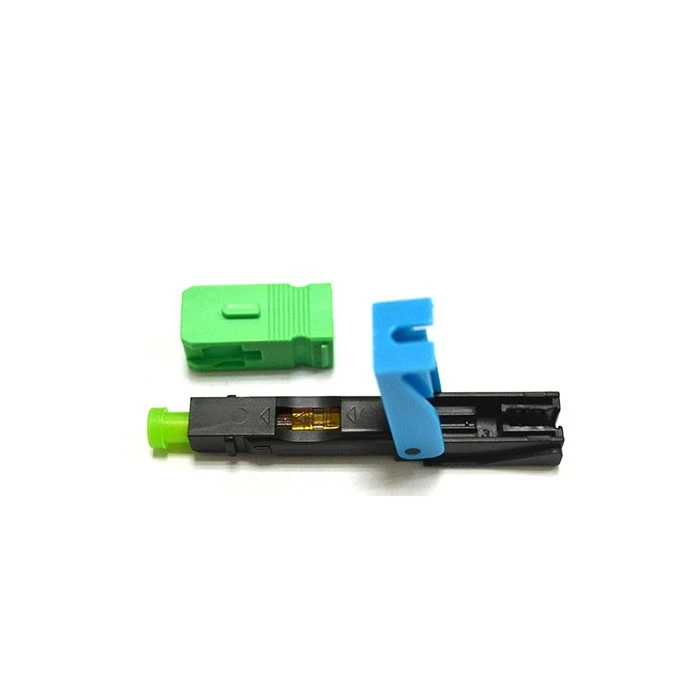

Cov khoom sib txuas ceev kuj tseem tuaj yeem siv qhov ntsuas ntsuas - siv thev naus laus zis los txhawb kev sib kis tau zoo.

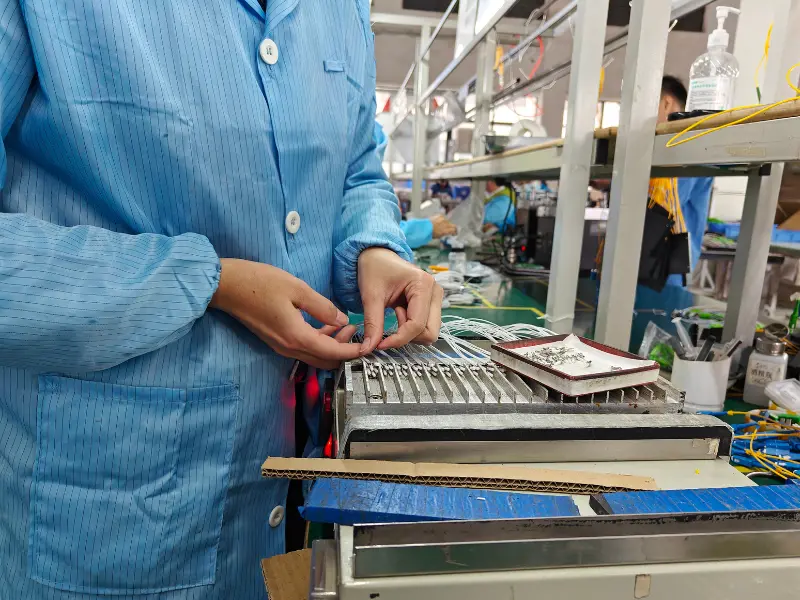

Fiber kho thiab kho
Cov fiber ntau yog ruaj khov siv txoj kev sib txuas los yog kho tshuab.
Cov kev tswj hwm tseem ceeb yuav suav nrog:
- Fiber positioning
- Daim ntawv thov kev sib khi
- Kho tej yam kev mob
- Mechanical xauv
- Kev sib haum xeeb sab hauv
Cov txheej txheem yog tswj kom txo qis kev txav thiab tswj kev ua haujlwm kho qhov muag ruaj khov.

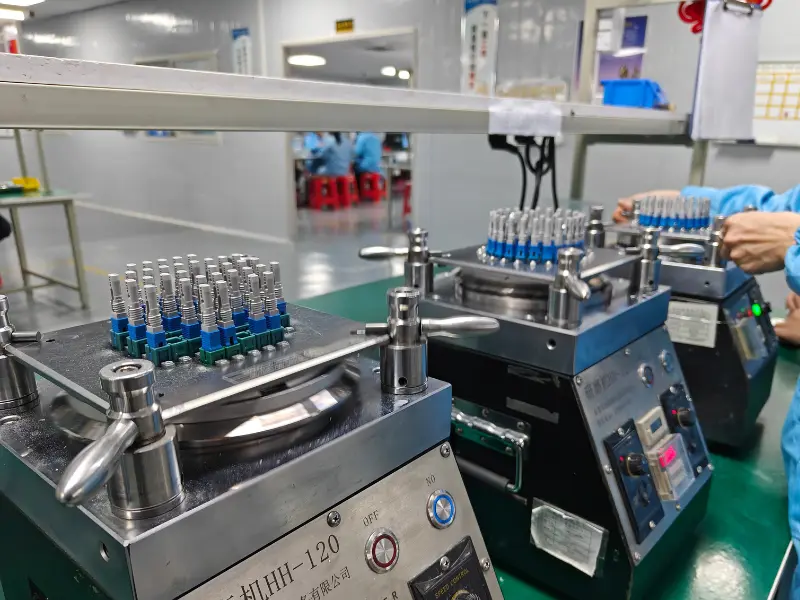

Xaus-Kev ua ntsej muag thiab polishing
Pa connector kawg lub ntsej muag tau ua tiav raws li PC, UPC lossis APC cov cai.
Cov txheej txheem yuav muaj xws li:
- Fiber thiab nplaum tshem tawm
- Ferrule sib tsoo
- Multi-theem polishing
- Xaus- ntxuav ntsej muag

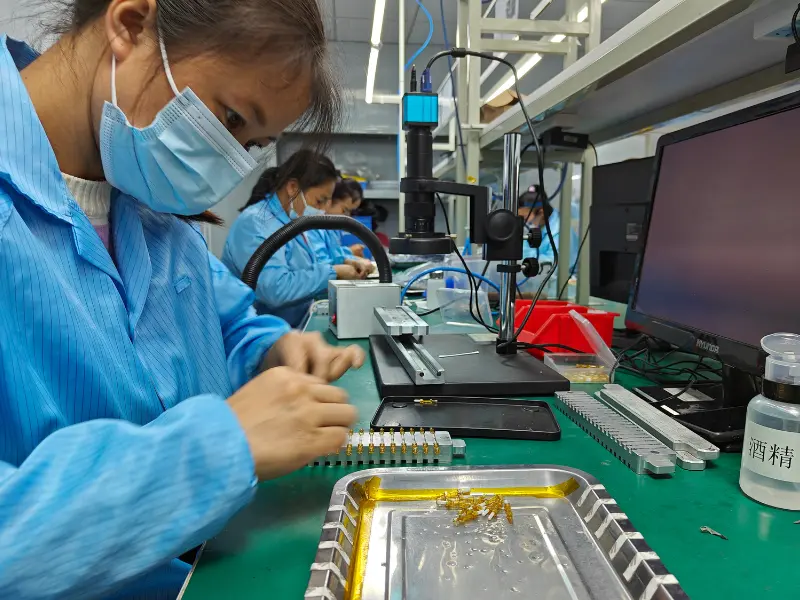

- Kev tshuaj xyuas microscopic
Kev tswj polishing pab tswj kev poob qis, rov qab poob thiab kev sib txuas ruaj khov.

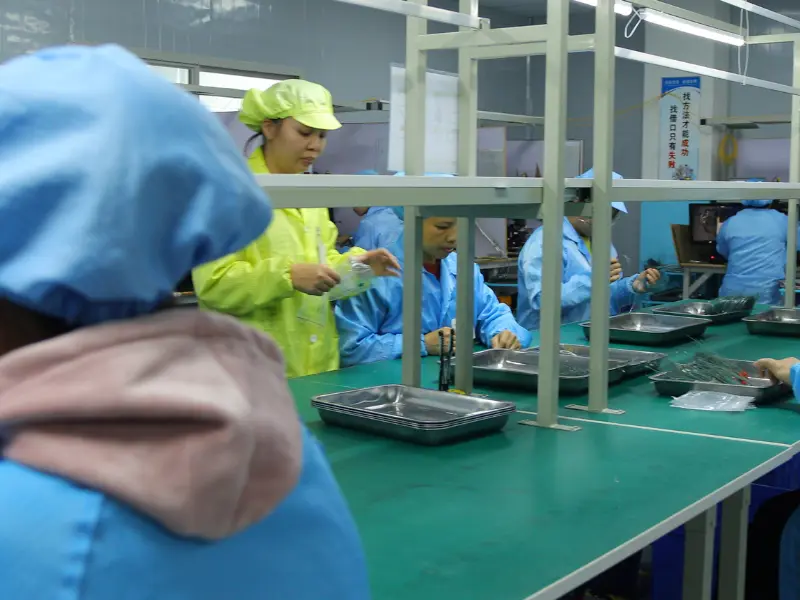

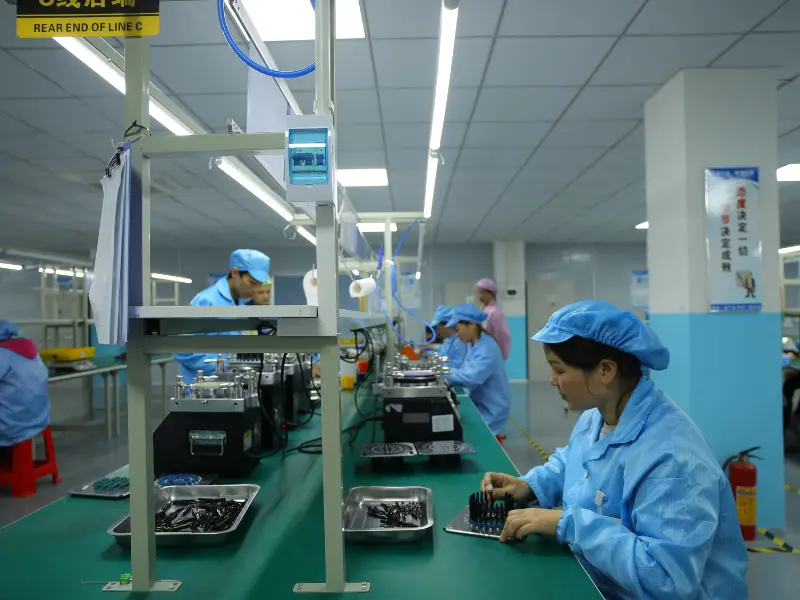

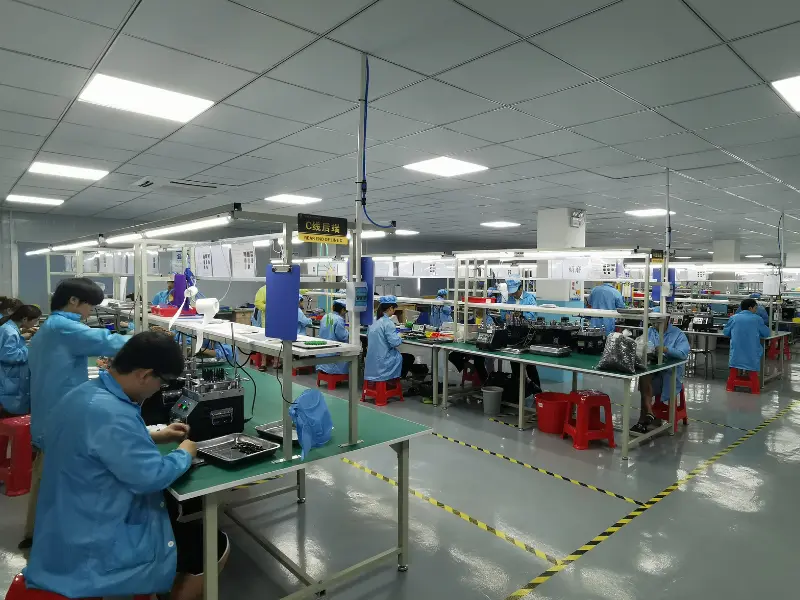

Connector Assembly
Ferrules, springs, vaj tse, khau looj plab hlaub thiab cov khoom xauv yog sib sau ua ke rau hauv cov khoom tiav.
Kev kuaj xyuas los ua ke tuaj yeem suav nrog:
- Ferrule txoj hauj lwm
- Caij nplooj ntoos hlav installation
- Kev taw qhia vaj tse
- Xauv muaj nuj nqi
- Plua plav-cap tiv thaiv
Customized khoom yog sib sau ua ke raws li daim duab pom zoo lossis qauv.

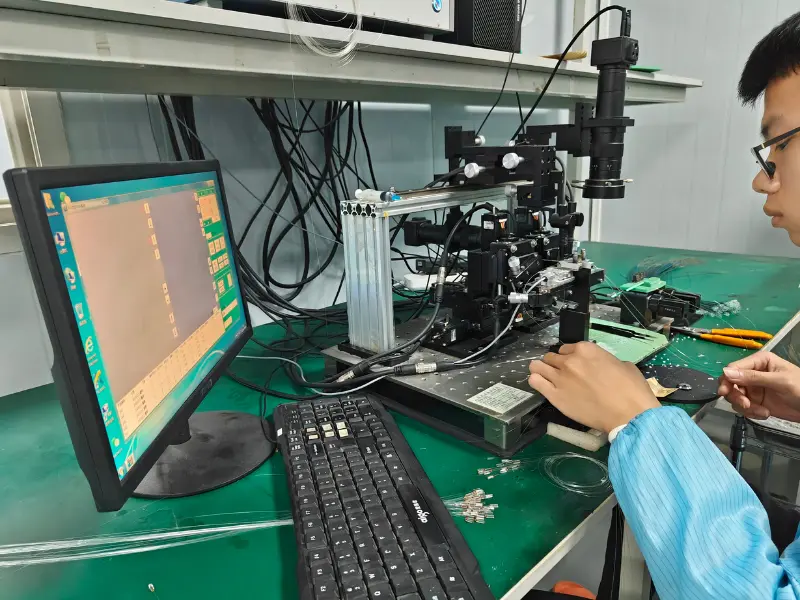

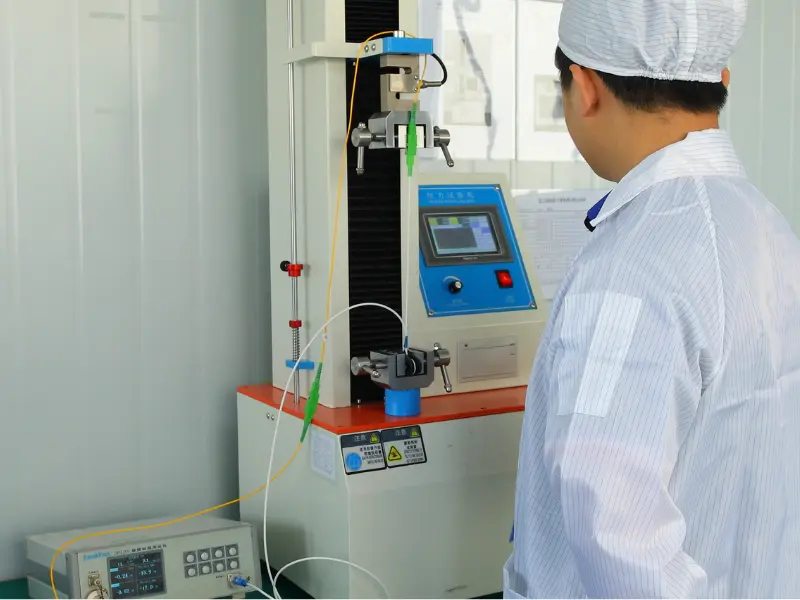

Optical thiab Mechanical Testing
Cov khoom tiav tiav raug kuaj raws li cov khoom specification thiab daim ntawv thov.
Kev kuaj yuav muaj xws li:
- Insertion poob
- Rov qab poob
- Xaus-kev tshuaj xyuas ntsej muag
- Mating thiab qhov ntev
- Tensile los yog durability kuaj
Cov khoom xeem thiab cov qauv kev lees paub raug lees paub raws li qhov project yuav tsum tau ua.

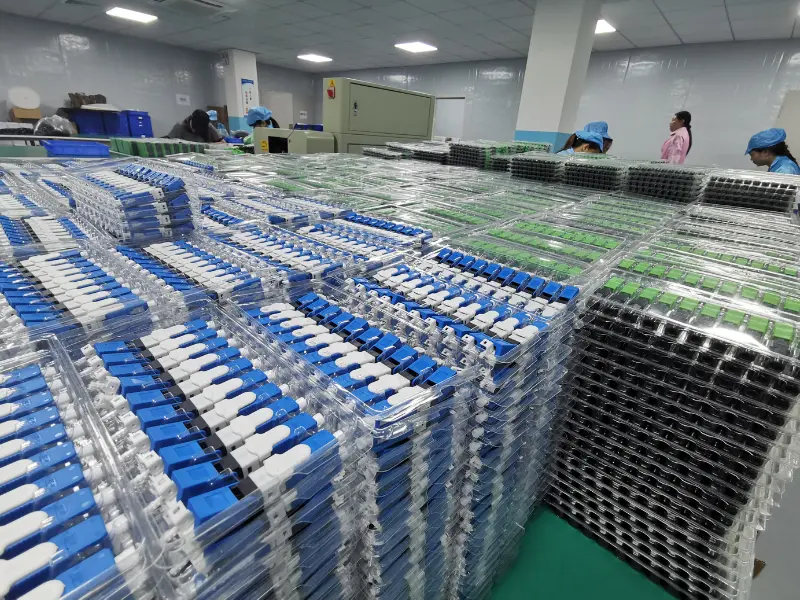

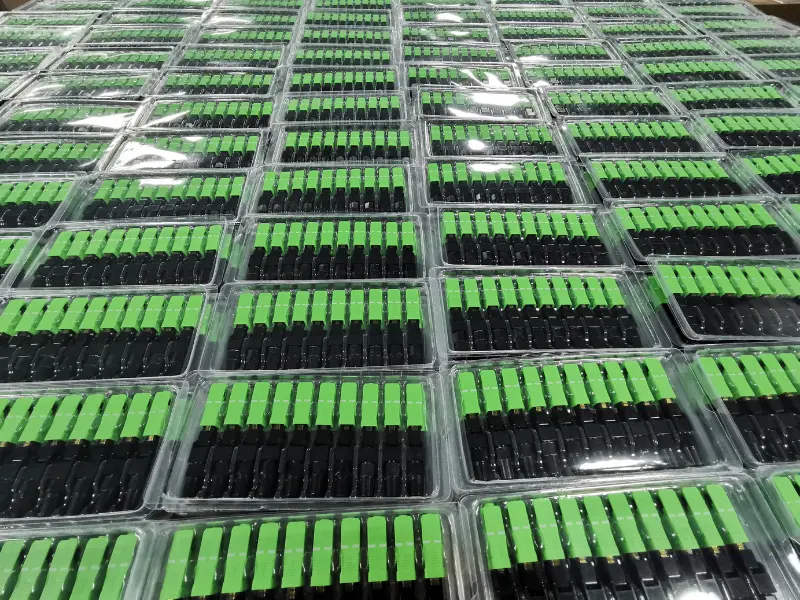

Kev soj ntsuam zaum kawg thiab ntim
Kev pom zoo txuas txuas mus rau qhov kawg tshuaj ntsuam xyuas thiab ntim khoom.
Kev kuaj zaum kawg yuav suav nrog:
- Qhov tsos thiab kev huv
- Xaus - lub ntsej muag mob
- Optical kev ua tau zoo
- Daim ntawv lo thiab kom muaj nuj nqis
- Ntim mob
Cov khoom muaj kev tiv thaiv nrog lub kaus mom plua plav thiab ntim rau hauv cov qauv lossis kev ntim khoom.
Sib tham txog koj qhov Connector Project
Kev Tswj Xyuas Zoo los ntawm cov khoom xa tuaj mus rau kev xa khoom zaum kawg
Kev sib txuas zoo sib xws nyob ntawm ntau dua qhov kev sim zaum kawg.
Ib qho kev sib txuas ua tiav tuaj yeem dhau ib qho kev sim kho qhov muag thaum tseem raug cuam tshuam los ntawm cov ntaub ntawv tsis sib xws, cov xwm txheej tsis ruaj khov, kawg - ntsib kev kis kab mob los yog ntim puas. Vim li no, EVOLUX tswj kev ua tau zoo ntawm ntau theem, suav nrog cov khoom tuaj, cov txheej txheem tsim khoom, kev ua haujlwm kho qhov muag, kev sib dhos tshuab thiab kev tshuaj xyuas cov khoom xa tuaj zaum kawg.
Cov txheej txheem zoo tau lees paub raws li tus qauv txuas, daim ntawv thov thiab cov neeg siv khoom xav tau. Rau cov phiaj xwm customized, cov khoom tshuaj xyuas thiab cov qauv kev lees paub tuaj yeem raug tshuaj xyuas ua ntej cov qauv npaj lossis ntau lawm.
Kev Tswj Xyuas Zoo - IQC
Cov khoom xa tuaj raug tshuaj xyuas ua ntej tsim khoom los txheeb xyuas cov teeb meem ntawm cov khoom, qhov loj me thiab qhov tsos.
Kev tshuaj xyuas yuav muaj xws li:
- Ferrule qhov ntev thiab qhov chaw nyob
- Cov khoom siv vaj tse, qhov ntev thiab xim
- Locking thiab mating qauv
- Springs, khau boots thiab mechanical Cheebtsam
- Fiber lossis pre{0}}embedded fiber ntau
- Cov ntawv thiab cov khoom ntim
Cov ntaub ntawv tsis raug cai raug txheeb xyuas thiab sib cais ua ntej kev tsim khoom los txo cov teeb meem sib dhos thiab tswj cov khoom sib xws.
Hauv -Txoj Kev Tswj Xyuas Zoo - IPQC
Cov theem tsim khoom tseem ceeb raug saib xyuas kom tswj tau qhov chaw fiber ntau zoo ib yam, cov qauv txuas thiab kev sib dhos zoo.
Kev tshuaj xyuas yuav muaj xws li:
- Fiber npaj thiab huv si
- Fiber positioning thiab ferrule los ua ke
- Bonding, kho thiab kho tej yam kev mob
- Xaus- ntsej muag sib tsoo thiab polishing
- Housing orientation thiab sib dhos qhov ntev
- Xauv, mating thiab khau raj installation
Kev tsim khoom ua raws li kev pom zoo tshwj xeeb thiab cov lus qhia ua haujlwm. Customized cov khoom raug tswj raws li qhov pom tseeb daim duab, specification lossis pom zoo qauv.
Optical thiab Mechanical Performance Testing
Cov khoom tiav tiav raug kuaj raws li cov qauv khoom, npaj daim ntawv thov thiab lees paub cov neeg siv khoom xav tau.
Kev kuaj yuav muaj xws li:
- Insertion poob thiab rov poob
- Xaus-kev tshuaj xyuas ntsej muag
- Connector qhov ntev thiab mating mob
- Kev sib txuas repeatability
- Tensile zog thiab kev tuav cable
- Mechanical durability
- Kev ntsuas ib puag ncig lossis ntsuas kub
Tsis yog txhua tus connector xav tau tib yam kev sim. Cov khoom soj ntsuam thiab cov qauv kev lees paub raug lees paub raws li cov khoom tsim thiab cov haujlwm yuav tsum tau ua.
Kev Tswj Xyuas Zoo Kawg thiab Kev Tshawb Fawb - FQC / OQC
Cov khoom tiav tiav raug tshuaj xyuas ua ntej ntim thiab xa khoom kom paub tseeb cov khoom zoo thiab kev txiav txim kom raug.
Kev kuaj zaum kawg yuav suav nrog:
- Kev ua haujlwm kho qhov muag thiab xaus - lub ntsej muag mob
- Cov khoom zoo li thiab huv
- Cov xim vaj tse thiab cov khoom kos npe
- Daim ntawv lo, kom muaj nuj nqis thiab ntim khoom raug
- Thawv thiab cov neeg siv khoom - cov kev cai tshwj xeeb
Cov khoom lag luam pom zoo raug tso tawm rau kev xa khoom xa tuaj, thaum tsis yog - cov khoom lag luam raug cais tawm los tshuaj xyuas. Nyob ntawm qhov project, cov ntaub ntawv txhawb nqa tuaj yeem suav nrog cov ntaub ntawv tshuaj xyuas cov ntaub ntawv, cov ntaub ntawv kuaj pom qhov muag, cov qauv kev pom zoo, cov ntawv qhia tshwj xeeb, ntau qhov traceability thiab kho - cov ntaub ntawv ua haujlwm.
Kev cai Fiber Optic Connectors Ua nyob ib ncig ntawm koj yuav tsum tau
Standard fiber optic connectors tsis yeej ib txwm haum rau txhua lub network, ntaus ntawv los yog installation ib puag ncig.Different tej yaam num yuav xav tau ib tug tshwj xeeb connector qauv, fiber ntau hom, cable loj, vaj tse xim, mechanical design, optical kev ua tau zoo theem los yog ntim hom. EVOLUX txhawb nqa qhov project-raws li customization rau distributors, contractors, equipment manufacturers thiab private-label brands.Customization feasibility is reviewed raws li cov khoom tsim nyog, kev txiav txim kom muaj nuj nqis, khoom muaj thiab cov kev cai.
Connector Configuration
Connector configurations tuaj yeem xaiv lossis hloov kho raws li daim ntawv thov.
Cov kev xaiv muaj xws li:
SC connectors/LC connectors/FC connectors/ST connectors/PC configurations/UPC configurations/APC configurations/Single-mode connectors/Multimode connectors/Simplex structures/Duplex structures/Tseeb polished connectors/Field-installable fast connectors/Applications{2}Applications
Qhov kawg configuration yog paub tseeb raws li compatibility, kev ua tau zoo thiab installation yuav tsum tau.
Mechanical Structure
Cov khoom siv tshuab tuaj yeem tshuaj xyuas lossis hloov kho rau qhov project- cov cai tshwj xeeb.
Customization tuaj yeem suav nrog:
Connector vaj tse qauv/Boot style/Boot length/Locking mechanism/Ferrule specification/Duplex clip structure/Cable -retention Cheebtsam/Reinforced structures/Waterproof structures/Installation accessories/
Mechanical customization tej zaum yuav xav tau kev tshuaj xyuas kev kos duab, kev ntsuam xyuas cov cuab yeej lossis kev kuaj xyuas tus qauv.
Fiber thiab Cable Compatibility
Cov qauv sib txuas tuaj yeem sib phim rau ntau hom fiber ntau thiab cable.
Muaj cov kev xaiv sib haum xeeb yuav suav nrog:
250 μm liab qab fiber ntau / 900 μm buffered fiber / 2.0 hli cable / 3.0 hli cable / FTTH nco cable / Sab hauv fiber ntau cable / Cov neeg siv khoom- qhia cov kab hluav taws xob
Compatibility nyob ntawm tus qauv connector. Cov neeg siv khoom yuav tsum muab qhov ntev ntawm cable, kos duab kos duab lossis qauv lub cev thaum thov qhov tsis yog - tus qauv teeb tsa.
Rau cov haujlwm uas siv cov neeg siv khoom siv - cov khoom siv cable, cov qauv sib dhos thiab kev ntsuas kev sib raug zoo yuav raug pom zoo ua ntej ntau lawm.
Cov tsos mob thiab kev txheeb xyuas cov khoom
Cov kev xaiv pom tuaj yeem pab cov neeg faib khoom thiab cov npe tsim cov khoom sib xws.
Cov kev xaiv muaj xws li:
Connector vaj tse xim / khau raj xim / Duplex clip xim / Cov khoom cim / Laser npav / Cov neeg siv khoom logo / Qauv nab npawb / Batch naj npawb / Cov khoom lag luam daim ntawv lo / Distributor- cov khoom lag luam tshwj xeeb
Xim txuam thiab cim txoj hauv kev nyob ntawm cov khoom siv txuas, ntau lawm thiab tsim tau.
Optical thiab Mechanical Performance Requirements
Cov hom phiaj kev ua tau zoo tuaj yeem tshuaj xyuas raws li cov khoom tsim thiab cov ntawv thov.
Cov kev xav tau ntawm qhov project yuav suav nrog:
Target insertion poob / Lub hom phiaj rov qab poob / Kev sib txuas rov ua dua / Mechanical durability / Tensile zog / Cable - tuav kev ua tau zoo / Kev khiav hauj lwm - qhov xav tau ntawm qhov kub thiab txias / Cia - qhov xav tau ntawm qhov kub thiab txias / Ib puag ncig / Daim Ntawv Thov - cov txheej txheem tshuaj xyuas tshwj xeeb
Tag nrho cov hom phiaj kev ua tau zoo yog nyob rau hauv kev ntsuam xyuas. Qhov kawg specification yuav tsum tau lees paub los ntawm cov ntaub ntawv, kuaj cov qauv los yog ib qho kev pom zoo qauv ua ntej kev tsim khoom ntau.
Ntim thiab Cov ntaub ntawv
Ntim tuaj yeem hloov kho rau cov neeg xa khoom, cov neeg cog lus ua haujlwm thiab tus kheej - cov npe npe.
Cov kev xaiv muaj xws li:
EVOLUX standard packaging/Neutral packaging/Private-label packaging/Customized product labels/Barcode labels/Inner-box labels/Carton markings/Customer logo/user guides/Installation cards/Packing{2}}cov ntaub ntawv hom / Cov neeg siv khoom- ntim tshwj xeeb
Cov ntsiab lus ntim yuav tsum tau lees paub ua ntej kev tsim khoom kom ntseeg tau tias cov ntawv sau, barcodes, ntau thiab cov ntaub ntawv thawv sib xws rau cov neeg siv khoom tau txais thiab kev xa tawm.
Thov Ib Tus Neeg Txuas Kev Cai
Optical fiber connector yog ib qho cuab yeej siv los txuas cov fibers optical, ua kom yooj yim rau kev sib kis ntawm lub teeb pom kev zoo. Ib qho optical fiber connector enables kev sib txuas ceev dua thiab disconnection dua splicing. Lawv tuaj ntau yam xws li SC, LC, ST, thiab MTP, txhua tus tsim los rau cov ntawv thov tshwj xeeb.
Lucent Connectors (LC)
LC connectors muaj qee qhov tsawg tshaj plaws ferrules, ntsuas 1 1/4 hli, uas yog kwv yees li ib nrab ntawm qhov loj ntawm ST connector. Lawv qhov me me ua rau lawv mus rau hauv daim ntawv me me ntawm kev txiav tawm. Cov connectors no ua haujlwm zoo rau multimode transceivers thiab ib qho -mode cables.
Standard Connectors (SC)
SC connectors muaj 2 1/2 hli ferrule uas snaps huv rau hauv qhov chaw. Kev siv lub laub thiab rub cov lus tsa suab ruaj ntseg lub connector. Cov hom kev txiav tawm no muaj kev ua haujlwm siab, uas nrog rau tus nqi poob txij li lawv cov lus qhia, tau ua rau lawv muaj koob meej hauv ntau daim ntawv thov. Qhov tseeb, ntau yav dhau los ST connectors daim ntawv thov tam sim no siv SC connectors xwb, txij li thaum SC tau tsim los hloov ST hauv kev sib txuas lus thiab cov ntaub ntawv sib txuas lus.
ST Connectors
ST connectors yog cov laus tshaj ntawm fiber ntau cable connector hom. Txog rau xyoo 2005, tus tswv ntawm AT&T hom ntawm cov khoom sib txuas tau suav tias yog ib qho ntawm cov khoom siv fiber ntau tshaj plaws. Thaum cov kev daws teeb meem uas daws qee qhov teeb meem ST connectors tam sim no tau hloov cov connectors, lawv tseem nrov. Niaj hnub no, lawv cov nqi qis vim lawv lub hnub nyoog, ua rau lawv xaiv rau kev siv nyiaj -cov haujlwm tseem ceeb. Tus tsim ntawm ST connectors yog ib tug 2 1/2 hli ferrule uas muaj ib tug bayonet-style kev twb kev txuas ntawm cov fibers los ntawm ib tug adapter. Cov ferrules no siv lub caij nplooj ntoos hlav-load tsim uas tuaj yeem ua rau kev teeb tsa nyuaj tshwj tsis yog cov khoom muaj qhov chaw zaum, txawm hais tias lub qhov tseem ceeb pab nrog kev sib koom ua ke ntawm cov ferrules rau kev sib txuas.
Ferrule Core (FC) Connectors
FC connectors qeb raws li qee qhov nrov tshaj plaws rau kev siv nrog - hom kev sib txuas ua ntej kev taw qhia ntawm LC thiab SC connectors. Cov no siv tus yuam sij, ntsia hlau- hauv hom ferrule. Txawm li cas los xij, cov txheej txheem ntawm screwing nyob rau hauv lub ferrule yuav tsum tau ntxiv sij hawm thiab siv zog piv rau snap-nyob rau hauv SC connectors. Cov ntsia hlau- hauv kev tsim tiv thaiv kev sib txuas los ntawm kev cuam tshuam, txawm tias thaum ib tus neeg rub lub cable los yog lub kaw lus muaj cov ntawv thov hauv cov cheeb tsam uas muaj kev txav ntau. Video tshaj fiber ntau yog ib qho kev siv rau cov hom kev sib txuas no vim yog cov ntaub ntawv tsis tu ncua los ntawm cov cable thiab kev ruaj ntseg ntawm cov connector. Zoo li ST thiab SC connectors, FC terminations siv 2 1/2 hli ferrule. Nrog ib tug hybrid adapter, leej twg muaj peev xwm tsim ib tug choj ntawm cov connector hom.
Multi-Position Optical (MPO) Connectors
MTP yog hom lag luam ntawm MPO connectors. MTP thiab MPO connectors yog tib yam, tshwj tsis yog lub hom MTP muaj kev siv tshwj xeeb rau kev ua haujlwm siab - cov ntawv thov kev ua haujlwm, qhov MPO ua haujlwm rau ntau qhov xwm txheej. Ob lub connectors no feem ntau txuas ribbon cables nrog ntau fibers. Cov connectors no muaj ob mus rau rau kab ntawm 12 lossis 16 fibers. MPO connectors nrog 12 fibers ib kab tuaj yeem muaj ob mus rau rau kab, nrog ob tus lej feem ntau. Cov khoom sib txuas uas muaj 16 fibers ib kab tsis muaj ntau tshaj ob kab. Kev sib txuas ntawm cov ferrules siv cov pins thiab qhov los ua phooj ywg kawg ntawm cov fiber ntau nrog lwm cov cable lossis cov khoom siv hluav taws xob. Feem ntau, hom connector no muaj cov ntawv thov nyob rau hauv siab -kev sib txuas ceev uas siv ntau hom lossis rau ua ntej- txiav cov pawg cable.
MT-RJ Connectors
Hnub no, MT-RJ connectors tau ploj lawm los ntawm kev siv. Txawm li cas los xij, qee lub tshuab tseem yuav xav tau cov khoom txuas no rau kev kho. MT-RJ tsuas yog ua haujlwm rau cov kab hluav taws xob multimode nrog duplex fibers. Ob lub fibers nkag mus rau hauv lub ferrule uas txuas mus rau nws cov mated ib nrab nrog pins thiab qhov, zoo ib yam li MPO terminations. Qee qhov ntsaws-thiab-jack variations ntawm hom connector no kuj muaj.
Daim ntawv thov ntawm Fiber Optic Connector
Internet thiab Local Area Networks (LANs)
Fiber optic cables tso cai rau bandwidth ntau dua piv rau lwm cov kev xaiv cable. Feem ntau siv rau kev sib txuas lus suav nrog fiber ntau optics rau xa hauv internet thiab LAN txuas thoob plaws hauv lub tsev. Fiber optic cable ua haujlwm tshwj xeeb tshaj yog nyob rau qhov deb tshaj 90 meters thiab thaum nqa gigabit- kev sib txuas ceev. LAN thiab siab - internet ceev siv multimode fiber optic cable. Ntau lub tuam txhab niaj hnub no muaj fiber ntau cable mus rau telecom closets uas ces hloov lub teeb liab mus rau tooj liab -raws li Cat5 cable thiab lwm yam cables. Cov cables no nqa cov teeb liab mus rau computers thiab xov tooj. Txawm li cas los xij, qhov kev coj ua ntawm kev siv xov xwm hloov pauv lossis xov tooj kaw yuav ploj mus dhau sijhawm. Kev tsim kho tshiab hauv fiber ntau optic thev naus laus zis, tus nqi siab rau kev tswj cov chaw kaw hauv xov tooj thiab txo tus nqi rau fiber ntau optics yuav ua rau tag nrho cov fiber ntau tes hauj lwm tus qauv.
Zej Zog Kav hlau txais xov TV (CATV) thiab Lwm Cov Kev Sib Txuas Lus
Cov kav hlau txais xov hauv zej zog TV thiab lwm lub tuam txhab kev sib txuas lus feem ntau nyiam fiber ntau optic cable kom xa lawv cov teeb liab vim yog tus nqi qis dua qhov kev ncua deb nrog tsawg dua thiab ntau dua bandwidth piv rau cov thev naus laus zis qub. Tsis tas li ntawd, txhua tus transmitter thiab receiver khub ntawm fibers tuaj yeem nqa ntau lub suab thiab video signals. Piv nrog rau txoj kev xa xov xaim, fiber ntau optics tuaj yeem mus txog 100 npaug ntawm qhov deb thiab ntau dua 1,000 zaug sai dua. CATV tuaj yeem siv ib zaug - hom fiber ntau optic cabling rau nws cov bandwidth ntau dua thiab qis dua.
Public Utility Networks
Cov khoom siv rau pej xeem, xws li cov tuam txhab hluav taws xob lossis cov chaw kho dej hauv nroog, siv fiber ntau optics ntau txoj hauv kev. Tej zaum lawv yuav muaj fiber ntau optic txuas nrog kaw-circuit TV (CCTV) lub koob yees duab kev ruaj ntseg thiab lub network txuas rau ntau qhov chaw los muab cov ntaub ntawv tiag - lub sijhawm ua haujlwm. Cov tuam txhab hluav taws xob, piv txwv li, tau lees paub qhov cuam tshuam ntawm lawv cov khoom tsim thiab kev faib khoom ntawm cov xov tooj sib txuas lus ib txwm muaj thiab tau hloov mus rau fiber ntau optics thaum ntxov. Cov kev pabcuam xwm txheej ceev hauv nroog kuj tseem siv fiber ntau optics nrog CCTV, wireless technology thiab lub koob yees duab tsheb sib txuas los sib txuas lus sib txuas lus thiab cov ntaub ntawv sib qhia ntawm cov neeg teb. Ntxiv rau, kev sib txuas ntawm fiber ntau los ntawm hauv - cov kev sib txuas hauv nroog tuaj yeem muab cov bandwidth siab dua kom haum rau cov neeg ua haujlwm hauv nroog loj ntawm cov kab ke nkag mus rau cov ntaub ntawv ib zaug.
Kev Lag Luam Kev Lag Luam
Raws li nrog rau cov tuam txhab hluav taws xob, electromagnetic cuam tshuam kuj ua lub luag haujlwm hauv kev xaiv cov khoom sib txuas lus siv hauv kev lag luam kev lag luam. Lub suab nrov ntawm cov khoom siv hluav taws xob tuaj yeem ua rau muaj teeb meem loj nrog cov xov hlau tsis muaj kev tiv thaiv. Tab sis nws tsis ua tib yam rau fiber ntau optics. Nrog ntau qhov chaw tsim khoom txav mus rau hauv kev ua haujlwm ntse nrog cov cuab yeej txuas nrog rau ib leeg thiab hauv is taws nem hauv lub network, kev sib txuas txhim khu kev qha yog qhov tseem ceeb. Rau cov ntawv thov kev lag luam, cov khoom sib txuas yuav tsum muaj cov ntaub ntawv ruaj khov uas tsis tuaj yeem yooj yim dislodge, txawm tias los ntawm kev vibrations tas li los ntawm cov tshuab ua haujlwm nyob ze.
Fiber optic connectors yog tshwj xeeb. Fiber cables xa cov pulses ntawm lub teeb es tsis txhob siv hluav taws xob teeb liab, yog li cov kev txiav txim yuav tsum tau ntau meej. Tsis yog tsuas yog tso cai rau tus pins los ua hlau-rau-hlau, fiber optic connectors yuav tsum ua kom cov iav iav fiber ntau zoo kawg nkaus thiaj li tso cai rau kev sib txuas lus. Thaum muaj ntau ntau hom fiber ntau connectors, lawv muab cov qauv tsim zoo sib xws.
Simplex vs. duplex:Simplex txhais tau tias 1 connector ib kawg thaum duplex txhais tau tias 2 connectors ib kawg. Muaj peb yam tseem ceeb ntawm cov khoom siv fiber ntau: lub ferrule, lub cev txuas, thiab cov txheej txheem sib txuas.
Ferrule:Qhov no yog cov qauv nyias (feem ntau cylindrical) uas tau tuav cov iav fiber ntau. Nws muaj qhov hollowed - tawm qhov chaw uas tsim kom nruj tuav ntawm lub fiber. Ferrules feem ntau yog tsim los ntawm ceramic, hlau, lossis siab - yas zoo, thiab feem ntau yuav tuav ib txoj hlua ntawm fiber ntau.
Connector Lub Cev:Qhov no yog cov qauv yas lossis hlau uas tuav lub ferrule thiab txuas rau lub tsho thiab ntxiv dag zog rau cov tswv cuab ntawm cov fiber ntau cable nws tus kheej.
Coupling Mechanism:Qhov no yog ib feem ntawm lub cev connector uas tuav lub connector nyob rau hauv qhov chaw thaum nws tau txuas mus rau lwm yam khoom (ib tug hloov, NIC, bulkhead coupler, thiab lwm yam). Tej zaum nws yuav yog ib qho clip clip, bayonet -style txiv ntoo, los yog cov cuab yeej zoo sib xws.
Kauj ruam 1: Paub cov Fiber suav thiab Connector hom
Xaiv hom connector raws li koj cov khoom uas twb muaj lawm thiab ntev - cov phiaj xwm. Xaiv LC connector yog tias koj siv SFP module ntau tshaj plaws. Yog tias koj siv QSFP28 module, koj tuaj yeem xaiv MPO lossis LC connector. SC thiab LC yog cov kev xaiv ntau tshaj plaws, MPO yog rau cov chaw xa xov hluav taws xob siab, thiab VSSF cov khoom sib txuas xws li CS thiab SN yog rau 400G thiab dhau ntawm daim ntawv thov fiber ntau.
Kauj Ruam 2: Paub hom Fiber
Zoo li fiber ntau cable, fiber optic connectors feem ntau categorized rau hauv ib hom thiab multimode. Ib hom fiber ntau tso cai rau ib hom teeb kom nthuav tawm ib txhij, muab qhov sib kis ntev tshaj plaws. Lub multimode tso cai rau ntau hom teeb kom nthuav tawm los ntawm fiber ntau, txhawb nqa qhov deb heev tab sis txo qis cov nqi cabling. Cov fiber ntau txuas feem ntau muaj cov lej sib txawv rau kev txheeb xyuas yooj yim. Tib hom connectors feem ntau muaj xiav lossis ntsuab npog, thaum OM1 / OM2 multimode connectors muaj beige npog, OM3 muaj xim aqua, thiab OM4 nrog magenta xim.
Kauj Ruam 3: Paub hom Polish
Nco ntsoov hom Polish. Fiber optic connectors muaj nyob rau hauv PC, UPC, thiab APC polish. Txawv polish muaj kev ua tau zoo thiab tus nqi sib txawv. Tshawb xyuas lawv nrog koj tus neeg muag khoom ua ntej xaj.
Cov lus qhia rau Fiber Optic Connector
Ntxuav Koj Cov Txuas Txuas
Ib qho ntawm cov kauj ruam tseem ceeb tshaj plaws rau kev tswj xyuas koj cov fiber ntau cables thiab cov khoom txuas yog ntxuav lawv tsis tu ncua thiab huv si. Cov av, plua plav, roj, thiab lwm yam khoom paug tuaj yeem cuam tshuam rau qhov zoo thiab kev ua haujlwm ntawm koj cov teeb liab kho qhov muag, ua rau muaj kev cuam tshuam, kev xav, thiab cuam tshuam, thiab tseem ua rau cov tub ntxhais fiber ntau lossis cov khoom txuas kawg -lub ntsej muag. Txhawm rau ntxuav koj cov khoom sib txuas, koj yuav tsum siv lint - dawb so, lub tshuab ntxuav tais diav, lossis lub tshuab cua compressed, nyob ntawm seb hom thiab qhov loj ntawm cov khoom txuas. Koj yuav tsum tau tshuaj xyuas koj cov khoom sib txuas ua ntej thiab tom qab ntxuav nrog lub tshuab tsom iav lossis lub tshuab sojntsuam video kom paub tseeb tias lawv tsis muaj khib nyiab thiab khawb.
Khaws koj cov Cables kom raug
Lwm qhov tseem ceeb ntawm kev tswj hwm koj cov fiber ntau cables thiab cov khoom txuas yog khaws cia kom zoo thaum lawv tsis siv lossis hauv kev thauj mus los. Koj yuav tsum tsis txhob tso koj cov cables rau qhov kub thiab txias, av noo, tshav ntuj, tshuaj lom neeg, lossis kev ntxhov siab, vim tias cov khoom no tuaj yeem ua rau cov khoom siv fiber ntau, ua rau tawg, lossis tawg cov kab. Koj yuav tsum tau coil koj cov cables ua tib zoo thiab xoob, ua raws li cov lus pom zoo khoov vojvoog thiab tsis txhob kinks, twists, lossis pob. Koj yuav tsum sau koj cov cables kom meej thiab siv lub kaus mom tiv thaiv, hnab, lossis rooj plaub kom tiv thaiv plua plav thiab kev puas tsuaj rau cov khoom sib txuas.
Ntsuam xyuas koj cov Cables tsis tu ncua
Txhawm rau kom ntseeg tau tias koj cov fiber ntau cables thiab cov txuas txuas ua haujlwm tau zoo thiab xa cov kev xav tau, koj yuav tsum sim lawv tsis tu ncua nrog cov cuab yeej tsim nyog thiab cov txheej txheem. Koj yuav tsum ntsuas lub zog kho qhov muag, txo qis, thiab poob ntawm koj cov cables nrog lub ntsuas hluav taws xob, lub teeb ci, lossis lub sijhawm kho qhov muag-domain reflectometer (OTDR). Koj yuav tsum tau kuaj xyuas qhov zoo thiab kev ncaj ncees ntawm koj cov teeb liab kho qhov muag nrog lub tshuab kho qhov muag (OSA) lossis qhov ntsuas qhov muag kho qhov muag (OMA). Koj yuav tsum sib piv koj cov txiaj ntsig kev xeem nrog cov kev qhia tshwj xeeb thiab cov qauv ntawm koj lub cev thiab txheeb xyuas cov teeb meem lossis qhov tsis txaus ntseeg.
Kho lossis hloov koj cov cables yog tias xav tau
Qee zaum, txawm tias koj qhov kev siv zog zoo tshaj plaws, koj cov cables fiber ntau thiab cov khoom sib txuas yuav raug kev puas tsuaj, hnav, lossis tsis tuaj yeem kho los ntawm kev tu lossis kuaj. Nyob rau hauv tas li ntawd, koj yuav tsum kho los yog hloov koj cov cables sai li sai tau kom tsis txhob muaj teeb meem ntxiv los yog downtime. Koj yuav tsum siv lub fusion splice los yog lub tshuab splice los koom nrog tawg lossis txiav fibers, ua raws li cov chaw tsim khoom cov lus qhia thiab kev ceev faj txog kev nyab xeeb. Koj yuav tsum tau siv cov khoom sib txuas thiab siab tshaj - cov khoom sib txuas zoo, cov khoom sib txuas, thiab cov hlua txuas txuas los yog hloov koj cov cables, thiab tsis txhob sib xyaw ntau hom lossis qib fiber ntau.
Qhia koj cov neeg ua haujlwm thiab ua raws li cov kev coj ua zoo tshaj plaws
Thaum kawg, ib txoj hauv kev zoo tshaj plaws los tswj koj cov fiber ntau cables thiab connectors yog cob qhia koj cov neeg ua haujlwm thiab ua raws li cov kev coj ua zoo tshaj plaws rau kev tuav, txhim kho, thiab ua haujlwm ntawm koj lub fiber ntau. Koj yuav tsum tau qhia koj cov neeg ua haujlwm ntawm lub hauv paus ntawm fiber ntau optics, hom thiab cov yam ntxwv ntawm fiber ntau cables thiab connectors, tej zaum yuav muaj kev phom sij thiab kev pheej hmoo ntawm kev ua hauj lwm nrog fiber ntau, thiab cov txheej txheem thiab cov txheej txheem tsim nyog rau kev tu, khaws cia, kuaj, kho, thiab hloov cov khoom siv fiber ntau. Koj yuav tsum ua raws li cov qauv kev lag luam thiab cov lus qhia rau kev teeb tsa fiber ntau, kev txiav tawm, thiab ntawv pov thawj, thiab sau koj cov haujlwm tu thiab cov ntaub ntawv.
Qhov kawg FAQ Qhia rau Fiber Optic Connectors
Q: Dab tsi yog fiber optic connector?
Q: Dab tsi yog fiber ntau connectors?
Q: Kuv yuav txheeb xyuas qhov sib txuas ntawm fiber ntau optic li cas?
Q: Dab tsi yog qhov txawv ntawm fiber ntau optic connector thiab splice?
Q: Vim li cas fiber connectors thiaj kim?
Q: Qhov txawv ntawm xiav thiab ntsuab fiber ntau connectors yog dab tsi?
Q: Qhov txawv ntawm LC thiab SC fiber ntau connectors yog dab tsi?
Q: Qhov twg yog qhov zoo dua SC lossis LC connector?
Q: Koj tuaj yeem qhia qhov txawv ntawm ST thiab SC connector li cas?
Q: MU connector sawv rau dab tsi?
Q: Cov qauv ntawm fiber ntau optic connectors yog dab tsi?
Q: Yuav ua li cas cov fiber connectors kuaj?
Q: Thaum twg thiab yuav ua li cas ntxuav cov fiber ntau optic?
Q: Yuav ua li cas xaiv qhov zoo fiber optic connector?
Q: Kuv yuav ua li cas yog tias kuv nruab SC connector tab sis xav tau hom LC?
Q: Yuav ua li cas koj txuas fiber ntau optic cable rau lub connector?
Q: Yuav ua li cas koj txuas ob fiber optic cable connectors?
Q: Vim li cas kuv thiaj li yuav tsum tau ntxuav cov fiber ntau optic?
Q: Kuv puas tuaj yeem tau txais fiber ntau optic connector?
Q: Dab tsi yog SC connectors?
Raws li ib qho ntawm cov ua fiber ntau optic connector manufacturers thiab lwm tus neeg nyob hauv Suav teb, peb sov siab txais tos koj mus yuav cov fiber ntau optic connector hauv Tshuag ntawm no los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab tus nqi qis. Rau pricelist thiab dawb qauv, hu rau peb tam sim no.
