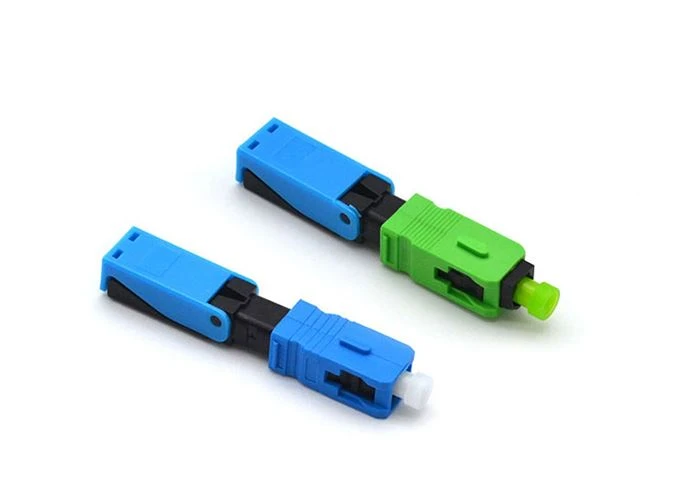

Khoom Taw Qhia
Kev sib dhos nrawm yog siv rau thaj chaw-installable optical fiber connector, dav siv nyob rau hauv FTTH nkag tau rau optical network, xws li ib hom thiab Multimode thiab haum rau 2 * 3.0 hli poob cable thiab kuj yuav haum nrog {{4 }}.9mm, 2.0mm, 3.0mm sab hauv fiber ntau optic cable.
Khoom Specifications
|
Yam khoom |
Technical Parameters |
Yam khoom |
Technical Parameters |
|
Muaj feem xyuam rau |
Tso cable, sab hauv tsev cable |
Lub zog tensile |
Ntau dua lossis sib npaug li 50N |
|
Fiber hom |
Ib hom lossis Multi hom |
Reusable Sijhawm |
Ntau dua lossis sib npaug li 10 npaug |
|
Lub sijhawm ua haujlwm |
Txog 50 vib nas this (tsis suav nrog lub sijhawm txiav fiber ntau) |
Ua haujlwm kub |
-40 ~ +85 degree |
|
Insertion Loss |
Tsawg dua los yog sib npaug rau 0.5dB |
On-line tensile zog (20N) |
△ IL Tsawg dua lossis sib npaug rau 0.3dB |
|
Insertion Poob Tus nqi |
0.3dB |
Mechanical durability (500 zaug) |
△ IL Tsawg dua lossis sib npaug rau 0.3dB |
|
Rov Los Los |
Ntau dua lossis sib npaug li 50dB |
Kev sim tso tseg (tso tawm qhov siab 4m, ib zaug rau ib qho kev taw qhia, tag nrho 3 zaug) |
△ IL Tsawg dua lossis sib npaug rau 0.3dB |
|
Fastening lub zog ntawm liab qab fiber |
Ntau dua lossis sib npaug rau 5N |
Nta
Fiber optic ceev connectors, tseem hu ua fiber optic ceev connectors, fiber optic ceev los ua ke connector, fiber optic teb los ua ke connector, fiber optic ceev los ua ke connectors.
Fiber Optic Fast Connector tsim rau FTTH yog ib tiam tshiab ntawm fiber ntau connector siv los ua ke. Nws muaj peev xwm muab qhib txaus thiab precast hom khoom, uas nws kho qhov muag thiab txhua yam specifications raws li tus qauv optical fiber connector.Nws yog tsim los rau siab zoo thiab high efficiency rau installation.
Cov qauv ntawm crimping txoj hauj lwm yog ib tug tshwj xeeb tsim, thiab yuav tsum tsis txhob gluing, polishing tsis muaj consumables.
Txais siv fiber ntau preinstalled qauv, thiab yooj yim rau kev teeb tsa.
Fast connector terminates qhov kawg ntawm ib tug optical fiber, thiab enables ceev kev twb kev txuas thiab disconnection dua splicing.
Cov connectors mechanically ob peb thiab dlhos lub cores ntawm fibers kom lub teeb yuav dhau mus.
Cov connectors zoo dua poob lub teeb me ntsis vim qhov kev xav lossis kev sib raug zoo ntawm cov fibers.
Daim ntawv thov
FTTH/FTTX/FTTD
Kev faib cov thav duab
Kev tu lossis kho thaum muaj xwm txheej ceev ntawm cov tes hauj lwm fiber ntau
Kev sib txuas ntawm lub rooj rau LAN ib puag ncig
Terminal lub thawv
