Evolux Fiber: Koj tus kws tshaj lij Fiber Optic Patch Cord Chaw tsim tshuaj paus!
Shenzhen Evolux Fiber Co., Ltd yog ib lub chaw muab kev pab cuam ntawm kev txiav-ntug kho qhov muag fiber ntau cov kev daws teeb meem, tshwj xeeb hauv kev tshawb fawb, kev tsim kho, tsim khoom, thiab kev faib khoom ntawm cov khoom siv fiber ntau zoo. Tsim nyob rau hauv 2013 xyoo, thiab headquartered nyob rau hauv Shen Zhen, Tuam Tshoj, peb tau tshwm sim raws li ib tug ntseeg lub npe nyob rau hauv lub teb ntawm fiber optics. Nrog rau kev tsom mus rau kev tsim kho tshiab thiab kev ntseeg siab, peb siv zog ua kom tau raws li qhov xav tau hloov zuj zus ntawm kev lag luam kev sib txuas lus thoob ntiaj teb.
Peb Qhov Zoo
Ntau yam khoom Portfolio
Peb muab ntau yam khoom siv kho qhov muag fiber ntau, los ntawm ib hom thiab ntau hom optical fibers mus rau cov khoom siv kho qhov muag tshwj xeeb rau cov kev siv tshwj xeeb, suav nrog cov khoom siv fiber ntau, txuas, transceivers, adapters, thiab lwm yam khoom siv kom tau raws li cov kev xav tau ntawm peb cov neeg siv khoom. .
Kev Pab Txhawb Cov Neeg Siv Khoom Zoo
Peb tau sib sau ua ke pab pawg kws tshaj lij uas tau npaj los txhawb peb cov neeg siv khoom. Lawv pab cov neeg siv khoom xaiv cov kev daws teeb meem fiber ntau optic thiab coj cov txheej txheem kev siv, tso cai rau cov neeg siv khoom txaus siab rau kev sib tham ua ntej muag rau kev txhawb nqa tom qab muag thiab kev pab cuam.

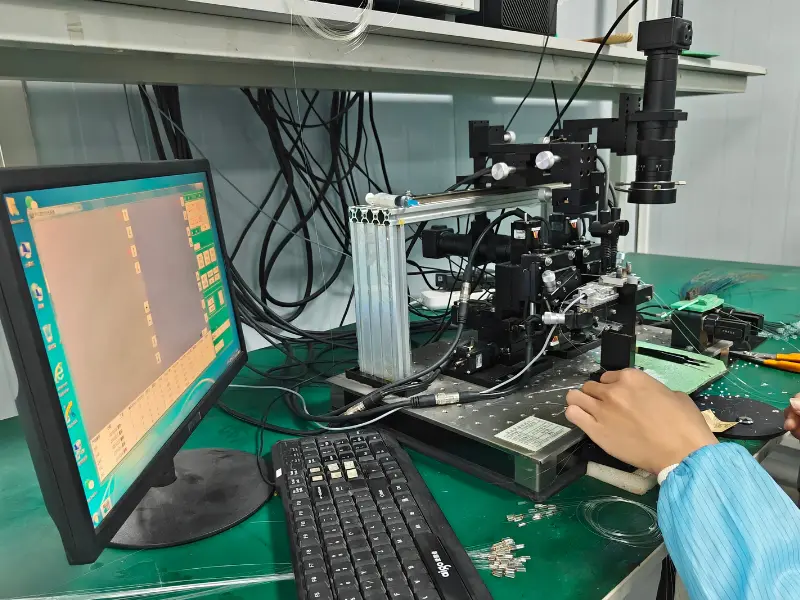

Advanced R & D Facilities
Lub xeev-of-the-art R & D cov chaw, cov cuab yeej siv, thiab cov chaw kuaj mob tshwj xeeb muab qhov chaw zoo tshaj plaws rau kev tshawb fawb, kev sim, thiab kev sim cov khoom siv fiber ntau, tsim, thiab tsim cov txheej txheem.
Kev Customization Services
Peb muab cov kev xaiv customization uas tso cai rau cov neeg siv khoom los txiav cov khoom siv fiber ntau rau lawv cov kev xav tau tshwj xeeb. Fiber txoj kab uas hla, txheej khoom, los yog connector hom tuaj yeem hloov kho tau yooj yim.
Fiber-optic thaj qaum yog ib qho fiber ntau-optic cable capped ntawm txhua qhov kawg nrog cov khoom sib txuas uas tso cai rau nws kom nrawm thiab yooj yim txuas rau cov khoom siv sib txuas lus. Qhov no yog hu ua interconnect-style cabling.
Raws li cov kev qhia tshwj xeeb thiab cov qauv sib txawv, cov fiber ntau thaj cords tuaj yeem raug cais tawm ntawm qhov kev xav ntawm fiber ntau cable hom, hom kis tau tus mob, hom tsho, hom txuas, thiab hom polishing.
Fiber Cable Hom: Ib hom lossis Multimode
Cov hom ntawm fiber ntau thaj cables qhia tias lub teeb beams mus rau hauv lub fiber. Muaj ob hom fiber ntau hom: ib hom thiab multimode. Ib hom fiber ntau thaj ua rau tsuas yog tso cai rau ib hom ntawm lub teeb kom dhau nws qhov ntev nrog txoj kab uas hla nyias ntawm 8-10 microns, yog li nws tuaj yeem nqa cov teeb liab ntawm qhov nrawm dua nrog qis attenuation. Cov tub ntxhais ntawm multimode fiber ntau thaj qaum yog loj dua, feem ntau 50 lossis 62.5 microns, uas ua rau ntau hom teeb pom kev zoo. Nws tuaj nyob rau hauv tsib hom kev txhawb nqa sib txawv kis tau tus nqi los yog nyob deb: 62.5-micron OM1, 50-micron OM2, 50-micron OM3, 50-micron OM4, thiab {{13 }}micron OM5, uas tuaj yeem sib txawv los ntawm cov qauv tsho xim. Txij li ntau txoj kev teeb pom kev mus rau hauv lub cable, qhov kev ncua deb uas multimode fiber jumpers tuaj yeem ncav cuag feem ntau luv. Rau kev sib kis luv luv hauv ib lub tsev lossis tsev kawm ntawv, multimode fiber ntau thaj cords yog hom zoo tshaj plaws.
Tus naj npawb ntawm Fiber Strands: Simplex lossis Duplex
Raws li tus naj npawb ntawm fiber ntau strands, muaj simplex thiab duplex fiber ntau thaj qaum. Ib qho yooj yim fiber ntau thaj qaum muaj ib txoj hlua ntawm fiber ntau nrog ib qho yooj yim txuas ntawm txhua qhov kawg. Whereas duplex fiber ntau thaj qaum muaj ob strands ntawm iav los yog yas nrog ib tug duplex connector (los yog xam raws li ob simplex connectors).
Jacket Hom: PVC lossis LSZH
PVC thiab LSZH yog siv los piav qhia txog cov khoom siv ntawm lub tsho fiber ntau. Fiber thaj cables them nrog PVC lub tsho yog hloov tau ntawm qhov kub thiab txias. Piv nrog PVC patch cords, LSZH patch cords yog nruj dua thiab tsis yooj yim dua tab sis lawv muaj cov nplaim hluav taws kub hnyiab uas tsis tawm cov pa phem yog tias nws hlawv. PVC fiber ntau optic thaj qaum feem ntau yog siv rau kev siv sab hauv tsev xws li kab rov tav khiav los ntawm qhov chaw xaim. Thaum LSZH cable yog siv rau hauv qhov chaw tsis muaj cua nkag rau cov pej xeem, xws li subways thiab tunnels thiab tseem siv rau cov chav uas tsis yooj yim tawm mus sai.
Connector Hom: LC, SC, ST los yog lwm yam
Muaj ntau hom connector siv nyob rau hauv fiber ntau thaj cables xws li LC, SC, ST, MTP los yog MPO. Cov sib txawv connector hom yog ntsaws rau hauv sib txawv interfaces, yog li koj yuav zoo dua hais tias cov interface hom ntawm cov khoom koj siv thawj zaug. Yog tias muab faib los ntawm cov txheej txheem seb lub connector ntawm txhua sab yog tib yam, lawv tuaj yeem muab faib ua tib yam-connector hom fiber ntau thaj qaum thiab hybrid fiber thaj qaum. Fiber patch cords uas muaj tib hom connector ntawm ob kawg suav nrog LC rau LC fiber ntau thaj qaum, SC rau SC fiber ntau thaj qaum thiab lwm yam. Thaum hybrid fiber thaj qaum muaj qhov sib txawv ntawm txhua qhov kawg, zoo li fiber ntau thaj qaum LC rau SC. Yog tias qhov chaw nres nkoj hom ntawm ob sab yog tib yam, koj tuaj yeem xaiv tib hom fiber ntau thaj qaum, lossis koj xav tau xaiv cov hybrid.
Polishing hom: PC, UPC lossis APC
Fiber optic connectors yog tsim thiab polished rau cov duab sib txawv kom txo qis kev xav rov qab, uas yog qhov tseem ceeb tshwj xeeb hauv kev siv ib hom. Raws li hom kev sib txuas no, muaj PC, UPC, thiab APC fiber ntau thaj qaum. Tam sim no PC polish hom tau hloov los ntawm UPC hom. Txawm hais tias koj xaiv UPC lossis APC nyob ntawm koj daim ntawv thov tiag tiag. Txij li thaum APC muab kev nkag tsawg dua li UPC, APC fiber ntau thaj cables muaj feem xyuam rau cov kev siv bandwidth siab thiab kev sib txuas mus ntev, xws li FTTx, passive optical network (PON) thiab wavelength division multiplex (WDM). Whereas UPC fiber ntau thaj qaum siv rau cov tshuab kho qhov muag uas tsis tshua muaj kev cuam tshuam rau qhov poob xws li digital TV thiab xov tooj.
Cov txiaj ntsig ntawm Fiber Patch Cords
Loj Bandwidth
Fiber optic cables muab qhov tseem ceeb bandwidth rau cov teeb liab kis tau tus mob thiab muaj peev xwm nqa tau ntau cov ntaub ntawv tshaj tooj liab cables ntawm tib txoj kab uas hla. Cov khoom siv bandwidth-distance (BDP) ntawm kev sib kis xov xwm yog siv los sib piv cov peev txheej hauv qhov kev hwm no, thiab cov xov xwm nrog BDP siab dua yuav muaj qhov sib kis ntev dua thaum xa tib lub bandwidth ntawm cov ntaub ntawv. Qhov siab dua ntawm BDP, qhov nrawm nrawm nrawm tuaj yeem xa tawm thiab tshaj qhov kev ncua deb, thaum tso tawm ntawm qhov zoo ib yam li cov teeb liab ib txwm muaj. Piv txwv li, tus qauv BDP rau multimode fiber ntau yog 500 MHz / km, uas txhais tau hais tias 500-meter multimode fiber ntau tuaj yeem xa 1 GHz. BDP ntawm ib hom fiber ntau yog ntau dua li multimode fiber ntau, uas yog siab dua li twisted khub tooj liab cable, uas yog siab tshaj tus qauv HDMI cable.
Ntev Ntev, Ceev dua
Nyob rau hauv cov nqe lus ntawm photons piv rau electrons, lub teeb nyob rau hauv fiber optic cables mus ntawm kwv yees li ob feem peb ntawm qhov ceev ntawm lub teeb, thaum electrons nyob rau hauv tooj liab cables NW nyuam qhuav ncav cuag ib feem ntawm qhov ceev. Qhov zoo ntawm qhov nrawm nrawm no muaj qhov cuam tshuam loj heev ntawm qhov muaj peev xwm nyob deb. Thaum cov cables tooj liab feem ntau txwv rau 100-meter tus qauv nyob deb, fiber ntau optic cables tuaj yeem txuas cov ntsiab lus bandwidth loj dhau qhov deb heev nyob rau hauv ib txoj kab uas hla me me. Multimode fiber ntau tuaj yeem triple qhov kev ncua deb no rau 4K HDMI teeb liab, piv txwv li, thiab nyob ntawm seb hom cable, lub wavelength, thiab lwm yam ntawm lub network, ib hom fiber ntau tuaj yeem txuas tib lub teeb liab mus txog 10 km.
Siab dua
Tsis zoo li txoj kev sib kis ntawm tooj liab, fiber ntau optic cables tsis muaj cov khoom siv hlau. Yog li ntawd, lawv tiv thaiv kev cuam tshuam ntawm electro-magnetic cuam tshuam (EMI) thiab xov tooj cua zaus cuam tshuam (RFI). Tsis tas li ntawd, fiber ntau optic cables tiv thaiv kev hloov pauv ntawm qhov kub thiab txias, ob qho tib si tuaj yeem cuam tshuam kev sib kis ntawm cov tooj liab cables.
Kev ruaj ntseg
Raws li fiber ntau optic cables tsis ua hluav taws xob teeb liab, nws yog tsis yooj yim sua rau remotely ntes tej ntaub ntawv teeb liab uas yog kis tau tus mob, thiab kev sim ntawm lub cev mus saib tau los ntawm kev soj ntsuam. Qhov kev ruaj ntseg no ua rau fiber ntau txoj kev sib kis ntawm kev xaiv rau kev lag luam xws li tsoomfwv thiab tsev txhab nyiaj. Hais txog kev nyab xeeb, fiber ntau optic cables kuj tsis muaj kev pheej hmoo hauv qhov chaw muaj kev phom sij xws li cov nroj tsuag tshuaj thiab cov roj refineries.
Daim ntawv thov ntawm Fiber Optic Patch Cord
Lub fiber optic thaj qaum yog ib qho tseem ceeb hauv kev sib txuas lus uas yog siv rau kev xa cov ntaub ntawv ntawm optical fibers nyob ntev. Nws yog ib qho tseem ceeb ntawm cable nrog connectors ntawm ob qho kawg, tsim los txuas cov khoom siv kho qhov muag xws li routers, keyboards, thiab servers. Lub hom phiaj tseem ceeb ntawm fiber ntau optic thaj qaum yog muab kev ntseeg siab thiab siv tau zoo ntawm kev xa cov ntaub ntawv ntawm kev kub ceev. Los ntawm kev siv cov teeb liab teeb liab es tsis txhob siv hluav taws xob teeb liab, fiber optic technology tso cai rau kev xa cov ntaub ntawv ceev thiab ruaj ntseg dua. Qhov no yog qhov tseem ceeb tshwj xeeb hauv kev sib txuas lus, qhov twg cov ntaub ntawv loj yuav tsum tau xa mus sai thiab raug. Fiber optic thaj qaum yog qhov tseem ceeb hauv ntau daim ntawv thov kev sib txuas lus, suav nrog kev sib txuas hauv internet, xov tooj sib txuas, cable TV, thiab cov chaw khaws ntaub ntawv. Lawv feem ntau siv nyob rau hauv ob qho tib si nyob thiab chaw lag luam los tsim kev sib txuas hauv internet ceev thiab pab txhawb kev sib kis ntawm lub suab, video, thiab cov ntaub ntawv teeb liab. Nyob rau hauv xyoo tas los no, qhov kev thov rau fiber ntau optic thaj qaum tau nce ntau vim qhov kev xav tau loj hlob sai thiab txhim khu kev qha cov ntaub ntawv xa mus. Nrog rau qhov tshwm sim ntawm cov thev naus laus zis xws li kev suav huab, kev pabcuam streaming, thiab Is Taws Nem ntawm Yam (IoT), muaj qhov xav tau nce ntxiv rau bandwidth siab dua thiab qis dua latency. Fiber optic thaj qaum ua lub luag haujlwm tseem ceeb hauv kev ua kom tau raws li qhov xav tau los ntawm kev muab cov txheej txheem tsim nyog rau kev xa cov ntaub ntawv zoo. Tsis tas li ntawd, fiber ntau optic thaj qaum kuj tau siv hauv cov thev naus laus zis tshiab xws li 5G tes hauj lwm thiab cov nroog ntse. Cov thev naus laus zis no yuav tsum muaj kev sib txuas lus zoo thiab muaj peev xwm ua tau zoo, uas tuaj yeem ua tiav los ntawm kev siv fiber ntau optic thaj qaum.
Lub fiber optic thaj qaum yog siv rau kev sib txuas lus, tshwj xeeb tshaj yog rau kev sib txuas cov khoom siv hauv ib cheeb tsam hauv cheeb tsam network (LAN). Nws yog ib qho tseem ceeb hauv kev sib kis ntawm cov ntaub ntawv, lub suab, thiab cov teeb liab video nyob rau qhov ntev ntawm kev kub ceev. Fiber optic thaj cords yog tsim los ntawm ib pob ntawm nyias, saj zawg zog iav los yog yas fibers encased nyob rau hauv ib tug tiv thaiv sheath. Cov fibers no muaj peev xwm xa cov ntaub ntawv siv cov teeb liab teeb liab, uas tso cai rau kom ceev thiab txhim khu kev qha cov ntaub ntawv hloov dua siab tshiab piv rau cov tsoos tooj liab cables. Lub patch cord ua tus choj ntawm cov khoom siv xws li khoos phis tawj, keyboards, routers, thiab servers, ua kom muaj kev sib txuas lus zoo thiab sib pauv ntaub ntawv. Nyob rau hauv ib puag ncig LAN, fiber ntau optic thaj qaum feem ntau yog siv los txuas lub network hloov mus rau cov khoom siv kawg xws li khoos phis tawj, tshuab luam ntawv, thiab IP xov tooj. Lawv muab kev sib txuas ncaj qha thiab ruaj ntseg, ua kom cov teeb liab tsawg tsawg thiab cuam tshuam. Nrog rau qhov kev thov nce siab rau kev siv internet ceev thiab cov khoom siv txuas nrog ntau zuj zus, fiber ntau optic thaj cords tau dhau los ua qhov tseem ceeb rau kev tswj kom muaj zog thiab muaj txiaj ntsig network infrastructure. Ntxiv mus, fiber optic technology muaj ntau yam zoo dua li cov tsoos tooj liab cables. Nws muaj peev xwm ntau dua bandwidth, tso cai rau cov ntaub ntawv xa mus ntau dua thiab txhawb nqa qhov xav tau ntawm kev siv bandwidth-intensive. Fiber optic thaj cords kuj tiv thaiv electromagnetic cuam tshuam, ua rau lawv zoo tagnrho rau siv nyob rau hauv cov cheeb tsam uas muaj hluav taws xob suab nrov los yog nyob ze rau lub hwj chim cables.
Fiber optic thaj qaum yog ib qho cable uas siv los txuas ob qho khoom siv lossis cov khoom siv hauv lub network fiber ntau. Nws feem ntau yog siv los xa cov ntaub ntawv, xws li lub suab, video, lossis cov ntaub ntawv digital, ntawm kev kub ceev hauv qhov ntev. Hauv cov ntsiab lus ntawm kev kuaj pom kev kho mob, fiber ntau optic thaj qaum ua lub luag haujlwm tseem ceeb hauv kev xa cov duab hauv endoscopy thiab lwm cov txheej txheem kho mob.
Nws muab cov duab zoo, kev daws teeb meem siab uas pab kho qhov tseeb thiab kev npaj kho mob. Lub peev xwm kis tau tus mob ceev ntawm fiber ntau optic thaj cords xyuas kom tsawg latency thiab poob ntawm cov duab zoo, ua rau cov kws kho mob txiav txim siab rau lub sijhawm tiag tiag thaum cov txheej txheem. Ntxiv mus, fiber ntau optic thaj cords muab ntau qhov zoo dua li cov tsoos tooj liab cables hauv kev kho mob duab. Lawv tiv thaiv kev cuam tshuam ntawm electromagnetic cuam tshuam, uas yog qhov tseem ceeb tshwj xeeb hauv cov chaw kho mob uas muaj ntau yam khoom siv hluav taws xob tam sim no.
Jacket
Lub tsho yog lub npog sab nraud ntawm fiber ntau optic cable. Thaum nws muaj kev tiv thaiv, nws lub hom phiaj tseem ceeb tsis yog muab lub zog. Qhov tseem ceeb, lub tsho tuav tag nrho cov khoom ua ke: cov tswv cuab lub zog aramid thiab buffered fiber ntau, uas suav nrog cov fiber ntau optic.
Aramid Strength Cov tswv cuab
Aramid yarns muaj zog, kub-resistant fibers. Nyob rau hauv lub fiber optic cable sib dhos, aramid lub zog cov tswv cuab muab lub zog tensile los ntawm lub connector thiab thoob plaws hauv lub cable. Piv txwv li, thaum lub sij hawm tsim cov txheej txheem, thaum koj rub lub cable mus rau lub connector, aramid lub zog cov tswv cuab pab kom lub cable thiab iav optic fiber yuav tsis tawg.
Buffer txheej ntawm Fiber
Cov iav optic fiber ntau yog tsim los nrog kev tiv thaiv (tsis) txheej tiv thaiv kev puas tsuaj. Nyob ntawm daim ntawv thov daim ntawv thov, cov txheej txheem tsis tuaj yeem ua tau ntau yam khoom sib txawv uas yuav muab, piv txwv li, tiv taus kub lossis hluav taws kub. Qhov tsis tuaj yeem tiv thaiv cov acrylate-coated fiber ntau raws li nws yog extruded rau hauv lub tsho thiab ua raws li "foob", yog tias koj xav tau, ntawm cov acrylate-coated fiber ntau ua ntej splicing lossis connectorization.
Fiber ntau
Ua los ntawm iav los yog yas, cov fiber ntau optic yog ib qho khoom siv kho qhov muag uas muaj lub teeb nqa lub hauv paus thiab cladding, uas cuam tshuam lub teeb rau hauv cov tub ntxhais. Fiber optic kev sib txuas lus systems siv ob hom ib leeg lossis ntau hom.
Yam yuav tsum tau xav txog ua ntej xaiv Fiber Optic Patch Cord
Kauj Ruam 1: Txiav txim siab yam khoom txuas uas koj xav tau
Txhawm rau txiav txim siab dab tsi txuas koj yuav xav tau, koj yuav tsum tau tshuaj xyuas cov khoom siv ports uas koj yuav tau txuas, thiab koj yuav tsum paub tias cov ntawv thov twg yuav siv cov hlua. Fiber optic thaj cords tuaj nrog sib txawv connectors mus ntsaws rau hauv cov khoom sib txawv.
Lwm qhov koj yuav tsum tau txiav txim siab yog qhov twg fiber ntau thaj cable hom yog qhov zoo tshaj plaws rau koj daim ntawv thov. Ob hom muaj yog ib hom lossis multimode.
●Ib hom Fiber Optic Patch Cable
Koj yuav xav siv ib hom fiber ntau optic thaj cable rau cov ntaub ntawv txuas mus ntev vim tias ib hom fiber ntau optic cable yog qhov nrawm dua li multimode. Ib hom tsuas yog nqa ib lub teeb ntawm ib lub sijhawm, uas tso cai rau lub laser ua haujlwm ntawm 1310-1550 nm wavelength.
● Multimode Fiber Optic Patch Cable
Koj yuav xav tau ntau hom fiber ntau optics rau cov ntawv thov uas muaj qhov luv luv, xws li hauv ib lub tsev lossis A / V daim ntawv thov hauv zos network. Qhov ntev tshaj plaws rau fiber ntau optic cable yog li 400 txog 550 meters. Tab sis multimode cables tuaj yeem nqa ntau qhov chaw teeb pom kev zoo, ua rau lawv muaj txiaj ntsig zoo rau kev ncua luv.
Kauj Ruam 3: Txiav txim siab ntawm Simplex lossis Duplex Fiber Strands
Optic fiber thaj qaum tuaj yeem muaj ob hom strands: simplex lossis duplex.
● Simplex
Ib qho yooj yim cable muaj ib qho fiber ntau txuas ntawm txhua qhov kawg ntawm cable. Ib kawg yog lub transmitter, lwm qhov kawg yog tus txais, thiab cov no tsis thim rov qab. Qhov no feem ntau yog siv rau Bidirectional (BIDI) fiber ntau optic transceivers. Simplex cables tsis tshua kim thiab tuaj yeem xa mus rau qhov nrawm dua.
● Duplex
Duplex strands tso cai rau ob lub fiber ntau txuas nrog rau ib sab ntawm ib sab nrog lub dual-fiber connector. Ib txoj hlua xa mus rau ib txoj kev, thiab lwm txoj hlua xa rov qab rau txoj kev rov qab. Qhov no yog qhov txiaj ntsig zoo dua li simplex vim tias nws tuaj yeem xa cov ntaub ntawv ib txhij bidirectional. Tab sis qhov downside rau duplex yog tias nws tsuas yog txuas ob lub cuab yeej, thiab koj yuav xav tau cov khoom txuas ntxiv kom tso cai rau cov khoom siv ntxiv.
Kauj ruam 4: Xaiv qhov koj xav tau Cable Length
Qhov no yog qhov yooj yim heev. Koj yuav tsum paub qhov kev ncua deb ntawm koj cov khoom siv thiab tom qab ntawd xaiv qhov ntev cable uas koj xav tau. Fiber optic thaj cable muaj qhov ntev ntawm 0.5m - 50m.
Kauj Ruam 5: Xaiv lub Connector Polish thiab Cable Jacket
Thaum kawg, koj yuav tsum tau txiav txim siab ntawm qhov txuas polish thiab lub tsho cable, uas tuaj yeem cuam tshuam rau kev ua haujlwm ntawm cable.
● Connector Polish
Muaj ob hom kev sib txuas txhuam: UPC lossis APC. APC polish muaj kev ua tau zoo dua vim tias qhov poob qis dua li UPC connector. Yog li koj tuaj yeem xav tau APC polish yog tias koj daim ntawv thov nkag siab kom rov qab poob thiab xav tau kev ntsuas siab siab. Tab sis APC kim dua UPC. Koj tuaj yeem txheeb xyuas qhov txuas polish los ntawm nws cov xim. APC thaj cable feem ntau yog ntsuab, thaum UPC thaj cable yog xiav.
● Cable Jackets
Fiber optic thaj cable los ntawm ntau hom tsho:
Tsawg Smoke Zero Halogen (LSZH): Lub tsho tiv thaiv nplaim hluav taws yog qhov zoo rau kev siv nruab nrab ntawm cov plag tsev thiab cov tsev.
Polyvinyl Chloride (PVC): Lub tsho tawv tawv tiv taus kev puas tsuaj, oxidation, corrosion, thiab degradation. Nws huab cua zoo, ua rau nws zoo tagnrho rau sab nraum zoov cabling lossis ntev lifespan cable xav tau.
Optical Fiber Nonconductive Plenum (OFNP): Cov tsho no tseem muaj nplaim taws thiab muaj cov pa luam yeeb tsawg ua rau lawv zoo tagnrho rau cov ntawv thov network uas khiav hauv phab ntsa thiab cua plenums yam tsis muaj lub kav dej.
Armored Cable: Cov tsho no siv ob lub tubing thiab lub tes tsho hlau uas tsis tso cai rau lub teeb thiab muaj kev sib tsoo siab, ua rau lawv zoo tagnrho rau cov hlua hauv pem teb uas tuaj yeem nkag los lossis txawm nibbled los ntawm nas.
Khoov Insensitive: Cov tsho no muaj lub vojvoog me me khoov thiab muaj kev tiv thaiv siab rau kev khoov los yog kev puas tsuaj. Hom kab no yog tsim rau cov ntaub ntawv chaw thiab FTTH daim ntaub ntawv thiab cov kab hluav taws xob siab.
Cov lus qhia rau Fiber Optic Patch Cord
Khaws Fiber Patch Cables huv si
Raws li kev soj ntsuam kev lag luam los ntawm lub tuam txhab xov tooj loj, kev sib kis yog qhov laj thawj thib ib rau kev daws teeb meem kho qhov muag network. Fibers tsis yooj yim heev uas thaum lawv tau npog los ntawm cov plua plav lossis lwm yam paug, cov teeb liab kho qhov muag tuaj yeem degraded. Dab tsi ntxiv, cov khoom siv hlau uas hnav los ntawm lub cev thiab cov vaj tse fiber ntau ntawm cov fiber ntau optic connectors yuav thaiv cov fiber ntau, uas yuav ua rau cov teeb liab poob, yog li nws thiaj li txo qis kev ua haujlwm hauv network thiab ua rau poob zoo rau cov lag luam uas vam khom fiber ntau. Feem ntau, fiber optic tu yog hais txog kev ntxuav fiber ntau txuas. Yuav ua li cas kom paub tseeb tias koj ntxuav fiber ntau connectors siv txoj kev raug? Muaj ob txoj hauv kev tu lub ntsiab: kev tu kom qhuav thiab ntxuav ntub, txhua qhov ua haujlwm sib txawv. Reel-type fiber cleaners, cwj mem ntxuav, fiber ntau ntxuav cov ntaub so, thiab ua npuas ncauj swabs yog cov kev daws teeb meem fiber ntau txuas.
Khaws Fiber Patch Cables kom raug
Txawm hais tias lub fiber ntau siv los yog tsis siv, muaj ib qho tseem ceeb uas yuav tsum tau xav txog: Tsis txhob khoov lossis ncab koj cov fiber ntau ntau. Nws yog feem ntau cov ntaub ntawv thaum ua hauj lwm nrog fiber optic cables, neeg stretch los yog khoov lawv. Vim li no, qhov phem tshaj plaws yog cov fiber ntau yuav puas. Qee qhov tawg tuaj yeem tshwm sim los ntawm kev khoov tuaj yeem pom, tab sis qee qhov poob yuav tsis, xws li microscopic fiber ntau deformations tshwm sim los ntawm qhov kub thiab txias, kev hloov ntawm ob peb millimeters tshwm sim los ntawm qhov tsis zoo lossis lub tsho tsis zoo, kev ua haujlwm tsis zoo lossis lwm yam. Txij li thaum xws li kev poob tsis tuaj yeem pom los ntawm tib neeg lub qhov muag ncaj qha, nws yuav raug saib xyuas thiab tej yam tuaj yeem ua rau mob hnyav dua lub sijhawm. Nyob rau hauv cov ntaub ntawv ntawm ib tug loj loj poob thaum lub fiber patch cords yuav tsum tau hloov, cov nram qab no tseem ceeb cov ntsiab lus yuav tsum tau saib xyuas:
● Tsim koj txoj hauv kev fiber ntau siv cov cuab yeej los yog cov khoom tsim nyog los tiv thaiv cov fibers, xws li kab rov tav cable tswj.
● Tsis txhob khoov fiber ntau thaj cables dhau ntawm lawv qhov tsawg kawg nkaus khoov lub vojvoog, tshwj xeeb tshaj yog nyob rau hauv cov chaw nruj ntawm qhov chaw muaj fiber ntau.
● Nco ntsoov tsis txhob ntaus cov fiber ntau txuas rau txhua yam! Ntawm ib sab, cov kawg yuav tau abraded los yog tawg. Ntawm qhov tod tes, cov iav tawg ntawm qhov kawg ntawm fiber ntau tuaj yeem txiav ib tus neeg ntawm daim tawv nqaij. Nws raug nquahu kom siv cov kaus mom tiv thaiv thaum khaws lossis rub cov fibers.
● OTDR thiab optical fiber microscopes raug pom zoo yog tias koj xav tau cov cuab yeej siv rau kev ntsuas thiab txheeb xyuas qhov tsis zoo xws li kev tawg hauv cov fiber ntau cable lossis tag nrho cov attenuation.
Qhov kawg FAQ Qhia rau Fiber Optic Patch Cord
Q: Dab tsi yog fiber optic thaj qaum siv rau?
Q: Cov fiber ntau optic cable puas tuaj yeem kho tau?
Q: Dab tsi yog qhov sib txawv ntawm cov hlua khi thiab lub cable?
Q: Dab tsi yog qhov tsis zoo ntawm lub patch cable?
Q: Muaj pes tsawg hom fiber ntau thaj qaum muaj?
Q: Qhov twg yog qhov zoo dua fiber ntau lossis tooj liab thaj cable?
Q: Vim li cas nws thiaj li hu ua patch cable?
Q: Kuv puas tuaj yeem siv Ethernet cable los ua ib lub patch cable?
Q: Lub patch cable zoo li cas?
Q: Yuav ua li cas yog tias lub fiber optic thaj qaum tsis raug ntxuav hauv lub sijhawm?
Q: Dab tsi yog cov txiaj ntsig ntawm patch cords?
Q: Ntev npaum li cas fiber optic thaj qaum feem ntau kav ntev?
Q: Dab tsi yog qhov ntev tshaj plaws rau patch cords lossis jumpers?
Q: Vim li cas fiber optic thaj cords thiaj li kim?
Q: Yuav ua li cas koj kuaj fiber ntau optic thaj qaum?
Q: Kuv puas tuaj yeem kho qhov puas ntawm fiber ntau optic thaj qaum?
Q: Kuv yuav khaws kuv cov fiber ntau optic thaj qaum li cas?
Q: Dab tsi yog qhov tsawg kawg nkaus dabtsi yog khoov vojvoog rau fiber ntau optic thaj qaum?
Q: Dab tsi yog qhov kev hloov pauv siab tshaj plaws rau fiber ntau optic thaj qaum?
Q: Dab tsi yog qhov txawv ntawm LC thiab SC connectors rau fiber ntau optic thaj qaum?
Raws li ib qho ntawm cov ua fiber ntau optic thaj qaum manufacturers thiab lwm tus neeg nyob hauv Suav teb, peb sov siab txais tos koj mus yuav cov fiber ntau optic thaj qaum hauv Tshuag ntawm no los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab tus nqi qis. Rau pricelist thiab dawb qauv, hu rau peb tam sim no.
