Fiber Optic Pigtail
Evolux Fiber: Koj tus kws tshaj lij Fiber Optic Pigtail Chaw Tsim Tshuaj!
Shenzhen Evolux Fiber Co., Ltd yog ib lub chaw muab kev pab cuam ntawm kev txiav-ntug kho qhov muag fiber ntau cov kev daws teeb meem, tshwj xeeb hauv kev tshawb fawb, kev tsim kho, tsim khoom, thiab kev faib khoom ntawm cov khoom siv fiber ntau zoo. Tsim nyob rau hauv 2013 xyoo, thiab headquartered nyob rau hauv Shen Zhen, Tuam Tshoj, peb tau tshwm sim raws li ib tug ntseeg lub npe nyob rau hauv lub teb ntawm fiber optics. Nrog rau kev tsom mus rau kev tsim kho tshiab thiab kev ntseeg siab, peb siv zog ua kom tau raws li qhov xav tau hloov zuj zus ntawm kev lag luam kev sib txuas lus thoob ntiaj teb.
Peb Qhov Zoo
Ntau yam khoom Portfolio
Peb muab ntau yam khoom siv kho qhov muag fiber ntau, los ntawm ib hom thiab ntau hom optical fibers mus rau cov khoom siv kho qhov muag tshwj xeeb rau cov kev siv tshwj xeeb, suav nrog cov khoom siv fiber ntau, txuas, transceivers, adapters, thiab lwm yam khoom siv kom tau raws li cov kev xav tau ntawm peb cov neeg siv khoom. .
Kev Pab Txhawb Cov Neeg Siv Khoom Zoo
Peb tau sib sau ua ke pab pawg kws tshaj lij uas tau npaj los txhawb peb cov neeg siv khoom. Lawv pab cov neeg siv khoom xaiv cov kev daws teeb meem fiber ntau optic thiab coj cov txheej txheem kev siv, tso cai rau cov neeg siv khoom txaus siab rau kev sib tham ua ntej muag rau kev txhawb nqa tom qab muag thiab kev pab cuam.

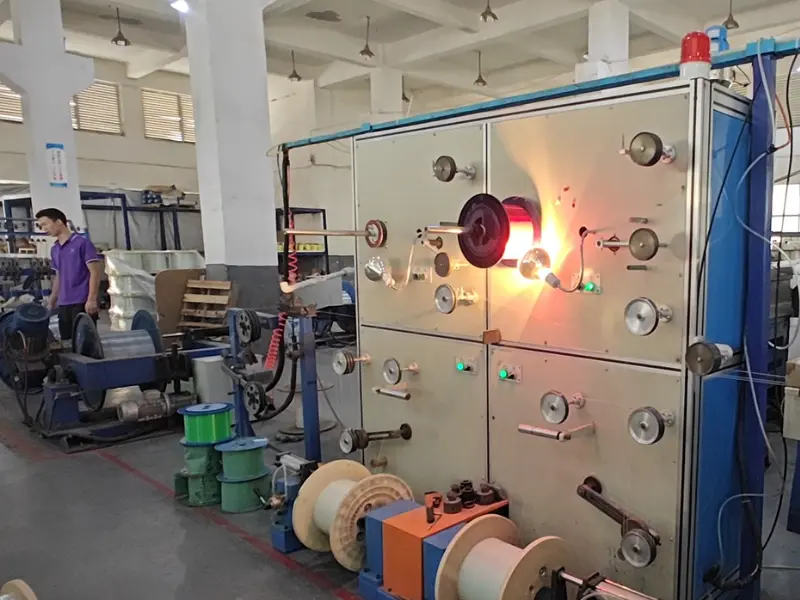

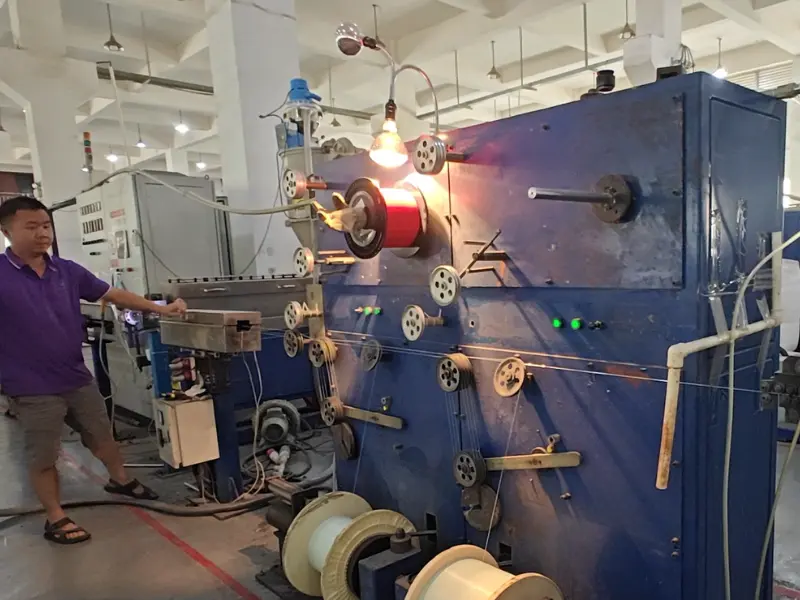

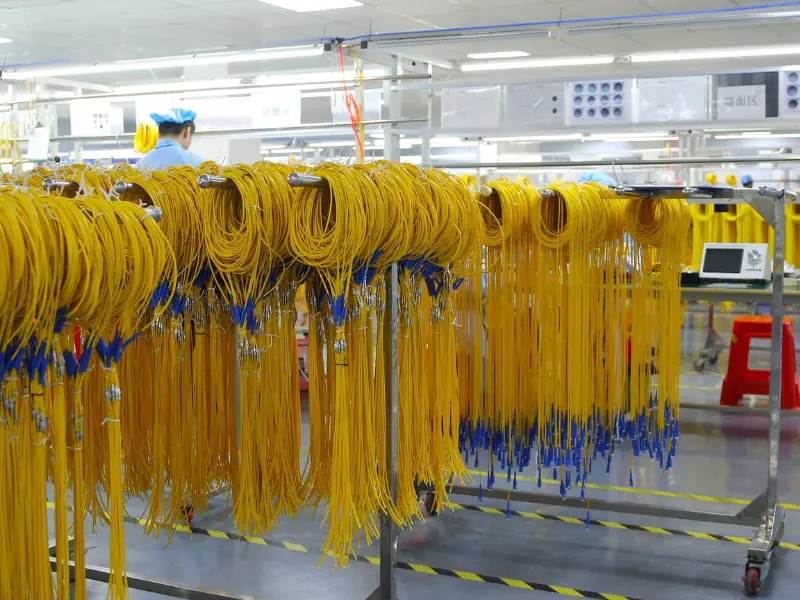

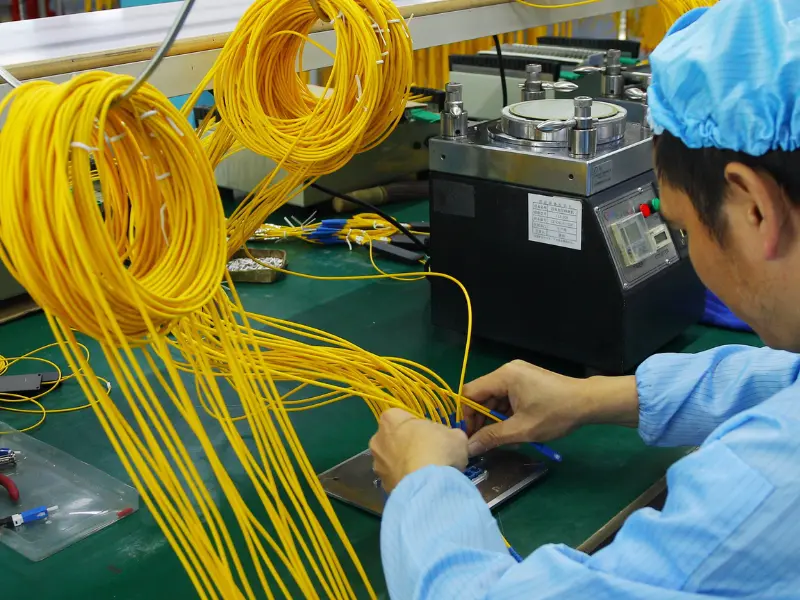

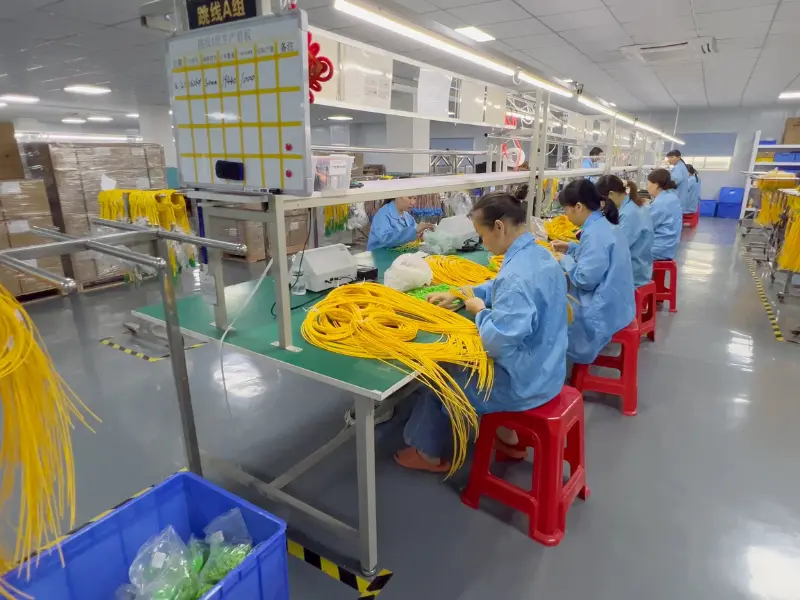

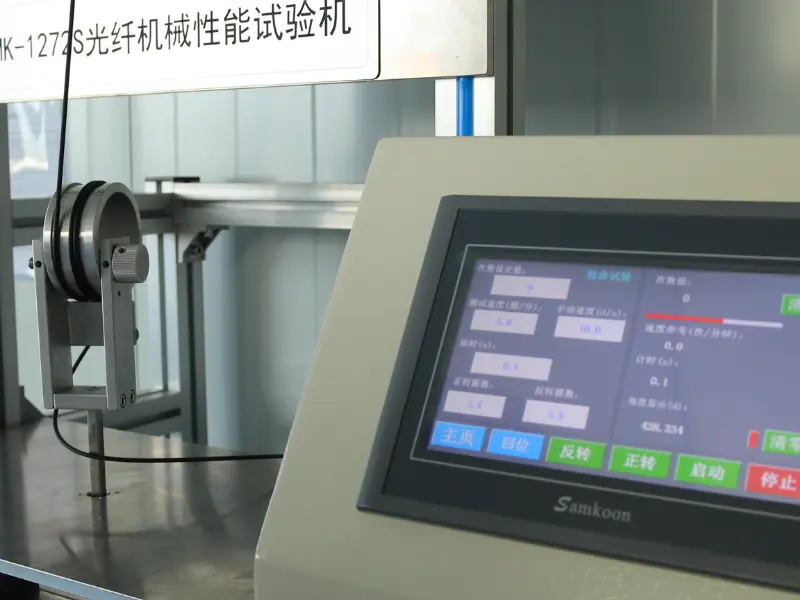

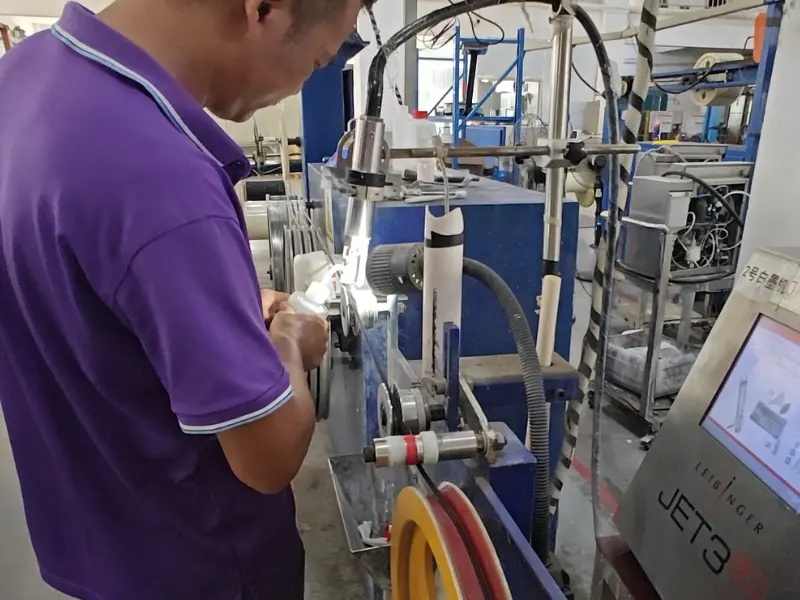

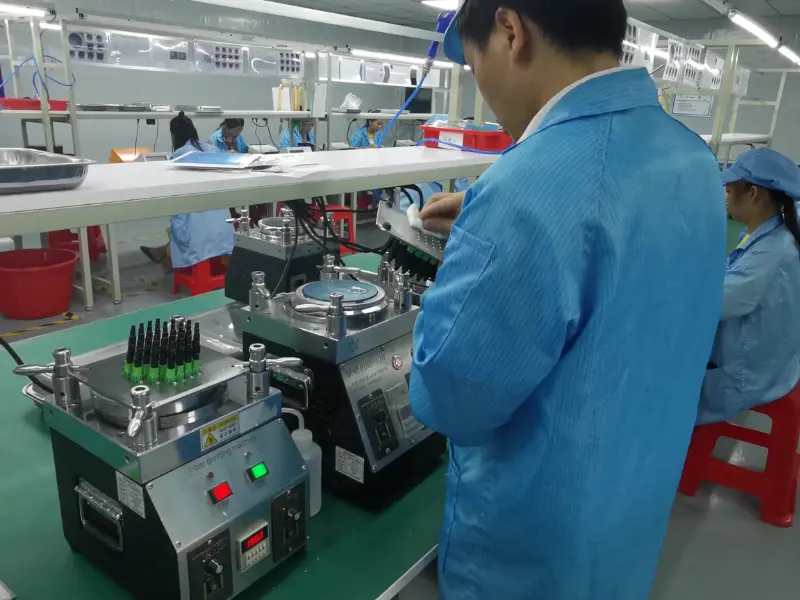

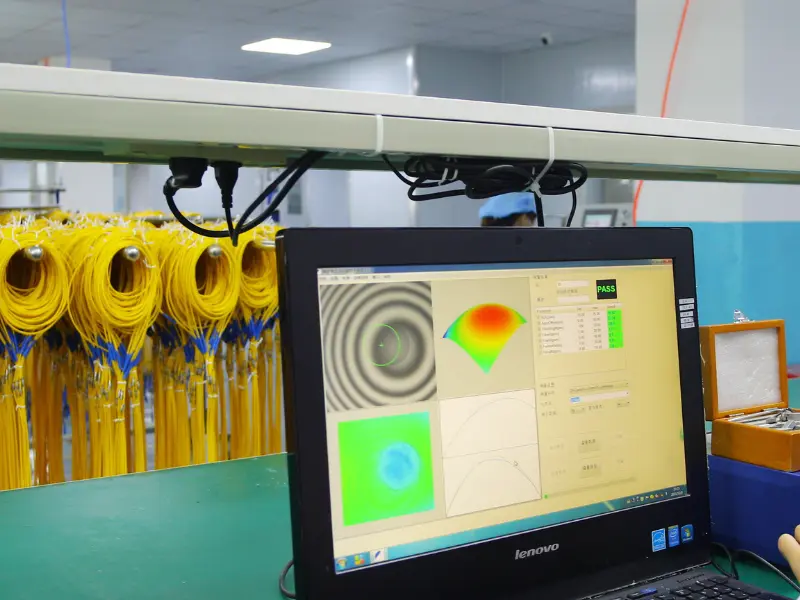

Advanced R & D Facilities
Lub xeev-of-the-art R & D cov chaw, cov cuab yeej siv, thiab cov chaw kuaj mob tshwj xeeb muab qhov chaw zoo tshaj plaws rau kev tshawb fawb, kev sim, thiab kev sim cov khoom siv fiber ntau, tsim, thiab tsim cov txheej txheem.
Kev Customization Services
Peb muab cov kev xaiv customization uas tso cai rau cov neeg siv khoom los txiav cov khoom siv fiber ntau rau lawv cov kev xav tau tshwj xeeb. Fiber txoj kab uas hla, txheej khoom, los yog connector hom tuaj yeem hloov kho tau yooj yim.
Ib qho fiber ntau pigtail feem ntau muaj qhov sib txuas kho qhov muag ua ntej ntsia ntawm ib kawg thiab qhov twg lwm qhov kawg liab qab fiber ntau yog siv rau fusion splicing rau lwm fiber. Pigtails tuaj yeem muaj poj niam lossis txiv neej connectors. Fiber optic pigtails feem ntau yog unjacketed nyob rau hauv thiaj li yuav tsum tau spliced thiab ces tiv thaiv nyob rau hauv lub fiber splice tais nrog ib tug neeg kho tshuab los yog thermal splice ob leeg tiv thaiv.
Kev faib tawm ntawm Fiber Optic Pigtails
Los ntawm Fiber Hom
Fiber optic pigtails muab faib ua ob hom loj: ib hom (xim daj) thiab multimode (xim txiv kab ntxwv) fiber ntau. Multimode fiber optic pigtails siv bulk multimode fiber ntau cables nrog 62.5/125 micron lossis 50/125-micron specifications, txiav nrog multimode fiber optic connectors ntawm ib kawg. Tsis tas li ntawd, 10G multimode fiber ntau cables (OM3 lossis OM4) muaj nyob rau hauv fiber ntau optic pigtails, feem ntau txawv los ntawm ib lub tsho aqua xim. Ntawm qhov tod tes, ib hom fiber ntau pigtail cables siv 9/125 micron ib hom fiber ntau cables thiab raug txiav nrog ib hom fiber ntau txuas ntawm ib kawg.
Muaj ntau hom fiber ntau optic pigtails. txhua qhov xaus nrog ib qho sib txawv connector. Feem ntau siv pigtail cable connectors encompass ntau yam kev xaiv, xws li LC fiber pigtail, SC fiber pigtail, ST fiber pigtail, FC fiber pigtail, MT-RJ fiber pigtail, E2000 fiber pigtail, thiab lwm yam. Txhua connector muaj qhov zoo thiab tsim nyog rau kev siv sib txawv thiab cov tshuab. Cia peb ua tib zoo saib qee yam ntawm cov uas nquag siv:
● SC Fiber Optic Pigtail:Lub SC pigtail cable connector nta ib tug tsis-optical disconnect tsim nrog ib tug 2.5 hli pre-radiused zirconia los yog stainless hlau ferrule. SC fiber pigtail paub txog nws qhov txiaj ntsig zoo thiab kev siv dav hauv CATV, LAN, WAN, kev xeem, thiab kev siv ntsuas.
● FC Fiber Optic Pigtail:Lub FC fiber pigtail siv lub cev hlau ntawm FC optical connectors thiab muaj cov ntsia hlau hom qauv nrog high-precision ceramic ferrules. FC fiber ntau optic pigtails thiab cov khoom muaj feem xyuam pom cov ntawv dav dav hauv kev sib txuas ntawm fiber ntau optic.

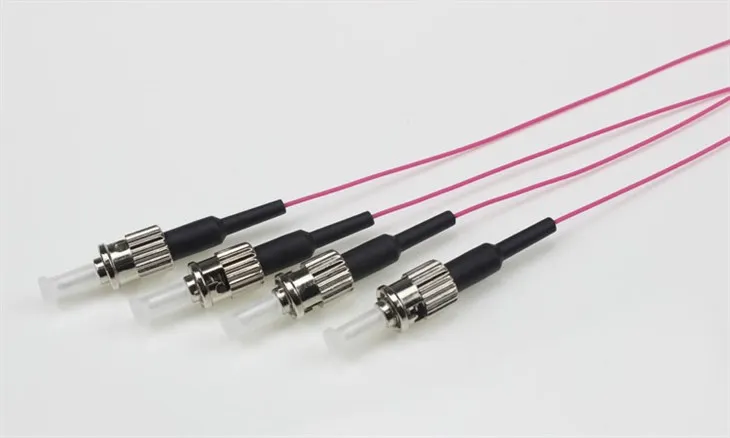

● ST Fiber Optic Pigtail:ST pigtail connector yog tshwj xeeb tshaj yog nrov rau multimode fiber optic LAN daim ntaub ntawv. Nws muaj qhov ntev 2.5 hli inch ferrule ua los ntawm ceramic (zirconia), stainless hlau, lossis yas. ST fiber ntau pigtails feem ntau siv hauv kev sib txuas lus, kev lag luam, kev kho mob, thiab kev siv sensor.
Los ntawm Kev Siv Ib puag ncig
Muaj cov pigtail tshwj xeeb cables, hu ua armored fiber pigtails thiab waterproof fiber pigtails, tsim los tiv thaiv hnyav thiab huab ib puag ncig.
● Armored Pigtail:Armored fiber ntau optic pigtails yog tsim los ntawm cov hlau tsis muaj hlau lossis lwm yam khoom siv hlau muaj zog hauv lub tsho sab nrauv. Qhov kev tsim no muab kev tiv thaiv ntxiv rau cov fiber ntau thiab txhim khu kev ntseeg ntawm lub network tag nrho. Nws kuj tseem pab tiv thaiv kev puas tsuaj los ntawm cov nas tsuag, kev tsim kho, lossis qhov hnyav ntawm lwm cov cables.
● Waterproof Pigtail:Waterproof fiber pigtail yog tsim los nrog cov hlau tsis muaj zog ua kom tsis muaj dej tsis muaj zog thiab lub tsho tiv thaiv sab nraum zoov PE (Poly Ethylene) lub tsho. Hom pigtail no zoo haum rau qhov chaw hnyav xws li kev sib txuas lus yees, CATV kev teeb tsa, thiab kev siv tub rog. Lub pigtail tsis muaj dej tsis muaj dej muaj lub zog zoo heev, lub zog tensile, thiab kev ua tau zoo, ua rau nws zoo tagnrho rau kev sib txuas sab nraum zoov.
Fiber optic pigtails tuaj nyob rau hauv ntau strand fiber suav, xws li 1, 2, 4, 6, 8, 12, 24, thiab 48 strands. Tus tsim ntawm pigtail nyob ntawm seb muaj fiber ntau.
● Simplex Fiber Optic Pigtail:Hom no muaj ib qho fiber ntau thiab ib qho txuas ntawm ib kawg.
● Duplex Fiber Optic Pigtail:Ib tug duplex pigtail nta ob fibers thiab ob connectors ntawm ib kawg, nrog rau txhua fiber ntau feem ntau cim li "A" los yog "B," los yog siv cov xim sib txawv connector khau looj plab hlaub los qhia polarity.
Ib yam li ntawd, pigtails nrog 4, 6, 8, 12, 24, 48, thiab ntau tshaj 48 fibers muaj lawv tus yam ntxwv, haum rau cov kev xav tau tshwj xeeb ntawm ntau yam kev siv thiab tshuab.
Lus Cim: Fiber pigtails muaj ob tus poj niam connectors (siv nyob rau hauv thaj vaj huam sib luag rau kev sib txuas yooj yim) los yog txiv neej connectors (ncaj ncaj ntsaws rau hauv optical transceivers rau teeb liab kis tau tus mob).
Qhov zoo ntawm Fiber Optic Pigtails
Yooj yim ntawm installation
Fiber optic pigtails tuaj nrog pre-terminated connectors, ua rau lawv yooj yim rau nruab thiab txo qhov kev xav tau ntawm qhov chaw txiav tawm. Qhov no yooj yim lub installation txheej txheem thiab txuag lub sij hawm.
Kev sib raug zoo thiab kev txiav txim siab zoo
Pigtails yog lub Hoobkas raug txiav tawm, ua kom muaj kev sib raug zoo thiab ua haujlwm zoo. Qhov no txo qhov kev pheej hmoo ntawm tib neeg kev ua yuam kev thaum lub sij hawm kev txiav tawm, ua rau kev ua tau zoo tag nrho.
Kev sib haum xeeb
Pigtails tuaj yeem raug txiav nrog ntau hom kev sib txuas, xws li SC, LC, ST, lossis lwm yam, ua kom muaj kev sib raug zoo nrog cov khoom sib txawv thiab cov tshuab. Qhov kev hloov pauv no muaj txiaj ntsig zoo hauv ntau qhov sib txawv hauv kev sib tham.
Txo cov teeb liab poob
Lub Hoobkas txiav thiab precision nyob rau hauv connector alignment pab txo cov teeb liab poob thiab xyuas kom meej lub teeb kis tau tus mob. Qhov no yog qhov tseem ceeb rau kev tswj xyuas qhov ua tau zoo thiab kev ncaj ncees ntawm fiber ntau optic network.
Daim ntawv thov ntawm Fiber Optic Pigtail
Terminating Fiber Optic Cables
Fiber optic pigtails feem ntau yog siv los txiav cov fiber ntau optic cables, uas yog siv los xa cov teeb liab kho qhov muag mus ntev. Cov pigtails txuas nrog fiber ntau optic cable thiab ces spliced los yog txiav nrog ib tug optical connector rau lwm yam nyob rau hauv lub system, xws li ib tug thaj vaj huam sib luag los yog optical transceiver.
Tsim Fiber Optic Networks
Fiber optic pigtails yog siv dav hauv kev tsim fiber ntau optic tes hauj lwm, qhov uas lawv tau siv los txuas ntau yam khoom, xws li optical transceivers, optical amplifiers, thiab optical splitters. Lawv muab kev sib raug zoo thiab muaj txiaj ntsig ntawm cov khoom siv no, ua kom muaj kev hloov pauv ntawm cov teeb liab kho qhov muag hauv lub network.
Data Centers
Fiber optic pigtails kuj siv nyob rau hauv cov ntaub ntawv chaw los mus txuas optical transceivers thiab thaj panels. Qhov no ua rau cov chaw zov me nyuam cov ntaub ntawv los tswj cov ntaub ntawv ntau ntawm cov tsheb khiav tau zoo thiab nrog cov teeb liab tsawg tsawg, kom ntseeg tau cov ntaub ntawv ceev thiab txhim khu kev qha.
Kev kuaj thiab kev tu
Fiber optic pigtails kuj tseem siv rau hauv kev sim thiab kev saib xyuas ntawm fiber ntau optic systems. Lawv muab txoj hauv kev yooj yim los kuaj cov teeb liab kho qhov muag yam tsis muaj kev cuam tshuam lub ntsiab fiber ntau optic cable, ua kom yooj yim txheeb xyuas thiab daws teeb meem.
Fiber optic pigtails xav tau kev teeb tsa kom raug thiab txiav tawm kom ntseeg tau tias kev ua haujlwm zoo. Cia peb tshawb xyuas cov txheej txheem ib ntus rau ob qho tib si kev teeb tsa thiab kev txiav tawm, nrog rau qee cov lus qhia txog kev saib xyuas.
Txheej txheem installation
Pib los ntawm kev npaj cov fiber ntau optic cable, xyuas kom meej tias nws huv si thiab tsis muaj kev puas tsuaj los yog kinks. Tshem tawm lub tsho sab nrauv ntawm lub cable siv lub fiber ntau stripper, nthuav tawm cov fiber ntau strands. Ntxuav cov fibers uas raug siv lint-dawb cov ntaub so ntswg thiab isopropyl cawv kom tshem tawm cov av los yog cov kab mob. Npaj lub pigtail los ntawm stripping nws tiv thaiv txheej, tawm hauv me me ntev ntawm liab qab fiber. Teem lub stripped kawg ntawm lub cable thiab pigtail, kom ntseeg tau tias lawv tau zoo raws li fusion splicing los yog mechanical connectors. Siv fusion splicing lossis mechanical connectors los koom cov fibers ua ke ruaj ntseg. Tiv thaiv lub splice los yog kev sib txuas taw tes nrog cov cua sov shrink tubing los yog connector khau boots. Kuaj cov pigtail ntsia siv lub ntsuas hluav taws xob kho qhov muag kom paub tseeb lub teeb liab lub zog. Cov ntawv thov thiab kev lag luam uas siv fiber ntau optic pigtails suav nrog kev sib txuas lus, cov chaw khaws ntaub ntawv, chaw kho mob, thiab kev lag luam automation. Lawv yog qhov tseem ceeb hauv kev sib txuas ntau yam khoom siv xws li keyboards, routers, transceivers, thiab thaj vaj huam sib luag.
Txheej txheem xaus
Pib los ntawm kev npaj cov fiber ntau optic cable zoo ib yam li hais hauv txheej txheem installation. Tshem lub tsho sab nrauv ntawm lub cable kom nthuav tawm cov fibers. Ntxuav ob kawg ntawm lub cable siv cov ntaub so tsis muaj lint thiab isopropyl cawv kom tshem tawm cov kab mob. Npaj lub connector los ntawm kev tshem nws lub hau tiv thaiv thiab ntxuav nws zoo li. Ntxig txhua fiber ntau rau hauv nws qhov sib thooj hauv qhov txuas ferrule. Ua kom ruaj ntseg txuas lub cev txuas los muab kev ntxhov siab rau cov fibers uas raug txiav. Tshawb xyuas thiab ntxuav cov nplaum lossis cov khib nyiab ntau dhau ntawm qhov chaw txuas. Ntsuam xyuas txhua qhov txiav pigtail siv lub ntsuas hluav taws xob kho qhov muag kom ntseeg tau tias cov teeb liab kis tau zoo. Txhawm rau tswj xyuas qhov ua tau zoo ntawm fiber ntau optic pigtails, kev tshuaj xyuas tsis tu ncua thiab tu yog tsim nyog. Tsis txhob khoov lossis twist lawv ntau dhau, vim qhov no tuaj yeem ua rau lub teeb liab poob lossis tawg. Tsis tas li ntawd, ua kom lawv tiv thaiv plua plav thiab ya raws.
Yam yuav tsum tau xav txog ua ntej xaiv Fiber Optic Pigtail
Hom Fiber
Thawj qhov koj yuav tsum tau xav txog thaum xaiv fiber ntau optic cable yog hom fiber ntau. Muaj ob hom fiber ntau: ib hom thiab multimode. Ib hom fiber ntau yog tsim los rau kev sib kis mus ntev, thaum multimode fiber ntau zoo dua rau kev ncua luv. Yog tias koj tab tom xa cov ntaub ntawv hla kev deb, koj yuav xav siv ib hom fiber ntau. Yog tias koj xa cov ntaub ntawv hla luv luv, multimode fiber ntau yuav txaus.
Core Size
Cov tub ntxhais loj ntawm fiber ntau optic cable hais txog txoj kab uas hla ntawm iav lossis yas tub ntxhais uas nqa lub teeb liab. Qhov loj me me cuam tshuam rau ob qho tib si bandwidth thiab kev ncua deb ntawm lub cable. Feem ntau hais lus, cov tub ntxhais loj loj yog qhov zoo dua rau qhov luv luv thiab qis bandwidths, thaum cov tub ntxhais me me yog qhov zoo dua rau kev ncua ntev thiab ntau dua bandwidths.
Jacket Khoom
Cov khoom siv lub tsho ntawm fiber ntau optic cable yog qhov tseem ceeb, vim nws tiv thaiv cov fiber ntau los ntawm kev puas tsuaj thiab ib puag ncig. Muaj ntau ntau yam khoom siv los xaiv, xws li PVC, LSZH, thiab Plenum. PVC yog cov khoom siv tsho tshaj plaws thiab tsim nyog rau feem ntau daim ntawv thov. LSZH (Low Smoke Zero Halogen) tsho yog siv nyob rau hauv ib puag ncig uas cov pa luam yeeb thiab cov pa phem tuaj yeem ua rau muaj kev phom sij, xws li hauv dav hlau lossis submarines. Plenum tsho yog siv nyob rau hauv cov huab cua tuav qhov chaw, xws li nyob rau hauv lub chaw ua hauj lwm cov tsev.
Hom Connector
Hom connector yog lwm yam tseem ceeb uas yuav tsum tau xav txog thaum xaiv fiber ntau optic cable. Muaj ntau ntau hom connector muaj, xws li SC, FC, ST, thiab LC. Hom connector koj xaiv yuav nyob ntawm seb cov khoom koj tab tom txuas mus thiab qhov deb ntawm lawv.
Installation Ib puag ncig
Thaum kawg, koj yuav xav xav txog qhov chaw teeb tsa thaum xaiv fiber ntau optic cable. Ib puag ncig sib txawv xav tau ntau hom cable. Piv txwv li, yog tias koj tab tom txhim kho cable nyob rau hauv ib puag ncig hnyav sab nraum zoov, koj yuav xav xaiv cov cable uas tsim los siv sab nraum zoov thiab tuaj yeem tiv taus cov ntsiab lus. Yog tias koj tab tom txhim kho cable hauv lub chaw khaws ntaub ntawv, koj yuav xav xaiv cable uas yooj yim rau nruab thiab tswj.
Siv Cov Lus Qhia rau Fiber Optic Pigtail
Khaws Cable Connectors huv si thiab qhuav
Ua ntej siv fiber ntau optic cables, ntxuav cov connectors ntawm lub cable thiab ntawm cov cables los yog ports cov cable txuas nrog. Cov khoom sib txuas tuaj yeem yooj yim kis tau los ntawm plua plav, roj los ntawm tes, zaj duab xis residue condensed los ntawm huab cua vapors, thiab coatings tshuav tom qab dej thiab cov kuab tshuaj evaporate. Cov dej noo kuj tuaj yeem ua rau cov kab txiav tawm, yog li khaws cov cables hauv qhov chaw qhuav.
Cia Plua plav Caps rau kom txog thaum npaj txhij mus txuas
Cov kaus mom plua plav khaws cov kab mob thiab cov dej noo kom deb ntawm qhov txuas thiab tiv thaiv nws los ntawm kev puas tsuaj. Tom qab tshem lub kaus mom plua plav, tshuaj xyuas thiab ntxuav lub ferrule ua ntej txuas mus rau lwm lub cable lossis khoom siv. Tsuas yog siv cov khoom ntxuav uas npaj rau fiber ntau optic connectors.
Coj Nws Yooj Yim
Fiber cables yog qhov ruaj khov heev uas suav nrog cladding, coatings, thiab cov tsho uas tiv thaiv cov iav ilv strands thiab muab lub zog. Tseem, yog mishandled, cov iav strands tuaj yeem tawg uas cuam tshuam cov teeb liab kis tau tus mob.
Test rau Failure Points
Tshaj qhov khoov lub vojvoog lossis tsoo cov kev ntsuas ntawm lub cable tuaj yeem cuam tshuam kev ua haujlwm, yog li siv lub teeb pom kev tsis pom kev (VFL) kom pom cov ntsiab lus tsis ua haujlwm lossis lub ntsuas hluav taws xob los txiav txim seb puas muaj teeb liab poob.
Tsis txhob Tangled Cables
Coil fiber ntau optic cables thiab ruaj ntseg connectors nrog nuv thiab voj hom fasteners. Txij li thaum compressed cables tuaj yeem ua rau lub teeb liab poob, tsis txhob siv cov yas zip ties. Thaum zip ties yog tib txoj kev daws, cinch lub zip ties loosely.
Qhov kawg FAQ Qhia rau Fiber Optic Pigtail
Q: Dab tsi yog Fiber pigtails siv rau?
Q: Dab tsi yog qhov txawv ntawm lub pigtail thiab ib txoj hlua khi?
Q: Fiber Optic Pigtail yog dab tsi?
Q: Yuav ua li cas kuaj cov connectors?
Q: Qhov loj npaum li cas yog fiber ntau pigtail?
Q: Dab tsi yog hom fiber ntau pigtails?
Q: Qhov twg siv fiber ntau pigtails?
Q: Dab tsi yog qhov txawv ntawm lub fiber ntau cable thiab ib thaj qaum?
Q: Dab tsi ntawm fiber optic pigtail muaj?
Q: Dab tsi yog qhov wavelength rau fiber ntau optic pigtail?
Q: Dab tsi yog qhov kev ncua deb ntawm fiber ntau optic pigtail tuaj yeem xa cov teeb liab?
Q: Ua li cas fiber pigtail ua haujlwm?
Q: Dab tsi yog qhov feem ntau pigtail connector dav siv?
Q: Peb siv pigtail pob qij txha nyob qhov twg?
Q: Koj ua li cas splice pigtails?
Q: Dab tsi yog ib hom pigtail?
Q: Yuav ua li cas hloov lub pigtail connector?
Q: Dab tsi yog qhov zoo ntawm pre-terminated fiber optic pigtails?
Q: Dab tsi yog qhov siab tshaj plaws rub nro rau fiber ntau optic pigtails?
Q: Puas yog fiber ntau optic pigtails haum rau kev siv sab nraum zoov?
Raws li ib qho ntawm cov ua fiber optic pigtail manufacturers thiab lwm tus neeg nyob hauv Suav teb, peb sov siab txais tos koj mus yuav cov fiber optic pigtail hauv Tshuag ntawm no los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab tus nqi qis. Rau pricelist thiab dawb qauv, hu rau peb tam sim no.
