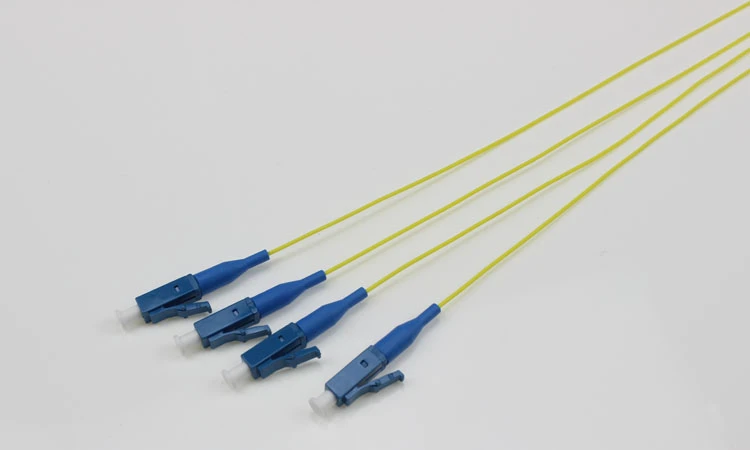

Fiber ntau optic LC pigtailyog ib hom tshwj xeeb ntawm fiber ntau optic cable tsim los pab txhim khu kev qha thiab kev sib txuas ceev ntawm ntau yam khoom siv hauv network. Nws qhov loj me thiab tsim tau zoo ua rau nws tsim tshwj xeeb rau kev siv hauv kev sib txuas lus hauv xov tooj, cov chaw khaws ntaub ntawv, thiab lwm qhov chaw uas xav tau kev sib txuas ntawm fiber ntau optic. Los ntawm kev muab cov kev sib kis tau zoo thiab cov teeb liab tsawg tsawg, LC pigtails ua lub luag haujlwm tseem ceeb hauv kev ua kom cov ntaub ntawv sib txuas lus zoo.
Vim li cas thiaj xaiv US?
Ntawm Shenzhen Evolux Fiber Co., Ltd., peb hais txog kev tsim kho tshiab, kev ntseeg siab, thiab cov neeg siv khoom txaus siab. Nov yog vim li cas koj yuav tsum xaiv peb:
- Kev txawj ntse thiab kev tsim kho tshiab: Peb pab neeg muaj peev xwm tau mob siab rau kev txhawb nqa fiber ntau optic technology.
- High-Quality Products: Peb siv cov tshuab precision thiab kev soj ntsuam zoo kom ua tau raws li cov qauv kev lag luam.
- Kev daws teeb meem: Cov kev daws teeb meem tsim los rau koj cov kev xav tau tshwj xeeb.
- Kev Tshaj Tawm Ntiaj Teb: Peb pab cov neeg siv khoom thoob plaws North America, Europe, Tuam Tshoj, thiab Asia Pacific.
- Kev Sib Raug Zoo Rau Lub Sijhawm Ntev: Peb tsom rau kev tsim kev sib koom tes ntev nrog kev txhawb nqa tshwj xeeb thiab kev pabcuam tomqab muag.
Khoom Specifications
|
Txuas |
LC |
Fiber suav |
Simplex |
|
Fiber hom |
9/125;50/125;62.5/125 |
Yam tsawg kawg nkaus Khoov Radius |
10 mm |
|
Hom Polish |
APC/UPC |
Cable Diameter |
{{0}}.9mm/2.0mm/3.0mm |
|
Cable Jacket |
PVC/LZH |
Jacket Xim |
Daj / Txiv kab ntxwv / OM3 / OM4 |
|
Lub wavelength |
1310nm / 1550nm |
Durability |
500 zaug |
|
Insertion Loss |
Tsawg dua lossis sib npaug rau 0.3 dB |
Hloov pauv tau |
Tsawg dua lossis sib npaug rau 0.2 dB |
|
Rov Los Los |
Ntau dua lossis sib npaug li 60 dB |
Kev vibration |
Tsawg dua lossis sib npaug rau 0.2 dB |
|
Ua haujlwm kub |
-40 ~ 75 degree |
Cia kub |
-45 ~ 85 degree |
Khoom nta
- High-Quality Connectors: PebFiber Optic LC Pigtailsfeature compact connectors, zoo meej rau high-density ib puag ncig hauv cov ntaub ntawv chaw zov me nyuam thiab chav sib txuas lus. Lawv muab qhov poob qis qis, qhov rov qab xav tau tsawg kawg, thiab rov ua tau zoo dua.
- Kev ua tau zoo ib yam: Crafted nrog precision machinery thiab xyuas kom meej, cov pigtails tsis tu ncua ua tau raws li kev lag luam qauv rau kev ua tau zoo.
- Kev Txhim Kho Yooj Yim: Nrog cov khoom sib txuas ua ntej, tsis tas yuav tsum muaj kev sib txuas lossis kev txiav tawm, tso cai rau kev teeb tsa sai thaum txo qis qis thiab txo qhov yuam kev.
- Wide Compatibility: Cov pigtails no tau sib xws nrog ntau yam khoom, suav nrog thaj vaj huam sib luag, keyboards, thiab routers, ua rau lawv haum rau ntau hom kev siv.
- Superior Flexibility: Tsim los rau kev ua haujlwm ntev thiab ua haujlwm tsis zoo, lawv muaj qhov tshwj xeeb tensile lub zog, ua kom ntseeg tau kev lag luam hauv kev xav tau.
Cov khoom siv
PebFiber Optic LC Pigtailsmuaj ntau yam thiab tuaj yeem siv ntau yam kev ua haujlwm siab hauv network:
- Local Area Networks (LANs) thiab Wide Area Networks (WANs)
- Fiber Optic CATV, FTTH, FTTB, FTTP, thiab lwm yam.
- Fiber Optic Telecommunication Systems
- Transmission Mode (ATM)
- Fiber Optic Backbone
- Tub Rog Instrumental
Kev Tswj Xyuas Zoo
Peb tswj xyuas qhov zoo ntawm Shenzhen Evolux Fiber Co., Ltd. Txhua yam khoom tau dhau mus kuaj nruj kom ntseeg tau tias nws ua tau raws li peb cov qauv siab. Peb cov txheej txheem tswj kom zoo muaj xws li:
- Kev tshuaj xyuas cov khoom: xyuas kom txhua cov ntaub ntawv ua tau raws li peb cov lus qhia.
- Kev Tswj Xyuas Txheej Txheem: Saib xyuas txhua kauj ruam ntawm cov txheej txheem tsim khoom.
- Kev Xeem Kawg: Ua cov kev ntsuam xyuas nruj kom paub tseeb tias kev ua tau zoo thiab kev ntseeg tau.
Kev Pabcuam OEM
Peb muab cov kev daws teeb meem tsim nyog los daws koj cov kev xav tau tshwj xeeb. Txawm hais tias koj xav tau kev cai ntev, xim xaiv, lossis cov kev teeb tsa tshwj xeeb, peb pab neeg npaj txhij los pab koj. Hu rau los tham txog koj cov kev xav tau thiab tau txais ib daim ntawv tso cai tus kheej.
FAQ
Txog Peb
Ib qho ntawm cov neeg lag luam tseem ceeb tshaj plaws ntawm kev txiav cov khoom siv kho qhov muag fiber ntau yog Shenzhen Evolux Fiber Co., Ltd. Peb tau tsim nyob rau hauv 2013 thiab muaj peb lub hauv paus hauv Shenzhen, Suav. Txhawm rau kom ua raws li qhov yuav tsum tau hloov pauv mus ib txhis ntawm kev lag luam kev sib txuas lus thoob ntiaj teb thiab tsav kev lag luam nce qib, peb pab pawg kws tshaj lij tau mob siab rau. Koj puas tau npaj siv pebFiber Optic LC Pigtailslos txhim kho cov infrastructure ntawm koj lub network? Xav paub ntau ntxiv txog peb cov khoom thiab cov kev pabcuam, thov hu rau peb tam sim ntawmsales@evoluxfiber.comthiabshanna@evoluxfiber.com.
