Khoom Taw Qhia

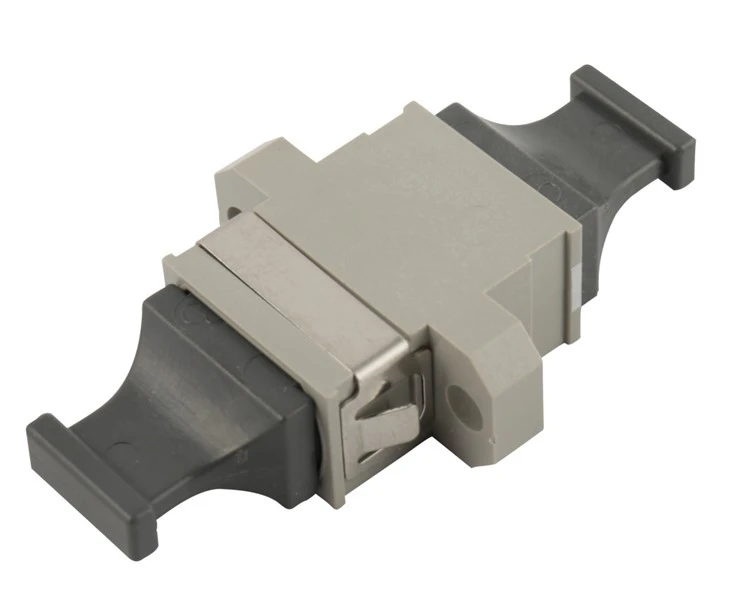

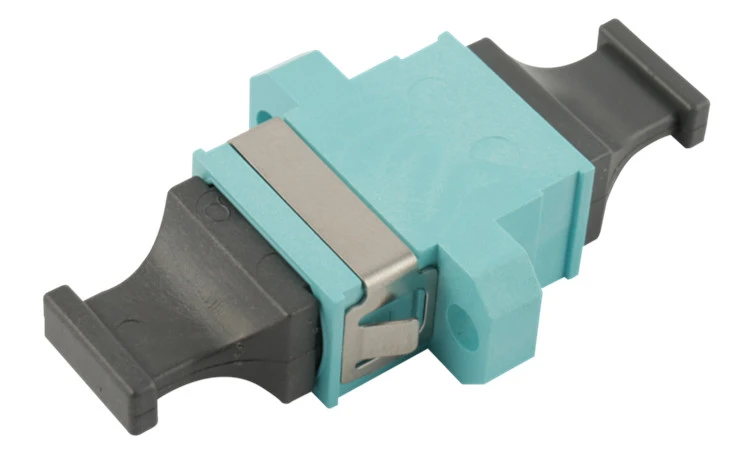

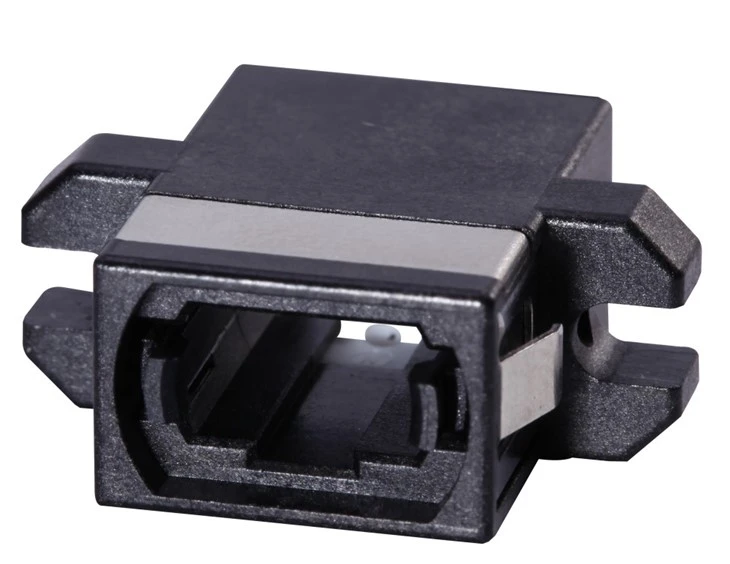

Fiber optic MPO adapter yog ib qho khoom siv me me siv los txuas fiber ntau-optic cables nrog MPO connector, MTP yog ib qho kev ua haujlwm siab MPO connector engineered rau kev ua haujlwm zoo dua qub thiab kho qhov muag. Fiber optic MPO adapter muab kev sib haum xeeb rau txiv neej thiab poj niam MPO / MTP connector. Lub vaj tsev muaj nyob nrog MTP lossis SC hneev taw ua kom sib haum lossis tawm tsam cov yuam sij sib txawv, cov xim sib txawv thiab nrog cov kev xaiv rau flange lossis flangeless lub cev. Cov khoom siv lub cev yog polyetherimide nrog lub caij nplooj ntoos hlav stainless hlau
Specification
|
Hom Connector |
MPO/MTP |
|
Test Wavelength |
850nm / 1300nm / 1310nm / 1550nm |
|
Polish Hom |
UPC/APC |
|
Hom Flange |
Nrog / tsis muaj flange |
|
Fiber hom |
Ib hom / multimode / om3 / om4 |
|
Fiber suav |
12/16/24/32 |
|
Insertion Loss |
Feem ntau Tsawg dua lossis sib npaug rau {{0}}.2dB, Max Tsawg dua lossis sib npaug rau 0.3dB |
|
Rov Los Los |
Ntau dua lossis sib npaug li 50dB rau UPC. Ntau dua lossis sib npaug rau 55dB rau APC |
|
Xim tsev |
Beige / Aqua / Ntsuab / Daj / Dub / Liab |
|
Durability |
>1000 Lub Sijhawm |
Nta
Ib kawg ntawm lub adapter txuas mus rau ib tug txiv neej connector, thiab lwm yam txuas mus rau ib tug poj niam connector.
Fiber optical ceev connector siv rau ob hom tib hom (SM) thiab ntau hom (MM).
Lub adapter siv rau cov tub ntxhais ntawm 4 - 24 fiber ntau txuas.
Txoj kev kho cov connectors yog up-down qhov tseem ceeb.
Tsawg qhov ntxig poob.
Daim ntawv thov
Local Area Network
Optical fiber kev sib txuas lus system
Optical access network (OAN)
Optical CATV
Optical fiber ntau sensor
Fiber optics cov ntaub ntawv kis tau tus mob (FODT)
Active ntaus ntawv xaus
Cov khoom siv kuaj
