Evolux Fiber: Koj tus kws tshaj lij Fiber Optic PLC Splitter Chaw Tsim Tshuaj!

Shenzhen Evolux Fiber Co., Ltd yog ib tug thawj coj ntawm kev txiav -ntug kho qhov muag fiber ntau cov kev daws teeb meem, tshwj xeeb hauv kev tshawb fawb, kev tsim kho, kev tsim khoom, thiab kev faib khoom ntawm qib siab - fiber ntau optic khoom. Tsim nyob rau hauv 2013 xyoo, thiab headquartered nyob rau hauv Shen Zhen, Tuam Tshoj, peb tau tshwm sim raws li ib tug ntseeg lub npe nyob rau hauv lub teb ntawm fiber optics. Nrog rau kev tsom mus rau kev tsim kho tshiab thiab kev ntseeg siab, peb siv zog ua kom tau raws li qhov xav tau hloov zuj zus ntawm kev lag luam kev sib txuas lus thoob ntiaj teb.

null

Peb Qhov Zoo

Ntau yam khoom Portfolio

Peb muab ntau yam khoom siv kho qhov muag fiber ntau, los ntawm ib qho -hom thiab ntau- hom optical fibers mus rau cov khoom siv kho qhov muag tshwj xeeb rau cov kev siv tshwj xeeb, suav nrog cov fiber ntau optical cables, connectors, transceivers, adapters, thiab lwm yam khoom siv kom tau raws li cov kev xav tau ntawm peb cov neeg siv khoom.

Kev Pab Txhawb Cov Neeg Siv Khoom Zoo

Peb tau sib sau ua ke pab pawg kws tshaj lij uas tau npaj los txhawb peb cov neeg siv khoom. Lawv pab cov neeg siv khoom xaiv txoj kev daws teeb meem fiber ntau thiab coj cov txheej txheem kev siv, tso cai rau cov neeg siv khoom txaus siab rau kev ua ntej - kev sib tham txog kev muag khoom los tshaj tawm - kev muag khoom thiab kev pab cuam.

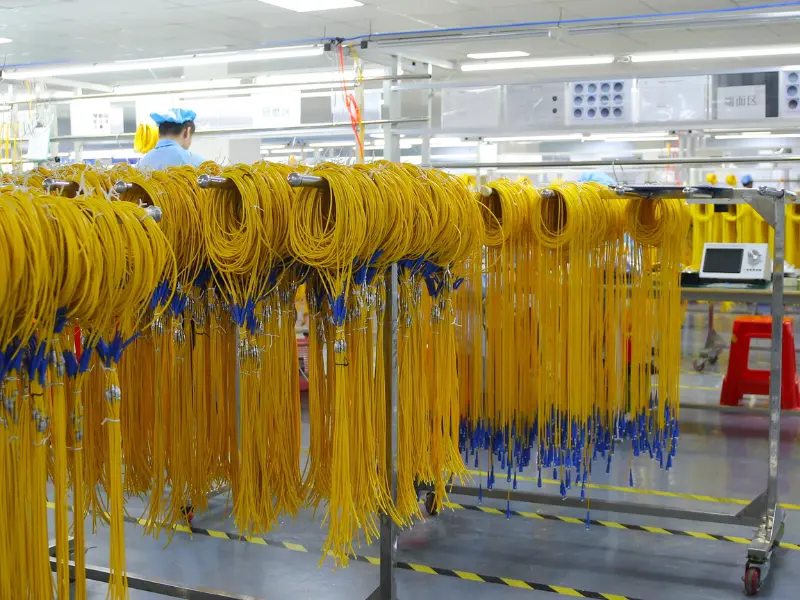

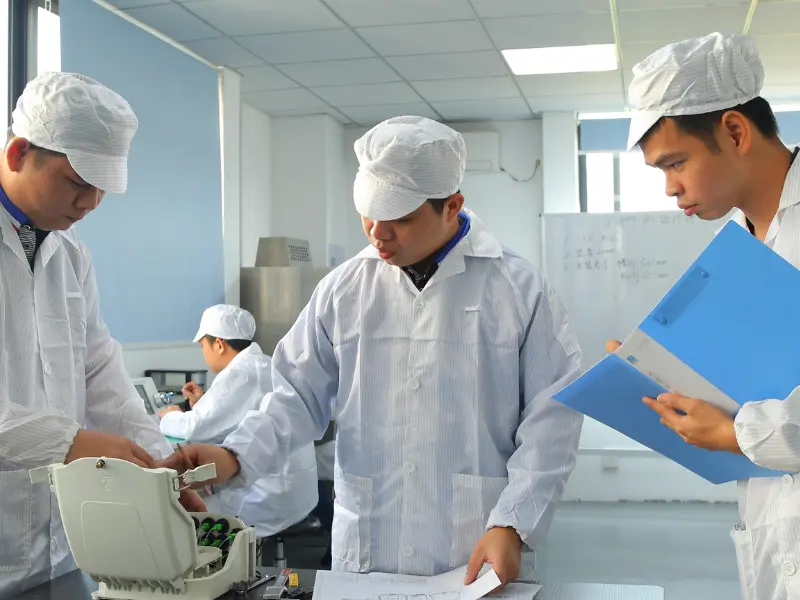

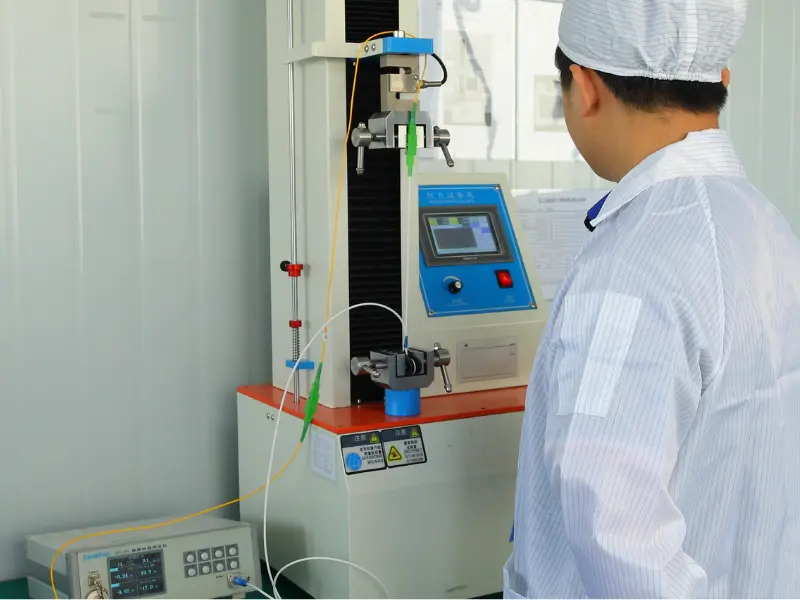

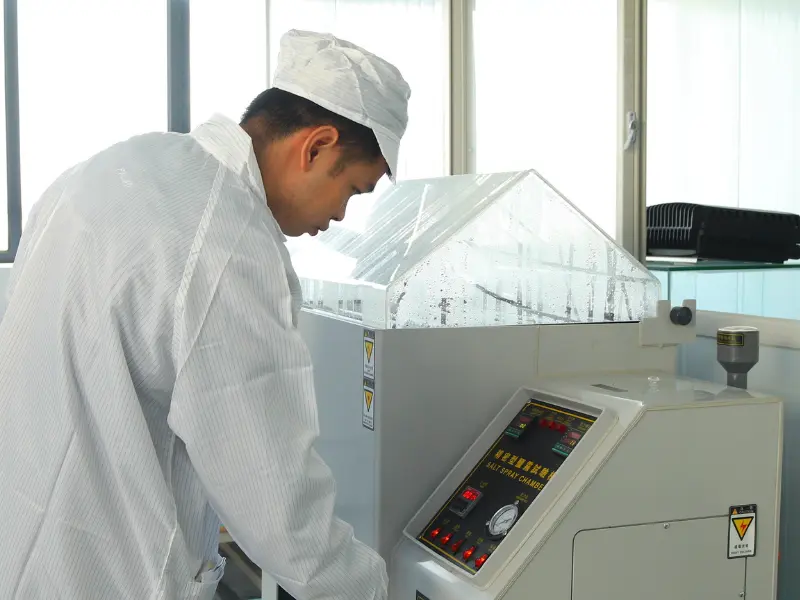

Advanced R & D Facilities

Xeev- ntawm-- cov chaw R&D kos duab, khoom siv, thiab cov chaw sim tshwj xeeb muab qhov chaw zoo tshaj plaws rau kev txiav- kev tshawb fawb, kev sim, thiab kev sim cov khoom siv fiber ntau, kev tsim, thiab kev tsim khoom.

Kev Customization Services

Peb muab cov kev xaiv customization uas tso cai rau cov neeg siv khoom los txiav cov khoom siv fiber ntau rau lawv cov kev xav tau tshwj xeeb. Fiber txoj kab uas hla, txheej khoom, los yog connector hom tuaj yeem hloov kho tau yooj yim.

Add to Inquiry

1 × 2 Plc Fiber Splitter, tsis muaj Connector

1 × 2 PLC Fiber Splitter, Mini Module. ●Fiber rau Qhov Point (FTTX). ●Fiber rau Lub Tsev (FTTH). ●Passive Optical Networks (PON). ●Gigabit Passive Optical Networks (GPON). ● Local Area Networks

Add to Inquiry

1x16 Plc Fiber Splitter Tsis Txuas Txuas

Nyob rau niaj hnub no qhov nrawm -paced digital toj roob hauv pes, txhim khu kev qha thiab siab - kev sib txuas ceev yog qhov tseem ceeb rau kev lag luam kom vam meej. Peb 1X16 PLC Fiber Splitter,

Add to Inquiry

1 × 4 Plc Fiber Splitter, Mini Module WOC

1 × 4 PLC Fiber Splitter, Mini Module, tsis muaj connector:. ●Fiber to The Point (FTTX). ●Fiber rau Lub Tsev (FTTH). ●Passive Optical Networks (PON). ●Gigabit Passive Optical Networks (GPON). ● Local

Add to Inquiry

1x8 Plc Fiber Optic Splitter WOC

1X8 PLC Fiber Optic Splitter mini raj tsis muaj connector. ●Compact qauv thiab hloov tau yooj yim installation. ● Uniform lub teeb sib cais thiab ruaj khov zoo. ● Dav daim ntawv thov

Add to Inquiry

1x8 SC UPC Plc Fiber Optic Splitter

1X8 PLC Fiber Optic Splitter SC UPC Mini Tube. ●Compact qauv thiab hloov tau yooj yim installation. ● Uniform lub teeb sib cais thiab ruaj khov zoo. ● Dav daim ntawv thov

Add to Inquiry

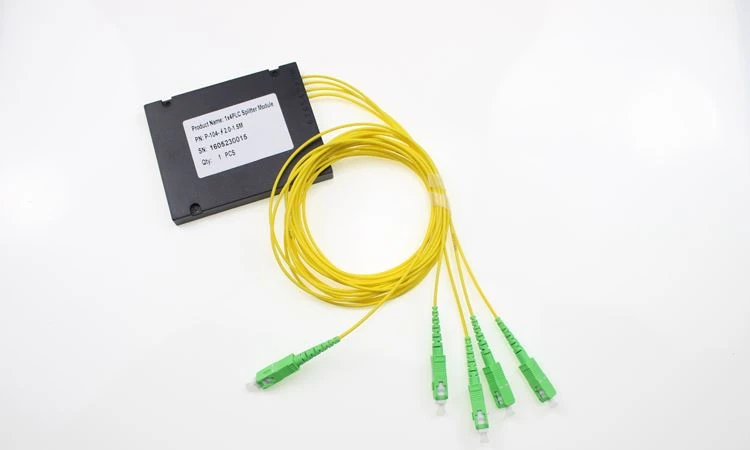

1 × 4 SC UPC Plc Fiber Splitter, Mini Module

1 × 4 PLC Fiber Splitter, Mini Module, SC / UPC daim ntawv thov:. ●Fiber rau Qhov Point (FTTX). ●Fiber rau Lub Tsev (FTTH). ●Passive Optical Networks (PON). ●Gigabit Passive Optical Networks (GPON).

Add to Inquiry

1 × 4 SC APC Plc Fiber Splitter, Mini Module

1 × 4 PLC Fiber Splitter, Mini Module, SC / APC daim ntawv thov:. ●Fiber rau Qhov Point (FTTX). ●Fiber rau Lub Tsev (FTTH). ●Passive Optical Networks (PON). ●Gigabit Passive Optical Networks (GPON).

Add to Inquiry

1x16 SC APC Plc Fiber Splitter, Hlau Tube, Liab qab Fiber 250µm, Singlemode

Nyob rau niaj hnub no qhov nrawm -paced digital toj roob hauv pes, txhim khu kev qha thiab siab - kev sib txuas ceev yog qhov tseem ceeb rau kev lag luam kom vam meej. Peb 1X16 PLC Fiber Splitter,

Add to Inquiry

1 × 8 SC APC PLC Splitter Mini Tube Hom - Compact Tsim rau FTTX

1X8 PLC Fiber Optic Splitter SC APC mini raj. ●Compact qauv thiab hloov tau yooj yim installation. ● Uniform lub teeb sib cais thiab kev ruaj ntseg zoo. ● Dav daim ntawv thov

Add to Inquiry

1 × 2 Plc Fiber Splitter Mini Tube SC UPC

Kev siv cov kauj ruam ntawm Fiber Optic Splitter:. 1, Kev Npaj Ua Haujlwm. 2, Cov kauj ruam installation. 3, Kev Ntsuas thiab Kev Ua Haujlwm Zoo. 4, Kev Tiv Thaiv Kev Tiv Thaiv. 5, Kev tu thiab kev

Add to Inquiry

1 × 2 PLC Fiber Splitter, Mini Module, SC / APC

1 × 2 PLC Fiber Splitter, Mini Module, SC / APC daim ntawv thov:. ●Fiber rau Qhov Point (FTTX). ●Fiber rau Lub Tsev (FTTH). ●Passive Optical Networks (PON). ●Gigabit Passive Optical Networks (GPON).

Add to Inquiry

2 * 8 PLC Fiber Optic Splitter Cassette SC APC

2 * 8 PLC Fiber Optic Splitter Cassette SC APC. ● Tsawg Insertion poob. ● High Split Ratio. ●Compact Loj. ● Kev ua haujlwm dav dav. ● Polarization Insensitive. ●Low PDL (Polarization Dependent Poob).

First 12 Last1/2

PLC Splitter Solutions tsim nyob ib ncig ntawm koj qhov Network Project

Lub fiber ntau optic PLC splitter tsis yog xaiv los ntawm kev sib cais ib leeg. Nws pob loj, connector interface, fiber ntau txoj kab uas hla, cable ntev thiab installation txoj kev yuav tsum kuj phim lub network architecture thiab enclosure tsim.

EVOLUX Fiber muab PLC splitter kev daws teeb meem rau cov neeg siv xov tooj, cov neeg ua haujlwm fiber ntau network, ODN cov chaw muab kev daws teeb meem, cov cuab yeej tsim khoom, cov neeg xa khoom thiab ntiag tug - cov npe npe.

Txawm hais tias koj tab tom yuav cov qauv qauv rau kev faib khoom lossis npaj ib qhov project-Kev xa tawm FTTH tshwj xeeb, peb pab neeg tuaj yeem pab koj txheeb xyuas qhov tsim nyog yuav tsum tau ua ua ntej hais thiab ntau lawm.

Hu rau tam sim no

Qhov project-Matched Configuration

Xaiv qhov sib piv, pob, txuas, fiber ntau siv thiab cable ntev raws li koj lub network topology, kev teeb tsa enclosure thiab optical pob nyiaj siv.

Txheeb xyuas qhov ua tau zoo Optical

Paub meej qhov tseem ceeb tsis xws li kev tso qhov poob, tsis sib xws, rov qab poob, polarization nyob ntawm qhov poob thiab kev coj ncaj ncees raws li koj qhov kev lees paub.

Saj zawg zog Customization

Configure connector interfaces, cable diameters, input thiab output lengths, khoom daim ntawv lo, cov neeg siv khoom tus naj npawb thiab ntim.

Kev Sib Txuas Lus Rov Ua Haujlwm

Kev pom zoo kev teeb tsa tuaj yeem raug kaw rau cov qauv, kev txiav txim ntau thiab rov yuav khoom, pab txo qis qhov sib txawv ntawm cov khoom sib txawv.

Customize koj Fiber Optic PLC Splitter

Standard PLC splitters npog feem ntau FTTH, GPON thiab PON daim ntawv thov, tab sis cov haujlwm sib txawv yuav xav tau kev sib cais tshwj xeeb, pob qhov ntau thiab tsawg, kev sib txuas sib txuas, cable tsim thiab kev txheeb xyuas.

EVOLUX Fiber muab qhov project-raws li PLC splitter customization raws li koj BOM, kos duab, qauv lossis kev qhia tshwj xeeb.

Hu rau tam sim no

Split Ratio thiab Port Configuration

Xaiv qhov kev tawm tswv yim thiab tso tawm teeb tsa raws li koj lub network architecture thiab xav tau tus naj npawb ntawm cov chaw xa khoom.

Cov kev xaiv muaj xws li:

1 × 2 rau 1 × 64 configurations
2 × N configurations
Ib qho - tawm tswv yim lossis dual - tawm tswv yim tsim
Balanced optical zog faib
Project-cov chaw nres nkoj tshwj xeeb
Tshwj xeeb configurations raws li kev ntsuam xyuas

Hom pob

Xaiv lub pob raws li qhov chaw teeb tsa, kev tiv thaiv kev tiv thaiv thiab txoj kev tswj fiber ntau.

Cov kev xaiv muaj xws li:

Tsis muaj fiber ntau
Blockless los yog mini raj
ABS module
LGX cassette
Khib -mount enclosure
Kev cai module tsim

Connector Hom thiab Polish

Configure cov tswv yim thiab tso zis interfaces kom phim koj cov adapters, khoom siv thiab cov kev sib txuas uas twb muaj lawm.

Cov kev xaiv muaj xws li:

SC/APC
SC/UPC
LC/APC
LC / UPC
FC/APC
FC/UPC
Cov fibers tsis muaj kev cuam tshuam
Sib txawv connectors ntawm cov tswv yim thiab tso zis sab

Fiber thiab Cable Siv

Xaiv hom fiber ntau, tsis muaj txoj kab uas hla thiab cov qauv cable raws li qhov chaw routing, dabtsi yog khoov yuav tsum tau thiab kev tiv thaiv txhua yam xav tau.

Cov kev xaiv muaj xws li:

250 μm liab qab fiber ntau
900 μm buffered fiber ntau
2.0mm kab
3.0mm kab
G.657A1 khoov-sensitive fiber
G.657A2 khoov-sensitive fiber
G.652D ib - hom fiber ntau
Txawv input thiab output cable diameters

Cable Length thiab Port Identification

Qhia cov tswv yim thiab tso zis cable ntev raws li koj qhov chaw nyob thiab qhov ntev ntawm fiber ntau routing layout.

Cov kev xaiv txheeb xyuas kuj muaj xws li:

Customized input thiab output lengths
Numbered tso zis fibers
Xim -coded fibers
Chaw nres nkoj daim ntawv lo
Input thiab output tags
Cov naj npawb
Batch ntaub ntawv
Cov neeg siv khoom tus lej

OEM Labeling thiab Ntim

Customize kev txheeb xyuas cov khoom lag luam thiab ntim rau kev faib khoom, cov phiaj xwm muab khoom lossis ntiag tug -label programs.

Cov kev xaiv muaj xws li:

Tsis siv neeg cov ntawv cim npe
Cov neeg siv khoom logo
Customized qauv tooj
Cov neeg siv khoom tus lej
Cov ntawv cim barcode
Kev ntim khoom ntawm tus kheej
Ntim ntim ntau
Cov neeg siv khoom ntim artwork
Customized carton marks
Qhov project- cov npe tshwj xeeb ntim khoom

Dab tsi yog Fiber Optic PLC Splitter?

Optical fiber connector yog ib qho cuab yeej siv los txuas cov fibers optical, ua kom yooj yim rau kev sib kis ntawm lub teeb pom kev zoo. Ib qho optical fiber connector enables kev sib txuas ceev dua thiab disconnection dua splicing. Lawv tuaj ntau yam xws li SC, LC, ST, thiab MTP, txhua tus tsim los rau cov ntawv thov tshwj xeeb.

Hom Hom Fiber Optic PLC Splitters

PLC Fiber Optic Splitter tuaj yeem categorized los ntawm PLC splitter nti uas lawv siv, txhais tau tias muaj 1xN thiab 2xN PLC splitters, xws li 1x4 splitter, 1x8 splitter, 1x16 splitter, 2x32 splitter, 2x64 PLC splitters, thiab lwm yam. Cov neeg siv tuaj yeem xaiv qhov sib txawv ntawm cov tswv yim thiab cov khoom siv cable ntev. Tsis tas li ntawd, PLC splitters kuj tuaj yeem raug cais raws li cov pob khoom sib txawv kom tau raws li cov neeg siv khoom xav tau hauv ntau yam xwm txheej, suav nrog PLC qhov loj me me uas yuav tsum tau siv rau hauv cov thawv davhlau ya nyob twg thiab cov khoom loj loj mounted PLC splitter uas tuaj yeem ntsia tau rau hauv racks. Muaj tsib hom PLC splitters nyob rau hauv kev ua lag luam: Bare Fiber Optical Splitter, Blockless Fiber Splitter, ABS Splitter, LGX Splitter, thiab khib-Mount Splitter.
Liab qab Fiber Optical Splitter
Lub liab qab fiber ntau splitter tsis muaj qhov txuas ntawm qhov liab qab fiber ntau, yog li nws yuav tsum muaj kev tiv thaiv tag nrho hauv cov khoom nqa thiab ntawm lub cuab yeej. Vim nws qhov loj me me, nws tuaj yeem yooj yim muab tso rau hauv cov thawv ntawv splice thiab splice thawv. Lub liab qab fiber ntau splitter txo qhov chaw ua hauj lwm thiab txo cov nqi installation tib lub sij hawm. Nws yog feem ntau siv rau FTTH, PON, LAN, CATV, cov cuab yeej kuaj, thiab lwm yam kev siv.
Blockless Fiber Splitter
Txawm hais tias lub blockless PLC splitter muaj qhov zoo sib xws rau cov liab qab fiber ntau splitter. Txawm li cas los xij, nws tuaj yeem muab kev tiv thaiv fiber ntau dua vim tias nws muaj ntau lub pob stainless hlau raj pob. Lub blockless PLC splitter tsis xav tau fiber ntau optic fusion thaum lub sijhawm teeb tsa thiab feem ntau yog siv rau kev sib txuas sib txawv saum cov thawv xa khoom lossis cov khoom siv network.
ABS Module Fiber Splitter
ABS splitter muaj cov ntaub ntawv yas ABS, uas muaj kev tiv thaiv zoo rau cov khoom siv kho qhov muag thiab cov cables. ABS splitter yog qhov yooj yim thiab compact, uas tuaj yeem hloov kho rau qhov chaw sib txawv thiab cov kev xav tau. Nws yog dav siv nrog sab nraum zoov fiber ntau lub thawv rau PON, FTTH, FTTX, GOPN tes hauj lwm.
LGX Cassette Fiber Splitter
LGX PLC splitter yog nruab nrog lub thawv hlau rugged. Nws tuaj yeem siv ib leeg lossis yooj yim ntsia hauv cov qauv fiber ntau optic thaj vaj huam sib luag lossis fiber ntau optic chassis yam tsis muaj kev sib txuas lossis cov neeg ua haujlwm txawj thaum xa tawm. Tus qauv LGX hlau lub thawv ntawv muab lub ntsaws- thiab- ua si mus kom ze rau kev sib koom ua ke hauv lub network, uas tshem tawm kev pheej hmoo thaum nruab.
Khib -Mount Splitter
1U thiab 2U yog ob qhov ntau thiab tsawg rackmount rau splitters ntawm lub khw, thaum 1U khib-mount splitters feem ntau siv. PLC splitter yog nruab rau hauv chav tsev khib, uas muaj qhov ua tau zoo kho qhov muag thiab kev teeb tsa network yooj yim. Lub khib-mount splitter yog dav siv nyob rau hauv EPON, GPON, FTTX, FTTH, thiab lwm yam, thiab muab ib tug zoo tagnrho tov rau ib tug siab - ceev cabling ib puag ncig.

Cov txiaj ntsig ntawm Fiber Optic PLC Splitter

Tus nqi -Kev ua tau zoo
Fiber optic splitters tshem tawm qhov kev xav tau ntawm ntau lub fibers los ntawm kev tso cai rau kev faib cov fiber ntau rau hauv ntau txoj hauv kev. Qhov no txo qis tus nqi ntawm kev xa tawm network thiab kev saib xyuas, vim tias tsawg dua fibers yuav tsum tau ua haujlwm rau ntau tus neeg siv khoom lossis cov khoom siv.

Flexibility thiab Scalability
Splitters muab kev yooj yim thiab scalability rau network tsim. Lawv tuaj yeem yooj yim ntxiv lossis tshem tawm raws li kev xav tau ntawm lub network, tso cai rau kev nthuav dav hauv lub network tsis sib haum lossis rov teeb tsa. Qhov kev hloov pauv no ua rau cov thawj coj hauv lub network hloov pauv mus rau cov kev xav tau hloov pauv yam tsis muaj kev hloov pauv ntau yam.

Tsawg Tshaj Tawm
High -zoo fiber ntau optic splitters qhia tau tias tsis tshua muaj kev nkag mus thiab rov poob, kom ntseeg tau tias cov teeb liab faib tau zoo. Cov teeb liab tsawg tsawg ua rau muaj kev ntseeg tau kev xa mus ntev yam tsis muaj kev cuam tshuam cov teeb liab zoo. Qhov no yog qhov tseem ceeb tshwj xeeb rau cov ntawv thov uas xav tau cov ntaub ntawv siab thiab qis latency.

Daim ntawv thov ntawm Fiber Optic PLC Splitter

Data Center

PLC fiber ntau splitters feem ntau siv nyob rau hauv cov ntaub ntawv chaw tes hauj lwm los faib cov ntaub ntawv ceev mus rau ntau servers thiab cia li. Qhov no ua rau nws ua tau rau cov chaw zov me nyuam kom ua tau zoo ntawm cov ntaub ntawv ntau ntawm cov tsheb khiav, ua rau cov ntaub ntawv hloov pauv sai thiab seamless.

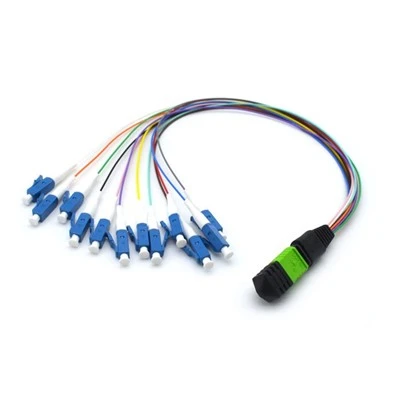

MPO-LC 12 Muti-color Tight Buffer Fiber Patch Cords 0.3m

Optical Access Networks

PLC fiber ntau splitters feem ntau siv nyob rau hauv optical access tes hauj lwm los muab siab - internet txuas mus rau ib tug xov tooj ntawm cov neeg siv. Lawv muab cov neeg siv kawg nrog kev siab - nrawm thiab kev sib txuas tau zoo thiab zoo meej rau FTTH (Fiber rau Lub Tsev) thiab FTTB (Fiber rau Lub Tsev) kev siv.PLC splitter hauv PON tes hauj lwm.

Passive Optical Networks (PONs)

PLC splitters yog ib qho tseem ceeb ntawm passive optical networks (PONs), uas yog cov kev sib txuas kho qhov muag uas txuas ntau tus neeg siv khoom mus rau ib qho fiber ntau optical. Txhua tus neeg siv khoom muaj kev sib txuas tshwj xeeb ua tsaug rau PLC splitter kev sib cais ntawm cov teeb liab kho qhov muag mus rau ntau txoj hauv kev.

Khoom siv kho mob

Txhawm rau faib cov teeb liab kho qhov muag los ntawm ntau lub koob yees duab mus rau ib tus saib, PLC fiber ntau splitters kuj tau siv hauv cov cuab yeej kho mob xws li endoscopes. Vim li no, cov kws kho mob tuaj yeem saib cov duab los ntawm cov kev xav sib txawv thiab tau txais kev nkag siab zoo ntawm cov qauv sab hauv ntawm tus neeg mob lub cev.

Common Technical Indicators ntawm Fiber Optic PLC Splitters

Insertion Loss

Qhov poob ntawm lub splitter yog hais txog tus naj npawb ntawm dBs ib qhov tso zis txheeb ze rau qhov poob ntawm lub teeb pom kev.

Losses ntxiv

Kev poob ntxiv yog txhais tau tias yog qhov sib npaug ntawm lub zog kho qhov muag rau txhua qhov chaw tso zis thiab cov naj npawb ntawm dBs txheeb ze rau qhov poob ntawm lub zog kho qhov muag hauv cov tswv yim.

Spectrophotical Ratio

Lub spectrophotical ratio yog txhais raws li qhov tso zis zog piv ntawm txhua qhov tso zis qhov chaw nres nkoj ntawm optical splitter, thiab nyob rau hauv lub system daim ntawv thov, tus spectrophotometer ratio yog tiag tiag raws li tus nqi ntawm optical zog xav tau los ntawm qhov tseeb system optical node los txiav txim qhov tsim nyog spectrophotial piv (tshwj tsis yog rau qhov nruab nrab faib), thiab spectrophotometer's spectrophotometer's transparent light ratio.

Degree ntawm Isolation

Kev rho tawm yog hais txog lub peev xwm ntawm ib txoj hauv kev kho qhov muag ntawm lub teeb pom kev sib cais kom cais cov teeb liab hauv lwm txoj hauv kev.

Cheebtsam ntawm Fiber Optic PLC Splitter

Input thiab Output Ports
Input ports yog qhov uas cov teeb liab kho qhov muag nkag mus rau hauv lub splitter, feem ntau yog los ntawm ib qho fiber ntau optic cable. Tus naj npawb ntawm input ports nyob ntawm hom thiab configuration ntawm lub splitter. Cov chaw nres nkoj tso zis yog qhov chaw sib cais kho qhov muag tawm ntawm lub splitter thiab txuas nrog cov neeg txais lossis lwm yam khoom siv hauv network. Tus naj npawb ntawm cov chaw nres nkoj tso tawm tuaj yeem sib txawv thiab txiav txim siab txog tus lej ntawm txoj hauv kev uas lub teeb liab muab faib.
Couplers thiab Dividers
Couplers thiab dividers ua lub luag haujlwm tseem ceeb hauv kev faib cov teeb liab kho qhov muag. Lawv tau tsim los faib cov teeb liab tuaj rau hauv ntau txoj hauv kev tawm. Couplers yog lub luag haujlwm rau kev faib cov teeb liab sib npaug ntawm cov chaw tso zis, kom ntseeg tau tias txhua txoj kev tau txais ib feem ntawm lub teeb liab lub zog. Dividers, ntawm qhov tod tes, cais cov teeb liab mus rau hauv txoj kev sib txawv, tso cai rau kev sib kis mus rau ntau tus neeg tau txais kev pab.
Fiber Array thiab Waveguides
Fiber arrays yog cov arrays ntawm ib tug neeg fibers uas yog dlhos thiab fused ua ke los tsim lub splitting cheeb tsam nyob rau hauv lub splitter. Lawv muab lub cev lub cev rau kev faib cov teeb liab optical. Waveguides, ntawm qhov tod tes, yog cov qauv uas qhia thiab coj cov teeb liab kho qhov muag hauv lub splitter. Nyob rau hauv rooj plaub ntawm Planar Lightwave Circuit (PLC) splitters, waveguides yog etched mus rau ib tug silica los yog silicon substrate, tso cai rau meej tswj thiab faib cov teeb liab optical.
Kev Tiv Thaiv Casings
Fiber optic splitters yog nyob rau hauv kev tiv thaiv casings los tiv thaiv cov ilv Cheebtsam ntawm lwm yam ib puag ncig. Cov casings no feem ntau yog ua los ntawm cov khoom siv ruaj khov, xws li hlau lossis yas, thiab muab kev tiv thaiv txhua yam, nrog rau kev tswj cov kev sib raug zoo thiab kev ruaj ntseg ntawm cov khoom sab hauv. Cov casings tiv thaiv kuj pab tswj cov kev sib txuas ntawm fiber ntau, ua kom ntseeg tau thiab ruaj ntseg ua haujlwm.

Cov txheej txheem ntau lawm ntawm Fiber Optic PLC Splitter

Hauv tag nrho, muaj tsib kauj ruam los tsim cov fiber ntau optic splitter. Txhua kauj ruam yuav tsum nruj tswj thiab tswj ntawm ntau yam tsis xws li ib puag ncig, kub, thiab cov ncauj lus kom ntxaws precision ntawm kev sib dhos thiab cov khoom siv.
Kev Npaj Cheeb Tsam
Feem ntau, peb cov khoom yuav tsum muaj. PLC Circuit Court nti yog embedded rau ntawm ib daim iav wafer, thiab txhua qhov kawg ntawm lub iav wafer yog polished los xyuas kom meej lub tiaj tiaj tiaj thiab siab purity. Cov v-grooves yog tom qab ntawd hauv av rau hauv iav substrate. Ib qho fiber ntau lossis ntau ribbon fiber ntau yog sib sau ua ke rau hauv iav substrate. Qhov kev sib dhos no yog tom qab ntawd polished.
Kev sib tw
Tom qab kev npaj ntawm peb lub Cheebtsam, lawv tau teem rau ib theem aligner. Lub tswv yim thiab tso zis fiber ntau array yog teem rau theem goniometer kom haum nrog PLC nti. Lub cev kev sib raug zoo ntawm cov fiber ntau arrays thiab cov nti yog saib xyuas los ntawm kev ua kom lub zog tas li ntawm cov khoom siv fiber ntau.
Kho
Lub rooj sib txoos yog muab tso rau hauv lub UV (ultraviolet) chamber qhov twg nws yuav raug kho tag nrho ntawm qhov ntsuas kub.
Ntim
Lub qhov khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob. Thiab tom qab ntawd ib qho kev ntsuas kub ntawm kev caij tsheb kauj vab yog xav tau los xyuas kom meej qhov khoom kawg.
Kev kuaj pom qhov muag
Nyob rau hauv cov nqe lus ntawm kev ntsuam xyuas, peb qhov tseem ceeb tsis xws li insertion poob, uniformity, thiab polarization dependent poob (PDL) yog ua nyob rau hauv lub splitter los xyuas kom meej qhov zoo ntawm manufactured splitter.

Yam yuav tsum tau xav txog ua ntej xaiv Fiber Optic PLC Splitter

Network Size thiab Hom

Xav txog qhov loj thiab hom network qhov twg lub splitter yuav siv. Rau cov tes hauj lwm loj dua, Planar Lightwave Circuit (PLC) splitters feem ntau nyiam vim lawv qhov scalability, wider bandwidth, thiab ntau dua splitting ratios. Cov tes hauj lwm me me tuaj yeem tau txais txiaj ntsig los ntawm Fused Biconical Tapered (FBT) splitters, uas yog tus nqi ntau dua - zoo rau qhov sib faib qis dua.

Kev ua tau zoo thiab tus nqi sib piv

Xav txog qhov ua tau zoo thiab tus nqi ntawm FBT thiab PLC splitters. FBT splitters feem ntau yog tus nqi ntau dua - siv tau rau cov network me me thiab qhov sib faib qis dua. PLC splitters, txawm hais tias tus nqi kim dua, muaj kev ua tau zoo dua, kev sib tw dav dua, thiab kev sib cais ntau dua, ua rau lawv tsim nyog rau feem ntau cov fiber ntau optic tes hauj lwm lossis cov ntawv thov uas xav tau ntau dua cov teeb liab kev faib tawm.

Zoo thiab kev ntseeg siab

Xaiv optical splitters los ntawm reputable manufacturers paub txog lawv zoo thiab kev ntseeg tau. Qhov no ua kom cov splitters ua tau raws li cov qauv kev lag luam thiab muab kev ua haujlwm zoo ib yam nyob rau lub sijhawm. Xav txog yam xws li durability, ib puag ncig stability, thiab ntev - lub sij hawm cia siab rau thaum xaiv.

Splitter Configuration

Txiav txim siab qhov tsim nyog splitter configuration raws li tus naj npawb ntawm cov zis ports xav tau. Feem ntau configurations muaj xws li 1 × 2, 1 × 4, 1 × 8, thiab hais txog, sawv cev rau tus naj npawb ntawm input thiab output ports. Ntsuam xyuas cov kev cai tam sim no thiab yav tom ntej ntawm lub network los xaiv qhov zoo tshaj plaws splitter configuration.

Cov Kev Xav Tau

Ntsuam xyuas cov teeb liab xav tau ntawm lub network. Yog tias daim ntawv thov xav tau cov ntaub ntawv siab, tsis tshua muaj latency, thiab cov teeb liab tsawg tsawg, xaiv cov splitters uas tsis tshua muaj qhov nkag thiab poob siab. PLC splitters feem ntau muab kev ua tau zoo dua nyob rau hauv cov nqe lus ntawm qhov poob thiab rov qab poob piv rau FBT splitters.

Wavelength Compatibility

Xav txog lub wavelength compatibility ntawm lub splitter nrog cov teeb liab optical siv nyob rau hauv lub network. Xyuas kom meej tias cov splitter xaiv txhawb cov wavelengths tshwj xeeb uas xav tau rau daim ntawv thov. Qee cov splitters tej zaum yuav yog wavelength - nyob ntawm, thiab xaiv hom tsim nyog ua kom muaj kev sib raug zoo thiab kev ua haujlwm zoo.

Qhov kawg FAQ Qhia rau Fiber Optic PLC Splitter

Q: Puas muaj ib qho splitter rau fiber ntau optic cable?

A: Ib qho fiber ntau optic splitter kuj hu ua optical splitter, fiber ntau splitter lossis beam splitter, yog ib qho kev sib xyaw waveguide optical fais fab kev faib khoom uas tuaj yeem faib qhov teeb meem teeb pom kev zoo rau hauv ob lossis ntau lub teeb kab teeb, thiab lwm yam, muaj ntau yam kev tawm tswv yim thiab cov khoom siv kawg.

Q: Qhov txawv ntawm PLC splitter thiab FBT splitter yog dab tsi?

A: FBT Splitters: FBT splitters feem ntau loj thiab bulkier piv rau PLC splitters. Lawv xav tau ntau qhov chaw thiab tsim nyog rau cov ntawv thov uas qhov loj me tsis yog qhov txwv. PLC Splitters: PLC splitters yog compact thiab tuaj yeem muab tso rau hauv cov ntawv me me.

Q: Dab tsi yog qhov txawv ntawm fiber ntau optic coupler thiab splitter?

A: Fiber optic couplers yog siv nyob rau hauv ob peb daim ntawv thov, nrog rau fiber ntau - mus rau - lub - tsev technologies, optical kev sib txuas lus systems, thiab cov kav hlau txais xov hauv zej zog. Fiber optic splitter yog ib hom passive optical ntaus ntawv uas splits ib tug optical fiber teeb liab rau ntau outputs.

Q: Lub tshuab fiber ntau ua haujlwm li cas?

A: Txhawm rau ua kom yooj yim: Lub teeb nkag mus rau hauv lub splitter, thiab lub splitter passively cais lub teeb rau hauv cov kab sib txawv uas siv cov khoom siv tsis yog -electronic, ces tso tawm cov kab sib txawv rau hauv cov fibers tshiab.

Q: PLC txhais li cas hauv fiber ntau?

A: PLC yog hais txog lub teeb ci hluav taws xob hluav taws xob. Raws li micro- khoom siv kho qhov muag, PLC splitter siv cov khoom siv kho qhov muag los faib cov teeb liab tawm tswv yim rau hauv ntau cov khoom tawm. Nyob rau ntawm ntug ntawm lub nti, muaj lub teeb ci hluav taws xob nyob rau hauv daim ntawv ribbon mounted ntawm cov cab kuj thiab fibers.

Q: Yuav ua li cas yog fiber optic splitter?

A: Qhov no suav nrog fusing thiab tapering ob los yog ntau dua optical fibers ua ke los tsim ib qho fiber ntau uas faib cov teeb liab tawm tswv yim rau hauv ntau lub teeb liab tawm lossis sib txuas ntau cov teeb liab tawm tswv yim rau hauv ib qho teeb liab tawm.

Q: Dab tsi yog qhov txawv ntawm PLC splitters?

A: Raws li kev khiav hauj lwm, lub plc splitter feem ntau muaj LGX, Cassette, ABS lub thawv nrog pigtail, liab qab, blockless, khib mount pob hom.

Q: Qhov piv ntawm PLC splitter yog dab tsi?

A: Qhov sib piv ntawm PLC splitter yog mus txog 1:64 - ib los yog ob lub inputs nrog qhov tso zis ntau tshaj ntawm 64 fibers. Tsis tas li ntawd, FBT splitter yog customizable, thiab cov hom tshwj xeeb yog 1: 3, 1: 7, 1: 11, thiab lwm yam. Tab sis PLC splitter tsis yog - customizable, thiab nws tsuas muaj cov qauv qauv xws li 1: 2, 1: 4, 1: 8, 1: 16, 1: 32, thiab lwm yam.

Q: Dab tsi yog Fiber Optic PLC Splitter?

A: PLC splitters yog siv los cais lossis sib txuas cov teeb liab kho qhov muag. PLC (planar lightwave circuit) yog micro- kho qhov muag tivthaiv raws li kev siv tshuab hluav taws xob hluav taws xob thiab muab cov nqi hluav taws xob faib hluav taws xob tsawg nrog cov qauv me me thiab muaj kev ntseeg siab.

Q: PLC splitter ua haujlwm li cas hauv PON network?

A: Hauv passive optical networks (PON), PLC splitter yog dav ntsia nruab nrab ntawm PON Optical Line Terminal (OLT) thiab Optical Network Terminals/Units (ONTs/ONUs) uas OLT ua haujlwm. Ib qho kev sib txuas ntawm fiber ntau los ntawm Central Office (CO) OLT yog txuas nrog cov tswv yim ntawm lub splitter thiab muab faib ua cov fibers uas tau tawm hauv lub splitter. Tus naj npawb ntawm cov zis hauv PLC module txiav txim seb tus naj npawb ntawm qhov sib cais.

PLC splitters tuaj yeem siv rau hauv centralized PON architecture lossis faib architecture. Hauv centralized PON architecture, 1x32 PLC splitter feem ntau yog siv hauv Central Office. Nyob rau hauv ib qho kev faib PON architecture, 1x4 PLC splitter yog thawj zaug txuas ncaj qha mus rau OLT chaw nres nkoj hauv Central Office, tom qab ntawd txhua ntawm plaub fibers raug xa mus rau sab nraud cog chaw nres nkoj / lub thawv kaw uas muaj 1x8 / 1x4 PLC splitter.

Q: Dab tsi yog daim ntawv thov scene ntawm Fiber Optic PLC Splitter?

A: Optical splitters feem ntau yog siv nyob rau hauv optical kab terminals thiab optical network terminals ntawm passive optical network chaw. Broadband Passive Optical Network (BPON), Passive Optical Network (GPON), Ethernet Optical Network (EPON), 10G Ethernet optical network (EPON) thiab 10G passive optical network (GPON) thev naus laus zis yuav ua rau hauv lub network siv lub teeb pom kev zoo. Nyob rau hauv lub passive optical network, tsuas yog ib tug optical splitter yuav siv tau, los yog siv ntau optical splitters. Fiber Splitter yog concentrated los faib cov teeb liab optical. Centralized faib ntawm optical splitters feem ntau yog siv nyob rau hauv cov neeg siv concentration Distributed daim ntaub ntawv. Qee zaum, lub optical splitter kuj tuaj yeem muab tso rau hauv lub hauv paus chaw ua haujlwm rau kev sib cais. Nyob rau hauv cov ntaub ntawv no, nws yuav tsum tau nyob rau hauv nruab nrab Deploy fiber optic cables ntawm lub hauv paus chaw ua hauj lwm thiab txhua tus neeg siv.

Q: Dab tsi yog qhov optical splitter thiab fiber ntau optic splitter ua haujlwm li cas hauv fiber ntau optic network?

A: Thaum lub teeb liab xa mus rau hauv ib hom fiber ntau, lub teeb lub zog tsis tuaj yeem ua kom muaj zog hauv cov tub ntxhais fiber ntau. Ib qho me me ntawm lub zog yuav kis tau los ntawm cladding ntawm cov fiber ntau.. Nws ua haujlwm los ntawm kev siv cov txheej txheem xws li fused biconical tapering lossis planar lightwave circuitry los faib lub teeb rau hauv ntau txoj kev, tso cai rau kev faib tawm mus rau ntau qhov chaw.

Q: Yuav ua li cas fiber optic splitters ua haujlwm hauv passive optical networks (PONs)?

A: Fiber optic splitters yog cov khoom tseem ceeb hauv passive optical networks (PONs) raws li lawv pab txhawb kev faib cov teeb liab. Lawv faib cov kab hluav taws xob nkag los ntawm cov kab hluav taws xob kho qhov muag (OLT) mus rau ntau txoj hauv kev, tso cai rau kev sib kis mus rau ntau tus neeg siv khoom lossis cov khoom siv hauv network.

Q: Dab tsi yog cov ntsiab lus tseem ceeb hauv kev ua haujlwm ntawm fiber ntau optic splitter?

A: Lub fiber ntau optic splitter feem ntau muaj cov tswv yim thiab tso tawm cov chaw nres nkoj, txuas thiab faib, fiber ntau arrays, thiab waveguides. Cov khoom no ua haujlwm ua ke kom tau txais qhov teeb meem teeb pom kev zoo, faib nws mus rau ntau txoj hauv kev, thiab faib cov teeb liab teeb liab mus rau qhov xav tau cov chaw nres nkoj.

Q: Yuav ua li cas siv fiber ntau optic splitters hauv PON system?

A: Fiber optic splitters, ua kom lub teeb liab ntawm optical fiber ntau faib ntawm ob los yog ntau dua optical fibers nrog sib txawv configurations (1 × N lossis M × N), tau dav siv hauv PON tes hauj lwm. FTTH yog ib qho ntawm cov txheej txheem kev thov. Ib tug raug FTTH architecture yog: Optical Line Terminal (OLT) nyob rau hauv lub hauv paus chaw ua hauj lwm; Optical Network Unit (ONU) nyob ntawm tus neeg siv kawg; Optical Distribution Network (ODN) tau nyob nruab nrab ntawm ob qho dhau los. Ib qho optical splitter feem ntau siv hauv ODN los pab ntau qhov kawg - cov neeg siv sib koom PON interface. Point-rau-multipoint FTTH kev xa tawm network tuaj yeem muab faib ntxiv rau hauv nruab nrab (ib zaug- theem) lossis cascaded (ntau-theem) splitter configurations nyob rau hauv qhov faib ntawm FTTH network. Lub centralized splitter siv ib zaug -stage splitter nyob rau hauv lub chaw ua hauj lwm hauv nruab nrab ntawm lub hnub qub topology. Lub cascading splitter mus kom ze siv ntau- txheej fiber ntau splitters nyob rau hauv ib tug taw tes rau multi{14}}point topology.

Q: Dab tsi yog qhov siab tshaj plaws splitting piv rau fiber ntau optic PLC splitter?

A: Qhov siab tshaj plaws sib cais ntawm FBT splitter yog mus txog 1: 32, uas txhais tau hais tias ib los yog ob lub tswv yim tuaj yeem muab faib ua qhov tso zis siab tshaj plaws ntawm 32 fibers ib zaug. Txawm li cas los xij, qhov sib piv ntawm PLC splitter yog mus txog 1:64 - ib lossis ob qhov khoom siv nrog qhov tso zis siab tshaj plaws ntawm 64 fibers.

Q: Dab tsi yog qhov poob ntawm fiber ntau optic PLC splitter?

A: Insertion poob yog qhov poob ntawm lub teeb liab lub zog uas tshwm sim los ntawm kev tso cov khoom siv hauv cov kab sib kis los yog cov khoom siv kho qhov muag thiab feem ntau qhia hauv decibels (dB). Qhov poob ntawm PLC Splitter yog: IL=-10lg Pout/Pin. Pout yog lub zog kho qhov muag ntawm lub zog tso zis, thiab Pin yog lub zog kho qhov muag ntawm lub zog nkag.

Q: Dab tsi yog qhov wavelength ntau ntawm fiber ntau optic PLC splitter?

A: PLC (Planar Lightwave Circuit Court) Splitters muaj rau Tib - hom fiber ntau hauv qhov piv 1: 2 txog 1: 64. Lawv muab tus nqi qis qis thiab qhov sib npaug sib npaug ntawm qhov sib npaug ntawm tag nrho cov wavelength ntau ntawm 1260nm txog 1650nm.

Q: Dab tsi yog qhov kev khiav hauj lwm kub ntau npaum li cas rau fiber ntau optic PLC splitter?

A: FBT splitter tuaj yeem ua haujlwm ruaj khov hauv qhov kub ntawm -5 txog 75 degree. PLC splitter tuaj yeem ua haujlwm ntawm qhov kub ntau ntawm -40 txog 85 degree, muab kev ua haujlwm zoo hauv thaj chaw huab cua huab cua.

Q: Koj ua li cas ntxuav lub fiber ntau optic PLC splitter?

A: Ua ntej ntxuav, pom qhov pom ntawm PLC splitter kom pom cov av, plua plav, lossis cov khoom paug. Xyuas kom meej tias lub cuab yeej raug txiav tawm ntawm lub network kom tsis txhob muaj kev cuam tshuam. Yog tias muaj cov khoom xoob lossis cov khib nyiab ntawm qhov chaw ntawm PLC splitter, koj tuaj yeem siv lub tshuab cua compressed los tshuab cov khoom. Tuav lub PLC splitter ntawm lub kaum sab xis kom tiv thaiv kom tsis txhob muaj cov kab mob sib kis rov qab mus rau lub cuab yeej. Moisten ib lub lint-dawb ntxuav swab lossis so nrog isopropyl cawv. Xyuas kom meej tias lub swab lossis so tsis ntub nrog cawv kom tsis txhob muaj cov kua dej nkag mus rau PLC splitter. Maj mam so qhov chaw ntawm PLC splitter nrog cov moistened tu swab los yog so. Siv lub voj voog ncig kom tshem tawm cov kab mob seem. Ceev faj tsis txhob siv lub zog ntau dhau, vim nws tuaj yeem ua rau cov khoom tawg yooj yim. Yog tias qhov chaw tseem tsis huv, siv lub tshuab tshiab los yog so thiab rov ua cov txheej txheem ntxuav. Tsis txhob rov siv tib lub swab kom tsis txhob kis cov kab mob sib kis. Cia lub PLC cais tawm kom qhuav kom huv si ua ntej rov txuas rau lub network. Xyuas kom meej tias tsis muaj cawv nyob rau ntawm qhov chaw. Tom qab ntxuav thiab ziab, tshuaj xyuas PLC splitter dua kom paub meej tias kev huv. Thaum txaus siab, ua tib zoo txuas PLC splitter rau lub network.

Raws li ib qho ntawm cov ua fiber ntau optic plc splitter tuam ntxhab thiab cov muag khoom nyob rau hauv Suav teb, peb sov siab txais tos koj mus yuav cov fiber ntau optic plc splitter hauv Tshuag ntawm no los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab tus nqi qis. Rau pricelist thiab dawb qauv, hu rau peb tam sim no.
