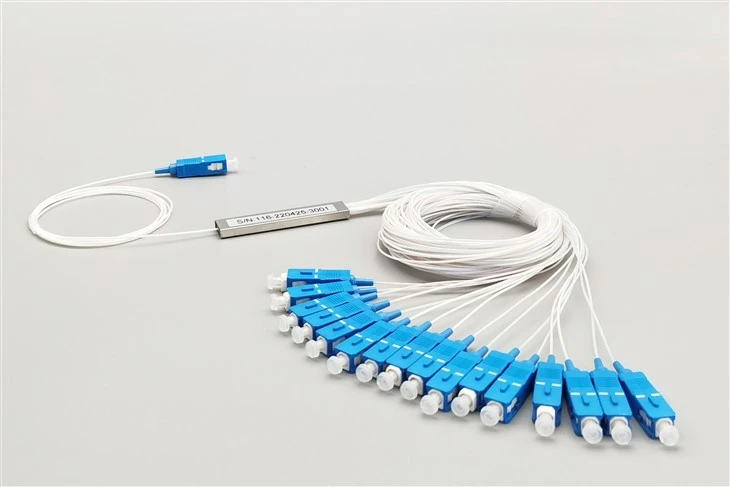

Cov1X16 PLC Fiber Splitter, Hlau Tube, Liab qab Fiber 250μm, SC UPC, Singlemodeyog quartz substrate-based planar waveguide optical power distribution device siv los faib cov teeb liab kho qhov muag los ntawm lub chaw ua haujlwm hauv nruab nrab (CO) mus rau ntau qhov chaw siv kawg. Nws sib npaug sib faib ib leeg / dual optical input rau hauv ntau qhov kev tso tawm optical, thiab sib npaug faib cov teeb liab kho qhov muag rau cov neeg siv. Cov ceg channel feem ntau muaj 2, 4, thiab 8 raws thiab mus txog 64 raws thiab siab dua, uas feem ntau yog qhia raws li 1 × N lossis 2 × N.
Vim li cas thiaj xaiv US?
Ntawm Shenzhen Evolux Fiber Co., Ltd, peb muab ntau yam khoom zoo fiber ntau optic, suav nrog1X16 PLC Fiber Splitter, Hlau Tube, Liab qab Fiber 250μm, SC UPC, Singlemode. Peb mob siab rau ua kom tau raws li qhov xav tau ntawm kev lag luam thoob ntiaj teb kev sib txuas lus, hais txog kev tsim kho tshiab thiab kev ntseeg siab. Peb pab pawg kws tshaj lij, suav nrog cov kws tshawb fawb saum toj kawg nkaus, engineers, thiab cov kws tshaj lij kev lag luam, xyuas kom meej tias peb cov khoom ua raws li cov qauv zoo tshaj plaws thiab kev ua haujlwm zoo.
Khoom Specifications
|
Chaw nres nkoj |
1×2 |
2×2 |
1×4 |
2×4 |
1×8 |
2×8 |
1×16 |
2×16 |
1×32 |
2×32 |
1×64 |
2×64 |
|
|
Ua haujlwm wavelengths (nm) |
1260~1650 |
||||||||||||
|
Insertion poob (dB) |
Max P/S |
3.8 |
4 |
7.1 |
7.6 |
10.2 |
11 |
13.5 |
14.4 |
16.5 |
17.5 |
20.5 |
21 |
|
Loss Uniformity (dB) |
Max |
0.4 |
0.6 |
0.6 |
0.8 |
0.8 |
1.2 |
1.2 |
1.5 |
1.5 |
2 |
2 |
2.2 |
|
PDL (dB) |
Max |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.3 |
0.25 |
0.3 |
0.3 |
0.4 |
0.35 |
0.4 |
|
Rov Los Loss (dB) |
Min |
PIB: 50 APC: 55 |
|||||||||||
|
Kev taw qhia (dB) |
Min |
55 |
|||||||||||
|
Input Fiber |
Khoov Insentive SM Fiber (ITU G657A) |
||||||||||||
|
Cov zis Fiber |
Khoov Insentive SM Fiber (ITU G657A) |
||||||||||||
|
Max. Optic zog (mw) |
300 |
||||||||||||
|
Humidity Range (rh) |
5% ~ 85% |
||||||||||||
|
Qhov kub thiab txias (degree) |
-40 ~ +85 |
||||||||||||
|
Cia kub (degree) |
-40 ~ +85 |
||||||||||||
|
Ntim Option |
Npuag Ntaus, Mini Tube, ABS Module, LGX BOX, 19 '1U 2U Rack-Mount, ODF BOX |
||||||||||||
|
Mini Tube (hlau) Dimension (mm) (LxWxH) |
40x4x4 |
50x4x4 |
50x7x4 |
60x12x4 |
80x20x6 |
100x40x6 |
|||||||
|
ABS Module Dimension (hli) (LxWxH) |
100x80x10 |
100x80x10 |
100x80x10 |
120x80x18 |
120x80x18 |
140x115x18 |
|||||||
|
BOX Qhov Loj (mm) (LxWxH) |
LGX BOX, 19' 1U 2U Rack-Mount, ODF BOX |
||||||||||||
Khoom nta
- Compact qauv thiab hloov tau yooj yim installation
- Uniform lub teeb splitting thiab zoo stability
- Kev thov dav
- Kev ua tau zoo thiab txhim khu kev qha
- Ua raws li cov qauv thoob ntiaj teb
Cov khoom siv
Cov1X16 PLC Fiber Splitter, Hlau Tube, Liab qab Fiber 250μm, SC UPC, Singlemodeyog dav siv nyob rau hauv ntau yam kev siv, xws li:
- Fiber rau Lub Tsev (FTTH) Networks: faib cov teeb liab kho qhov muag los ntawm lub hauv paus chaw ua haujlwm lossis kev sib pauv hauv zos rau ntau lub tsev lossis tsev, muab internet, TV, thiab kev pabcuam suab rau cov neeg siv khoom.
- Passive Optical Networks (PON): faib cov teeb liab kho qhov muag los ntawm Optical Line Terminal (OLT) mus rau ntau qhov Optical Network Units (ONUs), ua kom muaj txiaj ntsig bandwidth sib koom thiab txuas rau ntau tus neeg siv kawg.
- Telecommunication Networks: siv nyob rau hauv kev sib txuas lus systems rau cov teeb liab splitting thiab routing rau txawv network nodes los yog khoom siv, txhawb loj-scale cov ntaub ntawv xa mus thiab kev sib txuas lus.
- Cov Chaw Cov Ntaub Ntawv: txhawb nqa cov ntaub ntawv chaw ua haujlwm los ntawm kev faib cov teeb liab kho qhov muag ntawm cov servers, keyboards, thiab cov khoom siv cia, ua kom cov ntaub ntawv txaus thiab kev ua haujlwm hauv network.
Hom Fiber Optic Splitters
Ob hom fiber ntau optic splitters yog FBT (Fused Biconical Taper) thiab PLC (Planar Lightwave Circuit) splitters:
FBT splitters yog tsim los ntawm fusing thiab stretching ob los yog ntau fibers ua ke thiab yog kuj yooj yim thiab pheej yig los tsim. Txawm li cas los xij, lawv raug txwv raws li tus naj npawb ntawm kev sib cais lawv tuaj yeem txhawb nqa, feem ntau mus txog 1:32.
PLC splitters, ntawm qhov tod tes, siv lub tiaj tus waveguide ua los ntawm silica lossis lwm yam khoom siv los faib cov teeb liab. Lawv muaj ntau txoj hauv kev tsim dua li FBT splitters, tab sis lawv tuaj yeem txhawb nqa ntau qhov sib cais, feem ntau mus txog 1: 64 lossis siab dua. PLC splitters kuj tseem txhim khu kev qha thiab muaj kev ua tau zoo dua nyob rau hauv cov nqe lus ntawm kev nkag poob thiab wavelength uniformity.
Fiber optic splitters tuaj nyob rau hauv cov duab sib txawv thiab cov qauv, nyob ntawm seb cov kev thov tshwj xeeb thiab cov kev xav tau ntawm kev teeb tsa. Cov duab zoo tshaj plaws rau fiber ntau optic splitters suav nrog:
- Box-Type Splitter: Qhov no yog ib hom splitter uas yog nyob rau hauv ib lub thawv, feem ntau yog ua los ntawm yas los yog hlau. Lub thawv muaj cov khoom sib cais thiab yog tsim los rau nruab rau ntawm phab ntsa lossis muab tso rau hauv khib lossis txee.
- Module-Type Splitter: Qhov no yog ib hom splitter uas yog tsim los rau nruab rau hauv lub fiber optic thaj vaj huam sib luag los yog enclosure. Lub splitter Cheebtsam yog muaj nyob rau hauv ib tug module uas yuav muab tau yooj yim tso los yog tshem tawm ntawm lub thaj vaj huam sib luag los yog enclosure.
- Bare Fiber Splitter: Qhov no yog ib hom splitter uas tsis muaj cov vaj tse tiv thaiv sab nraud los yog qhov thaiv. Hloov chaw, cov khoom sib cais tau raug nthuav tawm thiab feem ntau yog txuas ncaj qha mus rau cov khoom siv hluav taws xob nkag thiab tawm.
- Rack-Mount Splitter: Qhov no yog ib hom splitter uas yog tsim los nruab rau hauv tus qauv 19-inch khoom khib. Lub splitter Cheebtsam yog nyob rau hauv ib tug hlau enclosure uas tau yooj yim mounted nyob rau hauv lub khib nrog rau lwm yam khoom siv networking.
- Tube-Type Splitter: Qhov no yog ib hom splitter uas nyob hauv ib lub raj cylindrical, feem ntau yog ua los ntawm cov yas lossis hlau. Lub raj muaj cov khoom sib cais thiab yog tsim los rau mounted rau ntawm phab ntsa los yog muab tso rau hauv ib lub tais splice.
Ntxiv nrog rau cov duab zoo li no, kuj tseem muaj hom tshwj xeeb ntawm fiber ntau optic splitters uas yog tsim los rau cov kev siv tshwj xeeb lossis cov kev xav tau ntawm kev teeb tsa. Piv txwv li, muaj cov splitters uas yog tsim los siv sab nraum zoov thiab ruggedized los tiv thaiv huab cua hnyav, nrog rau cov splitters uas tsim los siv nyob rau hauv high-density cov ntaub ntawv chaw (Plug-in modules) los yog lwm qhov chaw nyob qhov twg qhov chaw yog nyob rau hauv ib tug. hwm.
Kev Tswj Xyuas Zoo
Peb ntawm Shenzhen Evolux Fiber Co., Ltd. Txhawm rau lav tias lawv ua tau raws li cov qauv siab tshaj plaws ntawm kev ua tau zoo thiab kev ua tau zoo, peb cov khoom tau dhau los ua kev soj ntsuam nruj thiab tshuaj xyuas. Txhawm rau kom cov neeg siv khoom txaus siab, peb kuj muab kev lees paub dav dav thiab kev txhawb nqa tom qab muag.
Kev Pabcuam OEM
Peb muab kev pabcuam OEM rau peb cov neeg siv khoom, muab cov khoom lag luam customized nrog lawv lub logo thiab lub npe.
FAQ
Txog Peb
Shenzhen Evolux Fiber Co., Ltd. sib zog ua kom tau raws li qhov yuav tsum tau hloov pauv ntawm kev lag luam kev sib txuas lus thoob ntiaj teb los ntawm kev muab qhov tseem ceeb ntawm kev tsim kho tshiab thiab kev vam khom. Txij li thaum peb nrhiav tau nyob rau hauv 2013, peb tau tsim peb tus kheej raws li ib tug hwm hom nyob rau hauv lub fiber optics kev lag luam. Peb mob siab rau tsav kev nce qib hauv kev lag luam thiab thawb cov ciam teb ntawm kev tsim kho tshiab nrog kev muaj txiaj ntsig thiab kev mob siab rau kev siv tshuab fiber ntau. Thov hu rau peb ntawmsales@evoluxfiber.comthiabshanna@evoluxfiber.comyog tias koj xav kawm ntxiv txog cov1X16 PLC Fiber Splitter, Hlau Tube, Liab qab Fiber 250μm, SC UPC, Singlemode.
