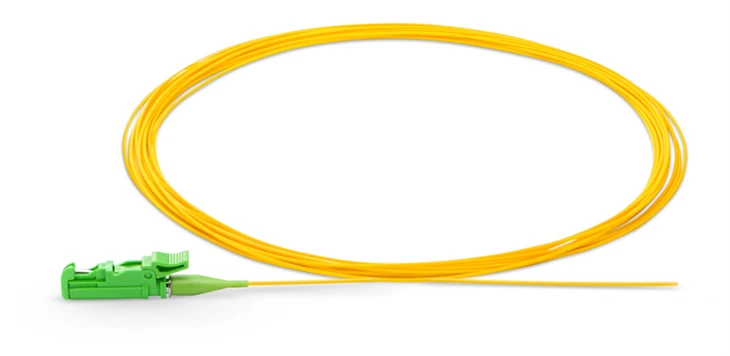

PebFiber Optic E2000 Pigtailyog tsim los rau cov kws tshaj lij uas tsis xav tau dab tsi tab sis qhov zoo tshaj plaws hauv kev sib txuas kho qhov muag. Cov khoom no muaj cov khoom sib txuas ua ntej ntawm ib kawg, tso cai rau kev sib txuas ncaj qha rau cov khoom siv, thaum lwm qhov kawg tseem qhib rau fusion lossis mechanical splicing. Qhov zoo tshaj plaws rau kev siv hauv Optical Distribution Frames (ODF), fiber ntau lub thawv ntawv, thiab cov thawv xa khoom, peb cov khoom ua kom muaj kev sib txuam zoo thiab kev ua haujlwm zoo hauv koj lub fiber optic network teeb.
Vim li cas thiaj xaiv US?
Ntawm Shenzhen Evolux Fiber Co., Ltd., peb hais txog peb lub hauv paus ntsiab lus:
- Innovation: Peb tau cog lus los ua kev lag luam los ntawm kev siv cov thev naus laus zis tshiab thiab kev nce qib.
- Kev Zoo: Peb cov khoom raug kuaj xyuas nruj kom lav qhov ua tau zoo thiab ua haujlwm tau zoo, xyuas kom lawv ua tau raws li cov qauv siab tshaj plaws.
- Kev Pab Txhawb Cov Neeg Siv Khoom: Peb muab kev pabcuam tshwjxeeb los daws txhua yam koj xav tau, ua kom koj tau txais kev pabcuam uas xav tau rau kev ua haujlwm zoo. Peb pab neeg yeej ib txwm npaj los pab, ua rau koj txaus siab peb qhov tseem ceeb tshaj plaws. Los ntawm kev tsom mus rau cov cheeb tsam no, peb siv zog ua kom xa cov kev daws teeb meem zoo tshaj plaws fiber ntau uas tshaj qhov kev cia siab.
Khoom Specifications
|
Hom Connector |
E2000 |
Hom Polish |
APC |
|
Fiber hom |
OM 3 |
Lub wavelength |
850/1300 nm |
|
Fiber suav |
Simplex |
Cable Jacket |
PVC/LSZH/OFNP |
|
Fiber Qib |
Khoov Insensitive |
Yam tsawg kawg nkaus Khoov Radius |
7.5mm ib |
|
Cable txoj kab uas hla |
0.9 hli |
Jacket Xim |
Aqua |
|
Insertion Loss |
Tsawg dua lossis sib npaug rau 0.3 dB |
Rov Los Los |
Ntau dua lossis sib npaug li 20 dB |
|
Attenuation ntawm 850nm |
3. 0 dB/km |
Attenuation ntawm 1300nm |
1. 0 dB/km |
|
Ua haujlwm kub |
-40 ~ 75 degree |
Cia Kub |
-45 ~ 85 degree |
Khoom nta
- Yooj yim rau nruab: Kev teeb tsa ceev rau kev siv tam sim.
- Enduring Durability: Tsim los tiv thaiv ib puag ncig hnyav.
- High Precision: Ua kom lub teeb liab tsawg tsawg.
- Wide Compatibility: Ua haujlwm nrog ntau lub tshuab fiber ntau optic.
- Flame-Retardant: Kev nyab xeeb ua ntej nrog peb cov khoom siv hluav taws kub.
- Tsawg Insertion Poob: Tswj cov teeb liab kev ncaj ncees.
- High Data Transfer Rate: Txhawb kev sib txuas lus ceev.
Cov khoom siv
PebFiber Optic E2000 Pigtailyog ntau yam, haum rau:
- Local Area Networks rau txhim kho cov ntaub ntawv hloov chaw.
- Optical Fiber Communication Systems rau kev sib txuas txhim khu kev qha.
- Optical Access Networks (OAN) rau kev faib cov ntaub ntawv zoo.
- Optical CATV rau kev xav tau tshaj tawm.
- Fiber Optics Data Transmission (FODT) kom ruaj ntseg cov ntaub ntawv kab.
- Active Device Termination kom muaj kev sib txuas zoo.
- Cov cuab yeej kuaj xyuas kom muaj kev ruaj ntseg zoo hauv kev teeb tsa fiber ntau.
Fiber Optic Pigtails Fiber Hom
Fiber optic pigtails yog categorized rau hauv ib hom (xim daj) thiab multimode (xim txiv kab ntxwv) fibers.
Multimode Fiber pigtail
Nws siv 62.5/125 micron lossis 50/125 micron bulk multimode fiber ntau cables, txiav nrog multimode connectors ntawm ib kawg.
Rau cov ntaub ntawv ntau dua, 10G multimode pigtails (OM3 lossis OM4) muaj, feem ntau txheeb xyuas los ntawm cov xim aqua tsho.
Ib hom Fiber Pigtail
Nws siv 9/125 micron ib hom fiber ntau, txiav nrog ib hom txuas ntawm ib kawg. Cov pigtails no feem ntau
siv rau kev sib kis mus ntev thiab kev siv tshwj xeeb uas xav tau kev ua haujlwm siab.
Kev Tswj Xyuas Zoo
Peb ua raws li cov txheej txheem tswj xyuas nruj, suav nrog:
- Kev Ntsuas Ua Ntej Ua Ntej: Ua kom txhua pawg ua tau raws li peb cov qauv siab.
- In-Process Inspection: Saib xyuas txhua kauj ruam ntawm kev tsim khoom.
- Kev Tshawb Fawb Kawg: Kev sim ua tiav ua ntej xa.
Kev Pabcuam OEM
Customization yog qhov tseem ceeb ntawm Evolux Fiber. Peb muab:
- Tailored Specifications: Tsim los ua kom tau raws li koj qhov kev xav tau tshwj xeeb.
- Hom Kev Xaiv: Tus kheej koj cov khoom nrog koj lub logo lossis kev cai sau npe.
Peb lub hom phiaj yog los xyuas kom meej tias peb cov kev daws teeb meem ua tau zoo nrog koj lub zeem muag thiab cov kev xav tau.
FAQ
Txog Peb
Shenzhen Evolux Fiber Co., Ltd., nrhiav tau nyob rau hauv 2013, yog koj premier qhov chaw rau lub xeev-of-the-art optical fiber daws. Headquartered nyob rau hauv Shenzhen, Suav teb, peb mob siab rau innovation thiab kev ntseeg tau, kom ntseeg tau tias peb ua tau raws li dynamic xav tau ntawm lub ntiaj teb no kev lag luam kev sib txuas lus. Peb pab neeg tau cog lus los muab cov khoom lag luam zoo uas txhim khu kev sib txuas. Yog xav paub ntxiv los yog muab qhov kev txiav txim, thov hu rau peb ntawmsales@evoluxfiber.comthiabshanna@evoluxfiber.com. Ua ke, cia peb txuas koj lub ntiaj teb nrog peb qhov tshwj xeebFiber Optic E2000 Pigtaildaws!
Hot Tags: Fiber Optic E2000 Pigtail, Tuam Tshoj Fiber Optic E2000 Pigtail manufacturers, lwm tus neeg, Hoobkas
