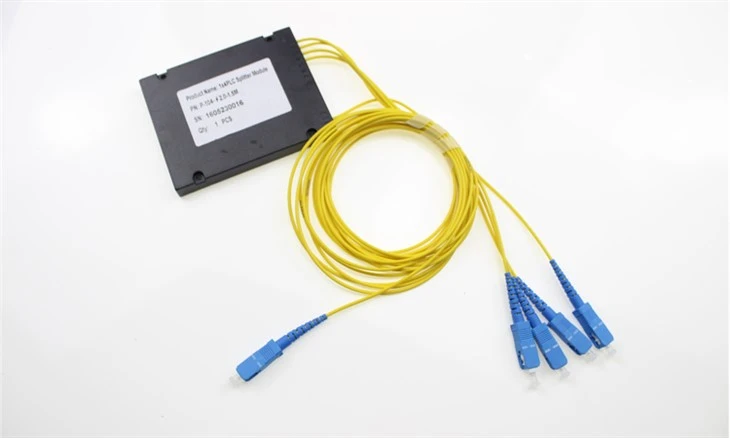

Tshawb nrhiav lub1X4 PLC Fiber Optic Splitterlos ntawm Shenzhen Evolux Fiber Co., Ltd, koj tus khub ntseeg siab hauv kev daws teeb meem fiber ntau optic. Siv qhov tseeb Planar Lightwave Circuit (PLC) thev naus laus zis, peb lub tshuab splitter zoo tswj cov kev sib faib loj dua, ua rau nws zoo tagnrho rau kev nthuav dav fiber ntau. Nws txhawb nqa dav wavelength ntau ntawm 1260 nm mus rau 1650 nm, ua kom muaj kev sib txuam tsis sib haum nrog ntau lub tshuab kho qhov muag. Tsim los ua haujlwm nyob rau hauv huab cua kub, los ntawm -40 degree mus rau 85 degree, peb lub splitter muab kev ntseeg tau zoo nyob rau hauv tej huab cua. Txawm hais tias koj tab tom xa tawm fiber ntau rau hauv tsev (FTTH) lossis txhim kho kev lag luam network, peb PLC Fiber Optic Splitter muab qhov zoo thiab ua haujlwm ntev uas koj xav tau rau kev sib txuas tsis muaj kev cuam tshuam.

Vim li cas thiaj xaiv US?

Lub Tshuab Tsim Kho Tshiab: Siv cov kev nce qib tshiab PLC rau kev ua tau zoo dua.
Txhim khu kev ua tau zoo: Ua kom tiv taus ib puag ncig hnyav.
Quality Assurance: Cov txheej txheem tswj xyuas nruj kom ntseeg tau cov khoom zoo tshaj plaws.
Competitive Pricing: Cov kev daws teeb meem raug nqi tsis muaj kev cuam tshuam rau qhov zoo.
Kev Pabcuam Kws Tshaj Lij: Kev txhawb nqa kev pabcuam thiab kev pabcuam zoo tomqab muag.
Trusted Partner: Kev sib raug zoo ntev nrog cov neeg siv khoom thoob plaws ntau yam kev lag luam.

Khoom Specifications

Pob Style	ABS Module	Hom kev teeb tsa	1x8 1x16 1x32 1x64
Hom Fiber	Singlemode G.657A1	Hom Connector	SC/APC
Fiber Diameter	2. 0mm	Fiber Length	>1m
Insertion Loss	Tsawg dua lossis sib npaug rau 17.3dB	Rov Los Los	Ntau tshaj lossis sib npaug li 50dB
Loss Uniformity	Tsawg dua lossis sib npaug li 1.5dB	Kev taw qhia	Ntau dua lossis sib npaug li 65dB
Polarization Dependent Poob	Tsawg dua lossis sib npaug rau 0.3dB	Temperature Dependent Loss	Tsawg dua los yog sib npaug rau 0.5dB
Wavelength Dependent Poob	Tsawg dua lossis sib npaug rau 0.3dB	Ua haujlwm Bandwidth	1260-1650 nm
Ua haujlwm kub	-40 ~ 85 degree	Cia Kub	-40 ~ 85 degree

Khoom nta

Tsawg Insertion Loss: Ua kom muaj kev sib kis tau zoo nrog kev poob qis.
High Splitting Ratio: Faib cov teeb liab tawm tswv yim sib npaug rau hauv plaub qhov chaw tso zis.
High Directivity: Minimizes teeb liab to ntawm cov zis ports.
Dav Kub Kub: Ua haujlwm ruaj khov ntawm -40 degree txog 85 degree .
Compatibility: Ua haujlwm nrog ntau hom fiber ntau txuas rau kev sib koom ua ke yooj yim.
Nqi-zoo: Muab kev daws teeb meem nyiaj txiag rau cov neeg ua haujlwm network.

Cov khoom siv

Peb1X4 PLC Fiber Optic Splitteryog zoo meej rau ntau yam kev siv, suav nrog:

Optical Communication Systems: Txhim kho cov teeb liab faib hauv kev sib txuas lus hauv xov tooj.
System thiab Signal Monitoring: Ua kom yooj yim saib xyuas kev teeb tsa.
CATV Systems & Fiber Sensors: Optimizing cable TV thiab sensor tes hauj lwm.
Fiber mus rau lub Tsev (FTTH): Xa high-speed internet rau cov tsev nyob.
Network Redundancy: Ua kom muaj kev ruaj ntseg thiab kev ntseeg siab hauv kev ua haujlwm hauv network.
Laser Splitting: Ua tau zoo cais cov teeb liab laser rau kev siv ntau yam.

Kev Tswj Xyuas Zoo

Ntawm Shenzhen Evolux Fiber Co., Ltd, zoo yog peb qhov tseem ceeb tshaj plaws. Peb1X4 PLC Fiber Optic Splitterstau txais kev sim nruj ntawm txhua theem tsim khoom kom ntseeg tau tias lawv ua tau raws li cov qauv thoob ntiaj teb. Los ntawm kev xaiv cov ntaub ntawv hwm zoo rau kev ntsuas kev ua tau zoo, peb tswj hwm kev tswj hwm nruj kom lav kev ntseeg tau thiab kev ua haujlwm ntev hauv tag nrho peb cov khoom.

Kev Pabcuam OEM

Nrhiav kev daws teeb meem customized? Shenzhen Evolux Fiber Co., Ltd muaj cov kev pabcuam OEM zoo raws li koj qhov kev xav tau tshwj xeeb. Txawm hais tias koj xav tau qhov tshwj xeeb tshwj xeeb, kev tsim khoom lag luam, lossis kev ntim khoom, peb pab neeg muaj kev paub dhau los ua haujlwm nrog koj kom xa cov khoom siv fiber ntau tus kheej uas ua raws li koj lub hom phiaj kev lag luam.

FAQ

Q: Dab tsi yog a1X4 PLC Fiber Optic Splitter?

A: Nws yog ib qho cuab yeej uas faib ib lub teeb liab kho qhov muag rau hauv plaub qhov sib cais tawm siv PLC thev naus laus zis.

Q: Dab tsi wavelength range nws txhawb?

A: Nws txhawb wavelengths los ntawm 1260 nm mus rau 1650 nm, haum rau ntau yam fiber ntau optic tes hauj lwm.

Q: Nws puas tuaj yeem ua haujlwm hauv qhov kub thiab txias?

A: Yog, nws muaj kev ntseeg siab hauv qhov kub thiab txias ntawm -40 degree txog 85 degree .

Q: Cov ntawv thov twg yog qhov tsim nyog rau?

A: Nws yog qhov zoo tagnrho rau kev sib txuas lus kho qhov muag, FTTH, CATV, network redundancy, thiab lwm yam.

Q: Koj puas muab kev pabcuam?

A: Yog lawm, peb muab kev pabcuam kev tshaj lij thiab kev pabcuam tomqab muag los pab koj.

Txog Peb

Shenzhen Evolux Fiber Co., Ltd, tsim nyob rau hauv 2013 thiab headquartered nyob rau hauv Shenzhen, Tuam Tshoj, yog ib tug thawj coj nyob rau hauv tej-edge fiber optic kev daws teeb meem. Peb pab pawg kws tshaj lij tau mob siab rau xa cov khoom lag luam zoo uas ua tau raws li cov kev xav tau ntawm kev lag luam kev sib txuas lus thoob ntiaj teb. Npaj los txhim kho koj lub Fiber Network? Tiv tauj peb hnub no ntawmsales@evoluxfiber.comthiabshanna@evoluxfiber.comkom paub ntau ntxiv txog peb1X4 PLC Fiber Optic Splitterthiab nrhiav tau li cas Shenzhen Evolux Fiber Co., Ltd tuaj yeem pab txhawb koj cov kev xav tau fiber ntau.
