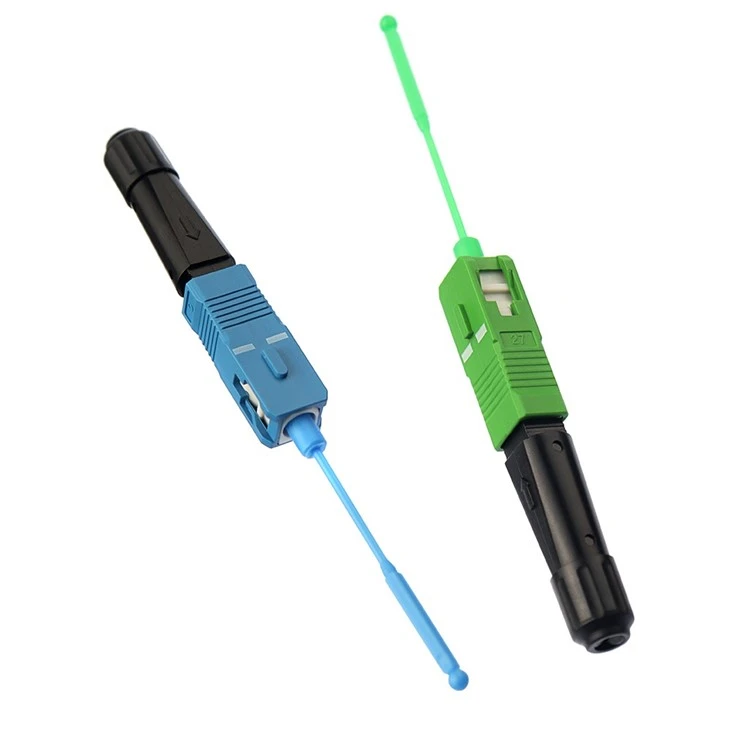

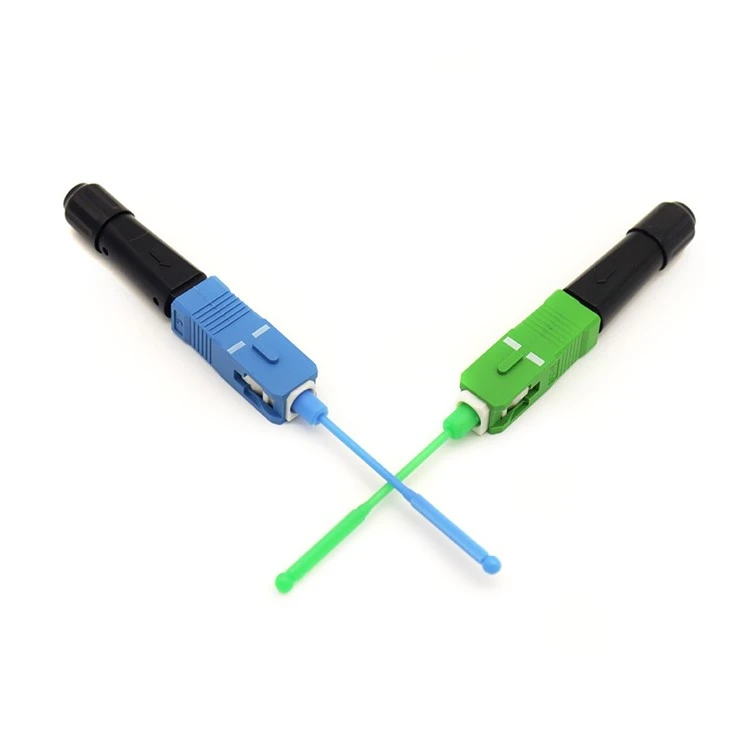

Tshawb nrhiav lubFiber Optic Fast Connector SClos ntawm Shenzhen Evolux Fiber Co., Ltd - koj qhov kawg daws rau hassle-dawb fiber optic terminations. Cov khoom sib txuas no tshem tawm qhov xav tau ntawm epoxy, polishing, splicing, lossis cua sov, ua kom muaj kev sib txuas ceev thiab txhim khu kev qha yam tsis muaj kev cuam tshuam rau kev ua haujlwm. Txawm hais tias koj tab tom teeb tsa lub network fiber ntau rau kev sib txuas lus, cov chaw khaws ntaub ntawv, lossis kev lag luam automation, peb cov SC connectors xa cov kis tau zoo heev piv rau cov qauv polishing thiab splicing technologies. Kev teeb tsa yog qhov yooj yim, tsuas yog xav tau cov cuab yeej siv fiber ntau uas tsis muaj hluav taws xob xav tau. Kev paub txog kev ua tau zoo thiab kev ntseeg siab nrog peb cov khoom siv fiber ntau optic uas tsim los ua kom tau raws li qhov xav tau ntawm kev lag luam kev sib txuas lus thoob ntiaj teb.

Vim li cas thiaj xaiv US?

Kev Txawj Ntse: Ua tus kws kho mob nrog ntau xyoo dhau los ntawm kev lag luam.
Quality Assurance: Kev ntsuam xyuas nruj kom ntseeg tau qhov ua tau zoo tshaj plaws.
Innovation: Kev hloov pauv tsis tu ncua kom ua tau raws li cov qauv thev naus laus zis tshiab.
Kev Pab Txhawb Cov Neeg Siv Khoom: Pab neeg mob siab rau npaj los pab koj ntawm txhua kauj ruam.
Ntiaj teb no Reach: Pab cov neeg siv khoom thoob ntiaj teb nrog kev xa khoom thiab kev txhawb nqa.

Khoom Specifications

Insertion Loss	Nruab Nrab Tsawg dua lossis sib npaug rau {{0}}.2dB, Max Tsawg dua lossis sib npaug rau 0.4dB
Rov Los Los	UPC Ntau dua los yog sib npaug rau 40dB, 55dB feem ntau ntawm 25 degrees C + 5degrees
Rov Los Los	APC Ntau dua lossis sib npaug rau 55dB, 60dB raug ntawm 25 degrees C +/- 5degrees
Ib Lub Sijhawm Sib Tsoo Yield	Ntau dua lossis sib npaug li 97%
Sib dhos Repeatability	Ntau dua lossis sib npaug li 5 npaug
Lub sij hawm sib dhos nruab nrab	Tsawg dua lossis sib npaug li 3 feeb
Lub Neej-Lub Sijhawm	Ntau tshaj lossis sib npaug li 30 xyoo
Tensile zog	Ntau dua lossis sib npaug rau 30N (2.0x3.0 poob cable.)
Kev ua haujlwm kub	-40 degree ~ +85 degree

Khoom nta

Tsis-Epoxy/No-Polish: Simplifies installation yam tsis muaj ntxiv consumables.
Kev teeb tsa ceev: Cov Connectors teeb tsa hauv qab ib feeb ntawm qhov nruab nrab.
Factory Tested: Ua kom ntseeg tau tias tsis muaj qhov poob qis thiab kev ua haujlwm siab.
Kev ua tau zoo: Cov kev tso tawm tsis zoo ntawm {{0}}.2 dB (UPC) thiab 0.3 dB (APC).
Txhim khu kev qha Technology: Pov thawj mechanical splice technology nrog ntau lab deployed.
Zog txuag: Tsis xav tau hluav taws xob fais fab rau qhov cub lossis teeb.
Optimized Design: Angled fiber stub rau kev ua haujlwm zoo rov qab.

Cov khoom siv

PebFiber Optic Fast Connector SCyog qhov zoo tagnrho rau ntau yam kev siv, suav nrog:

All-Fiber Interconnection: Seamlessly txuas fiber ntau tes hauj lwm yam tsis muaj kev cuam tshuam.
Telecom Distribution & LANs: Tsim kom muaj fiber ntau network infrastructures rau cov neeg siv xov tooj thiab cov chaw hauv cheeb tsam.
FTTH thiab FTTx: Zoo meej rau fiber ntau rau hauv tsev thiab lwm cov kev daws teeb meem broadband.
Passive Optical Networks: Haum rau ATM, WDM, Ethernet, thiab lwm yam kev siv hluav taws xob kho qhov muag.
Broadband & CATV: Txhim kho koj cov kev pabcuam broadband thiab cable TV nrog kev sib txuas zoo fiber ntau.

Kev Tswj Xyuas Zoo

Ntawm Shenzhen Evolux Fiber Co., Ltd, zoo yog peb qhov tseem ceeb tshaj plaws. TxhuaFiber Optic Fast Connector SCundergoes nruj tswj cov txheej txheem kom ntseeg tau tias nws ua tau raws li peb cov qauv siab. Los ntawm kev xaiv cov khoom siv mus rau qhov kev sim zaum kawg, peb xyuas kom txhua qhov txuas ua tau zoo, muab kev ntseeg tau thiab ua tau zoo ib yam hauv txhua daim ntawv thov.

Kev Pabcuam OEM

Peb muab cov kev pabcuam OEM uas haum rau koj cov kev xav tau tshwj xeeb. Txawm hais tias koj xav tau kev cai tshwj xeeb lossis kev tsim khoom lag luam, Shenzhen Evolux Fiber Co., Ltd nyob ntawm no los txhawb koj txoj kev lag luam nrog kev hloov pauv thiab txhim khu kev qha OEM.

FAQ

Q: Cov cuab yeej twg xav tau rau kev teeb tsa?

A: Tsuas yog cov txheej txheem npaj fiber ntau yuav tsum tau ua, tsis tas yuav muaj hluav taws xob hluav taws xob.

Q: Nws siv sijhawm ntev npaum li cas rau nruab txhua qhov txuas?

A: Kev teeb tsa yuav siv sij hawm tsawg dua ib feeb rau ib qhov txuas ntawm qhov nruab nrab.

Q: yogFiber Optic Fast Connector SCkuaj kom zoo?

A: Yog, 100% ntawm peb cov khoom sib txuas yog lub Hoobkas kuaj xyuas qhov poob thiab kev ua haujlwm.

Q: Cov connectors no puas tuaj yeem siv rau hauv ib puag ncig hnyav?

A: Yog, peb cov connectors yog tsim los tiv taus kub, av noo, thiab lwm yam kev nyuaj.

Q: Koj puas muab cov kev xaiv customization?

A: Yog lawm, peb muab kev pabcuam OEM kom tau raws li koj cov kev xav tau tshwj xeeb.

Txog Peb

Shenzhen Evolux Fiber Co., Ltd yog ib tug ua tus muab kev txiav-ntug kho qhov muag fiber ntau daws teeb meem. Tsim los ntawm 2013 thiab headquartered nyob rau hauv Shenzhen, Suav teb, peb tshwj xeeb hauv kev tshawb fawb, kev loj hlob, tsim, thiab kev faib khoom ntawm cov khoom siv fiber ntau zoo. Peb pab pawg kws tshaj lij tau mob siab rau kev tsim kho tshiab thiab kev ntseeg siab, ua kom peb ua tau raws li cov kev xav tau ntawm kev lag luam kev sib txuas lus thoob ntiaj teb.

Yog xav paub ntxiv txogFiber Optic Fast Connector SC, hu rau peb ntawmsales@evoluxfiber.comthiabshanna@evoluxfiber.com.
