Khoom Taw Qhia
Fiber optic MPO connector yog thawj tiam ntawm clip clamping multi-core optical fiber connector. Fiber optic MPO connector tau tus qauv rau network architects uas yuav tsum tau ceev thiab siv zog rau luv luv lub sij hawm nruab, raws li zoo raws li yooj yim cabling infrastructure rau lawv.40G / 100G data centers. Multi-hom MPO connectors tuaj yeem ntim 12, 24, lossis 72 fibers rau hauv ib lub ferrule, qhov kev ceev ceev no tau txhawb nqa nws qhov kev thov, tshwj xeeb tshaj yog nyob rau hauv qhov chaw - txwv cov ntaub ntawv chaw lag luam.

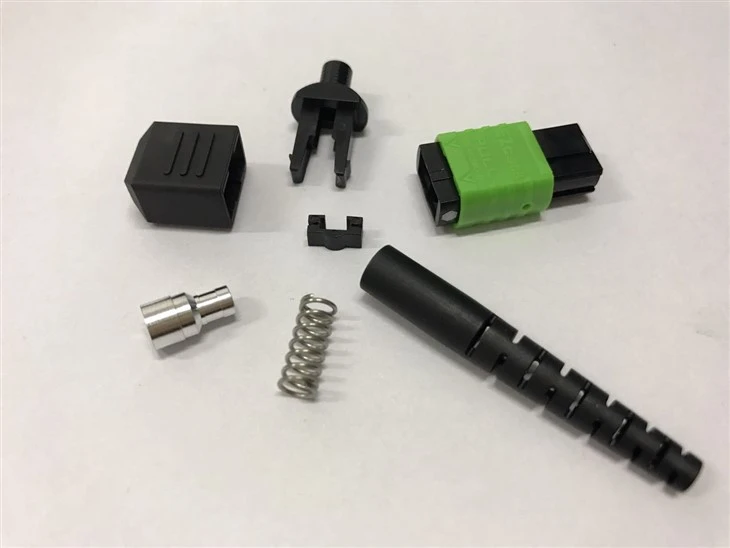

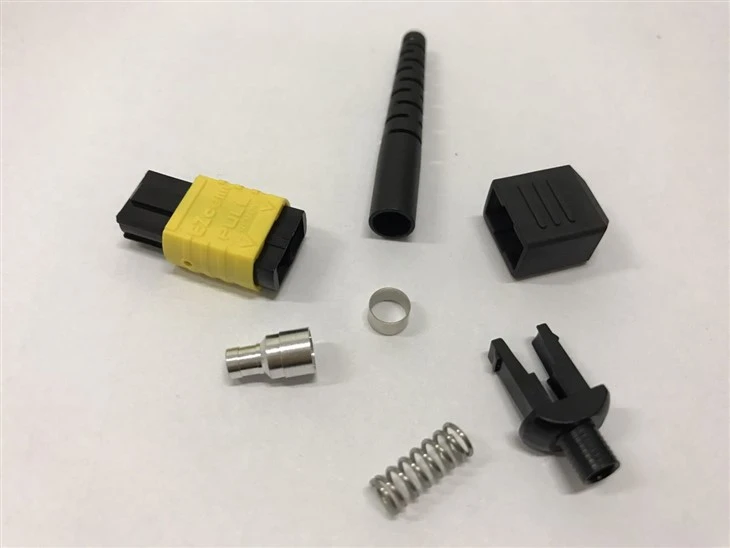

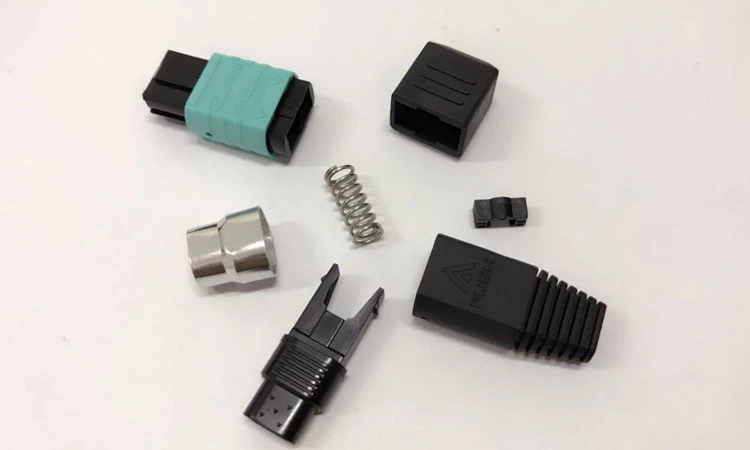

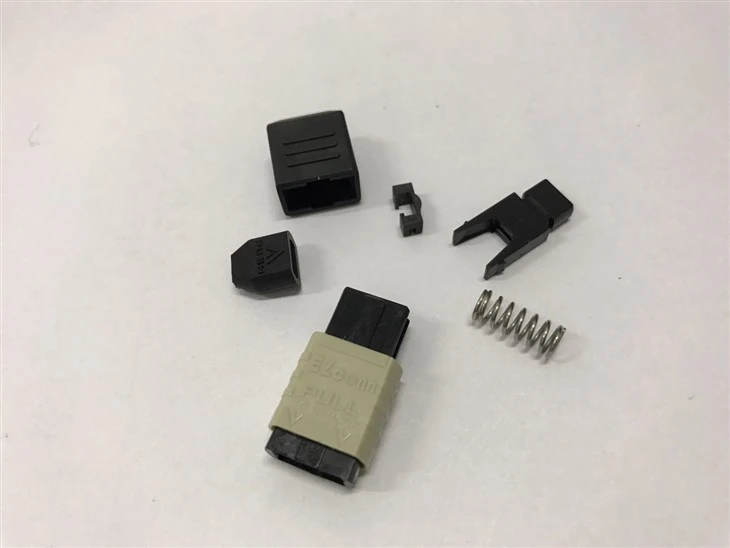

Connector Parts: Plua plav Cap, Sab Hauv Tsev, Ferrule los ua ke (A / B), Caij nplooj ntoos hlav, Stopper, Riveting nplhaib, Dub khau raj
Yeem Xim: Xiav, Ntsuab, Beige, Aqua, Violet, Lemon Green (xim tuaj yeem kho tau)
Khoom Specifications
|
Parameter ntsuas |
SM |
MM |
|
APC |
PC |
|
|
Ikev poob |
0.35Db Max (00.15dB hom) |
0.35Db Max (00.15dB hom) |
|
Rrov poob |
Ntau dua lossis sib npaug li 60dB |
|
|
Oua haujlwm wavelength |
1310nm, 1550nm |
850nm, 1300nm |
|
Fyuam kev Concentricity |
Tsawg dua lossis sib npaug li 1µm |
Tsawg dua lossis sib npaug li 4µm |
Nta
Tsawg insertion poob thiab rov qab kev xav poob
Zoo changeable
Zoo durability
Kub kub stability
Qauv: Telcordia GR-326-CORE
Qhov twg MPO Multi-Fiber Connectors raug xa mus
40G / 100G Parallel Optics nyob rau hauv Data Centers
Cov txha caj qaum niaj hnub no-thiab- nplooj ntawv architectures cia siab rau qhov sib txuas ntawm qhov muag kom ncav cuag 40 Gigabit thiab 100 Gigabit ceev.MPO multi-fiber push- ntawm qhov txuas rau qhov sib txuas rau opticshloov mus txog rau rau tus neeg duplex jumpers nrog ib qho kev sib txuas, txiav ntoo khaub lig- txuas lub sijhawm thiab txo qis cable congestion ntawm sab saum toj - ntawm - khib keyboards thiab aggregation txheej.
High -Density Structured Cabling Systems
Ua ntej-tawm cassette modules hloov ntau- fiber ntau MPO interfaces rau hauv ib leeg LC lossis SC duplex ports.12-core MPO connector rau cassette module kev koom ua kecov phooj ywg ncaj qha nrog lub vaj huam sib luag sab hauv ribbon, ua kom cov cuab yeej - xa tawm dawb thiab txo ntawm - qhov chaw fusion splicing zog.
MTP/MPO Cassette thiab Patch-Panel Cross-Connects
Ua ntej-tawm cassette modules hloov ntau- fiber ntau MPO interfaces rau hauv ib leeg LC lossis SC duplex ports. A 12- tub ntxhais MPO connector rau cassette module kev koom ua ke cov phooj ywg ncaj qha nrog lub vaj huam sib luag sab hauv ribbon, ua kom cov cuab yeej - xa tawm dawb thiab txo qis ntawm qhov chaw fusion splicing zog.
Enterprise Campus Backbone Links
Cov tsev kawm ntawv qib siab, tsev kho mob, thiab cov koom haum hauv tsev kawm ntawv feem ntau ua haujlwm ntev - lub tsev trunks nqa ntau ntau fiber ntau strands. Kev xa tawm MPO lub cev sib txuas tau ntsuas rau Telcordia GR-326-CORE muab cov hlua khi rau hauv ib qho chaw sib txuas ntawm txhua lub tsev nkag, txo cov kev sib txuas suav thiab cov haujlwm soj ntsuam cuam tshuam.
Tshaj tawm, Media, thiab theem -Kev tsim tawm Fiber khiav
Sab nraum- tshaj tawm cov tsheb thauj khoom thiab nyob - txheej xwm txheej txheej txheej xav tau kev teeb tsa sai thiab rhuav tshem ntawm ntau-channel fiber ntau txuas. Ib daim teb-installable MPO connector nrog clip-clamping mechanism tso cai rau cov kws tshaj lij los ua phooj ywg 12 lossis 24 fibers ib txhij, txhawb ntau- lub koob yees duab HD / 4K pub yam tsis muaj ib tus neeg rau- fiber ntau patching.
Cov lus nug nquag
Q1: Muaj pes tsawg fibers cores no MPO connector txhawb nyob rau hauv ib ferrule?
A: Cov khoom txuas no muaj nyob rau hauv 12-core, 24-core, thiab 72-core configurations. Txhua qhov sib txawv hauv tsev tag nrho cov fibers nyob rau hauv ib tug precision-molded MT ferrule, ua rau ib tug multi-core MPO optical connector los hloov ntau yam simplex los yog duplex interfaces nyob rau hauv ib tug mating voj voog.
Q2: Qhov no MPO connector puas siv tau nrog ob qho tib si singlemode thiab multimode fiber ntau?
A: Yog. Lub singlemode version muaj nyob rau hauv ob qho tib si APC thiab PC polish hom kev khiav hauj lwm ntawm 1310 nm thiab 1550 nm, thaum lub multimode version ua haujlwm ntawm 850 nm thiab 1300 nm. Ferrule concentricity yog tuav kom tsawg dua los yog sib npaug li 1 µm rau singlemode thiab tsawg dua los yog sib npaug rau 4 µm rau multimode, kom ntseeg tau tias kev sib raug zoo nyob rau hauv ob hom fiber ntau.
Q3: Dab tsi ntxiv qhov poob thiab rov qab poob kuv tuaj yeem xav tau?
A: Qhov siab tshaj qhov poob yog 0.35 dB ib khub niam txiv, nrog tus nqi raug nyob ib ncig ntawm 0.15 dB. Rov qab poob ntawm APC-polished singlemode units nce siab dua lossis sib npaug li 60 dB. Cov nuj nqis no ua rau cov khoom sib txuas tsim nyog raws li qhov qis - poob MPO interface rau 40G thiab 100G parallel optics txuas qhov twg qhov sib txuas nruj - cov nyiaj paj tau paj tseem ceeb.
Q4: Tus txheej txheem no txuas nrog dab tsi?
A: Kev tsim khoom thiab kev sim ua raws li Telcordia GR-326-CORE specification, kev lag luam-pom kev ntseeg tau tus qauv rau singlemode thiab multimode optical fiber connectors. Kev ua raws cai npog ib puag ncig endurance, mechanical durability, thiab optical kev ua tau zoo nyob rau hauv thermal cycling.
Q5: Cov khoom txuas no puas tuaj yeem siv rau hauv 40G QSFP + thiab 100G QSFP28 transceiver xa tawm?
A: Nws yog tsim tshwj xeeb rau cov ntawv thov no.12-fiber MPO connector rau QSFP transceiver modules Cov phooj ywg nrog ntau- fiber ntau receptacle hauv tus qauv QSFP + SR4 thiab QSFP28 SR4 optics, muab cov kab sib txuas uas xav tau rau 40 Gigabit thiab 100 Gigabit Ethernet.
Q6: Cov xim vaj tsev twg muaj rau polarity thiab fiber ntau- hom kev txheeb xyuas?
A: Cov qauv xim xaiv muaj xws li xiav, ntsuab, beige, aqua, violet, thiab txiv qaub ntsuab. Cov xim vaj tse kev cai kuj tuaj yeem tsim los ntawm kev thov kom haum rau koj qhov chaw xim -coding scheme rau fiber ntau lossis polarity tswj.
Q7: Dab tsi yog qhov tseem ceeb ntawm lub MPO connector?
A: Lub rooj sib txoos muaj lub hau plua plav, lub tsev nyob sab nraud, ferrule los ua ke (A / B qhov tseem ceeb orientation), lub caij nplooj ntoos hlav, nres, lub nplhaib riveting, thiab khau raj. Txhua feem yog tsim los rau rov mating cycles thaum tswj cov kev sib dhos precision yuav tsum tau nyob rau hauv ib tug siab - ceev multi- fiber connector los ua ke.
Q8: Lub connector no ua haujlwm li cas hauv qhov kub thiab txias?
A: Cov khoom lag luam yog tsim los rau siab -kub- kev ua haujlwm ruaj khov raws li GR-326-CORE ib puag ncig cov cai. Qhov no ua rau qhov kub-rhiab MPO connector rau telecom infrastructure tsim nyog rau lub hauv paus chaw ua hauj lwm, sab nraum zoov txee, thiab cov khoom siv chav nyob qhov twg ambient tej yam kev mob hloov pauv.
Q9: Dab tsi yog qhov tsawg kawg nkaus xaj kom muaj nuj nqis rau OEM lossis ntau qhov kev yuav khoom?
A: MOQ txawv ntawm cov tub ntxhais suav thiab polish hom. Hu rau peb pab pawg muag khoom ntawm sales@evoluxfiber.com rau cov lus hais ntawm MPO fiber ntau txuas cov xaj xaj, suav nrog kev tsim khoom lag luam, daim ntawv lo ntiag tug, thiab kev ntim khoom.
Q10: Kuv yuav ua li cas ntxuav MPO ferrule kawg -lub ntsej muag ua ntej mating?
A: Siv amob siab rau MPO/MTP reel-hom lossis cassette- hom tshuaj ntxuav uas npog tag nrho cov duab plaub ferrule nto nyob rau hauv ib zaug xwb. Standard simplex cleaners tsim los rau LC lossis SC connectors tsis tuaj yeem ncav cuag txhua qhov kawg ntawm fiber ntau - ntsej muag ib txhij thiab yuav tsum tsis txhob siv rau ntau - fiber ntau ferrules.
