Hom fiber ntau optic connectors muaj xws li:

Biconicconnectors muaj precision tapered xaus rau qis insertion poob. Nws muaj lub khob ntim yas pwm thiab pib nrog cov fiber ntau molded rau hauv lub ferrule. Biconic connectors tau dhau los lawm.

D4 Cov khoom sib txuas yog tsim los ntawm cov khoom sib xyaw zirconia ceramic ferrule rau durability. Lawv muaj ib tug high-kev ua tau zoo xov mounting system thiab ib tug tseem ceeb lub cev rau repeatability thiab intermateability. Nws siv lub ferrule me dua SCs lossis FCs. D4 connectors tau dav siv nyob rau hauv telco tes hauj lwm nyob rau hauv lub 80s mus rau thaum ntxov 90s, tab sis lawv tau dhau los ua ib qho kev siv technology.

ESCONLub npe muab los ntawm nws daim ntawv thov hauv IBM's ESCON channel interface. Nws zoo ib yam li FDDI connector-ib tug duplex connector siv 2.5 hli ferrules. Qhov sib txawv tseem ceeb yog nws cov shroud retractable as opposed to ib tug ruaj shroud. Lub shroud yog hla lub ferrule thiab yog caij nplooj ntoos hlav-loaded thiab retracts. ESCON connectors yog siv los txuas rau cov khoom siv los ntawm lub qhov hluav taws xob phab ntsa.

IbFC, los yog kev sib txuas ruaj khov, txuas yog tsim los ntawm tag nrho-zirconia ceramic ferrule rau durability. Lawv muaj ib tug high-kev ua tau zoo xov mounting system thiab ib tug tseem ceeb lub cev rau repeatability thiab intermateability. Lawv feem ntau yog siv nrog ib hom fibers thiab siv hauv xov tooj, twj paj nruag, thiab kev sib txuas lus ceev ceev. Cov style zoo ib yam li ST connector, tab sis nws siv threaded kev twb kev txuas, uas ua rau nws zoo dua haum rau siab vibration ib puag ncig.

FDDIconnectors yog tsim los ntawm ANSI rau siv nyob rau hauv FDDI tes hauj lwm. Qhov no connector yog ib tug duplex connector siv ob 2.5 hli ferrules thiab muaj ib tug ruaj shroud tshaj lub ferrules. Qhov no connector muaj ib tug ruaj shroud uas tiv thaiv cov ferrules ntawm kev puas tsuaj. Lawv feem ntau yog siv los txuas rau cov khoom siv los ntawm lub qhov hluav taws xob ntawm phab ntsa, tab sis tus so ntawm lub network yuav muaj ST lossis SC connectors.

LCs, tseem hu ua Lucent Connectors, Little Connectors, lossis Local Connectors, muaj precision PC polished zirconia ceramic ferrules. Lawv muaj RJ45 thawb-rub style vaj tsev thiab latching. Lawv yog ib nrab ntawm qhov loj ntawm cov qauv sib txuas, zoo li cov qauv me me ntawm SC. Qhov kev tsim no nce ntim ntim 50% nrog nws cov hneev taw nqaim thiab thawb / rub snap-lock tsim. LC connectors yog siv nyob rau hauv private thiab pej xeem tes hauj lwm, thiab tau txais nyob rau hauv muaj koob meej vim lawv cov me me form factor (SFF) optical transmitter/receiver assemblies.

Loopbackconnectors yog siv nyob rau hauv kev ntsuam xyuas transceiver systems. Loopback piav qhia txog txoj hauv kev ntawm kev xa xov hluav taws xob los ntawm lawv qhov chaw pib mus rau qhov kawg ntawm qhov chaw uas tsis tau ua lossis hloov kho. Qhov no yog qhov zoo tshaj plaws siv los ua ib txoj hauv kev los ntsuas kev sib kis ntawm kev thauj mus los infrastructure.

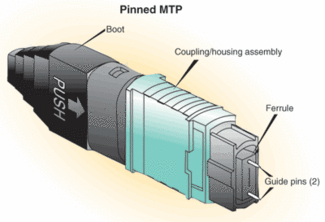

MTP, cov ntawv luv rau Multi-Fiber Push On / Pull Off, connectors yog ib hom threaded fiber optic connector. Lawv yog cov zoo tagnrho rau high-density daim ntaub ntawv. MTP connectors yog lub npe lag luam rau MT connectors, uas yog 12 fiber connectors rau roj hmab cable. Nws yog siv rau pre-terminated cable los ua ke thiab cabling systems.

CovMT-RJsiv lub ferrule me dua tus qauv MT los tuav ob lub fibers. MT stands rau Mechanical Transfer thiab RJ stands rau Register Jack. Nws kuj tseem siv cov xovxwm tso tawm latch zoo ib yam li qhov pom ntawm lub modular jack kom nws txoj haujlwm paub. MT-RJs siv pins rau kev sib tw thiab muaj cov txiv neej thiab poj niam versions. Lawv yog multimode nkaus xwb, thiab yog teb txiav los ntawm prepolished/splice txoj kev.

IbMUconnector yog 1.25 hli inch ferrule rau compact ntau optical connectors thiab self-retentive mechanism rau backplane daim ntaub ntawv. Cov "cov me me" no yog siv rau hauv kev sib txuas lus cov ntaub ntawv ceev, lub suab sib txuas, kev sib txuas lus thiab kev siv DWDM siab. MU connectors yog nrov nyob rau hauv Nyiv.

SCs, los yog Subscriber Connectors, yog high-precision ceramic ferrules. Lawv muaj lub snap-in locking mechanism rau zoo latching. SC connectors siv lub laub-rub tsim thiab tuaj yeem siv rau kev siv yooj yim lossis multiplex. Lawv muaj lub cev tseem ceeb rau kev rov ua dua thiab sib cuam tshuam thiab yog qhov zoo tagnrho rau cov ntawv thov ceev. SCs raug xa mus rau cov chaw txuas hauv tsev txij li lawv tau siv rau kev teeb tsa hauv tsev. Txawm hais tias nws muaj cov qauv yas compact, lawv tsis muaj qhov tsawg tshaj plaws hneev taw, xav tau 0.378 square inches.

SMAconnectors muaj tus nqi qis multimode coupling nrog kev pom zoo rau kev siv tub rog. SMA, uas sawv cev rau Subminiature A, yog lub microwave txuas.

ST, lossis Ncaj Ntsis, cov khoom sib txuas yog tsim los ntawm cov zirconia ceramic ferrule meej. Lawv muaj ib qho yooj yim-rau-sib dhos, ib-thooj bayonet mounting system. Lawv tuaj yeem siv rau ob hom tib hom thiab multimode fibers. Hom connector no nrov heev hauv kev sib txuas lus, xws li LANs thiab CCTV systems. ST connectors tseem hu ua BFOC (Bayonet Fiber Optical Connector). Lawv muaj cov lus qhia ceramic uas txuas mus dhau lub cev txuas. Qhov no tseem hu ua simplex bayonet-style twist-lock connector thiab nws yuav tsum tau saib xyuas tshwj xeeb vim tias lub ferrule tsis muaj kev tiv thaiv. Thaum lub ST connector tseem nrov nyob rau hauv ntau daim ntawv thov kev lag luam, nws poob kev pom zoo rau ntau compact, daim ntawv tseem ceeb.
