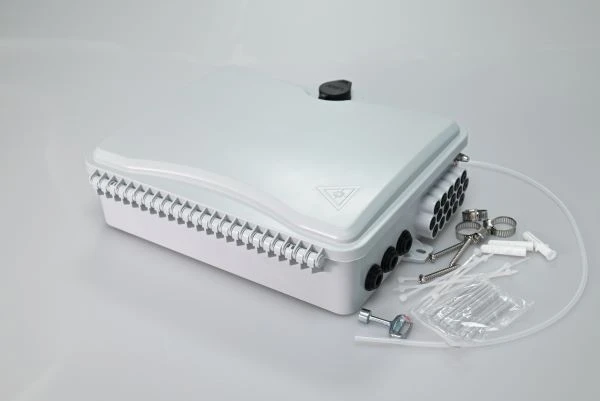

Peb16 Cores Optical Fiber Terminal Box Sab nraum zoov Mountedyog ib qho kev sib cog lus thiab muaj txiaj ntsig zoo rau kev tswj hwm fiber ntau, tshwj xeeb hauv FTTH tes hauj lwm. Feem ntau suav hais tias yog ib qho mini version ntawm Optical Distribution Frame (ODF), lub thawv davhlau ya nyob twg no faib tau zoo thiab tiv thaiv kev sib txuas ntawm fiber ntau hauv FTTH systems. Nws cov qauv tsim ua kom nws yog qhov kev xaiv zoo tshaj plaws rau ntau hom fiber ntau optic cable daim ntaub ntawv, kom ntseeg tau tias kev ua tau zoo thaum txhim kho qhov chaw hauv kev teeb tsa.
Vim li cas thiaj xaiv US?
Shenzhen Evolux Fiber Co., Ltd yog ib lub chaw muab kev pabcuam zoo tshaj plaws ntawm kev kho qhov muag fiber ntau. Peb tsom mus rau kev tshawb fawb, kev tsim kho, kev tsim khoom, thiab kev faib tawm ntawm sab saum toj - cov khoom siv fiber ntau zoo. Peb txoj kev mob siab rau kev tsim kho tshiab thiab kev ntseeg siab ua rau peb ua tus khub zoo tshaj plaws rau kev daws cov kev xav tau ntawm kev lag luam kev sib txuas lus thoob ntiaj teb.
- Kev Lag Luam Kev Lag Luam: Ntau tshaj kaum xyoo ntawm kev paub hauv fiber ntau optics.
- Quality Assurance: Siv cov kev tswj xyuas kom zoo.
- Cov neeg siv khoom -Centric Approach: Muab siab rau xa cov kev pabcuam zoo thiab kev txhawb nqa rau peb cov neeg siv khoom.
Khoom Specifications
|
Yam khoom |
Loj |
Muaj peev xwm |
||
|
16 tub ntxhais Terminal Box |
L * W * H (mm) |
SC |
LC |
PLC |
|
280*220*85 |
16 |
32 |
32 (LC) |
|
|
Ua haujlwm kub |
-40℃-+85 degree |
txheeb ze humidity |
Tsawg dua lossis sib npaug li 85% (+30 degree) |
|
Atmospheric siab |
70KPa-106Kpa rau |
Lub neej ntawm insertion thiab extraction |
≥1000 lub sijhawm |
|
Insertion poob |
Tsawg dua lossis sib npaug li 0.3dB |
UPC rov poob |
Ntau dua lossis sib npaug li 50dB |
|
APC rov poob |
Ntau dua lossis sib npaug li 60dB |
|
|
Khoom nta
- Waterproof Design: Nta IP65 tiv thaiv kev ntsuas rau kev siv sab nraum zoov.

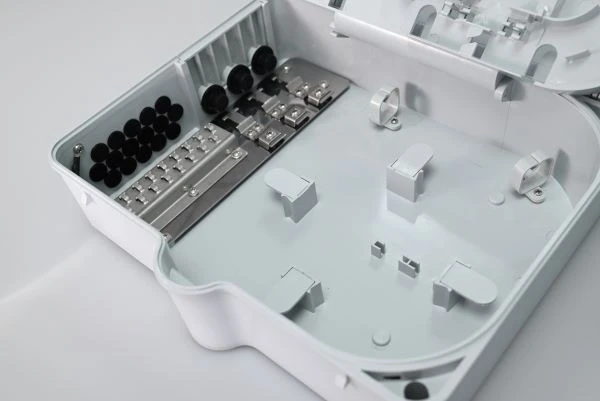

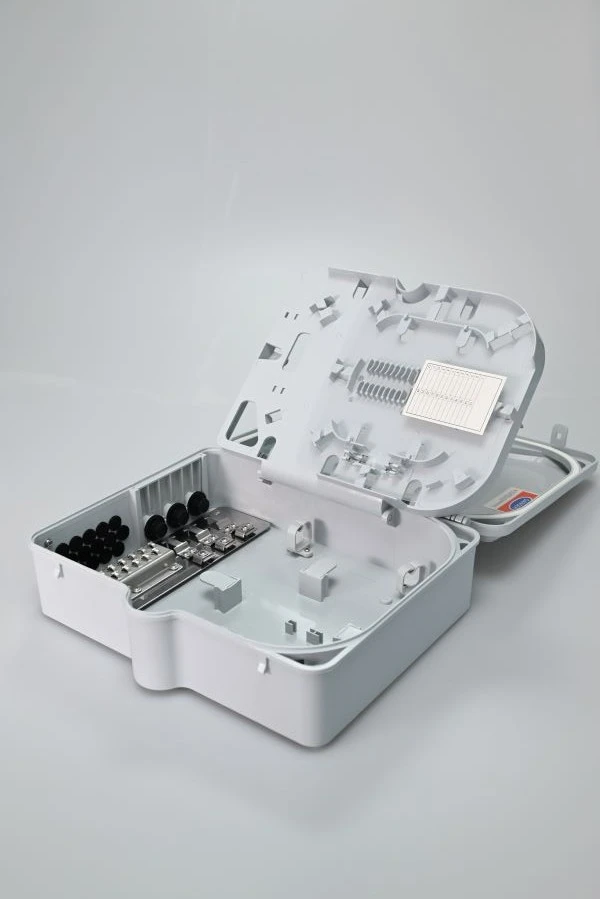

- Integrated Splice Cassette: Xyuas kom meejstreamlined fusion splicing thiab tswj cable zoo.
- Optimal Fiber Radius: Khaws cov fibers hauv cov xwm txheej zoo rau kev ua haujlwm.
- Khoov Radius Control: Ua kom muaj qhov tsawg kawg nkaus khoov lub vojvoog ntawm 40mm kom khaws cov kev ncaj ncees fiber ntau.
- 16 Chaw nres nkoj Cable Nkag: Ua ntej- txiav cov kab xaim xaim tau yooj yim.
Cov khoom siv
Kawg -Mile FTTH Drop-Cable Termination
Ntawm qhov kawg ntawm qhov chaw faib khoom ntawm feeder cable thiab cov neeg siv khoom poob cable,a 16-chaw nres nkoj FTTH fiber ntau termination box mounted rau sab nrauv phab ntsaua hauj lwm raws li kev hloov enclosure. Txhua qhov ntawm 16 SC lossis 32 LC adapter ports txuas rau ib tsev neeg, cia ib lub thawv npog tag nrho cov chav tsev hauv pem teb lossis ib pawg ntawm cov tsev hauv nroog yam tsis tas yuav muaj lub txee loj dua.
Sab nraum zoov Telecom Ncej thiab Phab Ntsa Distribution

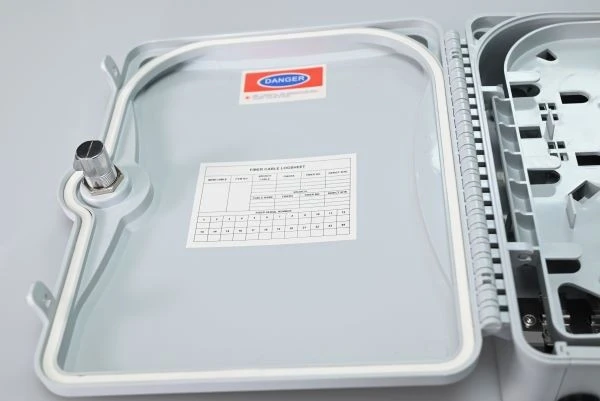

Cov neeg nqa khoom siv fiber ntau hauv cov neeg nyob ib puag ncig feem ntau txhim kho cov khoom siv hluav taws xob ncaj qha rau ntawm cov khoom siv hluav taws xob lossis lub tsev facades. IP65-rated sab nraum zoov fiber ntau lub thawv rau ncej thiab phab ntsa installation tiv thaiv los nag, plua plav, thiab UV raug thaum khaws fusion splices thiab adapter panels siv tau rau kev saib xyuas los ntawm nws lub hau hinged.
Nyob deb nroog thiab tej thaj chaw deb FTTX Network Nodes
Nyob rau hauv cov cheeb tsam uas huab cua huab cua muaj ntau heev, lub qhov rooj ntawm -40℃mus rau +85℃kev khiav hauj lwm ntau ua kom ntseeg tau xyoo- puag ncig. Kev qhia dav dav -kub fiber ntau optic davhlau ya nyob twg enclosure rau FTTX nyob deb nroog tshem tawm qhov xav tau ntawm huab cua tswj cov txee ntawm txhua qhov chaw faib khoom, txo cov nqi peev thiab cov nqi hluav taws xob tsis tu ncua.
CATV Coaxial - mus rau -Fiber Transition Points
Cable TV tswv tsiv teb tsaws headend- mus rau- cov kab txuas ntawm coaxial mus rau fiber ntau siv cov thawv sab nraum zoov ntawm txhua qhov chaw kho qhov muag. A 16-core splice-npaj lub thawv rau CATV fiber ntau hloov dua siab tshiab lub tsev fusion splices uas txuas lub cev fiber ntau nrog cov khoom faib hauv zos, ua kom lub tais sib txuas hauv cov huab cua kaw.
Campus thiab Industrial Perimeter Cabling
Factory complexes, logistics parks, thiab university campuses khiav sab nraum zoov fiber ntau ntawm cov tsev nyob rau hauv lub laj kab kab los yog sab nrauv conduit. Ib phab ntsa-mounted fiber ntau splice lub thawv nrog kev sib xyaw ua ke lub tais muab qhov yooj yim nruab nrab- ncua kev nkag mus rau qhov ntsuas, rov- txoj kev, lossis ntxiv cov kev sib txuas poob yam tsis rov qab mus rau chav tsev khoom loj.
Kev soj ntsuam thiab kev ruaj ntseg Backbone Distribution
IP lub koob yees duab tes hauj lwm hla cov chaw nres tsheb, cov laj kab ib puag ncig, thiab cov chaw pej xeem xav tau sab nraum zoov - ntsuas fiber ntau ntawm txhua lub koob yees duab pawg. Siv lub thawv sab nraum zoov fiber ntau rau kev ruaj ntseg lub koob yees duab tes hauj lwm ntawm txhua lub koob yees duab plaub los yog thib tsib sib sau ua ke backhaul fibers rau hauv ib lub cev thiab ua kom yooj yim rau yav tom ntej lub koob yees duab ntxiv.
Smart Grid thiab Utility Fiber Infrastructure
Hluav taws xob, dej, thiab roj siv hluav taws xob nce ntxiv fiber ntau nrog rau lawv cov kab xa tawm rau SCADA, ntse -meter backhaul, thiab kab sib chaws- automation signaling. A weatherproof 16-chaw nres nkoj fiber ntau davhlau ya nyob twg lub thawv rau ntse daim phiaj cabling muab ib tug ruggedized hand-off point ntawm substations, twj tso kua mis, los yog metering txee raug rau muaj kev co thiab kub viav vias.
Kev Tswj Xyuas Zoo
Ntawm Evolux Fiber, qhov zoo yog peb qhov tseem ceeb tshaj plaws. Peb siv cov kev tswj xyuas nruj nruj thoob plaws hauv peb cov txheej txheem tsim khoom kom ua tau raws li cov qauv thoob ntiaj teb. Txhua theem, los ntawm kev xaiv cov khoom siv raw mus rau qhov kev sim zaum kawg, ua tib zoo saib xyuas, tso cai rau peb xa cov khoom lag luam uas koj tuaj yeem ntseeg tau. Koj txoj kev ntseeg siab hauv peb cov khoom yog qhov tseem ceeb rau peb.
Kev Pabcuam OEM
Peb muab kev pabcuam OEM customized raws li koj qhov kev xav tau tshwj xeeb. Txawm hais tias koj xav tau kev tsim khoom lag luam, tsim kev hloov kho, lossis kev sib koom ua ke tshwj xeeb, peb pab neeg tau npaj los koom tes nrog koj thiab xa cov kev daws teeb meem ntawm tus kheej uas haum rau koj lub zeem muag. Koj qhov kev txaus siab yog peb qhov kev cog lus.
FAQ
Q1: Muaj pes tsawg fibers cores no lub thawv davhlau ya nyob twg haum?
A: Lub thawv txhawb nqa txog li 16 cores siv SC adapters, lossis txog li 32 qhov chaw nres nkoj thaum haum nrog LC duplex lossis PLC adapters. Qhov kev hloov pauv no ua rau 16-core fiber ntau lub thawv nrogSC thiab LC adapter xaivsuitable for both low-density residential drops and higher-density commercial installations.
Q2: Qhov ntsuas dej tsis zoo thiab plua plav tiv thaiv yog dab tsi?
A: Cov ntaub thaiv npog muaj kev tiv thaiv IP65, txhais tau tias nws muaj plua plav puv - nruj thiab tiv thaiv qis - cov dav hlau dej siab los ntawm txhua qhov kev taw qhia. Qhov kev tiv thaiv kev tiv thaiv no yog tsim nyog rau IP65 huab cua tsis muaj fiber ntau rau sab nraum zoov mounting raug los nag, daus, thiab ntug dej hiav txwv ntsev tsuag.
Q3: Qhov kev khiav hauj lwm kub yog dab tsi?
A: Lub tsev ua haujlwm muaj kev ntseeg siab ntawm -40℃rau +85℃ntawm cov av noo mus txog 85% (ntawm +30} degree) thiab atmospheric siab ntawm 70 kPa thiab 106 kPa. Cov kev tiv thaiv ib puag ncig no tso cai rau kev xa mus rau ob qho tib si huab- huab cua txias sab qaum teb thiab thaj chaw kub kub kub.
Q4: Dab tsi mounting txoj kev txhawb lub thawv?
A: Nws yog tsim los rau sab nraum zoov phab ntsa- mounted installation siv lub integrated mounting qhov ntawm lub rear vaj huam sib luag. Lub kaw lus tuaj yeem kho tau rau masonry, pob zeb, ntoo ncej, lossis hlau brackets, ua rau nws muaj ntau yam phab ntsa -mount fiber optic faib lub thawv rau ntau yam sab nraum zoov.
Q5: Puas yog lub thawv muaj lub tais sib txuas?

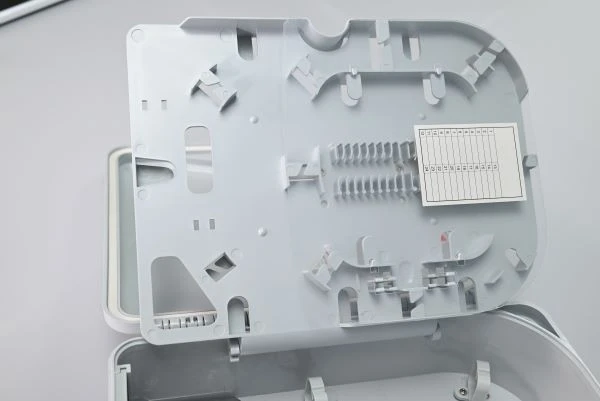

A: Yog. Ib qho kev sib txuas sib txuas ua ke tau tsim rau hauv lub thawv, tso cai rau cov kws tshaj lij ua haujlwmfusion splicing ntawm -site thiab khaws fiber ntau coils hauv lub tais. Qhov tsawg kawg nkaus khoov vojvoog tsim 40 mm tiv thaiv spliced fibers los ntawm kev ntxhov siab ntau dhau thaum thiab tom qab kev teeb tsa.
Q6: Dab tsi cable nkag chaw nres nkoj muaj?
A: Lub thawv muab 16 cable nkag chaw nres nkoj me me rau kev faib khoom txheem- qib qis cables. Cov chaw nres nkoj no haum rau ua ntej-connectorized poob cables rau FTTH tes hauj lwm, txo cov sij hawm txiav tawm thiab ua kom cov ntsaws ntsaws- thiab- ua si rau cov neeg siv khoom qhib.
Q7: Dab tsi ntxiv qhov poob thiab rov qab poob qhov txiaj ntsig lub thawv ua tiav?
A: Thaum nruab nrog lub Hoobkas - ntsia cov adapters, qhov poob qis dua los yog sib npaug rau 0.3 dB ib qho kev sib txuas, UPC rov qab poob ntau dua lossis sib npaug rau 50 dB, thiab APC rov poob poob ntau dua lossis sib npaug rau 60 dB. Adapter ports raug ntaus nqi rau ntau tshaj 1,000 mating cycles, kom ntseeg tau ntev - lub sij hawm neeg kho tshuab kev cia siab rau ib tug nquag nkag mus rau sab nraum zoov fiber ntau termination vaj huam sib luag.
Q8: Lub cev loj thiab qhov hnyav ntawm lub qhov rooj yog dab tsi?

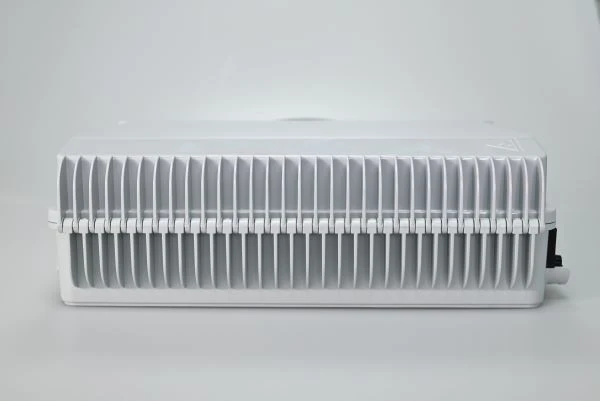

A: Sab nraud qhov ntev yog 280 × 220 × 85 mm (L × W × H). Daim ntawv cog lus yog txhob txwm ua me me li mini-ODF, xa cov splicing thiab patching functionality ntawm ib tug loj optical tis ncej nyob rau hauv ib feem ntawm tus hneev taw - zoo tagnrho rau qhov chaw- txwv ncej lossis phab ntsa installation.
Q9: Lub thawv no puas tuaj yeem siv sab hauv tsev thiab?
A: Thaum ua haujlwm feem ntau rau qhov chaw sab nraum zoov, qhov ntsuas IP65 thiab qhov ntsuas kub dav dav txhais tau tias nws ua tau zoo sib npaug hauv cov khoom siv hluav taws xob sab hauv tsev, hauv qab daus, thiab chaw nres tsheb. Cov chaw tab tom nrhiav kev sib cog lus hauv tsev- sab nraum zoov fiber ntau splice enclosure nrog IP65 tiv thaiv tuaj yeem siv tib SKU rau ob qho xwm txheej.
Q10: Puas yog OEM customization muaj - xws li logo luam ntawv, xim hloov, lossis hloov chaw nres nkoj suav?
A: Yog. Evolux Fiber muaj OEM thiab ODM cov kev pabcuam suav nrog kev ntiag tug- daim ntawv lo cim npe, cov xim kev cai ntawm cov ntaub ntawv, hloov kho qhov hloov kho, thiab lwm txoj kab txuas txuas ntxiv. Hu rau sales@evoluxfiber.com nrog rau koj cov lus qhia tshwj xeeb rau kev cai 16-core fiber ntau lub thawv ntawv suav nrog lub sijhawm ua haujlwm thiab qhov tsawg kawg nkaus kom muaj nuj nqis.
Txog Peb
Nyob rau hauv fiber optics sector, Shenzhen Evolux Fiber Co., Ltd. yog ib tug reputable thawj coj. Peb yog ib lub tuam txhab tsim nyob rau hauv 2013 thiab yog nyob rau hauv Shenzhen, Tuam Tshoj. Peb muaj ib pab neeg ntawm cov kws tshaj lij uas tau mob siab rau kev tsav tsheb tshiab thiab ua tau raws li cov kev hloov pauv ntawm kev lag luam kev sib txuas lus thoob ntiaj teb. Kev xa tawm - cov kev daws teeb meem uas ua tau raws li kev lag luam xav tau yog peb lub hom phiaj tseem ceeb. Yog tias koj xav txhim kho koj lub network infrastructure, thov hu rau peb ntawmsales@evoluxfiber.comthiabshanna@evoluxfiber.comlos tham txog koj cov kev xav tau thiab nrhiav seb peb li cas16 Cores Optical Fiber Terminal Box Sab nraum zoov Mountedtuaj yeem hloov kho koj txoj kev sib txuas!
