Technical Specifications - LC rau FC OM3 Duplex Fiber Patch Cable
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Hom Connector | LC UPC rau FC UPC | Hom Fiber | OM3 Multimode 50/125μm |
| Fiber Qib | Laser -Qhov zoo tshaj 50μm | Lub wavelength | 850nm / 1300nm |
| Insertion Loss | Tsawg dua los yog sib npaug rau 0.3dB (Hom 0.2dB) | Rov Los Los | Ntau dua lossis sib npaug li 20dB |
| Fiber suav | Duplex (2 fibers) | Cable Diameter | 2.0mm Tight-Buffered |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) | Jacket Xim | Aqua (OM3 Standard) |
| Max. Cov ntaub ntawv tus nqi | 10 Gbps @ 300 m | Khoom siv Ferrule | Precision Zirconia Ceramic |
| Min. Khoov Radius | 30mm (Loaded) / 15mm (Unloaded) | Tensile zog | Ntau dua lossis sib npaug rau 100N |
| Kev khiav hauj lwm Temp. | -20℃rau +70 degree | Cia Temp. | -40℃rau +80 degree |
| Muaj Lengths | 1m, 2m, 3m, 5m, 10m, Kev cai | Ua raws | RoHS, CE, ISO 11801 |

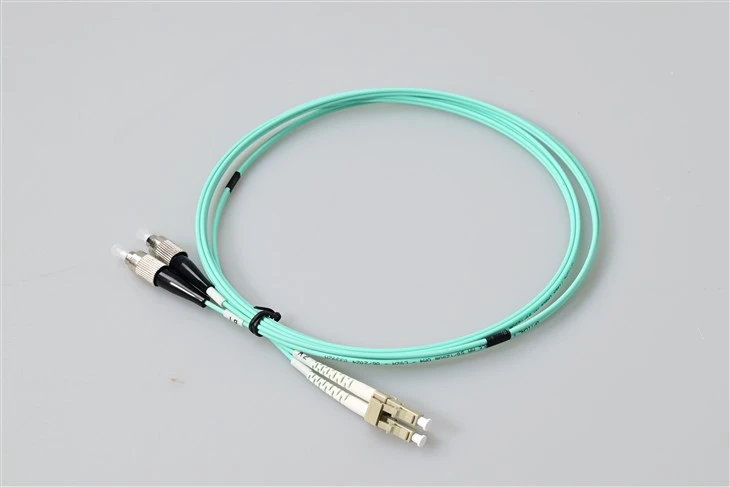

Dab tsi yog LC rau FC OM3 Multimode Duplex Patch Cable?
CovLC rau FC OM3 multimode duplex thaj cableyog ib qho hybrid fiber optic jumper tsim tshwj xeeb rau kev sib txuas nrog cov khoom sib txawv sib txawv. Nrog rau LC UPC txuas ntawm ib kawg thiab FC UPC txuas ntawm lwm qhov, lub cable no ua rau kev sib txuas lus tsis sib haum xeeb ntawm cov cuab yeej siv niaj hnub no uas muaj LC ports thiab cov cuab yeej cuab tam nruab nrog FC interfaces.
Tsis zoo li tus qauv LC-LC lossis FC-FC thaj cords uas txuas cov khoom sib xws, qhov LC-FC hybrid cable ua haujlwm tseem ceeb hauv thaj chaw sib xyaw fiber ntau. Cov chaw zov me nyuam cov ntaub ntawv thiab cov chaw sib txuas lus feem ntau siv cov khoom siv los ntawm ntau tiam neeg- cov hloov tshiab thiab cov transceivers feem ntau siv compact LC connectors rau siab dua qhov chaw nres nkoj, thaum cov cuab yeej xeem laus, DWDM systems, thiab cov cab kuj- cov khoom siv hauv xov tooj cua kuj tseem vam khom FC threaded connectors.
Vim li cas thiaj xaiv Qhov Hybrid LC -FC Multimode Fiber Jumper?
Lub OM3 laser - optimized 50/125μm fiber coretxhawb 10 Gigabit Ethernet kis tau tus mob mus txog 300 meters ntawm 850nm wavelength, ua rau nws haum rau intra- txhim kho cov pob txha txuas thiab luv- mus txog cov ntaub ntawv chaw txuas. Lub aqua-xim LSZH lub tsho ua tau raws li qhov yuav tsum tau muaj kev nyab xeeb hluav taws rau kev teeb tsa sab hauv tsev, tso pa tawm tsawg kawg nkaus thiab tsis muaj cov pa roj halogen lom thaum muaj hluav taws kub- qhov tseem ceeb rau cov chav server thiab cov tais cable.
Txhua lub cable tau dhau 100% kev kuaj pom ua ntej xa khoom. Qhov tseeb - polished zirconia ceramic ferrules ntawm ob qho tib si LC thiab FC xaus xa tuaj zoo ib yampoob poobqis dua 0.3dB, ua kom ntseeg tau cov teeb liab kev ntseeg siab thoob plaws koj lub network fiber ntau.
LC Connector vs. FC Connector: Nkag siab qhov sib txawv Interface
CovLC (Lucent Connector) siv lub compact 1.25mm ferrule nrog lub laub -rub latching mechanism, tso cai rau siab -kev xa tawm ceev- ob zaug ntawm qhov chaw nres nkoj suav piv rau SC connectors hauv tib qhov chaw vaj huam sib luag. Nws tau dhau los ua qhov tseem ceeb interface rauSFP / SFP + transceiversthiab niaj hnub network keyboards.
CovFC (Ferrule Connector) nta ib lub 2.5 hli ferrule nrog ib tug threaded ntsia hlau - ntawm coupling. Txawm hais tias tsis tshua muaj nyob rau hauv kev teeb tsa tshiab, FC connectors tseem muaj nyob rau hauv cov cuab yeej ntsuas qhov tseeb, cov cuab yeej ntsuas qhov muag, thiab cov kev sib txuas lus qub vim lawv cov khoom siv ruaj ntseg thiab kev co.
Qhov no LC rau FC thaj cable tshem tawm qhov xav tau ntxiv rau cov hloov pauv lossis hloov pauv hloov pauv thaum txuas ob hom kev sib txuas, ua kom yooj yim rau kev tswj hwm cable thiab txo cov ntsiab lus tsis ua haujlwm hauv koj lub network.
Daim ntawv thov - Qhov twg LC rau FC OM3 Duplex Cables Excel
Qhov no LC UPC rau FC UPC OM3 duplex hybrid thaj cable yog lub hom phiaj- ua rau ib txoj haujlwm feem ntau tus qauv LC-LC jumpers tsis tuaj yeem ua tau zoo: txuas LC niaj hnub- txiav cov keyboards, transceivers, thiab thaj vaj huam sib luag rau FC legacy-tawm xeem iav {0{6} O. ciaj sia qhov nruj 90℃khoov uas tsim cabling tais xav tau. Kev sib xyaw ua ke ntawm kev sib xyaw- txuas txuas txuas thiab G657A1 khoov tsis pom kev fiber ntau yog dab tsi cais cov jumper no los ntawm LC-FC thaj qaum.
Cov cuab yeej cuab tam FC Legacy → Modern LC Network upgrade
Hauv cov chaw ua haujlwm hauv xov tooj qub qub thiab tshaj tawm xov xwm tus tswv-chaw tswj, cov khoom siv fiber ntau uas twb muaj lawm tseem raug txiav tawm ntawm FC bulkheads. Qhov khoov tsis pom kev LC-FC OM3 cable tso cai rau koj taug txoj kev tshiab - tsim LC SFP + hloov ncaj qha mus rau qhov qub qub FC ODF yam tsis tau rov ua dua - txiav tawm cov khoom xa tuaj rau cable - khaws cia capex thiab zam kev cuam tshuam kev pabcuam.
Test & Measurement Lab Jumpers
OTDRs, optical light sources, thiab reference-qib fais fab ntsuas los ntawm EXFO, JDSU, Yokogawa, thiab Anritsu feem ntau xa nrog FC/PC bulkheads, thaum lub cuab yeej hauv kev sim siv LC. A 50/125 OM3 LC-FC duplex jumper yog tus qauv lab adapter cable siv los txuas ob qhov kev sib txuas ntawm 10G multimode txuas ntawv pov thawj.
Tight-Radius Routing nyob rau hauv Cable Trays & Corner Khoov
G657A1 fiber ntau khaws macrobend poob qis dua 0.1 dB ntawm 10 mm vojvoog, piv rau kwv yees li 1-2 dB rau cov qub qub G652D fiber ntau ntawm tib qhov khoov. Qhov ntawd tseem ceeb hauv kev teeb tsa cabling: G657A1 LC-FC OM3 2.0mm thaj ua rau thaj tuaj yeem nkag mus rau hauv 1U kab rov tav cov thawj coj, nyob ib ncig ntawm kaum cov ncej, thiab los ntawm cov kab txuas txuas yam tsis muaj ib qho - khoov lub txim uas yuav ua rau 10G npoo pob nyiaj siv.
Sab Hauv Tsev 10G Multimode Backbone nrog Hluav Taws-Txoj Cai Kev Nyab Xeeb
LSZH tsho tshaj tawm yuav luag tsis muaj pa taws halogenated thaum hlawv, yog vim li cas IEC 60332-1, EN 50575 Cca, thiab IEC 60754 tau sau ib ncig ntawm lawv. Cov nplaim hluav taws LSZH-retardant LC rau FC OM3 qaum yog qhov tseeb tshwj xeeb rau cov tsev kho mob, cov chaw nres tsheb hauv av, cov chaw khaws ntaub ntawv, thiab siab -cov chaw ua haujlwm nce siab uas txwv kev haus luam yeeb.
CATV Headends thiab Tshaj Tawm Tshaj Tawm
Cov laus CATV headend receivers thiab SDI- dhau-fiber extensioners khaws cov ntsia hlau- ntawm FC connectors vim cov threaded coupling muaj sia nyob vibration zoo dua li thawb- rub LC. Lub LC-FC 10G multimode thaj qaum nqa lub teeb liab los ntawm LC niaj hnub- txiav fiber ntau aggregator rau hauv qhov kev vibration-sensitive legacy FC chaw nres nkoj.
FTTX Central Office Hla-Txuas
Cov neeg nqa khoom-chav kawm ODFs nquag nthuav tawm FC/PC ntawm sab kab thiab LC ntawm cov khoom siv. Ib qho qub txeeg qub teg-FC-rau-LC hloov dua siab tshiab cable nrog G657A1 core yog tus ntoo khaub lig default-txuas cov khoom vaj khoom tsev yuav nyob rau hauv ntau rau txhua qhov tshiab PON aggregation bay.
Kev txiav txim ntau tus neeg muag khoom rau vaj huam sib luag Builders & Integrators
Cov kev sib koom ua ke hauv tsev ua ntej-wired thaj vaj huam sib luag qhia txog LC rau FC OM3 duplex cable chaw tsim khoom los ntawm khoov- vojvoog kev ua tau zoo thiab LSZH daim ntawv pov thawj - tsis yog nqi ib leeg. Kev txiav txim ntau MOQ yog 100 daim rau ib qhov ntev -SKU, nrog sib xyaw-ntev consolidation ntawm tib PO txhawb.
Cov lus nug nquag nug - LC rau FC OM3 Fiber Patch Cable
Q1: Vim li cas thiaj xaiv LC hybrid - mus rau -FC OM3 thaj cable es tsis txhob siv ob lub LC cais -LC thiab FC-FC jumpers?
A: Ib tug hybrid jumper tshem tawm ib qho mating-pair los ntawm txoj kev kho qhov muag, txuag kwv yees li 0.3 dB ntawm qhov poob thiab ib qho av muaj peev xwm -ingress point. Ntawm qhov nruj 10G multimode txuas pob nyiaj no tseem ceeb - uas yog vim li cas LC UPC rau FC UPC OM3 hybrid cable yog nyiam dua ib daisy- saw ntawm ob jumpers ntxiv rau LC-FC adapter.
Q2: Dab tsi yog G657A1 khoov insensitive fiber tiag tiag ua ntawm 10 hli khoov vojvoog?
A: Txheem G652D fiber ntau poob ib ncig ntawm 1-2 dB ib zaug thaum khoov rau 10 hli. G657A1 fiber ntau tuav qhov poob qis dua 0.1 dB. Hauv cov ntsiab lus ua tau zoo, G657A1 LC-FC OM3 2.0mm thaj ua rau thaj ua rau thaj tsam ntawm lub ces kaum lossis hauv cov ntiv tes cable yam tsis muaj teeb meem ntsuas qhov degradation - ib yam dab tsi uas cov laus siv fiber ntau ua tsis tau.
Q3: Puas yog LSZH 2.0 hli lub tsho ntsuas rau plenum lossis riser kev teeb tsa?
A: LSZH yog European thiab thoob ntiaj teb qis - pa taws - xoom- halogen ntsuas (IEC 60332-1 / EN 50575 Cca). Nws raug lees txais rau sab hauv tsev, riser, thiab cable- tais khiav tab sis tsis sib npaug rau North-American OFNP plenum rating. Yog tias koj qhov project tshwj xeeb xav tau OFNP hauv NEC, thov OFNP{10}}jacketed variant ntawm no LC-FC OM3 duplex jumper.
Q4: Puas yog qhov no LC UPC rau FC UPC OM3 thaj cable txhawb 10G Ethernet ntawm tag nrho 300 m multimode ncav cuag?
A: Yog. OM3 50/125 laser-optimized fiber ntau yog ntsuas rau 10GBASE-SR txog 300 m. Vim tias qhov tsawg dua lossis sib npaug rau 0.3 dB qhov poob ntawm qhov LC no -FC 10G multimode cord tawm ntawm cov npoo loj ntawm cov khoom sib txuas, tag nrho 300 m ncav cuag yog ua tiav - muab qhov txuas nqes qis kuj yog OM3 lossis zoo dua.
Q5: Vim li cas OM3 tshaj OM1 lossis OM2 rau kev tsim kho multimode tshiab?
A: OM1 (62.5/125) max tawm ntawm 33 m rau 10GBASE-SR; OM2 (50/125) nce mus txog 82 m ntawm 10G. OM3 txuas mus rau 300 m. Rau ib qho tshiab 10G- muaj peev xwm nruab, 50/125 OM3 LC-FC duplex jumper yog qhov tshwj xeeb yam tsawg kawg nkaus uas yav tom ntej - pov thawj qhov txuas. Yog tias koj qhov project yuav tom qab ntsuas rau 40G lossis 100G, saib pebCov ncauj lus kom ntxaws OM3 vs OM4 multimode fiber ntau kev sib pivlos txiav txim seb qhov kev hloov kho dua tshiab rau OM4 thaum lub sijhawm teeb tsa puas tsim nyog.
Q6: Puas yog UPC polish ntawm lub cable no tuaj yeem hloov mus rau APC ntawm kev txiav txim ntau?
A: UPC vs APC yog lub Hoobkas - xaiv polished thiab hloov tsis tau hauv daim teb. Ntawm kev txiav txim ntau peb tsim LC APC / FC APC variants raws li cais SKUs - tab sis nco ntsoov tias APC kawg - ntsej muag ntsuab - khau raj coded thiab feem ntau siv hauv PON / FTTH singlemode, tsis yog OM3 multimode. Rau 10G multimode sib txuas, LC UPC rau FC UPC yog qhov tseeb polish ua khub. Rau tag nrho cov kev puas tsuaj ntawm PC, UPC, thiab APC kawg li cas -fim geometry txawv ntawm qhov kev poob rov qab, xa mus rau pebfiber connector polish hom kev qhia npog PC vs UPC vs APC specifications.
Q7: Dab tsi yog MOQ ntau thiab lub sij hawm xa tuaj rau ib qho LC -FC OM3 duplex tsum xaj?
A: MOQ yog 100 daim ib qhov ntev -SKU rau kev teeb tsa Tshuag. Lub sijhawm ua haujlwm yog 3-5 hnub ua haujlwm rau cov qauv LSZH 2.0 hli aqua sib dhos, thiab 7-12 hnub ua haujlwm rau kev cai- tsho loj lossis kev cai-ntev ntev LC rau FC OM3 thaj cord batches. Ntim ntawm 5, 000+ daim yog hais rau ib qhov project.
Q8: Yuav ua li cas LC UPC thiab FC UPC kawg- lub ntsej muag yuav tsum tau ntxuav ua ntej tso?
A: Siv lub reel- hom fiber ntau ntxuav ntawm ob qhov kawg ua ntej txhua qhov sib tov. Rau kev soj ntsuam teb, 200 × / 400 × video fiber ntau txheeb xyuas qhov kawg -ntsej muag tawm tsam IEC 61300-3-35 cov txheej txheem dhau / tsis ua tiav. Plua plav-capping qhov khoov tsis pom kev LC-FC OM3 cable ntawm kev siv yog qhov yuav tsum tau ua - av yog qhov loj tshaj plaws ntawm kev sib txuas-nruab nrab tsis ua haujlwm ntawm kev sib dhos hybrid.
Q9: Puas yog Qib A zirconia ferrule tuaj nrog lub Hoobkas kuaj?
A: Yog. Txhua chav tsev yog 100% interferometer- ntsuas rau apex offset, vojvoog ntawm curvature, thiab fiber ntau undercut, thiab insertion- poob / rov qab- poob kuaj ntawm 1310 nm thiab 1550 nm. Tus kheej serial-cov ntaub ntawv xeem tus lej muaj nyob rau ntawm cov lag luam wholesale LC-FC OM3 duplex bulk xaj yam tsis tau them nqi ntxiv.
Q10: Lub cable ntev puas tuaj yeem hloov kho rau ib qhov project tshwj xeeb?
A: Kev cai ntev ntawm 0.5 m txog 300 m yog tsim los txiav txim. Rau kev txiav txim ntau uas sib tov ntev (0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 20 m) ntawm tib PO, LC UPC rau FC UPC OM3 duplex thaj cable tus neeg muag khoom tuaj yeem sib sau ua ke tag nrho cov kev txiav rau hauv ib qho khoom xa tuaj kom txo cov khoom thauj.
Q11: Cov kab no puas haum rau sab nraum zoov ncaj qha - siv faus?
A: Tsis yog. Lub 2.0 hli LSZH nruj- kev tsim kho buffered yog tsim los rau sab hauv / hauv- kev siv hauv tsev. Rau sab nraum zoov ncaj qha- faus neeg khiav koj yuav tsum tau muaj armored los yog gel-sau sab nraum zoov cable txiav mus rau ODF, thiab lub jumper sab hauv tsev no ntsaws rau hauv ODF thaj thaj.
Q12: Kuv yuav tsum saib xyuas qhov chaw ua haujlwm li cas?
A: Ua haujlwm kub yog −20℃rau +70 degree, cia −40℃rau +80℃. Qhov ntawd suav nrog cov ntaub ntawv sab hauv tsev -centre, telecom-chav, thiab ib puag ncig kev tshaj tawm. Rau qhov txias dua qhov tsis muaj cua sov sab nraum zoov, qhia txog kev lag luam -temp variant es tsis txhob LC no -FC OM3 LSZH thaj cable.
