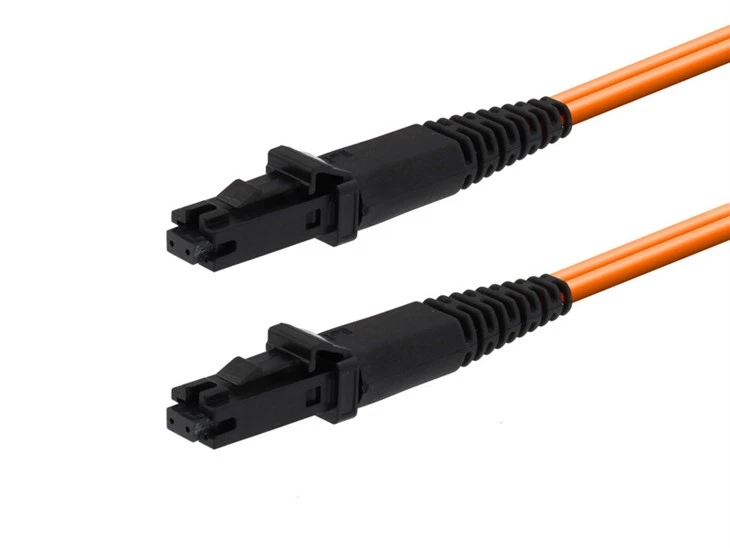

Nrog MTRJ rau MTRJ txiav tawm, qhov no siab - zooFiber Optic MTRJ Patchcordyog tsim tshwj xeeb rau ethernet, multimedia, lossis kev sib txuas lus. MTRJ connector nta ib qho yooj yim-rau-siv latch- hom tsim zoo ib yam li RJ connector ntawm Cat5 thaj cable thiab yog ib nrab ntawm qhov loj ntawm SC connector. Nrog nws cov qauv tsim me me, MTRJ txuas tuaj yeem ua kom qhov chaw nres nkoj ceev.

Cov txheej txheem patented txhaj tshuaj molding muab txhua qhov kev sib txuas ntau dua nyob rau hauv kev tiv thaiv rub tawm, lim, thiab cuam tshuam los ntawm kev teeb tsa cabling. Txhua lub cable yog 100% optically tshuaj xyuas thiab kuaj rau qhov poob ua ntej koj tau txais nws. Lub tsho rub- pov thawj tsim tsim nyob ib puag ncig qhov nrov 62.5/125 multimode fiber ntau, tiv thaiv hluav taws xob cuam tshuam.

Vim li cas thiaj xaiv US?

Unmatched Quality: PebFiber Optic MTRJ Patchcordsyog tsim los ntawm cov ntaub ntawv zoo tshaj thiab cov txheej txheem tsim khoom siab heev.
Kev tsim kho tshiab thiab kev ntseeg siab: Peb pheej nqis peev hauv kev tshawb fawb thiab kev tsim kho kom coj cov kev txiav - ntug kev daws teeb meem rau peb cov neeg siv khoom.
Kev daws teeb meem: Peb muab kev kho kom haum raws li cov kev xav tau tshwj xeeb hauv qhov ntev, hom txuas, thiab hom fiber ntau.
Kev Pab Txhawb Zoo: Peb pab neeg muab kev txhawb nqa kev txawj ntse thiab tom qab- kev muag khoom.

Khoom Specifications

Txuas	MTRJ	Fiber suav	Simplex / Duplex
Fiber hom	9/125;50/125;62.5/125	Yam tsawg kawg nkaus Khoov Radius	10 mm
Polish Hom	APC/UPC	Cable Diameter	0.9 hli / 2.0mm / 3.0mm
Cable Jacket	PVC/LZH	Jacket Xim	Daj / Txiv kab ntxwv / OM3 / OM4
Lub wavelength	1310nm / 1550nm	Durability	500 zaug
Insertion Loss	Tsawg dua lossis sib npaug li 0.3 dB	Hloov pauv tau	Tsawg dua lossis sib npaug li 0.2 dB
Rov Los Los	Ntau dua lossis sib npaug li 60 dB	Kev vibration	Tsawg dua lossis sib npaug li 0.2 dB
Ua haujlwm kub	-40 ~ 75 degree	Cia Kub	-45 ~ 85 degree

Khoom nta

Superior tsim nyog tus qauv PC, APC, UPC polishing
φ0.9mm, φ2.0mm, φ3.0mm cable yeem
Tsawg IL thiab siab RL
Muaj peev xwm pauv tau zoo thiab ua haujlwm ntev
Muaj nyob rau hauv fiber ntau, ribbon kiv cua- tawm, pigtail
Customized specifications yog txais tos

Cov khoom siv

CATV, metro test khoom
Telecommunication tes hauj lwm
Local cheeb tsam network (LAN)
Wide area networks (WAN)
Installation ntawm qhov chaw
Data processing networks
Video thiab tub rog siv cuab yeej txiav tawm

Kev Tswj Xyuas Zoo

TxhuaFiber Optic MTRJ Patchcordundergoes cov txheej txheem tswj kom zoo. Txhua lub cable yog 100% optically tshuaj xyuas thiab kuaj rau qhov poob. Peb pab neeg muaj kev ruaj ntseg zoo xyuas kom txhua yam khoom ua tau raws li cov qauv siab tshaj plaws ua ntej xa khoom xa tuaj.

Kev Pabcuam OEM

FAQ

Q: Dab tsi yog qhov zoo ntawm kev siv MTRJ connectors?

A: MTRJ connectors yog compact, nce chaw nres nkoj ceev thiab featuring ib tug yooj yim latch- hom tsim rau kev ruaj ntseg kev twb kev txuas.

Q: Koj puas tuaj yeem muab kev cai ntev rau cov hlua khi?

A: Yog lawm, peb muab qhov ntev customized kom tau raws li koj cov kev xav tau tshwj xeeb.

Q: Koj puas muab kev txhawb nqa rau kev teeb tsa?

A: Yog, peb pab neeg muab kev txhawb nqa thiab kev taw qhia rau kev teeb tsa.

Txog Peb

Shenzhen Evolux Fiber Co., Ltd. yog ib lub chaw muab kev pabcuam zoo tshaj plaws ntawm cov khoom siv kho qhov muag fiber ntau, tshwj xeeb hauv kev tshawb fawb, kev tsim kho, tsim khoom, thiab kev faib khoom ntawm cov khoom siv fiber ntau zoo -. Nrog rau qhov tseem ceeb ntawm kev tsim kho tshiab thiab kev ntseeg siab, peb tau mob siab rau ua kom tau raws li qhov xav tau ntawm kev lag luam kev sib txuas lus thoob ntiaj teb. Txij li thaum peb nrhiav tau nyob rau hauv 2013 thiab peb lub tsev hauv paus nyob rau hauv Shenzhen, Tuam Tshoj, peb tau tsim peb tus kheej raws li ib tug ntseeg lub npe nyob rau hauv lub fiber optics sector. Peb pab neeg muaj kev txawj ntse dav thiab muaj lub siab nyiam rau kev siv tshuab fiber ntau, tsav peb kom ua tiav cov qauv kev lag luam thiab thawb cov ciam teb ntawm kev tsim kho tshiab. Rau kev nug txog kev yuav khoom ntau lossis xav paub ntxiv txog pebFiber Optic MTRJ Patchcord, thov hu rau peb ntawmsales@evoluxfiber.comthiabshanna@evoluxfiber.com. Peb tos ntsoov yuav muab cov kev daws teeb meem uas ua tau raws li koj qhov kev cia siab siab rau kev ua tau zoo thiab kev ua haujlwm.
