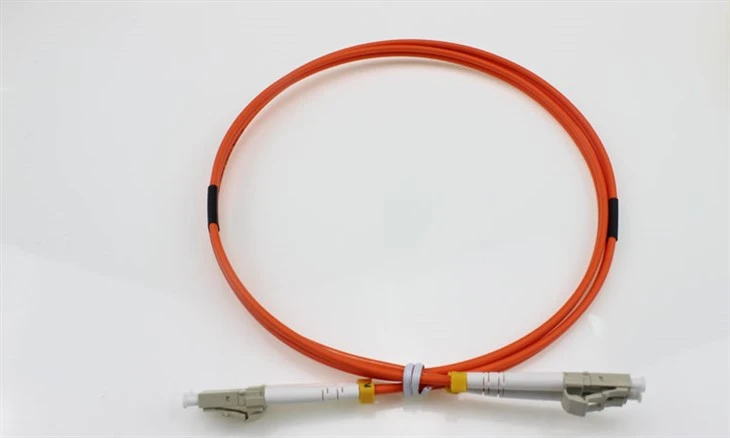

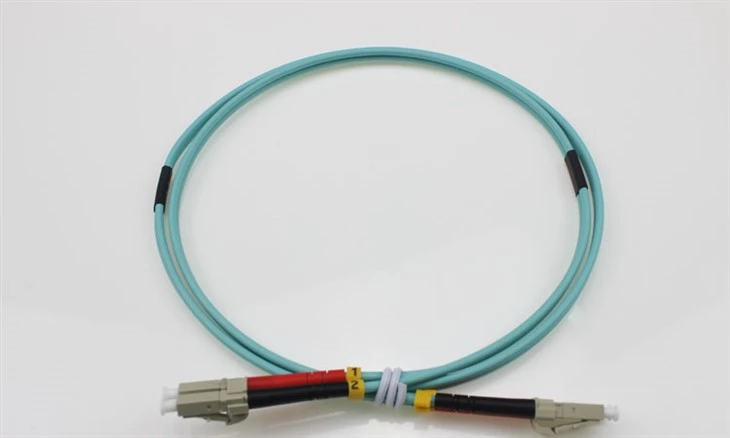

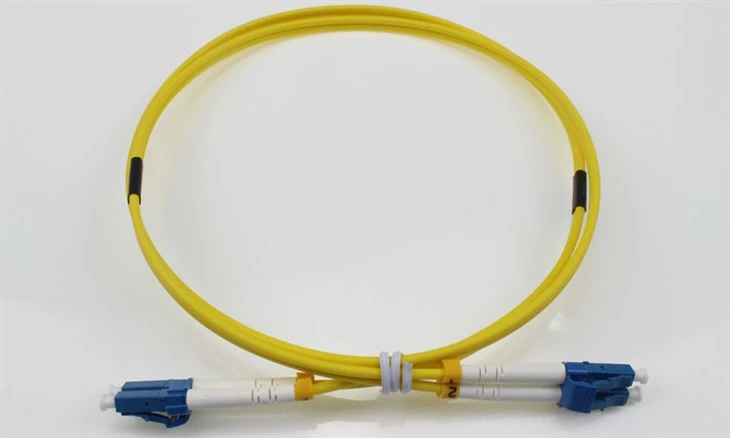

Txais tos rau lub ntiaj teb ntawm fiber optic technology! CovFiber Optic LC Fiber Jumper, tseem hu ua fiber ntau patch qaum cable los yog kho qhov muag cable, yog ib qho tseem ceeb ntawm cov niaj hnub fiber optic tes hauj lwm. Ntawm Evolux, peb nkag siab txog lub luag haujlwm tseem ceeb ntawm cov cables no ua kom ntseeg tau cov ntaub ntawv xa mus tau zoo.
Peb cov khoom yog tsim los nrog qhov tseeb tshaj plaws, siv cov ntaub ntawv zoo. Txhua lub cable raug kuaj xyuas nruj rau kev ntxig thiab rov qab poob, ua kom muaj kev ua tau zoo thiab kev ntseeg siab. Txawm hais tias koj xav tau LC rau LC, LC rau SC, LC rau FC, lossis LC rau ST kev sib txuas, peb tau txais koj them. Thiab yog tias koj xav tau kev daws teeb meem, peb tuaj yeem ua raws li OS1, OS2, OM1, OM2, OM3, lossis OM4 fibers hauv qhov sib txawv kom tau raws li koj cov kev xav tau tshwj xeeb.
Vim li cas thiaj xaiv US?
- Kev txawj ntse: Nrog ntau xyoo ntawm kev paub hauv kev ua haujlwm, peb tau mob siab rau muab cov kev daws teeb meem kho qhov muag fiber ntau.
- Quality Assurance: PebFiber Optic LC Fiber Jumperstau txais kev tswj xyuas nruj nruj kom ntseeg tau tias muaj kev ntseeg siab.
- Kev tsim kho tshiab: Peb nyob ntawm qhov ua ntej ntawm fiber ntau optic technology, muab cov kev nce qib tshiab.
- Kev txaus siab rau cov neeg siv khoom: Peb pab neeg tau cog lus ua kom tau raws li koj qhov kev xav tau tshwj xeeb thiab muab kev pabcuam tshwj xeeb.
Khoom Specifications
|
Fiber suav |
Simplex los yog Duplex |
|
Fiber hom |
Ib hom: 9/125um, OS2/G657 |
|
Multimode: 50/125um, OM2, OM3, OM4 |
|
|
62.5 / 125um, OM1 |
|
|
Cable Dimension |
{{0}}.9mm, 2.0mm, 3.0mm lossis customized |
|
Cable Jacket Ratings |
Tsawg Haus luam yeeb Zero Halogen (LSZH) |
|
Riser (OFNR) |
|
|
Plenum (OFNP) |
|
|
Cable Jacket Xim |
OS2/G657: Yellow |
|
OM3: Aqua; OM4: Aqua / Magenta |
|
|
los yog Customized |
|
|
Hom Connector |
LC, MU, SC, FC, ST, MTRJ, SMA, lossis lwm yam xav tau |
|
Tiv tauj lub cev |
APC, PC, UA |
|
Connector Xim |
LC, SC: Ntsuab rau APC, Xiav rau UPC, Grey rau Multimode, Aqua rau OM3, Aqua lossis Magenta rau OM4, lossis Customized |
|
FC, ST, SMA: Hlau |
|
|
MTRJ: Dub |
|
|
Boot Xim |
Dawb / Ntsuab / Dub / Aqua / Magenta / Grey / Customized |
|
Ua haujlwm kub |
-20 degree ~ +70 degree |
|
Cia Kub |
-40 degree ~ +85 degree |
Khoom nta
- High-Speed Data Transmission: PebLC fiber ntau optic jumpersyog tsim los rau xob laim-ceev cov ntaub ntawv hloov tsheb, ua rau lawv zoo tagnrho rau cov ntawv thov nrog cov ntaub ntawv loj.
- Kev tiv thaiv rau Electromagnetic cuam tshuam: Cov cables no muab kev sib txuas txhim khu kev qha, tsis muaj kev cuam tshuam, ua kom ruaj khov thiab ruaj ntseg cov ntaub ntawv xa mus.
- Kev Ua Haujlwm Ntev Ntev: Xa cov ntaub ntawv hla ntau qhov kev ncua deb yam tsis muaj teeb liab poob, zoo meej rau kev nthuav dav hauv network.
- Durability: Ua kom muaj kev tiv thaiv ib puag ncig hnyav, nrog rau qhov kub thiab txias, noo noo, thiab corrosive tshuaj.
- Txhim khu kev ruaj ntseg: Fiber optic cables muaj kev nyab xeeb heev, muab kev tiv thaiv cov ntaub ntawv cuam tshuam thiab tapping.
Cov khoom siv
- Data Centers: Xyuas kom muaj kev sib txuas ntawm cov servers, cov khoom siv khaws cia, thiab cov khoom siv network.
- Kev Siv Ethernet: Qhov zoo tshaj plaws rau kev sib txuas ceev Ethernet, muab cov ntaub ntawv hloov chaw txhim khu kev qha.
- FTTH (Fiber to the Home) Daim Ntawv Thov: Nqa cov internet ceev ceev mus rau thaj chaw nyob.
- Backbone, Kab rov tav, thiab Riser Daim Ntawv Thov: Haum rau ntau lub network architectures, kom ntseeg tau cov ntaub ntawv txaus.
- Video, Cov Ntaub Ntawv, thiab Kev Pabcuam Suab: Txhawb cov ntawv thov multimedia nrog kev sib kis tau zoo.
- Daim Ntawv Thov Cov Khoom Siv: Siv rau kev sim thiab ntsuas qhov tseeb hauv kev lag luam kev sib txuas lus.
Kev Tswj Xyuas Zoo
Ntawm Evolux, peb tswj xyuas cov kev tswj xyuas nruj kom paub meej cov qauv siab tshaj plaws. Peb pab neeg ntawm cov kws tshaj lij ua cov kev tshuaj xyuas zoo thiab kev sim ntawm txhua theem ntawm kev tsim khoom, lav qhov kev ntseeg tau thiab kev ua tau zoo ntawm cov khoom.
Kev Pabcuam OEM
Peb muab kev pabcuam OEM kev cai kom tau raws li koj cov kev xav tau tshwj xeeb. Peb pab neeg tau npaj ua haujlwm nrog koj los tsim cov kev cai daws teeb meem uas ua tau raws li koj xav tau, txawm tias koj xav tau qhov ntev, hom fiber ntau, lossis hom txuas.
FAQ
Txog Peb
Shenzhen Evolux Fiber Co., Ltd. Txij li thaum peb tsim nyob rau hauv 2013, peb tau txais lub koob npe nrov raws li ib tug ntseeg lub npe nyob rau hauv kev lag luam, lees paub rau peb kev cog lus rau zoo, kev cia siab, thiab advanced technology.
Peb cia siab tias nplooj ntawv cov khoom no muaj kev nkag siab zoo los pab koj txiav txim siab paub. Yog tias koj muaj lus nug lossis xav paub ntxiv txog pebFiber Optic LC Fiber Jumper, thov koj xav tiv tauj peb ntawmsales@evoluxfiber.comthiabshanna@evoluxfiber.com.
