Khoom Taw Qhia

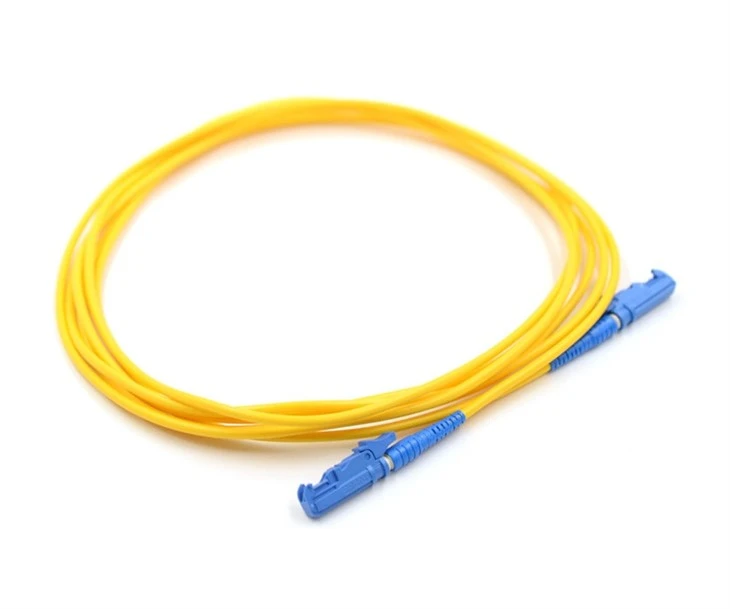

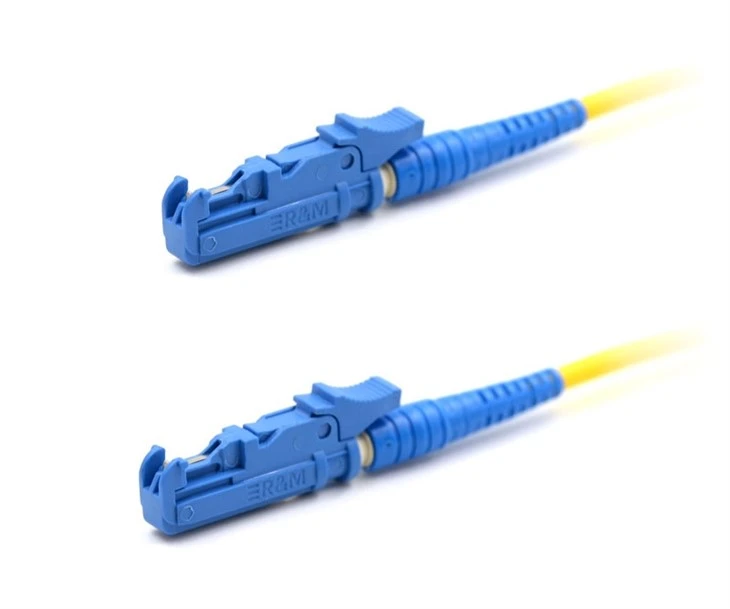

Fiber ntau optic E2000jumper cojyog luv luv optical fiber cable uas muaj connectors ntawm ob hnub. Qhov no cable yog siv los txuas ob lub network gadgets los yog qhov chaw, xws li lub router thiab hloov los yog ib lub vaj huam sib luag thiab transceiver. Patch cords tuaj nyob rau hauv ntau qhov ntev thiab fiber ntau hom, xws li ib hom lossis multimode fiber ntau, thiab cov khoom sib txuas tuaj yeem ua tau ntau yam, suav nrog SC, ST, LC, thiab MTP / MPO. Los ntawm kev siv cov cords no, nws muaj peev xwm tsim thiab tshem tawm kev sib txuas ntawm cov khoom siv hauv network sai thiab tsis tas yuav tsum muaj kev sib txuas ua ke.
Specification
| Connector A | E2000 | Connector B | E2000 |
| Fiber hom | 9/125 μm | Fiber suav | Simplex |
| Fiber Qib | G.652D/G.657A2 | Yam tsawg kawg nkaus Khoov Radius | 30 mm |
| Hom Polish | UPC/APC | Cable Diameter | 2. 0MM |
| Cable Jacket | PVC/LZH | Jacket Xim | Daj |
| Lub wavelength | 1310 nm / 1550 nm | Durability | >1000 Lub Sijhawm |
| Insertion Loss | Tsawg dua lossis sib npaug rau 0.25 dB | Hloov pauv tau | Tsawg dua lossis sib npaug rau 0.2 dB |
| Rov Los Los | Ntau dua lossis sib npaug li 55 dB | Kev vibration | Tsawg dua lossis sib npaug rau 0.2 dB |
| Ua haujlwm kub | -40 ~ 85 degree | Cia kub | -40 ~ 85 degree |

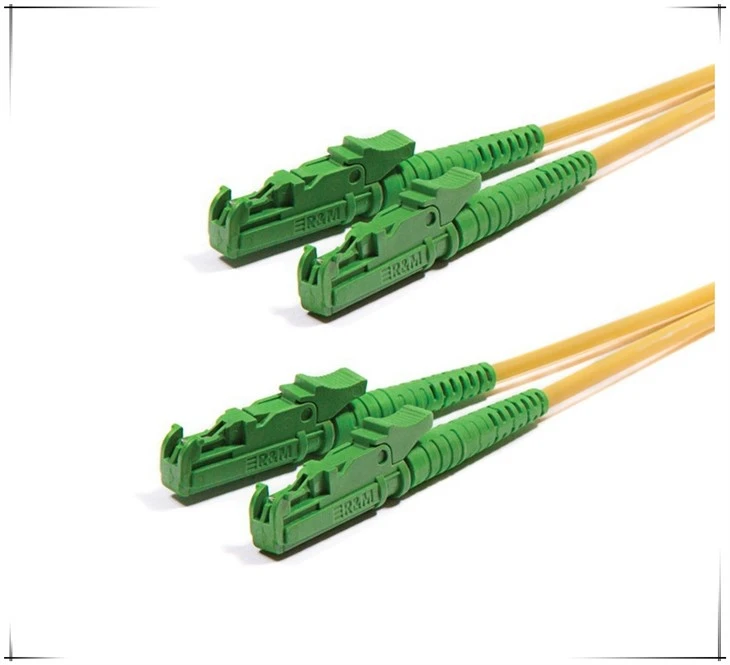

Feature
Tsawg insertion thiab rov qab poob:Fiber optic patch cords muaj qhov qis qis thiab rov qab poob, uas txhais tau hais tias lawv tau txais txiaj ntsig zoo hauv kev xa cov ntaub ntawv ntev ntev nrog lub suab nrov tsawg thiab teeb liab attenuation.
High bandwidth:Fiber optic thaj cords muaj peev xwm bandwidth siab, ua rau lawv zoo tagnrho rau high-ceev cov ntaub ntawv kis tau tus mob daim ntawv thov uas yuav tsum tau ib tug loj peev xwm rau cov ntaub ntawv hloov lwm lub tsev.
Kev siv ntau yam:Fiber optic thaj cords yog siv nyob rau hauv ntau yam kev siv, xws li cov chaw zov me nyuam, kev sib txuas lus, khoom siv kho mob, tub rog thiab aerospace, thiab industrial automation.
Flexibility:Fiber optic thaj cords yog qhov hloov tau yooj yim, uas txhais tau hais tias lawv tuaj yeem ntsia tau yooj yim hauv qhov chaw kaw ntom nti uas cov kab tooj liab yuav tsis haum.
Durability:Fiber optic thaj cords yog qhov ruaj khov thiab tuaj yeem ua haujlwm hauv qhov chaw hnyav, nrog rau qhov kub thiab txias, av noo, thiab raug tshuaj lom neeg.
Ib qho yooj yim installation:Cov connectors ntawm fiber ntau optic thaj qaum yog ntsaws-thiab-ua si, uas txhais tau hais tias lawv tuaj yeem txuas tau yooj yim rau lwm yam khoom siv yam tsis tas yuav muaj cov cuab yeej tshwj xeeb lossis khoom siv.
Nqi-zoo:Fiber optic thaj cords yog tus nqi-zoo thiab muab tus nqi qis dua ntawm kev ua tswv cuab piv rau cov tooj liab cables, tshwj xeeb tshaj yog nyob rau qhov ntev.

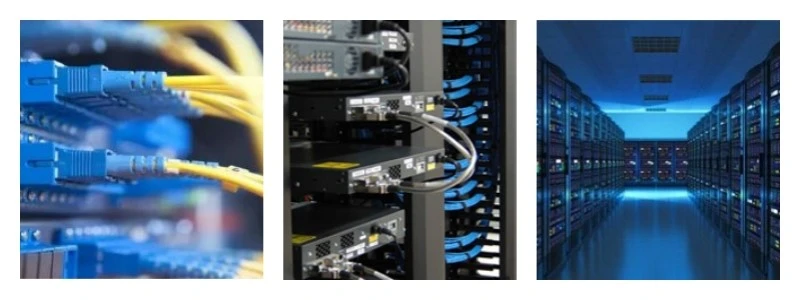

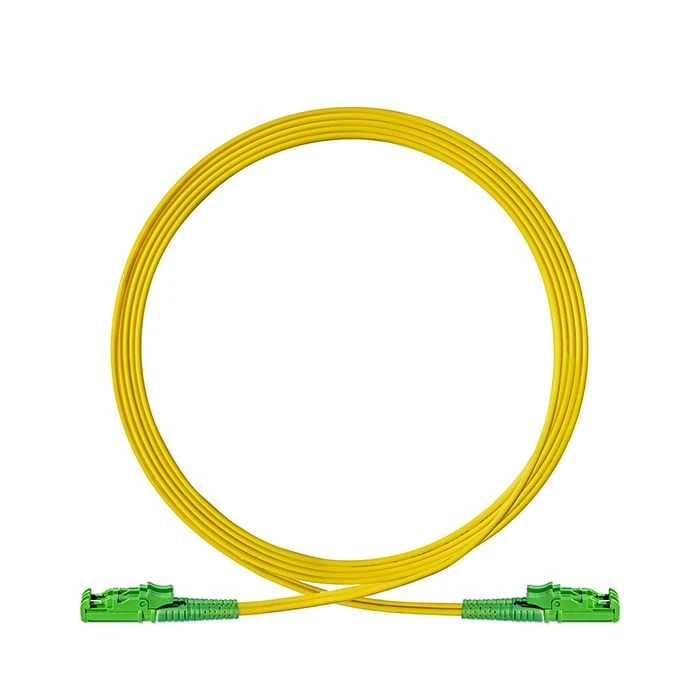

Daim ntawv thov
CATV, cov khoom siv metro kuaj;
Kev sib txuas lus hauv xov tooj;
Hauv zos network (LAN);
Wide area networks (WAN);
Installation ntawm qhov chaw;
Data processing networks;
Video thiab tub rog siv cuab yeej txiav tawm.
Kev Tswj Xyuas Zoo
Tsib xeem kom paub tseeb tias Fiber Patch Cord zoo
Qhov zoo ntawm fiber ntau thaj cords cuam tshuam rau tag nrho fiber-optic txuas. Txhua qhov fiber ntau thaj qaum yuav tsum tau kuaj nruj me ntsis ua ntej tawm hauv lub hoobkas. Yog li dab tsi kev ntsuam xyuas yuav ib tug fiber thaj qaum chaw tsim tshuaj paus ua los xyuas kom meej qhov zoo ntawm patch cords?
Txhawm rau kom ntseeg tau qhov zoo ntawm cov hlua kho qhov muag, cov nram qab no tsib hom kev tshuaj ntsuam xyuas feem ntau yog ua ntej tawm hauv lub hoobkas.
Fiber thaj cord insertion poob / rov qab tsis pom
Insertion poob thiab rov poob yog qhov tseem ceeb uas cuam tshuam rau cov kab hluav taws xob kho qhov muag. Tus qauv TIA tau hais meej meej tias qhov siab tshaj plaws ntawm qhov poob ntawm qhov kho qhov muag qaum yog 0.75dB (uas yog, qhov siab tshaj qhov tau txais).
Rau feem ntau cov fiber ntau patch cables nyob rau hauv kev ua lag luam, qhov ntau npaum li cas ntawm insertion poob yog nyob nruab nrab ntawm {{0}}.3dB thiab 0.5dB, thiab qhov ntau yam ntawm ib co tsawg insertion poob ntawm {{6 }}.15dB thiab 0.2dB. Cov txiaj ntsig rov qab tau qhia hauv dB thiab feem ntau yog qhov tsis zoo, yog li cov txiaj ntsig siab dua yog qhov zoo dua, thiab cov kev qhia tshwj xeeb muaj nyob ntawm -15 rau -60 dB.
Raws li kev lag luam cov qauv, qhov rov qab poob ntawm Ultra PC polished fiber ntau optic connectors yuav tsum ntau dua 50dB, thiab rov qab poob ntawm bevel polish feem ntau yog ntau dua 60dB. PC hom yuav tsum siab tshaj 40dB. Rau multimode fiber ntau, RL tus nqi yog nyob nruab nrab ntawm 20 thiab 40 dB.
Cov cim qhia ntawm cov neeg nqa khoom-qib jumpers yog qhov poob qis dua 0.3dB, thiab qhov poob rov qab yog ntau dua 45dB.
Fiber thaj qaum kawg lub ntsej muag tshuaj xyuas
Kev ntxuav ntawm lub ntsej muag kawg ntawm lub optical fiber connector ncaj qha cuam tshuam nws cov kev ua tau zoo. Piv txwv li, khawb, qhov, kab nrib pleb, plua plav paug, thiab lwm yam ntawm lub ntsej muag kawg ntawm cov khoom siv kho qhov muag yuav ua rau poob ntawm cov teeb liab kev sib txuas, uas ua rau tsis zoo rau kev ntxig thiab rov qab poob.
Fiber thaj qaum 3D interferometer soj ntsuam
3D interferometer kuaj yog tsuas yog los ntsuas cov geometry ntawm lub ntsej muag fiber ntau, thiab cov tsis muaj xws li curvature radius, vertex offset, fiber ntau thiab lwm yam. Lub ntsej muag kawg ntawm cov hlua fiber ntau yuav tsum tau muab tso rau hauv ib qho chaw kheej kheej, tab sis cov khoom tsim los ntawm cov txheej txheem tsim khoom tiag tiag tsis tuaj yeem ua tiav.
Dab tsi yog qhov tsim nyog rau lub vojvoog ntawm curvature, vertex offset, thiab fiber ntau qhov siab?
Yog li ntawd, lub ntsej muag kawg yog teev nyob rau hauv cov txheej txheem kev, uas suav nrog lub vojvoog ntawm curvature ROC, vertex offset thiab fiber ntau qhov siab.
Raws li cov qauv txheej txheem ntawm lub koom haum IEC, tus nqi siv ntawm ROC lub vojvoog ntawm curvature yog tias PC hom connector yog 10 ~ 25mm, thiab APC hom connector yog 5 ~ 15mm. Vertex offset yog hais txog qhov offset nruab nrab ntawm lub vertex ntawm nkhaus nto thiab fiber axis. Yog hais tias lub vertex offset loj dhau, qhov deformation ntawm lub ntsej muag kawg yog txaus ua rau lub cev sib cuag ntawm cov fibers. Yog li ntawd, cov txheej txheem kev xav tau qhov vertex offset ntawm fiber ntau jumper Tsawg dua lossis sib npaug li 50μm.
Fiber qhov siab hais txog qhov siab ntawm lub ntsej muag fiber ntau txheeb ze rau lub ntsej muag kawg ntawm lub ntsej muag. Lub ntsej muag fiber ntau yuav protrude saum lub ferrule kawg lub ntsej muag, los yog tej zaum yuav recessed hauv qab lub ferrule kawg lub ntsej muag. Qhov ntau ntawm qhov siab fiber ntau tau teev tseg hauv cov qauv kev qhia yog -250~+250nm.
Fiber thaj cord mechanical performance test
Piv txwv li, rub kev sim, sim kho qhov muag cord nyob rau hauv cov lus qhia rub quab yuam kom paub tseeb fiber ntau attenuation thiab fiber ntau elongation strain kev nyab xeeb yam.
Fiber thaj qaum ambient kub sim
Nws yog ib qho tsim nyog los ntsuas qhov ntsuas qhov ua tau zoo ntawm cov khoom siv kho qhov muag fiber ntau nyob rau hauv qhov sib txawv ntawm qhov kub thiab txias.
