LC UPC Uniboot High -Density Fiber Optic Patch Cable
video
LC UPC Uniboot High -Density Fiber Optic Patch Cable

LC UPC Uniboot High -Density Fiber Optic Patch Cable

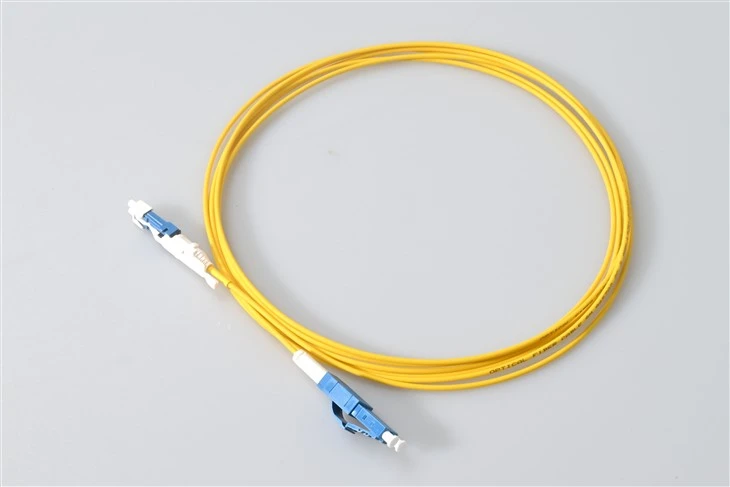

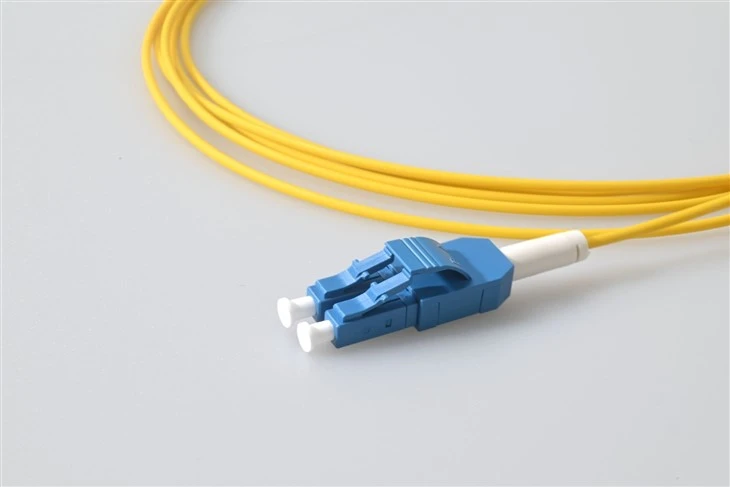

FIBER OPTIC PATCH CORD LC UPC UNIBOOT
● Tsis tshua muaj qhov poob qis, siab rov qab poob
●Me me, lub teeb, kev sib txuas siab
● Cov khoom siv yas yog tus qauv
● Muaj kev ntseeg siab thiab ruaj khov
● Zoo nyob rau hauv repeatability thiab ex-changeability
Send Inquiry

Product Introduction

LC LC thaj cable yog dab tsi?



LC-LC fiber ntau optic thaj qaum yog ib qho me me compact thaj cable nrov heev siv hauv ntau daim ntawv thov. Cov kev daws teeb meem hauv lub network no suav nrog kev sib txuas lus hauv xov tooj, LANs, cov ntaub ntawv ua haujlwm, kev txiav cov cuab yeej thiab cov chaw faib khoom. LC-LC patch cords yog tsim los xa cov kev daws teeb meem ceev Ethernet hauv Gigabit daim ntawv thov thiab ATM daim ntawv thov nrog qhov chaw tsawg dua. Txhawm rau ua tiav cov txheej txheem ntawm cov teeb tsa muaj, tshawb xyuas peb cov kev qhia tag nrhoLC-LC fiber ntau optic thaj cable sib dhos rau Gigabit thiab ATM tes hauj lwm.



Specification



Parameter Chav tsev FC, SC, LC / Armored fiber ntau thaj qaum ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion poob (tseem ceeb) dB Tsawg dua los yog sib npaug li 0.3 Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.3 Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.3 Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.3 Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.3 Tsawg dua los yog sib npaug li 0.3
Rov qab poob dB Ntau dua lossis sib npaug li 45 Ntau tshaj los yog sib npaug rau 50 Ntau tshaj los yog sib npaug rau 60 Ntau tshaj los yog sib npaug rau 30 Ntau dua lossis sib npaug li 45 Ntau tshaj los yog sib npaug rau 50 Ntau tshaj los yog sib npaug rau 30 Ntau dua lossis sib npaug li 45 Ntau tshaj los yog sib npaug rau 50 Ntau dua lossis sib npaug li 35 Ntau dua lossis sib npaug li 55 Ntau dua lossis sib npaug li 75
Ua haujlwm wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.2
Kev vibration dB Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.2 Tsawg dua los yog sib npaug li 0.2
Ua haujlwm kub degree -40~75 -40~75 -40~75 -40~75
Cia kub degree -45~85 -45~85 -45~85 -45~85
Cable txoj kab uas hla mm φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9



Nta



Raws li Kev Xav Tau Loj Loj rau SFF Solutions

LC connectors yog tsim nrog tsuas yog ib tug 1.25mm txoj kab uas hla ferrule uas yog ib tug zoo kom zoo dua rau densely populated fiber optic network. LC connector yog tsim raws li tus qauv IEC 61754-20 rau kev sib txuas siab xws li hauv SFP, XFP thiab SFP + transceivers. Mus tshawb nrhiav tag nrho ntawmLC fiber ntau optic connectors nrog 1.25mm ferrule rau SFP thiab SFP + interfaces, saib peb cov khoom nplooj siab.

Singlemode lossis Multimode LC-LC, Riser lossis Plenum Rated

Peb muab LC-LC fiber optic cable sib dhos, nrog ib hom (9/125 OS1, OS2), duplex thiab multimode (50/125 thiab 62.5/125) kev xaiv. Yog tias koj tsis paub tseeb tias hom fiber ntau haum rau koj qhov kev xa tawm, peb phau ntawv qhia rauib hom vs multimode fiber ntau qhov sib txawv thiab xaiv cov qauvnpog cov txheej txheem tseem ceeb thiab cov nqi txiav txim siab. Koj tuaj yeem xaiv yog tias nws yog rau daim ntawv thov riser lossis kev sib txuas plenum lossis yog tias koj xav kom nws ua tiav, koj tuaj yeem tiv tauj peb kom paub ntau ntxiv txog peb cov kev pabcuam OEM / ODM rau LC-LC patch cords.

Yooj yim thiab yooj yim rub tawm

Ua nrog ib qho yooj yim snap nyob rau hauv configuration, LC-LC kev twb kev txuas yog nruab nrog locking mechanisms uas zoo ib yam li cov tuav tuav ntawm ib tug RJ45 connector. Tam sim no nws yog ib qho yooj yim mus txuas thiab disconnect lub connector ntawm lub cuab yeej. Lub xauv tabs yog txhaj tshuaj- molded nrog txhim khu kev ruaj ntseg nyob rau hauv tiv thaiv rub, hom, snags, thiab cuam tshuam thaum lub sij hawm cabling installation thiab tu.

Muaj kev nyab xeeb thiab kuaj fiber ntau los ua ke nrog qis qis qis

Peb lub patch cords yog 100% optically tshuaj xyuas thiab kuaj kom coj cov kev nkag qis tsis tshaj 0.02 dB.



Daim ntawv thov
Siab -Density Data Center Patch Panel Interconnection

Lub compact uniboot tsim consolidates ob fibers rau hauv ib lub khau raj, txiav cable ntim ze li ntawm ib nrab piv rau cov qauv duplex sib dhos. Qhov no ua rau LC UPC uniboot siab - qhov ceev thaj cable ib qho kev xaiv zoo rau kev tsim cabling ntawm thaj vaj huam sib luag, ODF thav duab, thiab sab saum toj - ntawm - khib hloov qhov chaw nres nkoj ceev yog qhov tseem ceeb. Koj tuaj yeem nrhiav tau npaj tau-rau- xa cov kev xaiv hauv pebLC rau LC uniboot singlemode duplex thaj qaum rau siab - ceev cov ntaub ntawv chaw cabling.

SFP thiab SFP + Transceiver Connections hauv Telecom Central Offices

Telecom central chaw ua haujlwm feem ntau xav tau ntau pua qhov sib txuas ntawm fiber ntau hauv qhov chaw khib nyiab tsawg. Lub 1.25mm SFF ferrule thiab slim uniboot vaj tse tso cai rau kev sib txuas ntau dua rau ib chav tsev khib nyiab, txo cov kev cuam tshuam ntawm airflow thiab ua kom yooj yim rau kev tswj hwm cable rau siab -density uniboot LC fiber jumper installations hauv cov cab kuj- qib ib puag ncig.

Enterprise LAN Backbone Fiber Interconnection

Rau lub tsev kawm ntawv thiab lub tsev qaum tsev ua haujlwm uas txuas kev xa mus hloov mus rau cov tub ntxhais routers, qhov chaw no -txuag LC uniboot thaj qaum muab cov kev sib txuas duplex txhim khu kev qha. Kev txhaj tshuaj- molded locking tabs tiv thaiv kev tsis sib haum xeeb thaum lub sij hawm tu hauv kev lag luam fiber ntau rov qab xa tawm.

FTTH thiab Premise Optical Distribution Networks

Hauv fiber ntau-rau--lub tsev thiab qhov chaw faib khoom, lub uniboot daim ntawv ua tau yooj yim ua kom yooj yim rau kev xa xov cable los ntawm cov kav dej nruj thiab cov thawv xa khoom. Nws lub laub- rub LC locking mechanism ua rau kev txhim kho sai thiab tshem tawm, txhawb nqa uniboot fiber ntau xa mus rau hauv FTTH kev sib txuas.

CATV Headend thiab Broadcast Signal Patching

Cov khoom siv kho qhov muag CATV headend xav tau ruaj khov, qis-tso kev sib txuas ntawm transmitters, receivers, thiab splitter modules. Lub 100% optically kuaj LC uniboot fiber ntau sib dhos ua kom muaj kev ncaj ncees zoo ib yam ntawm CATV headend fiber patching txuas.

FAQ



Q1: "uniboot" txhais li cas hauv LC fiber ntau thaj cable?

A: Uniboot hais txog tus qauv tsim uas muaj ob lub fibers optical hauv ib lub cev cable thiab txiav lawv hauv qab ib qho kev sib koom khau raj ntawm txhua qhov txuas kawg. Piv nrog rau tus qauv dual-kab sib dhos duplex, LC uniboot siab- ntom fiber ntau optic thaj cable txo txoj kab uas hla thiab qhov hnyav, ua kom yooj yim rau kev tswj hwm hauv cov neeg coob coob racks thiab thaj vaj huam sib luag.

Q2: Yuav ua li cas yog LC uniboot cable txawv ntawm tus qauv LC duplex thaj qaum?

A: Tus qauv LC duplex thaj qaum siv ob qhov sib cais 2.0mm lossis 3.0mm cables koom nrog ib qho clip. Lub compact LC uniboot duplex fiber ntau txuas ob lub fibers rau hauv ib lub tsho puag ncig, kwv yees li ntawm ib nrab ntawm cov cable ntim. Qhov no txhim kho khoov routing nyob rau hauv qhov chaw nruj thiab txo clutter tom qab thaj panels.

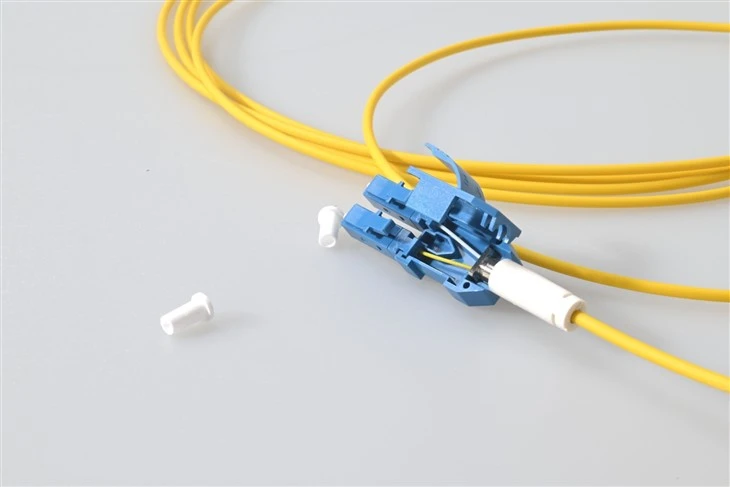

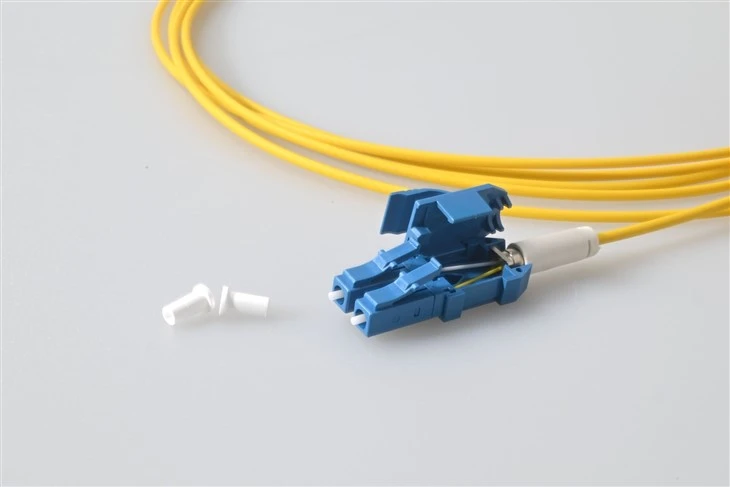

Q3: Kuv puas tuaj yeem hloov qhov polarity (Tx / Rx) ntawm no uniboot thaj cable?

A: Ntau tus qauv LC uniboot tso cai rau polarity thim rov qab los ntawm flipping txoj haujlwm fiber ntau nyob rau hauv lub connector vaj tse - tsis tas yuav rov qab - txiav los yog sib pauv cables. Thov paub meej nrog peb pab pawg muag khoom seb puas yog qhov tshwj xeeb uniboot LC thaj qaum variant koj xaj txhawb nqa cov cuab yeej- pub dawb hloov pauv.

Q4: Dab tsi yog qhov ferrule loj siv nyob rau hauv no LC uniboot connector?

A: Lub LC connector siv 1.25mm txoj kab uas hla precision zirconia ceramic ferrule, uas yog ib nrab ntawm SC lossis FC ferrules. Daim ntawv me me no ferrule yog vim li cas LC connectors ua tiav qhov chaw nres nkoj ntau dua ntawm ib lub vaj huam sib luag, ua rau lawv tus qauv interface rau SFP thiab SFP + transceiver modules ib IEC 61754-20.

Q5: Puas yog lub cable no muaj nyob rau hauv ob qho tib si riser- ntsuas thiab plenum- cov kev xaiv tsho xaiv?

A: Yog. Peb muab ob qho tib si riser (OFNR) thiab plenum (OFNP) tsho versions. Plenum- ntsuas LC uniboot cables siv tsawg- cov khoom siv pa taws tsim nyog rau kev teeb tsa hauv huab cua- tuav cov chaw saum toj saud qab nthab lossis hauv qab cov plag tsev, ua tau raws li cov cai ntawm kev nyab xeeb hluav taws rau cov cheeb tsam ntawd.

Q6: Kuv yuav tsum tau txais qhov poob thiab rov qab poob li cas?

A: Txhua cable yog 100% optically tshuaj xyuas ua ntej xa khoom. Cov txiaj ntsig zoo nyob ntawm hom fiber ntau thiab polish hom - piv txwv li, UPC singlemode ua tiav Tsawg dua lossis sib npaug rau 0.2dB qhov poob qis thiab Ntau dua lossis sib npaug rau 50dB rov qab poob. Txhawm rau nkag siab tias PC, UPC, thiab APC kawg li cas - ntsej muag polishing cuam tshuam cov nuj nqis no, saib peb hauv - kab lus tob ntawmPC vs UPC vs APC fiber ntau connector polish hom thiab lawv cuam tshuam rau rov poob. Xa mus rau cov lus qhia tshwj xeeb ntawm nplooj ntawv no rau kev ua tiav matrix thoob plaws txhua hom connector thiab fiber ntau.

Q7: Lub LC uniboot thaj cable puas tuaj yeem txiav txim siab ntev?

A: Yog. Standard ntev ntev li ntawm 0.5m mus rau 30m, thiab peb txais kev cai cable ntev txiav txim rau qhov project- tej yam yuav tsum tau. Tiv tauj peb nrog qhov ntev, qhov ntau, thiab lub tsho hom xav tau rau koj lub installation kom tau txais cov lus hais nrog lub sijhawm ua haujlwm.

Q8: Kuv yuav txheeb xyuas dab tsi ua ntej muab qhov kev txiav txim ntau rau LC uniboot cables?

A: Ua ntej xaj, thov paub meej tias: (1) fiber ntau - singlemode lossis multimode; (2) polish hom - PC, UPC, lossis APC; (3) xav tau cable ntev; (4) lub tsho ntaus nqi - riser lossis plenum; (5) kom muaj nuj nqis ib qhov ntev; (6) tej daim ntawv lo lossis xim -coding yuav tsum. Muab cov ntsiab lus no ua ntej ua kom muaj kev tsim khoom raug thiab zam kev ncua sij hawm ntawm LC uniboot fiber ntau thaj cable xaj.
