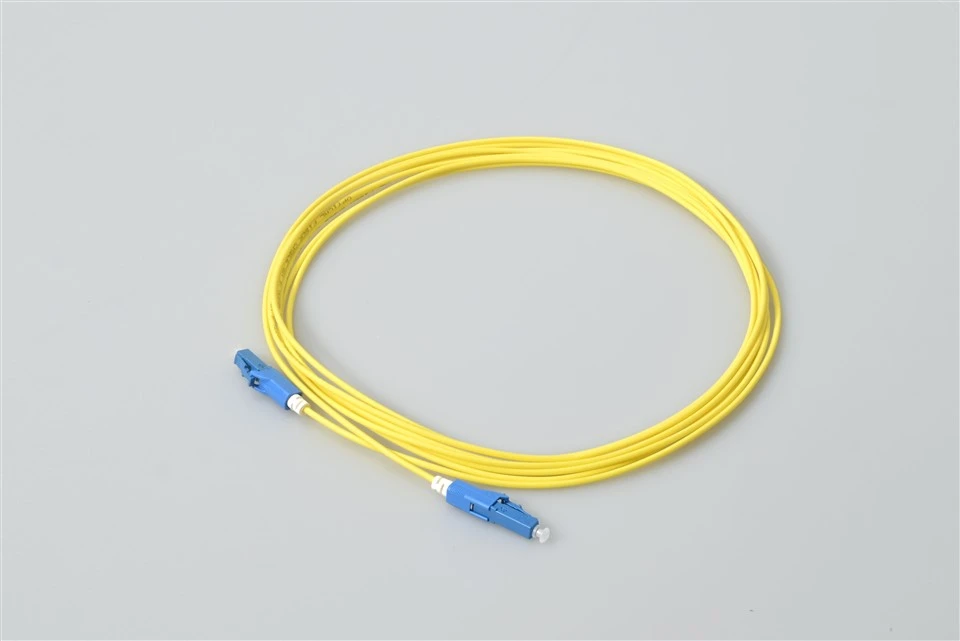

Dab tsi yog LC LC thaj cable?
LC-LC fiber ntau optic thaj qaum yog ib qho me me compact thaj cable nrov heev siv hauv ntau daim ntawv thov. Cov kev daws teeb meem hauv lub network no suav nrog kev sib txuas lus hauv xov tooj, LANs, cov ntaub ntawv ua haujlwm sib txuas, kev txiav cov cuab yeej thiab cov chaw faib khoom. LC-LC patch cords yog tsim los xa cov kev daws teeb meem ceev Ethernet hauv Gigabit daim ntawv thov thiab ATM daim ntawv thov nrog qhov chaw tsawg dua.
Specification
| Parameter | Chav tsev | FC, SC, LC / Armored fiber ntau thaj qaum | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion poob (tseem ceeb) | dB | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.3 |
| Rov qab poob | dB | Ntau dua lossis sib npaug li 45 | Ntau dua lossis sib npaug li 50 | Ntau tshaj los yog sib npaug rau 60 | Ntau tshaj los yog sib npaug rau 30 | Ntau dua lossis sib npaug li 45 | Ntau dua lossis sib npaug li 50 | Ntau tshaj los yog sib npaug rau 30 | Ntau dua lossis sib npaug li 45 | Ntau dua lossis sib npaug li 50 | Ntau dua lossis sib npaug li 35 | Ntau dua lossis sib npaug li 55 | Ntau dua lossis sib npaug li 75 |
| Ua haujlwm wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Exchangeability | dB | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | ||||||||
| Kev vibration | dB | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | ||||||||
| Ua haujlwm kub | degree | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Cia kub | degree | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable txoj kab uas hla | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Nta

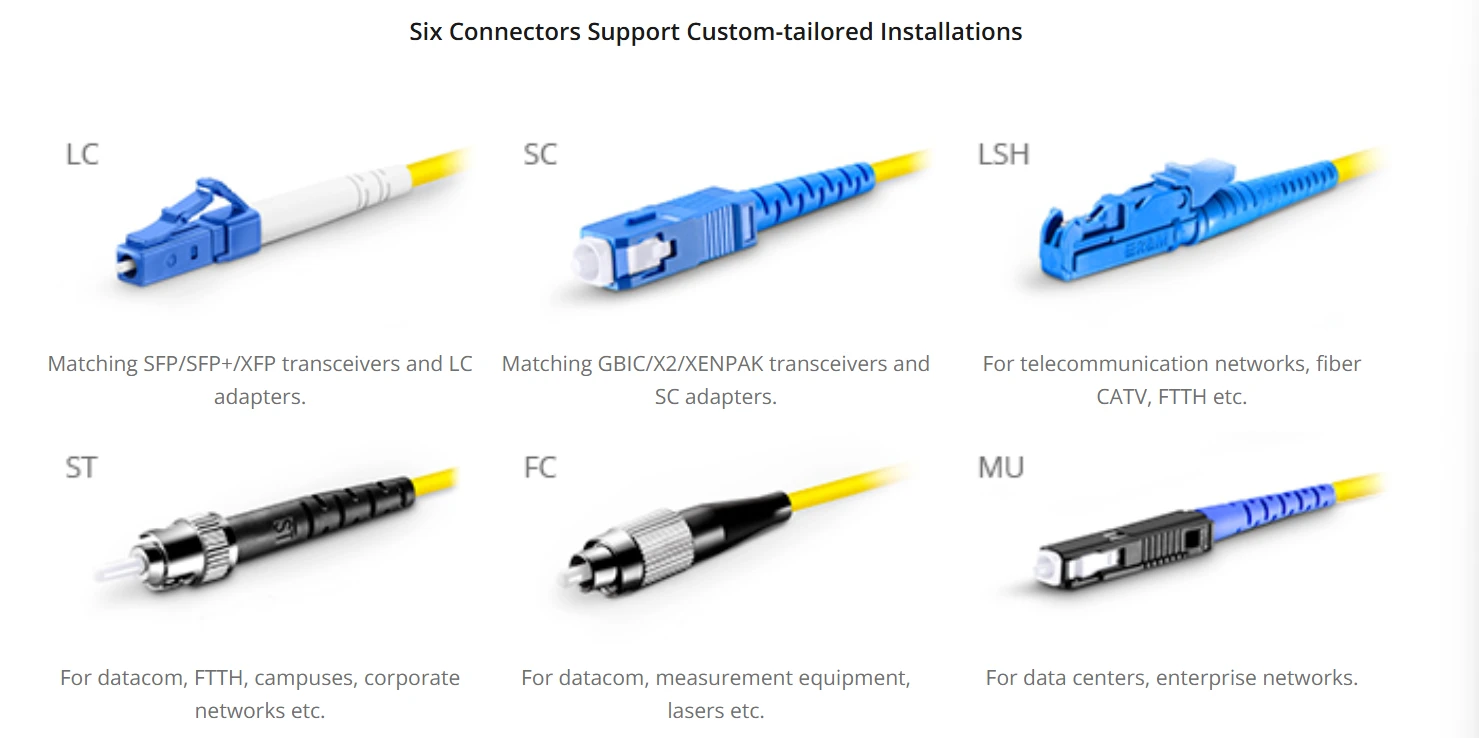

1.Six Connectors txhawb kev cai -tsim kev teeb tsa

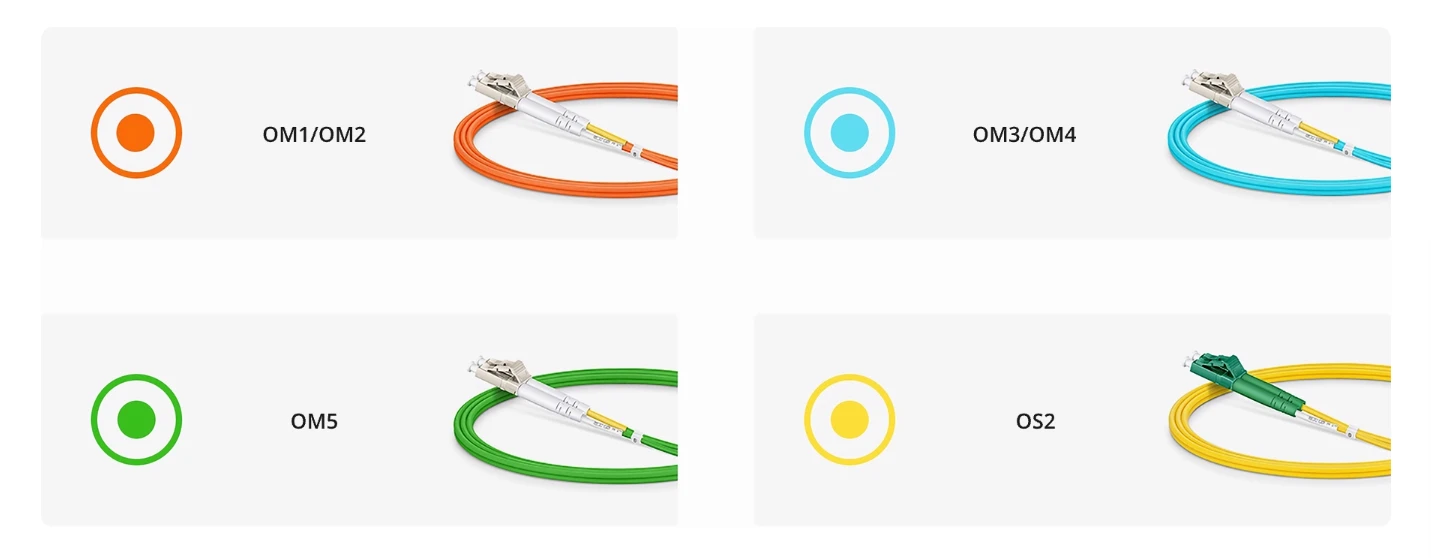

2.Color-Code Cable Jacket kom paub meej yooj yim
3.OEM ODM LC APC / UPC Optical Fiber Pigtail Nrog 0.9mm LSZH Yellow Jacket Specifications:
Daim ntawv thov
Data Centers - SFP/SFP+ Environments
- 10G server NICs rau ToR hloov
- Cia array FC txuas
- Nkhaus- nplooj ntaub uplinks
- Tawm ntawm - ntawm - band tswj network
Telecom - Central Office & FTTx
- OLT uplink ports
- ODF hla -kev sib txuas
- Splitter input/output terminations
- DWDM mux/demux interfaces
Kev Lag Luam - Tus Qauv Cabling
- MDA (Main Distribution Area) patching
- Kab rov tav faib rau hauv pem teb keyboards
- Lub hauv paus ntawm IDFs
- Lub koob yees duab kev ruaj ntseg fiber ntau backhaul
FAQ
Q: Vim li cas thiaj xaiv simplex tshaj duplex LC cables?
A: Simplex muab koj txoj kev hloov pauv uas duplex tsis tuaj yeem sib tw. Koj tuaj yeem khiav TX thiab RX fibers los ntawm txoj hauv kev sib txawv, hloov cov fibers ib leeg yam tsis muaj kev cuam tshuam cov khub, thiab ua tiav qhov chaw nres nkoj zoo dua hauv cov vaj huam sib luag congested. Rau SFP-raws li cov khoom siv uas TX thiab RX yog cov chaw nres nkoj sib cais lawm, simplex feem ntau yog qhov kev xaiv ua tau zoo dua.
Q: Qhov txawv ntawm LC UPC simplex thiab LC APC simplex yog dab tsi?
A: Ob yam: polish lub kaum sab xis thiab rov qab poob.
LC UPC muaj lub ntsej muag ncaj / nkhaus kawg thiab Ntau dua lossis sib npaug rau 50dB rov poob. Lub connector vaj tse yog xiav. Siv nws rau digital signals - Ethernet, Fiber Channel, cov ntaub ntawv dav dav.
LC APC muaj 8℃angled kawg lub ntsej muag thiab Ntau dua los yog sib npaug rau 60dB rov poob. Lub connector vaj tse yog ntsuab. Siv nws rau analog signals - CATV, RF tshaj fiber ntau, PON video overlay.
Tsis txhob txuas UPC rau APC - lub kaum sab xis tsis sib haum ua rau poob siab thiab ua rau ob lub connectors puas.
Q: Kuv puas tuaj yeem xaj LC UPC simplex nrog lub kaum sab xis sib txawv?
A: Yog. Peb muab:
-Boot ncaj (tus qauv) - siv dav dav
-45℃kaum sab xis khau raj - txo cov kev ntxhov siab ntawm cable hauv kev khiav nrawm
-90℃angled khau raj - kab rov tav tawm ntawm thaj vaj huam sib luag
-Nqe khau raj - qhov siab tshaj plaws nyob rau hauv siab -chaw nres nkoj- suav panels
Yam tsawg kawg nkaus txiav txim rau cov tsis yog - qauv khau: 50 pcs
Q: Koj puas muab cov ntaub ntawv kuaj xyuas tus kheej rau cov cables simplex?
A: Yog. Ob txoj kev xaiv:
Daim ntawv tshaj tawm Batch (dawb): Cov qauv kuaj los ntawm koj qhov ntau lawm, suav nrog IL / RL / kev kuaj pom.
Daim ntawv tshaj tawm tus kheej (muaj nyob ntawm kev thov): Txhua lub cable tau txais nws tus kheej daim ntawv pov thawj nrog tus lej xov tooj, ntsuas qhov tseeb IL thiab RL, thiab dhau / tsis ua haujlwm. Pom zoo rau cov chaw kuaj sim thiab qhov zoo - kev teeb tsa tseem ceeb.
Q: Dab tsi yog qhov tsawg kawg nkaus khoov vojvoog rau 2.0mm simplex cable?
A: 15mm nyob rau hauv tsis muaj nro, 30mm thaum nyob rau hauv rub load. Rau kev txhim kho nruj dua, peb muab khoov- tsis pom kev fiber ntau (BIF) nrog 7.5mm yam tsawg kawg nkaus khoov vojvoog - tsis muaj kev nplua txawm tias hauv kev tswj hwm kab mob hnyav.
