Kev txiav txim siab hauv ib feeb
Rau feem ntau tus qauv ODFs, txiav lub thawv, thiab qis-rau- nruab nrab- suav ib zaug - fiber ntau splicing, qhov250um vs 900um fiber ntau pigtailkev txiav txim yuav tsum pib nrog 900µm. Nws yog yooj yim dua los tuav ib ncig ntawm lub connector thiab routing cheeb tsam. Thaum splice-cassette ceev, huab hwm coj- fusion layout, los yog txwv routing qhov chaw ua qhov txwv, 250µm feem ntau yog qhov pib zoo dua.
Buffer txoj kab uas hla yog kev xaiv kev tsim kho tshuab, tsis yog qib kho qhov muag. Ib 900µm fiber ntau pigtail tsis inherently tsim qis splice poob tshaj ib tug 250µm pigtail, thiab ib tug 250µm fiber tsis yog optically inferior vim nws yog thinner.
Qhov ntawd hloov cov lus nug engineering. Es tsis txhob nug qhov twg txoj kab uas hla ua tau zoo dua, nug seb qhov kev nthuav qhia fiber ntau haum rau lub tais, tuav kev ua haujlwm, txoj kev sib txuas, thiab kev tiv thaiv txhua yam muaj nyob rau hauv lub installation.

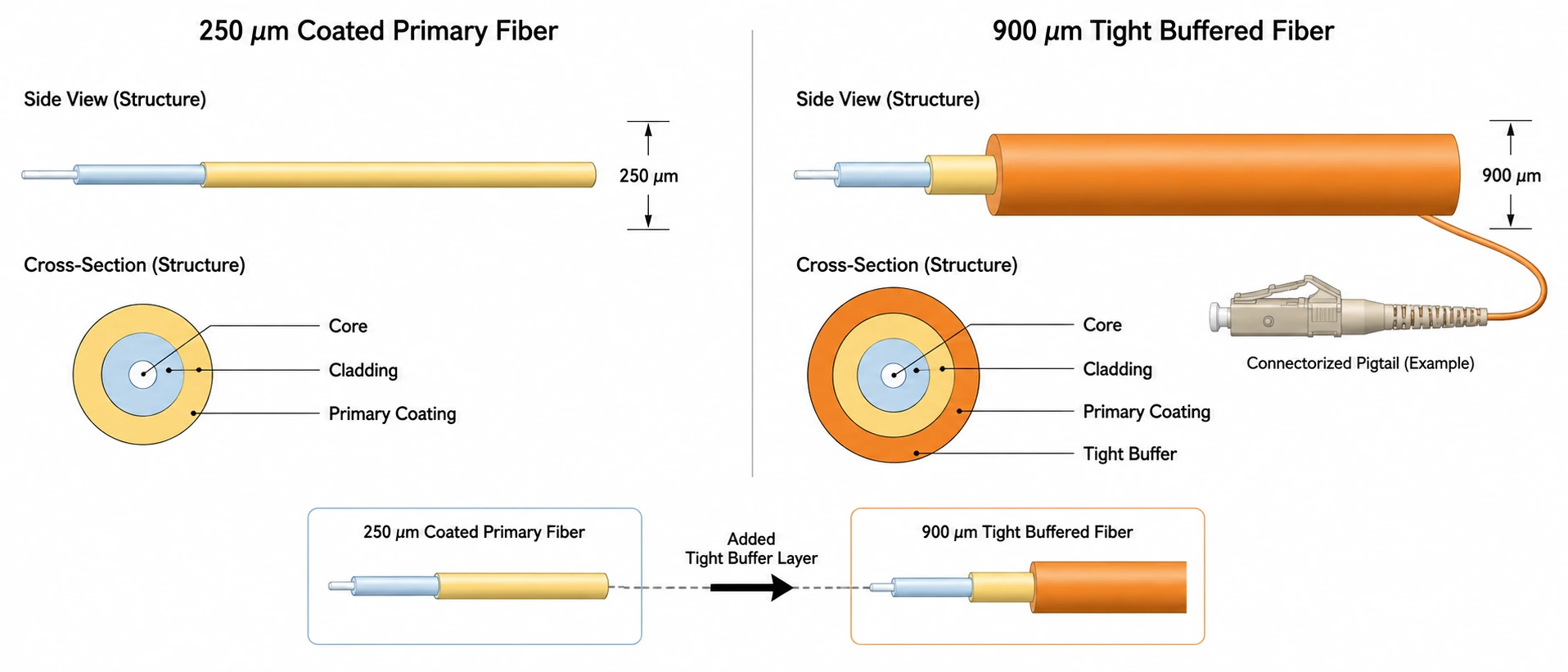

Dab tsi 250µm thiab 900µm Qhov Ntsuas Ntsuas
Ib qho kev sib txuas lus ib txwm - hom fiber ntau tuaj yeem ua kom yooj yim xws li:
~ 9µm core → 125µm cladding → ~ 250µm thawj txheej → yeem ~ 900µm tsis
Qhov 250µm qhov ntev ib txwm hais txog cov coated optical fiber. Ib qho kev tsim kho 900µm ntxiv lwm txheej tiv thaiv nyob ib puag ncig cov fiber ntau. Lub hauv paus optical fiber tseem tuaj yeem yog tib hom fiber ntau.
Qhov no yog vim li cas cov kab lus tshawb nrhiav250um xoob raj vs 900um nruj tsisxav tau kev tsim nyog. Ib qho 250µm coated fiber ntau feem ntau pom nyob rau hauv xoob- raj cables, thaum 900µm nruj- buffered fiber ntau muaj nyob rau hauv cov rooj sib txoos txiav tawm sab hauv. Txoj kab uas hla ib leeg, txawm li cas los xij, tsis txhais tau tias ua tiav kev tsim kho cable.
250µm vs 900µm Pigtail Kev tsim kho ntawm ib sab
| Engineering factor | 250µm fiber ntau pigtail | 900μm fiber ntau pigtail |
|---|---|---|
| Kho qhov muag iav | Siv tau tib yam SM / MM fiber ntau | Siv tau tib yam SM / MM fiber ntau |
| Cladding txoj kab uas hla | Feem ntau 125µm | Feem ntau 125µm |
| Kev nthuav qhia sab nrauv | Primary coated fiber ntau | Ntxiv tsis nyob ib ncig ntawm coated fiber ntau |
| tuav | Ntau dua | Yooj yim rau ua tus kheej |
| Mechanical tiv thaiv | Relies ntau hnyav rau ntawm lub tais / ntim | Kev tiv thaiv zoo dua thaum routing thiab npaj |
| Lub tais ceev | Siab dua | qis |
| Stripping workflow | Tsawg cov khoom siv tshem tawm | Nyob ntawm qhov kev tsim kho tsis zoo |
| Siab fiber ntau- suav cassette | Feem ntau muaj txiaj ntsig | Muaj peev xwm haus tsis tsim nyog routing ntim |
| Mass fusion / ribbon workflow | Zoo dua ua ke nrog ntau qhov ntom ntom architectures | Feem ntau tsis txaus nyiam |
| Txheem ODF txiav tawm | Siv tau, tab sis kev tiv thaiv yuav tsum tau tsim nyob rau hauv | Feem ntau cov tswv yim default |
Qhov sib txawv geometric raw yog loj dua li cov diameters pib qhia. Yog tias ob lub voj voog sib piv tsuas yog los ntawm txoj kab uas hla, lawv tus ntoo khaub lig- ntu ntu ntsuas nrog lub square ntawm txoj kab uas hla:
(900 / 250)² ≈ 12.96
Qhov ntawd tsis tau txhais hais tias lub tais tuaj yeem tuav tau raws nraim 13 zaug ntau li 250µm fibers. Splice tes tsho, khoov yuav tsum, slack loops, retainers, thiab fiber crossings kuj siv qhov chaw. Kev suav piav qhia vim li cas hloov ntau qhov 250µm routing seem nrog 900µm ntu tuaj yeem cuam tshuam rau qhov siab - suav cov tais ntau dua li cov kab uas hla ib leeg qhia.
Buffer Size Tsis Teeb Koj Qhov Kev Ua Haujlwm Zoo
Buffer txoj kab uas hla tsis txiav txim siab qhov poob. Thaum lub sij hawm fusion splicing, qhov cuam tshuam kho qhov muag interface yog cov iav fiber ntau npaj. Cov txheej los yog tsis yog raug tshem tawm los ntawm thaj tsam splice ua ntej cov cleaved fibers yog ua raws thiab fused.
Lub koom haum Fiber Optic piav qhia ib zaug -mode fusion-splice poob raws li feem ntau0.1 dB los yog tsawg dua. Kev poob siab dua tuaj yeem taw qhia rau cov teeb meem xws li kev kis kab mob lossis kev sib tshuam tsis zoo. Qhov ntawd tseem yog splice- qhov teeb meem zoo, tsis muaj pov thawj tias 900µm tsis cuam tshuam lub teeb zoo dua li 250µm txheej. (Fiber Optic Association)
Tsis txhob txais "900µm rau qhov poob qis" raws li cov ntsiab lus RFQ specification.
Hloov chaw, paub meej tias cov fibers optical tau koom ua ke tau sib xws. Hom fiber ntau thiab, qhov cuam tshuam, hom- cov yam ntxwv ntawm thaj chaw muaj teeb meem ntau dua li cov kab uas hla sab nraud. Cov ntsiab lus ntawm kev npaj dav dav yog nyob rau hauv pebfiber cable termination txoj kev qhia.

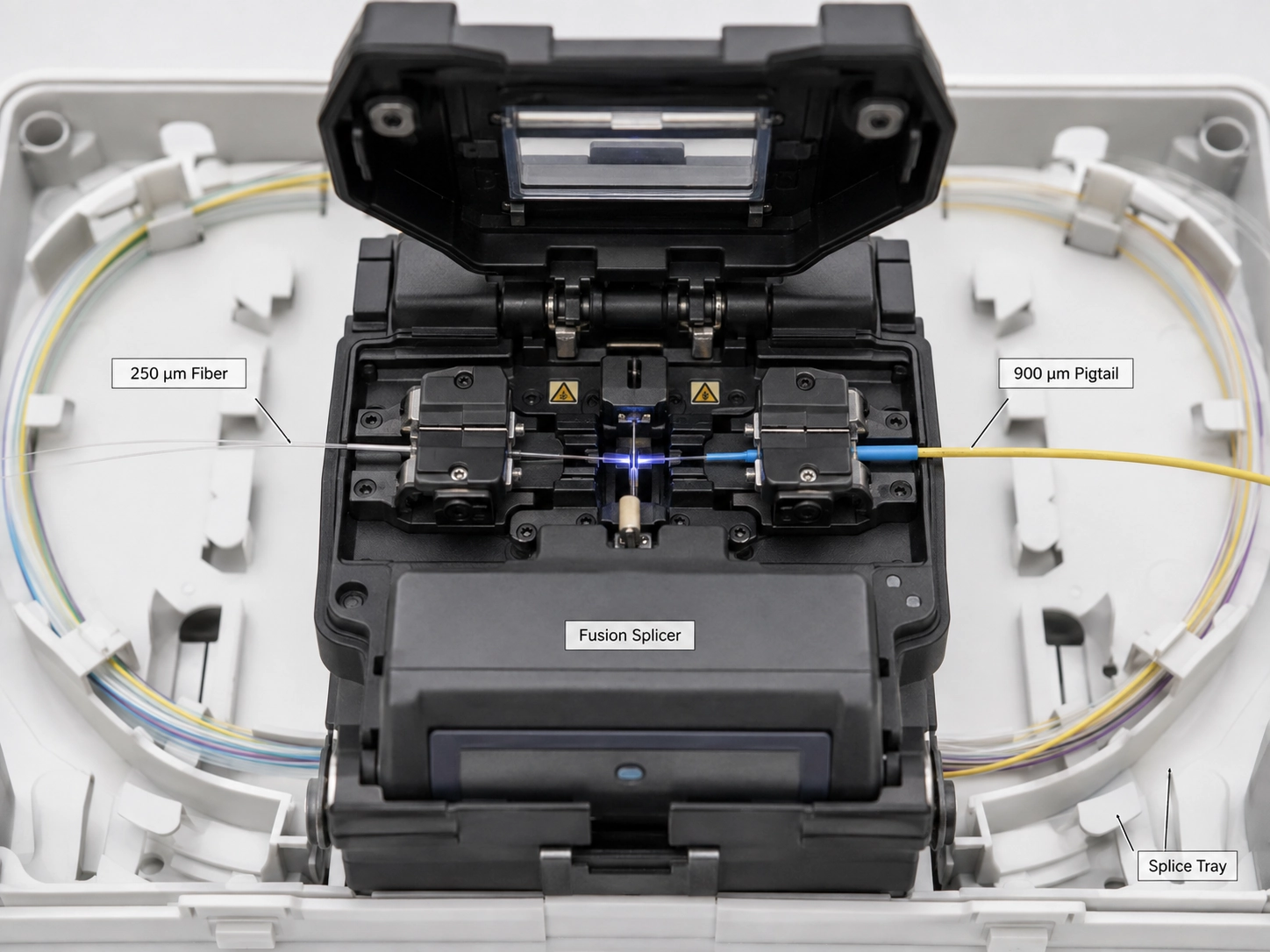

Koj puas tuaj yeem Fusion Splice 250µm Fiber rau 900µm Pigtail?
Yog lawm. A250um fiber ntau rau 900um pigtailKev hloov pauv yog ib qho kev tsim qauv thaum lub hauv paus kho qhov muag fibers sib xws.
Lub fusion splicer tsis yog vuam "250µm khoom" rau "900μm khoom." Ob qho kev tiv thaiv kev tsim kho yog stripped los ntawm thaj tsam splice. Cov iav yog ntxuav thiab cleaved, cov fibers npaj tau ua raws thiab fused, thiab cov tiav splice raug tiv thaiv ua ntej muab cia rau hauv lub tais.
FOA piav qhia qhov no ncaj qha nrog 24- fiber ntau sab nraud- cog cable nyob rau hauv uas 250µm fibers yog spliced rau xim-coded 900µm pigtails rau kev txiav. (Fiber Optic Association)
Tus mob tiag tiag yog optical compatibility. Yog tias ob lub fibers muaj hom sib txawv- teb lossis cov yam ntxwv backscatter, OTDR tuaj yeem pom qhov sib txawv ntawm qhov sib txawv ntawm qhov sib txawv nyob ntawm qhov kev ntsuas kev taw qhia. Kev ntsuas bidirectional pab qhia qhov xwm txheej kom raug. (Fiber Optic Association)
Ib qho kev qhia tshwj xeeb yog li yuav tsum tsis txhob tso tseg 250µm-rau-900µm architecture tsuas yog vim tias sab nraud qhov sib txawv.
Thaum 900µm Fiber Pigtail yog qhov kev xaiv zoo dua qub
A 900um fiber ntau pigtail rau fusion splicingyog lub tswv yim pib taw tes rau hauv ib txwm ODF lossis lub thawv txiav tawm thaum muaj chaw nyob thiab cov kws tshaj lij tuav cov fibers ib leeg.
Txheem ODF thiab Telecom Termination
Rau LC txiav tawm hauv ODF, 900µm pigtail feem ntau muab cov neeg muaj txiaj ntsig ntau dua - fiber ntau tiv thaiv tshaj li 250µm kev nthuav qhia thaum lub tais muaj qhov chaw txaus. Qhov no yog qhov kev siv tswv yim tom qab ib qhoLC fiber ntau pigtail rau ODFspecification, tsis tsuas yog xaiv 900µm vim nws yog tuab.
Muaj ib tug ciam teb tseem ceeb. Ib qho 900µm tsis sib npaug rau 2.0 lossis 3.0mm jacketed thaj qaum. Yog tias fiber ntau tawm ntawm lub tais tiv thaiv thiab yuav rov rub, khi, rov ua dua, lossis raug rau cov cuab yeej tuav, tsim nyog tsho lossis lwm yam kev tiv thaiv cordage yog qhov kev nyab xeeb dua.
Tsawg- suav Termination Boxes
Ntawm kev suav cov fiber ntau, txuag kev ntim ntim feem ntau tsis yog qhov tseem ceeb. Yog tias lub tais twb muab txoj kev tiv thaiv kev tiv thaiv, 900µm feem ntau ua rau kev teeb tsa thiab tom qab kev txheeb xyuas yooj yim dua.
Qhov kev ua haujlwm ntawd tsis ua haujlwm thaum qhov tsis ntxiv ua rau muaj fiber ntau hla, compressed slack cia, lossis cuam tshuam nrog lub tais npog. Thaum lub sij hawm ntawd lub enclosure geometry tau dhau los ua qhov sib txawv ntawm kev tswj.
Thaum 250µm Pigtails Ua Kom Paub Ntxiv
A 250um fiber ntau pigtaildhau los ua qhov kev xaiv muaj zog dua thaum routing ceev yog qhov txwv thiab qhov thaiv nws tus kheej muab cov kev tiv thaiv txhua yam uas yuav tsum tau ua.

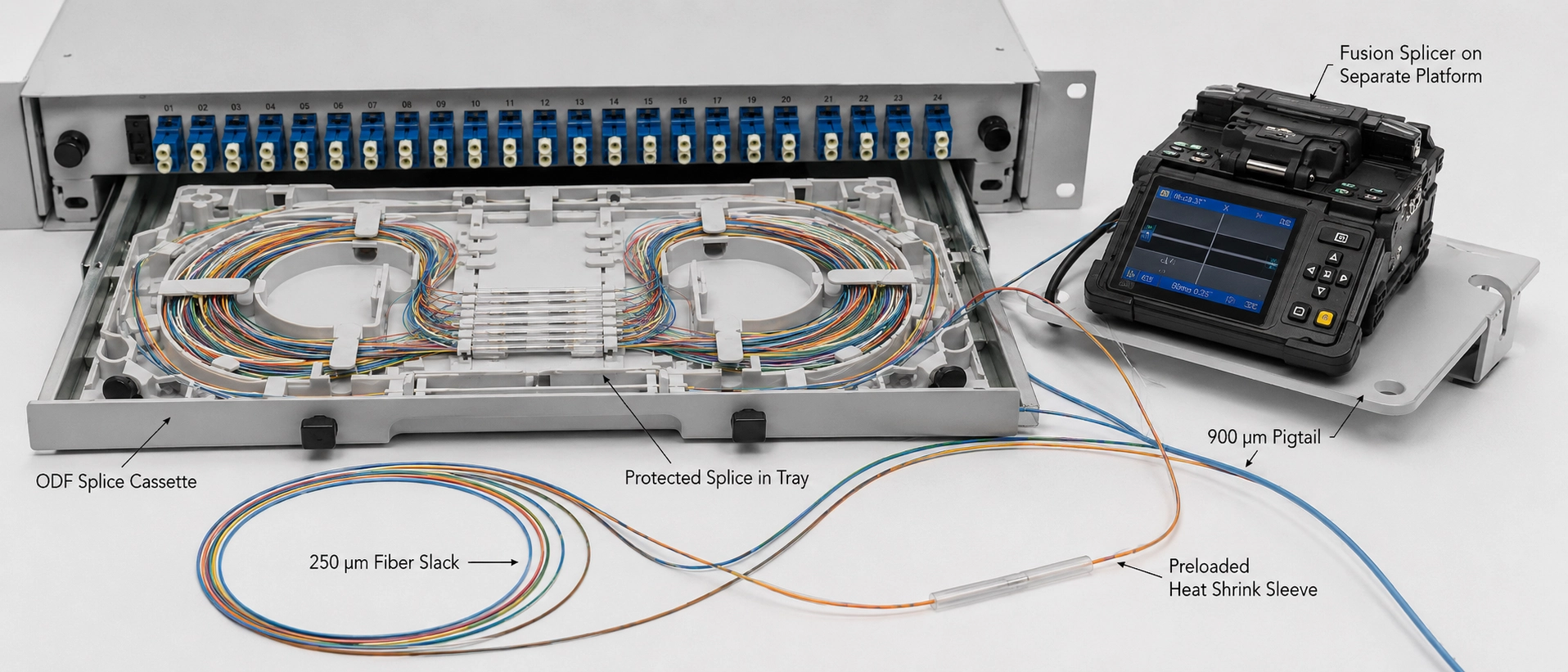

High -Density Splice Cassettes
Hauv kev tiv thaivfiber pigtail rau splice cassettetsim, 250µm routing txo qhov ntim ntawm tus kheej fibers thiab tawm ntau chav nyob ib ncig ntawm splice tuav thiab slack - txoj kev cia.
Qhov no yog qhov uas 12.96 × geometric sib piv yuav pab tau. Nws tsis kwv yees lub peev xwm cassette. Nws piav qhia tias yog vim li cas qhov sib txawv ntawm 650µm hauv txoj kab uas hla dhau los ua ib qho tseem ceeb thaum rov ua dua nyob rau ntau qhov chaw ntawm tus kheej.
Qhov xwm txheej yog kev tiv thaiv txhua yam. Ib tug 250µm coated fiber yuav tsum nyob rau hauv ib tug tswj fiber ntau- txoj kev tswj. Tsiv tsis muaj kev tiv thaiv 250µm fiber ntau sab nraum lub cassette tsuas yog pauv qhov teeb meem ceev rau cov neeg kho tshuab- teeb meem pheej hmoo.
Ribbon thiab Mass{0}}fusion Architecture
Pawg- fusion systems yog tsim los txav ntau lub fibers los ntawm kev ua haujlwm ua ke. Tus kheej 900µm buffers tuaj yeem ua haujlwm tiv thaiv qhov kom zoo dua qhov ntom ntom.
Peb txoj haujlwm yog qhov tshwj xeeb tshaj li qhov "900µm sab hauv tsev, 250µm sab nraum zoov" txoj cai:xaiv qhov kev nthuav qhia siv los ntawm splice architecture, tsis yog lub tsev ciam teb.
Kev sib dhos zoo tshaj plaws tuaj yeem siv ob qho tib si
A 250um vs 900um fiber ntau pigtailkev sib dhos tsis xav tau tib txoj kab uas hla kev tiv thaiv los ntawm lub connector mus rau lub splice. Qhov no yog tsab xov xwm hauv nruab nrab -cov ntsiab lus raws nraim- kev sib tw thauj tog rau nkoj, tab sis nws kuj piav qhia txog kev xaiv tsim lub cev tseem ceeb.
Lub hybrid cassette tuaj yeem xa 900µm buffered fiber ntau los ntawm cov khoom sib txuas lossis adapter vaj huam sib luag los ntawm thaj chaw uas cov kws tshaj lij tuav cov pigtails ib tus neeg, tom qab ntawd hloov mus rau ntawm qhov chaw tiv thaiv hauv lub cassette mus rau 250µm coated fiber ntau rau splice thiab slack - thaj tsam cia. Lub splice-sab seem nce routing ceev yam tsis tau yuam cov connector-sab seem kom muab kev tuav pov hwm.
Qhov no yog qhov tseem ceeb thaum ib daim pam txoj kab uas hla specification raug nug kom daws tau ob qhov kev xav tau ntawm kev siv tshuab. Qhov kev txiav tawm sab yuav tsum tau tuav kev tiv thaiv, thaum lub splice sab yuav xav tau routing ceev.
Rau kev yuav khoom, yog li ntawd, "250 lossis 900µm?" yog qee zaum ua tsis tiav. Daim duab kos yuav tsum txheeb xyuas qhov twg txhua qhov kev nthuav qhia fiber ntau pib thiab xaus thiab seb qhov kev hloov pauv tseem muaj kev tiv thaiv los ntawm cassette.
Cov teeb meem kev teeb tsa uas feem ntau tshwm sim tom qab kev yuav khoom
Ib qho kev qhia tshwj xeeb tshaj plaws ntawm fiber ntau tseem tuaj yeem tsim kev ua haujlwm tsis tsim nyog yog tias stripping cwj pwm, kev tiv thaiv splice, thiab lub tais geometry raug kuaj xyuas tsuas yog tom qab cov khoom tuaj txog.
Stripability yog ib feem ntawm Specification
Ob lub fibers muag li 900µm tuaj yeem coj txawv txawv thaum lub sijhawm npaj vim hais tias sab nraud txoj kab uas hla tsis qhia koj tias qhov tsis zoo yog sib koom ua ke rau hauv qab coated fiber ntau.
Thaum lub kaw ntom nti tsis tuaj yeem raug tshem tawm kom huv si dhau qhov kev npaj yuav tsum tau ntev, cov kws tshaj lij yuav tsum tsis txhob them nyiaj nrog ib qho nyuaj rub. Shorter stripping ntu txo cov load siv rau cov fiber ntau. Yog tias kev npaj tseem tsis sib haum, cov cuab yeej stripping thiab tsis siv yuav tsum tau tshuaj xyuas ua ntej kev teeb tsa ntau lawm.
Rau ib900um fiber ntau pigtail tsumRFQ, "900µm" ib leeg yog li ntawd tsis tiav. Qhia meej txog kev tsim kho lossis kev npaj yuav tsum tau ua thiab paub meej tias txoj kev npaj stripping yog sib xws nrog nws.
Splice Protectors yuav tsum haum rau lub tais tuav
Lub fusion splicer tuav cov iav npaj, tab sis lub tais yuav tsum tswj cov kev tiv thaiv splice tom qab. Tiv thaiv qhov ntev, lub tes tsho tuav, thiab routing txoj kev yog li tsim ib qho kev siv tshuab.
Tshawb xyuas cov splice tuav qhov kev txhawb nqa tiv thaiv qhov ntev ua ntej xaj lub tes tsho. Tus tiv thaiv uas tsis muaj lub rooj zaum tag nrho ntawm tus tuav tuaj yeem thawb txoj kev hloov pauv mus rau lub tais phab ntsa thiab tsim kom muaj qhov tsis tsim nyog khoov tam sim ntawm ib sab ntawm kev tiv thaiv splice.
Qhov no yog qhov muaj txiaj ntsig ntau dua li qhov xav tias tus tiv thaiv ntev dua tuaj yeem muaj kev nyab xeeb dua.
Xyuas lub tais nrog lub hau kaw
Ib txoj kev npaj uas haum thaum lub cassette qhib tsis tas yuav ua tiav kev teeb tsa.
Tom qab cov splices, tiv thaiv, thiab slack tau muab khaws cia, xyuas kom tseeb tias kaw lub hau tsis compress loops, nqa fibers los ntawm retainers, los yog tsim ib tug ntse hloov ntawm ib tug tiv thaiv. Qhov no yog qhov kev xaiv tsis siv neeg nres ua ib qho kev sib piv catalog thiab dhau los ua ib qho chaw kaw - kev txiav txim siab tsim.

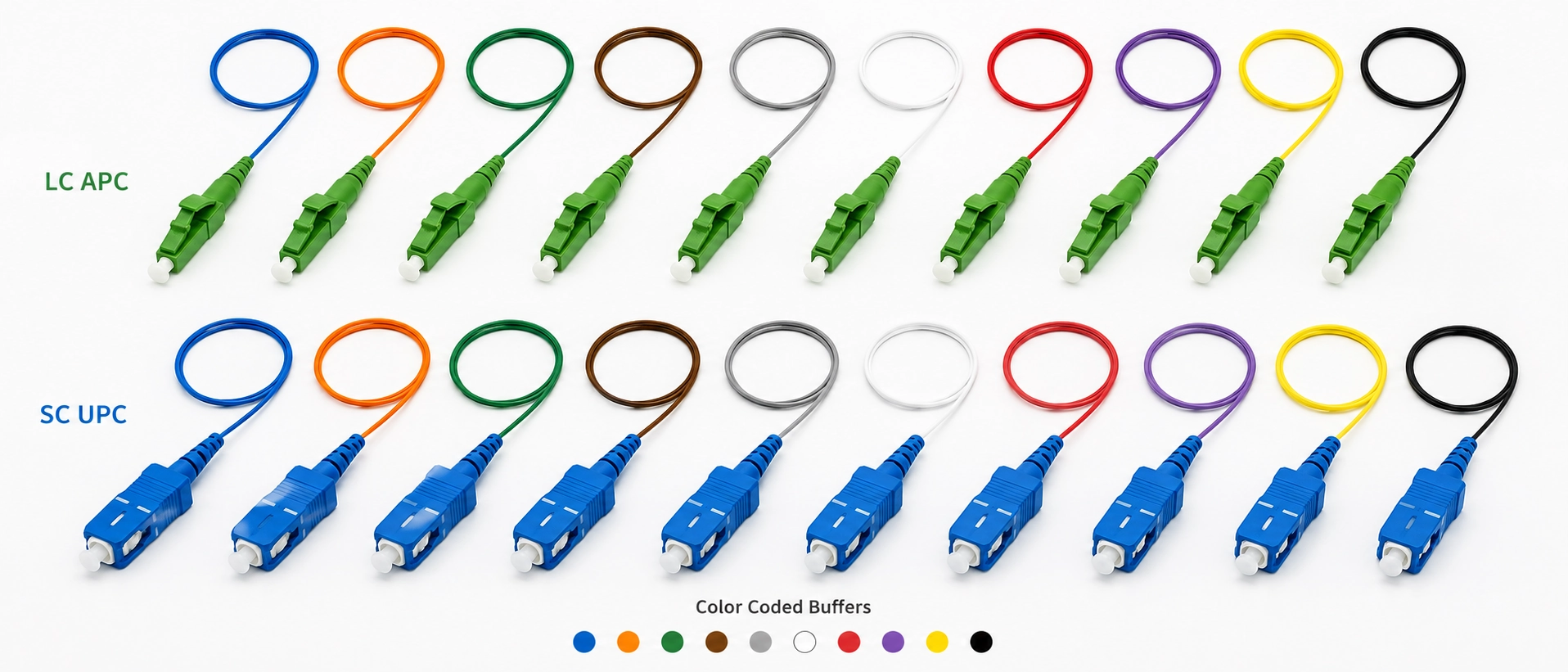

Dab tsi Peb Yuav Muab Rau Fiber Pigtail RFQ
Rau ibkev cai fiber ntau pigtail los ua ke, tshwj xeeb tsuas yog "250µm" lossis "900µm" tawm ntau qhov sib txawv tsis tau daws. Ob cov lus hais tuaj yeem phim cov kab nominal thaum sib txawv ntawm hom fiber ntau, strip cwj pwm, kev tsim kho, kev txheeb xyuas, thiab qhov sib dhos ua tau zoo li cas rau lub tais npaj.
RFQ ntau lawm yuav tsum txhais:
- Optical fiber ntau, xws li OS2/G.652.D, G.657.A1/A2, OM3, lossis OM4.
- Kev nthuav qhia fiber ntau: 250µm coated fiber, 900µm buffered fiber, lossis kev hloov pauv ntawm lawv.
- Connector hom, xws li LC, SC, lossis FC.
- Polish hom, UPC lossis APC qhov tsim nyog.
- Fiber suav thiab txheeb xyuas / xim sib lawv liag. Thaum kev txheeb xyuas yuav tsum phim cov nroj tsuag cable, txhais cov lus pom meej meej. Pebfiber optic xim code qhianpog cov txheej no.
- Pigtail ntev thiab yuav tsum tau ua siab ntev.
- Optical txais cov qauv rau cov tiav connectorized los ua ke.
- Kev teeb tsa ib puag ncig thiab qhov chaw kaw, xws li ODF, splice cassette, FTTH txiav lub thawv, lossis ib qho sab nraud - cog kaw interface.
Cov teb no tiv thaiv qhov tsis meej meej tshwj xeeb, tab sis lawv tseem tsis tuaj yeem ua pov thawj tias lub rooj sib txoos yuav siv lub cev los ntawm ib qho chaw kaw.
Rau ibfiber pigtail rau telecom installation, ntxiv cov duab kos lossis daim duab qhia meej meej rau RFQ muab cov ntaub ntawv xa tawm uas cov ntawv qhia tsis tuaj yeem muab: connector tawm kev taw qhia, tsis hloov qhov chaw, lub tes tsho- tuav geometry, thiab txoj hauv kev muaj rau khaws cia slack.
Xaiv los ntawm Deployment Architecture, Tsis yog los ntawm Habit
| Kev xa tawm qhov xwm txheej | Pib xaiv | Engineering vim li cas |
|---|---|---|
| 250µm OSP pob tw rau hauv ib txwm ODF | 900 µm pigtail | Kev tuav tus kheej yooj yim dua; 250µm -rau-900µm splicing yog qhov qub |
| Tsawg- suav FTTH lub npov nrog cov chav routing txaus | Feem ntau 900µm | Qhov siab tshaj plaws yog tsis tshua muaj kev tswj xyuas |
| Compact siab -density cassette | Ntsuas 250µm ua ntej | Txo cov routing bulk nyob rau hauv qhov chaw tiv thaiv |
| Ribbon lossis pawg -fusion layout | 250µm / ribbon architecture | Khaws qhov ceev kom zoo dua ntawm txoj kev splice |
| Fiber rov ua dua sab nraum lub tais tiv thaiv | Tsis yog yuav tsum yog lub neej ntawd | Siv cov tsho uas tsim nyog los yog kev tiv thaiv cordage |
Lub teeb liab tseem ceeb tshaj plaws uas 900µm lub neej ntawd tau tawg tsis yog qhov tsis ncaj ncees lawm - suav qhov pib. Nws yog ib txoj kev tsis sib haum xeeb. Yog hais tias qhov kev npaj 900µm seem tiv thaiv qhov yuav tsum tau slack, qhov chaw tiv thaiv, los yog npog clearance los ntawm coexisting nyob rau hauv lub tais, soj ntsuam lub 250µm architecture.
Ua ntej tso qhov siab - suav250um vs 900um fiber ntau pigtailspecification, muab piv nrog lub tais tiag tiag kos duab. Kev sib txuas tawm, lub tes tsho- tuav txoj haujlwm, tsis hloov pauv, thiab khaws cia slack yuav tsum ua haujlwm ib txhij tom qab lub hau kaw.
Yog tias qhov kev teeb tsa tiag tiag xav tau lub tsho cordage es tsis yog pigtail routing, FB-LINK'sfiber optic thaj cable configurationnpog cov khoom sib txuas, fiber ntau, thiab kev tiv thaiv kev xaiv.
FAQ
Dab tsi yog qhov txawv ntawm 250µm thiab 900µm fiber ntau pigtail?
Ib tug 900µm pigtail ntxiv ib qho kev tiv thaiv tsis nyob ib ncig ntawm kwv yees li 250µm coated fiber ntau, yog li qhov kev sib txawv ntawm kev tuav, kev tiv thaiv txhua yam, stripping, thiab phaj ceev ntau dua li qhov ua tau zoo ntawm optical.
Kuv puas tuaj yeem fusion splice 250µm fiber ntau rau 900µm pigtail?
Yog lawm. Yog hais tias lub hauv paus kho qhov muag fibers tau sib xws, cov txheej tiv thaiv raug tshem tawm ntawm thaj tsam splice ua ntej cov iav fibers npaj tau fused.
Puas yog 900µm pigtail puas muaj qhov qis qis dua?
Tsis yog. Tsis muaj txoj kab uas hla nws tus kheej tsis txo qhov kev nkag; optical kev ua tau zoo nyob ntawm fiber ntau compatibility, splice zoo, connector zoo, thiab tus so ntawm optical txoj kev.
Qhov loj me me twg yog qhov zoo dua rau qhov siab - ntom ntom splice cassette?
Ib qho 250µm fiber ntau pigtail feem ntau yog qhov pib zoo dua thaum muaj kev tiv thaiv routing qhov chaw yog thawj qhov kev txwv, thaum 900µm yog qhov ua tau zoo thaum tuav cov teeb meem ntau dua thiab muaj qhov chaw txaus.
Kuv yuav tsum siv qhov tsis zoo li cas hauv tus qauv ODF?
Ib qho 900µm pigtail feem ntau yog qhov ua tau zoo rau tus qauv ODF nrog rau qhov chaw txaus thiab tus kheej fusion splicing.
Ua ntej koj khov lub Pigtail Specification
Qhov loj me me yuav tsum tau txiav txim siab ua ntej lub pigtail dhau los ua kev yuav khoom ruaj khov - xaj khoom kab. Los ntawm theem ntawd, lub tais, lub tes tsho tuav, stripping workflow, thiab routing txoj kev tej zaum twb tau txiav txim siab qhov kev nthuav qhia yog tswv yim.
Rau qhov tseeb250um vs 900um fiber ntau pigtailqhov project, muab FB-LINK cov connector thiab polish, optical fiber specification, xav tau kev nthuav qhia fiber ntau, fiber ntau suav, pigtail ntev, thiab tais los yog enclosure kos duab. Cov tswv yim no tso cai rau kev tsim kho kom raug tshuaj xyuas tawm tsam qhov sib tw - sab thiab txiav tawm - sab yuav tsum ua ntej qhov tshwj xeeb yuav khov.
Yog tias qhov project -cov ntaub ntawv tshwj xeeb pigtail xeem, kev coj tus cwj pwm, lossis kev sib koom ua ke yuav tsum tau ua, hais qhia meej rau hauv RFQ thiab nug kom muaj kev pom zoo tawm tsam qhov kev tsim kho pigtail. Tsis txhob xav tias qhov kev xeem thov luam tawm rau lwm lub rooj sib txoos fiber ntau tau siv rau pigtail tau yuav.
