Ib qho 8-core SC rau MTP/MPO thaj qaum yog ib qho kev sib txuas ntawm cable uas xaus rau hauv ib qho MTP/MPO multi-fiber connector ntawm ib kawg thiab plaub duplex SC connectors ntawm lwm tus, nqa yim fibers optical hla ib lub tsho. It serves as a direct bridge between high-density parallel optics infrastructure and legacy SC-terminated equipment - making it one of the most practical tools for networks that aren't ready to rip and replace but still need to move to 40G or 100G.
Yog tias koj lub chaw tseem ua haujlwm SC-raws li thaj chaw, OLTs, lossis cov cuab yeej ntsuas nrog rau QSFP + hloov cov iav tshiab, cov cable no tshem tawm qhov xav tau nruab nrab ntawm cov cassettes lossis adapter panels. Ib kawg ntsaws ncaj nraim rau hauv QSFP + SR4 transceiver chaw nres nkoj; lwm tus kiv cua tawm rau koj SC duplex infrastructure uas twb muaj lawm. Qhov kev ncaj ncees ntawd yog qhov ua rau nws muaj txiaj ntsig - thiab qhov ua rau nws txawv ntawm MTP ntau dua - mus rau -LC breakout cables uas muaj feem ntau ntawm cov ntaub ntawv hauv chaw catalogs.
Yog vim li cas 8-Fiber Count Matters nyob rau hauv niaj hnub Cabling
Kev lag luam fiber ntau tau maj mam hloov ntawm Base-12 mus rau Base-8 architecture, thiab yog vim li cas. Tus qauv QSFP + lossis QSFP28 transceiver siv plaub kab rau kev xa tawm thiab plaub txoj kab rau tau txais - yim fibers tag nrho. Thaum koj siv 12-fiber MTP lub cev cable rau daim ntawv thov QSFP, plaub fibers nyob rau hauv nruab nrab ntawm lub connector zaum tsis siv. Tshaj qhov kev xa tawm loj nrog ntau pua qhov sib txuas, uas tsis muaj fiber ntau ntxiv rau kev nqis peev tseem ceeb.
Ib8-core SC rau MTP / MPO fiber ntau thaj qaumaligns zoo kawg nkaus nrog kev siv fiber ntau ntawm 40GBASE-SR4 thiab 100GBASE-SR4 optics. Txhua fiber ntau nqa tsheb. Tsis muaj khib nyiab, tsis muaj kab tuag cluttering koj cov ntaub ntawv. Lub hauv paus-8 cabling kuj ntsuas kom zoo nkauj rau hauv cov qauv hloov chaw nres nkoj teeb tsa - feem ntau chassis muaj cov chaw nres nkoj suav nrog ntau ntawm plaub (16-chaw nres nkoj, 32-chaw nres nkoj kab ntawv), uas qhia kom huv si mus rau 8-fiber MTP connectors tsis muaj menyuam ntsuag fibers.

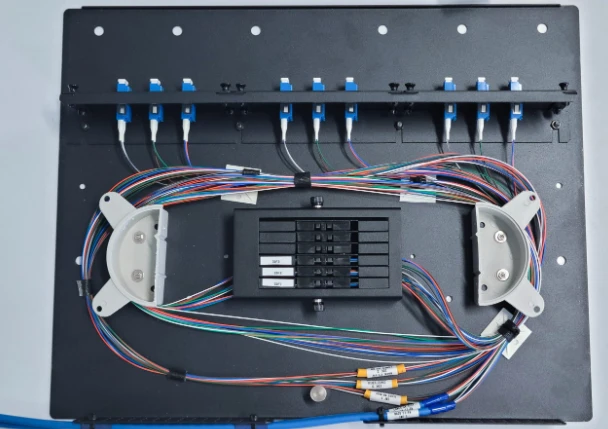

Bridging Legacy SC Networks rau Parallel Optics
Nov yog qhov uas SC-rau-MTP/MPO breakout cord khwv tau nws khaws cia. SC connectors dominated enterprise thiab telecom cabling rau ntau tshaj ob xyoo lawm. Ntau lub tsev kawm ntawv network, CATV headends, tsoomfwv cov chaw, thiab cov chaw ua haujlwm hauv nruab nrab tseem muaj kab tom qab kab ntawm SC thaj vaj huam sib luag. Kev sib pauv tag nrho cov txheej txheem ntawd rau LC tsuas yog nkag mus rau 40G nrawm yog kim thiab cuam tshuam.
Hloov chaw, 8-fiber MTP-rau-SC breakout cable cia koj txuas 40G QSFP+ chaw nres nkoj ncaj qha mus rau plaub qhov chaw nres nkoj SC duplex uas twb muaj lawm. Txhua khub SC tuav ib txoj kab 10G, yog li ib qho QSFP + transceiver ua haujlwm tau zoo rau hauv 4 × 10G kev sib txuas ntawm koj cov nroj tsuag SC uas twb muaj lawm. Tib lub logic siv rau 100G QSFP28 SR4 transceivers splitting rau 4 × 25G kab. Koj khaws koj cov peev txheej cabling thaum nkag mus rau qhov bandwidth ceev ntawm parallel optics.
Qhov no tsis yog niche scenario. Cov neeg ua haujlwm hauv xov tooj uas khiav SONET/SDH cov txheej txheem qub txeeg qub teg ntawm SC connectors, cov tsev kawm ntawv qib siab nrog cov laus SC-tso tseg cov pob txha hauv tsev, thiab cov chaw tshaj tawm xov xwm nrog SC fiber ntau rau kev thauj mus los video txhua tus ntsib qhov xwm txheej no. 8-core SC rau MTP / MPO qaum muab lawv txoj kev tsiv teb tsaws chaw uas tsis tas yuav hloov kho lub forklift.
Nkag siab txog Polarity Configuration rau SC-rau -MTP Txuas
Polarity yog ib qho ntawm feem ntau cov ntsiab lus tsis ua hauj lwm hauv MTP / MPO cabling, thiab tau txais nws txoj cai ntawm SC breakout yog tsis muaj kev zam. Rau tus qauv 8-fiber SC rau MTP/MPO breakout los ua ke, Hom B polarity (Method B per TIA-568) yog qhov kev xaiv ua ntej rau QSFP transceiver daim ntawv thov. Nyob rau hauv hom B configuration, fiber txoj hauj lwm 1 ntawm ib kawg maps rau fiber ntau txoj hauj lwm 8 ntawm lwm yam - ib tug tag nrho array reversal uas xyuas kom meej xa fibers ua ke nrog tau txais fibers nyob rau hauv lub link.
Hom A (txoj cai- dhau ntawm) polarity tsis tshua muaj tshwm sim hauv cov xwm txheej sib cais thiab feem ntau tshwj tseg rau lub cev - mus rau - kev sib txuas ntawm lub cev uas cov cassettes kov Tx / Rx flip. Hom C (pair-flipped) yog ib qho tshwj xeeb configuration siv nrog tshwj xeeb cassette-raws li cov qauv cabling. Tshwj tsis yog tias koj cov ntaub ntawv tsim kho vaj tse tshwj xeeb tshwj xeeb, Hom B yog qhov kev xaiv nyab xeeb rau kev xa tawm ncaj qha - mus rau -SC breakout applications. Kev lees paub polarity ua ntej kev txiav txim tiv thaiv qhov kev ntxhov siab ntawm kev teeb tsa huv si uas yooj yim yuav tsis dhau lub teeb.
Singlemode vs. Multimode: Sib piv Fiber hom rau daim ntawv thov nrug
8-core SC rau MTP / MPO thaj qaum yog muaj nyob rau hauv ob qho tib si singlemode (OS2, 9/125μm) thiab multimode (OM3 50/125μm, OM4 50/125μm) variants. Qhov kev xaiv nyob ntawm koj hom transceiver thiab ncav cuag qhov xav tau.
Rau kev siv ntau hom, OM3 fiber ntau txhawb 40GBASE-SR4 txog 100 meters thiab 10GBASE-SR txog 300 meters. OM4 txuas ntxiv cov kev ncua deb - 150 meters ntawm 40G SR4 - thiab muab ze li ob npaug ntawm qhov ua tau zoo modal bandwidth ntawm 850 nm (4700 MHz·km vs . 2000 MHz·km). Yog tias koj tab tom tsim cov kab rov tav tshiab khiav hauv qhov chaw khaws ntaub ntawv, tus nqi nce ntxiv ntawm OM4 tshaj OM3 yog qhov tsim nyog rau yav tom ntej - pov thawj. Rau qhov sib sib zog nqus ntawmMultimode fiber ntau qib ntawm OM1 txog OM5, txhua tiam sawv cev rau kev ntsuas tau nce qib hauv bandwidth ceev thiab txhawb kev txuas ntev.
Singlemode OS2 fiber ntau yog qhov kev xaiv ntev dua -mus txog daim ntawv thov - 100GBASE-PSM4 tshaj qhov deb txog 500 meters, lossis 40GBASE-PLR4 mus txog 10 km. Tsoom fwv thiab lub tsev kawm ntawv qaum teb xaav uas nthuav dav ntau lub tsev feem ntau xav tau singlemode, tshwj xeeb tshaj yog thaum SC thaj vaj huam sib luag ntawm qhov kawg ntawm qhov kawg tau pib ntsia rau ntev -haul telecom applications.
Ntsiab Deployment Scenarios
Data Center 10G-rau-40G Migration
Ib lub chaw khiav 10G SFP + transceivers thoob plaws SC-tawm thaj ua rau thaj tuaj yeem hloov kho cov txha nraub qaum rau 40G QSFP + yam tsis tau rov- txiav ib lub vaj huam sib luag. 8-core SC rau MTP / MPO breakout qaum txuas QSFP + chaw nres nkoj ncaj qha mus rau plaub SC duplex chaw nres nkoj, txhua tus nqa ib txoj kab 10G. Txoj kev tsiv teb tsaws no yuav tsum tsis muaj kev hloov pauv rau kab rov tav kab uas twb muaj lawm.
Telecom Central Office Interconnection
Cov chaw ua haujlwm hauv nruab nrab feem ntau tuav SC-raws li cov khoom siv kho qhov muag uas tau ua haujlwm tau ntau xyoo. Kev txuas tshiab DWDM lossis ROADM cov cuab yeej nrog MTP / MPO cuam tshuam rau cov thav ntawv uas twb muaj lawm yuav tsum muaj kev tawm tsam uas hais ob hom lus sib txuas. Lub 8-ntxhais sib dhos ua haujlwm no yam tsis muaj qhov nruab nrab nruab nrab, txuag 1U ntawm qhov chaw khib rau ib qho kev sib txuas.
Tshaj tawm thiab A/V Thauj
Cov chaw tshaj tawm xov xwm tshaj lij feem ntau siv SC fiber ntau rau kev thauj mus los ntawm cov studios thiab cov chav tswj tsis tau. Thaum ntxiv IP-raws li video routers nrog QSFP cov chaw nres nkoj, SC rau MTP / MPO breakout cord sib txuas cov cuab yeej tshiab rau hauv cov nroj tsuag fiber ntau kom huv si.
Test thiab Lab Environments
Network xeem labs feem ntau muaj kev sib xyaw ntawm cov khoom sib txuas ntawm ntau tiam neeg ntawm cov khoom siv. Ib qho 8-core SC rau MTP / MPO thaj qaum cia cov kws ua haujlwm sib txuas ntawm cov cuab yeej ntsuas qub txeeg qub teg nrog SC cov chaw nres nkoj thiab cov txheej txheem tshiab fiber ntau yam tsis muaj kev yos hav zoov rau adapters.
Connector Quality thiab Insertion Loss Considerations
Insertion poob pob nyiaj nruj raws li kev sib txuas ceev nce. Ntawm 40G thiab 100G, txhua feem kaum ntawm ib qho decibel ntawm txhua qhov txuas txuas cuam tshuam rau koj qhov txuas txuas. Standard-qib MTP connectors feem ntau spec ntawm tsawg dua los yog sib npaug rau 0.50 dB qhov siab tshaj qhov poob ib khub, thaum cov neeg tseem ceeb / qis- poob MTP connectors coj qhov qis dua los yog sib npaug rau 0.35 dB (0.15 dB typical). SC qhov kawg ntawm qhov kev tawm tsam yuav tsum tuav tsawg dua lossis sib npaug li 0.30 dB rau ib qhov txuas.
Rau kev thov ntau -hop txuas, qhia qis- poob MTP txuas ntawmMTP / MPO multimode fiber ntau thaj qaumkawg yog tsim nyog tus nqi. Txhua lub cable yuav tsum xa nrog cov ntaub ntawv xeem tus kheej - 3D interferometry kev txheeb xyuas ntawm ferrule geometry yam tsawg kawg nkaus. Yog tias koj tus neeg muag khoom tsis tuaj yeem muab cov ntaub ntawv xa mus rau -cov ntaub ntawv kuaj kab, qhov ntawd yog tus chij liab tsim nyog tshawb xyuas ua ntej cog lus rau kev yuav khoom.
Connector huv si tseem ceeb npaum li connector qib. Ib qho kab mob ferrule ntawm 12- fiber ntau MTP connector tuaj yeem ntxiv 1-2 dB ntawm kev poob ntau dhau ntawm tag nrho lub rooj sib txoos. Dedicated MTP- cov khoom siv reel tshwj xeeb yuav tsum yog cov cuab yeej siv hauv txhua qhov chaw siv ntau cov fiber ntau cables. khaws ciaMTP / MPO fiber ntau optic adaptersplua plav-capped thaum tsis siv yog tus cwj pwm yooj yim uas tiv thaiv tus xov tooj tsis txaus ntseeg ntawm kev daws teeb meem hu.
Xaiv ntawm Round Cable, Oval Cable, thiab Liab Ribbon
Lub 8-core SC rau MTP / MPO los ua ke los ntawm peb lub tsho xaiv, thiab qhov kev xaiv yog ntau txog koj lub cev routing ib puag ncig tshaj cov teeb liab kev ua tau zoo.
Round cable (feem ntau 3.0 hli txoj kab uas hla, LSZH los yog PVC tsho) yog lub neej ntawd rau feem ntau cov ntaub ntawv chaw siv. Nws taug kev huv si los ntawm cov txheej txheem cable tswj rings thiab ntsug organizers, thiab nws ruggedized kev tsim kho tuav rov qab tuav thaum tsiv, ntxiv, thiab hloov.
Oval (flat) cable ua haujlwm zoo hauv kev teeb tsa hauv qab lossis nruj kab rov tav cable tais qhov chaw ntsug stacking qhov siab txwv. Bare ribbon cable muaj qhov ceev tshaj plaws rau ultra- siab- thaj chaw ntom ntom tab sis ua lag luam tawm ntawm cov khoom siv ua haujlwm ntev - nws yog qhov zoo tshaj plaws rau kev teeb tsa mus tas li hauv cov cassettes lossis thaj chaw uas cov cable yuav tsis cuam tshuam ib zaug.
Yuav Ua Li Cas Sib Piv rau MTP-rau-LC Breakout Cables
Qhov ntau dua kev teeb tsa yog MTP rau LC, tsuas yog vim LC tau dhau los ua qhov tseem ceeb ntawm kev sib txuas hauv cov ntaub ntawv niaj hnub. Yog li vim li cas koj thiaj li ncav cuag SC breakout xwb? Compatibility nrog ntsia infrastructure yog qhov kev txiav txim siab. Yog tias koj qhov chaw ua haujlwm twb tau ua qauv ntawm LC, tsis muaj qhov zoo rau SC breakout. Tab sis yog hais tias SC connectors yog dab tsi nyob rau hauv lub phab ntsa, nyob rau hauv lub thaj vaj huam sib luag, los yog nyob rau hauv cov khoom, lubSC connector kev sib cuam tshuam nrog MTP/MPO multi{0}}fiber systemslos ntawm kev sib dhos breakout yog txoj kev ceev tshaj plaws mus rau siab dua bandwidth yam tsis tau rov ua dua.
SC connectors tseem khaws cov txiaj ntsig zoo hauv qee qhov kev siv: lawv qhov loj dua 2.5 hli ferrule muab thaj chaw me ntsis ntxiv rau kev sib cuag ntawm lub cev, lawv yooj yim dua los tuav nrog ob txhais tes hauv ib puag ncig kev lag luam, thiab lawv tseem yog tus qauv txuas hauv FTTH OLT cov cuab yeej thoob plaws ntau thaj tsam.
Cov lus nug nquag
Q: Kuv puas tuaj yeem siv 8-Core SC rau MTP / MPO Patch Cord rau 100G kev sib txuas?
A: Yog. A 100GBASE-SR4 QSFP28 transceiver siv plaub txoj kab sib luag 25G hla yim fibers - raws nraim qhov no cable muab. Txhua SC duplex khub nqa ib txoj kab 25G. Rau singlemode 100G PSM4 daim ntawv thov, qhia meej OS2 version ntawm lub rooj sib txoos.
Q: Dab tsi yog hom polarity Kuv yuav tsum xaj rau QSFP + Transceiver daim ntawv thov?
A: Hom B (Txoj Kev B) polarity yog tus qauv rau kev sib txuas ncaj qha QSFP breakout. Nws ua tiav qhov kev thim rov qab fiber ntau kom xa cov haujlwm ntawm MTP kawg ua ke nrog tau txais txoj haujlwm ntawm SC kawg. Tshwj tsis yog tias koj tus qauv cabling tsim tshwj xeeb hu rau Hom A lossis Hom C, xaj Hom B.
Q: Kuv Puas Xav Tau Ib Tug Txiv Neej lossis Poj Niam MTP Connector Ntawm Ntau -Fiber End?
A: Poj niam (unpinned) MTP yog tus qauv teeb tsa rau kev txuas rau QSFP transceivers thiab feem ntau thaj vaj huam sib luag adapters, uas siv txiv neej (pinned) connectors. Txiav txim poj niam tshwj tsis yog tias koj cov ntaub ntawv tshwj xeeb cov cuab yeej hais txog lwm yam.
Q: Puas yog 8-Fiber MTP Connector zoo ib yam li tus qauv 12-Fiber MPO?

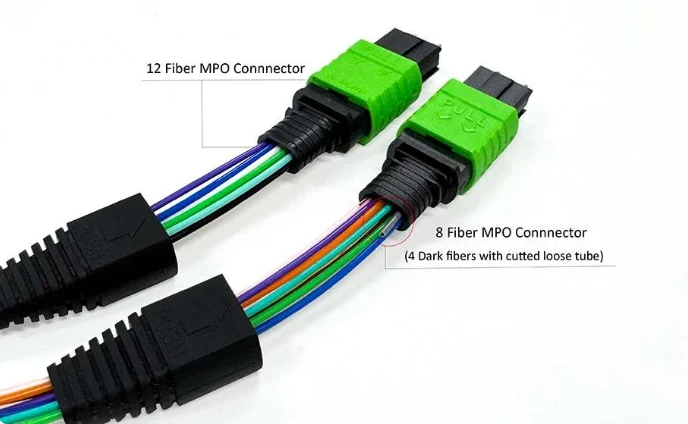

A: Ib qho 8- fiber ntau MTP siv tib lub cev MPO-12 connector vaj tse tab sis tsuas yog populates sab nraud yim fiber ntau txoj hauj lwm (1-4 thiab 9-12), tawm hauv nruab nrab plaub txoj hauj lwm khoob. Nws yog mechanically sib xws nrog tus qauv 12-fiber MPO adapters. Qhov sib txawv tseem ceeb yog kev siv fiber ntau - kev sib dhos 8-fiber tshem tawm plaub qhov tsis siv fiber ntau uas yuav zaum tsaus rau hauv daim ntawv thov QSFP.
Q: Dab tsi Jacket Rating Kuv Xav Tau Rau Plenum Installations?
A: Rau cov cab cab uas khiav los ntawm huab cua- tuav qhov chaw (saum saum toj saud qab nthab, hauv qab cov plag tsev hauv plenum- cov chaw nyob), qhia OFNP (Optical Fiber Nonconductive Plenum) tsho. Rau ntsug risers ntawm pem teb, OFNR (Riser) yog txaus. LSZH (Low Smoke Zero Halogen) yog tus qauv rau feem ntau thoob ntiaj teb cov ntaub ntawv chaw ib puag ncig thiab yuav tsum tau muaj nyob rau hauv ntau European thiab Asian installations. Koj lub tsev cai hauv zos dictates qhov yuav tsum tau yam tsawg kawg nkaus.
