Yog tias koj txiav tawm lossis koom nrog fiber ntau hauv thaj teb, qhov kev xaiv feem ntau yog los ntawm ob txoj hauv kev: afiber optic ceev connectorlos yog fusion splice. Ob leeg tsim txoj hauv kev kho qhov muag, tab sis lawv tau tsim rau cov haujlwm sib txawv heev. Kev sib txuas ceev ceev yog qhov nrawm dua, qis dua - cov cuab yeej xaiv rau FTTH nco cable txiav, cov neeg siv khoom siv - sab ua haujlwm, kho me me, thiab txhua qhov xwm txheej uas nqa cov fusion splicer rau txhua qhov tsis zoo. Fusion splicing yog qhov qis dua - poob, siab dua - kev xaiv ruaj khov rau cov pob txha txuas, sab nraum zoov splice kaw, thiab cov pob qij txha ruaj khov uas yuav tsum tuav lawv cov kev ua tau zoo rau xyoo.
Phau ntawv qhia no muab cov kev txiav txim siab meej rau koj ua ntej, tom qab ntawd cov ncauj lus qhia ntxaws, cov lej poob, kev teeb tsa cov kauj ruam, kev sim, kev daws teeb meem, thiab B2B daim ntawv teev npe yuav khoom kom koj tuaj yeem phim tus qauv thiab qhov txuas rau koj qhov xwm txheej tiag tiag.

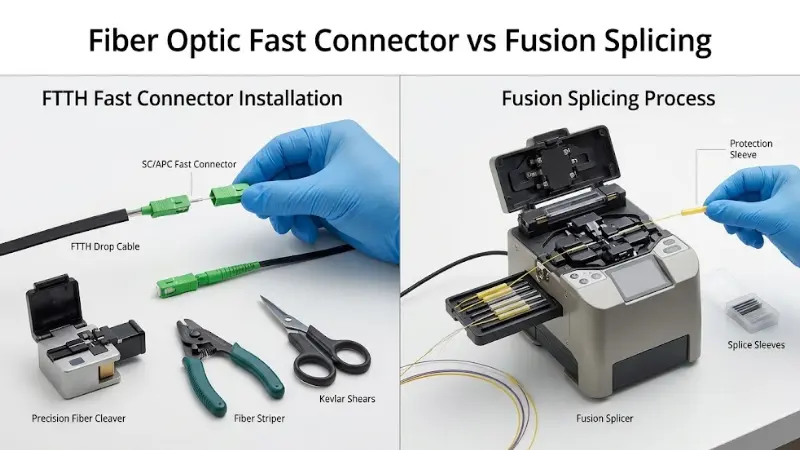

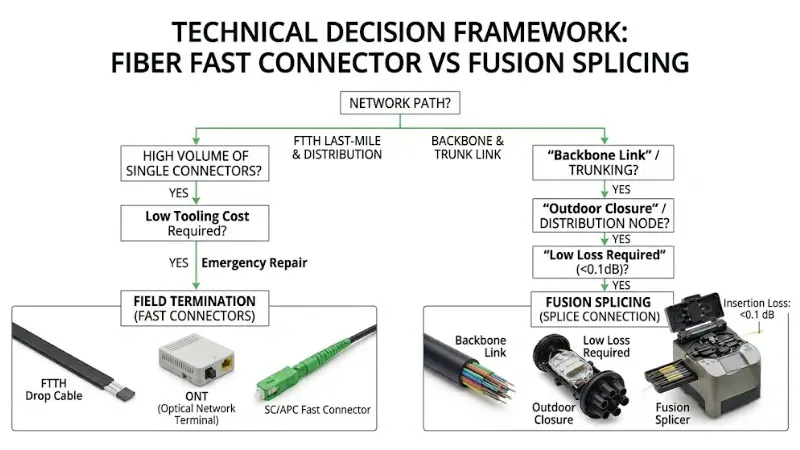

Fast Connector lossis Fusion Splicing? Ib Qhov Kev Txiav Txim Siab Yooj Yim
Ua ntej sib piv cov specifications, txiav txim siab seb qhov kev sib txuas yuav tsum ua li cas. Ob txoj kev tsis tshua sib tw taub hau- mus rau - taub hau; lawv haum qhov sib txawv ntawm tib lub network.
Xaiv lub fiber optic ceev connector thaum:
- Koj tab tom txiav tawm FTTH nco cable hauv tsev, txoj kev hauv tsev, phab ntsa qhov hluav taws xob, lossis ONT chaw nres nkoj thiab yuav tsum ua kom tiav ntau cov ntsiab lus hauv ib hnub.
- Koj xav tau qhov txuas xwm txheej ceev lossis ib ntus rov qab los sai sai, ua ntej teem sijhawm kho mus tas li.
- Cov neeg ua haujlwm tsis muaj fusion splicer ntawm qhov chaw, lossis kev yuav ib qho tsis raug cai rau txoj haujlwm loj.
- Qhov txuas luv luv, cov nyiaj poob qis muaj cov npoo, thiab qhov kev sib txuas yuav tsum tau rov ua haujlwm dua lossis txav mus tom qab.
Xaiv fusion splicing thaum:
- Qhov sib koom ua ke yog nyob ruaj khov thiab zaum hauv lub nraub qaum, feeder, lossis ntev - txoj kev deb.
- Cov peev nyiaj txuas yog nruj thiab txhua feem kaum ntawm ib qho decibel tseem ceeb.
- Kev sib txuas nyob hauv ib puag ncig sab nraum zoov hnyav, kaw hauv av, lossis txhua qhov chaw uas muaj qhov kub thiab txias thiab vibration ntau xyoo.
- Kev ntseeg tau thiab kev cuam tshuam kev ua tau zoo tshaj qhov nrawm ntawm kev teeb tsa.
Yog tias ib qho taw tes sib piv cov khoom hauv ob daim ntawv teev npe, qhov kev txiav txim siab feem ntau yog cov nyiaj poob qis thiab ntev npaum li cas cov kev sib koom yuav tsum nyob twj ywm tsis txhob kov.
Dab tsi yog Fiber Optic Fast Connector?
Fiber optic fast connector yog ib daim teb -installable connector uas txiav ib fiber yam tsis muaj Hoobkas polishing los yog epoxy curing. Koj tuaj yeem pom nws hu ua qhov txuas nrawm, qhov sib dhos ua ke, lossis cov khoom siv tshuab txuas.

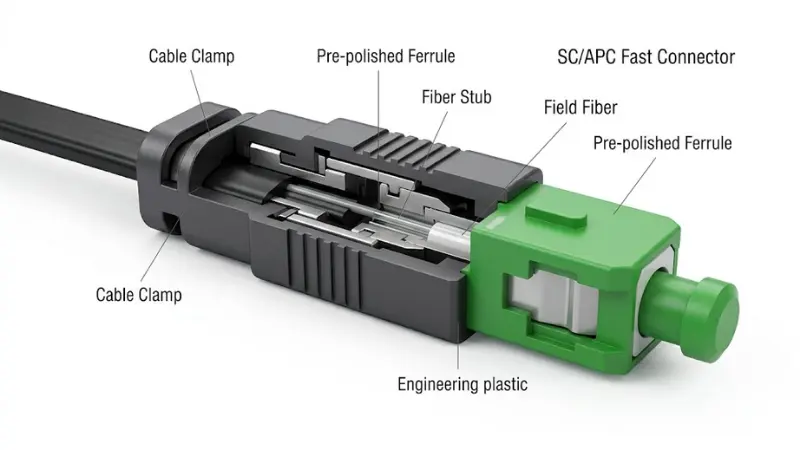

Cov qauv tsim feem ntau siv ua ntej - polished ferrule thiab ib qho kev sib dhos sab hauv. Tus kws tshaj lij strips, ntxuav, cleaves, thiab ntxig cov fiber ntau rau hauvteb- sib dhos txuas lub cev, ces xauv nws rau hauv qhov chaw. Cov khoom tiav txuas nrog cov khoom siv kho qhov muag,adapters, thaj vaj huam sib luag, lub thawv davhlau ya nyob twg, lossis ONTs tib yam li lub Hoobkas - txiav tawm txuas yuav. Vim tias tsis muaj kev kho los yog xuas tes polishing ntawm qhov chaw, lub tshuab txuas ceev tuaj yeem txiav lub sij hawm txiav tawm sai sai ntawm qhov kawg - mais ua haujlwm.
Mechanical Splicing yog dab tsi, thiab nws cuam tshuam li cas rau Fast Connectors?
Mechanical splicing aligns ob fibers xaus rau hauv ib tug precision qauv thiab tuav lawv nrog Performance index -matching gel, es tsis txhob melting lawv ua ke. Qhov no yog raws nraim lub hauv paus ntsiab lus ceev tshaj plaws connectors siv nyob rau hauv: lub teb fiber ntau raws li ib tug luv luv, pre-polished fiber stub. Yog li "ceev connector" piav txog cov khoom daim ntawv, thaum "splice mechanical" piav txog txoj kev sib txuas hauv nws. Apre-embedded fast connectoryog ib qho kev siv, qhov twg cov stub thiab alignment channel twb tau tsim rau hauv lub cev.
Qhov zoo
Ceev thiab tsis tshua muaj nqi tooling yog lub ntsiab yeej. Tsis muaj fusion splicer los yuav, thauj, fais fab, lossis tswj, uas haum rau cov haujlwm me me, kev saib xyuas thaj chaw, thiab cov neeg siv khoom nruab. Cov kev txawj ramp yog luv luv: nrog ib tug zoo stripper, cleaver, tu cov khoom siv, thiab txoj cai connector, ib tug kws kho mob yuav ua tau sai sai. Ntau cov qauv tsim kuj tuaj yeem raug tshem tawm lossis hloov tau yooj yim dua li qhov sib koom ua ke, uas pab nrog kev sib txuas ib ntus thiab ntawm - hloov chaw.
Kev txwv
Kev sib txuas ntawm cov tshuab muaj qhov nkag siab zoo rau kev teeb tsa zoo. Lub kaum sab xis tsis zoo, lub ntsej muag qias neeg, roj, ib qho hauv qab - ntxig fiber ntau, lossis ib txoj kab kab - txoj kab uas hla tsis sib haum yuav tag nrho cov kev cuam tshuam tsis zoo. Piv nrog rau kev sib xyaw ua ke huv si, kev sib txuas ntawm cov tshuab ua kom muaj kev nkag siab ntau dua thiab cuam tshuam ntau dua los ntawm kev vibration thiab kub cycling dhau sij hawm, uas yog vim li cas nws tsis yog thawj qhov kev xaiv rau cov pob txha txuas lossis cov pob qij txha sab nraum zoov. Nws tuaj yeem txhim khu kev qha thaum lub connector tau zoo thiab ntsia tau rau hauv kev tswj, tab sis qhov kev tswj yuav tsum tau tswj xyuas txhua qhov kev txiav tawm.

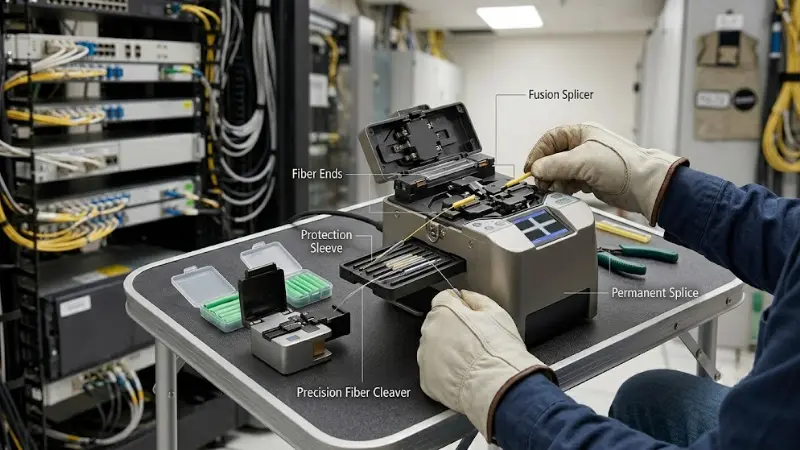

Fusion Splicing yog dab tsi?
Fusion splicing siv cov cua sov, feem ntau los ntawm ib qho hluav taws xob arc, kom yaj thiab mus tas li txuas ob fiber ntau xaus rau hauv ib qho txuas txuas ntxiv. Lub fusion splicer dlhos cov cores, fuses lawv, thiab koj tiv thaiv qhov sib koom tes nrog lub tshav kub -shrink tes tsho. Nws yog tus qauv txheej txheem rau cov kab txuas txuas mus tas li, ntev - kev sib txuas ntawm lub tsheb, kev kaw sab nraum zoov, thiab kev ua haujlwm siab -. Yog tias koj xav tau keeb kwm yav dhau los, ntawm no yog qhov kev piav qhia tob dua ntawmdab tsi fusion splicing yog siv rau.
Qhov zoo
Kev ua tau zoo yog lub ntsiab lus. Ib qho kev sib txuas txuas txuas ntxiv ua rau tsis tshua muaj qhov tsis zoo thiab rov qab zoo heev - kev ua tau zoo, thiab vim tias lub iav yog lub cev koom nrog nws tsis yog nyob ntawm lub tshuab ntsuas phoo kom nyob twj ywm. That makes it the right call for critical links, dense infrastructure, telecom backbone, and outdoor cable where stable performance over years matters more than how long the splice took.
Kev txwv
Qhov thaiv yog cov khoom siv thiab lub sijhawm. Koj xav tau lub fusion splicer, ib tug precision cleaver, lub tes tsho tiv thaiv, lub qhov cub kub, thiab tus neeg ua haujlwm tau txais kev cob qhia, uas ua rau tus nqi nce siab thiab ua rau txoj kev yooj yim dua rau kev ua haujlwm ceev. Ib qho fused sib koom ua ke kuj txhais tau tias yuav nyob ruaj khov: yog tias cov qauv hloov pauv, koj feem ntau txiav, rov-splice, thiab rov- tiv thaiv. Rau qhov kev txiav tawm me me FTTH, qhov no feem ntau qeeb dua li kev sib txuas ceev.

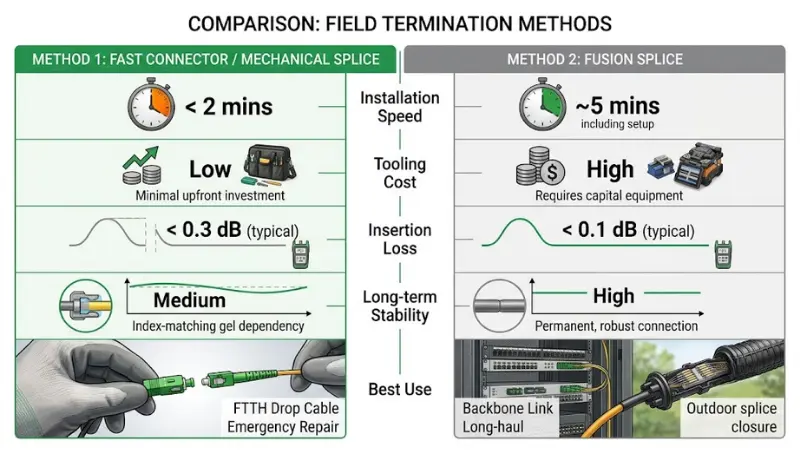

Mechanical Splicing vs Fusion Splicing: Poob, Kev Ntseeg, thiab Tus Nqi
Qhov sib txawv ntawm qhov ua tau zoo los rau qhov poob ntawm qhov muag, qhov ntev - ruaj khov, kev siv cuab yeej, thiab kev cuam tshuam. Raws li kev siv ua haujlwm, lubCov lus qhia poob los ntawm Lub Koom Haum Fiber Optic (FOA)muaj txiaj ntsig: ib qho - hom fusion splice feem ntau yog siv nyiaj kwv yees li ntawm 0.1-0.15 dB, thaum ua ntej - polished mechanical-splice connectors raug tso cai txog li 0.75 dB raws li TIA-568 poob kwv yees. Teb cov txiaj ntsig rau kev sib txuas zoo ntawm cov tshuab feem ntau tsaws ntawm 0.2 thiab 0.5 dB, tab sis qhov sib kis tau dav dua thiab nyob ntawm qhov hnyav thiab kev huv. Kho ib tus lej raws li lub hom phiaj los txheeb xyuas los ntawm kev sim, tsis yog qhov lav.
| Qhov xwm txheej | Fast Connector / Mechanical Splice | Fusion Splice |
|---|---|---|
| Installation ceev | Ceev ceev; kev teeb tsa tsawg kawg hauv daim teb | qeeb; kev teeb tsa cov cuab yeej thiab ib qho -splice voj voog |
| Yuav tsum muaj cov khoom siv | Stripper, cleaver, tu cov khoom siv | Fusion splicer, cleaver, tes tsho, qhov cub kub |
| Kev txawj ntse | Shorter kev kawm nkhaus | Muaj kev cob qhia thiab kev xyaum |
| Tus nqi ua ntej | Cov cuab yeej siv tsawg | Cov cuab yeej siv siab, qis dua ib - tus nqi sib koom ntawm qhov ntim |
| Hom kev ntxig poob | Ntau thiab ntau qhov sib txawv (li 0.2-0.75 dB) | Tsawg heev (feem ntau qis dua 0.1 dB) |
| Reflectance / stability | Zoo thaum ntsia zoo; rhiab rau ib puag ncig | Zoo heev thiab ruaj khov thaum lub sijhawm |
| Rework yooj | Yooj yim hloov lossis txav mus | Mus tas li; yuav tsum tau re-splified los hloov |
| Kev siv zoo tshaj plaws | FTTH, poob cable, kho sai, ua haujlwm ib ntus lossis me me | Rov qab, ntev -haul, tseem ceeb, sab nraum zoov, txuas mus tas li |
Ob txoj kev yeej ib txwm zoo dua. Ib tug ceev connector yeej ntawm teb ceev, yooj yim, thiab tsis tshua muaj tooling nqi; fusion splicing yeej ntawm kev poob qis thiab kev ntseeg ruaj khov.
Txoj kev twg zoo dua rau kev siv sib txawv?

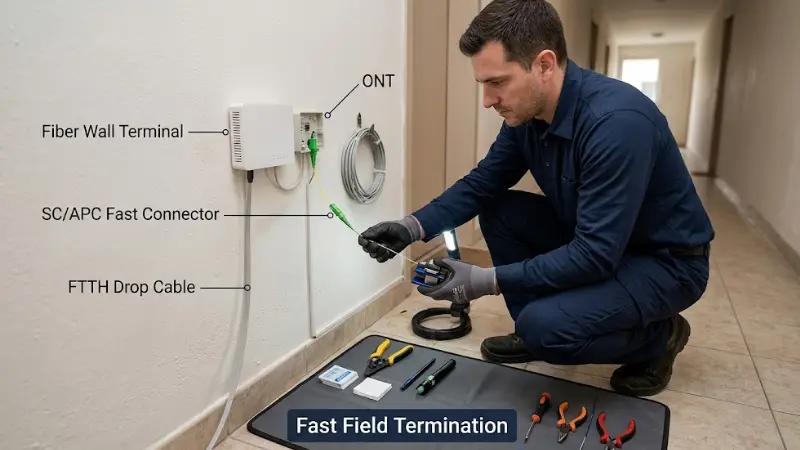

FTTH thiab poob cable installation
Rau FTTH, cov khoom sib txuas ceev feem ntau yog qhov kev xaiv zoo. Daim duab ib tus kws tshaj lij ua haujlwm ntau- tsev nyob: ntau ntauFTTH poob cableKev txiav tawm thoob plaws txoj kev hauv tsev, risers, thiab cov neeg siv khoom hauv ib hnub. Teem lub fusion splicer ntawm txhua lub qhov rooj yog qeeb thiab ua tau txawv txawv; ib qho SC/APC fast connector matched rau qhov poob cable cia cov neeg coob ua tiav txhua qhov taw tes hauv feeb thiab txav mus.
Kev kho thaum muaj xwm txheej ceev thiab txuas ib ntus
Thaum qhov txuas tau poob qis thiab kev pabcuam yuav tsum rov qab los sai sai, lub tshuab hluav taws xob ceev txuas rov qab sai sai thaum lub sijhawm kho fusion mus tas li. Tib yam siv tau rau kev sim, kev daws teeb meem, thiab luv luv - lub sijhawm hloov pauv hauv lub network uas ceev nrawm mus tas li.
Ntev -nqe qaum qaum thiab qhov txuas tseem ceeb
Rau txoj hauv kev rov qab, kaw sab nraum zoov, thiab cov kev pabcuam tseem ceeb, fusion splicing yog qhov kev xaiv zoo dua. Cov kev sib txuas no xav tau qis, ruaj khov poob thiab yuav tsum muaj sia nyob ntau xyoo ntawm qhov kub thiab txias thiab tuav, thiab kev sib koom ua ke mus tas li yog qhov zoo dua rau qhov ntawd dua li qhov sib txuas.
Kev faib tawm sab hauv tsev thiab kev lag luam me me
Hauv tsev, ob txoj kev tuaj yeem ua haujlwm. Kev khiav luv luv nrog ntau qhov kev txiav tawm sai sai nyiam cov khoom sib txuas ceev; ib qho txuas txuas txuas mus tas li lossis ib qho nyiaj poob qis dua nyiam fusion. Ua raws li kev hu xov tooj ntawm qhov txuas nyiaj txiag, qhov project nplai, cov cuab yeej muaj, thiab ntau npaum li cas koj xav kom kov qhov kev sib txuas.
Yuav Ua Li Cas Xaiv Txoj Cai Fiber Optic Fast Connector?
Yog hais tias koj mus nrog ib tug ceev connector, cov specification yuav tsum phim lub cable thiab lub system, los yog kev ua tau zoo yuav inconsistent.
Hom Connector: SC, LC, FC, lossis ST
SC fast connectors dominate FTTH thiab nkag mus rau tes hauj lwm. LC versions tshwm nyob rau hauv siab dua - cov khoom siv ceev thiab patching. FC thiab ST tsis tshua muaj tshwm sim hauv FTTH niaj hnub tab sis tseem tshwm sim hauv cov cuab yeej cuab tam thiab kev lag luam. Txuas lub connector rau lub interface ntawm lub adapter, splitter, lub thawv davhlau ya nyob twg, lossis ONT nws yuav ua phooj ywg nrog.
Polishing hom: UPC lossis APC
Tsis txhob sib xyaw UPC thiab APC xws li. UPC muaj lub ntsej muag tiaj tus lossis me ntsis domed kawg; APC siv lub ntsej muag kawg, feem ntau txheeb xyuas los ntawm lub cev ntsuab. Lub kaum sab xis qhia txog lub teeb tsis pom kev rov qab mus rau hauv lub cladding es tsis txhob ncaj nraim ntawm cov fiber ntau, uas ua rau rov qab poob, thiab qhov tseem ceeb hauv PON systems uas qhov kev xav txog dej ntws ua rau tsis ruaj khov. CovIEC 61755 connector optical interface tus qauvtxhais qhov rov qab los- cov qhab nia poob qab qhov no, thiab APC cov qhab nia nyob zoo dua UPC. Rau FTTH thiab PON, ibSC / APC ceev connectoryog qhov qub qub; rau patching dav dav, SC / UPC lossis LC / UPC yuav haum rau kev tsim. Yog tias UPC-vim- APC xaiv yog qhov tshiab rau koj, qhov kev piav qhia ntawmQhov sib txawv ntawm PC, UPC thiab APC polishingyog tsim nyog nyeem.
Fiber hom: ib hom lossis multimode
Lub connector yuav tsum phim lub fiber. Tib - hom ceev connectors khub nrog ib zaug - hom poob thiab nkag cable; multimode connectors khub nrog multimode fiber nyob rau hauv luv luv enterprise los yog cov ntaub ntawv chaw khiav dej num. Siv hom tsis ncaj ncees lawm ua rau kev ua haujlwm tsis zoo lossis tsis ua haujlwm tsis raug, yog li paub meej qhov txawv ntawmtib- hom thiab multimode fiber ntauua ntej koj xaj.
Cable compatibility
Xyuas tias lub connector txais koj cov qauv cable thiab txoj kab uas hla, seb qhov ntawd yog 0.9 mm nruj -buffer, 2.0 mm lossis 3.0 mm cable, lossis ca FTTH nco cable. Rau FTTH, poob- cable haum yog qhov tseem ceeb: lub connector yuav tsum tuav lub cable kom ruaj khov kom cov fiber ntau txav tsis tau tom qab kev teeb tsa.
Insertion poob thiab rov poob
Insertion poob thiab rov poob yog cov lej uas txiav txim siab seb qhov txuas puas tau txais nyiaj txiag. Tsis txhob tso siab rau cov khoom npe ib leeg; nyeem tus neeg muag khoom cov ntaub ntawv, cov qauv xeem, thiab kev ua tau zoo -cov txheej txheem tswj, thiab nug cov qauv ntsuas cov ntaub ntawv ua ntej kev txiav txim ntau.
Kauj ruam-los ntawm-Kauj ruam Fiber Optic Fast Connector Installation
Kev ua haujlwm zoo, tsis yog cov khoom lag luam ib leeg, txiav txim siab txhua yam - kev sib txuas ua haujlwm. Ib qho kev rov ua kom tiav tseem ceeb tshaj qhov nrawm nrawm. Rau ib yam khoom- tshwj xeeb version, ua raws li cov chaw tsim khoom cov lus qhia, thiab saib cov dav dav noncauj lus kom ntxaws txuas cov kauj ruam rau ib tug ceev connector.
- Sawb:tshem lub tsho thiab txheej rau qhov ntev ntawm lub connector hu rau, siv qhov tseeb stripper rau lub cable kom koj tsis txhob nick lub iav.
- Ntxuav:so cov liab qab fiber ntau nrog lint -dawb so thiab pom zoo ntxuav; tsis txhob kov cov seem uas ntxuav.
- Cleev:siv lub ntse ntse, haum cleaver thiab phim lub cleave ntev rau lub connector specification. Lub ntsej muag tiaj tus, square kawg yog lub hom phiaj.
- Tshawb xyuas:tsis txhob kov lub ntsej muag kawg tom qab cleaving; ib tug huv, square cleave yog dab tsi ua kom poob.
- Ntxig:thawb lub fiber ntau rau hauv lub connector kom txog thaum nws zaum tawm tsam lub stub, ces koom nrog lub xauv mechanism.
- Xauv thiab hnav khaub ncaws:ruaj lub cable clamp thiab tsis txhob nruj khoov ze ntawm lub cev.
- Kuaj:txheeb xyuas qhov kev sib txuas ua ntej koj kaw qhov thaiv.

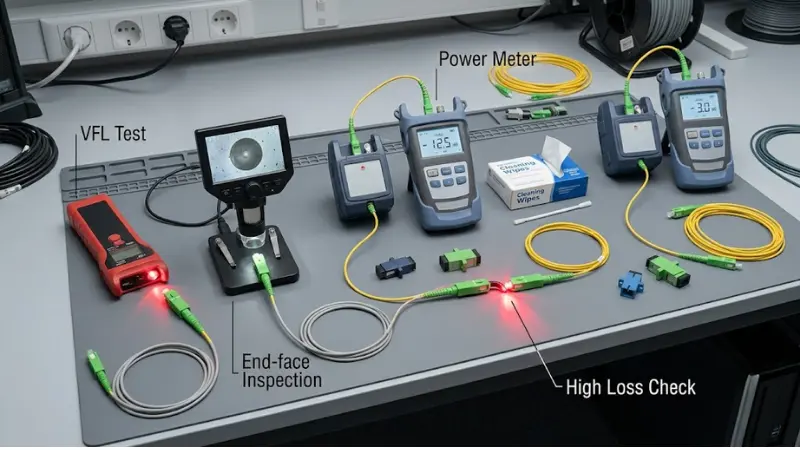

Yuav Ua Li Cas Ntsuam Xyuas Cov Txuas Txuas Ceev Tom Qab Kev Txhim Kho
Kev soj ntsuam pom ib leeg tsis txaus. Yam tsawg kawg nkaus, siv lub qhov muag pom qhov tsis pom kev (VFL) kom paub meej txog kev txuas ntxiv thiab nthuav tawm lub rooj zaum tsis zoo lossis khoov ntse raws li qhov ci ntsa iab. Siv lub ntsuas hluav taws xob kho qhov muag nrog lub teeb pom kev los ntsuas qhov kawg -kom- xaus kev poob tawm tsam koj cov peev nyiaj txuas, thiab siv OTDR ntawm qhov txuas ntev dua lossis sib tw los nrhiav qhov siab - poob qhov tshwm sim. Tshawb xyuas lub ntsej muag kawg ntawm lub ntsej muag nrog fiber ntau microscope thaum cov txiaj ntsig zoo li marginal. Sau cov ntawv nyeem; ib daim ntawv poob daim duab yog dab tsi qhia koj qhov kev txiav tawm dhau los, tsis yog qhov tseeb tias nws tau nyem rau hauv qhov chaw.
Troubleshooting High Insertion Poob ntawm Fast Connector
Thaum lub txuas txuas tshiab tshiab nyeem siab, ua haujlwm los ntawm qhov ua rau feem ntau mus rau qhov tsawg tshaj plaws ua ntej koj txiav txhua yam:
- Xaus- ntsej muag paug:qhov ua rau. Tshawb xyuas thiab ntxuav lub ntsej muag mating thiab lub adapter, tom qab ntawd rov- ntsuas.
- Cov kab mob tsis zoo:lub kaum sab xis los yog chipped cleave tawm qhov sib txawv los yog tawg. Re-tshem thiab rov- xaus.
- Hauv qab - ntxig fiber ntau:Yog hais tias lub fiber tsis ncav cuag lub stub, lub xauv yuav tau kaw ntawm huab cua. Re- zaum tag nrho.
- Khoov lossis ntxhov siab ntawm lub cev:txo qhov khoov nruj thiab xyuas lub cable clamp.
- Polish los yog fiber ntau mismatch:paub meej tias koj tsis tau sib txuas UPC rau APC, lossis ib hom - hom rau multimode.
Yog tias qhov poob tseem tawm ntawm qhov tshwj xeeb tom qab huv -thiab- rov xyuas dua, hloov qhov txuas. Rau cov tsos mob ntawm lub network dav dua ib qho kev sib koom ua ke, phau ntawv qhia no raudaws teeb meem cov teeb meem fiber ntau networkpab cais qhov teeb meem tiag tiag zaum.
Feem ntau yuam kev thaum siv Fiber Optic Fast Connectors
Feem ntau qhov kev ua tsis tiav ntawm qhov rov qab mus rau qhov kev npaj me me yuam kev: ib qho tsis sib xws lossis lub kaum sab xis uas ua rau poob; lub ntsej muag qias neeg los ntawm plua plav, roj, lossis cov ntiv tes; hom connector tsis ncaj ncees lawm, xws li UPC qhov twg APC yuav tsum tau; ib kab - txoj kab uas hla tsis sib haum uas cia cov fiber ntau txav; tshaj - khoov ze ntawm lub cev; thiab hla kev kuaj qhov muag. Zam cov nqi no tsis muaj dab tsi tab sis kev qhuab qhia, thiab nws yog qhov sib txawv ntawm qhov sib txuas ceev uas ua tau zoo thiab ib qho uas ntsiag to rub tawm cov peev nyiaj txuas.
B2B Kev yuav daim ntawv txheeb rau Fiber Optic Fast Connectors
Rau kev yuav khoom, lub hom phiaj yog batch sib xws, tsis yog tus nqi qis xwb. Ua ntej kev txiav txim ntau, paub meej tias:
- Cov ntaub ntawv duab:hais txog qhov poob thiab rov qab poob, nrog rau cov qauv xeem thiab cov xwm txheej muaj npe.
- Connector thiab polish match:SC/LC/FC thiab UPC/APC raug rau koj lub cev thiab covfiber ntau terminal box, adapter, los yog splitter nws mates nrog.
- Cable compatibility:kev txhawb nqa rau koj qhov kev poob qis -kab kab thiab cov qauv, nrog rau kev ruaj ntseg clamp.
- Sample xeem:thov cov qauv thiab cov ntawv xeem, thiab txheeb xyuas qhov poob hauv -tsev ua ntej ua ntim.
- Batch sib xws thiab tshuaj xyuas:nug seb tus neeg muag khoom tswj hwm ferrule zoo thiab xaus li cas -fim geometry hla ntau ntau.
- Ntim, MOQ, thiab lub sijhawm ua haujlwm:paub meej tias kev tiv thaiv ntim, tsawg kawg nkaus kom muaj nuj nqis, thiab xa khoom tiag tiag rau koj qhov kev tshaj tawm.
Yog tias koj tab tom nrhiav ib daim nqi ntawm cov ntaub ntawv es tsis yog cov khoom sib txuas ib leeg, qhov noFTTH passive Cheebtsam kev yuav khoom phau ntawv qhianpog li cas connectors, splitters, thiab enclosures haum ua ke. Rau PON architectures, kuj loj qhovPLC splittertheem ib sab ntawm cov khoom sib txuas yog li qhov kawg - mus rau - qhov kawg poob nyiaj kaw.
FAQ
Puas yog fiber ntau optic fast connector zoo ib yam li cov neeg kho tshuab splice?
Tsis raws nraim. Kev sib txuas ceev ceev yog cov khoom sib txuas; mechanical splicing yog txoj kev sib dhos ntau ntawm lawv siv sab hauv. Lawv zoo sib xws tab sis tsis sib hloov cov ntsiab lus: lub connector yog cov kho vajtse, cov neeg kho tshuab splice yog li cas nws koom lub fiber nyob rau hauv.
Puas yog fusion splicing zoo dua li kev sib tsoo tshuab?
Rau kev ruaj ntseg, qis- poob, siab- qhov txuas ruaj khov, yog. Rau kev txhim kho sai, tus nqi qis dua, thiab kev yooj yim ntawm thaj chaw, ib qho khoom siv ceev ceev yog qhov zoo dua. Cov lus teb yog nyob ntawm qhov kev siv nyiaj poob thiab yuav tsum tau ua haujlwm li cas.
Dab tsi cov cuab yeej kuv xav tau rau nruab ib lub fiber optic ceev connector?
Lub tsho thiab txheej stripper qhov loj me rau koj lub cable, lub siab - zoo cleaver, cov khoom siv tu nrog lint- cov ntaub so ntswg pub dawb thiab cov kuab tshuaj pom zoo, thiab cov cuab yeej ntsuas xws li VFL lossis lub ntsuas hluav taws xob kho qhov muag. Tsis tas yuav tsum muaj fusion splicer, uas yog vim li cas cov neeg ua haujlwm xaiv txoj kev no.
Yog vim li cas ib tug ceev connector tej zaum kuj qhia siab insertion poob?
Feem ntau lub ntsej muag qias neeg los yog lub ntsej muag tsis zoo, feem ntau tsawg dua hauv qab - ntxig fiber ntau, nruj khoov, lossis UPC / APC lossis ib zaug -mode/multimode mismatch. Ntxuav thiab tshuaj xyuas ua ntej, rov-ntxuav yog tias xav tau, thiab rov- ntsuas ua ntej hloov qhov txuas.
Lub fast connector puas hloov fusion splicing?
Rau FTTH nco cable, tus neeg siv khoom - sab ua haujlwm, thiab kho ib ntus, feem ntau yog. Rau pob txha caj qaum, ntev -haul, thiab nthuav tawm sab nraum cov pob qij txha uas poob nyiaj txiag thiab ntev - lub sij hawm ruaj khov yog qhov tseem ceeb, fusion splicing tseem yog qhov kev xaiv zoo dua.
Kuv yuav kuaj lub connector ceev li cas tom qab kev teeb tsa?
Tshawb xyuas txuas ntxiv nrog VFL, ntsuas qhov kawg-rau- xaus kev poob nrog lub ntsuas hluav taws xob kho qhov muag tiv thaiv koj cov peev nyiaj txuas, siv OTDR ntawm kev txuas ntev dua, thiab tshuaj xyuas lub ntsej muag kawg nrog lub tshuab tsom iav fiber ntau yog tias nyeem ntawv zoo li marginal. Sau cov txiaj ntsig kom qhov kev txiav tawm yog sau tseg tias dhau mus.
Puas yog cov khoom sib txuas ceev ruaj ntseg rau FTTH, thiab lawv puas ua haujlwm nrog ib qho - hom fiber ntau?
Yog ntawm ob qho tib si suav thaum qhov kev sib tw tshwj xeeb thiab kev teeb tsa raug tswj. Ntau cov khoom sib txuas ceev ceev, tshwj xeeb tshaj yog SC / APC hom rau PON thiab FTTH, yog tsim los rau ib qho - hom fiber ntau. Paub meej tias hom fiber ntau, polish, thiab kab inch ua ntej txhim kho.
Cov fiber ntau optic fast connectors puas tuaj yeem rov qab siv tau?
Nws nyob ntawm tus tsim connector; ntau tsis pom zoo kom rov siv dua. Qee cov qauv tso cai tshem tawm lossis hloov pauv, tab sis cov khoom sib txuas puas lossis kab mob yuav tsum tsis txhob muab rov qab yog tias koj mob siab txog qhov txuas ruaj khov.
Xaus
Fast connectors thiab fusion splicing daws teeb meem sib txawv. Mus txog qhov txuas ceev ceev thaum koj xav tau FTTH sai sai, poob -kev ua haujlwm cable, kho thaum muaj xwm txheej ceev, lossis kev daws teeb meem tsawg -; ncav cuag fusion splicing thaum qhov txuas yuav tsum nyob ruaj khov, qis - poob, thiab ruaj khov ntawm txoj hauv kev los yog sab nraum zoov. Rau kev yuav khoom, match connector hom, polish, fiber ntau, cable txoj kab uas hla, thiab kuaj cov lej poob rau koj qhov scenario tiag tiag, thiab xyuas cov qauv ua ntej yuav ntim.
