Fiber jumper - kuj hu ua afiber optic thaj qaum- yog luv, connectorized fiber ntau cable siv los txuas cov khoom siv ports, thaj vaj huam sib luag, thiab faib thav duab. Txhim kho ib qho zoo li yooj yim: ntsaws ob qhov kawg hauv, txav mus. Tab sis tus neeg twg uas tau taug qab qhov kev sib txuas qias neeg los ntawm peb lub racks thaum 2 teev sawv ntxov paub qhov ua haujlwm tiag tiag tshwm sim ua ntej thiab tom qab lub ntsaws.
Xaiv hom kev sib txuas tsis raug, hla kev tshuaj xyuas, yuam kom nruj khoov tom qab lub qhov rooj txee, lossis tsis nco qab daim ntawv lo rau ob qho tag nrho - ib qho ntawm cov no ua rau tsib-feeb thaj rau ib teev- txoj haujlwm daws teeb meem ntev. Cov lus qhia no taug kev los ntawm cov txheej txheem tag nrho: xaiv txoj cai jumper, npaj thiab ntxuav lub ntsej muag kawg, routing thiab txuas lub cable, thiab txheeb xyuas qhov txuas tom qab.

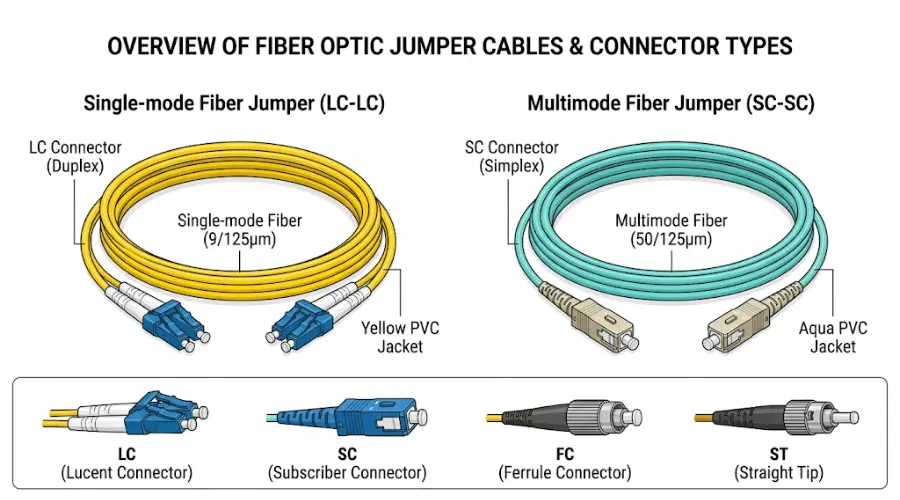

Dab tsi yog Fiber Jumper?
Lub fiber jumper yog lub Hoobkas- txiav fiber ntau cable nrog cov txuas ntawm ob qho kawg. Nws muab qhov hloov tau yooj yim, tshem tau kev sib txuas ntawm cov khoom siv network, cov khoom siv chaw nres nkoj, thiab patching infrastructure xws liODFs thiab thaj vaj huam sib luag.
Common connector tsev neeg muaj xws liLC, SC, FC, thiabST. Patch cords tuaj nyob rau hauv ib qho -hom thiab multimode versions, thiab nyob rau hauvsimplex los yog duplexkev tsim kho nyob ntawm daim ntawv thov.
Fiber Jumper vs Patch Cord: Puas muaj qhov sib txawv?
Hauv kev xyaum, "fiber jumper" thiab "fiber optic thaj qaum" xa mus rau tib yam khoom. Ob qho tib si piav qhia txog cov kab txuas txuas siv rau kev hloov kho qhov muag patching. Cov ntsiab lus sib txawv raws cheeb tsam thiab cov neeg muag khoom nyiam, tab sis txoj haujlwm zoo ib yam. Ib yam khoom sib xws tab sis txawv yog qhovfiber pigtail, uas muaj ib tug connector ntawm tsuas yog ib kawg thiab feem ntau yog spliced rau lub cev cable es tsis siv rau tshem tawm kev sib txuas.
Yuav Ua Li Cas Xaiv Txoj Cai Fiber Jumper
Xaiv txoj cai jumper ua ntej koj qhib lub hnab tiv thaiv qhov kev ua yuam kev ntau tshaj plaws. Muaj plaub qhov kev txiav txim siab los ua: hom connector, fiber ntau, cable siv, thiab ntev.
Sib phim hom Connector rau qhov chaw nres nkoj
Xyuas lub cev interface ntawm ob qho kawg. Yog tias cov cuab yeej siv LC ports, siv ib qhoLC fiber ntau jumper. Yog tias sab vaj huam sib luag yog SC, siv ib qhoSC daim kab xev. Tsis txhob yuam tus connector rau hauv lub adapter tsis sib haum - nws yuav zaum ib nrab tab sis yuav ua rau poob thiab pheej hmoo ua rau lub ferrule los yog qhov chaw nres nkoj.
Hauv qhov chaw siab -cov ntaub ntawv ceev ceev, LC yog qhov tseem ceeb vim nws qhov me me. SC thiab FC tseem muaj nyob rau hauv cov khoom siv hauv xov tooj thiab cov cuab yeej cuab tam. Rau siab -fiber- suav kev sib txuas ntawm lub cev,MPO / MTP connectorsyog tus qauv zuj zus.
Kuj xyuam xim rau covconnector polish hom - PC, UPC, lossis APC. APC connector (lub cev sib tiv tauj, feem ntau nrog lub khau raj ntsuab ntsuab) yuav tsum sib koom nrog lwm tus APC txuas. Txuas APC rau UPC ua rau poob siab rov qab thiab tsis zoo lub teeb liab. Qhov no yog ib qho ntawm feem ntau saib tsis sib haum xeeb hauv kev teeb tsa.

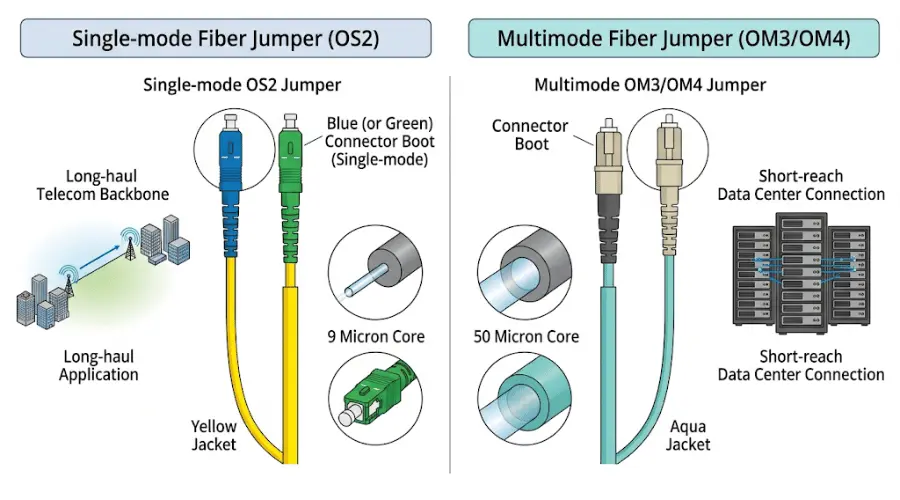

Tib -Mode vs Multimode: Sib piv hom Fiber rau qhov txuas
Lub jumper hom fiber ntau yuav tsum phim cov kab ke uas nws txuas nrog. Atib - hom fiber ntaujumper ntawm qhov txuas multimode - lossis vice versa - ua rau muaj kev cuam tshuam loj heev thiab tsis muaj kev ntseeg siab. Cov tub ntxhais txoj kab uas hla tsis sib haum ib leeg tuaj yeem ua rau ntau dB poob ntawm txhua qhov kev sib txuas.
Kev kuaj pom sai sai pab: ib leeg- hom kab cords feem ntau siv cov tsho daj nrog xiav lossis ntsuab khau looj plab hlaub, thaum cov hlua multimode yog txiv kab ntxwv (OM1/OM2) lossis aqua (OM3/OM4). Txawm li cas los xij, ib txwm txheeb xyuas cov cim cable es tsis yog cia siab rau xim ib leeg, tshwj xeeb tshaj yog nrog cov tsis yog - cov neeg muag khoom tus qauv.
| Feature | Tib -Mode (OS2) | Multimode (OM3 / OM4) |
|---|---|---|
| Core txoj kab uas hla | 9 µm | 50 µm |
| Hom tsho xim xim | Daj | Aqua |
| Mus txog | Ntev -, mus txog kaum km | luv- ncav cuag, feem ntau nyob rau hauv 300–550 m |
| Cov ntawv thov siv | Telecom, campus backbone, FTTH | Data center intra- tsev txuas |
| Nqi rau jumper | Me ntsis siab dua (nruj tolerances) | qis |
Simplex vs Duplex, thiab xaiv qhov ntev ntev
A yooj yim jumpernqa ib lub fiber ntau thiab siv qhov twg tsuas yog ib txoj kev kho qhov muag xwb -, piv txwv li, saib xyuas cov kais dej lossis qee qhov kev sib txuas PON. Ib tug duplex jumper khub ob fibers rau cais kis tau tus mob thiab tau txais txoj kev, uas yog tus qauv configuration rau feem ntau Ethernet thiab transceiver kev twb kev txuas.
Qhov ntev xaiv tseem ceeb tshaj li ntau tus installers paub. Ib lub jumper uas luv dhau ua rau lub cable mus rau hauv txoj kev strained, muaj kev pheej hmoo rub ntawm lub connector, thiab tej zaum yuav ua txhaum lub vojvoog ntawm txoj kab uas hla ntawm sab nraum qab ntawm lub vaj huam sib luag. Ib lub jumper uas ntev dhau los tsim teeb meem kev tswj tsis tu ncua - fiber ntau looped nruj nreem qab lub khib vaj huam sib luag yog ib qho ntawm qhov zais macrobend poob. Ntsuas qhov tseeb routing txoj kev thiab ntxiv ib tug me me kev pab cuam, tab sis tsis txhob defaulting rau "qhov ntev tshaj plaws nyob rau hauv lub thawv."
Factory-Terminated vs Field-Polished
Rau cov qauv patching, lub Hoobkas-tawm jumpers muab qhov zoo sib xws ntawm qhov kawg geometry thiab qis qis dua piv rau cov teb- polished cov rooj sib txoos. Kev txiav tawm teb muaj nws qhov chaw - tshwj xeeb hauvfast connector los yog fusion splicing scenariosqhov twg xav tau ntev npaum li cas ntawm -site - tab sis lub Hoobkas qaum yog qhov kev nyab xeeb dua qub thaum tus qauv ntev ua haujlwm.

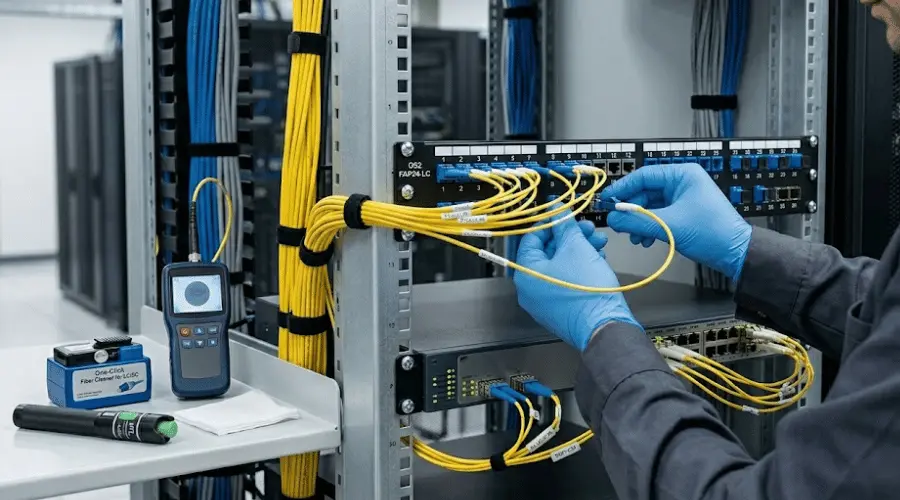

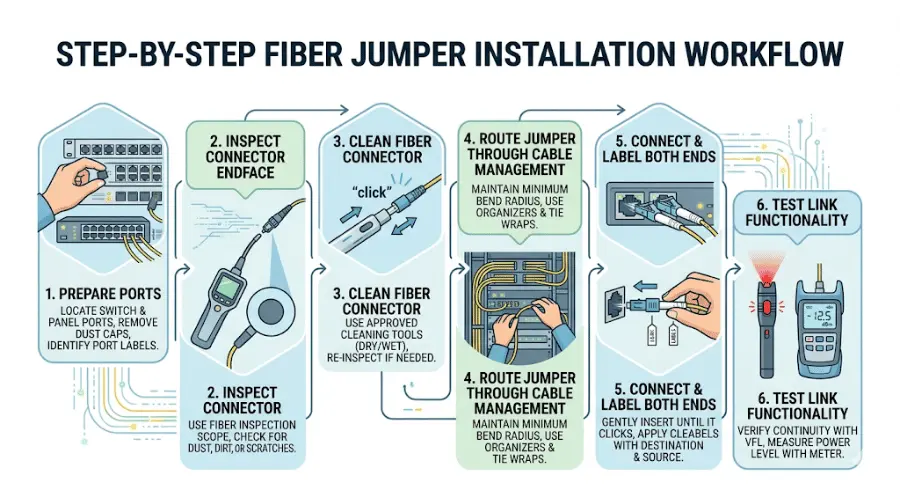

Yuav ua li cas rau nruab ib Fiber Jumper Kauj Ruam los ntawm kauj ruam
Kauj ruam 1: Npaj ua ntej kov lub Cable
Ua ntej koj rub lub jumper tawm ntawm nws lub hnab, paub meej tias ob qho kawg. Txheeb xyuas qhov chaw nres nkoj tseeb ntawm txhua sab, txheeb xyuas cov hom txuas thiab polish, thiab paub meej tias hom fiber ntau sib phim qhov txuas. Npaj koj cov ntawv sau ua ntej - sau lawv tom qab thaj chaw sib txuas, thaum leaning mus rau hauv cov khib nyiab, yog thaum daim ntawv hla dhau.
Yog tias qhov kev lees paub yog ib feem ntawm txoj haujlwm, kom koj cov cuab yeej ua haujlwm: lub teeb pom kev tsis pom kev (VFL), lub ntsuas hluav taws xob sib txuas, fiber ntau - cov khoom siv ntxuav kom nyab xeeb, thiab cov cuab yeej ntsuas xws li qhov ntsuas qhov muag tsis pom (OLTS) lossis qhov ntsuas hluav taws xob kho qhov muag thiab qhov chaw. CovFiber Optic Association (FOA)muab cov lus qhia ntxaws ntxaws txog cov txheej txheem xeem ntawv pov thawj thiab cov npe ntawm cov cuab yeej pom zoo.

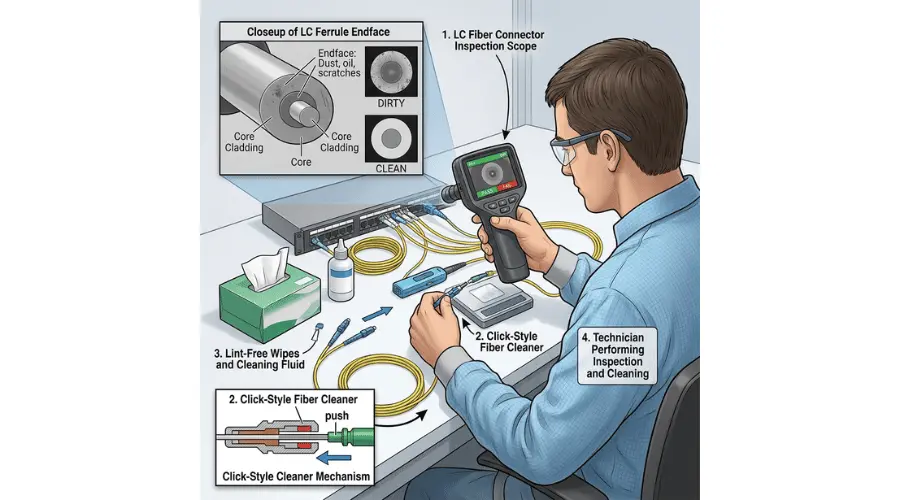

Kauj Ruam 2: Tshawb xyuas thiab ntxuav ua ntej txuas
Qhov no yog ib kauj ruam tseem ceeb tshaj plaws, thiab ib qho feem ntau hla. Connector contamination - plua plav, roj, thiab residue los ntawm kev tuav - yog dav lees paub nyob rau hauv kev lag luam raws li qhov ua rau ntawm fiber txuas tsis ua hauj lwm thiab kev xeem tsis ua hauj lwm. Txawm tias tus tshiab txuas ncaj qha los ntawm lub hnab ntim khoom tuaj yeem nqa cov khoom uas ua rau qhov ntsuas tsis tau lossis rov qab los ntawm -xav.
Txoj kev niaj hnub raug yog: tshuaj xyuas lub ntsej muag kawg hauv qhov kev nthuav dav, ntxuav yog tias muaj kev sib kis pom, tom qab ntawd tshuaj xyuas dua kom paub meej tias qhov chaw pom tseeb. Ntxuav ob qho tib si mating nto - plugging ib tug qias neeg connector rau hauv ib tug huv adapter contaminates lub adapter, thiab lub txuas txuas txuas mus rau lub adapter ntawd tau txais qhov teeb meem.
Siv cov cuab yeej ntxuav tu tsim tshwj xeeb rau cov khoom siv fiber ntau: cov ntaub so qhuav, nyem- cov tshuaj ntxuav tu, lossis lint- cov ntaub so ntswg dawb nrog cov kuab tshuaj tsim nyog rau cov tawv nqaij tawv. Tsis txhob siv cov kaus poom cua compressed rau cov khoom siv hluav taws xob - lawv tuaj yeem tso cov khoom seem ntawm qhov kawg. Yog xav paub ntxiv txog cov txheej txheem ntxuav, saib pebfiber connector tu thiab tu phau ntawv qhia.

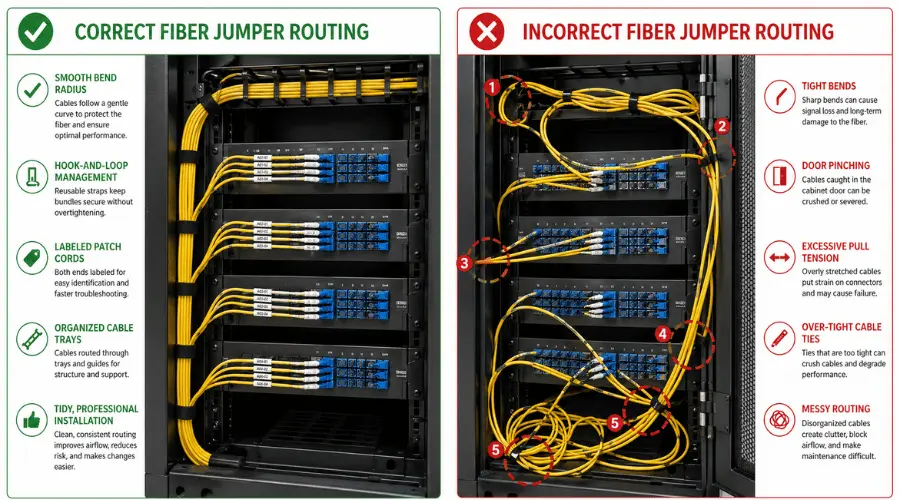

Kauj Ruam 3: Route Jumper kom raug
Taug kev lub jumper los ntawm kev tswj hwm cable - kab rov tav tais, ntsug raws, lossis cov lus qhia vaj huam sib luag - es tsis yog draping nws hla qhov qhib khib. Kev ua haujlwm tsis zoo yog qhov uas muaj ntau qhov "tsis piav qhia" cov teeb meem kev ua haujlwm tau tshwm sim.
Saib xyuas cov xwm txheej tshwj xeeb no:
- Txee qhov rooj pinching:Lub jumper hla hla lub pob khawm tuaj yeem tsoo txhua lub sijhawm kaw qhov rooj. Qhov no yog ib qho ntawm feem ntau qhov chaw -kev puas tsuaj nyob rau hauv cov txee.
- Tight khoov vojvoog:Txhua txoj hlua khi muaj qhov tsawg kawg nkaus khoov lub vojvoog uas tau teev tseg los ntawm cov chaw tsim khoom, feem ntau 10-15 npaug ntawm cov kab hluav taws xob sab nraud rau tus qauv 2.0 hli lossis 3.0 hli cords. Khoov nruj dua li qhov txwv no ua rau kom muaj kev cuam tshuam thiab tuaj yeem ua rau cov fiber ntau puas. Raws liIEC 61753: Uathiab cov qauv muaj feem xyuam, kev ua haujlwm kho qhov muag raug kuaj raws li cov txheej txheem khoov tau teev tseg, thiab dhau ntawm lawv yuav ua rau cov kev ua haujlwm tau lees paub.
- Lub zog rub tawm ntau dhau:Yog tias lub jumper tsis ncav cuag qhov yooj yim, cov lus teb yog jumper ntev dua - tsis rub nyuaj. Kev nruj ntawm lub connector tuaj yeem ua rau lub ferrule misalign nyob rau hauv lub adapter los yog micro- tawg cov fiber.
- Tshaj - nruj bundling:Cable ties cinched nruj nreem nyob ib ncig ntawm ib pab pawg neeg thaj cords saib zoo tab sis muaj peev xwm tsim taw tes - siab macrobend poob. Siv tus nuv-thiab-voj wraps xwb, thiab cia cov hlua txaus kom txav mus los. Yog xav paub ntxiv txog cov tswv yim tswj cable, saib peb tsab xov xwm ntawmfiber optic jumper tswj txoj kev.
Kauj Ruam 4: Txuas thiab sau ob qhov kawg
Ntxig lub connector ncaj nraim rau hauv lub adapter kom txog thaum nws nyem los yog latches. Tsis txhob ntswj lub cev cable los zaum lub connector - tig tsuas yog connector vaj tse yog hais tias lub interface tsim yuav tsum tau nws (raws li nrog FC bayonet -style connectors). Thaum zaum, muab ib tug maj mam rub kom paub meej tias nws raug kaw.
Tom qab ntawd daim ntawv lo ob xaus tam sim ntawd. Nyob rau hauv cov ntaub ntawv nyob hauv kab lossis xov tooj txee, ib qho tsis muaj npe jumper yog lub luag haujlwm. Txhua MAC (tsav, ntxiv, hloov) kev ua haujlwm uas kov cov hlua tsis muaj npe yuav ua rau rub qhov tsis raug. Daim ntawv lo zoo ib yam - sib piv cov chaw nres nkoj IDs, cov ntaub ntawv siv hluav taws xob, lossis cov xov tooj ntawm ob qhov kawg - them rau nws tus kheej thawj zaug uas ib tug neeg yuav tsum taug qab fiber ntau yam tsis muaj VFL.
Kauj ruam 5: Kuaj thiab txheeb xyuas qhov txuas
Tsis txhob xav tias qhov txuas yog qhov zoo vim tias qhov txuas txuas tau nyem. Yam tsawg kawg nkaus, txheeb xyuas qhov txuas ntxiv nrog VFL lossis pom lub teeb pom kev kom paub meej tias txoj kev fiber ntau yog qhov tseeb thiab tsis tawg. Rau kev txheeb xyuas qhov poob, siv OLTS teeb tsa rau qhov tseeb wavelength thiab fiber ntau hom.
OTDR kev sim muab cov ntaub ntawv ntxiv txog qhov txuas - splice poob, connector reflections, thiab deb ntawm faults - tab sis yuav tsum tau kawm kev txhais lus thiab feem ntau yog siv rau lub cev cables thiab ntsia cog es tsis txhob luv jumpers. FOA pom zoo tias kev sim OTDR yuav tsum ua los ntawm cov neeg ua haujlwm uas nkag siab txog cov cuab yeej siv thiab tuaj yeem txhais cov kab lus kom raug. Rau cov luv luv jumpers, ib qho kev ntsuas qhov poob nrog lub ntsuas hluav taws xob feem ntau yog qhov kev kuaj xyuas sai thiab tsim nyog dua.
Common Fiber Jumper yuam kev thiab yuav ua li cas zam lawv
Tom qab xyoo ntawm kev xa mus rau thaj chaw, qee qhov yuam kev tshwm sim dua thiab dua. Nov yog cov uas ua rau feem ntau rework:
Kev xaiv jumper yuam kev.
Connector mismatch, tsis ncaj ncees lawm polish hom (APC rau UPC), los yog tsis ncaj ncees lawm fiber hom. Qhov no feem ntau tshwm sim thaum cov khoom seem raug rub los ntawm cov khoom sib xyaw yam tsis tau kuaj xyuas cov cim. Sau npe koj cov khoom muag.
Hla kev tshuaj xyuas vim tias qhov txuas "zoo li huv."
Lub kaus mom plua plav tsis yog lub foob - nws txo qhov raug tab sis tsis lav lub ntsej muag huv. Cov khoom tsis pom ntawm qhov muag liab qab yog qhov txaus los ua kom ntsuas qhov nkag tsis tau. Ib txwm tshuaj xyuas ntawm qib microscope.
Routing shortcuts.
Khiav ib lub jumper diagonally hla lub khib qhib lossis hauv qab pobzeb hauv pem teb "tsuas yog tam sim no" tsim kev phom sij, kev pheej hmoo ntawm kev sib tsoo, thiab txoj hauv kev uas tsis muaj leej twg sau ntawv. Txoj kev ib ntus dhau los ua kev teeb tsa ruaj khov sai sai heev.
Tsis muaj daim ntawv lo.
Hauv ib lub vaj huam sib luag nrog 48 lossis 96 LC chaw nres nkoj, nrhiav qhov tsis muaj npe jumper los ntawm kev sim -thiab- yuam kev txhais tau tias cuam tshuam cov kev pabcuam nyob. Labeling yuav siv sij hawm vib nas this; qhov hluav taws xob tiv thaiv tuaj yeem siv sij hawm los daws.
Reusing pom cov hlua uas puas lawm.
Yog hais tias lub connector ferrule qhia khawb nyob rau hauv kev soj ntsuam, los yog lub cable tsho muaj kev ntxhov siab, kinks, los yog crushed seem, hloov lub jumper. Tus nqi ntawm txoj hlua khi tshiab yog qhov tsis tseem ceeb piv rau tus nqi ntawm kev ua haujlwm tsis sib xws uas nyuaj rau kev tsim tawm thiab kuaj xyuas.
Fiber Jumper daws teeb meem
Thaum qhov txuas tsis tuaj tom qab patching - lossis qhia tias poob siab dua li qhov xav tau - ua haujlwm los ntawm cov tshev no ua ntej nce mus rau qhov kev sim siab. Rau kev saib dav dav ntawm fiber ntau network kuaj xyuas, saib pebfiber optic teeb meem phau ntawv qhia.
Txheeb xyuas qhov chaw nres nkoj.
Paub meej tias ob qhov kawg yog ntsaws rau hauv cov chaw nres nkoj raug. Hauv siab - cov vaj huam sib luag ntom ntom, nws yooj yim kom tawm ntawm ib txoj hauj lwm, tshwj xeeb tshaj yog nrog LC duplex connectors uas zaum ze ua ke.
Xyuas cov jumper specification.
Xyuas kom tseeb tias hom connector, polish, thiab fiber ntau phim qhov txuas xav tau. Ib qho -hom jumper nyob rau hauv ib qho kev sib txuas ntawm multimode (los yog vice versa) yuav tsis ua hauj lwm ntseeg tau, txawm tias cov connectors lub cev haum.
Tshawb xyuas thiab ntxuav.
Tshem lub connector, tshuaj xyuas qhov kawg, ntxuav nws, tshuaj xyuas dua, thiab rov txuas dua. Yog hais tias lub adapter nws tus kheej yuav kis tau, ntxuav lub adapter bore thiab.
Txheeb xyuas qhov routing.
Saib rau qhov khoov ntse, pinch cov ntsiab lus, lossis nro raws txoj kab kab. Ib lub jumper uas rub taut ntawm ob lub racks tuaj yeem ncav cuag, tab sis qhov kev sib tw tuaj yeem ua rau txaus microbend poob los ua kom tsis zoo rau qhov sib txuas.
Hloov lub jumper.
Yog tias cov kev txheeb xyuas saum toj no tsis daws qhov teeb meem, hloov lub jumper nrog tus paub txog - zoo spare. Qhov no yog sai dua qhov kev kuaj mob ntev ntawm txoj hlua uas muaj feem cuam tshuam, thiab nws tam sim ntawd lees paub lossis tshem tawm lub jumper raws li qhov ua rau.
Kev ceeb toom kev nyab xeeb:Tsis txhob saib ncaj qha rau hauv lub zog fiber ntau txuas lossis chaw nres nkoj adapter. Lub teeb infrared laser siv nyob rau hauv telecom systems tsis pom tab sis tuaj yeem ua rau qhov muag raug mob. Yog tias koj xav tau tshuaj xyuas cov khoom sib txuas ntawm qhov txuas nyob, siv lub tshuab ntsuas ntsuas ntsuas uas tsim los rau hauv - kev pab cuam, lossis xyuas kom deb - qhov kawg transmitter yog neeg xiam ua ntej.

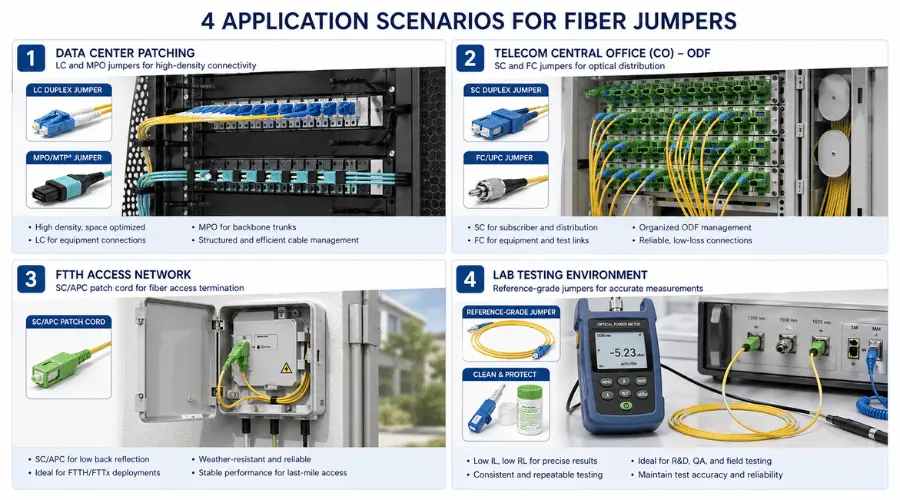

Qhov twg Fiber Jumpers Siv: Daim Ntawv Thov Scenario
Tib yam khoom jumper ua haujlwm sib txawv nyob ntawm ib puag ncig:
Data center patching.
Hauvsiab -cov ntaub ntawv ceev ceev ib puag ncig, LC thiab MPO jumpers txuas cov keyboards rau cov txheej txheem cabling. Qhov ntom ntom ua rau qhov xav tau me me rau - daim ntawv - cov khoom txuas, ceev faj tswj hwm, thiab ua haujlwm ceev MAC. Uniboot LC patch cords txo cov cable ntim los ntawm kev sib txuas ob fibers rau hauv ib lub tsho.
Telecom Central Office thiab ODF.
Nyob rau hauv ib puag ncig kev sib tham, jumpers txuas cov cuab yeej siv rauoptical faib thav duab. SC thiab FC connectors tseem muaj nyob ntawm no, thiab jumpers yuav nyob rau hauv qhov chaw rau xyoo - ua thawj zaug zoo thiab daim ntawv lo tseem ceeb heev.
FTTH thiab nkag mus rau network.
Hauv fiber ntau-rau-- kev xa tawm hauv tsev, thaj cords txuas cov splitters rau cov vaj huam sib luag thiabterminal thawvrau cov cuab yeej siv. SC / APC yog hom kev sib txuas tseem ceeb hauv feem ntau PON architectures vim nws qhov poob qis.
Kev kuaj thiab kuaj ib puag ncig.
Kev siv -qib jumpers nrog cov txiaj ntsig tsis paub yog siv los ua cov thawj coj hauv kev teeb tsa hauv chav kuaj thiab cov ntawv pov thawj ua haujlwm. Cov no feem ntau ua tib zoo saib xyuas thiab khaws cia nrog lub kaus mom tiv thaiv tom qab siv txhua zaus.
Cov lus nug nquag
Ib -hom thiab multimode fiber jumpers tuaj yeem sib xyaw ntawm tib qhov txuas?
Tsis yog. Kev sib xyaw ntawm fiber ntau ntawm ib txoj kev kho qhov muag ua rau lub cev txoj kab uas hla tsis sib haum (9 µm vs 50 µm) uas qhia txog kev poob ntau. Lub jumper yuav tsum phim cov fiber ntau ntawm qhov system nws txuas nrog. Yog xav paub ntxiv txog kev sib piv, saib peb phau ntawv qhiasingle-mode vs multimode fiber ntau.
Ntev npaum li cas fiber connectors yuav tsum tau ntxuav?
Tsis muaj lub sijhawm tu universal. Qhov kev coj ua uas txhim khu kev qha yog los tshuaj xyuas ua ntej txhua qhov kev sib txuas lossis kev sim, thiab ntxuav thaum twg pom muaj kab mob. Nyob rau hauv ib puag ncig uas muaj plua plav ntau heev los yog nquag ua haujlwm patching, cov khoom sib txuas yuav xav tau kev ntxuav ntau zaus. Lub hauv paus ntsiab lus yog tshuaj xyuas -tsav, tsis yog daim ntawv qhia hnub- tsav.
Yuav ua li cas yog hais tias ib tug fiber jumper yog khoov nruj heev?
Tshaj qhov tsawg kawg nkaus khoov lub vojvoog ua rau muaj kev txo qis los ntawm macrobending - lub teeb tawm ntawm lub hauv paus ntawm qhov khoov taw tes. Hauv qhov xwm txheej hnyav, fiber nws tus kheej tuaj yeem tawg. Qhov tshwj xeeb txwv yog nyob ntawm thaj chaw qaum tsim thiab tau teev nyob rau ntawm cov chaw tsim khoom cov ntaub ntawv, tab sis cov lus qhia dav dav yog yuav tsum tsis txhob khoov nruj dua 10 npaug ntawm cov kab hluav taws xob sab nraud hauv qab thauj khoom.
Ntev npaum li cas yuav tsum muaj fiber ntau jumper?
Ntsuas qhov tseeb routing txoj kev ntawm ob qhov kawg, suav nrog ntsug khiav, kab rov tav tais, thiab ib qho kev pabcuam loops, tom qab ntawd ntxiv cov npoo me me (feem ntau 0.3-0.5 m). Zam tus cwj pwm ntawm ib txwm xaj qhov ntev - ib qho 3 m jumper rau 1 m txoj kev tsim cov slack tsis tsim nyog uas yuav tsum tau tswj, thaum 1 m jumper rau 1.5 m txoj kev tsim strain thiab khoov vojvoog ua txhaum cai.
Kuv puas tuaj yeem sib xyaw APC thiab UPC txuas?
Tsis yog. APC (lub cev sib cuag) thiab UPC (ultra lub cev sib tiv tauj) cov khoom sib txuas muaj qhov sib txawv ntawm qhov kawg ntawm qhov chaw - 8℃kaum sab xis vs tiaj tus - thiab lub cev tsis sib haum thaum sib raug zoo. Txuas APC rau UPC ua rau muaj kev nkag siab siab, rov qab poob siab, thiab kev puas tsuaj rau ob qho tib si ferrule. Ib txwm ua phooj ywg APC nrog APC thiab UPC nrog UPC. Kawm ntxiv hauv pebqhia rau PC, UPC, thiab APC polish hom.
Dab tsi yog qhov txawv ntawm fiber ntau pigtail thiab ib thaj qaum?
A fiber pigtailmuaj ib tug connector ntawm ib kawg thiab ib tug liab qab fiber nyob rau hauv lwm yam, tsim los ua fusion-spliceed rau lub cev cable. Ib lub patch qaum muaj cov khoom sib txuas ntawm ob qho kawg thiab siv rau kev sib txuas uas tshem tau. Lawv ua hauj lwm sib txawv nyob rau hauv lub cabling architecture: pigtails yog semi- mus tas li splice- mus rau -connector kev hloov, thaum thaj cords yog qhov hloov tau, teb- hloov pauv tau.
Cov ntaub ntawv
- Fiber Optic Association (FOA) -Fiber Optic Test thiab Certification
- IEC 61753 - Fiber optic interconnecting li thiab passive Cheebtsam - Performance standard (muaj nyob ntawmIEC)
- TIA-568 - Kev Sib Txuas Lus Infrastructure Standard for Customer Premises (muaj nyob ntawmTIA)
