Ib qho MPO breakout module hloov ntau yam -fiberMPO / MTP connectorrau hauv ib tus neeg fiber ntau channels - feem ntau LC duplex lossis SC chaw nres nkoj - yog li txhua lub channel tuaj yeem txuas mus rau ib qho transceiver cais, hloov chaw nres nkoj, lossis thaj chaw vaj huam sib luag. Rau cov pab pawg hauv cov ntaub ntawv siv 40G, 100G, lossis 400G txuas, txoj cai MPO rau LC breakout module txo cov kab mob sib kis, ua rau kev sib tshuam - khib khiav, thiab ua rau kev daws teeb meem tsis tshua muaj mob.
Phau ntawv qhia no hais txog yuav ua li cas MPO breakout modules ua hauj lwm, thaum twg yuav siv ib tug es tsis txhob ntawm ib tug breakout cable, cov ntsiab lus tseem ceeb uas cuam tshuam rau kev sib txuas, thiab ib kauj ruam - los ntawm - cov txheej txheem xaiv cov kauj ruam uas tiv thaiv kev txiav txim yuam kev.
MPO Breakout Module yog dab tsi?

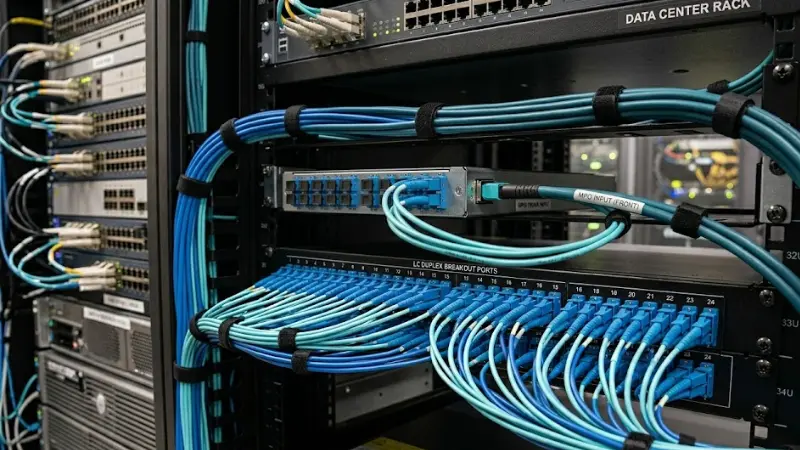

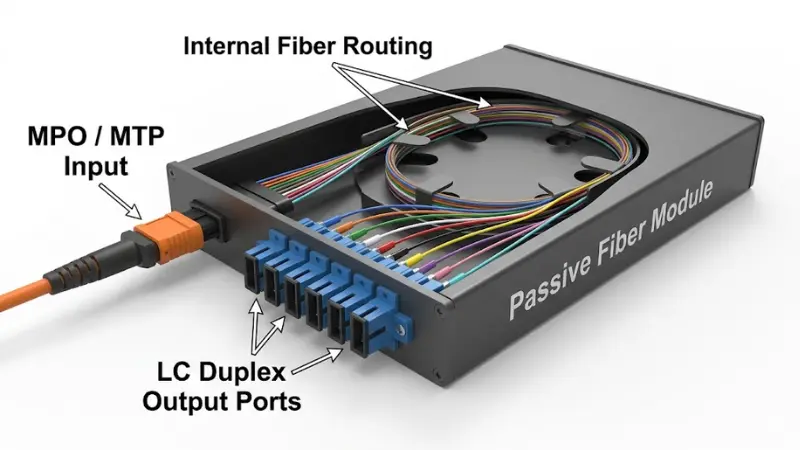

Ib qho MPO breakout module yog ib qho kev sib txuas ntawm fiber ntau nyob rau hauv lub cassette, LGX vaj huam sib luag, los yog khib-mount enclosure. Nws yuav siv cov fibers bundled nyob rau hauv ib tug MPO / MTP lub cev connector thiab txoj kev ib tug fiber ntau khub mus rau ib tug nyias muaj nyias qhov chaw nres nkoj - feem ntauLC duplex, txawm li cas losSC connectorstau siv nyob rau hauv qee qhov chaw qub txeeg qub teg lossis kev sib tham hauv xov tooj.
Txoj kev taw qhia yooj yim yog ncaj nraim: MPO lub cev cable nkag mus rau tom qab ntawm lub module, thiab cov chaw nres nkoj LC los yog SC tshwm rau pem hauv ntej. Vim hais tias lub module yog passive, nws tsis amplify, reshape, los yog re-clock lub optical teeb liab. Nws txoj haujlwm yog fiber ntau routing, tswj polarity, thiab lub koom haum cable lub cev.
MPO vs MTP: Puas yog lawv tib yam?
MPO (Multi-fiber Push On) yog hais txog hom connector txhais los ntawmIEC 61754-7: Uatxheem. MTP yog ib lub cim kev lag luam ntawm US Conec uas piav qhia txog qhov ua tau zoo ntawm - kev ua tau zoo ntawm MPO connector nrog rau kev ua siab ntev dua thiab lub tsev tshem tau yooj yim dua - polishing. Hauv kev xyaum, ob nqe lus yog siv sib hloov hauv feem ntau cov ntaub ntawv chaw cov ntsiab lus, thiab MTP connectors sib txuas ncaj qha nrog tus qauv MPO connectors. Thoob plaws hauv phau ntawv qhia no, "MPO" yog hais txog ob qho tib si tshwj tsis yog qhov kev sib txawv yog qhov tsim nyog.
Vim li cas thiaj siv MPO Breakout Module hauv Data Center?
High- qhov chaw fiber ntau ceev tuaj yeem tswj tsis tau sai thaum txhua qhov kev sib txuas ua ke nrog tus neeg dhia dhia. Raws li khib nyiab nce ntxiv thiab cov chaw nres nkoj suav nce, xoob cabling thaiv airflow, obscures daim ntawv lo, thiab hloov txhua qhov txav - ntxiv - hloov mus rau qhov kev pheej hmoo ntawm kev cuam tshuam cov kev sib txuas nyob.
Ib qho MPO breakout module daws cov teeb meem no los ntawm kev sib koom ua ke ntau cov fiber ntau channel rau hauv ib qho kev sib txuas ua ke. Hauv kev xyaum, qhov no txhais tau tias tsawg dua cov cables khiav ntawm racks, qhov chaw nres nkoj zoo ib yam ntawm ob qho kawg ntawm lub cev, thiab cov txheej txheem sai dua thaum tus kws tshaj lij xav tau taug qab, sim, lossis hloov kev sib txuas.
Cov txiaj ntsig tau pom zoo tshaj plaws nyob rau hauv ib puag ncig uas ntau qhov sib txuas luv fiber ntau yuav tsum sib koom ua ke ntawm lub hauv paus patching point - piv txwv li, sab saum toj - ntawm - khib kom kawg - ntawm - kab sib sau txheej, lossis kev sib ntsib{5}} kuv chav hla - txuas cheeb tsam.

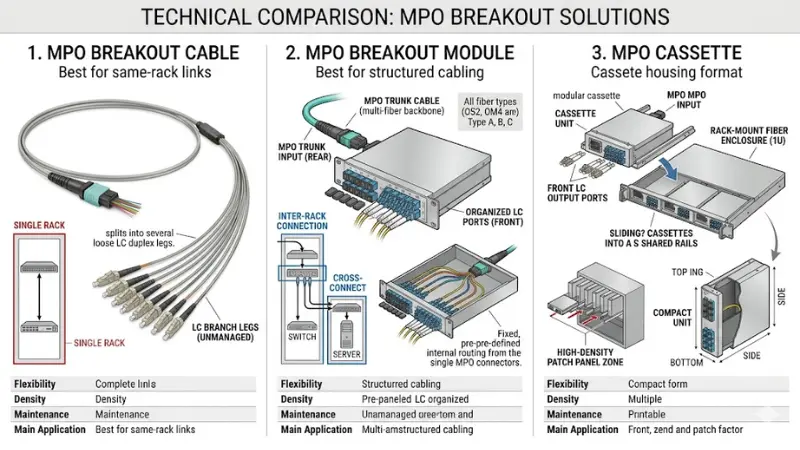

MPO Breakout Module vs MPO Breakout Cable vs MPO Cassette
Peb cov ntsiab lus no tuaj tas li hauv kev sib tham ntawm fiber ntau cable, thiab lawv sib tshooj txaus ua rau tsis meej pem. Nov yog qhov lawv txawv li cas hauv kev xyaum:
IbMPO breakout cable(tseem hu ua fanout cable lossis harness cable) yog ib qho kev sib txuas cable uas sib cais ib qho MPO / MTP txuas ncaj qha mus rau ntau lub LC lossis SC ob txhais ceg. Nws ua haujlwm zoo rau luv luv, tib yam - khib kev sib txuas - piv txwv li, tawg tawm 40G QSFP + chaw nres nkoj rau plaub 10G SFP + chaw nres nkoj hauv tib lub txee. Lub drawback yog tias breakout cables yuav ntxhov thaum siv ntawm scale hla ntau racks. Txhua lub cable ntxiv ob peb txhais ceg xoob uas yuav tsum tau ua tus kheej thiab tswj.
IbMPO kev ua haujlwm moduletsev cov fiber ntau breakout hauv ib lub vaj huam sib luag los yog cassette. Lub MPO lub cev cable ntsaws rau hauv lub nraub qaum, thiab pem hauv ntej nthuav qhia cov chaw nres nkoj LC lossis SC hauv lub ntsej muag ruaj khov. Txoj hauv kev no yooj yim dua los sau npe, tswj hwm, thiab ntsuas thoob plaws hauv inter- khib lossis hla - txuas kev xa tawm.
IbMPO cassetteyog qhov tseem ceeb ntawm daim foos - ib lub vaj tsev modular uas feem ntau muaj ib qho kev faib tawm sab hauv. Qee cov tuam txhab siv "cassette" thiab "module" sib hloov; lwm tus paub qhov txawv ntawm lawv los ntawm hom tsev nyob. Lub ntsiab lus tseem ceeb yog tias lub cassette yuav tsum sib phim tib yam fiber ntau suav, polarity, thiab connector specifications raws li ib tug standalone breakout module.
Ib txoj cai dav dav: siv cov kab sib txuas rau luv luv, yooj yim, tib yam -rack txuas. Siv ib qho kev sib cais los yog cov kab cassette thaum qhov kev sib txuas khiav ntawm racks, dhau los ntawm ib cheeb tsam cabling, los yog xav tau kev pab cuam yam tsis muaj kev cuam tshuam cov kev sib txuas uas nyob ib sab.
Cov ntawv thov siv rau MPO Breakout Modules

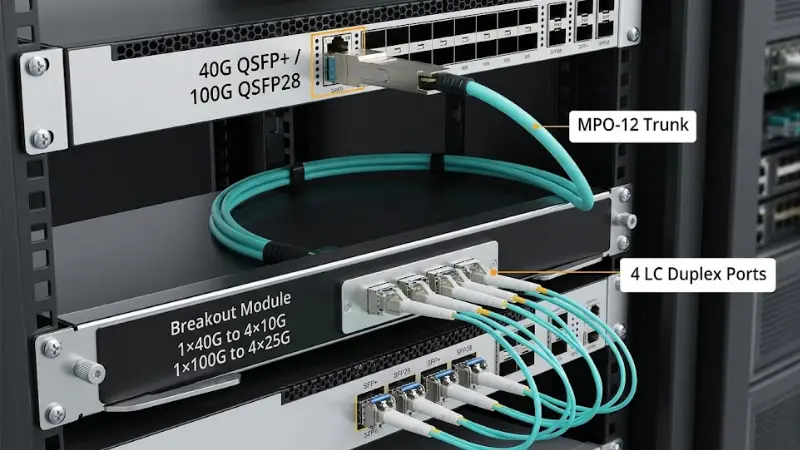

QSFP rau SFP Breakout (40G thiab 100G)
Ib qho kev xa tawm ntau tshaj plaws yog rhuav tshem qhov siab - nrawm nrawm nrawm rau hauv ntau qhov qis dua - cov chaw nres nkoj ceev. Ob yam configurations:
- 1 × 40G QSFP + rau 4 × 10G SFP +- siv 8-fiber MPO pob tw (tsuas yog 8 ntawm 12 fibers hauv MPO-12 connector yog nquag) tawg mus rau 4 LC duplex ports. Txhua khub LC nqa ib txoj kab 10G.
- 1 × 100G QSFP28 rau 4 × 25G SFP28- tib yam 8-fiber MPO-12 lub cev, tawg tawm mus rau 4 LC duplex ports. Txhua khub LC nqa ib txoj kab 25G.
Nyob rau hauv ob qho tib si, lub breakout module npaj plaub tus neeg LC kev sib txuas ntawm ib lub vaj huam sib luag es tsis txhob tawm hauv cov kiv cua hauv cov khib nyiab.

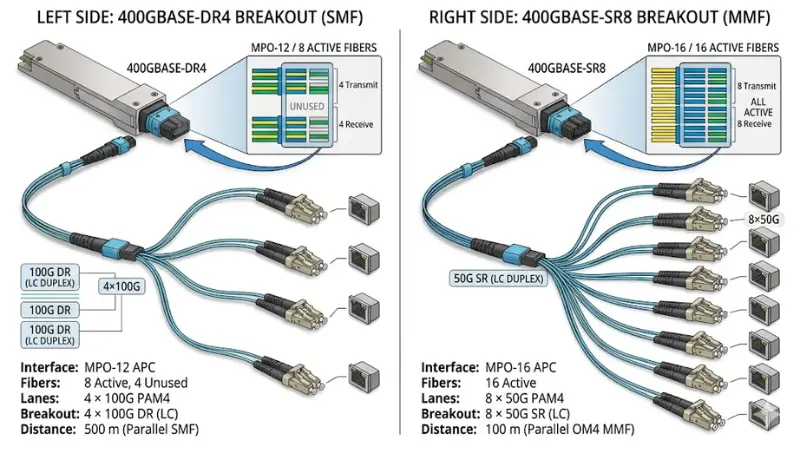

400G QSFP-DD Breakout
400G nthuav qhia ntau yam hauv fiber ntau suav thiab txuas txuas. A 400GBASE-DR4 transceiver, piv txwv li, siv 8 fibers (4 Tx, 4 Rx) hauv MPO-12 connector, txhawb kev tawg mus rau 4 × 100G QSFP28 DR ports - txhua qhov sib txuas ntawm LC duplex. 400GBASE-SR8 variant siv MPO-16 txuas nrog 16 fibers (8 Tx, 8 Rx), uas tuaj yeem tawg mus rau 8 × 50G lossis 2 × 200G teeb tsa. Cov no yog txhais raws liIEEE 802.3 ibthiab lwm yam qauv.
Rau 400G kev xa tawm, kev lees paub qhov tseeb transceiver hom thiab fiber ntau suav ua ntej xaj qhov kev txiav tawm yog qhov tseem ceeb tshaj qhov qis dua, vim tias MPO connector pinout thiab kab ntawv sib txawv ntawm DR4, SR8, thiab SR4.2 variants.
Inter-Rack Fiber Connectivity
Rau kev sib txuas uas hla ntau lub racks - piv txwv li, los ntawm nplooj ntawv hloov khib mus rau tus txha nraub qaum hloov khib - ib qhoMPO lub cev cablekhiav ntawm racks, thiab ib qho kev sib cais ntawm txhua qhov kawg nthuav qhia cov chaw nres nkoj LC. Txoj hauv kev no tso cai rau cov kws tshaj lij los sau npe, kho, thiab sib pauv kev sib txuas ntawm tus kheej yam tsis muaj kev cuam tshuam rau lub cev lossis cov kev sib txuas uas nyob ib sab. Nws yog tus txheej txheem kev coj ua hauv kev tsim qauv cabling rau cov chaw zov me nyuam ntawm txhua qhov loj.
Siab -Density Patch Panel Deployment
Hauv ibsiab -ntaus vaj huam sib luagib puag ncig, breakout modules xaub mus rau hauv khib-mount enclosures (feem ntau 1U lossis 4U) thiab nthuav tawm cov kab ntom ntom ntawm LC ports rau pem hauv ntej. Qhov no ua rau nws nrawm dua los txheeb xyuas cov chaw nres nkoj thaum lub sijhawm tu thiab txo qhov kev pheej hmoo ntawm kev tsis sib haum xeeb ntawm tus neeg nyob ze qhov txuas. Ib lub vaj huam sib luag 1U tuaj yeem tuav tau ntau lub tshuab luam ntawv, txhua qhov ua haujlwm sib txawv MPO lub cev, sib sau ua ke ntau qhov sib txuas ntawm fiber ntau rau hauv kev sib cog lus, kev sib koom ua ke.
Cov ntsiab lus tseem ceeb rau xaiv MPO Breakout Module
Xaiv qhov module zoo yuav tsum sib piv ntau qhov tshwj xeeb rau koj lub transceiver, lub cev cable, thiab kawg - mus rau - kawg txuas tsim. Tau txais ib qho ntawm qhov tsis ncaj ncees lawm tuaj yeem ua rau tsis yog - txuas ua haujlwm - txawm tias txhua qhov khoom zoo li lub cev raug.
Fiber suav
Tus naj npawb ntawm cov khoom siv fiber ntau yuav tsum sib phim rau daim ntawv thov transceiver. Common configurations muaj xws li:
- 8-fiber (MPO-12 nrog 8 fibers nquag)- siv rau 40GBASE-SR4, 100GBASE-SR4, thiab 400GBASE-DR4. MPO-12 connector muaj 12 txoj haujlwm fiber ntau, tab sis tsuas yog 8 tus neeg nyob rau cov ntawv thov no. Lub module tawg tawm mus rau 4 LC duplex ports.
- 12-fiber (MPO-12, tag nrho cov fibers nquag)- siv rau qee qhov 100G thiab duplex breakout designs. Lub module tawg tawm mus rau 6 LC duplex ports. Qhov no yog ib qho ntawm cov qauv cabling uas txhua 12 fibers siv rau ib tus neeg 10G lossis 25G duplex txuas.
- 24-fiber (MPO-24)- siv rau siab dua - qhov sib zog ceev, muab 12 LC duplex ports los ntawm ib qho txuas. Kuj siv nyob rau hauv qee qhov 100G thiab 400G parallel optics configurations.
- 16-fiber (MPO-16)- siv rau 400GBASE-SR8, tawg mus rau 8 LC duplex ports.
Tsis txhob xav tias suav fiber ntau raws li lub cev txuas ib leeg. MPO-12 connector yuav nqa 8 los yog 12 active fibers nyob ntawm daim ntawv thov. Ib txwm txheeb xyuas tawm tsam cov ntaub ntawv transceiver.
Hom Connector
Xyuas ob sab ntawm lub module. Lub nraub qaum feem ntau lees txais MPO / MTP lub cev cable. Pem hauv ntej muab cov chaw nres nkoj tawg - feem ntauLC Duplex Adapter, txawm hais tias SC adapters tau siv nyob rau hauv qee qhov qub txeeg qub teg lossis kev xa xov tooj. Rau feem ntau cov ntaub ntawv chaw teeb tsa tshiab, LC duplex yog qhov kev xaiv zoo vim nws qhov loj me thiab kev txhawb nqa dav dav.

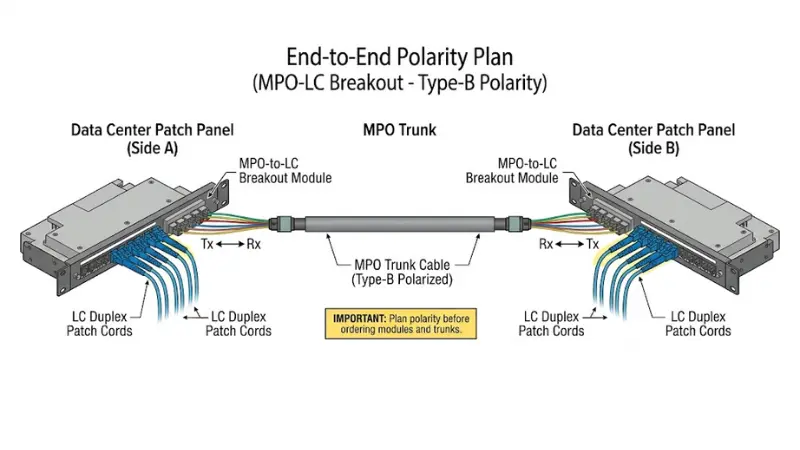

Txoj kev Polarity
Polarity yog ib qho ntawm feem ntau ntawm MPO cabling tsis ua hauj lwm. Nws txiav txim siab seb qhov kev xa tawm (Tx) fiber ntau ntawm ib kawg mus txog qhov tau txais (Rx) chaw nres nkoj ntawm lwm qhov kawg. Nrog ib qho yooj yim LC duplex thaj qaum, polarity yooj yim pom thiab kho. Nrog MPO connectors nqa 8, 12, lossis 24 fibers, sab hauv fiber ntau yuav tsum tau npaj ua ib feem ntawm tag nrho cov channel tsim.
CovANSI/TIA-568.3-Etus qauv txhais tsib txoj kev polarity rau MPO-raws li duplex breakout systems: Method A, Method B, Method C, thiab the newer Method U1 and Method U2. Txhua txoj kev siv ib qho sib txawv ntawm cov kab hluav taws xob sib txawv (Hom A, Hom B, lossis Hom C), cov kab hluav taws xob / cov khoom siv hluav taws xob, thiab kev teeb tsa duplex patch cord kom ua tiav Tx-rau-Rx kev sib raug zoo hla qhov txuas.
Hauv cov ntsiab lus yooj yim:
- Txoj Kev Asiv ib qho ncaj-los ntawm Hom A lub cev cable (tus yuam sij- mus txog qhov tseem ceeb- nqis). Lub polarity flip tshwm sim ntawm thaj qaum theem - tus qauv A- mus rau -B duplex thaj qaum ntawm ib kawg thiab A - mus rau -Ib thaj qaum ntawm lwm qhov.
- Txoj kev Bsiv hom B lub cev cable (tus yuam sij- mus txog qhov tseem ceeb- nce), uas thim rov qab tag nrho cov fiber ntau array. Ob qhov kawg siv cov qauv zoo ib yam thiab tus qauv A- rau-B thaj qaum, ua rau nws nrov rau kev xa tawm loj -.
- Txoj kev Csiv hom C lub cev cable uas nyob ib sab fiber ntau sib pauv. Ob qhov kawg siv tus qauv A- rau -B thaj qaum.
Txoj cai tseem ceeb:tsis txhob xaiv polarity ib feem ntawm ib lub sij hawm. Tsim tag nrho cov channel - transceiver, lub cev cable, breakout module, thiab thaj qaum - ua ke. Ib qho qauv uas zoo li lub cev muaj peev xwm tseem tuaj yeem tsim qhov txuas tuag yog tias daim ntawv qhia polarity tsis sib haum mus rau qhov kawg.
Hom Fiber: Ib leeg-Hom vs Multimode
Xaivtib- hom lossis multimode fiber ntauraws li koj cov transceivers thiab kev ncua deb. Tib - hom (OS2) yog siv rau ntev dua - mus txog cov ntawv thov thiab feem ntau 400G DR4/FR4/LR4 txuas. Multimode (OM3,OM 4, OM5) yog siv rau luv luv - mus txog qhov txuas xws li 40GBASE-SR4 thiab 100GBASE-SR4, feem ntau nyob rau hauv tib lub tsev cov ntaub ntawv.
Tsis txhob sib xyaw ib qho -hom thiab multimode Cheebtsam nyob rau hauv tib lub optical channel. Ib qho - hom transceiver txuas nrog los ntawm multimode breakout module yuav tsis tsim qhov txuas ua haujlwm.

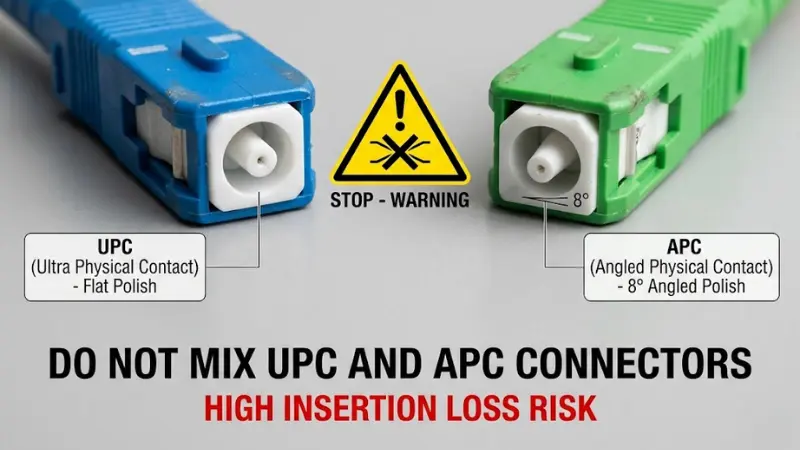

Xaus -Face Polish: UPC vs APC
Ob qhov kawg - ntsej muag polish hom -UPC (Ultra Physical Contact) thiab APC (Angled Physical Contact)- tsis hloov pauv tau. APC connectors muaj 8-degree angled lub ntsej muag uas txo qis rov qab-reflector, ua rau lawv muaj nyob rau hauv ib qho - daim ntawv thov hom thiab yuav tsum tau los ntawm ib co 400G transceiver specifications. UPC connectors siv lub tiaj tus - radius polish thiab yog tus qauv nyob rau hauv feem ntau multimode thiab ntau ib hom kev xa tawm.
Mating UPC connector nrog APC adapter (los yog vice versa) ua rau lub ntsej muag kawg thiab ua rau poob siab. Txhua yam khoom nyob rau hauv cov channel - trunk cable, breakout module adapters, thiab thaj qaum - yuav tsum siv tib hom polish.
Form Factor
MPO breakout modules tuaj nyob rau hauv ob peb lub cev hom:
- LGX-compatible cassettes- haum rau tus qauv LGX chassis thiab panels; dav muaj thiab yooj yim rau qhov chaw.
- Khib-mount panels (1U, 2U, 4U)- tuav ntau lub kaw lus hauv ib lub txee; feem ntau nyob rau hauv cov txheej txheem cabling deployments.
- High -cov tshuab kaw lus kaw lus- Cov khoom ntiag tug los ntawm ntau lub tuam txhab, feem ntau muab cov chaw nres nkoj siab dua rau ib chav tsev khib dua li LGX tus qauv.
Xaiv raws li qhov chaw muaj khib nyiab, tus naj npawb ntawm cov pob tw los txiav, thiab cov kws kho mob yooj yim npaum li cas yuav tsum tau nkag mus rau ib tus neeg cov chaw nres nkoj rau patching thiab tu.
Insertion Poob thiab Link Budget
Txhua qhov passive tivthaiv nyob rau hauv txoj kev kho qhov muag ntxiv qhov poob. Lub breakout module feem ntau pab txhawb 0.3-0.7 dB ib khub niam txiv, nyob ntawm seb qhov sib txuas zoo thiab kev sib txuas ntawm fiber ntau. Ua ntej ua tiav cov qauv tsim, suav tag nrho cov peev nyiaj txuas los ntawm kev suav cov nyiaj poob haujlwm los ntawm cov transceiver, fiber ntau ntev (attenuation ib km), txhua qhov txuas txuas, txhua qhov sib txuas, MPO lub cev sib txuas, thiab cov qauv sib cais nws tus kheej.
Sib piv tag nrho cov kev xav tau poob tawm tsam lub transceiver cov peev nyiaj kho qhov muag (hloov lub zog rho tawm qhov kev xav tau). Yog tias cov npoo nyias nyias, qhov txuas yuav raug yuam kev ntawm qhov kub siab dua lossis raws li cov hnub nyoog sib txuas. Qhov kev suav no tseem ceeb tshwj xeeb tshaj yog rau ib zaug ntev dua - hom khiav thiab siab - nrawm 400G txuas qhov twg cov peev nyiaj txuas tau nruj.
Hom MPO Breakout Configurations
Cov kev teeb tsa hauv qab no sawv cev rau qhov tiag tiag -kev xa tawm thoob ntiaj teb:
- 12-fiber MPO rau 6 × LC duplex- tus qauv rau kev tsim cabling qhov twg tag nrho 12 fibers nqa ib tug duplex raws (xws li, 6 cais 10G lossis 25G txuas).
- 8-fiber MPO rau 4 × LC duplex- txheem rau40GBASE-SR4thiab 100GBASE-SR4 breakout applications.
- 24-fiber MPO rau 12 × LC duplex- siv nyob rau hauv siab - qauv tsim qhov twg ib lub cev ua haujlwm rau 12 qhov kev sib txuas duplex.
- 24-fiber MPO rau 3 × 8-fiber MPO- siv nyob rau hauv qee qhov 400G kev tsiv teb tsaws tsim qhov twg lub cev tau tawg mus rau hauv MPO pawg me rau cov khoom sib txuas.
Rau100G kabthiab 400G kev npaj kev tsiv teb tsaws chaw, lees paub qhov kev teeb tsa tiv thaiv cov ntaub ntawv tshwj xeeb transceiver thiab lub cev cable hom ua ntej xaj.
Yuav Ua Li Cas Xaiv Txoj Cai MPO Breakout Module: Kauj Ruam los ntawm kauj ruam
Kauj Ruam 1: Txhais Daim Ntawv Thov
Pib nrog lub network xav tau. Puas yog koj rhuav tshem QSFP chaw nres nkoj rau ib tus SFP chaw nres nkoj? Lub tsev inter- khib kev sib txuas ntawm nplooj thiab txha nraub qaum? Tsim ib lub hauv paus patching teb hauv kev sib ntsib -kuv chav? Daim ntawv thov txiav txim qhov suav fiber ntau, hom connector, thiab txoj kev polarity.
Kauj Ruam 2: Paub meej tias Transceiver Specifications
Xyuas cov ntaub ntawv transceiver rau hom kho qhov muag interface (SR4, DR4, SR8, thiab lwm yam), suav fiber ntau, MPO connector pinout, thiab seb UPC lossis APC polish yog xav tau. Cov ntaub ntawv no tsav cov kev xaiv module.
Kauj ruam 3: Xaiv qhov Breakout Interface
Rau feem ntau cov ntaub ntawv chaw siv, LC duplex yog tus qauv breakout interface. SC tej zaum yuav xav tau rau qee cov cuab yeej cuab yeej cuab tam lossis kev siv xov tooj. Paub meej tiashom adapterphim qhov koj xav tau.
Kauj Ruam 4: Txheeb xyuas Fiber Hom thiab Polish
Sib twtib- hom lossis multimode fiber ntaurau koj cov kev xav tau ntawm transceiver. Tom qab ntawd paub meej tias UPC lossis APC polish hla txhua yam hauv cov channel: lub cev cable, module adapters, thiabpatch kab.
Kauj Ruam 5: Npaj lub Polarity Kawg mus txog qhov kawg
Qhia tag nrho cov channel ntawm transceiver chaw nres nkoj A mus rau transceiver chaw nres nkoj B. txheeb xyuas cov fibers nqa Tx thiab Rx, uas MPO lub cev hom siv (Hom A, B, los yog C), uas txoj kev polarity siv, thiab qhov twg cov Tx / Rx crossover tshwm sim. Ua qhov no ua ntej xaj cov khoom.
Kauj Ruam 6: Txheeb xyuas qhov Form Factor
Xyuas kom tseeb tias lub module haum rau koj khib, vaj huam sib luag, los yog enclosure. Kuj xav txog yuav ua li cas cov kws kho mob yuav nkag mus, sau npe, thiab hloov kev sib txuas. Hauv qhov chaw siab -qhov chaw ntom ntom, ib lub cuab yeej-tsim cassette tsawg dua ua kom muaj kev saib xyuas.
Kauj Ruam 7: xam qhov Link Budget
Xam qhov kev poob qis los ntawm txhua qhov passive tivthaiv hauv cov channel thiab muab piv rau cov transceiver cov peev nyiaj kho qhov muag. suav nrog cov npoo rau connector aging thiab kub variation.
Kauj Ruam 8: Npaj cov ntaub ntawv
Ua ntej xa mus, tsim ib daim ntawv qhia chaw nres nkoj uas qhia txhua txoj hauv kev fiber ntau los ntawm transceiver mus rau transceiver, suav nrog lub cev cable hom, polarity method, module position, thiab LC port assignment. Kev sau npe zoo ib yam ntawm ob qho kawg ntawm txhua qhov txuas yuav txuag lub sijhawm tseem ceeb thaum lub sijhawm ua haujlwm thiab kev daws teeb meem yav tom ntej.
Ua ntej- Daim Ntawv Teev Npe rau MPO Breakout Modules
Ua ntej muab qhov kev txiav txim, txheeb xyuas cov hauv qab no tiv thaiv koj cov ntaub ntawv tsim network:
- Transceiver hom thiab kab kev qhia (piv txwv li, SR4, DR4, SR8)
- Fiber suav: 8, 12, 16, lossis 24 active fibers
- MPO connector poj niam txiv neej (txiv neej / poj niam) thiab kev taw qhia tseem ceeb
- Breakout connector hom: LC duplex, SC, lossis lwm yam
- Txoj kev polarity: A, B, C, U1, lossis U2 rau TIA-568.3-E
- Fiber hom: ib leeg-mode (OS2) lossis multimode (OM3/OM4/OM5)
- Xaus- ntsej muag polish: UPC lossis APC
- Module form factor: LGX cassette, khib-mount vaj huam sib luag, lossis siab- qhov system ceev
- Insertion poob specification vs. link budget
- Port labeling plan thiab cov ntaub ntawv
Feem ntau yuam kev kom zam
Kho Txhua MPO Breakout Modules raws li zoo tib yam
Ob lub modules yuav zoo tib yam sab nraud tab sis txawv ntawm fiber ntau suav, polarity, connector poj niam txiv neej, los yog sab hauv daim ntawv qhia. Ib qho 12-fiber module thiab 8-fiber module siv tib lub MPO-12 connector tsis hloov pauv - ntsaws qhov tsis ncaj ncees lawm hauv yuav tawm ntawm cov chaw nres nkoj tsis siv lossis cov fibers tsis raug.
Tsis quav ntsej polarity kom txog rau thaum nruab hnub
Cov teeb meem polarity yog feem ntau ua rau MPO txuas tsis ua hauj lwm thaum tig - nce. Yog hais tias lub cev cable, module, thiab patch cords raug txiav txim yam tsis muaj kev sib koom ua ke polarity, qhov tshwm sim feem ntau yog ib qho kev sib tw los nrhiav crossover adapters lossis hloov thaj qaum ntawm qhov chaw. Tsim cov polarity ua ntej, xaj khoom thib ob.
Mixing UPC thiab APC Cheebtsam
Qhov kev ua yuam kev no yog qhov xav tsis thoob vim tias cov khoom sib txuas tuaj yeem sib koom ua ke hauv qee qhov kev teeb tsa. Qhov tshwm sim yog qhov poob siab siab, tsis zoo rov qab los, thiab qhov kawg ntawm qhov kawg -kev puas tsuaj. Ib txwm tshuaj xyuas cov xim sib txuas (ntsuab rau APC, xiav rau UPC nyob rau hauv feem ntau cov rooj sib tham) thiab xyuas cov adapter keying ua ntej txuas.
Siv lub Breakout Cable Thaum xav tau ib qho module
Lub breakout cable ua haujlwm zoo rau ib lossis ob qhov txuas luv luv hauv tib lub khib. Thaum koj muaj 10 los yog 20 breakout cables khiav ntawm racks, cable tswj kom zoo dua ploj. Yog tias qhov kev xa tawm cuam tshuam nrog kev teeb tsa cabling, inter-rack khiav, lossis ib puag ncig uas kev sib txuas yuav tsum tau muab kev pabcuam ib tus zuj zus, qhov kev faib tawm hauv lub vaj huam sib luag yooj yim dua los tswj lub sijhawm ntev -.
Tsis nco qab qhov Link Budget
Ntxiv ib qho breakout module qhia cov khub txuas ntxiv rau hauv txoj kev kho qhov muag. Ib qho qauv tsim uas ua haujlwm nrog cov hlua txuas ncaj qha tuaj yeem tshaj qhov poob nyiaj ib zaug ib qho module thiab lub cev cable ntxiv. Nco ntsoov rov xam cov peev nyiaj txuas ntxiv thaum hloov cov kab ke txuas.
Tsis Labeling Ports
High-cov vaj huam sib luag fiber ntau nrog 48, 96, lossis ntau dua LC cov chaw nres nkoj yuav luag tsis tuaj yeem tswj tau yam tsis muaj daim ntawv lo. Tsim kom muaj lub rooj sib tham sau npe (khoom- vaj huam sib luag- chaw nres nkoj, lossis lub cev- fiber ntau- chaw nres nkoj) thiab sau nws ua ntej ua haujlwm. Qhov no yog ib qho ntawm cov kauj ruam yooj yim tshaj plaws thiab ib qho ntawm feem ntau hla.
Thaum Tsis Siv MPO Breakout Module
Lub breakout module tsis yog ib txwm yog lo lus teb. Hauv qee qhov xwm txheej, txoj hauv kev yooj yim ua haujlwm zoo dua:
- Ib qho luv luv txuas hauv tib lub khib- ib directMPO rau LC breakout cableyog ceev rau nruab thiab nqi tsawg.
- Taw tes-rau- taw tes MPO lub cev ntawm ob qho tib si optics transceivers- yog tias ob qho tag nrho siv MPO interfaces (piv txwv li, SR4 rau SR4), tsis tas yuav muaj kev tawg; ib ncajMPO daim kab xevlos yog lub cev cable txuas lawv ncaj qha.
- Qhov chaw nres nkoj tsawg heev- yog tias koj tsuas yog xav tau ib lossis ob qhov kev sib txuas LC los ntawm MPO lub cev, tus nqi thiab khib qhov chaw ntawm lub module yuav tsis raug cai.
FAQ Txog MPO Breakout Modules
MPO breakout module siv rau dab tsi?
Ib qho MPO breakout module cais cov fibers los ntawm ntau - fiber ntau MPO / MTP connector rau hauv ib qho chaw nres nkoj - feem ntau LC duplex - yog li txhua tus khub fiber ntau tuaj yeem txuas mus rau ib qho chaw sib cais lossis thaj chaw ua haujlwm. Nws yog ib qho passive cable tswj tivthaiv siv nyob rau hauv cov chaw zov me nyuam cov ntaub ntawv thiab cov txheej txheem cabling systems los npaj siab -qhov ceev fiber ntau txuas.
MPO breakout module vs cassette: Dab tsi yog qhov txawv?
Cov nqe lus sib tshooj nyob ntawm qhov chaw tsim khoom. Feem ntau, lub cassette yog lub cev vaj tsev nyob (ib chav tsev modular uas swb rau hauv lub vaj huam sib luag lossis chassis), thaum lub sijhawm tawg yog hais txog kev ua haujlwm ntawm kev hloov MPO fibers rau LC lossis SC chaw nres nkoj. Nyob rau hauv kev xyaum, ntau cassettes muaj ib tug breakout module sab hauv. Lub ntsiab lus tseem ceeb yog tias ob qho tib si yuav tsum sib phim qhov tseeb fiber ntau suav, polarity, thiab connector specifications rau koj daim ntawv thov.
MPO polarity cuam tshuam li cas rau LC breakout ports?
Polarity txiav txim siab seb cov fiber ntau nyob rau hauv MPO connector maps rau qhov chaw nres nkoj LC ntawm lub breakout module. Yog hais tias txoj kev polarity ntawm lub cev cable, module, thiab thaj cords tsis phim qhov kawg mus rau qhov kawg, Tx teeb liab los ntawm ib qho transceiver yuav tsis ncav cuag Rx chaw nres nkoj ntawm lwm qhov. Qhov tshwm sim yog qhov txuas uas zoo li lub cev sib txuas tab sis tsis dhau kev khiav tsheb. Ua raws li txoj kev polarity zoo ib yam rau TIA-568.3-E thoob plaws txhua qhov tiv thaiv qhov teeb meem no.
Kuv puas tuaj yeem siv MPO breakout module nrog 400G QSFP-DD transceivers?
Tau. 400G QSFP-DD transceivers xws li 400GBASE-DR4 siv MPO-12 txuas nrog 8 active fibers, tawg tawm mus rau 4 × 100G ntawm LC duplex. 400GBASE-SR8 siv MPO-16 txuas nrog 16 fibers, tawg tawm mus rau 8 × 50G. Lub module yuav tsum phim cov transceiver tshwj xeeb suav fiber ntau, connector hom, thiab polarity yuav tsum tau.
8-fiber vs 12-fiber MPO breakout: Kuv yuav xaiv qhov twg?
Xaiv raws li daim ntawv thov transceiver. 40GBASE-SR4 thiab 100GBASE-SR4 siv 8 active fibers (4 Tx + 4 Rx) thiab tawg mus rau 4 LC duplex ports. Lub 12-fiber breakout module muab 6 LC duplex ports thiab yog siv rau hauv cov qauv cabling tsim qhov twg tag nrho 12 fibers nqa ib tug duplex raws. Txheeb xyuas cov ntaub ntawv transceiver kom paub meej tias muaj pes tsawg fibers ua haujlwm.
Puas yog MPO breakout modules passive lossis active Cheebtsam?
MPO breakout modules yog tag nrho passive. Lawv tsis muaj hluav taws xob, tsis muaj hluav taws xob, thiab tsis muaj teeb liab ua. Lawv txoj haujlwm yog xa cov fibers ntawm ib hom ntawv txuas mus rau lwm qhov. Qhov no txhais tau tias lawv ntxiv ib qho me me ntawm qhov poob (feem ntau 0.3-0.7 dB ib khub niam txiv sib txuas) tab sis tsis xav tau lub zog, teeb tsa, lossis hloov kho firmware.
Puas yog MPO breakout modules xav tau cov hlua tshwj xeeb?
Covpatch kablawv tus kheej yog cov qauv LC duplex lossis SC hom. Txawm li cas los xij, txoj kev polarity txiav txim siab seb koj puas xav tau A-rau-B (tus qauv crossover) lossis A-rau-A (txoj cai-los ntawm) duplex patch cords ntawm txhua qhov kawg. Paub meej tias qhov no yog ib feem ntawm qhov kawg -rau-kawg txoj kev npaj polarity ua ntej xaj cords.
Yuav ua li cas MPO breakout ports yuav tsum tau sau nyob rau hauv ib tug data center khib?
Siv lub npe zoo sib xws uas txheeb xyuas cov khib nyiab, vaj huam sib luag, txoj haujlwm cassette, thiab chaw nres nkoj tus lej - piv txwv li, "R12-P1-C3-Port4." Hla-reference txhua qhov chaw nres nkoj rau lub cev cable nws ua haujlwm thiab lub transceiver ntawm qhov kawg. Khaws daim ntawv qhia chaw nres nkoj digital nrog rau cov ntawv sau lub cev kom daws teeb meem sai dua.
Xaus
MPO breakout module yog ib qho tseem ceeb ntawm txhua qhov siab - fiber ntau cabling system, tsis yog ib qho yooj yim connector adapter. Txoj cai module - sib phim rau koj hom transceiver, suav fiber ntau, polarity method, thiab link budget - khaws inter-rack kev sib txuas, ua kom yooj yim txij nkawm, thiab txhawb kev tsiv teb tsaws los ntawm kev ceev tam sim no mus rau 400G thiab tshaj.
Cov kauj ruam tseem ceeb tshaj plaws yog los tsim cov channel kho qhov muag tag nrho ua ntej xaj cov khoom ntawm tus kheej. Paub meej tias cov transceiver specification, npaj lub polarity kawg mus rau qhov kawg, xyuas cov fiber ntau hom thiab polish hom, thiab xam cov nyiaj txuas nrog rau txhua qhov passive tivthaiv.
Yog tias koj qhov kev xa tawm yuav tsum tau khoMPO rau LC breakout, siab -fiber- suav lub cev, los yogsiab -qhov ceev fiber ntau connector tov, qhia koj cov rack layout, suav fiber ntau, hom transceiver, thiab polarity yuav tsum tau nrog koj fiber connectivity tsum. Ib tug ua tiav specification nyob rau hauv pem hauv ntej tiv thaiv kev txiav txim yuam kev thiab tsis txhob raug nqi rework thaum lub sij hawm installation.
