FTTH yog dab tsi? Lub ntsiab lus, Cheebtsam, Installation & Cov txiaj ntsig tau piav qhia

FTTH sawv cev rau Fiber rau Lub Tsev. Nws yog broadband network architecture uas sivfiber ntau -optic cablexa cov kev pabcuam hauv internet ncaj qha mus rau chav tsev nyob - seb lub tsev, chav tsev, lossis lub tsev nyob. Tsis txhob cia siab rau cov xov tooj tooj liab lossis coaxial cable rau ib feem ntawm qhov kawg kev sib txuas, FTTH nqa cov fiber ntau optical mus rau txhua qhov chaw rau cov neeg siv khoom.

Txoj kev ncaj qha fiber ntau no yog qhov laj thawj tseem ceeb ntawm FTTH cuam tshuam nrog kev muaj peev xwm ceev ceev, tsis tshua muaj teeb meem cuam tshuam, thiab ntev - lub sij hawm network scalability. Raws li covFiber Broadband Association's 2025 daim ntawv ntsuam xyuas xa tawm, FTTH kev hla hauv Tebchaws Meskas ib leeg mus txog 98.3 lab lub tsev, suav nrog ntau dua 60% ntawm cov tsev neeg Asmeskas - qhia meej tias yuav ua li cas hauv nruab nrab fiber ntau-rau-- tsev tau dhau los ua cov khoom siv dav dav niaj hnub no.

Rau cov tswv tsev, cov neeg xauj tsev, cov neeg tsim khoom vaj khoom tsev, ISPs, thiab cov neeg cog lus hauv lub network, FTTH yog ntau dua li internet ceev. Nws yog lub hauv paus hauv paus tsim los txhawb kev tshaj tawm video, kev ua haujlwm nyob deb, kev siv huab, kev ua si hauv online, cov khoom siv hauv tsev ntse, telemedicine, thiab bandwidth yav tom ntej - cov kev pabcuam hnyav uas tseem tsis tau tuaj txog.

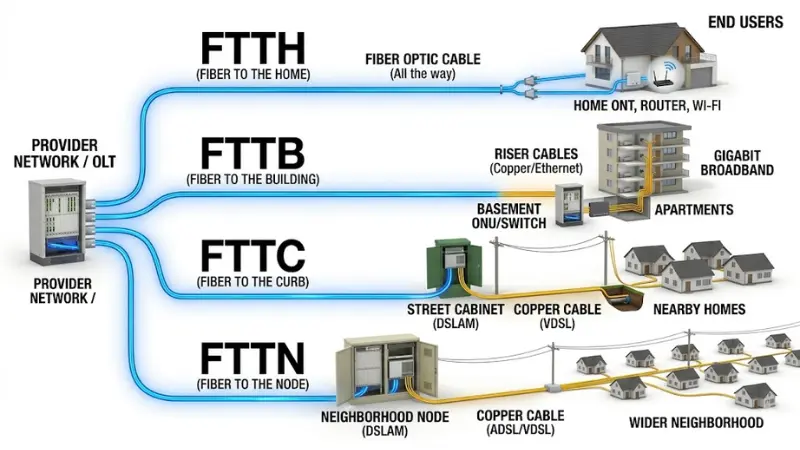

FTTH Lub ntsiab lus: Nws txawv li cas los ntawm lwm cov ntsiab lus ntawm Fiber Broadband

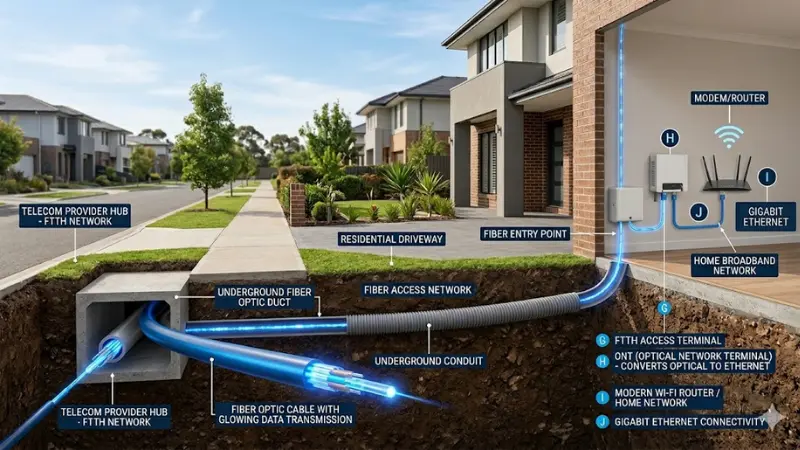

FTTH, lossis Fiber to the Home, txhais tau hais tias fiber ntau -optic cable khiav los ntawm tus neeg muab kev pabcuam nkag mus rau hauv lub network ncaj qha mus rau tus neeg siv lub tsev. Cov ntaub ntawv taug kev raws li lub teeb pom kev los ntawm nyias cov iav fiber ntau. Qhov no txawv ntawm cov kev pabcuam dav dav uas cov fiber ntau tsuas yog mus txog ntawm txoj kev txee, qhov thaiv, ib puag ncig, lossis lub tsev hauv qab daus - thiab tom qab ntawd hloov mus rau tooj liab lossis coaxial cable rau qhov kev ncua deb.

Hauv qee lub khw, FTTH hu ua "full fiber broadband" kom paub qhov txawv ntawm ib nrab ntawm - fiber ntau cov kev pabcuam. Cov ntsiab lus tseem ceeb kom nkag siab yog:

• FTTH (Fiber rau Lub Tsev):Fiber nkag mus rau hauv ib lub tsev lossis tsev nyob. Tag nrho qhov kawg - mais kev twb kev txuas yog kho qhov muag.
• FTTP (Fiber rau qhov chaw):Feem ntau siv sib pauv nrog FTTH. "Chaw" tuaj yeem xa mus rau lub tsev lossis chaw lag luam.
• FTTB (Fiber rau Lub Tsev):Fiber mus txog lub tsev lub tsev telecom chav lossis hauv qab daus. Kev sib txuas los ntawm qhov ntawd mus rau txhua chav yuav siv Ethernet, tooj liab, lossis coaxial cable.
• FTTC (Fiber rau Curb/Cabinet):Fiber nres ntawm txoj kev txee. Ntu kawg rau lub tsev siv tooj liab, uas txwv kev ceev thiab kev ntseeg tau.
• FTTN (Fiber rau lub Node):Fiber mus txog qhov chaw faib khoom nyob ib puag ncig. Tooj liab los yog coaxial cable npog qhov seem nyob deb, feem ntau ntau pua meters.

Qhov ze ntawm cov fiber ntau mus txog rau cov neeg siv kawg, qhov zoo dua lub network tuaj yeem ua tau raws li kev ceev, teeb liab zoo, thiab txhim kho lub peev xwm. FTTH tshem tawm cov fwj tooj liab nkaus.

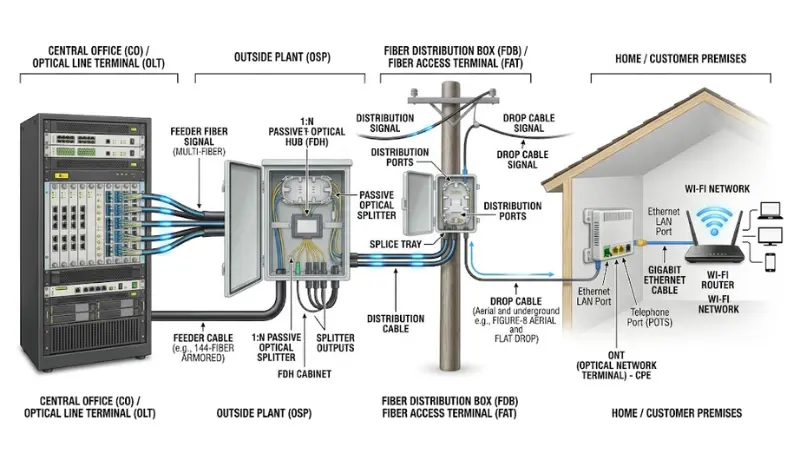

FTTH Network Ua Haujlwm li cas?

FTTH network txuas tus neeg teb xov tooj cov txheej txheem tseem ceeb rau cov tsev neeg los ntawm cov khoom siv kho qhov muag thiab lub cev. Cov qauv tsim tshwj xeeb txawv ntawm lub teb chaws, tus neeg teb xov tooj, thiab hom tsev, tab sis cov qauv hauv qab no ua raws li tus qauv zoo ib yam - tshwj xeeb hauv cov tes hauj lwm raws li Passive Optical Network (PON) thev naus laus zis.

OLT: Tus Muab Kev Pab -Side Starting Point

Lub Optical Line Terminal (OLT) zaum ntawm qhov chaw muab kev pabcuam hauv chaw ua haujlwm lossis kev sib pauv. Nws txuas tus neeg muab kev pabcuam hauv lub network mus rau txheej txheej fiber ntau thiab tswj cov dej ntws thiab ntws mus rau txhua tus neeg siv khoom ntawm ntu PON. Rau cov neeg siv kawg, OLT tsis pom. Rau tus neeg teb xov tooj, nws yog qhov chaw tswj hwm kev faib tawm bandwidth, kev pabcuam kev pabcuam, thiab kev sib txuas lus nrog txhua tus neeg siv khoom siv kho qhov muag.

ODN: Passive Fiber Distribution Network

Optical Distribution Network (ODN) yog txoj hauv kev ntawm lub cev fiber ntau ntawm OLT thiab cov neeg siv khoom lub tsev. Ib tug raug ODN suav nrog feeder fiber cables, tis cables,passive optical splitters, fiber ntau faib lub thawv, fiber ntau davhlau ya nyob twg thawv, poob cables,cov khoom sib txuas, adapters, thiab splice cov ntsiab lus.

Hauv feem ntau FTTH xa tawm,PLC splittersfaib ib lub teeb liab kho qhov muag rau ntau txoj hauv kev - tso cai rau ib qho chaw nres nkoj OLT ua haujlwm rau 32, 64, lossis 128 lub tsev. Vim tias cov splitters no tsis muaj zog, lawv yuav tsum tsis muaj hluav taws xob hluav taws xob ntawm qhov sib cais, uas txo cov nqi kho thiab kev khiav hauj lwm.

ONT thiab Router: Qhov twg Fiber Ua Hauv Tsev Internet

Sab hauv lossis ze ntawm lub tsev, cov fiber ntau txuas mus rau Optical Network Terminal (ONT). ONT hloov cov teeb liab teeb rau hauv Ethernet teeb liab uas lub tsev router siv tau. ONT tsis yog tib lub cuab yeej li Wi-Fi router. ONT txiav tawm tus neeg muab kev pabcuam kho qhov muag network. Lub router faib kev sib txuas hauv internet rau cov xov tooj, laptops, smart TVs, koob yees duab, thiab lwm yam khoom siv los ntawm Wi-Fi lossis Ethernet.

Qhov kev sib txawv no tseem ceeb hauv kev xyaum. Yog tias ib tsev neeg muaj kev sib txuas FTTH tab sis Wi-Fi router yog qhov qub, tsis zoo, lossis cuam tshuam los ntawm ntau cov khoom siv, tus neeg siv yuav muaj kev ua haujlwm tsis muaj zog wireless - txawm tias qhov txuas fiber ntau nws tus kheej xa tag nrho ceev rau ONT. Rau cov tsev loj dua, mesh Wi-Fi systems lossis wired access point tej zaum yuav xav tau los txuas ntxiv.

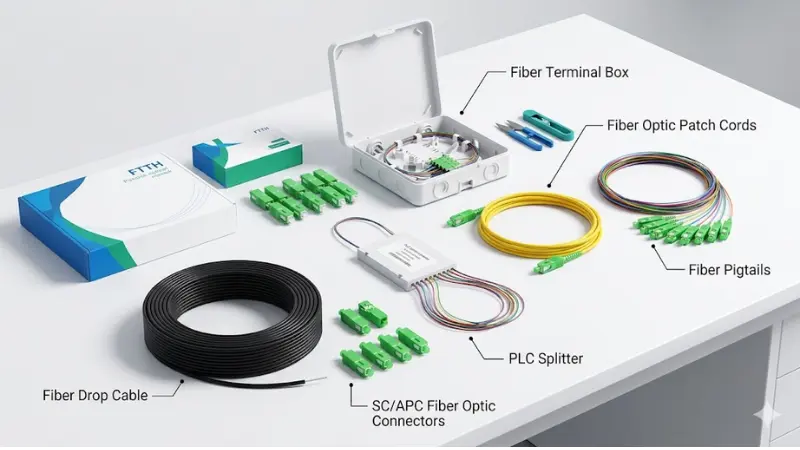

Cov Cheebtsam Tseem Ceeb Siv hauv FTTH Network

Kev nkag siab txog lub cev lub cev ntawm FTTH network yog qhov tseem ceeb rau ISPs, cov neeg cog lus hauv lub network, thiab cov neeg tsim khoom vaj tse uas yuav tsum tau npaj, tsim, lossis tswj cov khoom siv fiber ntau. Txhua yam cuam tshuam cuam tshuam cov teeb liab zoo, kev txhim kho kev ua haujlwm, thiab kev cia siab ntev ntev -.

• Fiber Drop Cable:Lub cable uas khiav los ntawm qhov chaw xa khoom ze tshaj plaws mus rau tus neeg siv khoom lub tsev. Rau FTTH, qhov no feem ntau yog ib qho - hom fiber ntau cable - yog hom sab hauv tsev / sab nraum zoov lossis lub tiaj tus, qis - kev sib txhuam cable tsim los rau cov kav dej lossis riser installation. Qhov kev xaiv ntawmsab hauv tsev poob cablethiab sab nraum zoov- ntsuas cable nyob ntawm qhov chaw ib puag ncig, UV raug, thiab muaj kev pheej hmoo ntawm kev ya raws.
• Fiber Optic Connectors:Cov interfaces uas koom nrog fiber ntau cables rau ONTs, splitters, thaj vaj huam sib luag, thiab cov thawv xa khoom. Hauv FTTH networks,SC / APC connectorsyog siv ntau tshaj plaws vim tias lawv lub kaum sab xis txo qis rov qab -relection, uas yog qhov tseem ceeb hauv PON systems.Fast connectorskuj tseem muaj nyob rau hauv thaj chaw installation qhov twg fusion splicing yog impractical.
• PLC Splitters:Planar Lightwave Circuit splitters faib ib qho kev tawm tswv yim kho qhov muag rau hauv ntau qhov kev tawm. Cov kev sib cais feem ntau suav nrog1:8, 1:16, 1:32, thiab1:64. Kev sib cais siab dua ua rau cov neeg siv ntau dua rau ib qho chaw nres nkoj OLT tab sis txo cov hluav taws xob kho qhov muag mus txog txhua ONT. Lub splitter ratio yuav tsum tau npaj tawm tsam lub network lub zog kho qhov muag pob nyiaj siv.
• Fiber Terminal Boxes:Phab ntsa-mounted lossis ncej-mounted enclosures uas tsev fiber ntau splices, connectors, thiab splitter modules ntawm tis los yog nkag mus. A4-core terminal thawvtej zaum yuav ua hauj lwm rau ib leeg - tsev neeg, thaum a24-core faib lub thawvtuaj yeem tuav hauv pem teb hauv ib lub tsev apartment.
• Fiber Optic Patch Cords:Luv luv, ua ntej -tawm cables siv los txuas cov khoom siv hauv cov khoom sib txuas, sib txuas kaw, lossis cov neeg siv khoom.Patch qaumnrog SC / APC lossis LC / UPC kawg yog tus qauv hauv FTTH ib puag ncig.
• Fiber Pigtails: Pigtailsyog luv fiber cables nrog ib tug connector ntawm ib kawg thiab ib tug liab qab fiber nyob rau lwm yam. Lawv yog fusion-splice rau cov khoom siv fiber ntau hauv cov tais splice, muab cov ntsiab lus tshem tawm huv rau patching.

Rau B2B kev yuav khoom, qhov zoo ntawm cov khoom siv tsis zoo no cuam tshuam ncaj qha rau lub network cov nyiaj siv kho qhov muag, tus nqi txhaum cai, thiab tus nqi tu lub sijhawm. Cov khoom sib txuas tsis zoo, lub ntsej muag qias neeg, lossis cov xaim xaim xaim tsis raug cai yog ib qho ntawm feem ntau ua rau muaj teeb meem kev pab cuam hauv kev xa tawm FTTH tes hauj lwm.

GPON thiab XGS-PON: The Technology Behind FTTH

Feem ntau FTTH tes hauj lwm niaj hnub no tau tsim los ntawm PON (Passive Optical Network) thev naus laus zis. Ob qho qauv PON tseem ceeb tshaj plaws rau tam sim no thiab ze rau - kev xa tawm yav tom ntej yog GPON thiab XGS-PON.

GPON(Gigabit Passive Optical Network) yog txhais los ntawmITU-T G.984 txheem series. Nws txhawb downstream speeds mus txog 2.5 Gbps thiab upstream speeds mus txog 1.25 Gbps, sib koom ntawm tag nrho cov neeg rau npe rau ib PON chaw nres nkoj. GPON yog qhov tseem ceeb FTTH thev naus laus zis thoob ntiaj teb rau ntau tshaj kaum xyoo thiab tseem yog PON siv dav tshaj plaws.

XGS-PON(10-Gigabit Symmetric PON) yog txhais los ntawmITU-T G.9807.1. Nws muab kev sib luag 10 Gbps ceev - kev hloov pauv loj rau cov ntawv thov uas xav tau siab upload bandwidth, xws li huab thaub qab, kev sib tham video, kev soj ntsuam, thiab cov ntsiab lus tsim. XGS-PON siv cov wavelengths sib txawv los ntawm GPON (1577 nm downstream, 1270 nm upstream), uas txhais tau hais tias cov neeg ua haujlwm tuaj yeem khiav ob qho tib si GPON thiab XGS-PON ib txhij ntawm tib fiber ntau infrastructure siv wavelength- faib multiplexing.

Qhov kev muaj peev xwm sib koom ua ke no yog ib qho laj thawj FTTH suav tias yog qhov muaj peev xwm loj heev. Tus neeg teb xov tooj uas siv GPON tsib xyoos dhau los tuaj yeem hloov kho ib tus neeg rau XGS-PON los ntawm kev hloov daim npav OLT kab thiab ONT - yam tsis tau hloov cov fiber ntau cables, splitters, lossis cov thawv xa khoom uas twb muaj lawm hauv av. Lub passive ODN infrastructure nyob twj ywm tib yam.

Cov txiaj ntsig tseem ceeb ntawm FTTH Broadband

Strong Download thiab Upload Speed ​​Potential

Fiber-optic cable tuaj yeem nqa cov ntaub ntawv ntau dhau qhov deb nrog cov teeb liab tsawg tsawg. Qhov no muab FTTH tes hauj lwm muaj peev xwm xa gigabit-chav kawm ceev hauv ob qho tib si. Qhov tseeb ceev uas tus neeg siv tau txais yog nyob ntawm qhov kev pab cuam, PON thev naus laus zis (GPON lossis XGS-PON), ONT muaj peev xwm, kev ua haujlwm ntawm router, thiab hauv -txoj kev network hauv tsev - tab sis kev nkag mus rau hauv nws tus kheej tsis tshua muaj lub hauv paus.

Upload ceev yog qhov tseem ceeb zuj zus. Cov neeg ua haujlwm nyob deb tau koom nrog kev hu xov tooj, cov tsev neeg thaub qab cov duab rau huab cia, thiab cov lag luam upload cov duab ruaj ntseg txhua tus nyob ntawm cov kab hluav taws xob sab saud. FTTH - tshwj xeeb tshaj yog nyob rau XGS-PON - txhawb nqa cov kev pab cuam zoo sib xws uas kev sib txuas cable thiab DSL feem ntau tsis sib xws.

Low Signal Interference

Fiber xa cov ntaub ntawv raws li lub teeb es tsis yog hluav taws xob teeb liab. Qhov no ua rau nws muaj peev xwm tiv taus hluav taws xob cuam tshuam (EMI) los ntawm cov khoom siv nyob ze, hluav taws xob thaiv, lossis xov tooj cua. Rau cov tsev nyob, cov tsev nyob hauv nroog, thiab thaj chaw muaj kev lag luam uas cov xov tooj tooj liab feem ntau khaws cov suab nrov, fiber ntau tiv thaiv EMI pab tswj kev sib txuas ruaj khov.

Ntev -Lub Sij Hawm Network Scalability

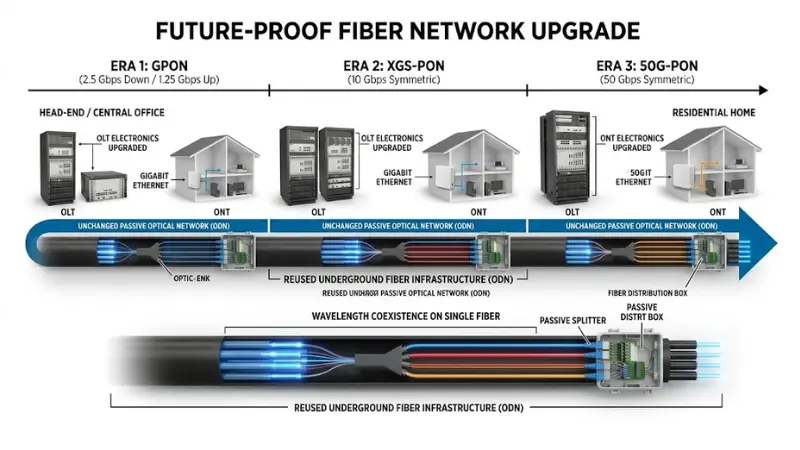

Ib qhov zoo - tsim FTTH network tuaj yeem pab cov neeg siv khoom tau ntau xyoo. Thaum xav tau kev nrawm dua, cov neeg ua haujlwm hloov kho cov khoom siv hluav taws xob ua haujlwm - OLT thiab ONT - es tsis yog hloov cov faus fiber ntau thiab cov khoom tsis muaj zog. Kev lag luam twb tau tsiv tawm ntawm GPON (2.5G) mus rau XGS-PON (10G), thiab tiam tom ntej,50G-PON (ITU-T G.9804), yog nyob rau hauv kev txhim kho. Txhua tiam rov siv tib ODN.

Txoj kev txhim kho no yog vim li cas fiber ntau infrastructure feem ntau piav raws li kev nqis peev ntev - es tsis yog luv - lub voj voog kev yuav khoom.

Haum rau High-Thov Tsev thiab Cov Zej Zog Ntse

Ib tsev neeg niaj hnub no tuaj yeem khiav ntau lub xov tooj smartphones, laptops, ntsiav tshuaj, TVs ntse, koob yees duab kev ruaj ntseg, gaming consoles, lub suab pab, thiab cov khoom siv txuas nrog - txhua lub sijhawm. FTTH muab cov kev siv bandwidth los txhawb cov kev xav tau ib txhij no yam tsis muaj kev sib tsoo uas tooj liab - raws li qhov kawg - mais kev sib txuas feem ntau ntsib thaum lub sij hawm ncov.

Rau qhov loj dua - cov phiaj xwm loj - cov zej zog hauv zej zog, kev tsim vaj tsev, kev sib txuas hauv nroog hauv nroog - FTTH kuj tseem txhawb nqa ntev - cov phiaj xwm digital, suav nrog kev ntsuas ntse, lub tsev automation, kev nyab xeeb rau pej xeem, thiab kev pabcuam hauv xov tooj.

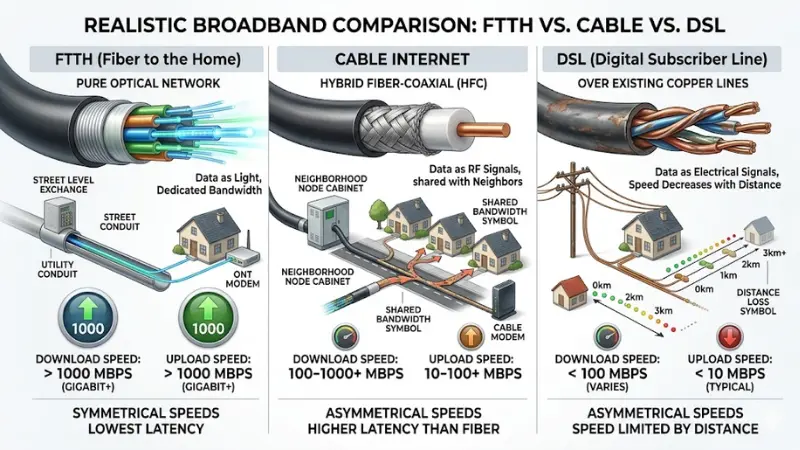

FTTH vs Cable Internet vs DSL

Kev xaiv cov cuab yeej siv dav dav suav nrog kev nkag siab txog kev lag luam - tawm. Nov yog li cas FTTH piv nrog cable (DOCSIS) thiab DSL (Digital Subscriber Line) ntawm qhov tseem ceeb ntawm kev ua tau zoo:

• kis nruab nrab:FTTH siv fiber ntau -optic cable kawg kom kawg. Cable siv coaxial cable (feem ntau nrog fiber ntau backhaul). DSL siv cov xov tooj tooj liab.
• Download ceev peev xwm:FTTH txhawb ntau-gigabit ceev. Cable feem ntau ncav cuag 1-2 Gbps nrog DOCSIS 3.1. DSL feem ntau txwv rau 100 Mbps lossis tsawg dua, nyob ntawm kab ntev.
• Upload ceev muaj peev xwm:FTTH tuaj yeem xa cov kev sib npaug sib npaug (tshwj xeeb tshaj yog ntawm XGS-PON). Cable upload speeds yog ho qis dua download. DSL upload kuj yog asymmetric thiab feem ntau qis dua 20 Mbps.
• Latency:Fiber feem ntau muab qis dua thiab zoo ib yam latency dua li cable lossis DSL. Qhov no tseem ceeb rau kev sib tham hauv video, kev ua si, thiab kev siv sijhawm tiag -.
• Distance rhiab heev:DSL kev ua tau zoo degrades sharply nrog deb ntawm kev sib pauv - ib lub tsev 3 km ntawm lub DSLAM yuav tau txais ib feem ntawm qhov tshaj tawm ceev. Cable tsawg dua -sensitive tab sis qhia bandwidth ntawm cov neeg siv ntawm tib ntu. FTTH kev ua tau zoo sib xws thoob plaws PON qhov tsim kom ncav cuag (feem ntau txog 20 km).
• Kev cuam tshuam tsis kam:Fiber tiv thaiv EMI. Copper (DSL) thiab coaxial (cable) yog qhov cuam tshuam rau hluav taws xob nrov.
• Txhim kho txoj kev:FTTH kev tsim kho tuaj yeem pab txhawb cov qib ceev yav tom ntej los ntawm kev hloov kho khoom siv. Cable thiab DSL ntsib cov kev txwv lub cev uas feem ntau xav tau kev hloov kho vaj tse kom phim cov fiber ntau ceev.

Rau cov neeg siv uas feem ntau xauj thiab kwj, cable yuav tsim nyog. Tab sis rau cov tsev neeg lossis cov lag luam uas xav tau kev ua tau zoo upload, tsis tshua muaj latency, thiab lub network uas tuaj yeem loj hlob nrog kev thov, FTTH muaj qhov zoo dua.

FTTH Installation: Yuav Ua Li Cas Cia Siab

FTTH txheej txheem installation nyob ntawm tus neeg teb xov tooj, hom tsev, cov kev cai hauv zos, thiab cov kav dej lossis cov kav dej uas twb muaj lawm. Ib qho kev teeb tsa hauv tsev raug suav nrog plaub theem.

Kauj Ruam 1: Kev Tshawb Xyuas Muaj

Tus neeg muab kev pabcuam lees paub tias FTTH infrastructure twb muaj nyob rau ntawm tus neeg siv khoom qhov chaw nyob. Yog tias thaj chaw tau tsim tawm thiab qhov chaw faib khoom nyob ze, kev teeb tsa feem ntau tuaj yeem ua tiav hauv ib zaug. Yog tias tsis yog, kev ua haujlwm hauv pej xeem - xws li trenching, duct installation, lossis aerial cable routing - tej zaum yuav xav tau ua ntej.

Kauj ruam 2: Tso Cable Installation

Ib qho fiber ntau poob cable yog xa los ntawm qhov chaw xa khoom ze tshaj plaws mus rau lub tsev. Qhov no yuav suav nrog kev rub tawm hauv av, tshem tawm huab cua los ntawm cov khoom siv hluav taws xob, lossis riser routing hauv ib lub tsev tsev. Rau ib leeg- tsev neeg, cov kab hluav taws xob feem ntau nkag los ntawm phab ntsa sab nrauv ze ntawm qhov chaw ONT npaj. Hauv ntau-cov tsev nyob, fiber ntau tau dhau los ntawm ib lub tsev hauv chav sib tham thiab hauv pem teb- theemcov thawv xa khoomua ntej mus txog txhua chav.

Cov teeb meem hauv cheeb tsam no feem ntau suav nrog cov ducts thaiv, qhov chaw tsis txaus, thiab qhov yuav tsum tau sib tham txog cov ntsiab lus nkag cable nrog cov tswv cuab lossis kev tswj hwm lub tsev.

Kauj Ruam 3: ONT Qhov Chaw

Tus kws tshaj lij txhim kho ONT ntawm qhov chaw tsim nyog sab hauv tsev. Qhov chaw zoo yuav tsum xav txog kev nkag mus rau lub qhov hluav taws xob hluav taws xob, qhov sib thooj rau lub router lossis lub ntsiab lus tseem ceeb, kev tiv thaiv los ntawm kev ya raws lossis kev puas tsuaj rau lub cev, ntxuav cov kab hluav taws xob nrog lub vojvoog khoov kom zoo, thiab yooj yim ntawm kev saib xyuas yav tom ntej. Hauv kev xyaum, ib qho chaw tsis zoo ONT - muab zais hauv qab rooj tog lossis hauv lub txee dai khaub ncaws damp - tuaj yeem tsim tau ntev - teeb meem kev pab cuam uas nyuaj rau daws tom qab.

Kauj Ruam 4: Router Teeb thiab Kev Ntsuas Kev Pabcuam

Thaum ONT ua haujlwm, lub router txuas nrog thiab teeb tsa. Kev xa tawm kom raug yuav tsum suav nrog kev sim cov teeb liab kho qhov muag (kom paub meej tias cov peev nyiaj txuas tau nyob hauv thaj tsam), txheeb xyuas Ethernet kev sib txuas ntawm ONT thiab router, tshawb xyuas rub tawm thiab rub tawm nrawm tawm tsam cov phiaj xwm sau npe, thiab ntsuas Wi-Fi kev pab them nqi hauv cov chav tseem ceeb.

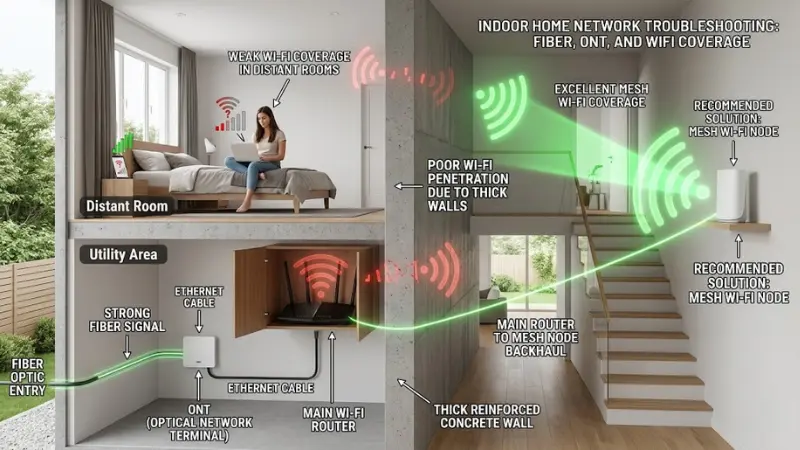

Yog tias qhov kev sib txuas ntawm fiber ntau kuaj tau zoo tab sis Wi-Fi tsis muaj zog hauv qee thaj chaw, qhov teeb meem feem ntau yog cuam tshuam nrog kev tso chaw router, cov ntaub ntawv phab ntsa, Wi-Fi channel cuam tshuam, lossis xav tau mesh nodes lossis wired access point - tsis yog FTTH kev twb kev txuas nws tus kheej.

Common FTTH Use Cases

Chaw Nyob Broadband

FTTH yog thawj thev naus laus zis rau kev pabcuam hauv tsev hauv internet hauv ntau lub khw. Nws txhawb nqa streaming ib txhij ntawm ntau lub vijtsam, siab - hu video zoo, hloov cov ntaub ntawv loj, huab gaming, thiab ib txwm- ntawm cov khoom siv hauv tsev ntse. Cov tsev neeg nrog ntau tus neeg ua haujlwm nyob deb lossis cov tub ntxhais kawm tau txais txiaj ntsig tshwj xeeb los ntawm fiber ntau qhov kev ua tau zoo sib xws.

Apartments thiab Multi-Dwelling Units (MDUs)

Kev xa tawm FTTH hauv cov tsev tsev yuav tsum tau ua tib zoo npaj cov riser cables, hauv pem teb -theem faib lub thawv, thiab ib tug neeg xa xov cables rau txhua chav. Lub qhov dej - tsimMDU fiber ntau cable systemtxhim kho kev npaj broadband thiab txaus siab rau cov neeg xauj tsev. Cov kev sib tw tseem ceeb suav nrog qhov chaw qis qis, kev sib koom tes nrog kev tswj hwm lub tsev, thiab xyuas kom txhua lub tsev qhov poob cable raug tiv thaiv kom raug thiab sau npe.

Smart Communities thiab Municipal Broadband

Lub nroog, nroog, thiab cov zej zog tau npaj siv FTTH ua lub hauv paus rau pej xeem Wi-Fi backhaul, ntse ntsuas, kev sib txuas kev ruaj ntseg, kev saib xyuas kev noj qab haus huv, thiab kev sib txuas ua lag luam hauv zos. Lub nroog fiber ntau tes hauj lwm tseem muab cov zej zog tswj hwm ntau tshaj qhov muaj nyob hauv broadband thiab tus nqi.

ISP thiab Carrier Access Networks

Rau cov chaw muab kev pabcuam, FTTH yog lub sijhawm ntev - nkag mus rau lub network zoo. Nws txo qis kev ua haujlwm dependence ntawm kev laus tooj liab infrastructure thiab tsim ib tug scalable platform rau tsev, lag luam, thiab wholesale broadband kev pab cuam. Nrog XGS-PON thiab yav tom ntej 50G-PON, cov neeg ua haujlwm tuaj yeem pab cov neeg siv khoom xav tau ntau ntxiv yam tsis tas yuav rov tsim kho cov nroj tsuag fiber ntau.

Kev tsis nkag siab ntau txog FTTH

FTTH Tsis Siv Neeg txhais tau tias ceev Wi -Fi

FTTH muab siab - internet ceev rau ONT ntawm ntug tsev. Tab sis Wi-Fi kev ua tau zoo nyob ntawm lub router, nws qhov chaw, cov khoom siv hauv tsev, cov khoom siv txuas nrog, thiab RF cuam tshuam los ntawm cov neeg nyob ze. Tus neeg siv FTTH nrog lub router tsis zoo yuav muaj kev paub tsis zoo dua li cov neeg siv cable nrog lub qhov dej - teeb tsa mesh network. Kev sib txuas fiber ntau tsuas yog muaj txiaj ntsig zoo li hauv - hauv tsev network uas faib nws.

Fiber rau lub tsev tsis zoo ib yam li Fiber rau lub tsev

FTTB nres ntawm chav tsev khoom siv. Ntu kawg rau txhua chav tsev yuav siv Ethernet LAN cable, xov tooj qub tooj liab, lossis coaxial cable - txhua tus nrog nws cov kev txwv ceev. FTTH txhais tau hais tias cov fibers ncav cuag tus kheej. Thaum ntsuas qhov dav dav hauv chav tsev, nco ntsoov xyuas seb qhov kev sib txuas yog FTTH lossis FTTB.

Tsis yog Txhua Qhov Kev Pabcuam FTTH xa tau tib lub nrawm

FTTH piav qhia txog kev nkag mus rau lub cev, tsis yog qib kev pabcuam. Ob tus neeg siv FTTH tuaj yeem muaj qhov sib txawv ntawm qhov sib txawv nyob ntawm lawv txoj kev npaj, PON thev naus laus zis hauv kev siv (GPON vs. XGS-PON), tus qauv ONT, lub router, thiab tus naj npawb ntawm cov neeg siv sib koom tib PON ntu. Nco ntsoov xyuas qhov tseeb subscription ceev thiab sim nws tawm tsam qhov kev xa tawm.

FTTH Installation tsis yog ib txwm nyuaj

Thaum cov txheej txheem fiber ntau tau tsim tawm mus rau txoj kev lossis lub tsev, tus qauv FTTH kev teeb tsa tuaj yeem ua tiav hauv ib mus rau ob teev. Complexity nce ntxiv thaum txoj kev ciav hlau raug thaiv, lub tsev tsis muaj kev sib txuas lus uas twb muaj lawm, lossis txoj kev poob cable yuav tsum tau ua rau sab nrauv drilling lossis kev ua haujlwm hauv pej xeem. Hauv ntau thaj chaw hauv nroog nrog tsim kev sib faib fiber ntau, txawm li cas los xij, kev teeb tsa ncaj qha.

Yuav Ua Li Cas Xaiv Qhov Kev Pabcuam FTTH lossis Kev daws teeb meem

Txawm hais tias koj yog ib tus tswv tsev ua npe rau broadband, tus tsim khoom vaj khoom tsev npaj qhov project tshiab, lossis ISP tsim tawm koj lub network nkag, cov hauv qab no tsim nyog ntsuas:

• Paub meej tias nws yog FTTH tiag tiag:Xyuas kom tseeb tias fiber ntau nkag mus rau hauv tsev lossis chav tsev - tsis yog lub tsev lossis txoj kev txee.
• Txheeb xyuas PON thev naus laus zis:GPON txhawb nqa txog 2.5 Gbps downstream sib koom. XGS-PON txhawb 10 Gbps symmetrical. Cov thev naus laus zis hauv kev siv cuam tshuam rau ob qho kev txwv ceev tam sim no thiab kev txhim kho yav tom ntej.
• Ntsuas qhov ceev upload:Yog tias kev ua haujlwm nyob deb, huab thaub qab, lossis kev sib tham hauv video yog qhov tseem ceeb, xyuas kom lub phiaj xwm muaj peev xwm upload bandwidth txaus.
• Tshawb xyuas ONT thiab router:Qee tus neeg ua haujlwm muab cov khoom siv uas yuav dhau los lossis txwv. Nug seb koj puas tuaj yeem siv koj tus kheej router, thiab seb ONT puas txhawb nqa gigabit Ethernet tso zis.
• Npaj txoj kev installation:Paub qhov twg cov fiber ntau yuav nkag mus rau hauv tsev, qhov twg ONT yuav muab tso rau, thiab seb puas yuav txuas ntxiv hauv tsev lossis Wi-Fi faib yog xav tau.
• Ntsuam xyuas cov khoom tiv thaiv tsis zoo (rau cov haujlwm B2B):Kev ntseeg ntawmFTTH passive Cheebtsam- suav nrogsplitters, SC connectors, terminal boxes, thiabpatch kab- cuam tshuam ncaj qha rau lub network qhov muag tsis pom, tus nqi txhaum, thiab tag nrho cov nqi ntawm cov tswv cuab. Qhiaconnector polish hom(PC, UPC, APC) thiab tshawb xyuas qhov poob thiab rov qab cov ntsiab lus poob ua ntej kev yuav khoom.
• Cov ntaub ntawv txhua yam:Xyuas kom paub tseeb tias txoj hauv kev fiber ntau, cov ntsiab lus txiav tawm, qhov chaw sib cais, thiab cov txiaj ntsig kev kuaj pom tau raug kaw kom raug. Cov ntaub ntawv zoo txo ​​cov sij hawm daws teeb meem yav tom ntej.

Cov Lus Qhia Txog Kev Ua Haujlwm

Raws li kev paub dhau los hauv FTTH cov haujlwm, ntau qhov teeb meem tuaj yeem tshwm sim ntau zaus - thiab lawv feem ntau tiv thaiv tau.

• ONT muab tso rau hauv qhov chaw nkag tsis tau:Yog hais tias lub ONT raug ntsia tom qab lub txee lossis hauv chav tsev hluav taws xob kaw tsis muaj hluav taws xob nkag, kev saib xyuas yuav nyuaj thiab tus neeg siv yuav tsis tuaj yeem rov pib lub cuab yeej thaum xav tau.
• Tso cable khoov hauv qab yam tsawg kawg nkaus khoov vojvoog:Fiber cables muaj qhov yuav tsum tau khoov qhov tsawg kawg nkaus (feem ntau 15-30 mm rau sab hauv tsev poob cables). Ntws khoov ntawm cov ntsiab lus nkag ntawm phab ntsa lossis cov ces kaum tuaj yeem ua rau qhov muag tsis pom lossis ua rau micro- tawg thaum lub sijhawm.
• Connector kawg ntsej muag tsis tau tshuaj xyuas los yog ntxuav:qias neeg los yog khawbconnector kawg ntsej muagyog ib qho ntawm cov laj thawj saum toj kawg nkaus ntawm kev nkag siab siab thiab cuam tshuam tsis sib xws hauv FTTH tes hauj lwm. Ib qho yooj yim fiber ntau -optic tshuaj xyuas qhov dav thiab cov cuab yeej ntxuav yuav tsum yog ib feem ntawm txhua qhov khoom siv.
• Distribution boxes tsis sau npe:Hauv MDU kev xa tawm, cov ntawv tsis muaj npe lossis cov ntawv tsis zoo ntawm cov thawv ntim khoom siv fiber ntau tsim teeb meem loj thaum muaj kev sib cais thiab kev hloov pauv cov neeg siv khoom. Txhua qhov chaw nres nkoj, splice, thiab cable yuav tsum raug txheeb xyuas kom meej.
• Splitter piv tau xaiv yam tsis suav nyiaj siv hluav taws xob:Siv lub 1: 64 splitter nyob rau hauv ib lub network nrog marginal kho qhov muag lub hwj chim tuaj yeem tso qee cov neeg siv hauv qab ONT tus txais kev nkag siab qhov pib. Cov nyiaj siv hluav taws xob kho qhov muag - suav txog qhov ntev ntawm fiber ntau, splice poob, connector poob, thiab splitter poob - yuav tsum raug xam ua ntej xaiv qhov sib cais.

Cov lus nug nquag nug txog FTTH

Xaus

FTTH yog broadband access architecture zoo tshaj plaws rau niaj hnub thiab yav tom ntej kev sib txuas xav tau. Los ntawm kev nqa cov fiber ntau ncaj qha mus rau hauv tsev, nws tshem tawm cov fwj tooj liab uas txwv tsis pub siv cable thiab DSL, thiab nws muab cov txheej txheem tsis zoo uas tuaj yeem txhawb nqa ntau tiam neeg ntawm PON thev naus laus zis - los ntawm GPON rau XGS-PON thiab dhau mus.

Rau cov neeg siv ib leeg, FTTH txhais tau tias sai dua, txhim khu kev qha internet nrog cov kev ceev nrawm. Rau cov neeg tsim khoom vaj khoom tsev thiab ISPs, nws yog ib lub sijhawm ntev - cov cuab yeej cuab tam infrastructure uas txo cov nqi tu thiab txhawb kev loj hlob bandwidth xav tau. Rau cov neeg cog lus hauv lub network, qhov zoo ntawm cov khoom siv tsis zoo - cov khoom sib txuas, cov khoom sib cais, cov thawv ntawv davhlau ya nyob twg, thaj cords, thiab cov xaim xaim xaim - txiav txim siab seb lub network puas ua tau zoo rau ntau xyoo lossis tsim teeb meem kev pabcuam.

Yog tias koj tab tom npaj FTTH xa tawm lossis ntsuas qhov kev pabcuam FTTH, saib dhau qhov kev tshaj tawm ceev. Tshawb xyuas tag nrho txoj hauv kev network, paub meej tias PON thev naus laus zis hauv kev siv, ntsuas cov khoom siv kho qhov muag tsis pom kev, thiab txheeb xyuas qhov kev teeb tsa zoo. Lub qhov dej - tsim FTTH network tsis yog hais txog kev nrawm hnub no - nws yog hais txog kev tsim lub hauv paus nkag uas ua haujlwm tau zoo rau kaum xyoo tom ntej thiab dhau mus.
