Fiber Optic Connector yog dab tsi?
Fiber optic connector yog ib yam khoom uas tso cai rau detachable (movable) kev sib txuas ntawm optical fibers. Nws precisely txuas ob lub ntsej muag kawg ntawm optical fibers kom ua kom qhov sib txuas ntawm cov hluav taws xob kho qhov muag tawm los ntawm kev xa cov fiber ntau mus rau qhov tau txais fiber ntau, thiab txo qhov kev cuam tshuam ntawm cov kab ke los ntawm nws cov kev cuam tshuam hauv qhov txuas kho qhov muag. Qhov no yog qhov yuav tsum tau ua ntawm fiber ntau optic connector. Rau qee qhov, fiber ntau optic connectors cuam tshuam rau kev ntseeg tau thiab kev ua tau zoo ntawm optical transmission systems.

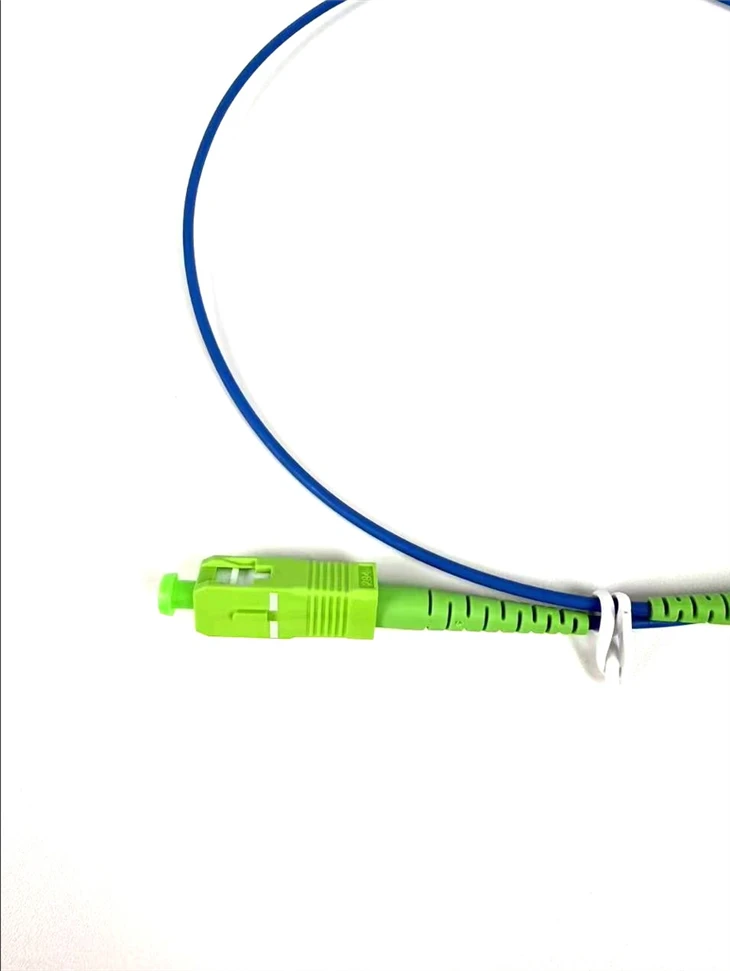

SC hom fiber ntau optic connectoryog ib tug fiber optic connector tsim los ntawm NTT Corporation nyob rau hauv Nyiv. Nws lub plhaub yog cov duab plaub, thiab cov qauv qhov ntev ntawm cov pins thiab lub tes tsho sib txuas siv tau zoo ib yam li cov hom FC. Lub ntsej muag kawg ntawm cov pins feem ntau polished sivPC lossis APC sib tsoo txoj kev; Txoj kev fastening siv lub ntsaws- hauv tus pin latch hom, uas tsis xav tau kev sib hloov. Hom connector no yog pheej yig, yooj yim rau plug thiab unplug, nrog me me fluctuations nyob rau hauv insertion poob, siab compressive zog, thiab siab installation ceev.
ST thiab SC interfaces yog ob hom fiber ntau optic connectors. Rau 10Base-F kev sib txuas, connectors feem ntau yog hom ST, thaum rau 100Base-FX, connectors feem ntau yog hom SC. Cov tub ntxhais ntawm ST connector raug nthuav tawm, thaum lub hauv paus ntawm SC connector nyob hauv qhov sib koom ua ke.
Cov yam ntxwv ntawm tus yam ntxwv thiab kev ua tau zoo ntawm ntau yam tib hom Fiber Optic Active Connectors
| Cov yam ntxwv ntawm tus yam ntxwv thiab kev ua tau zoo ntawm ntau yam tib hom Fiber Optic Active Connectors | ||||||
| Hom | FC/PC | FC/APC | SC/PC | SC/APC | ST/PC | |
| Cov qauv thiab cov yam ntxwv | kawg lub ntsej muag | Convex spherical nto | 8℃txoj kab nqes | Convex spherical nto | 8℃txoj kab nqes | Convex spherical nto |
| txoj kev sib txuas | xov | xov | Axial insertion thiab tshem tawm | Axial insertion thiab tshem tawm | snap | |
| connector puab | puag ncig | puag ncig | duab plaub | duab plaub | puag ncig | |
| Performance indicators, As | nruab nrab inertion poob | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 |
| qhov siab tshaj qhov poob | 0.3 | 0.5 | 0.5 | 0.5 | 0.3 | |
| repeatability | Tsawg dua lossis sib npaug ± 0.1 | Tsawg dua lossis sib npaug ± 0.1 | Tsawg dua lossis sib npaug ± 0.1 | Tsawg dua lossis sib npaug ± 0.1 | Tsawg dua lossis sib npaug ± 0.1 | |
| kev sib hloov | Tsawg dua lossis sib npaug ± 0.1 | Tsawg dua lossis sib npaug ± 0.1 | Tsawg dua lossis sib npaug ± 0.1 | Tsawg dua lossis sib npaug ± 0.1 | Tsawg dua lossis sib npaug ± 0.1 | |
| rov poob | Ntau dua lossis sib npaug li 40 | Ntau tshaj los yog sib npaug rau 60 | Ntau dua lossis sib npaug li 40 | Ntau tshaj los yog sib npaug rau 60 | Ntau dua lossis sib npaug li 40 | |
| ntxig thiab tshem tawm lub sijhawm | Ntau tshaj los yog sib npaug rau 1000 | Ntau tshaj los yog sib npaug rau 1000 | Ntau tshaj los yog sib npaug rau 1000 | Ntau tshaj los yog sib npaug rau 1000 | Ntau tshaj los yog sib npaug rau 1000 | |
| qhov kub thiab txias rau kev siv | '-40~80 | '-40~80 | '-40~80 | '-40~80 | '-40~80 | |
Daim ntawv thov
Siab -Density Patch Vaj Huam Sib Luag
Lub 0.5-meter ultra- ntev ntev txo qis cable slack nyob rau hauv high-density ib puag ncig, txo congestion nyob rau hauv cov khoom txee thiab thaj chaw thaj tsam.
FTTH Terminal Box Kev sib txuas
Qhov zoo tshaj plaws rau kev txuas ONT cov khoom siv rau fiber ntau rosettes thiab phab ntsa qhov hluav taws xob hauv qhov chaw - txwv FTTH kev teeb tsa sab hauv tsev.
ODF Internal Short-Ntu Patching
Feem ntau siv nyob rau hauv optical tis thav duab rau kev teeb tsa, qis -kev sib txuas ntawm cov modules uas nyob ib sab, splitters, thiab adapters.
Compact Telecom Enclosures
Haum rau cov thawv me me, phab ntsa-mount cov txee, thiab cov ntaub thaiv npog uas cov kab ntev ntev yuav tsim ntau yam tsis tsim nyog.
Test Bench thiab Lab Equipment Links
Muab kev xaiv luv luv, zoo ib yam jumper rau kev teeb tsa kho qhov muag thiab siv cov khoom siv sib txuas.
FAQ
Q: Yuav ua li cas rov qab poob qhov no SC / APC thaj qaum muab?
A: Ntau dua lossis sib npaug rau 60dB rov poob, raws li tau teev nyob rau hauv cov khoom ua tau zoo.
Q: Dab tsi yog qhov kev poob qis?
Q: Dab tsi yog 8-degree angled kawg lub ntsej muag txhais tau tias?
A: SC / APC connectors muaj 8-degree angled polish uas coj lub teeb pom kev deb ntawm cov tub ntxhais fiber ntau, txo qhov kev xav rov qab.
Q: Muaj pes tsawg mating cycles yog tus connector ntsuas rau?
A: Ntau dua los yog sib npaug rau 1000 qhov ntxig thiab tshem tawm lub voj voog thaum tswj kev ua haujlwm kho qhov muag ruaj khov.

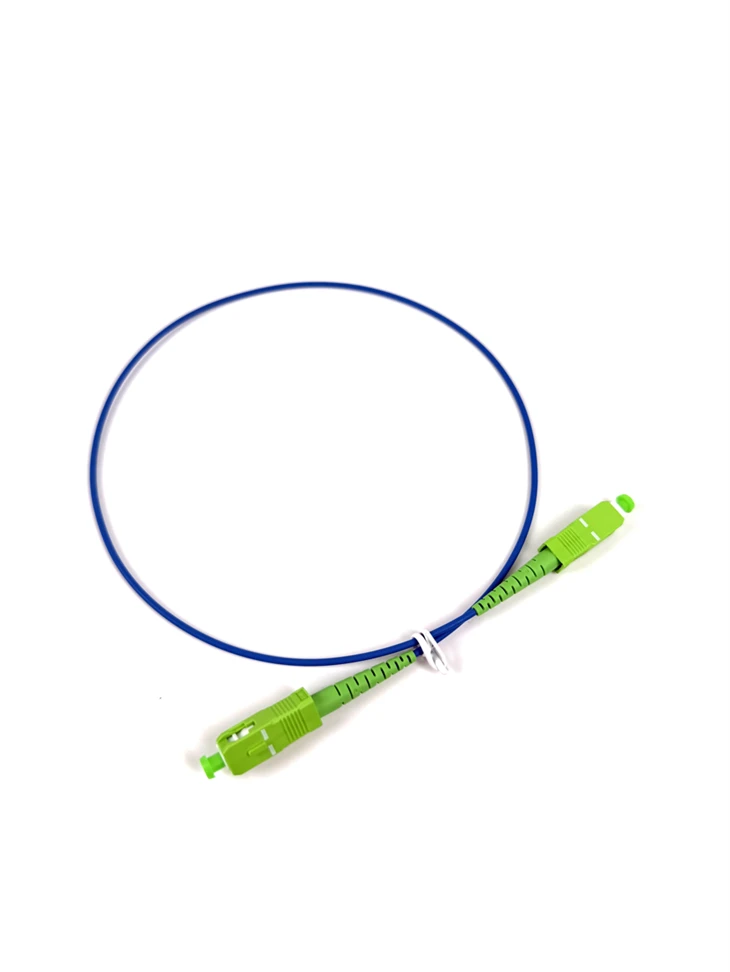

Q: Vim li cas thiaj xaiv 0.5-meter ultra-luv thaj qaum?
A: Ultra- cov hlua luv luv txo cov kab sib txuas, ua kom yooj yim rau kev tswj hwm hauv siab - qhov chaw ceev, thiab txo qis tshaj cable hauv qhov chaw me me.
Q: Qhov kev khiav hauj lwm kub yog dab tsi?
A: -40℃rau +80℃.
Q: Lub tsho dab tsi thiab txoj kab uas hla kev xaiv muaj?
A: Jackets: PVC, LSZH, OFNP. Loj: 3.0mm, 2.0mm, 0.9mm.
