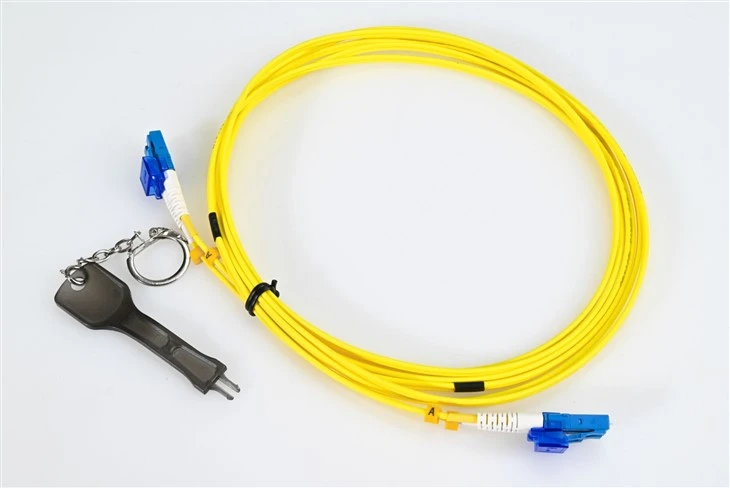

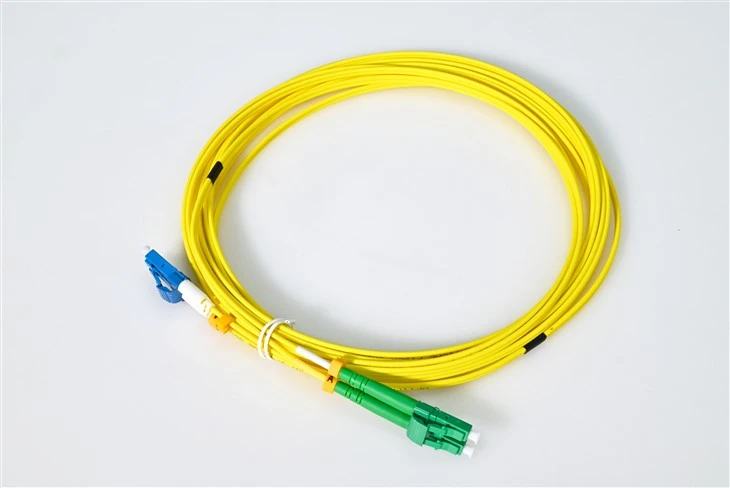

LC LC thaj cable yog dab tsi?
LC -LC fiber ntau thaj cablenrog ob lub LC fiber ntau connectors raug txiav ntawm ob qho kawg yog qhov feem ntau siv fiber ntau optic cable hom hauv kev lag luam. Piv nrog rau lwm cov fiber ntau optic cables, FC fiber ntau cables muab siab ceev thiab txhim khu kev qha kev ua tau zoo nyob rau hauv feem ntau daim ntaub ntawv. Yog tias koj tab tom nrhiav rau hybrid variant, pebLC APC rau LC UPC ib hom hybrid thaj qaum yog ib qho ntawm feem ntau thov configurations rau mix -polarity deployments.
Peb cov cables yog 100% optically tshuaj xyuas thiab kuaj rau qhov poob.
Specification
| Hom Connector | LC UPC rau LC APC | Fiber hom | Yellow 9/125μm |
| Fiber Qib | G657A/G652D | Lub wavelength | 1310/1550 nm |
| Insertion Loss | Tsawg dua lossis sib npaug li 0.3dB | Rov Los Los | Ntau dua lossis sib npaug li 50dB |
| Min. Khoov Radius (Fiber Core) | 10 hli | Min. Khoov Radius (Fiber Cable) | 10/5D (Dynamic / Static) |
| Fiber suav | Duplex | Cable Jacket | LSZH |
| Ua haujlwm kub | -20 ~ 70 degree | Cia Kub | -40 ~ 80 degree |
Kev faib cov txheej txheem ntawm optical cables
Optical fiber cable yog ib txoj kab kev sib txuas lus uas siv cov khoom siv kho qhov muag ua tau raws li qhov yuav tsum tau ua ntawm kev ua haujlwm kho qhov muag raws li kev sib kis nruab nrab kom ua tiav cov teeb liab kho qhov muag. Nws muaj cov khoom siv xws li cov tub ntxhais cable, cov khoom siv txhawb zog, thiab cov ntaub qhwv, thiab tseem tuaj yeem suav nrog cov khoom ntxiv xws li cov txheej txheem dej tsis zoo, cov txheej txheem tsis zoo, cov txheej txheem rwb thaiv tsev, thiab cov khaubncaws sab nraud povtseg raws li xav tau.
Cov kev faib tawm ntawm optical cables feem ntau suav nrog cov hauv qab no:
Los ntawm kis nruab nrab: categorized rau hauvtib- hom fiber ntau optic cables thiab multimode fiber optic cables.
Raws li cov tub ntxhais cable qauv: nws muab faib ua stranded optical cable, skeletal optical cable, central tube optical cable, ribbon optical cable, thiab ca optical cable.
Cov khoom siv txhawb zog: categorized rau hauv cov khoom tsis yog-cov hlau kho qhov muag, cov qauv kho qhov muag, thiab cov khoom siv kho qhov muag kho qhov muag.
Los ntawm txoj kev teeb tsa: muab faib ua cov kab hluav taws xob kho qhov muag, nyiaj siv ua haujlwm kho qhov muag cable, ncaj qha -faus kho qhov muag cable, thiab submarine optical cable.
Raws li kev siv ib puag ncig, lawv tau muab faib ua cov kab hluav taws xob sab hauv tsev thiab sab nraum zoov kho qhov muag cables.
Daim ntawv thov
Hla -Kev sib txuas ntawm UPC thiab APC cov cuab yeej raug tshem tawm
Thawj cov ntaub ntawv siv rau qhov no hybrid LC thaj cable yog cov khoom siv txuas nrog cov sib txuas sib txawv. Thaum cov cuab yeej siv network siv LC/APC cov chaw nres nkoj tab sis thaj vaj huam sib luag yog LC / UPC raug txiav tawm (lossis rov ua dua), UPC no -rau -APC fiber ntau jumper tshem tawm qhov xav tau ntawm kev hloov pauv hloov pauv. Yog xav paub ntxiv txog yuav ua li cas cov qauv polishing txawv hauv kev ua tau zoo, saib peb phau ntawv qhiaPC vs UPC vs APC fiber ntau txuas polish hom thiab rov ua haujlwm poob.
FTTH OLT thiab ONU Interconnection
Hauv fiber ntau-rau-- kev xa tawm hauv tsev, OLT cov cuab yeej siv feem ntau siv APC connectors rau qhov zoo rov qab poob, thaum qee cov khoom qub qub ONU muaj UPC interfaces. Qhov no LC UPC-APC hybrid cable muab kev sib txuas ncaj qha ntawm cov khoom siv PON tsis sib haum. Rau tus qauv FTTH khiav qhov twg ob qhov kawg sib faib tib hom polish, pebLC LC ib hom fiber ntau thaj cable rau FTTH thiab cov ntaub ntawv chaw sib txuasyog tus nqi - lwm txoj kev zoo.
CATV Headend thiab Distribution Node Patching
Cable TV optical networks feem ntau xav tau APC connectors kom txo qis rov qab -xav txog hauv analog video signals. Thaum sib koom ua ke UPC-tawm cov cuab yeej xeem lossis cov khoom qub qub, qhov sib txuas txuas txuas rau CATV headend siv tswj cov teeb liab kev ncaj ncees thoob plaws hom kev sib txuas.
Telecom Central Office Cross-Txuas Daim Ntawv Thov
Cov chaw sib txuas lus feem ntau tswj xyuas cov khoom sib txuas sib txuas thaum lub sijhawm hloov kho network. Qhov no ib hom hybrid jumper cable tso cai rau maj mam tsiv los ntawm UPC mus rau APC infrastructure yam tsis tau hloov tag nrho cov vaj huam sib luag uas twb muaj lawm ib txhij.
Laboratory Test nrog Mixed Connector Configurations
Optical test labs nquag ntsib cov cuab yeej nrog cov qauv sib txuas sib txawv. Lub siab tawv UPC-rau-APC kuaj kab hluav taws xob txo qis qhov xav tau rau ntau lub adapters thiab ua kom muaj kev ntsuas zoo ib yam thaum lub sijhawm fiber ntau.
Structured Cabling Transition in Building Networks
Thaum lub sij hawm tsim lub network hloov dua tshiab los ntawm cov cuab yeej cuab tam UPC mus rau niaj hnub APC kev teeb tsa, qhov G657A1 hybrid thaj cable no ua rau kev txuas mus ib ntus lossis mus tas li ntawm cov qub thiab tshiab cabling ntu yam tsis muaj kev hloov pauv tag nrho.
FAQ
Q1: Vim li cas kuv thiaj xav tau LC UPC rau LC APC hybrid thaj cable es tsis txhob siv lub adapter?
A: Ib qho tshwj xeeb hybrid patch cable muab qis dua tag nrho cov ntaub ntawv poob piv rau kev siv UPC - rau -APC mating adapter. Txhua qhov kev sib txuas ntawm adapter ntxiv qhov poob thiab qhov muaj peev xwm xav txog cov ntsiab lus. Qhov no ib leeg hybrid jumper nrog lub Hoobkas- polished xaus kom huv si teeb liab hloov thaum txuas UPC thiab APC khoom.
Q2: Dab tsi yog qhov txawv ntawm UPC thiab APC connector polish hom?
A: UPC (Ultra Physical Contact) muaj lub ntsej muag tiaj tus kawg, thaum APC (Angled Physical Contact) muaj 8-degree angled kawg lub ntsej muag. APC connectors muab ntau dua rov qab poob (qis rov qab-review), ua rau lawv nyiam rau analog video thiab high-rhiab heev daim ntaub ntawv. Qhov no hybrid cable txuas ob hom ncaj qha.
Q3: Kuv puas tuaj yeem siv LC UPC no-APC cable rau GPON lossis XGS-PON networks?
A: Yog. Passive optical networks feem ntau muaj OLT ports nrog APC connectors thiab qee qhov ONT / ONU li nrog UPC ports. Qhov no hybrid ib hom thaj cable rau PON xa mus txuas ntxiv xws li kev sib tshuam tsis sib haum yam tsis tas yuav tsum tau hloov kho adapter ntawm txhua qhov kev sib txuas.
Q4: Dab tsi yog G657A1 khoov-insensitive fiber ntau txhais tau tias rau kev teeb tsa?
A: G657A1 fiber ntau tso cai nruj dua khoov radii (tsawg li 10mm) yam tsis muaj teeb meem loj. This makes the hybrid patch cable suitable for confined spaces, dense patch panels, and routing around obstacles where standard G652D fiber would suffer macro-bend attenuation.
Q5: Puas yog lub tsho LSZH ntawm lub cable no xav tau rau kev teeb tsa sab hauv?
A: LSZH (Low Smoke Zero Halogen) tsho tau pom zoo los yog xav tau nyob rau hauv cov chaw kaw xws li cov chaw zov me nyuam, cov tsev ua haujlwm, thiab cov chaw pej xeem. Cov nplaim hluav taws no- cov kab hluav taws xob LC hybrid ua tau raws li cov qauv kev nyab xeeb hluav taws hauv tsev thiab tsim cov pa luam yeeb tsawg heev yog tias raug hluav taws. Rau kev taw qhia txog kev xaiv lub tsho zoo rau ib puag ncig sib txawv, xa mus rau peb tsab xov xwm ntawmSab hauv thiab sab nraum zoov fiber ntau optic cable installation yuav tsum tau thiab xaiv lub tsho.
Q6: Yuav ua li cas rov qab poob kuv xav tau los ntawm APC kawg ntawm no hybrid cable?
A: APC connector kawg feem ntau ua tiav ntau dua los yog sib npaug rau 60dB rov qab poob vim nws lub kaum sab xis. UPC kawg muab ntau dua lossis sib npaug rau 50dB rov qab poob. Ua ke nrog Tsawg dua los yog sib npaug rau 0.3dB qhov kev poob qis, qhov hybrid duplex thaj qaum no tswj cov teeb liab zoo rau kev sib txuas qhov muag pom.
Q7: Qhov no hybrid patch cable puas tuaj yeem siv tau ntev -kev sib kis ib leeg?
A: Yog. Lub 9/125μm ib hom fiber ntau txhawb kev sib kis ntau kis ntawm 1310nm thiab 1550nm wavelengths. Qhov no LC UPC rau APC jumper rau ntev -haul connectivity ua haujlwm nrog tus qauv ib hom transceivers thiab tuaj yeem xa mus rau hauv metro lossis nkag mus rau ntu ntu.
Q8: Puas yog kev cai ntev rau UPC no -APC hybrid fiber ntau cable?
A: Kev cai cable ntev, lub tsho xim, thiab duplex / yooj yim configurations tuaj yeem tsim los txiav txim. Hu rau tus neeg muag khoom kom qhia meej qhov yuav tsum tau ua rau bulk hybrid patch cable xaj lossis project-kev teeb tsa tshwj xeeb.
