Yog tias koj tab tom tshawb nrhiav 100G fiber optic cable, koj yuav tsum tau tsim lossis hloov kho qhov txuas uas nqa 100 Gigabit Ethernet tsheb. Ua ntej sib piv cov khoom, nws yuav pab kom tau txais cov ntsiab lus ncaj. Hauv kev sib tham, 100G (los yog 100GbE) hais txog 100-gigabit-ib -thib ob Ethernet txuas - tsis yog 100 gigabytes. Ntau cov khoom lag luam xws li hais tias "100GB fiber ntau," tab sis qhov tseeb tshwj xeeb yog hais txog cov ntaub ntawv tus nqi, tsis muaj peev xwm cia.

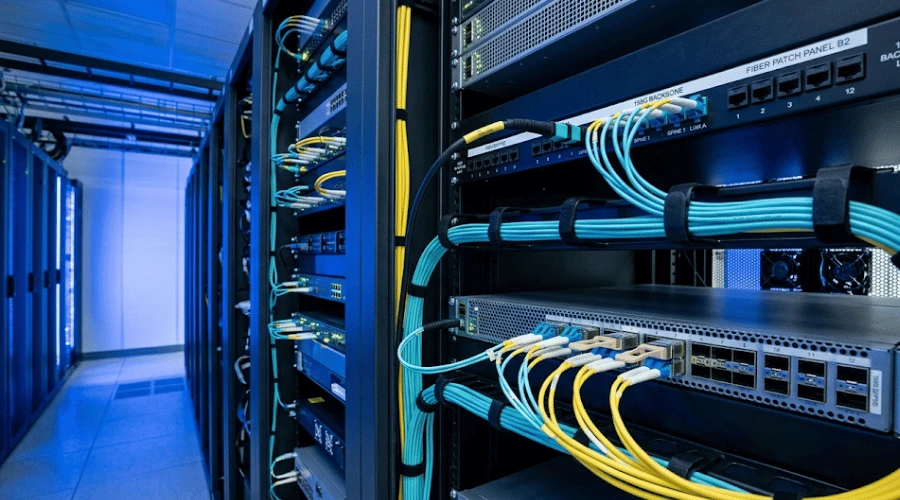

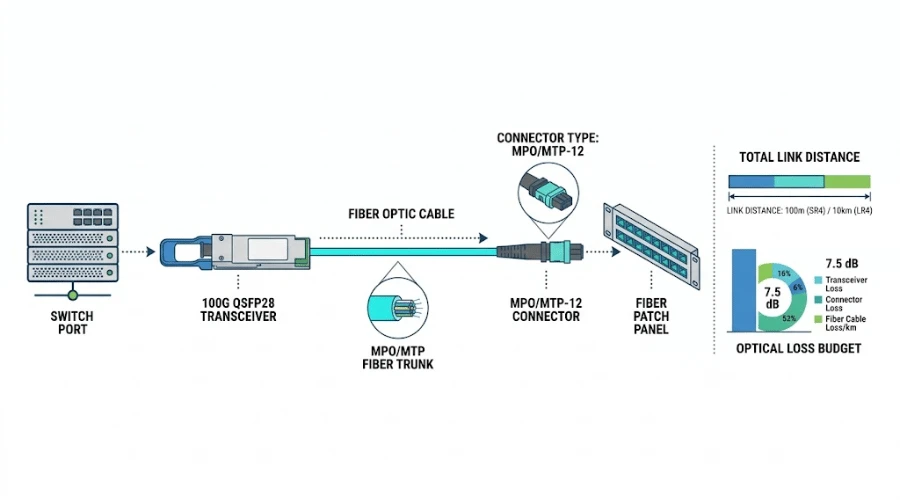

Qhov tseem ceeb tshaj, qhov txuas 100G yeej tsis tau txhais los ntawm thaj qaum ib leeg. Txoj kev kho qhov muag tag nrho suav nrog qhov hloov pauv lossis NIC chaw nres nkoj, lub transceiver module, hom fiber ntau, cov qauv txuas, qhov txuas txuas, thiab cov peev nyiaj poob. Ob lub cables uas ob qho tib si zoo li "fiber" tuaj yeem coj txawv txawv thaum koj suav rau cov kev hloov pauv no. Raws li Cisco's QSFP-100G module cov ntaub ntawv, qee qhov 100G txuas siv duplex LC connectors, lwm tus cia siab rau MPO parallel fiber ntau, thiab tshiab dua ib zaug -lambda optics siv PAM4 kev hloov pauv dhau ib lub wavelength - tag nrho nyob rau hauv tib lub "100G" kaus.
Dab tsi yog "100G Fiber Optic Cable" Tiag tiag?
Hauv kev ua lag luam, kab lus "100G fiber ntau cable" tau thov xoob. Tej zaum nws yuav xa mus rau tus qauvfiber optic thaj qaum, ib qho khoom siv kho qhov muag cable (AOC), lossis tag nrho 100GbE kho qhov muag txuas ua los ntawm QSFP28 transceivers ntxiv rau cov qauv cabling. Yog tias koj tshawb nrhiav lo lus no hauv online, koj yuav pom cov nplooj ntawv muab LC-LC OM4 thaj cables nrog rau QSFP28 AOC cov rooj sib txoos - ob qho khoom sib txawv heev daws teeb meem sib txawv.
Rau kev txiav txim siab engineering thiab kev yuav khoom, txoj hauv kev zoo tshaj plaws los xav txog 100G yog qhov no: lub cable yog ib feem ntawm cov qauv -raws li txuas, thiab "100G- ntsuas" thaj qaum tsis tau lees tias ib qho 100G chaw nres nkoj yuav ua haujlwm nrog nws. Optics thiab nruab nrab yuav tsum sib phim. Duplex-LC multimode txuas thiab MPO-raws li kev sib txuas-optics txuas ob leeg tuaj yeem nqa 100G, tab sis lawv ua li ntawd los ntawm kev sib txawv ntawm lub cev- txheej txheej tsim nrog ntau qhov sib txawv thiab suav fiber ntau.

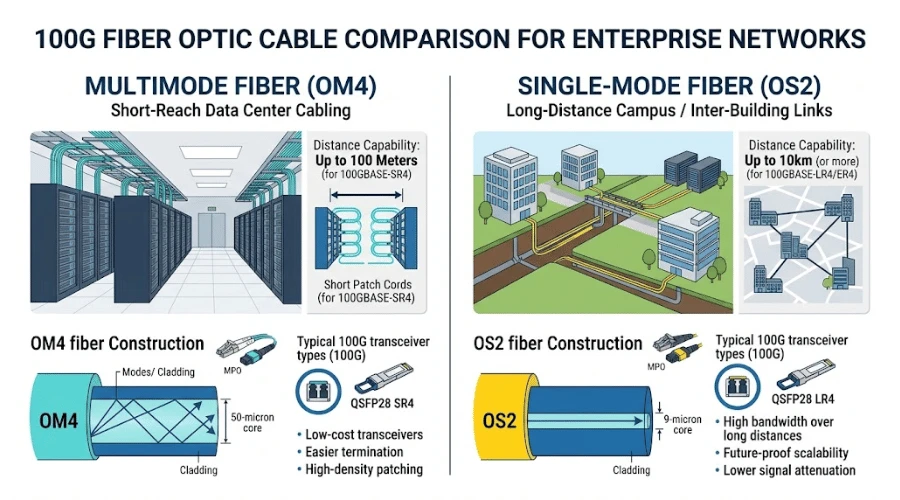

100G Fiber Hom: Multimode vs Single-Mod
Nyob rau theem siab tshaj, 100G tuaj yeem khiav dhaumultimode fiber ntau rau kev sib txuas luv dua thiab ib zaug -hom fiber ntau rau kev txuas ntev dua. Multimode tseem nrov nyob rau hauv cov chaw zov me nyuam vim tias feem ntau ntawm khib-rau- khib thiab kab-rau- kab kev sib txuas poob zoo nyob rau hauv nws qhov kev txwv, thiab kev sib xyaw ntawm multimode fiber ntau ntxiv rau VCSEL-raws li transceivers tuaj yeem raug nqi-zoo ntawm qhov ntsuas. Tib hom - hom dhau los ua qhov kev xaiv muaj zog dua li qhov kev ncua deb dhau ntawm cov ntaub ntawv hauv tsev, lossis thaum koj xav tau qhov yooj yim los pab txhawb kev hloov kho kom nrawm dua yav tom ntej yam tsis tau hloov cov txheej txheem cable.
Qhov kev pom tseem ceeb ntau tus neeg yuav khoom tsis nco yog tias lub transceiver txiav txim siab li cas 100G yog nqa hla cov fiber ntau. Kev xa tawm 100G multimode tuaj yeem siv duplex LC nrog BiDi lossis ib zaug -lambda luv- ncav cuag optic, lossis nws yuav siv MPO nrog plaub txoj kab sib luag 25G. Ib qho 100G ib zaug - hom kev xa tawm tuaj yeem siv duplex LC rau 500 m, 2 km, lossis 10 km - txhua qhov xav tau qhov sib txawv optic tab sis tib lub txuas. Tias yog vim li cas cov lus nug pib yog tsis yog "Kuv yuav yuav lub cable twg?" tab sis "Qhov twg 100G optic thiab txuas architecture kuv tsim?"

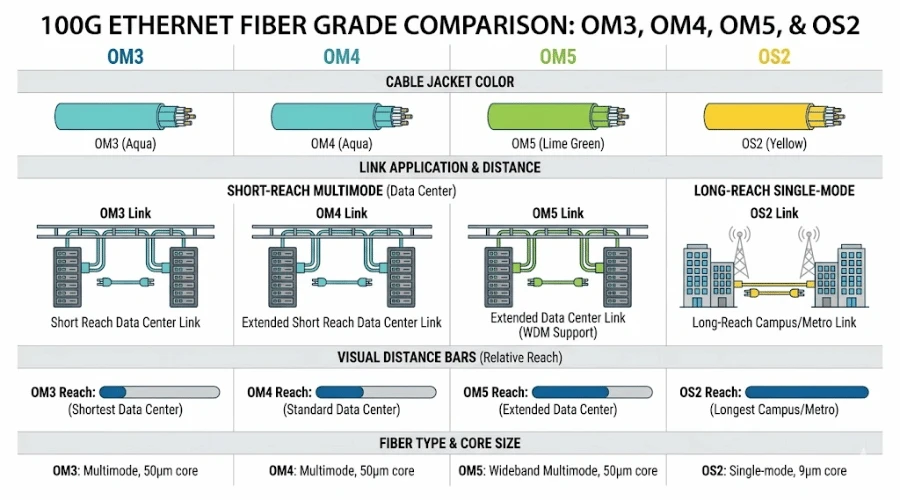

OM3 vs OM4 vs OM5 vs OS2: Xaiv txoj cai Fiber Qib rau 100G
OM 3
OM3 fiber ntau tseem tuaj yeem ua haujlwm rau 100G, tab sis nrog lub taub hau tsawg. Raws li Cisco cov ntaub ntawv, 100GBASE-SR4 QSFP module txhawb nqa txog li 70 m ntawm OM3 siv MPO parallel optics, thaum tib lub -lambda 100GBASE-SR (PAM4) duplex LC module kuj nce mus txog 70 m ntawm OM3. Yog tias koj cov nroj tsuag uas twb muaj lawm yog OM3 thiab koj cov kev txuas luv luv - hais, sab saum toj - ntawm - khib kev sib txuas hauv qab 50 m - tej zaum koj yuav tsis tas yuav hloov lub cable. Tab sis rau kev teeb tsa tshiab, OM3 tawm me ntsis ntawm cov npoo rau thaj chaw, cov khoom sib txuas, thiab cov kev poob, uas ua rau nws muaj kev pheej hmoo rau 100G tsim.
OM 4
Rau feem ntau tshiab luv luv - ncav cuag multimode deployments,OM4 yog qhov ua tau zoo. Nws txuas 100GBASE-SR4 mus txog 100 m ntawm MPO thiab txhawb nqa duplex LC ib leeg-lambda 100G ntawm 100 m thiab. Hauv kev hloov kho cov ntaub ntawv tiag tiag, OM4 yog qib fiber ntau uas feem ntau tau teev tseg vim tias nws muaj txiaj ntsig kev txhim kho nyob deb ntawm OM3 thaum zam tus nqi hwm ntawm OM5. Yog tias koj daim ntawv thov 100G yog tus qauv intra-cov ntaub ntawv- nruab nrab txuas thiab koj qhov kev khiav ntev tshaj plaws nyob hauv 100 m, OM4 feem ntau yog cov lus teb huv tshaj plaws.
OM 5
OM5 tsis yog kev hloov kho thoob ntiaj teb tshaj OM4 - ib qho taw tes uasCorning chaw nyob ncaj qhanyob rau hauv lawv cov kev ntsuam xyuas ntawm OM5 xa tawm scenarios. OM5 qhov zoo dua yog nyob hauv nws qhov dav dav tsim (850-953 nm), uas tau txais txiaj ntsig BiDi thiab SWDM transceivers uas xa ntau lub wavelengths ib txhij. Ntawm 100G, OM5 txuas BiDi mus txog 150 m piv rau 100 m ntawm OM4 - qhov nce tiag tiag thaum koj muaj kev sib txuas hauv 100-150 m. Txawm li cas los xij, Corning tseem hais tias nrog cov qauv{14}}raws li SR4-hom transceivers ua haujlwm nkaus xwb ntawm 850 nm, OM5 tsis muaj txiaj ntsig zoo tshaj OM4 vim tias ob qib fiber ntau sib koom tib yam 4700 MHz ·km ua haujlwm tau zoo ntawm qhov kev sib tw ntawm qhov wavelength. Hauv kev xyaum, qhov no txhais tau tias koj tsuas yog yuav tsum them tus nqi OM5 xwb thaum koj lub tshuab transceiver siv ntau lub wavelengths.
OS2 Single-Mode
Rau kev sib tshuam - kev txuas hauv tsev, cov pob txha hauv tsev kawm ntawv, kev sib txuas metro, lossis ib txoj kev ntev tshaj li 150 m,OS2 single-mode fiberfeem ntau yog qhov kev xaiv zoo dua. Cisco's 100G lineup muaj xws li duplex LC ib zaug -mod modules rau 500 m (100GBASE-DR), 2 km (100GBASE-FR/CWDM4), thiab 10 km (100GBASE{12}}LR4) {{14} zoo li thiab coherent QR4} 80 km dhau qhov txuas DWDM txuas. Tib- hom kuj tseem ua kom yooj yim rau kev tsiv teb tsaws yav tom ntej: tib lub OS2 cable cog uas nqa 100G hnub no tuaj yeem txhawb 400G lossis txawm tias 800G optics tag kis yam tsis tau rov-kab.
100G Fiber Selection Summary
| Fiber Qib | Core / Hom | Hom 100G ncav cuag (SR4 / MPO) | Hom 100G ncav cuag (Duplex LC) | Zoo tshaj rau |
|---|---|---|---|---|
| OM 3 | 50 µm multimode | 70 m | 70 m (SR, PAM4) | Legacy short links qhov twg OM3 twb ntsia |
| OM 4 | 50 µm multimode | 100 m | 100 m (SR, PAM4); 100 m (BiDi) | Cov ntaub ntawv tshiab tsim, qauv luv - ncav cuag 100G |
| OM 5 | 50 µm wideband multimode | 100 m (zoo ib yam li OM4 ntawm 850 nm) | 150 m (BiDi / SWDM) | BiDi lossis SWDM kev xa tawm nrog kev sib txuas ntau dua 100 m |
| OS 2 | 9 µm ib - hom | 500 m (PSM4) | 500 m (DR), 2 km (FR), 10 km (LR4), 80 km (ZR) | Inter-lub tsev, tsev kawm ntawv, metro, yav tom ntej- pov thawj tsim |
Nco tseg: Kev ncav cuag qhov tseem ceeb yog tsim lub hom phiaj los ntawm Cisco thiab IEEE specifications. Qhov kev ua tau zoo ntawm thaj chaw nyob ntawm qhov zoo ntawm cov khoom sib txuas, splice poob, thiab tag nrho cov kev sib txuas attenuation.

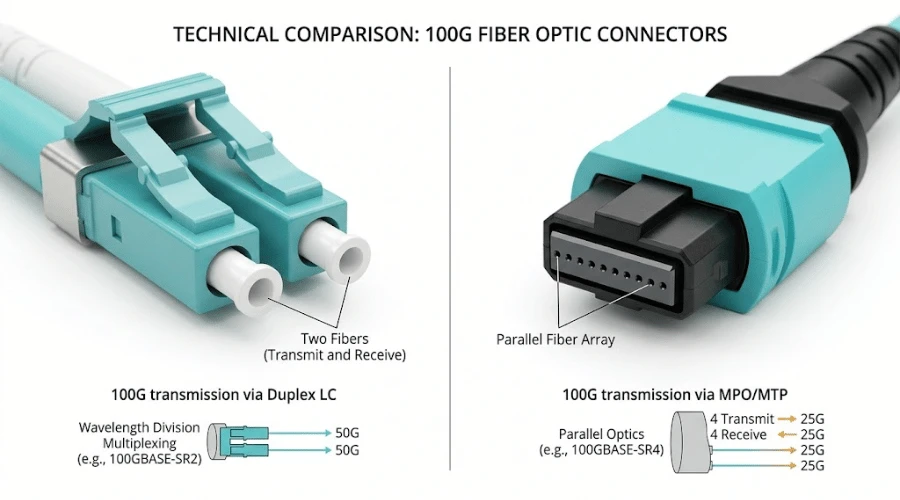

LC vs MPO Connectors rau 100G: Koj Puas Xav Tau?
Ob leegLC connectorsthiabMPO connectorsyog siv nyob rau hauv 100G tes hauj lwm, tab sis lawv ua hauj lwm txawv optical architectures. Kev xaiv connector tsis yog ib qho teeb meem ntawm kev nyiam - nws yog txiav txim los ntawm lub transceiver koj siv.
Thaum koj xav tau MPO:Parallel-optics transceivers zoo li 100GBASE-SR4 thiab 100GBASE-PSM4 faib cov teeb liab 100G ua plaub txoj kab 25G, txhua tus nqa ntawm ib qho fiber ntau cais. Cov modules no xav tau ib qhoMPO / MTP thaj qaumnrog 8 lossis 12 fibers. CovIEEE 802.3bm tus qauvtxhais lub 100GBASE-SR4 lub cev txheej txheej siv MPO-12 connectors hla multimode fiber ntau. Nyob rau hauv cov txheej txheem cabling ib puag ncig, kev tswj polarity thiab txoj kab kev ua haujlwm tau dhau los ua qhov tseem ceeb - ib lub ntsiab lus zoo hauvMPO / MTP fiber ntau qhia.
Thaum koj xav tau duplex LC:Tib -lambda thiab WDM-raws li 100G transceivers - suav nrog 100GBASE-DR, FR, CWDM4, LR4, thiab BiDi modules - multiplex tag nrho cov optical channels mus rau ib khub fiber ntau. Cov no siv cov txheej txheem duplex LC thaj qaum, uas yooj yim rau cabling thiab patching ntawm nplai. Rau kev ua kom muaj qhov ntom ntom ntau dua, siab - qhov ceev LC txuas cov kev daws teeb meem muaj los ua kom qhov chaw nres nkoj ntau tshaj plaws ntawm ib chav tsev khib.
Ib qho yuam kev ntawm kev yuav khoom yog yuav MPO lub cev cables rau kev xa tawm uas siv duplex -LC optics, lossis rov ua dua. Qhov no tshwm sim thaum cov neeg yuav khoom xaiv cabling raws li kev lag luam "100G" ntau dua li tsis lees paub qhov tseeb transceiver interface. Nco ntsoov xyuas lub module hom connector hauv cov ntaub ntawv ua ntej xaj cable.

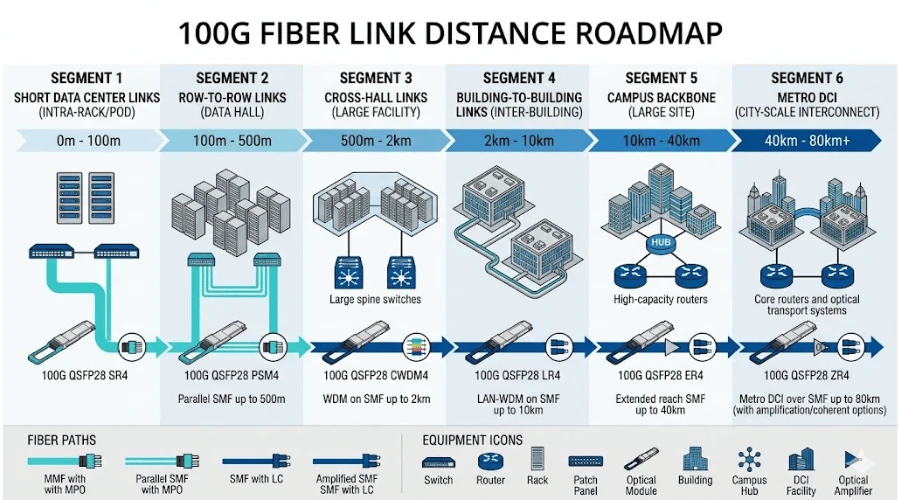

Ntev npaum li cas 100G Fiber Txuas mus txog?
Tsis muaj ib qhov kev ncua deb tshaj plaws rau "100G" vim tias lo lus npog ntau qhov sib txawv ntawm lub cev - txheej txheem txheej txheem. Ntawm no yog ib qho kev ua kom tiav raws li kev tshaj tawm specifications los ntawmCisco's QSFP-100G module data sheetthiab qhov cuam tshuam IEEE 802.3 hloov kho:
| 100G Standard | Hom Fiber | Txuas | Max Reach | IEEE Txuj |
|---|---|---|---|---|
| 100GBASE-SR4 | OM3 / OM4 multimode | MPO-12 | 70 m (OM3) / 100 m (OM4) | 802.3 wb |
| 100GBASE-SR (PAM4) | OM3 / OM4 / OM5 multimode | Duplex LC | 70 m / 100 m / 100 m | 802.3 cd |
| 100G BiDi (SR1.2) | OM3 / OM4 / OM5 multimode | Duplex LC | 70 m / 100 m / 150 m | MSA-raws li |
| 100GBASE-PSM4 | OS2 single-mode | MPO-12 | 500 m | PSM4 MSA |
| 100GBASE-DR | OS2 single-mode | Duplex LC | 500 m | 802.3 cd |
| 100GBASE-FR / CWDM4 | OS2 single-mode | Duplex LC | 2km ua | 100G Lambda MSA / CWDM4 MSA |
| 100GBASE-LR4 | OS2 single-mode | Duplex LC | 10km ua | 802.3 ib |
| 100GBASE-ER4 Lite | OS2 single-mode | Duplex LC | 40 km (nrog FEC) | Tus neeg muag khoom- tshwj xeeb |
| 100G ZR (coherent) | OS2 single-mode | Duplex LC | 80km + | 8 02,3k |
Nco ntsoov tias kev tshaj tawm mus txog yog qhov tsim lub hom phiaj xav tias qhov kev sib txuas huv nrog cov khoom sib txuas tau raug txiav. Nyob rau hauv lub ntiaj teb tiag tiag, txhua lub vaj huam sib luag, txhua tus khub sib txuas sib txuas, thiab txhua qhov khoov hauv txoj kev cable ntxiv poob. qias neeg los yog puas connector kawg lub ntsej muag yog ib qho ntawm feem ntau ua rau 100G txuas tsis ua hauj lwm nyob rau hauv ntau lawm puag ncig. Tias yog vim li cas cov pab pawg muaj kev paub txog kev sib koom tes tsim nrog cov npoo - feem ntau tsom rau kev sib txuas qhov deb tsawg kawg 20% luv dua qhov tshaj tawm tshaj tawm.

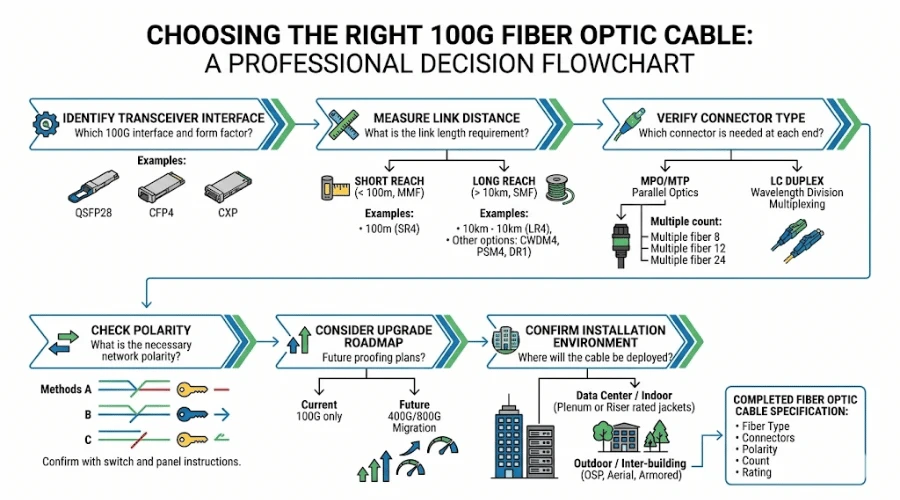

Yuav Ua Li Cas Xaiv Txoj Cai 100G Fiber Cable: Qhov Kev Txiav Txim Siab
Tsis yog ua raws li daim ntawv teev npe dav dav, siv qhov kev txiav txim siab no -tsim txoj hauv kev uas qhia txog qhov kev yuav khoom thiab kev xa mus ua haujlwm li cas hauv cov ntaub ntawv chaw thiab cov haujlwm hauv tsev kawm ntawv.
Kauj ruam 1: Txheeb xyuas qhov Transceiver Interface
Pib nrog qhov chaw nres nkoj, tsis yog kab ntawv teev npe. Tshawb xyuas koj lub tshuab hluav taws xob, router, lossis NIC kom paub meej tias nws siv aQSFP28 qhovlos yog lwm yam qauv. Tom qab ntawd txheeb xyuas qhov tseeb kho qhov muag module koj yuav siv - qhov no txiav txim siab seb koj puas xav tau duplex LC lossis MPO, multimode lossis ib qho - hom. Kev hla cov kauj ruam no yog ib qho laj thawj feem ntau "100G-tshaj" cable kev yuav khoom tsis ua haujlwm tiag tiag.
Kauj Ruam 2: Ntsuas (tsis txhob kwv yees) qhov txuas nrug
Taug kev ntawm txoj kev cable tiag tiag thiab tus account rau thaj panels, slack loops, thiab ib qho kev hloov ntsug lossis kab rov tav. Ib qhov txuas uas zoo li "txog 80 m" ntawm lub phiaj xwm hauv pem teb tuaj yeem yooj yim dhau los ua 95 m thaum koj suav nrog cable routing overhead. Rau luv luv hauv - kab lossis tib yam -chav txuas hauv qab 100 m, multimode OM4 ua ke nrog luv luv uas tsim nyog - ncav cuag optic feem ntau yog cov lus teb zoo. Rau txhua yam uas hla lub tsev ciam teb lossis tshaj 150 m, ib qho - hom LC thaj cables thiab cov khoom siv kho qhov muag sib xws yog yuav luag txhua qhov kev xaiv muaj kev nyab xeeb dua.
Kauj Ruam 3: Txheeb xyuas hom Connector thiab Polarity
Ib qho kev sib txuas tsis sib haum yog txoj hauv kev ceev tshaj plaws kom nkim nyiaj txiag. Duplex LC thiab MPO tsis yog kev hloov pauv uas koj xaiv los ntawm kev nyiam; lawv yog ib feem ntawm qhov txuas tsim. Nyob rau hauv parallel -optics ib puag ncig siv MPO, koj kuj yuav tsum tau tswjpolarity thiab txoj kab khiav- ib kauj ruam uas yooj yim rau kev saib xyuas thaum xaj ua ntej - cov kab hluav taws xob kaw. Rau cov rooj sib tham MPO, paub meej tias koj tus qauv tsim puas xav tau Hom A, Hom B, lossis Hom C polarity ua ntej muab qhov kev txiav txim.
Kauj Ruam 4: Qhov Tseem Ceeb hauv Koj Txoj Kev Txhim Kho Kev Txhim Kho
Yog tias koj npaj yuav tsiv mus nyob rau 400G lossis 800G hauv 3-5 xyoo tom ntej, qhov ntawd yuav tsum ua kom koj xaiv cable hnub no. Tib-mode OS2 fiber txhawb qhov tseem ceeb ntawm txhua chav ceev los ntawm 100G txog 800G yam tsis muaj rov-cabling. Nyob rau sab multimode, OM4 ua haujlwm tam sim no 100G thiab qee qhov 400G parallel-optics cov qauv, thaum OM5 ntxiv tus nqi tsuas yog tias koj 400G hloov kho txoj hauv kev tshwj xeeb suav nrog SWDM lossis wideband optics. Kev xaiv raws li txoj kev npaj hloov kho qhov tseeb - es tsis yog xav tias qib fiber ntau tshiab yog qhov zoo tshaj plaws - tiv thaiv kev siv nyiaj ntau yam tsis muaj kev cuam tshuam rau yav tom ntej yooj.
Kauj Ruam 5: Chaw Nyob Hauv Ib puag ncig kev teeb tsa
Cable tsho ntsuam xyuas (OFNR, OFNP, LSZH), routing tej yam kev mob, khoov vojvoog ua raws, thiabsab hauv thiab sab nraum zoov installation yuav tsumtxhua yam cuam tshuam seb qhov kev tsim qauv tsim nyog yuav ua tau zoo tom qab xa mus. In high-density patching environments, where dozens of cables converge on a single panel, managing bend radius and maintaining connector cleanliness become especially important.
Daim ntawv qhia ceev Scenario
| Koj qhov Scenario | Pom zoo Fiber | Pom zoo Connector | Hom Optic |
|---|---|---|---|
| Sab saum toj - ntawm - khib txuas hauv qab 30 m | OM4 (los yog OM3 uas twb muaj lawm) | MPO los yog duplex LC | 100GBASE-SR4 lossis 100G SR (PAM4) |
| Kab - mus rau - kab txuas 30–100 m | OM 4 | MPO los yog duplex LC | 100GBASE-SR4 lossis 100G BiDi |
| Hla-txoj kev txuas 100–150 m | OM5 (yog siv BiDi/SWDM) lossis OS2 | Duplex LC | 100G BiDi los yog 100GBASE-DR |
| Lub tsev - mus rau - tsev mus txog 2 km | OS 2 | Duplex LC | 100GBASE-FR lossis CWDM4 |
| Lub tsev kawm ntawv rov qab mus txog 10 km | OS 2 | Duplex LC | 100GBASE-LR4 |
| Metro lossis DCI mus txog 80 km | OS 2 | Duplex LC | 100G ZR (coherent) |

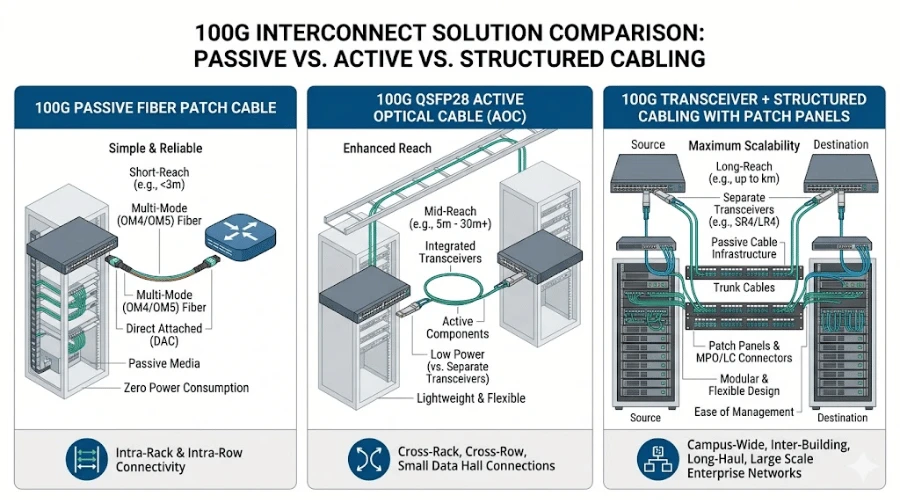

100G Patch Cable vs AOC vs Transceiver + Structured Cabling
Thaum tib neeg tshawb nrhiav "100G fiber ntau cable," lawv feem ntau ntsib peb yam khoom sib txawv uas ua haujlwm sib txawv:
Passive fiber ntau cablesyog standard fiber jumpers - xws li ibOM4 MPO thaj qaumlos yog ib qho -hom LC-LC jumper - siv los txuas lub transceiver mus rau ib lub vaj huam sib luag los yog ncaj qha ntawm ob lub transceivers los ntawm kev tsim cov cabling. Lawv nqa tsis muaj hluav taws xob thiab tsis muaj kev txwv deb tshaj li qhov transceiver thiab fiber ntau txhawb.
Active optical cables (AOCs)integrate lub transceiver optics rau hauv cable los ua ke nws tus kheej. AQSFP28 AOCplugs ncaj qha mus rau hauv ob qhov chaw hloov chaw uas tsis muaj kev sib cais transceiver xav tau. AOCs yog nyias, sib dua, thiab yooj yim dua rau kev xa tawm ntau dua li tooj liab DAC cables ntev dua, ua rau lawv nrov rau hauv - khib thiab luv luv - kev sib txuas khib. Txawm li cas los xij, lawv tsis yog thaj chaw - txiav tsis tau thiab tsis tuaj yeem rov ua dua - siv nrog optics sib txawv yog tias koj qhov kev xav tau ceev hloov.
Transceiver + kev teeb tsa cableyog txoj hauv kev feem ntau cov ntaub ntawv chaw siv ntawm qhov ntsuas. Koj txhim kho cov khoom siv fiber ntau ruaj khov - lub cev cables, thaj vaj huam sib luag, thiab fiber ntau optic adapters - thiab tom qab ntawd siv pluggable QSFP28 transceivers nrog luv patch cords ntawm txhua qhov kawg. Txoj hauv kev no yooj yim dua thiab tswj tau ntau dua li AOCs rau qhov loj - kev xa tawm vim tias koj tuaj yeem hloov cov transceivers ntawm nws tus kheej ntawm cov cabling.

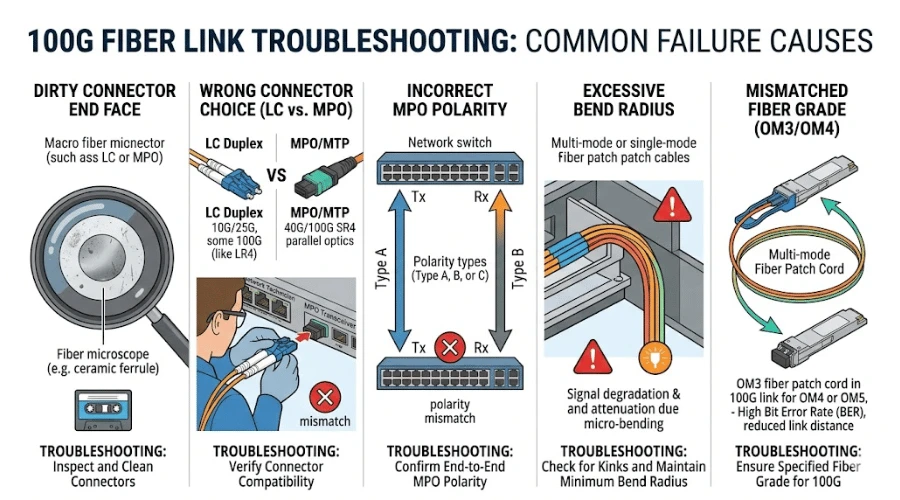

Feem ntau yuam kev uas ua rau 100G Fiber Link Failures
Piv txwv tias ib qho cable sau "100G" ua haujlwm nrog ib qho 100G ntaus ntawv.
Qhov no yog tej zaum qhov feem ntau yuam kev yuav khoom. Ib qhov txuas 100G yuav tsum muaj qhov chaw nres nkoj, transceiver, qib fiber ntau, hom connector, thiab kev ncua deb rau txhua qhov sib dhos. Kev yuav MPO OM4 lub cev cable rau qhov hloov chaw nres nkoj haum nrog duplex-LC ib leeg- hom transceiver yuav tsis ua haujlwm, txawm hais tias lub ntim cable hais li cas.
Kho OM5 raws li kev hloov kho tsis siv neeg.
Raws li Corning cov kev taw qhia kev paub meej, OM5 tsis muaj qhov zoo dua li OM4 thaum siv nrog tus qauv SR4- hom 850 nm transceivers. Tus nqi tsuas yog tsim nyog thaum siv BiDi lossis SWDM optics uas siv ntau lub wavelengths. Hauv ntau cov txheej txheem RFQ, cov neeg yuav khoom tau qhia OM5 "rau yav tom ntej- pov thawj" yam tsis tau lees paub tias lawv qhov kev hloov pauv tiag tiag suav nrog SWDM - thiab xaus them nyiaj ntau dua rau qhov txiaj ntsig tsis zoo.
Tsis quav ntsej cov kab mob sib kis.
Lub ntsej muag fiber ntau uas muaj plua plav lossis roj yog qhov ua rau muaj qhov sib txuas ntawm qhov muag tsis ruaj khov. Hauv 100G ib puag ncig, qhov chaw teeb liab tuaj yeem nruj dua li ntawm qhov qis qis, txawm tias ib qho me me ntawm qhov sib txuas ferrule tuaj yeem thawb qhov txuas hauv qab qhov pib. Tsim kom muaj "kev tshuaj xyuas ua ntej koj txuas" raws tu qauv - siv lub tshuab ntsuas fiber ntau los kuaj xyuas txhua qhov txuas ua ntej mating - tiv thaiv ntau qhov kev ua tsis tiav.
Tshaj khoov vojvoog thaum lub sij hawm installation.
Fiber cables uas yog kinked, routed nruj heev nyob ib ncig ntawm cov ces kaum, los yog crushed los ntawm cable ties yuav pom ntau dua attenuation thiab tej zaum intermittent faults. Qhov no yog qhov nyuaj rau kev kuaj mob dua li cov khoom siv qias neeg vim tias lub cable zoo li lub cev tsis zoo. Yog li ntawd,OTDR kuaj ntawm ntau lub wavelengthstuaj yeem pab nrhiav qhov kev ntxhov siab ntawm txoj kev fiber ntau.
Installation thiab Troubleshooting Qhov tseem ceeb
Ua ntej kev teeb tsa, ua ib daim ntawv teev npe ua ntej - xa mus: paub meej tias tus qauv transceiver, hom connector,qib fiber ntau, thiab tag nrho txoj kev ntev nrog rau slack loops. Thaum lub sij hawm installation, hwm khoov vojvoog kev ntsuam xyuas (feem ntau 10 × lub cable sab nraud txoj kab uas hla rau unloaded khoov), tsis txhob crushing los yog kinking, thiab khaws cov plua plav tiv thaiv ntawm tag nrho cov connectors mus txog rau thaum lub sij hawm mating.
Rau kev daws teeb meem, pib yooj yim. Kev kuaj pom pom nrog lub tshuab ntsuas fiber ntau yuav tsum yog koj thawj kauj ruam rau txhua qhov teeb meem uas xav tias muaj kab mob. Lub ntsuas hluav taws xob kho qhov muag ntsuas qhov ntsuas qhov kawg txheeb xyuas qhov kawg -rau- xaus qhov kev poob qis tiv thaiv qhov txuas qhov nyiaj poob. Yog tias koj xav nrhiav ib qho xwm txheej tshwj xeeb - xws li qhov tsis zoo splice, macrobend, lossis lub chaw txuas puas mid- ncua - OTDR (Lub Sijhawm Kho qhov muag-Domain Reflectometer) muab qhov kev ncua deb -mapped kab ntawm tag nrho txoj kev fiber ntau. Rau qhov kawg connector -lub ntsej muag zoo, sib piv cov txiaj ntsig tshuaj xyuas tawm tsam IEC 61300-3-35 cov txheej txheem dhau / tsis ua haujlwm.
Cov lus nug nquag
OM3 fiber ntau txhawb 100G?
Yog, tab sis nrog txo qis. 100GBASE-SR4 tus qauv txhawb nqa 70 m ntawm OM3, piv rau 100 m ntawm OM4. Rau cov nroj tsuag OM3 uas twb muaj lawm nrog luv luv txuas, 100G yog ua tau. Rau kev tsim tshiab, OM4 muab cov paj ntau dua ntawm tus nqi qis dua.
Puas yog 100G fiber ntau ib txwm MPO?
Tsis yog. Parallel-optics cov qauv zoo li 100GBASE-SR4 thiab PSM4 siv MPO connectors, tab sis ntau 100G qauv - suav nrog DR, FR, CWDM4, LR4, BiDi, thiab ZR - siv duplex LC. Lub connector yog nyob ntawm tus transceiver lub optical architecture.
Dab tsi connector siv QSFP28 transceiver?
QSFP28 yog qhov hluav taws xob daim ntawv foos (lub vaj tse module uas ntsaws rau hauv qhov hloov). Lub optical connector nyob rau sab cable txawv raws li hom module: nws tuaj yeem yog MPO-12 rau parallel- optics modules lossis duplex LC rau WDM thiab ib leeg-lambda modules. Nco ntsoov xyuas cov ntawv tshwj xeeb ntawm cov ntaub ntawv.
Kuv puas tuaj yeem rov siv kuv qhov OM4 cabling uas twb muaj lawm rau kev hloov kho 100G?
Feem ntau, yog - muab qhov txuas txuas thiab cov peev nyiaj poob yog nyob rau hauv cov lus qhia rau 100G optic koj xaiv. Yog tias koj cov OM4 txuas tau pib ua rau 10G lossis 40G, lawv tuaj yeem ua tau raws li qhov yuav tsum tau ua rau 100GBASE-SR4 (txog 100 m) lossis 100G BiDi (txog 100 m ntawm OM4). Ntsuam xyuas cov kev sib txuas nrog lub ntsuas hluav taws xob kho qhov muag kom paub tseeb tias qhov poob qis ua ntej xa 100G optics.
Dab tsi yog qhov txawv ntawm 100G thaj cable thiab 100G AOC?
Patch cable yog passive fiber jumper siv nruab nrab ntawm lub pluggable transceiver thiab ib thaj vaj huam sib luag (los yog lwm lub transceiver). IbAOC (Active Optical Cable)muaj transceivers txuas mus tas li ntawm ob qhov kawg - koj ntsaws nws ncaj qha rau hauv ob qhov chaw hloov pauv. AOCs yooj yim dua rau luv luv txuas txuas; thaj cables nrog pluggable transceivers muab kev yooj yim dua rau kev tswj hwm infrastructure.
Thaum twg kuv yuav tsum xaiv ib qho - hom hla multimode rau 100G?
Xav txog ib qho - hom thaum twg qhov txuas siab tshaj 150 m, hla lub tsev ciam teb, xav tau kev tawm sab nraud, lossis xav tau kev txhawb nqa yav tom ntej mus rau 400G lossis dhau ntawd yam tsis tau hloov fiber ntau. Tib -hom OS2 fiber ntau tus nqi ntau dua ib lub 'meter' dua li multimode, tab sis tag nrho cov nqi ntawm cov tswv cuab feem ntau sib tw thaum koj ua rau lub neej siv tau ntev dua thiab kev sib tw ceev dua.
Puas yog polarity tseem ceeb rau 100G MPO kev sib txuas?
Yog, thiab nws tseem ceeb tshaj li ntau tus installers paub. Nyob rau tib lub sijhawm - optics txuas siv MPO, txhua txoj hlua fiber ntau nqa ib txoj kab tshwj xeeb 25G. Yog tias qhov polarity tsis ncaj ncees lawm - lub ntsiab lus xa cov fibers tsis ua raws li qhov sib txuas tau txais fibers ntawm qhov kawg - qhov txuas yuav ua tsis tau lossis ua yuam kev. Tus qauv TIA-568 txhais tau peb txoj kev polarity (Hom A, Hom B, Hom C), thiab koj cov hlua khi, lub cev cables, thiab MPO adapters yuav tsum ua raws li tib txoj kev tsis tu ncua.
Kuv yuav ua li cas thiaj paub tseeb tias kuv qhov txuas 100G yuav ua haujlwm ua ntej yuav nyob?
Yam tsawg kawg nkaus, ua qhov kev ntsuam xyuas qhov poob nrog lub ntsuas qhov ntsuas qhov muag ntawm qhov kev ua haujlwm wavelength. Sib piv cov kev ntsuas poob rau lub transceiver qhov teev cov neeg txais kev xav tau thiab cov peev nyiaj poob. Rau kev sib txuas tseem ceeb, ntxiv ib qho OTDR kab los kuaj xyuas cov xwm txheej npaj txhij txog ntawm txoj kev. Thiab ib txwm tshuaj xyuas txhua qhov txuas kawg ntawm lub ntsej muag nrog lub tshuab ntsuas fiber ntau - ib kauj ruam no tiv thaiv feem ntau ntawm 100G xa tawm teeb meem.
Xaus
Xaiv txoj cai 100G fiber optic cable tsis yog hais txog kev nrhiav cov nplooj ntawv khoom nrog "100G" hauv lub npe thiab ntxiv rau koj lub laub. Txoj kev daws teeb meem yog los ntawm kev sib piv cov transceiver interface, qib fiber ntau, hom connector, txuas qhov deb, thiab cov kev xav tau hloov kho yav tom ntej rau hauv cov qauv tsim.
Rau feem ntau luv luv - ncav cuag cov ntaub ntawv chaw txuas, OM4 multimode nrog duplex LC lossis MPO connectors tseem yog qhov ua tau zoo. OM5 ntxiv tus nqi tiag tiag nkaus xwb hauv BiDi lossis SWDM cov xwm txheej uas koj xav tau ncav cuag tshaj 100 m ntawm multimode. Rau ib yam dab tsi ntev dua, lossis qhov twg koj xav tau qhov kev hloov pauv siab tshaj plaws yav tom ntej, OS2 ib leeg - hom ua ke nrog qhov tsim nyog 100G optic - seb DR, FR, LR4, lossis ZR - yog qhov kev nqis peev uas muaj zog dua.
Koj cov kauj ruam tom ntej zoo tshaj plaws: tshawb xyuas cov qauv transceiver tshwj xeeb hauv koj qhov hloov lossis NIC, ntsuas qhov tseeb ntawm txoj kab kev deb, paub meej tias hom connector, thiab tom qab ntawd xaiv qhov sib txuam fiber ntau. Cov khoom siv ntawd- thawj txoj hauv kev ua rau muaj txiaj ntsig zoo dua li kev yuav khoom los ntawm lo lus tseem ceeb ib leeg. Yog tias koj xav tau kev pab cuam fiber ntau optic thaj qaum los yog cov khoom txuas rau koj qhov kev xa tawm 100G, pab pawg txhawb nqa tuaj yeem tshuaj xyuas koj qhov txuas tsim thiab pom zoo ua ke kom raug.
