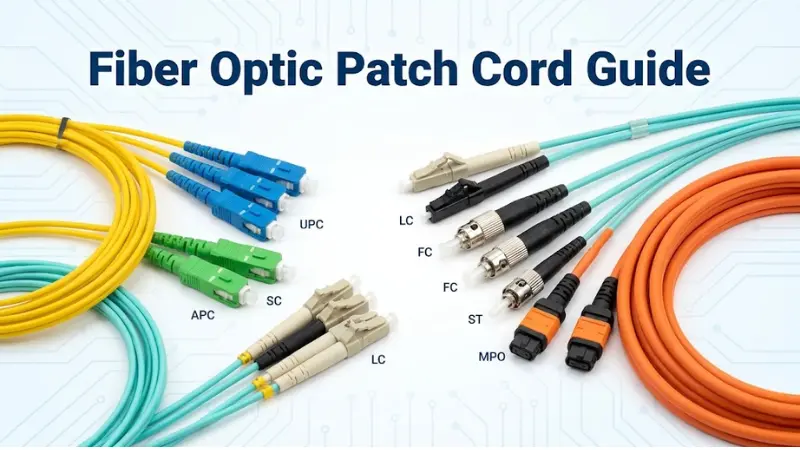

Dab tsi yog Fiber Optic Patch Cord thiab Nws Ua Haujlwm Li Cas?

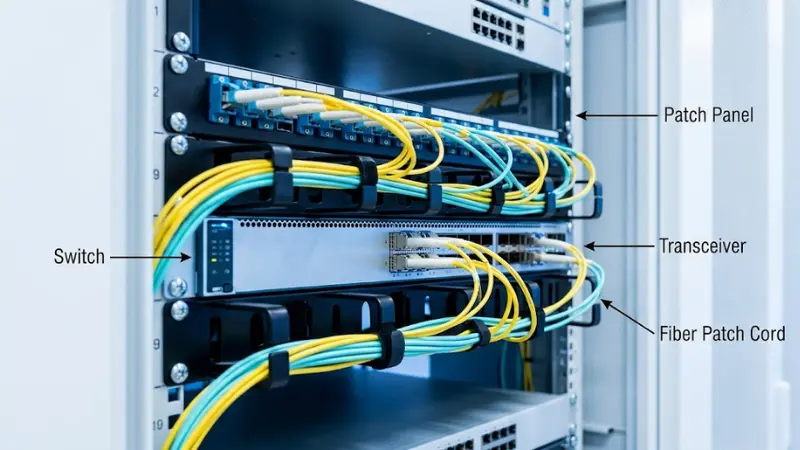

Ib qho fiber ntau optic thaj qaum, tseem hu ua fiber ntau thaj cable lossis fiber ntau jumper, yog lub Hoobkas -tawm cable sib dhos npaj rau ntsaws- thiab - ua si siv. Tsis zoo li liab qab fiber ntau lossis afiber pigtail(uas muaj ib tug connector ntawm ib kawg thiab liab qab fiber ntau rau lwm yam rau fusion splicing), ib thaj qaum muaj connectors ntawm ob hnub thiab yuav tsum tsis muaj kev txiav tawm.
Nws txoj hauj lwm tseem ceeb yog luv luv -kev sib cuam tshuam deb: txuas lub transceiver module mus rau lub vaj huam sib luag thaj, txuas cov fiber ntau faib thav duab rau cov khoom siv, lossis txuas ob lub cuab yeej hauv ib lub khib nyiab. Koj yuav pom cov hlua khi hauv yuav luag txhua qhov kev teeb tsa fiber ntau - los ntawm thaj chaw FTTH tee thiab PON faib mus rau siab -cov ntaub ntawv ceev ceev cross- txuas thiab chaw ua haujlwm hauv xov tooj.

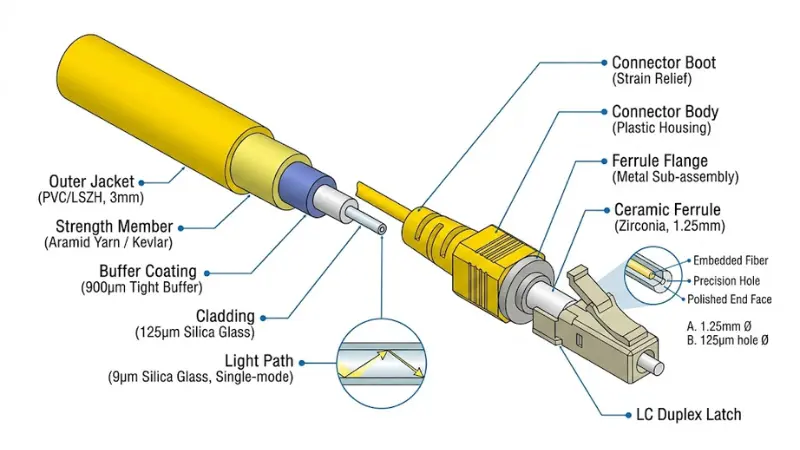

Cov Cheebtsam tseem ceeb ntawm Fiber Patch Cord
Txhua lub patch cord qhia plaub yam tseem ceeb. Covoptical fiber ntaunqa lub teeb teeb liab - yog 9/125 µm ib hom tub ntxhais rau ntev - mus txog qhov txuas lossis 50/125 µm (los yog 62.5 / 125 µm) multimode core rau luv luv. Ib puag ncig fiber ntau yog azog member, feem ntau aramid yarn, uas absorbs rub quab yuam thaum lub sij hawm installation thiab tiv thaiv iav los ntawm txhua yam kev nyuaj siab. Covlub tsho sab nrauv- ua los ntawm PVC, LSZH, lossis lwm yam khoom siv ntsuas - tiv thaiv lub cable los ntawm kev puas tsuaj, khoov, thiab ib puag ncig raug. Thaum kawg, tusconnectors thiab ferrulesntawm txhua qhov kawg kho cov tub ntxhais fiber ntau nrog precision; ferrule zoo ncaj qha cuam tshuam rau qhov poob thiab rov ua haujlwm poob. Hom connector koj pom feem ntau yog nyob ntawm daim ntawv thov:LC connectorsdominate cov chaw zov me nyuam, thaum SC connectors yog tus qauv hauv FTTH thiab PON xa tawm.

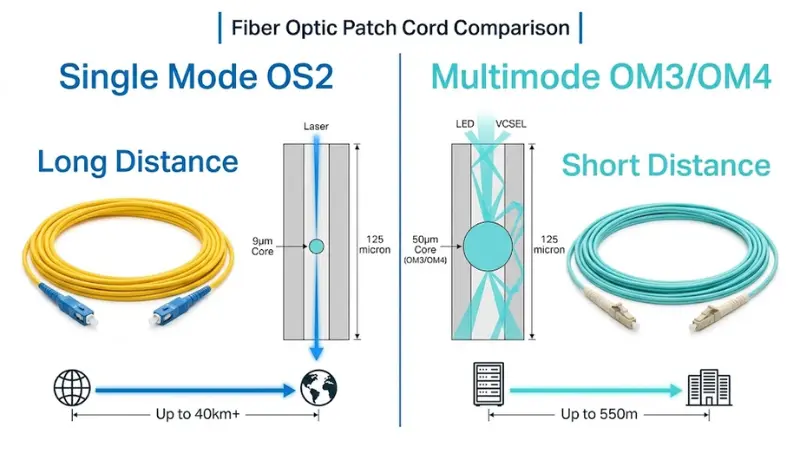

Ib Hom VS Multimode Fiber Patch Cord: Koj Xav Tau Dab Tsi?
Qhov no yog thawj qhov kev txiav txim siab nyob rau hauv ib qho kev xaiv ib thaj qaum, thiab nws yog tsav tag nrho los ntawm koj lub transceiver thiab kis nrug deb - tsis yog los ntawm tus kheej nyiam.
A ib leeg hom thaj qaum(OS2, 9/125 µm, feem ntau yog lub tsho daj) yog tsim rau ntev - nrug, siab - bandwidth txuas. Yog tias koj lub transceiver yog ib hom optic - feem ntau nyob rau hauv xov tooj qaum qaum, FTTH/PON, metro DWDM, los yog lub tsev kawm ntawv qaum qaum tsev kawm ntawv khiav ntau tshaj li ob peb puas meters - koj xav tau ib hom thaj cords. OS2 fiber txhawb qhov kev ncua deb zoo tshaj 10 km ntawm wavelengths ntawm 1310 nm thiab 1550 nm, thiab nws yog tus qauv xaiv rau GPON, XGS-PON, thiab ntev- cov cab kuj sib txuas.
A multimode thaj qaumsiv cov tub ntxhais loj dua (feem ntau yog 50/125 µm) thiab yog tsim los rau kev sib txuas luv dua hauv cov tsev, cov chaw zov me nyuam, thiab cov chaw hauv tsev kawm ntawv. Covmultimode qib- OM1 (62.5 µm, txiv kab ntxwv), OM2 (50 µm, txiv kab ntxwv), OM3 (50 µm, aqua), OM4 (50 µm, aqua), thiab OM5 (50 µm, txiv qaub ntsuab) - txawv bandwidth thiab txhawb nqa mus txog 5G, 0G, 0 2. 400G Ethernet. Rau cov ntaub ntawv tshiab tsim, OM3 lossis OM4 yog cov ntsiab lus pib ua haujlwm; OM5 ntxiv kev txhawb nqa dav dav multimode rau luv luv - wavelength division multiplexing.
Ib qho kev ua yuam kev feem ntau yog sib xyaw ib hom thiab multimode thaj cords hauv tib qhov txuas. Cov tub ntxhais txoj kab uas hla tsis sib xws, thiab lub hwj chim kho qhov muag yuav tsis ua khub kom raug. Ib txwm txheeb xyuas daim ntawv lo transceiver - nws qhia txog hom fiber ntau optic yog tsim los rau. Rau qhov sib piv sib sib zog nqus, saib pebib hom vs multimode fiber ntau qhia.

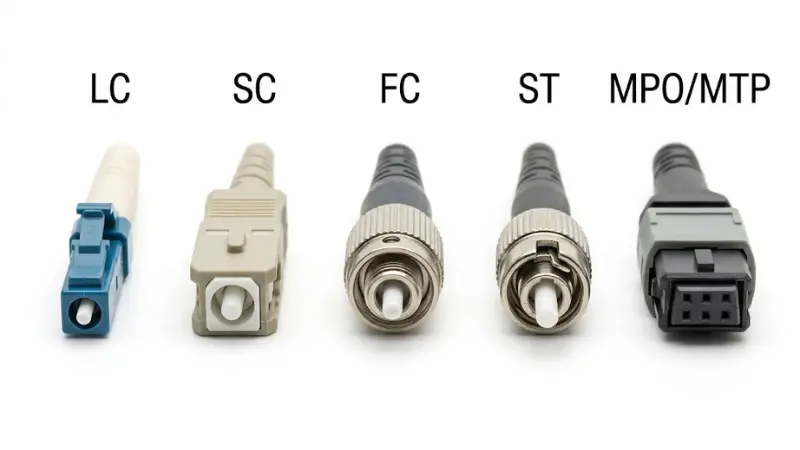

Fiber Patch Cord Connector Hom: LC, SC, FC, ST, thiab MPO / MTP
Hom connector yuav tsum phim qhov chaw nres nkoj ntawm koj cov khoom siv. Txuas lub SC rau hauv qhov chaw nres nkoj LC tsis tuaj yeem ua tau - lawv lub cev tsis sib haum. Ntawm no yog yuav ua li cas cov hom feem ntau sib piv hauv kev xyaum.
LC Connector Patch Cord
LC yog qhov tseem ceeb txuas hauv cov ntaub ntawv niaj hnub thiab chaw lag luam ib puag ncig. Nws daim ntawv me me (1.25 hli ferrule) ua rau muaj qhov chaw nres nkoj siab ntawm thaj vaj huam sib luag thiab hloov kab ntawv. Yog tias koj cov cuab yeej siv SFP, SFP +, SFP28, lossis QSFP modules, fiber ntau interface yuav luag LC. CovLC patch qaummuaj nyob rau hauv ib hom thiab multimode variants, simplex thiab duplex configurations, thiab ntau hom polish. For high-density racks where cable congestion is a concern, LC uniboot designs combine two fibers into a single housing, cutting cable volume roughly in half.
SC Connector Patch Cord
SC connectors siv lub 2.5 hli ferrule thiab lub laub - rub latching mechanism uas ua rau lawv yooj yim rau ntxig thiab tshem tawm ntawm tes - ib qho tseem ceeb kom zoo dua nyob rau hauv FTTH installation thiab sab nraum zoov tis thawv uas cov kws txawj ua hauj lwm sai.SC Patch Cordsyog tus qauv interface rau GPON ONTs, ntau OLT kab phaib, CATV receivers, thiab PLC splitters nyob rau hauv passive optical networks. Hauv FTTH cov haujlwm thoob plaws Asia, Europe, thiab Asmeskas, SC-APC yog nyob deb ntawm cov neeg siv feem ntau siv - sab txuas.
FC Connector Patch Cord
FC connectors siv ib tug threaded ntsia hlau coupling uas tuav lub ferrule khov kho nyob rau hauv qhov chaw, ua rau lawv resistant rau kev co thiab tsis sib xws. Koj tseem yuav pom FC thaj cords nyob rau hauv lub hauv paus chaw ua haujlwm hauv xov tooj, cov rooj zaum kho qhov muag, kev teeb tsa hauv chav kuaj, thiab qee cov khoom siv qub txeeg qub teg. Hauv kev xa tawm tshiab, FC tau maj mam hloov los ntawm LC lossis SC, tab sis nws tseem muaj feem cuam tshuam rau qhov twg kev sib txuas ruaj khov nyob rau hauv kev vibration teeb meem thiab cov khoom siv tsis tau hloov kho.
ST Connector Patch Cord
ST connectors siv bayonet twist -lock mechanism. Lawv tau siv dav hauv kev teeb tsa multimode LAN thaum ntxov thiab tseem nyob hauv qee qhov kev sib txuas fiber ntau thiab cov cuab yeej cuab tam hauv tsev kawm ntawv. ST patch cords tsis tshua tau teev tseg rau cov haujlwm tshiab, tab sis lawv tseem xav tau thaum tswj lossis txuas cov txheej txheem qub multimode.
MPO / MTP Connector Patch Cord
MPO (Multi-fiber Push-On) thiab MTP (lub npe hom rau siab -kev ua tau zoo MPO variant) connectors nqa 8, 12, 24, los yog ntau dua fibers nyob rau hauv ib lub voj voos ferrule. Lawv yog qhov tseem ceeb rau 40G, 100G, thiab 400G parallel optics hauv cov chaw zov me nyuam, qhov twg ib leegMPO / MTP lub cev cablehloov ntau tus neeg duplex thaj qaum. Kev tswj hwm polarity yog qhov tseem ceeb nrog MPO systems - TIA-568.3 txhais txoj kev A, B, C, U1, thiab U2 kom ntseeg tau tias kev xa tawm thiab tau txais cov fibers ua kom raug raws qhov txuas. Tau txais polarity tsis ncaj ncees lawm txhais tau tias qhov txuas yuav tsis tuaj, txawm tias cov khoom sib txuas ntawm lub cev. Rau kev taw qhia tswv yim, saib pebMPO / MTP fiber ntau daim ntawv qhia.

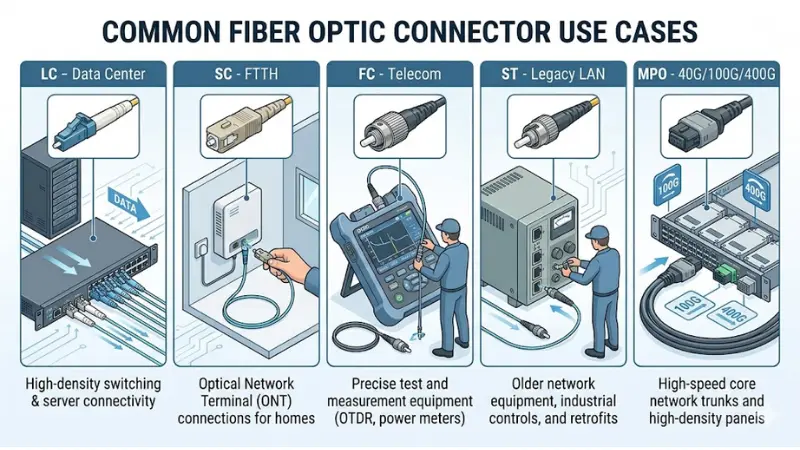

Connector Sib piv ntawm ib nrais muag
| Txuas | Ferrule Loj | Locking Style | Tej kev siv | Qhov tseem ceeb tshaj |
|---|---|---|---|---|
| LC | 1.25 hli | Latch clip | Cov chaw zov me nyuam, SFP / QSFP modules, hloov chaw ua lag luam | High chaw nres nkoj ceev |
| SC | 2.5 hli | Push-rub | FTTH, GPON / EPON, CATV, PLC splitters | Yooj yim tuav, tus nqi qis |
| FC | 2.5 hli | Threaded ntsia hlau | Telecom, kuaj khoom, labs | Kev vibration- tiv thaiv kev sib txuas |
| ST | 2.5 hli | Bayonet twist -lock | Legacy LAN, industrial, qub thaj vaj huam sib luag | Ruaj ntseg mechanical xauv |
| MPO/MTP | Multi-fiber duab plaub | Push-rub | 40G / 100G / 400G cov ntaub ntawv chaw, lub cev cabling | High fiber ntau suav rau ib lub connector |
| E2000 | 2.5 hli | Push- rub nrog kaw | Siab -kev ua tau zoo hauv xov tooj, kev nyab xeeb- txuas tseem ceeb | Ua - hauv plua plav thiab laser tiv thaiv |
Txhua connector interface yog standardized nyob rau hauv lubIEC 61754 Kev Ua Haujlwm- Piv txwv li, IEC 61754-20 rau LC, IEC 61754-4 rau SC, thiab IEC 61754-13 rau FC - uas ua kom cov neeg tsim khoom sib koom ua ke sib raug zoo.

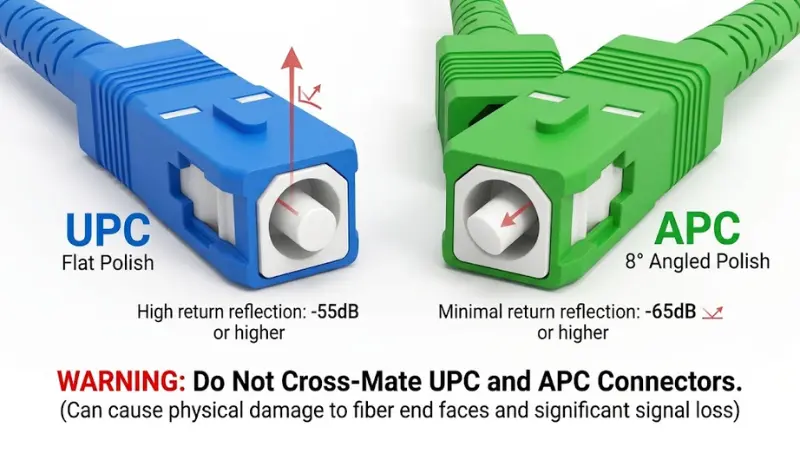

PC vs UPC vs APC: Xaiv Txoj Cai Polish Hom
Cov polish hom ntawm lub connector kawg lub ntsej muag tswj ntau npaum li cas lub teeb pom kev rov qab mus rau qhov chaw. Qhov kev xav rov qab no, ntsuas raws li kev poob rov qab, tseem ceeb hauv qee qhov kev siv dua li lwm tus.
PC (lub cev tiv tauj)muab ib qho yooj yim nkhaus kawg ntsej muag. Nws yog ib zaug txheem rau multimode systems tab sis tam sim no tsis tshua muaj nyob rau hauv tshiab ib hom kev teeb tsa.
UPC (Ultra Physical Contact)muaj qhov zoo tshaj plaws polished dome duab, txo rov qab poob mus rau ib ncig ntawm -50 dB lossis zoo dua. UPC yog dav siv rau kev sib txuas lus digital, kev sib txuas Ethernet, thiab feem ntau cov qauv ib hom thiab multimode patching. UPC connectors feem ntau yog xiav.
APC (Angled Physical Contact)ntxiv 8-degree lub kaum sab xis rau lub ntsej muag kawg, uas qhia lub teeb pom kev deb ntawm cov tub ntxhais fiber ntau thiab ua tiav rov qab poob ntawm −60 dB lossis zoo dua. APC yog tus qauv rau FTTH, GPON, XGS-PON, CATV, thiab ib qho RF-Overlay lossis analog video daim ntawv thov qhov twg txawm me me rov qab reflections degrade lub teeb liab zoo. APC connectors yeej ib txwm ntsuab - cov xim coding no tau teev nyob rau hauv TIA-568.3 los tiv thaiv kev sib tsoo sib tsoo. Rau cov ncauj lus kom ntxaws kev sib piv, nyeem pebPC vs UPC vs APC phau ntawv qhia.
Txoj cai tseem ceeb: tsis txhob ua phooj ywg APC txuas ncaj qha nrog UPC txuas.Lub kaum sab xis thiab lub ntsej muag tiaj tus yuav tsis ua kom zoo. Qhov no ua rau muaj qhov sib txawv ntawm huab cua uas ua rau muaj qhov poob qis heev, ua rau rov qab poob, thiab tuaj yeem ua rau lub cev puas tsuaj rau ob qho tib si ferrule. Yog tias koj xav tau txuas APC thiab UPC cov cuab yeej siv, siv cov hlua txuas txuas (APC ntawm ib kawg, UPC ntawm lwm qhov) lossis ib qho khoom siv tsim nyog nrog kev hloov pauv sab hauv.

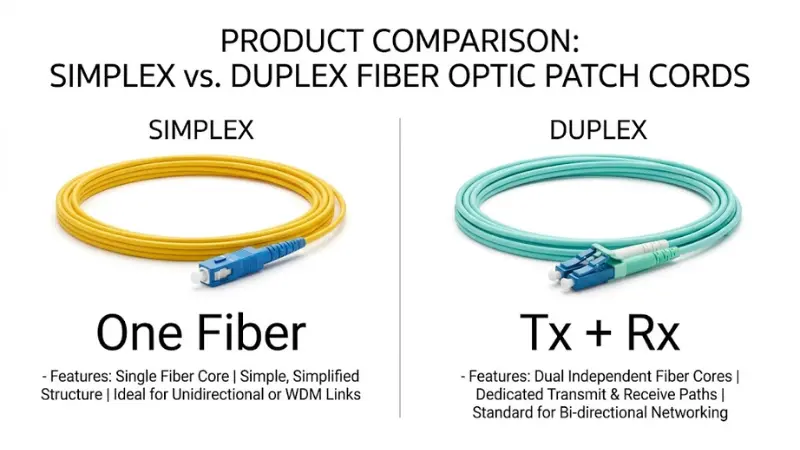

Simplex vs Duplex Fiber Patch Cord
A simplexpatch cord nqa ib qho fiber ntau strand. Nws yog siv nyob rau hauv ib qho -cov kev taw qhia txuas - piv txwv li, qee qhov kev soj ntsuam pub, qee qhov kev faib CATV, lossis BiDi (bidirectional) transceivers uas xa thiab tau txais ntau dua ib qho fiber ntau ntawm qhov sib txawv wavelengths.
A duplexthaj qaum nqa ob lub fiber ntau - ib qho rau kev xa tawm, ib qho rau txais. Qhov no yog tus qauv kev teeb tsa rau txhua qhov Ethernet optical txuas siv cov qauv SFP, SFP +, lossis SFP28 transceivers. Feem ntau cov ntaub ntawv chaw, kev lag luam, thiab kev sib txuas lus sib txuas siv cov khoom siv duplex LC lossis duplex SC cables. Rau kev sib piv zoo dua, saibsimplex vs duplex piav qhia.

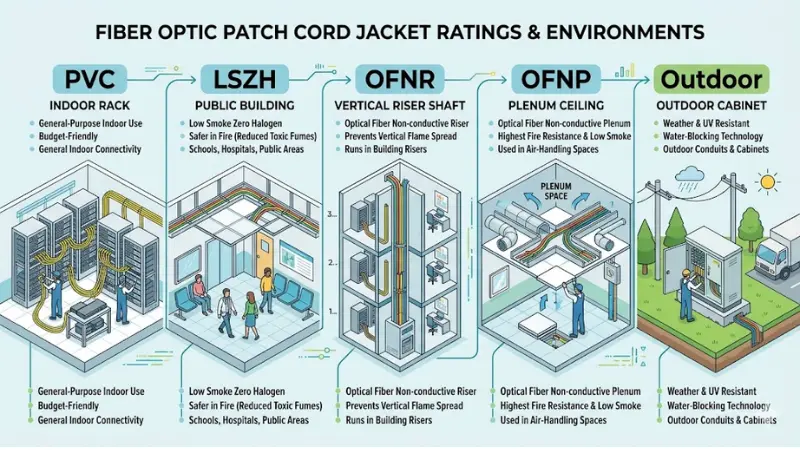

Cable Jacket Ratings: PVC, LSZH, OFNR, thiab OFNP
Cov khoom siv lub tsho tsis yog hais txog kev ua haujlwm ntev - nyob rau hauv ntau thaj tsam, cov cai hauv tsev hais tias qhov kev ntsuas kab twg raug tso cai raws li qhov chaw siv cable. Hauv Tebchaws Meskas,Tshooj 770 ntawm NEC (NFPA 70)cais cov kab hluav taws xob kho qhov muag los ntawm kev siv hluav taws xob, thiab siv qhov ntsuas tsis raug tuaj yeem ua txhaum cov cai hauv zos.
PVCyog hloov tau, pheej yig, thiab tsim nyog rau kev siv sab hauv tsev uas tsis muaj qhov ntsuas hluav taws xob tshwj xeeb. Nws yog lub tsho default rau ntau tus qauv sab hauv tsev patch cords.
LSZH (Low Smoke Zero Halogen)tsim cov pa luam yeeb tsawg heev thiab tsis muaj halogenated gases thaum hlawv. Nws yog qhov yuav tsum tau lossis xav tau zoo dua hauv cov chaw pej xeem, kev thauj mus los, cov chaw khaws ntaub ntawv, thiab cov tsev hauv European Union thiab ntau lub khw hauv Esxias uas siv IEC 60332 cov qauv flammability.
OFNR (Optical Fiber Nonconductive Riser)yog ntsuas rau ntsug khiav ntawm cov plag tsev. NEC yuav tsum tau riser- ntsuas kab hluav taws xob thaum txoj hlua txuas hla hauv pem teb nkag mus rau hauv lub tsev ncej. OFNR cable yuav tsum nws tus kheej - tua thiab tiv thaiv cov nplaim taws los ntawm kev mus rau hauv pem teb.
OFNP (Optical Fiber Nonconductive Plenum)nqa qhov siab tshaj plaws NEC hluav taws kub ntsuas. Nws yuav tsum muaj nyob rau hauv plenum qhov chaw - huab cua- tuav cov cheeb tsam saum toj saud qab nthab lossis hauv qab cov plag tsev - qhov hluav taws kub thiab pa taws tuaj yeem kis tau los ntawm HVAC ducts. OFNP cables yuav tsum ua kom tau raws li cov nplaim taws sib kis thiab cov pa luam yeeb ntom ntom uas tau teev tseg hauv NFPA 262. Ib qho OFNP cable tuaj yeem hloov pauv rau OFNR lossis dav dav - lub hom phiaj cable, tab sis qhov thim rov qab tsis tso cai.
Ua ntej kev txiav txim, paub meej tias txoj kev teeb tsa thiab xyuas cov cai hauv zos hauv zos. Nyob rau hauv ib lub chaw ntaub ntawv, LSZH lossis OFNP feem ntau teev nyob ntawm txoj cai.
Tshwj xeeb Fiber Patch Cords rau kev thov ib puag ncig
Armored Fiber Patch Cord
Ibarmored thaj qaumntxiv cov hlau tsis muaj steel lossis aluminium interlocking armor txheej ntawm lub raj sab hauv thiab lub tsho sab nrauv. Qhov no tiv thaiv cov fiber ntau los ntawm kev sib tsoo, nas puas, thiab kev ua haujlwm tsis zoo - muaj kev pheej hmoo ntau hauv cov chaw tsim khoom, cov tais hluav taws xob, thiab kev xa mus ib ntus uas cov cables yuav tsum tau nce lossis khiav los ntawm cov khoom siv tsheb thauj khoom.
Sab nraum zoov thiab Waterproof Fiber Patch Cord
Cov kab hluav taws xob sab hauv tsev ua tsis tau sai thaum raug ya raws, UV hluav taws xob, thiab qhov kub thiab txias. Sab nraum zoov cov hlua tsis muaj dej tsis zoo siv cov khoom sib txuas (ODVA, FullAXS, OptiTap, PDLC, lossis IP67 / IP68 rated vaj tse) thiab UV- tiv thaiv lub tsho. Lawv yog qhov tseem ceeb rau FTTA (fiber-rau--} kav hlau txais xov) kev sib txuas ntawm 4G/5G hauv paus chaw nres tsheb, cov txee sab nraum zoov, cov chaw taws teeb xov tooj cua, thiab txhua qhov txuas uas khiav ntawm lub tsev yam tsis muaj kev tiv thaiv cov kav dej. Yog xav paub ntxiv txog kev xaiv sab nraum zoov cable, saib pebFTTA sab nraum zoov thaj cable qhia.
MPO / MTP Lub cev thiab Breakout Cables
Tshaj li tus qauv MPO-rau-MPO lub cev cables, tawg lossis kiv cua- tawm cov rooj sib txoos cais ib qho MPO txuas rau ntau qhov sib txuas LC lossis SC duplex. Cov no tau siv dav hauv cov txheej txheem cabling rau 100G tsiv teb tsaws thiab sab saum toj - ntawm - khib patching hauv cov ntaub ntawv chaw.
Yuav Ua Li Cas Xaiv Txoj Cai Fiber Optic Patch Cord: Daim Ntawv Teev Npe Ua Haujlwm
Kev txiav txim ib txoj hlua khi yuav tsum tsis txhob xav tom qab. Ib qho kev tsis sib haum xeeb hauv ib qho kev ntsuas - txuas, hom fiber ntau, polish, lossis lub tsho - tuaj yeem nqa qhov txuas lossis ua rau kev ua haujlwm tsis zoo uas nyuaj rau kev kuaj mob tom qab. Ua hauj lwm los ntawm cov kauj ruam no ua ntej muab qhov kev txiav txim.
Kauj Ruam 1: Txheeb xyuas qhov txuas ntawm Ob Qhov Kawg
Xyuas qhov chaw nres nkoj interface ntawm txhua lub cuab yeej. SFP modules siv LC. FTTH ONTs feem ntau siv SC. Cov cuab yeej siv xov tooj qub tuaj yeem siv FC. Yog tias ob lub cuab yeej muaj ntau hom chaw nres nkoj, koj xav tau hybrid thaj qaum (piv txwv li, LC rau SC lossis LC rau FC).
Kauj ruam 2: Paub meej ib hom lossis Multimode
Nyeem daim ntawv lo lus transceiver lossis datasheet. 1310nm lossis 1550nm optic yog ib hom. Ib qho 850nm optic yog multimode. Sib piv cov kab hlua fiber ntau rau lub transceiver - tsis txhob twv.
Kauj ruam 3: Xaiv hom Polish kom raug
Siv APC rau FTTH, PON, CATV, thiab txhua daim ntawv thov nkag siab txog kev xav rov qab. Siv UPC rau cov qauv sib txuas, Ethernet patching, thiab feem ntau cov ntaub ntawv sib txuas. Tsis txhob hla - phooj ywg APC nrog UPC.
Kauj ruam 4: Xaiv Simplex lossis Duplex
Feem ntau cov qauv Ethernet transceiver txuas yuav tsum tau duplex. Siv simplex tsuas yog rau BiDi optics, ib leeg - kev saib xyuas channel, lossis cov ntawv thov uas qhia meej rau ib qho fiber ntau.
Kauj Ruam 5: Txheeb xyuas qhov ntsuas lub tsho
Tshawb xyuas ib puag ncig kev teeb tsa: dav dav hauv tsev (PVC), qhov chaw pej xeem nyob ze (LSZH), ntsug riser (OFNR), plenum huab cua- tuav qhov chaw (OFNP), lossis sab nraum zoov (tseem ceeb- ntsuas nrog UV thiab tiv thaiv ya raws).
Kauj ruam 6: Teem txoj cai Cable Length thiab txoj kab uas hla
Ntsuas qhov tseeb routing txoj kev, ces ntxiv ib tug me me kev pab cuam voj - tab sis kom tsis txhob dhau slack, uas tsim khoov - teeb meem vojvoog thiab nyuaj rau cable tswj. Cov kab dav dav dav dav yog 0.9 hli (pigtail style), 2.0 hli (tus qauv thaj), thiab 3.0 hli (muaj zog dua). Thinner cables haum siab -cov khoom ntom ntom; thicker cables zoo dua rau kev khiav tawm.
Kauj Ruam 7: Txheeb xyuas qhov ua tau zoo ntawm qhov muag
Rau siab - nrawm lossis ntev- qhov sib txuas ntawm qhov deb, thov cov ntaub ntawv kuaj xyuas lub Hoobkas uas qhia qhov poob (IL) thiab rov poob (RL). Raws li covTIA-568.3 standard, Hoobkas- ua ib qho fiber ntau thaj qaum nrog cov nplaum / txhuam txuas yuav tsum tau ua tiav tsawg dua 0.3 dB kev sib txuas poob. Rau PON thiab CATV txuas, paub meej tias APC rov qab poob raws li qhov tsawg kawg yog −60 dB kom tsis txhob muaj teeb meem txog teeb liab hauv GPON thiab XGS-PON systems.
Specification Checklist rau Ordering
Thaum thov kev tsocai, muab tag nrho cov hauv qab no: connector hom ntawm txhua qhov kawg, fiber ntau hom thiab qib (xws li, OS2 lossis OM4), hom polish (UPC lossis APC), simplex lossis duplex, cable ntev, cable txoj kab uas hla, cov khoom siv lub tsho thiab hluav taws kub, xim yuav tsum muaj, ntau, thiab daim ntawv thov ib puag ncig (hauv tsev khib, sab nraum zoov ntauwd, plenum qab nthab, thiab lwm yam).
Feem ntau yuam kev uas ua rau muaj teeb meem txuas
Hla -Mating APC thiab UPC Connectors
Qhov no yog ib qho kev ua txhaum loj tshaj plaws hauv fiber ntau patching. Lub 8-degree angled lub ntsej muag ntawm APC connector thiab lub tiaj dome ntawm UPC connector tsim ib qho kev sib txawv ntawm huab cua thaum yuam ua ke. Qhov tshwm sim yog qhov poob qis, tsis zoo rov qab los, thiab lub cev puas tsuaj rau ob qho tib si ferrules. Hauv lub vaj huam sib luag tsis khoom, ntsuab (APC) thiab xiav (UPC) xim coding muaj nyob tshwj xeeb los tiv thaiv qhov no - nco ntsoov xyuas ua ntej mating.
Siv Hom Fiber Tsis Zoo
Ib hom kab hluav taws xob txuas txuas rau hauv ib qho kev hloov pauv multimode (lossis rov qab) yuav tsis ua haujlwm zoo. Qhov loj me me tsis sib haum xeeb tiv thaiv lub teeb sib txuas. Qhov no tshwm sim feem ntau thaum cov hlua khi tau khaws cia yam tsis muaj daim ntawv lo qhia meej - ib lub xov tooj daj tau rub rau ib qho txuas multimode, lossis ib lub txiv kab ntxwv kab xaus rau ntawm ib hom chaw nres nkoj.
Tsis quav ntsej Bend Radius
Fiber ntau yog iav. Khoov nws dhau los ntawm qhov tsawg kawg nkaus lub vojvoog ua rau kom txo qis thiab tuaj yeem ua rau micro- tawg uas ua rau kev ua haujlwm tsis zoo dhau sijhawm. Qhov pom zoo qhov tsawg kawg nkaus khoov vojvoog rau cov qauv hauv tsev cable feem ntau yog 10 npaug ntawm cov kab hluav taws xob sab nraud thaum tsis nyob hauv qhov nro. Tight cable routing nyob ib ncig ntawm cov ces kaum, nyob rau hauv lub tsa pem teb vuas, los yog nyob rau hauv overcrowded cable tais yog ib tug nquag qhov chaw ntawm intermittent link yuam kev.
Siv Sab Hauv Tsev Patch Cords Sab nraum zoov
Standard PVC los yog LSZH tsho tsis yog tsim los rau UV raug, los nag, condensation, los yog dav kub cycling. Ib txoj hlua sab hauv tsev khiav ntawm cov tsev lossis mus txog rau lub kav hlau txais xov ru tsev yuav degrade hauv lub hlis. Ib txwm siv sab nraum zoov- ntsuas los yog cov dej tsis sib haum rau txhua txoj hauv kev sab nrauv lossis sab nrauv.
Tau txais MPO/MTP Polarity yuam kev
Nyob rau hauv parallel optics deployments, txhua txoj kab fiber ntau yuav tsum tau daim ntawv qhia kev xa mus kom tau raws li tag nrho cov channel. TIA-568.3 txhais cov txheej txheem polarity (A, B, C, U1, U2). Kev sib xyaw ua ke - lossis txuas ib hom-Ib lub cev cable nrog lub adapter tsis sib haum - txhais tau tias qee txoj kab lossis txhua txoj kab tsis ua haujlwm. Sau koj cov txheej txheem polarity ua ntej kev teeb tsa thiab tswj nws tsis tu ncua thoob plaws hauv qhov txuas.
Cov lus nug nquag
Dab tsi yog fiber optic thaj qaum siv rau?
Fiber optic thaj qaum txuas cov khoom siv kho qhov muag - transceivers, keyboards, routers, thaj panels, ODFs, media converters, thiab test instruments - over short distances in racks, equipment room, and tis thav duab.
Dab tsi yog qhov txawv ntawm fiber ntau patch qaum thiab fiber pigtail?
Ib txoj hlua khi muaj cov khoom sib txuas ntawm ob qho kawg thiab npaj rau ntsaws. AAfiber pigtailmuaj ib tug connector ntawm ib kawg thiab liab qab fiber ntau rau lwm yam, npaj rau fusion splicing rau cov khoom cable.
LC vs SC thaj qaum - kuv yuav xaiv qhov twg?
Choose LC when your equipment has SFP/QSFP ports and you need high-density patching, which is typical in data centers and enterprise switches. Xaiv SC thaum daim ntawv thov yog FTTH, GPON, CATV, lossis nkag mus rau -kev faib tawm network, qhov twg SC-APC yog tus qauv neeg siv khoom- sab interface.
Kuv yuav paub li cas yog kuv xav tau ib hom lossis multimode?
Tshawb xyuas koj lub transceiver. A 1310 nm lossis 1550 nm wavelength txhais tau tias ib hom; 850nm txhais tau tias multimode. Cov ntaub ntawv transceiver lossis daim ntawv lo tseem yuav hais txog hom fiber ntau (OS2, OM3, OM4, thiab lwm yam).
Kuv puas tuaj yeem txuas APC txuas rau UPC txuas?
Tsis yog. Qhov kawg sib txawv -fim geometries tiv thaiv kev sib cuag ntawm lub cev zoo, ua rau muaj kev nkag siab siab, tsis zoo rov qab los, thiab muaj peev xwm ferrule puas. Siv lub hybrid patch qaum lossis adapter tsim nyog yog tias koj xav tau txuas APC thiab UPC interfaces.
Tus qauv ntev ntawm fiber ntau optic thaj qaum yog dab tsi?
Tsis muaj ib qho "standard" ntev. Qhov ntev ntawm cov khoom muaj xws li 1 m, 2 m, 3 m, 5 m, 10 m, 15 m, thiab 30 m. Qhov ntev yog nyob ntawm koj qhov kev ncua deb ntxiv nrog rau qhov kev pabcuam tsim nyog. Feem ntau manufacturers kuj muab kev cai ntev.
Kuv yuav tsum xaiv cov khoom tsho dab tsi?
PVC rau kev siv sab hauv tsev, LSZH rau cov chaw kaw lossis cov chaw pej xeem (tshwj xeeb yog qhov chaw IEC 60332 lossis cov qauv zoo sib xws), OFNR rau riser shafts ntawm cov plag tsev, OFNP rau plenum huab cua - tuav qhov chaw, thiab sab nraum zoov - cov tsho tiv thaiv rau sab nrauv lossis sab nrauv.
Dab tsi ua rau muaj qhov poob siab hauv cov hlua fiber ntau?
Feem ntau ua rau muaj cov kab mob ferrule kawg ntawm lub ntsej muag (plua plav, roj, ntiv tes), puas los yog khawb ferrules, tsis zoo fiber core alignment, ntau bending, thiab siv hom fiber ntau tsis ncaj ncees lawm los yog polish hom rau daim ntawv thov. Qhov kawg tsis tu ncua- ntxuav lub ntsej muag thiab tshuaj xyuas yog cov kev tiv thaiv zoo tshaj plaws.
Cov fiber ntau thaj cords puas tuaj yeem kho tau?
Yog lawm. Feem ntau cov tuam ntxhab muab cov kev cai configurations: kev sib txuas tshwj xeeb (xws li LC rau SC, LC rau FC), kev cai ntev, kev xaiv cov qib fiber ntau, txoj kab uas hla, cov khoom siv lub tsho, thiab xim. Rau kev txiav txim kev cai, muab cov lus qhia ua tiav - saib daim ntawv teev kev txiav txim saum toj no.
Xaus
Lub fiber optic thaj qaum yog ib qho ncaj ncaj, tab sis xaiv qhov tsis ncaj ncees lawm yuav ua rau muaj teeb meem tiag tiag - los ntawm kev sib txuas tsis ua hauj lwm thiab teeb liab degradation rau connector puas tsuaj uas yuav tsum tau rework. Qhov tseem ceeb yog kom phim txhua qhov kev ntsuas rau qhov tseeb daim ntawv thov: connector hom rau cov khoom siv chaw nres nkoj, fiber ntau hom rau lub transceiver, polish hom mus rau lub network architecture, tsho ntsuam xyuas rau lub installation ib puag ncig, thiab cable ntev mus rau lub cev routing txoj kev.
Rau ntau lub network,LC, SC, FC, ST, thiab MPO / MTP thaj qaumnpog cov txheej txheem kev cai. Rau qhov xav tau ntau dua ib puag ncig - cov nroj tsuag muaj, sab nraum zoov yees, siab - ntom ntom racks - armored, waterproof, thiab uniboot xaiv ua qhov sib txawv. Ua ntej tso ib qho kev txiav txim, ua hauj lwm los ntawm daim ntawv teev npe tshwj xeeb, txheeb xyuas ob qhov kawg ntawm kev sib txuas, thiab paub meej tias qhov chaw teeb tsa. Cov txheej txheem ntawd yuav siv sijhawm feeb thiab tiv thaiv hom kev daws teeb meem uas raug nqi teev.
Yog hais tias koj xav tau kev pab qhia ib thaj qaum rau ib qhov project,tiv tauj peb pab pawg engineeringnrog koj cov ntaub ntawv thov, thiab peb tuaj yeem pom zoo rau kev teeb tsa raug.
