Fiber optic termination yog txheej txheem ntawm kev npaj ib tug liab qab optical fiber yog li nws muaj peev xwm ua phooj ywg nrog ib tug connector, splice vaj tse, los yog tej yam khoom siv. Txhua qhov kev sib txuas hauv ib lub network fiber ntau - los ntawm thaj vaj huam sib luag hauv qhov chaw cov ntaub ntawv mus rau lub xaim xaim ntawm tus neeg siv khoom lub tsev - nyob ntawm qhov kev txiav tawm uas tswj cov teeb liab poob, txo qis kev xav, thiab tuav tau ntau xyoo ntawm kev pabcuam.
Tau txais txoj cai txiav tsis yog tsuas yog ua kom tiav cov kab. Nws yog hais txog kev xaiv txoj kev uas phim koj cov peev nyiaj txuas, ib puag ncig, thiab kev ua haujlwm tiag tiag, tom qab ntawd txheeb xyuas qhov tshwm sim ua ntej koj tawm ntawm qhov chaw. Cov lus qhia no suav nrog cov txheej txheem tseem ceeb ntawm kev txiav tawm, cov cuab yeej txhua tus xav tau, qib siab - txheej txheem koj tuaj yeem hloov kho rau txhua qhov txuas txuas, thiab qhov ua yuam kev uas ua rau rov ua haujlwm dua.

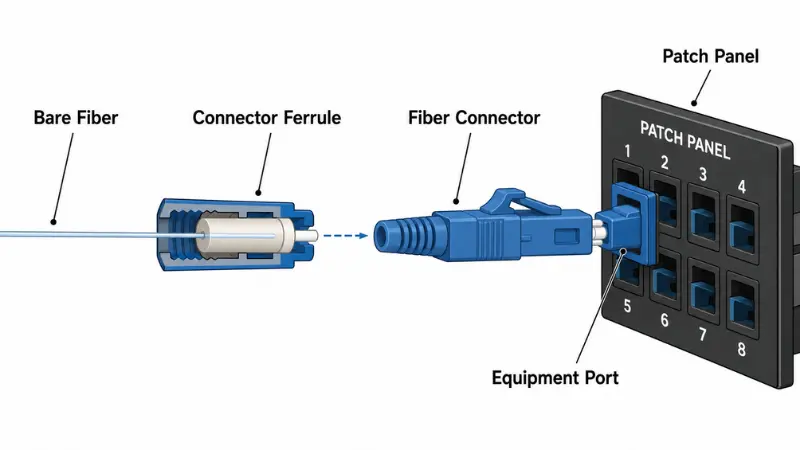

Dab tsi yog Fiber Optic Termination?
Ntawm qhov ua tau zoo, fiber ntau optic txiav tawm tsim qhov sib cuam tshuam ntawm cov khoom siv fiber ntau thiab lwm qhov ntawm lub network. Qhov ntawd interface tuaj yeem yog ib qhofiber ntau optic connector- ib tug tshem tau txhua yam sib dhos ua nyob ib ncig ntawm ib tug precision ferrule - los yog ib tug splice uas mus tas li koom nrog ob fibers. Cov khoom sib txuas tau siv txhua qhov chaw uas koj xav tau los ua phooj ywg thiab tsis sib koom qhov txuas: thaj vaj huam sib luag, cov khoom siv chaw nres nkoj, cov ntsiab lus nkag. Splices yog siv rau qhov kev sib txuas yuav tsum nyob ruaj khov: nruab nrab- ncua kev koom nrog, kaw rov- nkag, thiab pigtail txuas hauv cov ntawv xov xwm lossis cov ntaub thaiv npog.
CovFiber Optic Association (FOA)txhais cov connector poob raws li qhov poob ntawm ib khub niam txiv ntawm cov connectors qhia nyob rau hauv dB, hais txog tias kev ntsuas poob nyob ntawm ob qho tib si connector nyob rau hauv kev sim thiab cov ntaub ntawv connector nws mates nrog. Qhov kev nthuav dav no tseem ceeb vim tias nws txhais tau tias kev txiav tsis zoo yog ib txwm txheeb ze - ib qho txuas tsuas yog zoo li qhov kev sib txuas nws ua.

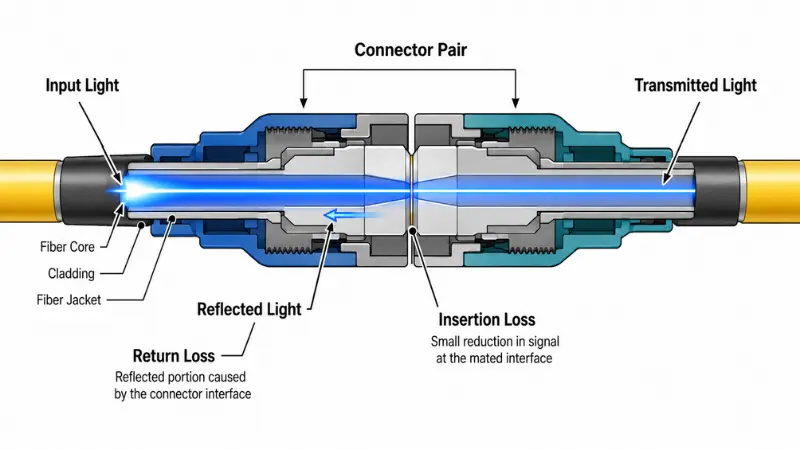

Vim li cas thiaj tsim nyog Termination Matters: Insertion Poob thiab Rov Los Poob
Ob qhov kev ntsuas txhais tau tias qhov kev txiav tawm ua haujlwm li cas: qhov poob qis thiab rov qab poob.
Insertion poobyog lub hwj chim kho qhov muag poob thaum lub teeb hla kev sib txuas. Txhua tus khub txuas, splice, thiab 'meter' ntawm cable ntxiv qhov poob rau qhov txuas. Hauv qabANSI/TIA-568.3-E, qhov siab tshaj plaws tso cai poob rau ib khub niam txiv ntawm tus qauv - qib connectors yog 0.75 dB, thiab qhov siab tshaj plaws rau kev sib txuas yog 0.3 dB. Hauv kev xyaum, zoo- ua cov nplaum / txhuam cov khoom sib txuas ntawm lub Hoobkas thaj cords ib txwm tuaj hauv qab 0.3 dB rau ib khub niam txiv.
Rov qab poob(tseem hu ua optical rov poob poob, lossis ORL) ntsuas seb lub teeb pom kev rov qab mus rau qhov twg. Kev polishing tsis zoo, qhov khoob hauv huab cua, kev sib kis, thiab tawg ferrule ntsej muag tag nrho nce rov qab -xav txog. Qhov no tseem ceeb tshaj plaws nyob rau hauv ib zaug xwb -mos links thiab wavelength-sensitive systems xws li CATV los yog DWDM, qhov twg reflections yuav destabilize laser qhov chaw.
Raws liFluke Networks, kawg-kev sib kis ntawm lub ntsej muag yog qhov ua rau muaj fiber ntau tsis ua haujlwm, ua rau ob qho tib si tso tawm ntau dhau thiab tsis xav rov qab-xav. Mating ib qho kev sib kis kab mob tuaj yeem ua rau lub cev puas tsuaj mus tas li thaum cov khib nyiab microscopic crushed ntawm ob lub ntsej muag kawg.

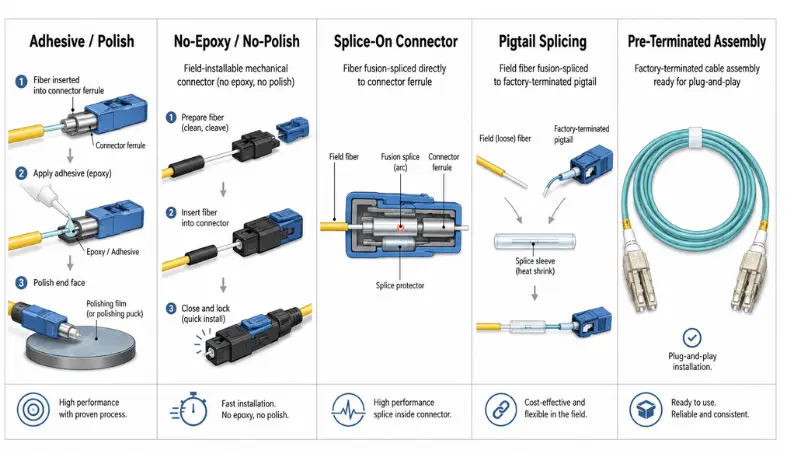

Main Fiber Optic Termination Methods
Tsis muaj ib txoj kev txiav tawm zoo tshaj plaws. Qhov kev xaiv yog nyob ntawm qhov yuav tsum tau ua haujlwm kho qhov muag, qib kev txawj ntse, cov cuab yeej muaj, thiab cov xwm txheej xa mus. Hauv qab no yog plaub txoj hauv kev uas feem ntau siv hauv thaj chaw niaj hnub no.
1. Adhesive / Polish Field Connectors (Epoxy lossis Anaerobic)
Qhov no yog ib txwm mus kom ze: lub installer strips thiab ntxuav cov fiber, bonds nws nyob rau hauv aconnector ferrulesiv epoxy lossis anaerobic nplaum, tom qab ntawv sau ntawv, cleaves, thiab polishes lub ntsej muag kawg. Nws ua tau zoo heev thaum tus kws tshaj lij cov txheej txheem polishing zoo ib yam, thiab nws tseem yog tus txheej txheem Hoobkas rau txhua txoj hlua ntawm lub khw.
Hauv thaj teb, anaerobic- kho cov khoom sib txuas kom ceev cov kauj ruam nplaum vim tias lawv kho ntawm chav tsev kub yam tsis muaj qhov cub. Kev lag luam - tawm yog tias polishing tseem yuav tsum muaj kev txawj ntse. FOA sau tseg tias muaj ntau yam teeb meem txuas rov qab mus rau cov txheej txheem polishing tsis zoo, ua ob txhais tes- ntawm kev cob qhia tseem ceeb rau txoj kev no.
2. Tsis muaj-Epoxy, Tsis yog-Polish (Pre-Polished/Mechanical Splice) Connectors
Ua ntej- polished connectors tshem tawm cov nplaum thiab polishing cov kauj ruam nkaus. Lub connector tuaj txog ntawm lub Hoobkas nrog ib tug ua ntej - polished fiber stub twb khi nyob rau hauv lub ferrule. Nyob rau hauv lub tshav pob, lub installer strips thiab cleaves lub fiber, ces ntxig rau hauv lub connector lub cev qhov twg ib tug neeg kho tshuab splice los yog Performance index -matching gel dlhos nws nrog lub Hoobkas stub. Txoj kev no yog nrov raufast teb connectorshauv FTTH thiab kev lag luam poob vim tias nws txo cov kev xav tau ntawm kev txawj ntse thiab ua kom nrawm rau kev teeb tsa.
Qhov kev txwv yog kev ua haujlwm kho qhov muag. Vim tias muaj qhov sib txuas sib txuas hauv cov khoom sib txuas, qhov poob thiab rov qab poob yog feem ntau siab dua nrog lub qhov dej zoo - polished nplaum txuas. Rau feem ntau cov ntawv thov kev nkag mus rau hauv network qhov no yog qhov lees txais, tab sis rau cov nyiaj siv sib txuas nruj los yog kev cuam tshuam - ib puag ncig rhiab heev, xyuas cov chaw tsim khoom kom zoo zoo.
3. Splice-Ntawm Connectors (SOCs)
Splice- ntawm cov khoom sib txuas ua ke ua ke lub Hoobkas- cov khoom tiav tiav nrog ib qho luv luv fiber ntau stub uas yogfusion -splifiedmus rau teb fiber ntau. Qhov tshwm sim yog nyob ze ntawm -Lub Hoobkas txuas qhov zoo ntawm lub ntsej muag kawg, nrog kev sib tw fusion poob uas feem ntau zoo hauv qab 0.1 dB. Qhov no ua rau SOCs txaus nyiam thaum koj xav tau ob qho tib si kev ua haujlwm yooj yim thiab kev ua haujlwm kho qhov muag nruj - piv txwv li, hauv ib qho - hom kev sib txuas uas rov qab poob teeb meem, lossis hauv cov xwm txheej rov qab los qhov twg cov khoom sib txuas puas yuav tsum tau hloov sai sai.
Qhov yuav tsum tau muaj yog fusion splicer, uas sawv cev rau cov cuab yeej siv nyiaj ntau dua li cov khoom siv kho tshuab. Txawm li cas los xij, rau cov pab pawg uas twb muaj tus splicer rau nruab nrab - ncua kev ua haujlwm, ntxiv SOCs rau kev ua haujlwm yog ncaj qha.
4. Pigtail Splicing
Es tsis txhob txiav tawm cov teb fiber ntau ncaj qha, ntau tus neeg nruab splice nws mus rau lub Hoobkas -tawmfiber ntau optic pigtail- luv luv ntawm fiber ntau nrog ib tug connector twb txuas ntawm ib kawg. Cov khoom sib txuas zoo yog lub Hoobkas- tswj hwm, thiab kev ua haujlwm hauv cheeb tsam tsom mus rau kev ua kom huv si thiab tswj cov fiber ntau zoo hauv lub qhov rooj lossis lub thawv ntawv.
Pigtail splicing yog tus txheej txheem txoj hauv kev hauv splice kaw, fiber ntau faib hubs, thiabfiber optic davhlau ya nyob twg thawv. Nws kuj yog lub hauv paus ntawm modular cassette systems siv nyob rau hauv cov ntaub ntawv chaw, qhov twg pre-loaded cassettes nrog pigtails tso cai sai connectorization tsis tau tuav ib tug splice tais.
5. Ua ntej-Terminated Fiber Assemblies
Thaum khiav qhov ntev thiab qhov txuas txuas txuas tau paub ua ntej, ua ntej- txiav kev sib dhos - xws li lub cev cables,ua ntej -connectorized thaj qaum, thiab ntsaws -thiab-play cassettes - tuaj yeem tshem tawm qhov kev txiav tawm tag nrho. Txhua qhov txuas yog lub Hoobkas- polished thiab kuaj ua ntej xa khoom xa tuaj, uas txo qis kev sib txawv ntawm kev teeb tsa, ua kom lub sijhawm ua haujlwm luv, thiab ua kom yooj yim rau kev tswj xyuas zoo.
Ua ntej- cov kev daws teeb meem yog qhov tshwj xeeb tshaj yog nyob rau hauv cov ntaub ntawv chaw nyob ib puag ncig thiabMDU fiber ntau xa tawmqhov twg tib cable configuration yog rov qab ntau zaus. Kev lag luam tawm -tawm yog qhov yooj yim dua: yog tias txoj kev hloov pauv ntev lossis lub cable puas lawm, koj tseem yuav xav tau kev txiav tawm lossis kev sib txuas ntawm qhov chaw.
Kev sib piv txoj kev Termination
| Txoj kev | Hom Siv Case | Kev txawj ntse | Hom Insertion Poob | Qhov tseem ceeb Advantage | Kev txwv tseem ceeb |
|---|---|---|---|---|---|
| Adhesive / Polish | Factory patch cords, siab -kev ua haujlwm ua haujlwm | Siab | < 0.3 dB per pair | Qhov zoo tshaj plaws optical kev ua tau zoo thaum ua tau zoo | Cov txheej txheem polishing yog qhov tseem ceeb |
| Tsis yog -Epoxy/No-Polish | FTTH poob, cov ntsiab lus nkag rau kev lag luam | Tsawg-Medium | 0.3-0.5 dB ib khub | Ceev ceev, yam tsawg kawg nkaus yuav tsum tau | Kev poob siab dua li nplaum / polish lossis SOC |
| Splice-Ntawm Connector | Ib leeg- hom kev ua haujlwm, kev kho dua tshiab, kev xav txog- qhov txuas tseem ceeb | Nruab nrab | < 0.3 dB per pair | Factory- zoo kawg lub ntsej muag nrog kev ua haujlwm yooj yim | Yuav tsum tau fusion splicer |
| Pigtail Splicing | Kaw, thawv davhlau ya nyob twg, cassette-raws li connectorization | Nruab nrab | Splice: <0.1 dB; connector: Hoobkas spec | Hoobkas connector zoo, txhim khu kev qha splice | Yuav tsum tau fusion lossis mechanical splicer |
| Ua ntej-Terminated Assembly | Cov chaw zov me nyuam, MDU, cov txheej txheem xa tawm | Tsawg | Factory spec (feem ntau <0.2 dB) | Kev teeb tsa ceev tshaj plaws, qis tshaj qhov hloov pauv | Tsawg hloov tau rau txoj kev ntev |

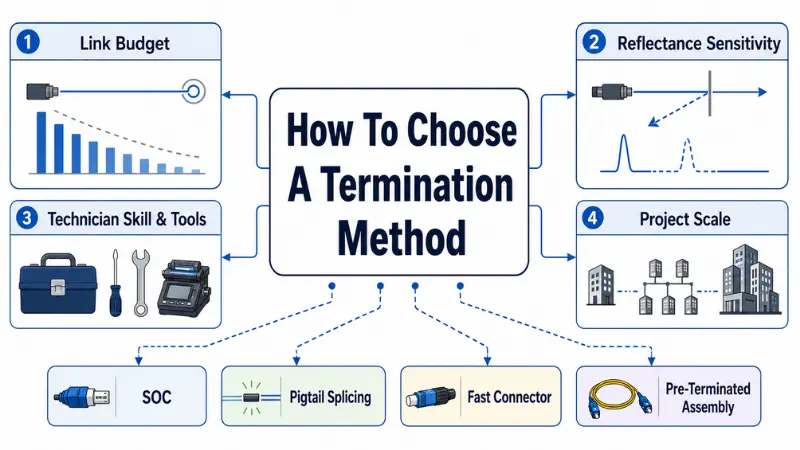

Yuav Ua Li Cas Xaiv Txoj Kev Txiav Txim Siab
Tsis yog kev ua txhaum cai rau txhua txoj kev uas koj pab neeg tau siv lub sijhawm dhau los, phim cov qauv rau plaub yam:
Txuas pob nyiaj siv.Yog tias cov nyiaj poob qis nruj - piv txwv li, ib qho ntev - hom khiav nrog ntau cov ntsiab lus sib txuas - koj xav tau qis dua - poob. Splice- ntawm cov khoom sib txuas, pigtail splicing, lossis ua ntej- txiav cov rooj sib txoos yuav ua tau zoo dua tsis muaj-epoxy/no- polish connectors hauv qhov xwm txheej ntawd.
Reflectance rhiab heev.Cov ntawv thov xws li analog CATV overlay lossis coherent kis tau yooj yim rau rov qab -xav. Hauv cov xwm txheej no,APC (lub kaum sab xis tiv tauj lub cev) polishthiab qis-kev cuam tshuam kev txiav tawm xws li SOCs lossis lub Hoobkas pigtails yog qhov kev xaiv zoo dua.
Technician txuj ci thiab cov cuab yeej muaj.Cov neeg coob nrog cov fusion splicer thiab cov kws tshaj lij tuaj yeem siv SOCs lossis pigtails zoo. Cov neeg ua haujlwm ua ib ntus poob nrog cov cuab yeej siv yooj yim yuav tau txais txiaj ntsig zoo dua los ntawm tsis muaj -epoxy/no- polish connectors lossis ua ntej- kev sib dhos.
Qhov project scale thiab kev kwv yees.Rau cov qauv kev xa tawm qhov twg txhua txoj kab hluav taws xob khiav yog tib qhov ntev thiab kev teeb tsa ntawm cov khoom sib txuas, ua ntej- cov rooj sib txoos txiav txim siab txo qis kev ua haujlwm thiab tshem tawm kev txiav tawm- cuam tshuam txog qhov tsis xws luag. Rau kev ua haujlwm kho dua tshiab, kev tsim kho tshiab uas tsis paub txog qhov ntev ntawm txoj kev, lossis ib qho - tawm kev sib txuas, kev txiav tawm hauv teb tsis tuaj yeem zam tau.
Fiber Splicing vs. Connector Termination
Splicing thiab connector termination tsis yog sib tw mus kom ze - feem ntau networks siv ob qho tib si. Connectors mus qhov twg koj xav tau reconfigurability:thaj panels, cov khoom siv ports, thiab xeem cov ntsiab lus nkag. Splices mus qhov twg qhov kev sib txuas yuav tsum mus tas li: nruab nrab - ncua kev koom, kaw nkag, thiab pigtail txuas.
Fusion splicingsiv cov hluav taws xob arc kom yaj thiab fuse ob fiber ntau ua ke. Nws tsim qhov qis tshaj - poob koom - feem ntau qis dua 0.05 dB rau ib zaug - hom fiber ntau - thiab yog tus qauv rau kev ua haujlwm sab nraud cog, ntev - thauj cov tes hauj lwm, thiab txhua daim ntawv thov uas tsis muaj kev sib txuas mus tas li - tsis muaj teeb meem.
Mechanical splicingaligns ob fiber ntau kawg siv qhov precision V- zawj lossis lub tes tsho alignment nrog index-matching gel. Nws tsis tas yuav muaj fusion splicer, uas ua rau nws muaj txiaj ntsig zoo rau kev kho thaum muaj xwm txheej ceev lossis cov xwm txheej uas yooj yim thiab ceev tshaj qhov ua tau zoo ntawm qhov muag. Hom kev sib txuas ntawm cov khoom sib txuas yog 0.1-0.5 dB nyob ntawm qhov kev sib tw zoo.
Yog xav paub ntxiv txog seb cov txheej txheem no piv li cas hauv FTTH thiab cov xwm txheej hauv cheeb tsam, saib peb phau ntawv qhiafast connector vs. fusion splicing.

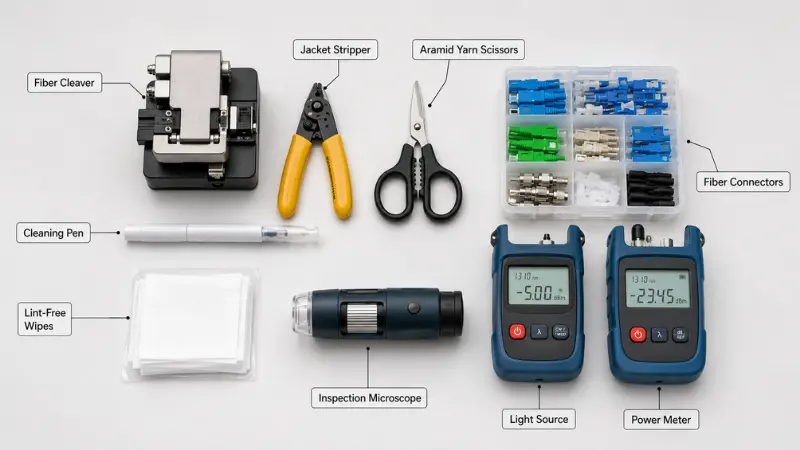

Cov cuab yeej thiab khoom siv rau Fiber Optic Termination
Cov cuab yeej tshwj xeeb nyob ntawm txoj kev txiav tawm, tab sis feem ntau cov haujlwm xav tau cov khoom los ntawm peb pawg.
Cov cuab yeej npaj Cable
Cov no muaj xws li lub tsho cable stripper, aramid xov txiab los yog txiab, tsis muaj raj thiab txheej strippers (feem ntau yog ib tug precision stripper rau 250 µm los yog 900 µm tsis), thiab fiber ntau cleaver. Rau kev tshem tawm cov nplaum / polishing, koj kuj xav tau cov khoom siv epoxy lossis cov nplaum nplaum, polishing puck, polishing films (feem ntau yog ib ntu ntawm ntxhib rau nplua grit), thiab polishing ncoo lossis phaj.
Cov cuab yeej tshuaj xyuas thiab ntxuav
Kev kis kab mob yog ib qho kev saib tsis taus tshaj plaws ntawm kev txiav tsis ua haujlwm. Qhov tsawg kawg nkaus, txhua qhov kev txiav tawm yuav tsum suav nrog fiber ntau optic tshuaj xyuas lub tshuab ntsuas (200 × lossis siab dua) thiab cov khoom siv tu kom tsim nyog - lint- cov ntaub so tsis pub dawb, fiber ntau- qib ntxuav cov kuab tshuaj, thiab cov tshuab kawg- lub ntsej muag ntxuav rau cov khoom sib txuas hauv adapters thiab cov chaw nres nkoj. CovIEC 61300-3-35 tus qauvtxhais cov txheej txheem dhau / tsis ua tiav rau qhov kawg- kev huv huv ntawm lub ntsej muag raws li qhov loj me thiab qhov chaw tsis raug, uas ua rau koj muaj lub hom phiaj kev ntsuas ntau dua li qhov kev kwv yees pom.
Cov khoom siv kuaj
IbOptical Poob Test Set (OLTS)- los yog yam tsawg kawg nkaus lub teeb pom kev zoo thiab lub ntsuas hluav taws xob - ntsuas tag nrho cov kev nkag tsis tau hla qhov txuas. Qhov no yog qhov kev xeem Tier 1 uas xav tau los ntawm TIA-568.3-E thiab yog txoj hauv kev tseeb tshaj plaws kom paub meej tias qhov txuas tau raws li nws cov peev nyiaj poob.
Iblub sij hawm kho qhov muag -domain reflectometer (OTDR)maps tus kheej cov xwm txheej raws cov fiber ntau: splices, connectors, khoov, thiab so. Kev xeem OTDR (Tier 2) yog xaiv tau raws li TIA-568.3-E tab sis tau pom zoo rau kev daws teeb meem, cov ntaub ntawv, thiab ntsuas qhov poob rov qab. Raws liCorning's fiber optic xeem cov lus qhia, Tier 2 OTDR xeem muab cov duab pom ntawm qhov txuas fiber ntau uas OLTS ib leeg tsis tuaj yeem xa.

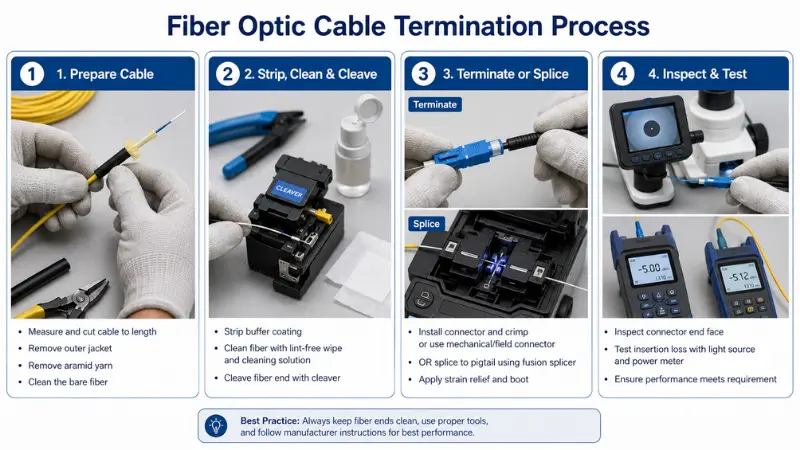

Yuav Ua Li Cas Tshem Tawm Fiber Optic Cable: Ib Txoj Haujlwm Siab -Cov
Vim hais tias connector thiab splice systems txawv nyob rau hauv lawv cov txheej txheem raws nraim, nco ntsoov ua raws li cov khw cov lus qhia rau cov khoom tshwj xeeb uas koj siv. FOA ceeb toom meej meej tias cov khoom sib txuas sib txawv thiab qhov uas siv cov txheej txheem tsis raug rau cov khoom sib txuas yog qhov ua tsis tiav. Uas tau hais tias, txhua qhov kev txiav tawm ua raws li plaub - theem ua haujlwm.
Kauj Ruam 1: Npaj Cable
Tshem tawm lub tsho sab nrauv kom ntev li teev los ntawm lub connector lossis splice system. Txiav thiab ruaj ntseg cov xov paj aramid lossis lwm cov tswv cuab muaj zog. Yog hais tias lub cable siv cov hlab tsis, ua tib zoo nkag mus rau cov fibers thiab xa lawv mus rau hauv cov khoom siv furcation lossis fanout los ua ke. Qhov kev txiav txim tseem ceeb ntawm no yog kev tswj cov fiber ntau raug: strip tsuas yog ntau lub tsho thiab tsis raws li qhov kev txiav tawm yuav tsum tau, thiab tiv thaiv cov fibers los ntawm dabtsi yog khoov, crushing, thiab kis kab mob thoob plaws hauv cov txheej txheem.
Kauj Ruam 2: Tshem tawm, ntxuav, thiab tshem tawm cov fiber ntau
Tshem tawm cov txheej txheem kom nthuav tawm cov iav liab qab, ntxuav cov stripped fiber ntau nrog lint - cov ntaub so thiab cov kuab tshuaj dawb, thiab txiav nws mus rau qhov ntev ntawm qhov txuas lossis splicer xav tau. Cleave zoo yog qhov tseem ceeb - lub ntsej muag tiaj tus, qhov kawg ntawm lub ntsej muag yog qhov ua rau qis - poob splicing thiab cov rooj zaum txuas tau zoo. Yog hais tias lub cleave zoo li chipped, angled, los yog muaj ib tug pom daim di ncauj, muab pov tseg qhov cleave thiab sim dua. Qhov no yog cov kauj ruam uas feem ntau qhov kev ua tsis tiav tau tshwm sim, tshwj xeeb tshaj yog thaum cov kws kho mob maj nrawm lossis hla qhov kev ntxuav.
Kauj Ruam 3: Tshem tawm lossis Splice
Rau cov nplaum / polishing connectors, txhaj cov nplaum rau hauv ferrule, ntxig cov fiber ntau, kho cov nplaum, tom qab ntawd sau ntawv, tawg, thiab txhuam lub ntsej muag kawg los ntawm cov txheej txheem zaj duab xis. Rau tsis muaj -epoxy/no- polish connectors, ntxig cov cleaved fiber rau hauv lub cev connector mus txog rau thaum nws zaum tawm tsam lub Hoobkas stub. Rau splice- ntawm connectors, thauj cov connector stub thiab cov teb fiber ntau rau hauv fusion splicer thiab ua kom tiav cov splice. Rau pigtail splicing, fusion- lossis mechanical-splice lub teb fiber ntau rau pigtail.

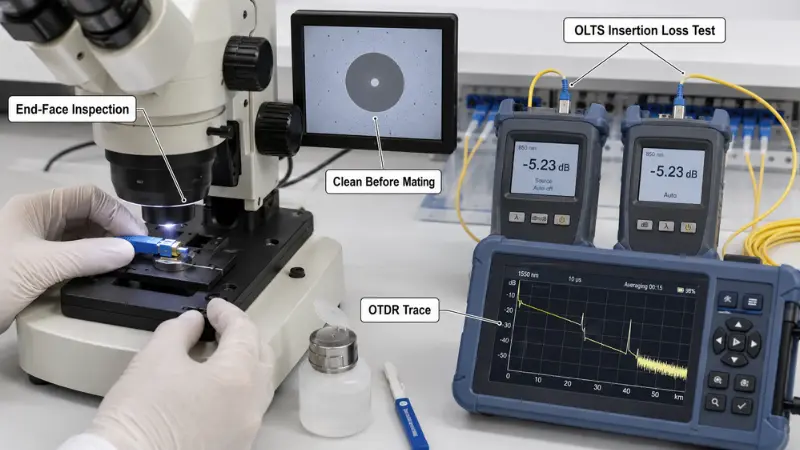

Kauj Ruam 4: Tshawb xyuas, ntxuav, thiab kuaj
Tshawb xyuas lub ntsej muag kawg nyob rau hauv kev nthuav dav ua ntej mating lub connector. Yog tias koj pom muaj kab mob sib kis, ntxuav thiab rov- tshuaj xyuas - tsis txhob xav tias qhov txuas yog huv si vim nws yog tshiab. Thaum lub ntsej muag kawg dhau qhov kev tshuaj ntsuam pom, ua qhov kev ntsuas qhov poob nrog OLTS. Yog tias qhov tshwm sim dhau qhov nyiaj poob, lossis yog tias qhov project yuav tsum muaj qhov xwm txheej -cov ntaub ntawv qib, khiav ib qho OTDR los nrhiav qhov chaw ntawm qhov teeb meem.
Hla kev soj ntsuam thiab kev sim yog qhov luv luv tshaj plaws hauv kev ua haujlwm fiber ntau. Cov teeb meem uas tsis paub txog ntawm kev teeb tsa ua qhov kev pabcuam- cuam tshuam rau kev ua tsis tiav tom qab, thiab kuaj xyuas lawv tom qab cov cables raug xa mus thiab cov vaj huam sib luag tau thauj khoom tus nqi ntau dua li ntes lawv thaum lub sijhawm txiav tawm.

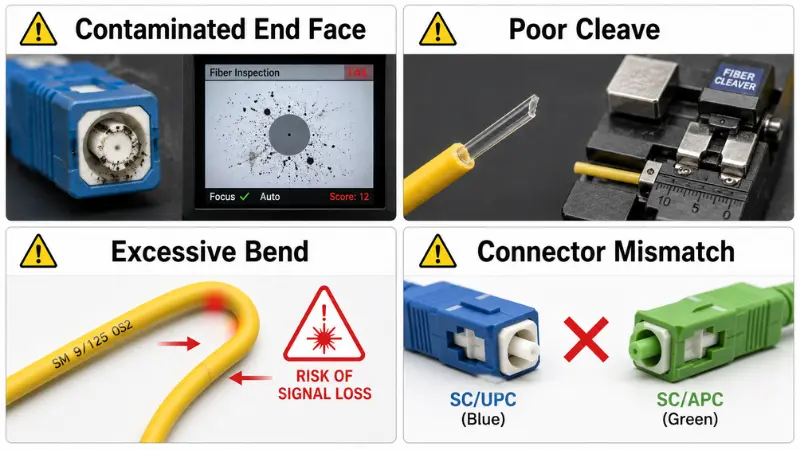

Common Fiber Termination yuam kev thiab yuav ua li cas zam lawv
Xaiv ib txoj kev raws li kev yooj yim ib leeg.Ib qho tsis muaj -epoxy fast connector yog ib qho yooj yim rau nruab, tab sis yog tias koj tab tom tsim ibib leeg- hom qaumnrog rau cov nyiaj poob nruj, nws yuav tsis ua raws li spec. Nco ntsoov xyuas cov peev nyiaj txuas ua ntej txiav txim siab txog ib txoj hauv kev.
Kev kwv yees tsis muaj paug.Cov kws tshaj lij txhim kho kho txhua lub ntsej muag kawg li qias neeg kom txog thaum muaj pov thawj huv hauv lub tshuab tsom. Cov kaus mom tiv thaiv tsis ua kom cov khoom sib txuas huv si - lawv tsuas yog tiv thaiv kev puas tsuaj. Txawm tias lub Hoobkas- txiav cov hlua khi yuav tsum tau tshuaj xyuas ua ntej mating.
Kev qhuab ntuas tsis zoo.Lub qhov tsis zoo tsis tuaj yeem kho los ntawm polishing los yog vam tias lub splicer yuav them rov qab. Yog tias lub kaum sab xis tawm los yog lub ntsej muag kawg yog tawg, qhov kev xaiv tsuas yog rov- strip thiab re-cleave. Khaws cov hniav cleaver kom huv si thiab hloov nws raws sij hawm tiv thaiv feem ntau cleave tsis ua hauj lwm.
Tsis quav ntsej connector compatibility.Lub connector yuav tsum phim covmating adapterfiber ntau (single-mode vs. multimode), thiab qhov xav tau polish profile (PC, UPC, lossis APC). Kev sib koom ua ke APC txuas nrog UPC adapter, piv txwv li, tsim qhov sib txawv ntawm huab cua uas ua rau muaj kev nkag siab siab thiab txaus ntshai rov qab - kev xav.
Hla qhov kawg- tshuaj xyuas lub ntsej muag tom qab ntxuav.Kev ntxuav yam tsis tau rov- tshuaj xyuas yog qhov ua tiav. Tag nrho cov ntsiab lus ntawm kev tshuaj xyuas - huv - tshawb xyuas lub voj voog yog kom paub meej tias kev ntxuav tau ua haujlwm.
Kev kuaj tsis txaus.Kev ntsuas qhov poob qis qhia koj qhov txuas hla lossis tsis ua tiav. Yog tias nws ua tsis tiav, ib qho OTDR kab qhia koj raws nraim qhov teeb meem yog - siab - poob connector, macro- khoov, tsis zoo splice - yog li koj tuaj yeem kho qhov yog es tsis txhob re- txiav qhov muag tsis pom kev.

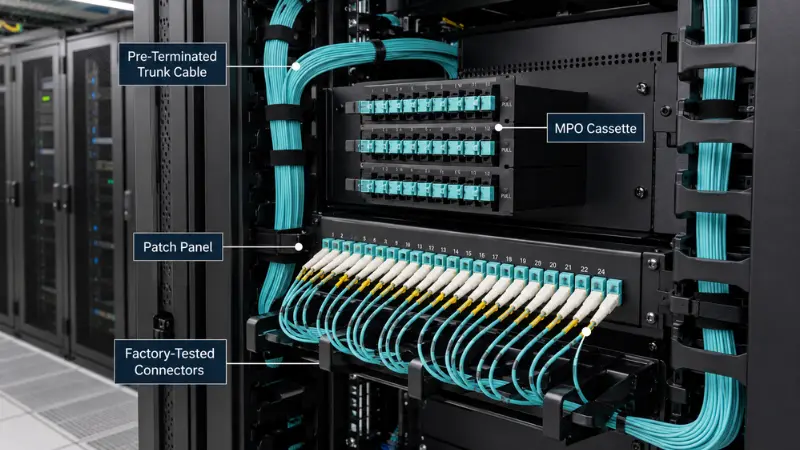

Thaum Pre-Terminated Fiber yog qhov kev xaiv zoo dua
Kev txiav tawm hauv teb yog ib qho txuj ci, tab sis nws tsis yog txoj hauv kev zoo tshaj plaws. Ua ntej- cov kab hluav taws xob kaw,MPO/MTP cassette systems, thiab lub Hoobkas- tsim cov rooj sib txoos poob vim tias lawv txo peb qhov kev pheej hmoo ib zaug: kev ua haujlwm sib txawv, lub sijhawm teeb tsa, thiab qhov xav tau los tswj cov cuab yeej tshwj xeeb ntawm txhua txoj haujlwm.
Xav txog ua ntej - txiav cov kev daws teeb meem thaum txoj kev cable yog tus qauv, cov kev teeb tsa txuas tau paub, thiab qhov project muaj nuj nqis nrawm thiab rov ua dua ntawm - qhov chaw hloov kho. Qhov no muaj tseeb tshwj xeeb hauv siab - ntom100G + data center cablingib puag ncig uas kaum ob lossis pua pua ntawm cov kev sib txuas zoo ib yam raug xa mus.
Kev txiav tawm ntawm thaj chaw tseem yog qhov kev xaiv zoo thaum lub sijhawm khiav tsis paub meej, thaum xav tau kev kho dua tshiab lossis kho dua tshiab, lossis thaum lub phiaj xwm cuam tshuam tsis yog -tus qauv teeb tsa uas lub Hoobkas tuaj yeem ua tsis tau.
Cov lus nug nquag
Dab tsi yog qhov txawv ntawm fiber ntau txiav thiab fiber ntau splicing?
Kev txiav tawm dav dav hais txog kev npaj cov fiber ntau rau kev sib txuas - uas tuaj yeem suav nrog kev txuas txuas lossis ua ib qho sib txuas. Hauv kev siv ib txwm, "kev txiav tawm" feem ntau hais txog kev muab cov khoom txuas rau ntawm fiber ntau, thaum "spling" yog hais txog kev sib koom ua ke ob fibers ua ke mus tas li (fusion) lossis semi-mus tas li (mechanical). Feem ntau cov kev teeb tsa siv ob qho tib si: cov khoom sib txuas ntawm thaj chaw thiab cov kab sib txuas ntawm nruab nrab - ncua kev koom nrog lossis hauv cov ntaub ntawv.
Qhov twg fiber optic connectors feem ntau siv?
CovLC connectoryog cov khoom siv dav tshaj plaws hauv kev lag luam thiab cov ntaub ntawv chaw ib puag ncig vim nws cov ntawv me me thiab kev ua tau zoo.SC connectorsnyob twj ywm hauv kev sib txuas lus thiab FTTH tes hauj lwm.MPO / MTP connectorsyog tus qauv rau siab -density parallel optics thiab trunk cabling. Lwm hom xws liFCthiabSTtseem muaj nyob rau hauv cov cuab yeej cuab tam thiab qee cov ntawv thov tshwj xeeb.
Kuv yuav ua li cas thiaj paub yog tias kuv qhov kev txiav tawm zoo txaus?
Kev kuaj pom qhov muag thiab kev kuaj qhov poob yog ob qho kev kuaj xyuas uas tseem ceeb. Tshawb xyuas lub ntsej muag kawg hauv qab lub tshuab ntsuas fiber ntau thiab paub meej tias nws ua tau raws li IEC 61300-3-35 cov qauv kev huv. Tom qab ntawd ntsuas qhov poob qis nrog OLTS thiab sib piv cov txiaj ntsig tawm tsam koj cov peev nyiaj txuas. Yog tias koj tab tom ua qhov kev lees paub rau cov txheej txheem cabling, TIA-568.3-E Tier 1 (poob thiab ntev) yog qhov tsawg kawg nkaus; Tier 2 (OTDR) kev xeem ntxiv cov ntsiab lus ntawm cov xwm txheej rau cov ntaub ntawv thiab kev daws teeb meem.
Kuv puas tuaj yeem splice ib qho - hom fiber ntau rau multimode fiber ntau?
Lub cev, yog - fusion splicer tuaj yeem koom nrog ob lub fibers. Optically, nws tsim ib qho tseem ceeb hom mismatch uas ua rau poob siab thiab kev ua tau zoo unpredictable. Tib - hom thiab multimode fibers yuav tsum tsis txhob muab sib xyaw rau hauv tib qhov txuas. Yog tias koj xav tau kev hloov pauv ntawm hom fiber ntau, siv lub tshuab hloov pauv xov xwm lossis cov khoom siv kho qhov muag uas txhawb nqa cov fiber ntau tsim nyog ntawm txhua sab.
Dab tsi yog qhov feem ntau ua rau fiber ntau connector tsis ua hauj lwm?
Kev kis kab mob. Plua plav, roj, thiab cov khib nyiab microscopic ntawm lub ntsej muag kawg ua rau qhov kev tso tawm ntau dhau thiab rov qab- rov qab, thiab tuaj yeem ua rau lub ferrule puas tsuaj tas mus li thaum ob qhov sib txuas sib kis tau sib txuas. Kev tshuaj xyuas thiab ntxuav ua ntej txhua qhov kev sib tw sib tw yog qhov kev coj ua zoo tshaj plaws rau kev tiv thaiv kev sib txuas - cuam tshuam txog kev ua tsis tiav.
Kuv puas xav tau OTDR rau txhua txoj haujlwm txiav?
Tsis tas li. Ib qho OLTS (lub teeb ci thiab lub ntsuas hluav taws xob) yog txaus rau Tier 1 poob ntawv pov thawj ntawm feem ntau txoj haujlwm. Ib qho OTDR ua ib qho tseem ceeb thaum koj xav nrhiav ib qho txhaum cai, ntsuas tus kheej splice los yog connector poob, sau cov fiber ntau txoj kev rau cov ntaub ntawv, los yog xyuas rov qab poob. Rau kev xa tawm loj lossis tseem ceeb, kev sim OTDR tau pom zoo pom zoo txawm tias tsis tas yuav tsum nruj.
Xaus
Fiber optic txiav tawm yog qhov kev txiav txim siab ua haujlwm, tsis yog kev ua haujlwm kho tshuab xwb. Txoj kev uas koj xaiv - nplaum / polish, tsis muaj -epoxy, splice- ntawm connector, pigtail splice, los yog ua ntej -Tawm los ua ke - yuav tsum tau tsav los ntawm kev sib txuas pob nyiaj siv, cov kev xav tau ntawm kev xav, cov txuj ci thiab cov cuab yeej muaj, thiab cov nplai ntawm kev xa tawm.
Txawm li cas los xij, peb qhov kev coj ua cais kev txhim kho txhim khu kev qha los ntawm kev hu xov tooj rov qab: tshuaj xyuas txhua lub ntsej muag kawg ua ntej mating, sim txhua qhov txuas tiv thaiv nws cov peev nyiaj poob, thiab ua raws li tus neeg tsim khoom txuas cov txheej txheem raws nraim. Yog tias koj tab tom ntsuam xyuas cov kev xaiv txiav tawm rau ib txoj haujlwm tshiab, pib los ntawm kev txheeb xyuas koj qhov txuas txuas, hom fiber ntau, lub hom phiaj kev ua haujlwm, thiab cov kev xeem yuav tsum tau ua - tom qab ntawd xaiv cov qauv uas haum.
