FTTH Vs FTTB: Qhov Sib Txawv Tseem Ceeb, Pros, Cons & Yuav Xaiv Li Cas

Yog tias koj tab tom sib piv FTTH vs FTTB, cov lus nug tseem ceeb feem ntau yog ncaj nraim: qhov twg fiber architecture kuv yuav tsum xaiv rau kuv lub tsev lossis qhov project? Cov lus teb luv luv yog tias FTTH muab cov kev ua tau zoo dua thiab ntev dua - lub sijhawm scalability, thaum FTTB tuaj yeem yog qhov siv tau ntau dua thiab tus nqi ntau dua - kev xaiv zoo rau ntau- lub tsev nyob uas twb muaj cov kab hluav taws xob siv tau. Qhov kev xaiv zoo yog nyob ntawm hom tsev, qhov xwm txheej ntawm cov cabling uas twb muaj lawm, cov peev nyiaj xa mus, thiab qhov kev xav tau ntawm cov neeg siv kawg.

Cov lus qhia no rhuav tshem li cas FTTH thiab FTTB ua haujlwm tiag tiag, qhov twg txhua tus haum, thiab yuav ua li cas thiaj ua tau zoo - kev txiav txim siab hauv av raws li kev xa tawm tiag tiag es tsis yog cov ntawv lag luam.

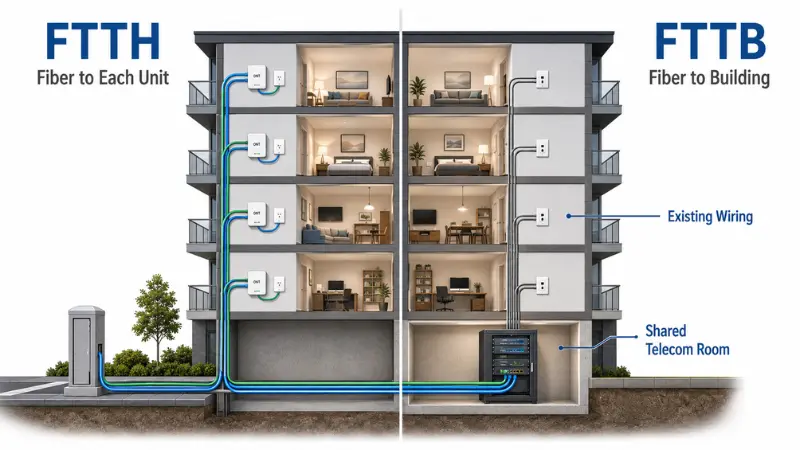

FTTH vs FTTB fiber architecture comparison showing fiber to each unit versus fiber to a shared building telecom room

FTTH vs FTTB: Kev sib piv ceev

Xaiv FTTHYog tias koj xav tau txoj hauv kev fiber ntau rau txhua lub tsev, qhov qis tshaj qhov ua tau latency, muaj peev xwm ua kom nrawm nrawm, thiab lub network uas txhawb nqa kev hloov kho yav tom ntej yam tsis muaj rewiring.

Xaiv FTTBYog tias koj xav tau kev nthuav tawm sai dua hauv ib chav tsev lossis chaw ua haujlwm hauv tsev, cov cabling sab hauv (xws li Cat5e, Cat6, lossis coax) yog qhov siv tau, thiab cov phiaj xwm phiaj xwm nyiam rov siv yam uas twb muaj lawm.

Dab tsi FTTH thiab FTTB Tiag Tiag

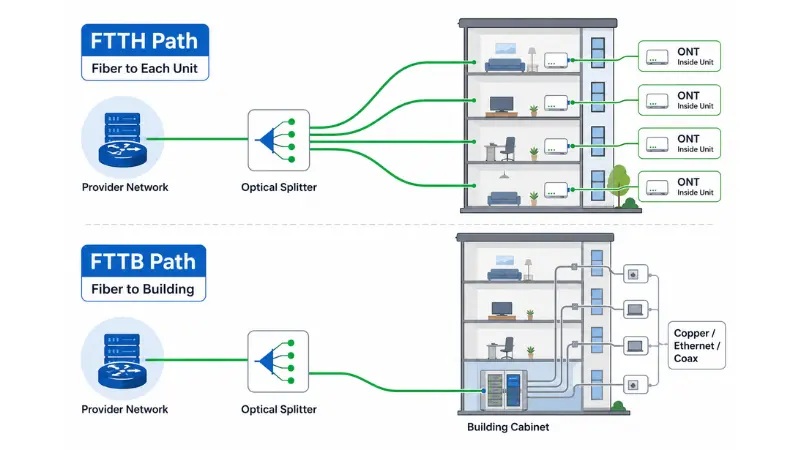

FTTH and FTTB architecture diagram showing provider network optical splitter ONT building cabinet and internal wiring

FTTH (Fiber rau Lub Tsev) yog dab tsi?

FTTH sawv cev rau Fiber rau Lub Tsev. Nyob rau hauv no architecture, lub optical fiber khiav tag nrho txoj kev los ntawm cov kev pab cuam lub network mus rau ib tug neeg lub tsev, tsev, los yog chaw ua hauj lwm chav tsev. Lub teeb liab kho qhov muag raug txiav tawm hauv qhov chaw los ntawm ib qhoONT (optical network davhlau ya nyob twg), uas hloov lub teeb teeb liab mus rau hauv lub teeb liab hluav taws xob rau tus neeg siv lub router lossis cov khoom siv.

Vim tias tag nrho txoj hauv kev los ntawm lub hauv paus chaw ua haujlwm mus rau cov neeg siv kawg yog fiber ntau, FTTH zam qhov kev txwv ntawm cov tooj liab lossis coaxial cable ntawm ntu kawg. Qhov no yog ib qho txiaj ntsig tseem ceeb ntawm lub qab nthab bandwidth, teeb pom kev ncaj ncees, thiab txhim kho lub peev xwm. Raws li covFTTH Council Europe, FTTH txhais tau tias yog ib lub network uas cov fiber ntau kho qhov muag mus txog thaj tsam ntawm qhov chaw nyob lossis chaw ua haujlwm, qhov txawv ntawm cov architectures uas txiav fiber ntau ntawm qhov nruab nrab.

FTTB (Fiber rau Lub Tsev) yog dab tsi?

FTTB sawv cev rau Fiber rau Lub Tsev. Hauv qhov tsim no, fiber ntau ncav cuag cov khoom siv sib koom hauv lub tsev - feem ntau yog chav tsev hauv qab daus, chav riser, lossis chav sib txuas lus ntawm txhua lub tsev. Los ntawm qhov ntawd, kev sib txuas mus rau txhua lub tsev tau ua tiav dhau ntawm lub tsev cov kab hluav taws xob uas twb muaj lawm, uas tej zaum yuav yog cov xov tooj tooj liab, coaxial cable, lossis Ethernet cabling.

FTTB yog ib txoj hauv kev hauv ntau-cov tsev nyob (MDUs) uas khiav cov fiber ntau rau txhua chav tsev yuav xav tau kev tsim kho tseem ceeb. Los ntawm kev rov siv dua hauv - kev tsim kho vaj tsev, FTTB tuaj yeem txo lub sijhawm teeb tsa thiab tus nqi ua ntej. Txawm li cas los xij, qhov zoo ntawm ntu kawg yog nyob ntawm lub hnub nyoog, hom, thiab qhov xwm txheej ntawm cov xaim uas twb muaj lawm.

Vim Li Cas Ntu Kawg Tseem Ceeb

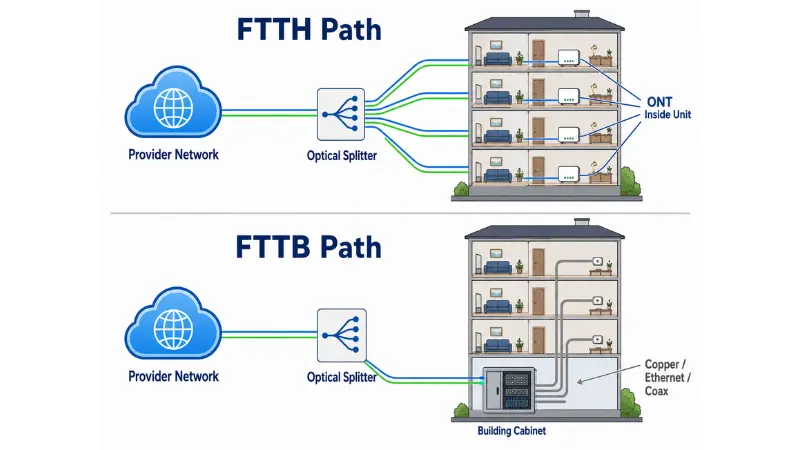

Last segment bottleneck comparison between FTTH full fiber path and FTTB internal building wiring

Ob leeg FTTH thiab FTTB coj fiber ntau rau hauv lub tsev. Qhov txawv yog qhov twg cov fiber xaus thiab dab tsi yog lub teeb liab hla lub meters kawg. Ntu kawg ntawd txiav txim siab seb qhov kev sib txuas tau txais txiaj ntsig los ntawm kev ua tau zoo ntawm fiber ntau lossis tau txais cov kev txwv ntawm cov xov xwm qub. Nyob rau hauv kev nkag tau network tsim raupassive optical network (PON) architecturesxws li GPON lossis XGS-PON, txoj kev kho qhov muag los ntawm OLT mus rau ONT yog tsim los ua kom zoo sib xws, qis- tsis sib kis. Ib qho tsis yog -fiber ntu qhia txog qhov kawg ntawm txoj kev ntawd tuaj yeem dhau los ua lub hauv paus caj dab - tsis yog nyob rau hauv ceev ceev, tab sis nyob rau hauv latency, suab nrov susceptibility, thiab symmetrical bandwidth muaj peev xwm.

FTTH vs FTTB: Sab-los ntawm-Side Comparison

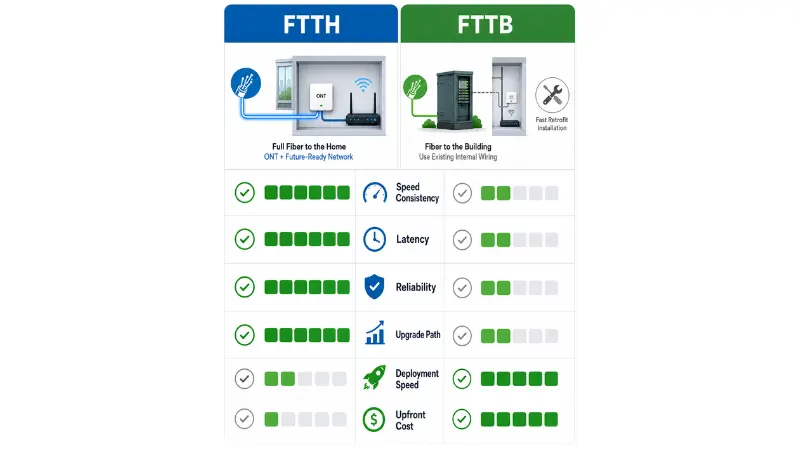

FTTH and FTTB comparison across speed consistency latency reliability upgrade path deployment speed and upfront cost

Feature	FTTH	FTTB
Fiber termination point	Hauv txhua chav tsev (tsev, chav tsev, lossis chaw ua haujlwm)	Sib koom qhov chaw hauv lub tsev (hauv qab daus, riser, txee)
Kawg - mais nruab nrab	Fiber ntau optic cable	Muaj tooj liab, coax, lossis Ethernet thaiv
Hom ceev muaj peev xwm	1 Gbps rau 10 Gbps symmetrical (nyob ntawm tus qauv PON)	Qhov sib txawv - nyob ntawm seb hom cabling thiab nyob deb li cas
Latency	qis dua thiab zoo ib yam	Muaj peev xwm siab dua vim kev hloov pauv xov xwm thiab xaim zoo
Kev ntseeg tau	Tsawg rhiab heev rau kev cuam tshuam ib puag ncig	Ntau nyob ntawm lub tsev thaiv kab mob
Txhim kho txoj kev	Muaj zog - fiber ntau txhawb PON tiam yav tom ntej yam tsis muaj rewiring	Txwv los ntawm cov kab hluav taws xob sab hauv
Tus nqi ua ntej	Feem ntau siab dua - yuav tsum muaj fiber ntau rau txhua chav	Feem ntau qis dua - rov siv cov xaim uas twb muaj lawm
Zoo tshaj plaws	Tshiab tsim, tej yaam num greenfield, hwm kev sib txuas	Cov laus MDUs, pob nyiaj siv -sensitive retrofits, phased rollouts

Qhov txawv ntawm FTTH thiab FTTB

Ceev thiab Bandwidth Consistency

FTTH feem ntau muab cov kev sib txuas ntau dua vim tias cov teeb liab kho qhov muag mus rau tag nrho qhov kev ncua deb rau tus neeg siv yam tsis muaj kev hloov pauv xov xwm. Raws li ITU-T G.984 GPON tus qauv, ib qho PON tuaj yeem xa mus txog 2.5 Gbps downstream sib koom ntawm cov neeg siv khoom, thiab cov tshiab duaXGS-PON (G.9807.1) tus qauvtxhawb symmetrical 10 Gbps. Hauv kev teeb tsa FTTH, cov kev ceev no muaj nyob ntawm ONT hauv txhua chav.

Hauv kev xa tawm FTTB, cov fiber ntau xaus ntawm qhov chaw sib koom thiab qhov kawg kev sib txuas cia siab rau txhua qhov txuas uas twb muaj lawm hauv lub tsev. Yog tias cov xaim ntawd yog Cat5e Ethernet, lub qab nthab theoretical yog nyob ib ncig ntawm 1 Gbps dhau kev khiav luv. Yog tias nws yog xov tooj qub- qib tooj liab, lub qab nthab poob qis, thiab kev ua tau zoo sib txawv nrog kev nyob deb thiab cuam tshuam. Qhov no yog vim li cas ob lub tsev FTTB hauv tib lub nroog tuaj yeem xa cov kev sib txawv tiag tiag -kev paub hauv ntiaj teb.

Latency thiab Reliability

Rau cov ntawv thov uas nyob ntawm qhov qis thiab ruaj khov latency - video conferencing, huab -raws li kev sib koom tes, kev ua si hauv online, tiag tiag- lub sijhawm saib xyuas - FTTH muaj qhov ntsuas tau zoo. Kev sib txuas ntawm fiber ntau tsis raug cuam tshuam los ntawm electromagnetic cuam tshuam, kev sib tham los ntawm cov khub uas nyob ib sab, lossis cov teeb liab degradation uas cuam tshuam rau tooj liab nyob deb. Hauv cov tsev uas cov kab hluav taws xob sab hauv dhau los ze ntawm cov kab hluav taws xob, lub tshuab nqa nqa, lossis cov cuab yeej HVAC, cov xwm txheej no tuaj yeem ua rau pom qhov tsis ruaj khov hauv FTTB teeb.

Kev ntseeg kuj txuas ntxiv mus rau kev saib xyuas. Copper thiab coaxial cabling muaj hnub nyoog, thiab cov kav hlau loj dua hauv cov tsev tsim ua ntej cov qauv cabling muaj xws li tej zaum yuav muaj splices, corroded connectors, los yog tsis yog - tus qauv khiav uas nyuaj rau kev kuaj mob. Ib txoj hauv kev FTTH tag nrho zam cov kev pheej hmoo qub qub.

FTTH vs FTTB Tus Nqi: Kev teeb tsa thiab xa tawm

FTTB feem ntau nrawm dua thiab tsis tshua muaj nqi rau xa mus rau hauv cov tsev uas twb muaj lawm. Qhov laj thawj tseem ceeb yog qhov yooj yim: tsawg dua tshiab cable ua haujlwm. Yog tias lub tsev twb muaj Ethernet risers lossis coaxial faib, FTTB tsuas yog yuav tsum tau khiav fiber ntau mus rau qhov chaw nruab nrab, txhim kho cov khoom siv sib koom, thiab txuas rau cov xaim uas twb muaj lawm. Qhov no tuaj yeem txhais tau tias kev nkag mus rau phab ntsa tsawg dua, kev cuam tshuam ntawm cov neeg xauj tsev tsawg dua, thiab lub sijhawm ncua sijhawm luv dua.

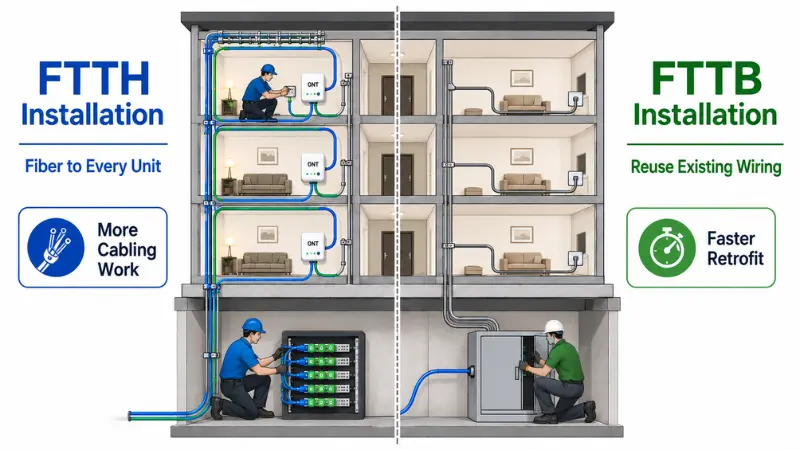

FTTH and FTTB installation comparison showing fiber to every unit versus reusing existing building wiring

FTTH feem ntau raug nqi ntau dua vim tias fiber ntau yuav tsum tau hla lub tsev txoj hauv kev - risers, conduits, lossis cable tais - tag nrho txoj kev mus rau txhua chav tsev. Hauv cov tsev uas muaj qhov txwv qhov chaw, qhov no yuav xav tau micro-kev teeb tsa duct, nto-mountsab hauv fiber ntau cablekev daws teeb meem, lossis txawm tias kev tsim kho me me los tsim txoj hauv kev tshiab. Tus nqi ntawm ib -unit yog siab dua, tab sis qhov txiaj ntsig tau txais txiaj ntsig tau siv lub neej ntev dua thiab txhawb nqa ntau yam kev pabcuam yav tom ntej.

Nws yog tsim nyog sau cia tias FTTB tsis yog ib txwm pheej yig dua rau tag nrho lub neej. Yog tias cov xaim hluav taws xob sab hauv xav tau kev hloov pauv hauv ob peb xyoos, lossis yog tias cov neeg siv xav tau loj dua li qhov kev txhawb nqa cable uas twb muaj lawm, tus nqi ntawm kev hloov kho tom qab tuaj yeem tshaj qhov nyiaj tau los ntawm kev teeb tsa. Cov neeg npaj yuav tsum ntsuas ob qho tib si tus nqi xa tawm thawj zaug thiab qhov kev cia siab ntawm lub neej nyob hauv - qhov nruab nrab tsim.

Cov kev hloov kho yav tom ntej thiab ntev -Scalability

Ib qho kev sib cav muaj zog tshaj plaws rau FTTH yog nws txoj kev txhim kho. Vim hais tias fiber ntau optical muaj peev xwm loj heev hauv qhov bandwidth, kev txhim kho lub network feem ntau txhais tau hais tias kev kho dua tshiab ntawm cov khoom siv hluav taws xob ntawm txhua qhov kawg - tsis hloov lub cable nws tus kheej. Ib lub tsev txuas nrogtib - hom fiber ntauniaj hnub no tuaj yeem txhawb GPON, XGS-PON, thiab yav tom ntej 25G lossis 50G PON cov qauv yam tsis tau rub cov kab tshiab.

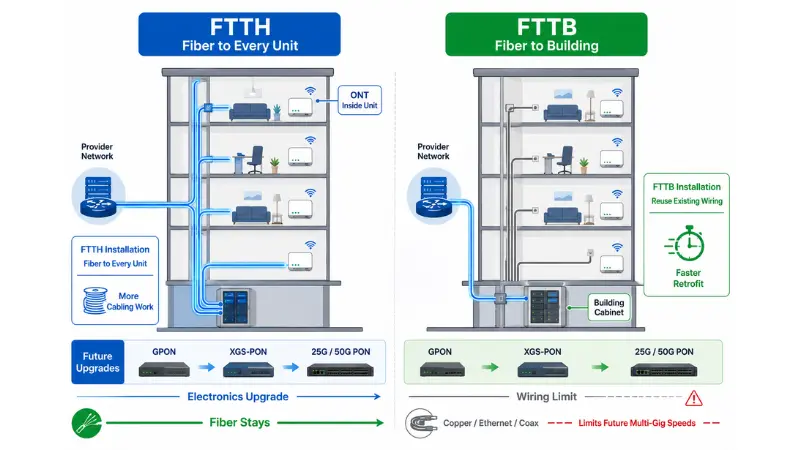

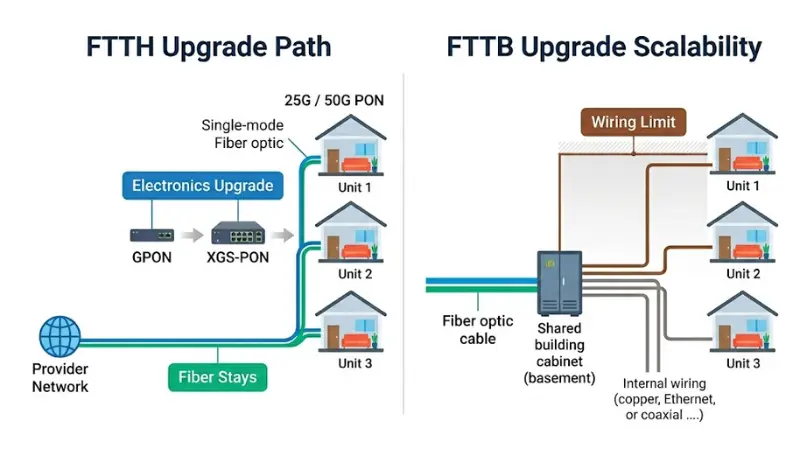

FTTH long-term upgrade path from GPON to XGS-PON and future 25G or 50G PON compared with FTTB wiring limits

FTTB tau txais cov kev txwv ntawm cov xov hlau sab hauv. Cat5e Ethernet tshaj tawm ib ncig ntawm 1 Gbps ntawm 100 meters. Cat6 tuaj yeem txhawb nqa txog 10 Gbps, tab sis tsuas yog nyob ntawm qhov luv luv (hauv qab 55 meters rau 10GBASE-T). Xov tooj- qib tooj liab tseem txwv ntau dua. Raws li cov neeg siv kev cia siab bandwidth nce - tsav los ntawm 4K thiab 8K video, huab gaming, ntse hauv tsev, thiab ua haujlwm-los ntawm- tsheb khiav hauv tsev - FTTB network yuav tsoo nws lub qab nthab sai dua.

FTTH vs FTTB: Pros thiab Cons

FTTH Pros

Dedicated fiber ntau txoj kev mus rau txhua chav tsev tshem tawm qhov kawg - ntu fwj.
Txhawb nqa symmetrical ntau-gigabit ceev ntawm cov qauv PON tam sim no thiab yav tom ntej.
latency qis dua thiab muaj kev ntseeg siab dua vim qhov kawg - mus rau - xaus kev xa xov hluav taws xob.
Kev ua neej nyob ntev dua - fiber ntau tsis corrode lossis degrade zoo li tooj liab.
Yooj yim los txhim kho cov khoom siv hluav taws xob tsis tas hloov lub cev cabling.

FTTH Cons

Tus nqi siab dua rau pem hauv ntej, tshwj xeeb tshaj yog nyob rau hauv cov tsev laus uas muaj qhov txwv cov kav dej.
Kev cuam tshuam ntau ntxiv rau nruab - tej zaum yuav xav tau kev nkag mus rau txhua chav rauterminal lub thawvkev teeb tsa.
Kev xa tawm ntev dua nyob rau hauv cov haujlwm loj MDU.
Yuav tsum muaj cov kws tshaj lij rau kev txiav fiber ntau thiabsplicing los yog ceev connector installation.

FTTB Pros

Tus nqi qis dua thaum siv cov kab hluav taws xob sab hauv twb muaj lawm.
Kev xa tawm sai dua nrog kev cuam tshuam rau tus neeg xauj tsev tsawg dua.
Tsim nyog raws li theem theem mus rau yav tom ntej FTTH hloov dua siab tshiab.
Muaj peev xwm xa tau cov kev ua tau zoo hauv cov tsev nrog zoo -kev ua haujlwm zoo cabling (Cat5e/Cat6).

FTTB Cons

Kev ua tau zoo nyob ntawm cov kab hluav taws xob, hnub nyoog, thiab cov xwm txheej - nyuaj los lav qhov zoo ib yam ntawm txhua chav.
Tsawg scalability - sab hauv xaim tsim lub qab nthab uas tsis muaj fiber ntau.
Ntau dua - lub sij hawm txij nkawm raug cuam tshuam vim kev laus tooj liab lossis coaxial infrastructure.
Tej zaum yuav tsis txhawb symmetrical speeds los yog yav tom ntej multi -gigabit pab pawg.

Qhov twg Architecture haum ntau hom tsev?

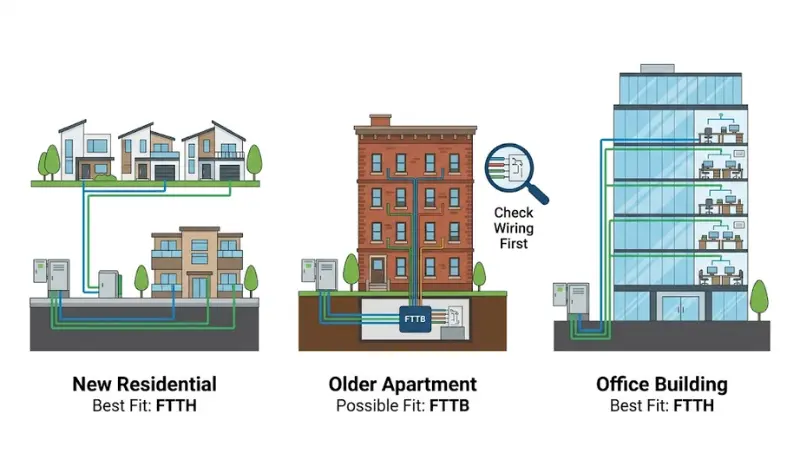

Fiber architecture selection for new residential buildings older apartment retrofits and office buildings

Kev tsim kho vaj tse tshiab

Rau cov phiaj xwm greenfield thaj chaw, FTTH yuav luag txhua qhov kev nqis peev zoo dua. Thaum tus tsim tawm twb tau npaj cov khoom siv hluav taws xob, cov ncej riser, thiab qis -voltage pathways, tus nqi nce ntxiv ntawm kev rub cov fiber ntau rau txhua chav tsev yog qhov qis dua piv rau tag nrho cov peev txheej. Nws kuj yog qhov ua tau zoo ntawm kev ua lag luam: cov neeg yuav khoom hauv tsev thiab cov neeg xauj tsev tau nce ntau ntxiv - fiber ntau txuas raws li qhov kev cia siab, tsis yog qhov zoo tshaj plaws.

Hauv kev tsim tshiab, cov khoom siv passive -optical splitters, ODFs thiab thaj vaj huam sib luag, thiab faib thav duab - tuaj yeem raug teev los ntawm qhov pib, zam kom tsis txhob raug nqi rov qab tom qab.

Apartment Buildings thiab Retrofits uas twb muaj lawm

Rau cov tsev tsev laus, kev xaiv ntawm FTTH thiab FTTB nyob ntawm cov xwm txheej tshwj xeeb:

Yog tias lub tsev muaj Cat5e lossis Cat6 Ethernet risers nyob rau hauv qhov zoo, FTTB tuaj yeem xa cov khoom siv gigabit nrog kev cuam tshuam tsawg. Qhov no yog ib txoj hauv kev zoo rau cov tsev tsim hauv xyoo 2000s lossis tom qab ntawd.
Yog hais tias lub tsev tsuas muaj cov xov tooj qub tooj liab lossis degraded coaxial cabling, qhov kev ua tau zoo qab nthab ntawm FTTB poob qis, thiab kev nqis peev hauv FTTH tau yooj yim los ua pov thawj.
Yog tias lub tsev muaj qhov chaw nkag tau mus rau cov kav dej lossis cov tais cable, rub cov fiber ntau tshiab rau txhua chav yuav ua tau ntau dua - thiab tus nqi ntau dua - siv tau - tshaj qhov xav tau.

Thaum cov kab mob sab hauv tsis paub meej, kev soj ntsuam ua ntej - xa mus rau lub tsev txoj hauv kev thiab kev xaim yuav tsum tuaj ua ntej kev txiav txim siab thev naus laus zis. CovMDU fiber ntau cable qhianpog cov txheej txheem npaj no kom ntxaws ntxiv.

Cov Tsev Ua Haujlwm thiab Cov Khoom Ua Lag Luam

Cov neeg nyob hauv chaw ua haujlwm yuav muaj ntau dua thiab ntau qhov kev xav tau ntau dua - VoIP systems, huab ERP, video conferencing, backup tsheb - thiab lawv feem ntau sib tham txog kev sib txuas ua ib feem ntawm lawv cov nqe lus xauj tsev. Hauv siab -xav tau cov tuam tsev lag luam, FTTH (lossis ntau dua, fiber ntau rau chav suite) muab tus tswv tsev muaj zog sib tw thiab txo qhov kev pheej hmoo ntawm cov neeg xauj tsev outgrowing network nyob rau hauv lub sij hawm xauj tsev.

Hauv qis dua -xav tau kev lag luam nyob qhov twg cov txheej txheem cabling uas twb muaj lawm yog qhov tshiab (Cat6 lossis zoo dua), FTTB tseem tuaj yeem yog txoj hauv kev tsim nyog, muab tus neeg teb xov tooj pob tshab txog lub qab nthab ua haujlwm.

Siab -Cov neeg siv xav tau: Chaw taws teeb ua haujlwm, gaming, thiab streaming

Rau cov neeg siv kawg uas mob siab rau feem ntau ntawm cov latency qis, kev sib txuas ruaj khov, thiab kev sib koom ua ke sib luag, FTTH yog qhov haum zoo dua. Qhov no suav nrog cov neeg ua haujlwm nyob deb uas tso siab rau kev hu xov tooj video thiab huab siv, gamers uas xav tau kev ntxhov siab tsawg, thiab cov tsev neeg khiav ntau lub sijhawm 4K lossis 8K kwj. Yog tias lub tsev ua haujlwm rau cov pej xeem no, FTTH zoo dua nrog lawv cov kev cia siab.

FTTB puas tuaj yeem hloov kho rau FTTH Tom qab?

FTTB to FTTH migration diagram showing fiber extension from telecom room through risers to each unit

Yog, tab sis qhov ua tau yog nyob ntawm lub tsev. Kev vam meej FTTB-rau- FTTH kev tsiv teb tsaws feem ntau xav tau:

Muaj qhov chaw taug kev.Puas muaj cov ducts seem, micro-cov kav dej, lossis cov tais cable muaj peev xwm rub cov fiber ntau rau txhua chav? Yog hais tias lub conduit uas twb muaj lawm twb tag lawm, qhov no yuav yog thawj obstacles.
Tsim nyog chav telecom muaj peev xwm.Lub tsev cov cuab yeej siv chav xav tau qhov chaw raufiber ntau faib thav duabthiabPLC splittersua hauj lwm rau txhua chav nyob ib leeg.
Nkag mus rau txhua lub tsev.Fiber txiav nyob rau hauv txhua chav tsev lossis chaw ua haujlwm yuav tsum tau nkag, phab ntsa mounting, thiabceev connectorlos yog splice ua hauj lwm - uas txhais tau tias teem sij hawm nkag nrog txhua tus neeg xauj tsev.
Nyiaj txiag rau kev tsiv teb tsaws theem.Qee tus neeg ua haujlwm siv FTTB thawj zaug thiab txhim kho pem teb los ntawm hauv pem teb lossis lub tsev los ntawm lub tsev raws li qhov xav tau thiab peev nyiaj tso cai.

Cov neeg npaj uas xav tias yuav muaj kev hloov kho FTTH yav tom ntej yuav tsum ua kom paub tseeb tias qhov kev tsim FTTB thawj zaug suav nrog cov kav dej loj, qhov chaw seem ntawm cov kav dej, thiab cov chaw sib tham hauv xov tooj uas tuaj yeem ua tau raws li ib -chaw fiber ntau faib. Qhov no yog qhov pheej yig dua los npaj rau theem FTTB dua li rov ua dua tom qab.

Yuav Qhia Li Cas Yog Lub Tsev Muaj FTTH lossis FTTB

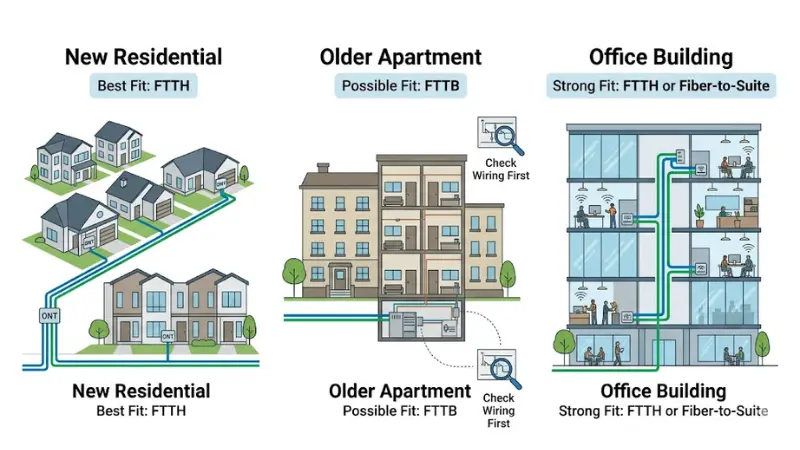

How to identify FTTH or FTTB by checking fiber outlet ONT Ethernet port phone jack or coax outlet

Ntau lub tsev tshaj tawm "fiber internet" yam tsis tau qhia tias qhov twg fiber ntau xaus. Nov yog yuav qhia qhov txawv li cas:

Txheeb xyuas qhov xaus.Yog tias muaj ONT (ib qho khoom siv me me nrog cov khoom siv fiber ntau) mounted hauv koj chav tsev, koj yuav muaj FTTH. Yog tias cov khoom siv fiber ntau zaum hauv ib chav sib koom thiab koj chav sib txuas los ntawm Ethernet chaw nres nkoj, xov tooj jack, lossis coaxial qhov hluav taws xob, qhov ntawd taw qhia rau FTTB.

Saib ntawm kab ntawv nkag mus rau koj lub tsev.Fiber ntau opticpoob kabyog nyias, feem ntau nrog ntsuab lossis xiavSC / APC los yog SC / UPC connector. Yog hais tias lub cable nkag mus rau hauv koj chav tsev zoo li tus qauv Ethernet cable (RJ45) los yog coaxial cable, lub fiber yuav nres qhov chaw ntws.

Nug cov lus nug uas yog.Es tsis txhob nug tus kws kho mob "Koj puas muaj fiber ntau?", nug: "Puas yog fiber ntau txiav hauv kuv chav tsev, lossis nws puas nres ntawm lub tsev?" Ib lo lus nug no qhia ntau dua li cov khoom lag luam feem ntau.

Feem ntau yuam kev thaum xaiv FTTH thiab FTTB

Kho Txhua "Fiber" thov raws li qhov sib npaug

Ib lub tsev yuav raug cai tshaj tawm fiber ntau-raws li internet txawm tias thaum kawg kev sib txuas rau txhua lub tsev khiav ntawm tooj liab lossis coax. Daim ntawv lo "fiber" qhia rau koj tias fiber ntau koom nrog hauv kev nkag mus rau network - nws tsis qhia koj tias qhov fiber ntau nkag mus rau koj lub cuab yeej li cas. Nco ntsoov txheeb xyuas qhov xaus.

Sib piv Tsuas yog Headline Speed Numbers

Kev tshaj tawm ceev yog ib qho taw qhia cov ntaub ntawv, tsis yog tag nrho cov duab. Consistency, latency, symmetrical upload peev xwm, thiab kev ua tau zoo nyob rau hauv load feem ntau tseem ceeb tshaj li ncov download tooj. A 1 Gbps FTTB kev sib txuas ntawm kev laus coax thiab 1 Gbps FTTH kev sib txuas tsis zoo ib yam hauv kev xyaum.

Tshem tawm FTTB li Outdated

FTTB tsis yog qhov qis dua - nws yog ib qho cuab yeej sib txawv rau cov xwm txheej sib txawv. Hauv ib lub qhov dej zoo- tuav lub tsev nrog cov txheej txheem niaj hnub, FTTB tuaj yeem xa cov kev pabcuam zoo heev. Qhov yuam kev yog siv FTTB qhov twg cov xov hlau sab hauv tsis tuaj yeem txhawb kev ua haujlwm tau cog lus tseg, lossis xav tias nws yuav muaj hnub nyoog zoo nkauj raws li txoj hauv kev muaj fiber ntau.

Piv txwv tias FTTH Ib txwm raug nqi ntau dua lub sijhawm

FTTH muaj tus nqi siab dua nyob rau hauv feem ntau cov xwm txheej retrofit, tab sis qhov ntawd tsis tau txhais hais tias nws yog ib qho kev xaiv kim tshaj li 10- lossis 15-xyoo qab ntug. Yog tias FTTB xav tau kev hloov kho txuas hauv ob peb xyoos kom tau raws li qhov xav tau, cov nqi sib koom ua ke tuaj yeem tshaj qhov FTTH yuav raug nqi txij thaum pib. Kev sib piv txoj cai yog tag nrho cov nqi ntawm cov tswv cuab, tsis yog kev xa tawm thawj zaug xwb.

FTTH vs FTTB: Kev txiav txim zaum kawg

FTTH yog qhov kev xaiv muaj zog dua hauv ntau qhov xwm txheej. Nws muaj kev sib raug zoo dua nrawm dua, qis dua latency, muaj kev ntseeg siab dua, thiab txoj kev hloov kho kom meej rau yav tom ntej ntau -gigabit cov kev pabcuam. Rau kev tsim kho tshiab, hwm tsev nyob, thiab siab -xav tau cov khoom lag luam, FTTH yog cov qauv tsim uas tiv thaiv kev nqis peev zoo tshaj plaws hauv lub sijhawm.

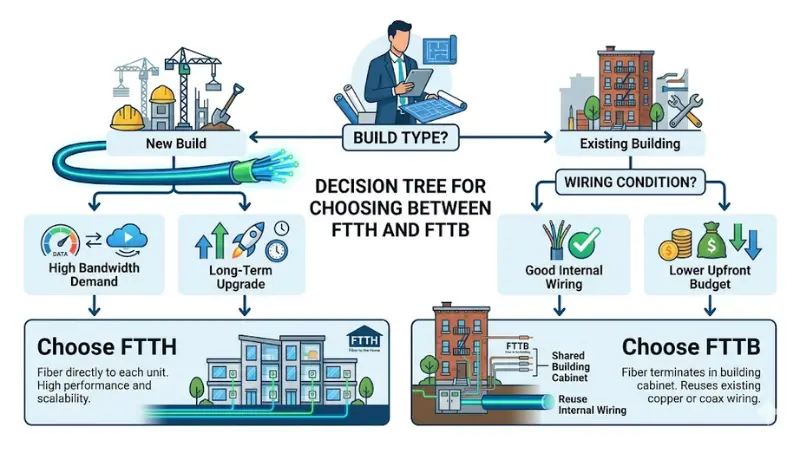

Decision tree for choosing FTTH or FTTB based on new build status bandwidth demand wiring condition and budget

FTTB tseem yog ib qho kev xaiv raug cai thiab feem ntau siv tau rau cov tsev uas twb muaj lawm uas cov kab hluav taws xob sab hauv yog qhov zoo, qhov kev siv nyiaj txiag raug txwv, lossis kev tsiv teb tsaws mus rau FTTH yog ib feem ntawm lub sijhawm ntev - txoj kev npaj. Qhov tseem ceeb yog ua qhov kev xaiv ntawd raws li lub tsev tiag tiag - hom kab, txoj hauv kev muaj, tus neeg xauj tsev xav tau - es tsis yog ntawm cov nqi kwv yees ib leeg.

Thaum tsis ntseeg, nug cov lus nug no ua ntej txiav txim siab:

Hom thiab qhov xwm txheej ntawm cov kab hluav taws xob sab hauv lub tsev puas muaj?
Puas muaj qhov chaw duct lossis txoj kev muaj peev xwm rau fiber ntau rau txhua chav?
Dab tsi bandwidth yuav xaus cov neeg siv tiag tiag xav tau nyob rau 5 txog 10 xyoo tom ntej?
Qhov no puas yog ib - sij hawm xa tawm lossis thawj theem ntawm kev npaj kho dua tshiab?

Rau kev taw qhia tob dua ntawm cov khoom siv fiber ntau siv nyob rau hauv ob qho tib si architectures - suav nrogoptical splitters, fiber ntau connectors, thiabpatch kab- cov peev txheej txuas thoob plaws hauv phau ntawv qhia no muab cov ncauj lus qhia ntxaws ntxiv ntawm txhua feem.

FAQ

Dab tsi yog qhov txawv ntawm FTTH thiab FTTB?

Qhov sib txawv tseem ceeb yog qhov twg cov fiber ntau xaus. Hauv FTTH, fiber ntau ncav cuag ib tus neeg lub tsev (tsev lossis chaw ua haujlwm). Hauv FTTB, fiber ntau nres ntawm qhov chaw sib koom hauv lub tsev thiab qhov kawg kev sib txuas siv tooj liab, coax, lossis Ethernet thaiv. Qhov no cuam tshuam rau qhov sib xws ceev ceev, latency, thiab ntev - lub sijhawm hloov kho qhov muaj peev xwm.

Puas yog FTTB tseem yog qhov kev xaiv zoo rau cov tsev tsev laus?

Nws tuaj yeem ua tau, yog tias lub tsev nyob hauv cov xaim hluav taws xob yog qhov tsim nyog. Cov tsev nrog Cat5e lossis Cat6 Ethernet tuaj yeem xa cov kev pabcuam gigabit los ntawm FTTB. Cov vaj tse uas tsuas yog cov xov tooj qub qub lossis cov coaxial cabling puas yuav pom cov txiaj ntsig tsis muaj zog.

FTTB puas tuaj yeem hloov mus rau FTTH tom qab?

Yog lawm, tab sis qhov nyuaj yog nyob ntawm qhov chaw muaj nyob, chav xov tooj muaj peev xwm, thiab seb puas muaj fiber ntau tuaj yeem xa mus rau txhua chav tsev yam tsis muaj kev tsim kho loj. Tus nqi tshaj - txoj hauv kev ua tau zoo yog los npaj rau yav tom ntej FTTH peev xwm thaum lub sij hawm pib FTTB xa tawm los ntawm kev qhia txog cov kav dej loj thiab qhov chaw seem.

Qhov twg zoo dua rau kev txhim kho vaj tse tshiab?

FTTH yuav luag txhua qhov kev xaiv zoo dua rau kev tsim kho tshiab. Txij li cov txheej txheem thiab cov khoom siv tau raug teeb tsa los ntawm kos, khiav fiber ntau rau txhua lub tsev ntxiv cov nqi ntxiv me ntsis thiab tsim kom muaj kev lag luam ntau dua, yav tom ntej -cov khoom npaj.

Puas yog FTTH ib txwm txhais tau tias Internet ceev dua?

FTTH tsis cia li txhais tau tias nrawm tshaj tawm, tab sis nws txhais tau tias kev ua tau zoo sib xws, qis dua latency, thiab zoo dua symmetrical bandwidth. Cov qib ceev tiag tiag nyob ntawm qhov kev pab cuam thiab PON tus qauv siv (GPON, XGS-PON, thiab lwm yam), tab sis txoj kev fiber ntau nws tus kheej tsis yog lub hauv paus.

Puas yog FTTB txaus rau cov tsev ua haujlwm?

Nws nyob ntawm tus neeg xauj tsev xav tau. Rau kev siv hauv chaw ua haujlwm, FTTB nrog Cat6 sab hauv cabling tuaj yeem tsim nyog. Rau cov neeg xauj tsev khiav bandwidth-kev ua haujlwm hnyav - loj- teev video conferencing, huab- hnyav ua haujlwm, lossis cov ntaub ntawv-center-xws li kev sib txuas - FTTH muab lub neej yav tom ntej ntau dua thiab ntau dua - pov thawj qab nthab.

Kuv tuaj yeem qhia tau li cas tias kuv tus kws kho mob muab FTTH lossis tsuas yog fiber ntau rau lub tsev?

Nug seb cov fiber ntau puas nyob hauv koj chav tsev lossis ntawm qhov chaw sib koom hauv lub tsev. Yog tias muaj cov khoom siv ONT hauv koj thaj chaw nrog cov khoom siv fiber ntau, koj muaj FTTH. Yog tias koj qhov kev sib txuas los ntawm Ethernet, xov tooj, lossis coaxial qhov hluav taws xob, cov fiber ntau yuav nres ntawm lub tsev.

Cov neeg tsim khoom yuav tsum xav txog dab tsi ua ntej xaiv FTTH lossis FTTB?

Cov yam tseem ceeb yog lub tsev (tsim tshiab vs. retrofit), cov kab mob sab hauv, muaj txoj hauv kev thiab cov kav dej, qhov xav tau ntawm cov neeg xauj tsev xav tau, qhov peev txheej, thiab seb puas yuav hloov mus rau FTTH yog ib feem ntawm txoj kev npaj. Ib daim ntawv ntsuam xyuas ua ntej - xa mus rau qhov chaw xa tawm yuav tsum qhia qhov kev txiav txim siab ua ntej ib qho kev teeb tsa tau teev tseg.
