Yog tias koj tab tom sib piv LC vs SC vs MU connectors, cov lus teb zoo los ntawm koj cov ntsiab lus xa mus. LC yog lub neej ntawd rau niaj hnub siab - ntom ntom ua qhov twg transceiver compatibility thiab vaj huam sib luag qhov chaw tseem ceeb tshaj plaws. SC tseem yog qhov kev xaiv muaj zog hauv kev sib txuas lus, nkag mus rau hauv tes hauj lwm, thiab txhua qhov chaw uas lub hauv paus tau teeb tsa tau khiav ntawm SC kho vajtse. MU yog ib qho tshwj xeeb connector - technically muaj peev xwm, tab sis deb tsis tshua muaj nyob sab nraum cov ntawv thov tshwj xeeb hauv Nyiv thiab qee cov kab ke qub txeeg qub teg.
Cov neeg feem coob nrhiav cov ncauj lus no tsis yog kawm cov npe txuas xwb. Lawv tab tom sim zam kom tsis txhob yuam kevfiber optic thaj qaum, xaiv qhov tsis ncaj ncees lawm transceiver interface, lossis xauv rau hauv tsev neeg txuas uas txwv kev nthuav dav yav tom ntej. Phau ntawv qhia no tsom rau kev xaiv cov kev txiav txim siab uas tseem ceeb - tsis yog cov ntsiab lus xwb, tab sis qhov twg txhua qhov sib txuas haum, vim li cas, thiab yuav ua li cas kom tsis txhob muaj qhov yuam kev ntau tshaj plaws.

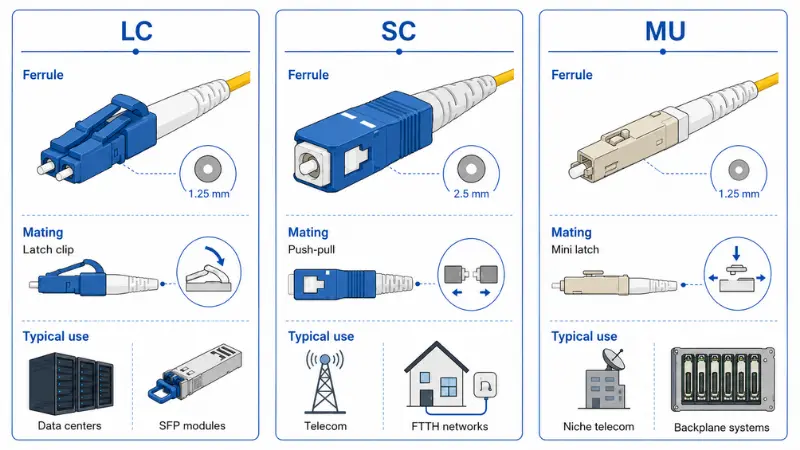

LC vs SC vs MU ntawm ib sab: Cov lus sib piv ceev
Ua ntej dhia mus rau hauv kev nthuav dav, ntawm no yog ib sab - los ntawm - sab ntsiab lus ntawm peb qhov txuas hla cov kev qhia tshwj xeeb uas feem ntau tsav kev yuav khoom thiab kev txiav txim siab tsim.
| Feature | LC | SC | MU |
|---|---|---|---|
| Ferrule txoj kab uas hla | 1.25 hli | 2.5 hli | 1.25 hli |
| Mating mechanism | Latch (push-thiab-latch) | Push-rub | Push-rub |
| Tus txheeb ze connector loj | Me me (SFF) | Txuj | Me me (SFF) |
| Chaw nres nkoj ceev ntawm ib lub vaj huam sib luag | Siab | Nruab nrab | Siab |
| Kev lag luam tus qauv | TIA-604-10 (FOCIS 10) | TIA-604-3 (FOCIS 3) | IEC 61754-6 / JIS C 5983 - Tshooj 1 |
| Common transceiver haum | SFP, SFP +, feem ntau niaj hnub modules | Qee qhov GPON ONTs, cov laus dua | Tsis tshua muaj nyob rau hauv standard transceivers |
| Tej yam kev xa tawm | Data centers, enterprise LAN, qaum | Telecom, FTTH, nkag network, legacy | Japanese telecom, backplane, niche systems |
| Ecosystem muaj nyob | Dav dav heev thoob ntiaj teb | Dav dav thoob ntiaj teb | Txwv sab nraum Nyiv |
| Polish xaiv | UPC, UA | UPC, UA | UPC, UA |
| Fiber hom txhawb | Tib -mode, multimode | Tib -mode, multimode | Tib -mode, multimode |
Tag nrho peb cov connectors txhawb nqa ob qho tib sitib- hom thiab multimode fiber ntau, thiab tag nrho peb muaj nyob rau hauvUPC thiab APC polish hom. Qhov sib txawv uas tsav qhov kev txiav txim siab tiag tiag yog ferrule loj, ecosystem qhov tob, thiab transceiver compatibility - uas cov seem hauv qab no piav qhia meej.

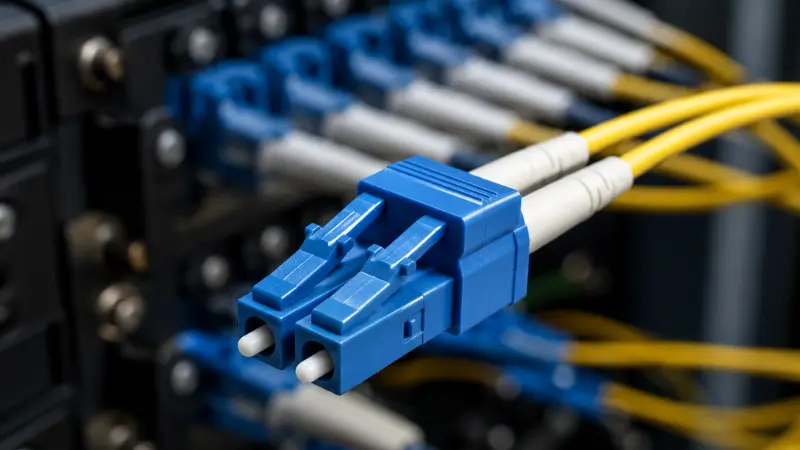

Dab tsi yog LC Connector thiab Vim Li Cas Nws Thiaj Li Niaj Hnub No?
Lub LC (Lucent Connector) yog ib qho me me -form-factor fiber optic connector ua nyob ib ncig ntawm 1.25 hli ceramic ferrule. Nws yog Ameslikas tsim los ntawm Lucent Technologies thaum xyoo 1990s kom tau raws li qhov kev thov loj dua rau ntau dua - fiber ntau sib txuas hauv kev sib txuas lus thiab kev lag luam. LC connector yog standardized nyob rau hauvTIA-604-10 (FOCIS 10), tus qauv intermateability tswj los ntawm Telecommunications Industry Association.
Lub LC's latch-style mechanism - zoo ib yam rau RJ-45 tooj liab txuas - muab kev ruaj ntseg, rub-pov thawj kev sib txuas uas yooj yim rau kev koom tes thiab tso tawm txawm tias nyob hauv qhov chaw kaw ntom nti. Vim tias 1.25 hli ferrule yog ib nrab ntawm qhov loj ntawm SC's 2.5 hli ferrule,LC connectorscia roughly ob zaug qhov chaw nres nkoj ceev ntawm tib lub vaj huam sib luag los yog adapter phaj. Hauv 48-chaw nres nkoj thaj vaj huam sib luag, qhov sib txawv qhov sib txawv tsis yog qhov paub daws teeb meem - nws txiav txim siab seb koj xav tau ib chav tsev khib lossis ob.
Qhov twg LC yeej dominates yog nyob rau hauv transceiver compatibility. SFP Multi-Source Agreement (MSA), uas txhais cov tshuab thiab hluav taws xob specifications rau daim ntawv me me-factor pluggable transceivers, qhia txog duplex LC raws li tus qauv kho qhov muag interface. Qhov ntawd txhais tau hais tias yuav luag txhua qhov tseem ceeb SFP thiab SFP + module xa khoom hnub no - txawm tias rau Gigabit Ethernet, 10GbE, lossis Fiber Channel - siv LC receptacle. Yog tias koj yuav hloov los ntawm Cisco, Juniper, Arista, lossis lwm tus neeg muag khoom loj thiab sau nws nrog SFP-raws li optical modules, koj yuav luag xav tauLC fiber ntau thaj cords.
This combination of high density and broad transceiver support is why LC has become the default choice for new data center, enterprise backbone, andsiab -ntaus fiber ntau installation. Nws tsis yog tias LC inherently superior nyob rau hauv txhua qhov kho qhov muag parameter - insertion poob thiab rov qab poob kev ua tau zoo yog sib piv nyob rau hauv zoo- ua connectors ntawm txhua yam - tab sis nws ecosystem zoo ua rau nws qis tshaj - kev xaiv kev sib txhuam rau feem ntau niaj hnub tsim.
SC Connector yog dab tsi thiab thaum twg Nws tseem ua tau zoo?
SC (Subscriber Connector) yog tsim los ntawm Nippon Telegraph thiab Xov Tooj (NTT) thiab tau txais kev pom zoo nyob rau thaum ntxov 1990s. Nws nta lub 2.5 hli ceramic ferrule nyob rau hauv ib lub xwmfab- zoo li lub tsev nrog ib tug ncaj ncaj thawb- rub mating mechanism. SC connector yog standardized nyob rau hauvTIA-604-3 (FOCIS 3).
Rau xyoo,SC connectorsyog qhov tseem ceeb ntawm fiber ntau connector hom nyob rau hauv ob qho tib si telecom thiab enterprise networks, ua tsaug rau lawv cov tsis muaj insertion poob, txhim khu kev qha thawb- rub tawm, thiab yooj yim tuav. Lub vaj tsev loj dua ua rau SC yooj yim tuav thiab tswj xyuas, uas tseem ceeb hauv kev teeb tsa, cov txee sab nraum zoov, thiab ib puag ncig uas cov kws tshaj lij hnav hnab looj tes.
SC tseem tshwj xeeb tshaj yog nyob rau hauv peb cheeb tsam. Ua ntej, hauv FTTH thiab passive optical networking, qhov twgSC / APC connectorsyog dav siv rauPLC splittersthiab ONT khoom siv. Thib ob, hauv kev lag luam qub txeeg qub teg thiab hauv tsev kawm ntawv network uas cov cog cabling uas twb muaj lawm twb SC - txiav tawm - ripping tawm thiab rov- txiav ntau pua SC thaj vaj huam sib luag tsuas yog hloov mus rau LC tsis tshua muaj txiaj ntsig kev lag luam. Thib peb, hauv qee qhov kev sim thiab ntsuas kev teeb tsa qhov twg qhov loj dua 2.5 hli ferrule muab kev sib txuas yooj yim dua.
Cov tswv yim coj mus siv: SC tsis yog siv tau. Yog hais tias koj lub patch panels,adapters, thiab cov cuab yeej siv teb tau siv SC, nyob nrog SC rau kev txuas ntxiv thiab kev saib xyuas feem ntau yog qhov kev txiav txim siab dua. Lub connector nws tus kheej yog tseem manufactured dav,SC Patch Cordstau yooj yim muaj, thiab qhov kev ua haujlwm kho qhov muag tsis muaj txiaj ntsig txawv ntawm LC hauv tib qib fiber ntau thiab polish.
MU Connector yog dab tsi thiab vim li cas nws tsis tshua muaj kev xaiv thawj?
Lub MU (Miniature Unit) txuas kuj tau tsim los ntawm NTT thaum ntxov xyoo 1990, nrog rau thawj qhov kev xa tawm hauv NTT tus kheej kev sib txuas lus nyob ib puag ncig xyoo 1993. Nws siv 1.25 hli zirconia ferrule - tib txoj kab uas hla raws li LC - thiab lub laub-SC. MU connector yog tus qauv raws li IEC 61754-6 thiab JIS C 5983, thiab tseem raug xa mus raws li TIA-604-17 (FOCIS 17). NTT Ameslikas tsim lub MU system rau backplane-rau-fiber kev sib txuas qhov twg ob qho tib si compactness thiab ib tug self-retentive mechanism xav tau.
Hauv ntawv, lubMUA connectorzoo li kev sib tw nrog LC: tib lub ferrule txoj kab uas hla, compact vaj tse, thawb- rub ua haujlwm. Hauv kev xyaum, txawm li cas los xij, LC tau dhau MU hauv kev saws me nyuam thoob ntiaj teb rau ntau qhov laj thawj. Lub LC's latch mechanism ua pov thawj nrov ntawm cov neeg tsim khoom, Lucent qhov kev tso cai nruj heev thiab kev lag luam tau tsav SFP kev koom ua ke, thiab cov khoom lag luam tseem ceeb - tshwj xeeb tshaj yog Cisco - qauv ntawm LC rau lawv cov chaw nres nkoj transceiver. Qhov tshwm sim yog thaum ntawdMU Patch cordsthiabMU adaptersnyob twj ywm muaj, lub ecosystem yog nqaim: tsawg dua kev xaiv transceiver, tsawg dua -the- txee thaj vaj huam sib luag configurations, thiab tsawg dua cov kws kho mob uas paub txog MU txiav.
MU tseem muaj feem cuam tshuam rau hauv Japanese telecom infrastructure, qee qhov DWDM thiab WDM systems, thiab cov ntaub ntawv rov qab qub txeeg qub teg uas MU tau teev tseg thaum xub thawj. Yog tias koj daim ntawv teev cov khoom siv hu rau MU, siv MU. Tab sis yog tias koj tab tom xaiv tsev neeg txuas rau kev tsim kho tshiab thiab koj cov khoom siv tsis tshwj xeeb xav tau MU, LC yog txoj hauv kev ua tau zoo dua hauv yuav luag txhua qhov xwm txheej.
Qhov sib txawv uas qhov tseeb tsav Connector xaiv
Ntau nplooj ntawv sib piv sau ferrule loj thiab vaj tsev zoo li qhov sib txawv tseem ceeb thiab nres qhov ntawd. Hauv kev txiav txim siab yuav khoom tiag tiag, qhov sib txawv uas tseem ceeb tshaj plaws mus tob dua.

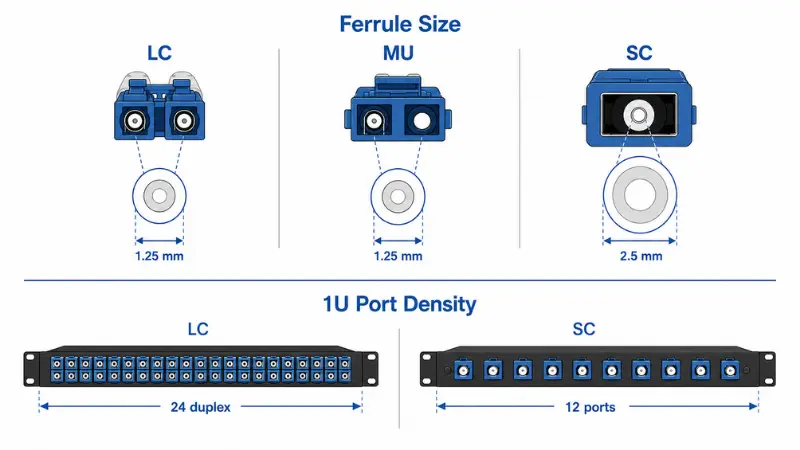

Ferrule Loj thiab Chaw nres nkoj ceev
LC thiab MU ob leeg siv 1.25 hli ferrules, thaum SC siv 2.5 hli ferrule. Qhov no ncaj qha txhais mus rau qhov chaw nres nkoj ceev. Ntawm tus qauv 1U fiber ntau thaj vaj huam sib luag, LC duplex ports tuaj yeem ntim kwv yees li ob zaug ntawm kev sib txuas uas SC duplex ports tau. Nyob rau hauv 42U khib khiav ntau pua ntawm fiber ntau txuas, qhov sib txawv ntawd txhais tau hais tias qhov sib txawv ntawm ib lub txee thiab ob. Rau cov koom haum npajsiab -Density data center deployments, LC qhov chaw ua haujlwm tau zoo yog qhov ua tau zoo ntawm kev ua haujlwm.
Mating Mechanism thiab tuav
LC siv lub latch-style kev sib txuas: thawb rau hauv kev koom nrog, nias lub tab kom tso tawm. SC thiab MU ob leeg siv thawb- rub cov txheej txheem: thawb rau hauv kev sib raug zoo, rub ncaj nraim rov qab los txiav tawm. Rau cov kws tshaj lij, qhov sib txawv feem ntau yog ib qho kev nyiam thiab kev paub. Lub LC latch muab cov neeg kho tshuab tuav uas tiv thaiv kev tsis sib haum xeeb los ntawm cable rub - ib qho txiaj ntsig zoo nyob rau hauv qhov chaw ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom.
Transceiver thiab Active Equipment Alignment
Qhov no yog qhov kev txiav txim siab feem ntau ua rau nws tus kheej. Yog tias koj cov keyboards, routers, lossis media converters siv SFP, SFP +, lossis SFP28 modules, cov modules yuav luag thoob plaws ntiaj teb muaj LC receptacles. Qee qhov GPON ONTs thiab cov cuab yeej cuab tam qub tseem xa nrog SC chaw nres nkoj. Tsawg tsawg lub ntsiab transceivers siv MU. Ua ntej xaiv hom connector, xyuas qhov chaw nres nkoj ntawm txhua yam khoom siv hauv qhov txuas - uas ib kauj ruam tshem tawm qhov kev txiav txim siab tsis paub tseeb.
Ecosystem Depth thiab Supply Chain
LC thiab SC ob leeg muaj kev sib sib zog nqus khoom thoob ntiaj teb. Koj tuaj yeem muab cov khoom sib txuas, cov hlua khi, pigtails, adapters, thiab ua ntej -tawm cassettes los ntawm ntau lub tuam txhab nyob rau hauv ob hom. MU muaj kev txwv ntau dua, tshwj xeeb tshaj yog sab nraud Nyiv. Yog tias koj tab tom tsim kev tsim kho vaj tse uas lwm pab pawg lossis cov neeg cog lus yuav tswj tau ntau dua 10-15 xyoo kev ua neej nyob, ecosystem qhov tob tseem ceeb tshaj li ib qho kev sib txuas tshwj xeeb.

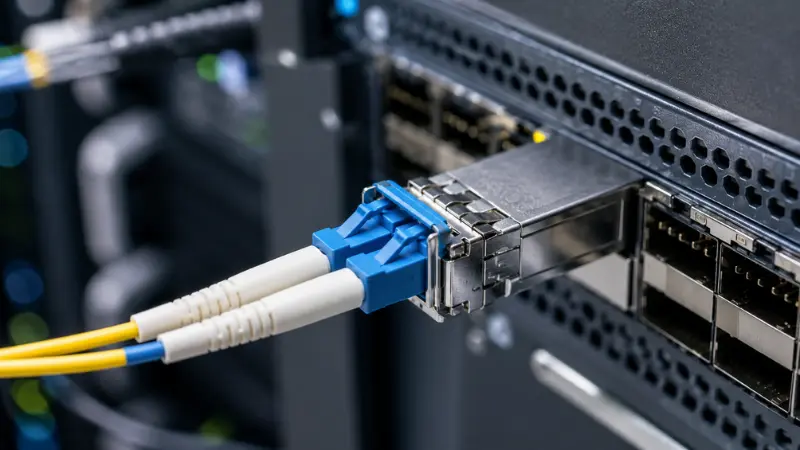

LC vs SC rau SFP thiab Optical Transceivers
Kev sib raug zoo ntawm hom connector thiab transceiver hom tsim nyog nws tus kheej seem vim nws yog ib qho kev tsav tsheb feem ntau ntawm kev xaiv connector hauv kev xyaum.
SFP MSA - ntau- qhov kev pom zoo uas tswj hwm kev tsim kho tshuab thiab hluav taws xob ntawm SFP transceivers - qhia txog duplex LC raws li tus qauv kho qhov muag interface xaiv. Hauv kev xyaum, yuav luag txhua SFP thiab SFP + optical modules rau Gigabit Ethernet, 10G Ethernet, thiab Fiber Channel siv duplex LC. Qhov no tsis yog qhov xwm txheej: SFP daim foos tau tsim los ua kom sib haum, thiab LC connector's 1.25 mm ferrule yog tib txoj kev xaiv uas haum rau SFP lub nqaim pem hauv ntej - vaj huam sib luag hneev taw.
SC tseem tshwm sim hauv qee qhov BiDi (bidirectional) SFP modules thiab hauv qee qhov PON-txog qhov kho qhov muag network units, tab sis cov no yog cov kev siv tshwj xeeb es tsis yog lub neej ntawd. Yog tias koj tab tom xaj cov hlua khi rau cov khib nyiab ntawm SFP- cov khoom siv hloov pauv, xaj LC tshwj tsis yog cov khoom siv cov ntaub ntawv qhia meej meej hais tias lwm yam.
Rau siab dua -ceev parallel optics (40G, 100G, 400G), cov duab txuas hloov mus rauMPO / MTP connectors, uas yog ib lub ncauj lus cais. Tab sis rau duplex fiber ntau txuas mus txog 10G thiab ntau 25G daim ntawv thov, LC tseem yog qhov tseem ceeb transceiver interface.
SC vs MU: Ib qho tsawg dua tab sis tseem muaj kev sib piv
Vim tias feem ntau cov nplooj ntawv sib piv tsom rau LC vs SC, qhov sib piv SC vs MU feem ntau mus tsis hais. Ob lub connectors sib koom NTT keeb kwm thiab ib tug laub- rub mating style, tab sis lawv txawv heev nyob rau hauv ferrule loj (SC ntawm 2.5 hli, MU ntawm 1.25 hli) thiab nyob rau hauv deployment hneev taw.
MU tau tsim los ua ib qho me me SC - qee zaum hu ua "mini-SC" - nrog lub hom phiaj ntawm kev sib txuas ntau dua rau hauv tib lub vaj huam sib luag qhov chaw thaum ua kom paub txog kev thawb - rub mechanism. Hauv qhov kev nkag siab ntawd, MU yog rau SC dab tsi LC yog rau qhov dav txuas txuas toj roob hauv pes: ib qho kev sib cog lus. Tab sis qhov twg LC tau ua tiav hauv kev tsim cov ecosystem loj heev, MU tseem nyob hauv NTT tus kheej lub network thiab hauv Japanese telecom xa mus.
Yog tias koj tab tom xaiv ntawm SC thiab MU rau qhov txuas tshiab uas tsis tau khi rau MU cov txheej txheem uas twb muaj lawm, SC feem ntau muab kev muaj thoob ntiaj teb zoo dua thiab kev paub dav dav. Yog tias qhov ceev yog qhov kev txhawj xeeb uas tsav koj tawm ntawm SC, LC feem ntau yog lub hom phiaj zoo dua li MU.

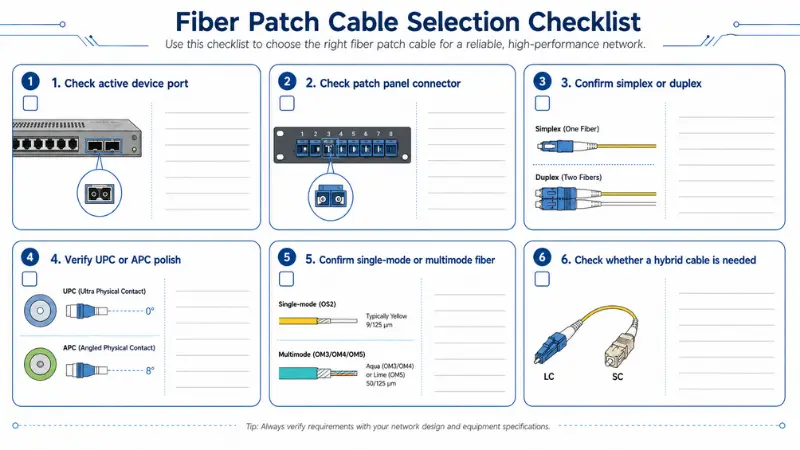

Connector Selection Checklist: Yuav ua li cas xaiv ua ntej koj xaj
Tsis yog kev cia siab rau cov kev cai dav dav, siv cov kauj ruam no -los ntawm - cov kauj ruam xyuas ua ntej yuav yuav cov fiber ntau thaj cable lossis pigtail. Cov txheej txheem no catches feem ntau ntawm kev zam connector mismatches.
-
Txheeb xyuas qhov chaw nres nkoj ntaus ntawv.
- Saib ntawm lub transceiver lossis qhov chaw ruaj khov ntawm koj qhov hloov pauv, router, ONT, lossis media converter. Hom chaw nres nkoj dictates lub connector. Yog tias nws yog SFP qhov, koj yuav luag xav tau LC.
-
-
Txheeb xyuas cov txheej txheem passive.
- Saib ntawm thaj vaj huam sib luag, phab ntsa qhov hluav taws xob, lossisfiber ntau terminal boxntawm qhov kawg ntawm qhov txuas. Paub meej tias tsev neeg connector ntsia rau ntawd.
-
-
Paub meejsimplex los yog duplex.
- Feem ntau cov qauv Ethernet txuas siv duplex (ob-}fiber) txuas. Qee qhov txuas BiDi thiab PON siv yooj yim (ib zaug -fiber). Ordering duplex thaum koj xav tau simplex - los yog vice versa - yog ib qho yuam kev thiab ntxhov siab heev.
-
-

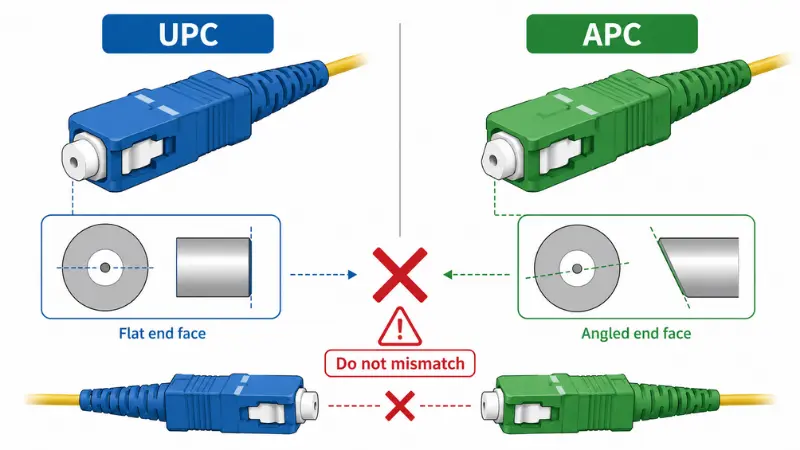

Txheeb xyuas hom polish.
- UPC (Ultra Physical Contact) thiab APC (Angled Physical Contact) yogtsis interchangeable. Mating UPC connector nrog APC adapter yuav ua rau tsis zoo rov qab poob thiab tuaj yeem ua rau lub ntsej muag fiber ntau puas. UPC connectors feem ntau muaj xiav lossis beige vaj tse; APC connectors yog ntsuab.
-
-
Paub meej tias hom fiber ntau.
- Tib - hom (OS2, 9/125 μm) thiab multimode (OM1 txog OM5, 50/125 lossis 62.5 / 125 μm) thaj cords tsis hloov pauv rau tib qhov txuas. Covhom fiber ntau yuav tsum sib phimlub teeb cable cog thiab transceiver wavelength.
-
-
Tshawb xyuas seb puas xav tau cov tshuaj hybrid.
- Yog tias ob qhov kawg ntawm koj qhov txuas siv cov khoom sib txuas sib txawv - piv txwv li, LC ntawm qhov hloov pauv thiab SC ntawm lub thaj vaj huam sib luag - koj tuaj yeem siv cov kab hluav taws xob sib txuas (LC-rau-SC) lossisfiber ntau optic adapter. Tab sis nco ntsoov xyuas tias hom polish thiab fiber ntau sib phim ntawm ob qho kawg ua ntej xaj.
Qhov no rau - cov txheej txheem yuav siv sij hawm tsawg tshaj li ib feeb ntawm ib qhov txuas thiab tiv thaiv cov feem ntau yuam kev: connector tsis ncaj ncees lawm, tsis ncaj ncees lawm polish, tsis ncaj ncees lawm fiber ntau, tsis ncaj ncees lawm hom.
Feem ntau yuam kev thaum xaiv ntawm LC, SC, thiab MU
Dhau ntawm daim ntawv txheeb xyuas, ob peb qhov yuam kev rov tshwm sim yog tsim nyog hu tawm tshwj xeeb.
Piv txwv tias hom connector yog qhov sib txawv xwb.
Hom Connector yog ib qho ntawm tsawg kawg yog plaub qhov sib txawv uas koj xav tau kom phim: tsev neeg txuas, hom polish, simplex / duplex, thiab fiber ntau hom. Tau txais lub connector txoj cai tab sis lub polish tsis ncaj ncees lawm tseem txhais tau hais tias ib tug ua tsis tau tejyam los yog degraded txuas.
Hloov cov tsev neeg txuas nruab nrab ntawm - project yam tsis tau kuaj xyuas adapters.
Yog hais tias ib feem ntawm koj cov cabling cog siv SC thiab koj tab tom nthuav dav nrog LC tshiab -cov hloov pauv, koj tuaj yeem txuas qhov sib txawv nrog LC hybrid -SC thaj cables. Tab sis tsis txhob xav tias tag nrho cov hybrid cables muaj nyob rau hauv txhua qhov polish thiab fiber ntau ua ke - paub meej ua ntej xaj, tshwj xeeb tshaj yog rau APC - rau - UPC kev sib txuas, uas feem ntau tsis pom zoo.
Xaiv MU rau qhov ntom ntom thaum LC muaj.
MU thiab LC muaj qhov sib piv sib piv vim yog tib yam 1.25 hli ferrule. Tab sis LC lub ecosystem loj dua txhais tau tias ntau yam khoom xaiv, xa khoom sai, nqi tsev qis dua, thiab kev paub dav dua. Tshwj tsis yog tias koj cov khoom siv tshwj xeeb xav tau MU, xaiv LC muab qhov zoo sib xws rau koj nrog kev sib txhuam tsawg dua.
Tsis quav ntsej lub hauv paus nruab.
Rau brownfield deployments - expanding los yog tswj ib tug uas twb muaj lawm network - connector twb deployed nyob rau hauv koj infrastructure feem ntau yog txoj cai connector kom siv. Kev tsiv teb tsaws chaw los ntawm SC mus rau LC tuaj yeem ua rau muaj kev nkag siab zoo thaum lub voj voog hloov kho loj, tab sis ua nws cov khoom ua kom muaj kev sib xyaw ua ke -ib puag ncig txuas uas ua rau cov khoom lag luam nyuaj thiab teeb meem nyuaj.

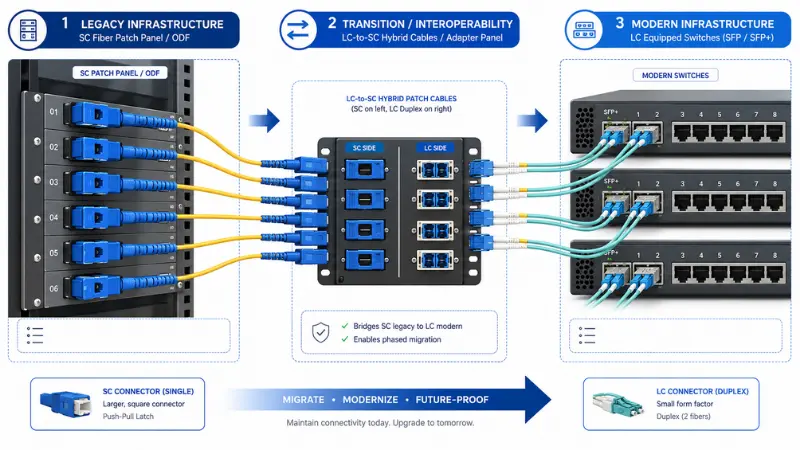

Migrating ntawm SC rau LC: Thaum twg thiab Yuav Ua Li Cas
Ntau lub network uas tau tsim nyob rau hauv SC infrastructure thaum kawg ntsib cov lus nug ntawm seb puas yuav tsiv mus nyob rau LC, feem ntau thaum lub sij hawm hloov los yog thaj vaj huam sib luag refresh. Ob peb cov txheej txheem pab txhawb qhov kev txiav txim siab.
Kev tsiv teb tsaws chaw ua rau muaj kev nkag siab zoo tshaj plaws thaum koj twb tau hloov cov khoom siv (switches, routers, transceivers) uas hloov chaw nres nkoj interface los ntawm SC mus rau LC. Nyob rau hauv tas li ntawd, lub connector tsiv teb tsaws tshwm sim ib txwm - koj xaj LC thaj qaum rau cov khoom siv tshiab thiab theem tawm SC raws li cov cuab yeej qub raug tshem tawm.
Kev tsiv teb tsaws chaw ua rau muaj kev nkag siab tsawg dua thaum koj cov khoom siv nquag tseem siv SC chaw nres nkoj thiab qhov kev txhawb siab tsuas yog "LC yog tshiab dua." Connector hnub nyoog ib leeg tsis yog teeb meem kev. SC- txiav tawm cov kev sib txuas uas ua haujlwm hauv qhov tshwj xeeb tsis tau txais kev ua haujlwm kho qhov muag los ntawm kev hloov mus rau LC.
Rau kev sib xyaw ib puag ncig thaum lub sijhawm hloov pauv, hybridSC-rau-LC cablesthiabadapter panelstuaj yeem txuas qhov sib txawv. Khaws cov ntawv sau meej meej ntawm thaj chaw los qhia seb qhov chaw nres nkoj twg yog SC thiab qhov twg yog LC, thiab ua qauv ntawm LC rau txhua qhov kev khiav haujlwm tshiab.
Kev Pom Zoo Kawg
Rau feem ntau cov fiber ntau xa tawm hauv xyoo 2026, LC yog qhov ua tau zoo. Nws ua raws li cov qauv SFP thiab SFP + transceiver tam sim no, txhawb nqa qhov chaw nres nkoj siab tshaj plaws ntawm cov khoom sib txuas uas nquag siv, thiab muaj qhov tob tshaj plaws thoob ntiaj teb rau kev muab khoom thiab nrhiav cov neeg tsim khoom txawj ntse.
SC tseem yog qhov kev xaiv zoo thaum koj qhov kev tsim kho twb tau siv lawm, thaum koj daim ntawv thov nkag mus lossis kev sib txuas lus kho qhov muag qhov twg SC / APC yog tus qauv sib txuas, lossis thaum lub tsev loj dua yog qhov txiaj ntsig zoo rau kev tuav haujlwm.
MU yog qhov kev xaiv zoo thaum - thiab tsuas yog thaum - koj cov khoom tshwj xeeb lossis daim ntawv thov xav tau. Tsis txhob xaiv MU raws li nws cov specifications ib leeg; xaiv nws raws li qhov kho vajtse koj tab tom siv tiag tiag.
Txawm hais tias koj xaiv lub connector twg, nco ntsoov xyuas qhov txuas tag nrho: tsev neeg txuas, hom polish, simplex lossis duplex, thiab fiber ntau hom. Plaub -point check yog qhov yooj yim tshaj plaws kom tsis txhob muaj lub voj voog kim ntawm kev xaj, xa rov qab, thiab rov xaj fiber ntau thaj cables.
Cov lus nug nquag
Puas yog LC zoo dua SC?
Tsis yog universally. LC muaj qhov chaw nres nkoj siab dua thiab ua kom zoo dua qub nrog SFP niaj hnub -raws li transceivers, uas ua rau nws xaiv qhov kev xaiv tshiab siab - ntom ntom. SC ua tau zoo sib npaug ntawm optically thiab tseem yog qhov zoo dua nyob rau hauv kev teeb tsa- hauv paus, kev siv xov tooj, thiab FTTH ib puag ncig uas SC/APC yog tus qauv tsim. Txoj kev xaiv yog nyob ntawm koj lub network ntsiab lus, tsis yog connector loj ib leeg.
Koj puas tuaj yeem txuas LC rau SC?
Yog lawm. Koj tuaj yeem txuas LC thiab SC siv cov hlua txuas txuas nrog LC txuas ntawm ib kawg thiab SC txuas ntawm lwm qhov, lossis los ntawm kev siv qhov tsim nyogfiber ntau adapter. Txawm li cas los xij, koj tseem yuav tsum tau xyuas kom meej tias hom polish (UPC lossis APC), fiber ntau hom (ib zaug -hom lossis multimode), thiab suav fiber ntau (simplex lossis duplex) sib phim hla qhov txuas.
Puas tseem siv MU?
Yog lawm, tab sis nyob rau hauv lub peev xwm tsawg piv rau LC thiab SC. MU tseem ua haujlwm hauv Japanese kev sib txuas lus hauv xov tooj, qee lub tshuab DWDM, thiab daim ntawv thov rov qab uas nws tau teev tseg thaum xub thawj. Rau feem ntau cov kev xa tawm tshiab tawm sab nraud cov ntsiab lus no, LC muab kev txhawb nqa dav dua nrog tib lub 1.25 hli ferrule loj.
Lub connector twg yog qhov zoo tshaj plaws rau siab -ntaus fiber ntau panels?
LC feem ntau yog qhov kev xaiv muaj zog tshaj plaws. Nws 1.25 hli ferrule thiab compact latch-style vaj tsev tso cai rau qhov siab tshaj plaws duplex chaw nres nkoj suav rau ib lub vaj huam sib luag ntawm peb qhov txuas piv ntawm no. Txhawm rau kom muaj qhov ntom ntom ntau dua siv cov khoom sib txuas optics,MPO / MTP connectorsmuab ntau-fiber kev sib txuas hauv ib lub ferrule.
Dab tsi yog qhov txawv ntawm connector hom thiab polish hom?
Connector hom (LC, SC, MU) txhais lub cev vaj tse, ferrule loj, thiab mating mechanism. Polish hom (PC, UPC, lossis APC) txhais cov geometry ntawm lub ntsej muag fiber ntau, uas cuam tshuam qhov rov ua haujlwm poob. Koj yuav tsum tau qhia ob qho tib si thaum xaj ib daim kab xev - tau txais lub connector yog tab sis polish tsis ncaj ncees lawm yuav ua rau ib tug degraded los yog tsis yog -functional link.
LC, SC, thiab MU puas tuaj yeem siv nrog ib qho - hom thiab multimode fiber ntau?
Yog lawm. Tag nrho pebconnector hommuaj nyob rau hauv ob qho tib si -hom thiab multimode versions. Hom connector tsis txiav txim siab fiber ntau hom - uas yog txiav txim los ntawm cable cog, transceiver wavelength, thiab cov fiber core inch (9/125 μm rau ib leeg-hom, 50/125 los yog 62.5/125 μm rau multimode).
Vim li cas feem ntau niaj hnub transceivers siv LC es tsis txhob SC?
Vim tias SFP daim ntawv foos - uas yog qhov tseem ceeb ntawm pob transceiver rau Gigabit thiab 10G Ethernet - tau tsim los kom muaj kev sib haum xeeb dua li GBIC tus thawj coj. Lub LC connector's 1.25 mm ferrule haum rau SFP lub nqaim pem hauv ntej - vaj huam sib luag qhib, thaum lub SC's 2.5 hli ferrule tsis. Raws li SFP modules dhau los ua tus qauv kev lag luam, LC tau los ua tus qauv transceiver interface los ntawm kev txuas ntxiv.
Lub connector twg muaj ntau dua nyob rau hauv passive optical networks?
SC, thiab tshwj xeeb SC / APC. Nyob rau hauv GPON, XG-PON, thiab lwm yam passive optical network architectures, SC/APC connectors yog dav siv rauPLC splitters, optical faib thav duab, thiab cov neeg siv khoom - sab khoom. Lub kaum sab xis txo qis rov qab- kev xav rov qab, uas yog qhov tseem ceeb hauv qhov ntev - ncav cuag, siab - cais- qhov sib piv network tsim.
