Kev sib sib zog nqus -dub kev sib piv los pab cov engineers network thiab pab pawg neeg yuav khoom xaiv qhov zoo multimode fiber ntau rau lawv cov infrastructure
Thaum lub tuam txhab logistics hauv New Jersey tau hu rau peb lub quarter dhau los txog kev txhim kho lawv lub tsev khaws khoom lag luam, lawv tau ntsib qhov teeb meem tshwm sim: lawv cov OM1 cabling uas twb muaj lawm tsis tuaj yeem txhawb nqa 10GbE keyboards lawv nyuam qhuav yuav. Tus kws tshaj lij ntawm -qhov chaw tau pom zoo OM4, tab sis puas yog qhov overkill rau kev khiav nruab nrab ntawm 85 meters? Qhov xwm txheej no tshwm sim txhua hnub nyob rau hauv cov chaw khaws ntaub ntawv, tsev kawm ntawv, thiab chaw lag luam thoob ntiaj teb.
Multimode fiber ntau xaiv tsis yog tsuas yog xaiv cov xim -coded cable- nws yog hais txog kev nkag siab lub physics ntawm lub teeb propagation, txuam koj infrastructure rau tam sim no thiab yav tom ntej bandwidth xav tau, thiab optimizing koj peev peev. Cov lus qhia no dhau mus dhau qhov chaw - qib kev qhia tshwj xeeb los piav qhiavim li cascov fibers no ua haujlwm txawv thiabua li caskom paub txiav txim siab rau koj qhov kev xa tawm tshwj xeeb.
Dab tsi ua Multimode Fiber "Multimode"
Ua ntej dhia mus rau hauv OM kev faib tawm, cia peb tsim qhov txawv ntawm qhov sib txawv ntawm cov fiber ntau los ntawm nws ib leeg -mode counterpart ntawm theem pib.
Multimode fiber ntau nta ib txoj kab uas hla loj dua -feem ntau 50μm lossis 62.5μm piv rau ib leeg -mode's 9μm core. Cov tub ntxhais loj dua no tso cai rau lub teeb mus los ntawm cov fiber ntau nrog ntau txoj hauv kev ib txhij, txhua txoj hauv kev sawv cev rau qhov sib txawv "hom" ntawm kev nthuav tawm. Xav txog nws zoo li txoj kev loj uas muaj ntau txoj kab sib piv rau ib txoj kab - txoj kev: ntau txoj kab txhais tau tias muaj peev xwm khiav tau ntau dua li luv luv, tab sis kev sib koom ua ke yuav nyuaj dhau qhov ntev dua.
Cov tub ntxhais -rau- cladding interface nyob rau hauv graded-index multimode fiber tsis yog ib tug ntse ciam teb tab sis ib tug gradual hloov nyob rau hauv refractive index. Qhov no gradient yog precisely engineered kom sib npaug lub sij hawm mus txawv tebchaws ntawm ntau hom. Lub teeb mus ncig ze ntawm lub ntug ntawm fiber ntau yuav siv sij hawm ntev dua lub cev tab sis txav mus los ntawm qis dua -refractive- cov khoom ntsuas (thiab yog li mus nrawm dua), thaum lub teeb nyob ze ntawm qhov chaw yuav siv sij hawm luv dua los ntawm kev siab dua -refractive- cov khoom ntsuas (tsav qeeb). Thaum zoo kawg nkaus tuned, txhua hom tuaj txog ntawm lub receiver ib txhij.
Hauv kev xyaum, kev tsim kev kam rau siab txhais tau tias qhov nyiaj them no yeej tsis zoo tag nrho. Qhov tshwm sim lub sij hawm sib txawv ntawm hom - hu ua modal dispersion - thaum kawg txwv cov fiber ntau bandwidth thiab kis tau tus mob. Qhov no yog qhov tseem ceeb parameter uas cais OM1 txog OM5.
Lub Evolution ntawm LED rau VCSEL: Nkag siab txog Bandwidth Revolution
OM kev faib tawm cov txheej txheem qhia txog kev hloov pauv hauv lub teeb pom kev siv thev naus laus zis uas tshwm sim thaum xyoo 1990s thiab thaum ntxov 2000s.
LED Era (OM1 thiab OM2)
Cov tshuab multimode thaum ntxov tau siv Lub Teeb -Emitting Diodes (LEDs) ua lawv lub teeb ci. LEDs tsim ib qho kev nthuav dav, cov zis tawm uas ua rau tag nrho cov tub ntxhais fiber ntau, zoo siab rau txhua hom muaj nyob rau tib lub sijhawm. Qhov "overfilled launch" xwm txheej txhais tau hais tias fiber ntau bandwidth tau txiav txim siab los ntawm kev ua tiav ntawm ntau pua hom kev ua haujlwm ua ke. Ob peb hom qeeb lossis nrawm tau cuam tshuam tsawg heev vim tias lub teeb liab lub zog tau faib thoob plaws ntau txoj hauv kev.
LEDs muaj cov kev txwv tseem ceeb: lawv qhov kev hloov pauv siab tshaj plaws yog nyob ib puag ncig 622 Mbit / s. Qhov kev txwv no ua rau lawv tsis tsim nyog rau gigabit- daim ntawv thov ceev, tsis hais txog qhov muaj peev xwm ntawm fiber ntau.
VCSEL kiv puag ncig (OM3, OM4, OM5)

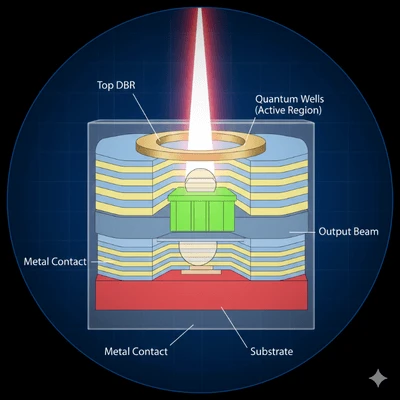

Vertical-Cavity Surface-Emitting Lasers (VCSELs) hloov txhua yam. Cov semiconductor lasers muaj:
Modulation tus nqi siab tshaj 25 Gbit / s (thiab txuas ntxiv txhim kho)
Narrower spectral dav, txo chromatic dispersion
Lub zog kho qhov muag siab dua rau kev txhim kho cov teeb liab - rau - suab nrov piv
Cov nqi tsim khoom qis dua piv rau ntug-emitting lasers
Circular beam profiles uas ob leeg zoo rau hauv fiber cores
Txawm li cas los xij, VCSELs tsis sau cov tub ntxhais fiber ntau sib npaug. Lawv cov nqaj muaj zog txaus siab tsuas yog ib qho ntawm cov qauv muaj nyob -feem ntau yog cov nyob ze ntawm fiber ntau qhov chaw. Qhov "txheej txheem tso tawm" qhov xwm txheej no txhais tau tias muaj qhov tsis xws luag lossis qhov hloov pauv ntawm qhov ntsuas qhov ntsuas ntawm qhov tseem ceeb hauv qhov chaw tsis muaj feem cuam tshuam rau kev ua haujlwm.
Qhov no yog vim li cas OM1 thiab OM2 fibers, tsim rau overfilled LED launches, feem ntau uaphem duanrog VCSELs dua li lawv cov qhab nia qhab nia xav tau. Fiber manufacturers teb los ntawm kev tsim laser-optimized multimode fiber (LOMMF) nrog nruj tswj refractive index profiles tshwj xeeb tsim rau VCSEL launches. Qhov no laser - fiber ntau optimized tau los ua lub hauv paus rau OM3, OM4, thiab OM5 kev faib tawm.
OM Kev faib tawm: Cov ncauj lus kom ntxaws ntxaws
OM1 Fiber ntau
Core Specifications:
Tub ntxhais txoj kab uas hla: 62.5μm
Cladding txoj kab uas hla: 125μm
Overfilled Launch (OFL) bandwidth: 200 MHz ·km ntawm 850nm, 500 MHz ·km ntawm 1300nm
Qhov siab tshaj plaws attenuation: 3.5 dB / km ntawm 850nm, 1.5 dB / km ntawm 1300nm
Jacket xim: Txiv kab ntxwv (ib TIA-598C)
Cov ntsiab lus technical:
OM1 qhov loj dua 62.5μm core yog thawj zaug xaiv vim nws yooj yim sib dhos nrog LED qhov chaw thiab tso cai rau kev sib txuas ntawm qhov sib txuas. Txawm li cas los xij, cov tub ntxhais loj dua no txhawb ntau hom kev nthuav tawm ntau dua 50μm fiber ntau, ua rau muaj ntau dua modal dispersion thiab qis bandwidth.
62.5μm core loj tsim ib qho tseem ceeb incompatibility: OM1 connectors thiab thaj cords tsis tuaj yeem tov nrog OM2 / OM3 / OM4 / OM5 Cheebtsam. Kev sib xyaw ntawm 62.5μm fiber ntau rau 50μm fiber ntau ua rau kwv yees li 3-4 dB ntawm kev poob ntxiv-tsawg txaus ua rau kev sib txuas tsis ua haujlwm hauv ntau lub tshuab.
Kev txwv qhov deb:
| Cov ntaub ntawv tus nqi | Qhov siab tshaj plaws |
|---|---|
| 100 Mbit/s (100BASE-FX) | 2,000 m |
| 1 Gbit/s (1000BASE-SX) | 275 m |
| 10 Gbit/s (10GBASE-SR) | 33 m |
Qhov xwm txheej tam sim no:
OM1 yog suav tias yog cov cuab yeej cuab tam qub. Kev teeb tsa tshiab yuav tsum tsis txhob qhia OM1 tshwj tsis yog txuas rau 62.5μm cog uas twb muaj lawm uas yuav tsum muaj kev sib txuas ntxiv. Qhov kev txwv 33-meter ntawm 10GbE ua rau nws ua tsis tau zoo rau cov ntaub ntawv chaw siv niaj hnub no.
OM2 Fiber ntau
Core Specifications:
Tub ntxhais txoj kab uas hla: 50μm
Cladding txoj kab uas hla: 125μm
OFL bandwidth: 500 MHz ·km ntawm 850nm, 500 MHz ·km ntawm 1300nm
Qhov siab tshaj plaws attenuation: 3.5 dB / km ntawm 850nm, 1.5 dB / km ntawm 1300nm
Jacket xim: Txiv kab ntxwv (ib TIA-598C)
Cov ntsiab lus technical:
OM2 sawv cev rau kev hloov mus rau 50μm core thev naus laus zis thaum tseem tab tom tsim feem ntau rau LED qhov chaw. Cov tub ntxhais me me txo cov naj npawb ntawm cov kev txhawb nqa, txhim kho bandwidth piv rau OM1. Niaj hnub nimno OM2 feem ntau yog tsim los ua laser- optimized, txawm hais tias nws tsis ua tau raws li EMB cov cai ntawm OM3.
Vim hais tias ob qho tib si OM1 thiab OM2 siv cov txiv kab ntxwv lub tsho, ib txwm txheeb xyuas hom fiber ntau los ntawm kev kuaj xyuas cov kab ntawv sau cov lus dab neeg (piv txwv li, "50/125" vs "62.5/125") ua ntej txiav los yog splicing.
Kev txwv qhov deb:
| Cov ntaub ntawv tus nqi | Qhov siab tshaj plaws |
|---|---|
| 100 Mbit/s (100BASE-FX) | 2,000 m |
| 1 Gbit/s (1000BASE-SX) | 550 m |
| 10 Gbit/s (10GBASE-SR) | 82 m |
Qhov xwm txheej tam sim no:
Zoo li OM1, OM2 tab tom raug txiav tawm ntawm kev teeb tsa tshiab. Qhov kev txwv 82-meter ntawm 10GbE txwv nws txoj kev siv tau zoo hauv cov chaw niaj hnub no, txawm hais tias nws tseem muaj kev pabcuam rau 1GbE kev sib txuas hauv nws qhov kev txwv deb.
OM3 Fiber (Laser-Qhov zoo tshaj plaws Multimode Fiber)
Core Specifications:
Tub ntxhais txoj kab uas hla: 50μm
Cladding txoj kab uas hla: 125μm
Siv tau Modal Bandwidth (EMB): 2,000 MHz · km ntawm 850nm
OFL bandwidth: 1,500 MHz · km ntawm 850nm
Qhov siab tshaj plaws attenuation: 3.0 dB / km ntawm 850nm
Jacket xim: Aqua (ib TIA-598C)
Cov ntsiab lus technical:
OM3 yog thawj qhov kev faib tawm fiber ntau tsim tshwj xeeb rau VCSEL kis tau tus mob. Qhov kev ntsuas tseem ceeb tau hloov los ntawm Overfilled Launch bandwidth (tseem ceeb rau LEDs) mus rau Qhov Zoo Tshaj Plaws Bandwidth (tseem ceeb rau VCSELs). EMB tau txiav txim siab los ntawm kev ntsuas qhov sib txawv ntawm qhov ncua sij hawm (DMD), uas ntsuas seb cov pab pawg sib txawv li cas ncua kev sib raug zoo rau ib leeg raws li kev txwv tsis pub tshaj tawm uas simulate VCSEL tus cwj pwm.
2,000 MHz·km EMB specification txhais tau hais tias ib tug 300-meter txuas muab kwv yees li 6.67 GHz ntawm usable bandwidth-tsawg rau 10GbE nrog margin. Fiber's refractive index profile yog nruj tswj hwm, tshwj xeeb tshaj yog nyob rau hauv cov tub ntxhais qhov chaw uas VCSEL lub zog concentrates.
Kev txwv qhov deb:
| Cov ntaub ntawv tus nqi | Qhov siab tshaj plaws |
|---|---|
| 1 Gbit/s (1000BASE-SX) | 550+ m |
| 10 Gbit/s (10GBASE-SR) | 300 m |
| 25 Gbit / s (25GBASE-SR) | 70 m |
| 40 Gbit / s (40GBASE-SR4) | 100 m |
| 100 Gbit / s (100GBASE-SR4) | 70 m |
Qhov xwm txheej tam sim no:
OM3 tseem siv tau dav thiab raug nqi - siv tau rau 10GbE daim ntawv thov hauv 300 meters. Rau cov chaw nyob fiber ntau thiab cov chaw lag luam me me uas cable khiav qis dua 300 meters, OM3 muaj txiaj ntsig zoo heev. Txawm li cas los xij, 40GbE thiab 100GbE daim ntawv thov sai sai nthuav tawm nws cov kev txwv.
OM4 Fiber ntau
Core Specifications:
Tub ntxhais txoj kab uas hla: 50μm
Cladding txoj kab uas hla: 125μm
Siv tau Modal Bandwidth (EMB): 4,700 MHz ·km ntawm 850nm
OFL bandwidth: 3,500 MHz · km ntawm 850nm
Qhov siab tshaj plaws attenuation: 3.0 dB / km ntawm 850nm
Jacket xim: Aqua lossis Erika Violet (ib TIA-598C)
Cov ntsiab lus technical:
OM4 tau tshwm sim los ntawm kev ua kom zoo dua qub ntawm cov txheej txheem tsim khoom tom qab OM3 cov lus qhia. Cov neeg tsim khoom siv fiber ntau tau ua tiav kev tswj xyuas nruj dua ntawm qhov ntsuas qhov ntsuas qhov ntsuas, ntau dua li ob npaug ntawm qhov ua tau zoo ntawm kev siv bandwidth. Qhov no tsis yog kev tsim fiber ntau ntau npaum li qhov kev hloov pauv ntawm OM3 kev tsim khoom mus rau cov qauv zoo dua.
Lub 4,700 MHz·km EMB tso cai rau 400-meter txuas los txhawb kwv yees li 11.75 GHz ntawm bandwidth, ua kom 10GbE tshaj qhov deb uas yuav dhau OM3 lub peev xwm. Qhov tseem ceeb tshaj, OM4 txuas ntxiv mus txog 40GbE thiab 100GbE systems los ntawm OM3's 100m / 70m txwv mus rau 150m / 100m feem.

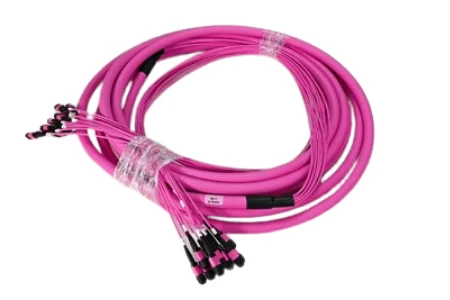

OM4 yog tag nrho rov qab sib xws nrog OM3-ob qho tib si siv 50μm cores thiab tuaj yeem sib cuam tshuam yam tsis muaj kev cuam tshuam tsis zoo. Thawj qhov pom kev sib txawv yog qhov xaiv tau Erika Violet (magenta) lub tsho xim, txawm tias ntau lub tuam txhab tseem siv aqua.
Kev txwv qhov deb:
| Cov ntaub ntawv tus nqi | Qhov siab tshaj plaws |
|---|---|
| 1 Gbit/s (1000BASE-SX) | 550+ m |
| 10 Gbit/s (10GBASE-SR) | 400m (ntev ncav cuag: 550m) |
| 25 Gbit / s (25GBASE-SR) | 100 m |
| 40 Gbit / s (40GBASE-SR4) | 150 m |
| 100 Gbit / s (100GBASE-SR4) | 100 m (OM4 ncua: 150 m) |
Qhov xwm txheej tam sim no:
OM4 yog qhov kev xaiv pom zoo rau kev teeb tsa cov ntaub ntawv tshiab txhawb nqa 10GbE txog 100GbE. Nws tus nqi them nqi tshaj OM3 yog qhov me me (feem ntau 10-20%), thaum nws txuas ntxiv mus muab cov txiaj ntsig kev ua haujlwm yooj yim thiab kev pov thawj yav tom ntej.
OM5 Fiber ntau (Wideband Multimode Fiber)
Core Specifications:
Tub ntxhais txoj kab uas hla: 50μm
Cladding txoj kab uas hla: 125μm
EMB ntawm 850nm: 4,700 MHz ·km (tib yam li OM4)
EMB ntawm 953nm: 2,470 MHz ·km (cov lus qhia tshiab)
Qhov siab tshaj plaws attenuation: 3.0 dB / km ntawm 850nm, 2.3 dB / km ntawm 953nm
Jacket xim: Txiv qaub ntsuab (ib TIA-598C)
Cov ntsiab lus technical:
OM5 sawv cev rau kev hloov pauv hauv cov qauv siv fiber ntau. Thaum OM3 thiab OM4 optimized bandwidth ntawm cov tsoos 850nm VCSEL wavelength, OM5 txuas ntxiv qhov kev ua kom zoo dua no hla lub wavelength ntau ntawm 850nm txog 953nm.
Qhov kev muaj peev xwm dav dav no ua rau Short Wavelength Division Multiplexing (SWDM), qhov twg plaub lub wavelengths (850nm, 880nm, 910nm, thiab 940nm) xa mus ib txhij dhau ib khub fiber ntau. SWDM ua tau zoo quadruples lub peev xwm fiber ntau yam tsis tas yuav tsum tau ntxiv fiber ntau strands los yog hloov mus rau parallel optics.
Cov ntsiab lus tseem ceeb:OM5's EMB ntawm 850nm sib npaug OM4's specification. Rau ib leeg - wavelength 850nm transceivers (tus qauv 10GbE, 25GbE, 40GbE SR4, 100GbE SR4), OM5 tsis muaj qhov zoo dua li OM4. OM5 tus nqi them tsuas yog them cov nyiaj tau los thaum siv SWDM- muaj peev xwm transceivers xws li 40G-SWDM4, 100G-SWDM4, lossis tawm 400G-BD4.2 modules.
Kev txwv qhov deb:
| Cov ntaub ntawv tus nqi | Standard Transceivers | SWDM Transceivers |
|---|---|---|
| 10 Gbit / s | 400 m (ib yam li OM4) | N/A |
| 40 Gbit / s | 150m (ib yam li OM4) | 440 m (40G-SWDM4) |
| 100 Gbit / s | 100 m (ib yam li OM4) | 150 m (100G-SWDM4) |
| 400 Gbit / s | N/A | 100 m (400G-BD4.2) |
Qhov xwm txheej tam sim no:
OM5 kev saws me nyuam tau qeeb dua li qhov xav tau thaum pib. Tus nqi them nqi (feem ntau yog 30-50% tshaj OM4) yog qhov nyuaj rau kev pom zoo tshwj tsis yog SWDM transceivers yog ib feem ntawm txoj kev npaj xa tawm. Rau feem ntau cov ntaub ntawv chaw siv, OM4 ua ke nrog rau qhov sib npaug ntawm optics (MPO / MTP kev sib txuas) ua tiav zoo sib xws lossis zoo dua tus nqi-zoo rau 40GbE thiab 100GbE.
OM5 qhia tau hais tias kev cog lus rau hyperscale ib puag ncig qhov twg fiber ntau strand suav raug txwv lossis qhov twg txoj kev tsiv teb tsaws mus rau 400GbE thiab dhau qhov nyiam tshaj qhov sib npaug ntawm qhov sib npaug ntawm fiber ntau.
Daim ntawv sib piv
| Specification | OM 1 | OM 2 | OM 3 | OM 4 | OM 5 |
|---|---|---|---|---|---|
| Core Diameter | 62.5μm | 50μm | 50μm | 50μm | 50μm |
| Cladding Txoj kab uas hla | 125μm | 125μm | 125μm | 125μm | 125μm |
| Jacket Xim | Txiv kab ntxwv | Txiv kab ntxwv | Aqua | Aqua / Violet | Txiv qaub ntsuab |
| Lub teeb Source | LED | LED / VCSEL | VCSEL | VCSEL | VCSEL |
| OFL Bandwidth (850nm) | 200 MHz · km | 500 MHz · km | 1,500 MHz · km | 3,500 MHz · km | 3,500 MHz · km |
| PEB (850nm) | N/A | N/A | 2,000 MHz · km | 4,700 MHz · km | 4,700 MHz · km |
| PEB (953nm) | N/A | N/A | N/A | N/A | 2,470 MHz · km |
| Max Attenuation (850nm) | 3.5 dB/km | 3.5 dB/km | 3.0 dB/km | 3.0 dB/km | 3.0 dB/km |
| 10GbE Max nrug | 33 m | 82 m | 300 m | 400 m | 400 m |
| 40GbE SR4 Max nrug | N/A | N/A | 100 m | 150 m | 150 m |
| 100GbE SR4 Max nrug | N/A | N/A | 70 m | 100 m | 100 m |
| SWDM Kev them nyiaj yug | Tsis muaj | Tsis muaj | Tsis muaj | Tsis muaj | Yog lawm |
| Txuj | ISO/IEC 11801, TIA-568 | ISO/IEC 11801, TIA-568 | ISO/IEC 11801, TIA-568 | TIA-492AAAD (2009) | TIA-492AAAE (2016) |
Xaiv Txoj Cai Fiber: Kev Txiav Txim Siab
Kev ntsuas ntsuas
1. Cov kev xav tau Bandwidth tam sim no
Qhia koj lub network topology uas twb muaj lawm thiab txheeb xyuas qhov ceev ntawm txhua qhov txuas. Yog tias koj tab tom ua haujlwm feem ntau 1GbE kev sib txuas, txawm tias OM3 muab ntau lub taub hau. Txawm li cas los xij, yog tias 10GbE lossis kev sib txuas nrawm dua, OM4 dhau los ua qhov tsawg kawg nkaus rau feem ntau ib puag ncig.
2. Cable khiav deb
Ntsuas los yog kwv yees koj cov kab hluav taws xob ntev tshaj plaws khiav. suav nrog slack loops, ntsug risers, thiab routing detours- ntsia cable ntev feem ntau tshaj ncaj- kab nrug los ntawm 20-40%.
| Yog Longest Run Yog... | Yam tsawg kawg nkaus pom zoo |
|---|---|
| Hauv qab 100 m | OM3 (tsim rau 100GbE) |
| 100-150 m | OM4 (yuav tsum tau rau 40G / 100G) |
| 150-300 m | OM4 (10GbE nkaus xwb ntawm qhov no) |
| 300-400 m | OM4 (10GbE txuas mus txog) |
| Ntau tshaj 400 m | Xav txog ib qho -mode OS2 |
3. Txoj kev tsiv teb tsaws chaw yav tom ntej
Data center bandwidth xav tau feem ntau loj hlob 25-50% txhua xyoo. Ib tug cabling infrastructure ntsia niaj hnub no yuav tsum haum tsawg kawg yog 2-3 tiam technology. Rau feem ntau cov koom haum, qhov no txhais tau tias tsim rau 40GbE / 100GbE txawm tias cov cuab yeej siv tam sim no ua haujlwm ntawm 10GbE.
4. Kev txwv nyiaj txiag
Thaum OM4 nqa tus nqi qis tshaj OM3, tus nqi ua haujlwm ntawm kev teeb tsa cable feem ntau dwarfs cov nqi khoom sib txawv. Txhim kho OM4 hnub no piv rau OM3 yuav ntxiv 10-20% rau kev yuav khoom siv cable tab sis zam kev siv nyiaj ntau dua ntawm kev rov xa kab tom qab.
Cov lus pom zoo
| Daim ntawv thov Scenario | Pom zoo Fiber |
|---|---|
| Txoj cai tswj hwm qhov system | Sib piv cov txheej txheem uas twb muaj lawm (OM1/OM2) |
| Chaw ua haujlwm me me / tsev kawm ntawv 1GbE | OM 3 |
| Enterprise 10GbE qaum | OM 4 |
| Data Center (10G/25G/40G/100G) | OM 4 |
| Hyperscale nrog SWDM Roadmap | OM 5 |
| Khiav tshaj 400m | Tib -mode OS2 |
Connector Kev xaiv thiab kev coj ua zoo tshaj plaws
Multimode fiber ntau kev ua tau zoo nyob ntawm qhov kev sib txuas zoo thiab kev huv. Rau siab -cov ntaub ntawv chaw ceev ceev, peb cov kev daws teeb meem MPO/MTP txhawb 8, 12, 16, thiab 24-fiber configurations rau parallel optics transceivers. Rau cov kev sib txuas ib txwm siv, LC connectors muab qhov chaw nres nkoj siab tshaj plaws nrog peb cov precision ceramic ferrules kom ntseeg tau tias muaj kev cuam tshuam tsis zoo sub-0.2dB.
Hom Polish
PC (lub cev tiv tauj): Basic polish, adequate for most multimode applications. Return loss typically >30dB ib.
UPC (Ultra Physical Contact): Enhanced polish with better surface finish. Return loss typically >50dB ib. Pom zoo rau siab - daim ntawv thov ceev.
APC (Angled Physical Contact): 8-degree angled polish minimizes back-reflection. Return loss >60dB ib. Feem ntau siv nrog ib zaug - hom fiber ntau tab sis muaj rau cov ntawv thov tshwj xeeb multimode.
Kev tu huv
Kev kis kab mob yog qhov ua rau kev sib txuas tsis ua haujlwm. Txawm tias ib qho 1μm plua plav particle tuaj yeem thaiv lub teeb kis tau los ntawm 50μm core. Ua ntej txhua tus mating, tshuaj xyuas qhov txuas kawg -ntsej muag nrog 200x lossis siab dua qhov kev nthuav dav fiber ntau thiab ntxuav nrog lint - cov ntaub so tsis pub siv IPA (isopropyl cawv) lossis cov ntaub ntawv ntxuav kom qhuav.
Kev Ua Lag Luam Case: Tag Nrho Tus Nqi Ntawm Cov Tswv Cuab
Tus nqi sib txawv ntawm cov qib multimode fiber ntau feem ntau tsawg dua qhov nws tshwm sim:
Piv txwv Cov Khoom Siv (100m thaj qaum):
3 awm:45
OM4: ~ $52 (15% hwm)
OM5: ~ $ 68 (51% hwm tshaj OM3)
Installation Labor(zoo ib yam rau txhua qib): ~ $ 150-300 ib qho kev khiav
Thaum kev teeb tsa kev ua haujlwm ua tiav tag nrho cov nqi, tus nqi nce ntxiv ntawm kev qhia OM4 tshaj OM3 dhau los ua qhov tsis txaus ntseeg-thaum kev pov hwm tiv thaiv kev txwv bandwidth yav tom ntej yog qhov tseem ceeb.
Rau kev tsim kho cov ntaub ntawv tshiab, peb pom zoo OM4 raws li qhov kev qhia tshwj xeeb. Kev nqis peev me me ua ntej kom ntseeg tau tias muaj kev sib raug zoo nrog 10GbE, 25GbE, 40GbE, thiab 100GbE cov cuab yeej yam tsis muaj kev txwv deb ntawm cov khib nyiab ib txwm - mus rau - khib thiab kab - mus rau - kab nrug.
