Lub hli tas los, peb pab neeg muag khoom ntawm Evolux tau txais kev hu xovtooj ceev los ntawm lub tuam txhab logistics hauv New Jersey. Lawv nyuam qhuav ua tiav qhov mob -thiab kim- zaj lus qhia hauv kev xaiv fiber ntau. Lawv tau teeb tsa OM3 multimode patch cords thiab pigtails thoob plaws hauv lawv lub tsev tshiab 50,000 sq ft, tsuas yog nrhiav tau rau lub hlis tom qab ntawd lawv tus neeg muag khoom WMS xav tau 10km txuas mus rau cov chaw lag luam cov ntaub ntawv. Qhov kho? Ripping tawm $47,000 tus nqi ntawm cabling-xws li ntau pua LC connectors, SC adapters, thiab ua ntej-tawm thaj qaum{13}}thiab pib dua nrog ib hom.
Cov lus qhia no muaj nyob kom koj tsis txhob ua yuam kev ib yam.
Ntawm Evolux Fiber, nrog 12+ xyoo tsim fiber ntau optic connectors, patch cords, thiab connectivity daws rau 50+ lub teb chaws, peb tau pom qhov scenario ua si tawm ntau zaus. Qhov tseeb yog, kev xaiv ntawm ib hom thiab multimode fiber ntau tsis yog hais txog cov cables xwb - nws yog hais txog kev nkag siab tias koj xaiv cuam tshuam li cas rau txhua qhov sib txuas hauv qhov muag: connectors, adapters, pigtails, patch cords, thiab splitters.
30-thib ob teb (Rau cov neeg sai sai)
|
Yog koj qhov xwm txheej yog ... |
Xaiv Qhov no |
Vim li cas |
|
Data Center sib txuas<500m |
Multimode OM4 / OM5 |
Tsawg tus nqi transceiver, yooj yim sib dhos |
|
Campus backbone >500m |
Tib hom OS2 |
Tsuas yog kev xaiv siv tau rau kev nyob deb |
|
Enterprise LAN, pob nyiaj siv -conscious |
Multimode OM3 |
Qhov zoo tshaj tus nqi / kev ua tau zoo piv |
|
Yav tom ntej - pov thawj rau 400G+ |
Tib hom OS2 |
Kev lag luam kev taw qhia, 25+ xyoo lifespan |
|
Sab nraum zoov / hnyav ib puag ncig |
Tib hom OS2 |
Zoo dua kub kam rau ua |
Tseem nyeem? Zoo. Cia peb mus tob dua.
Nkag siab txog Qhov Tseem Ceeb Qhov txawv

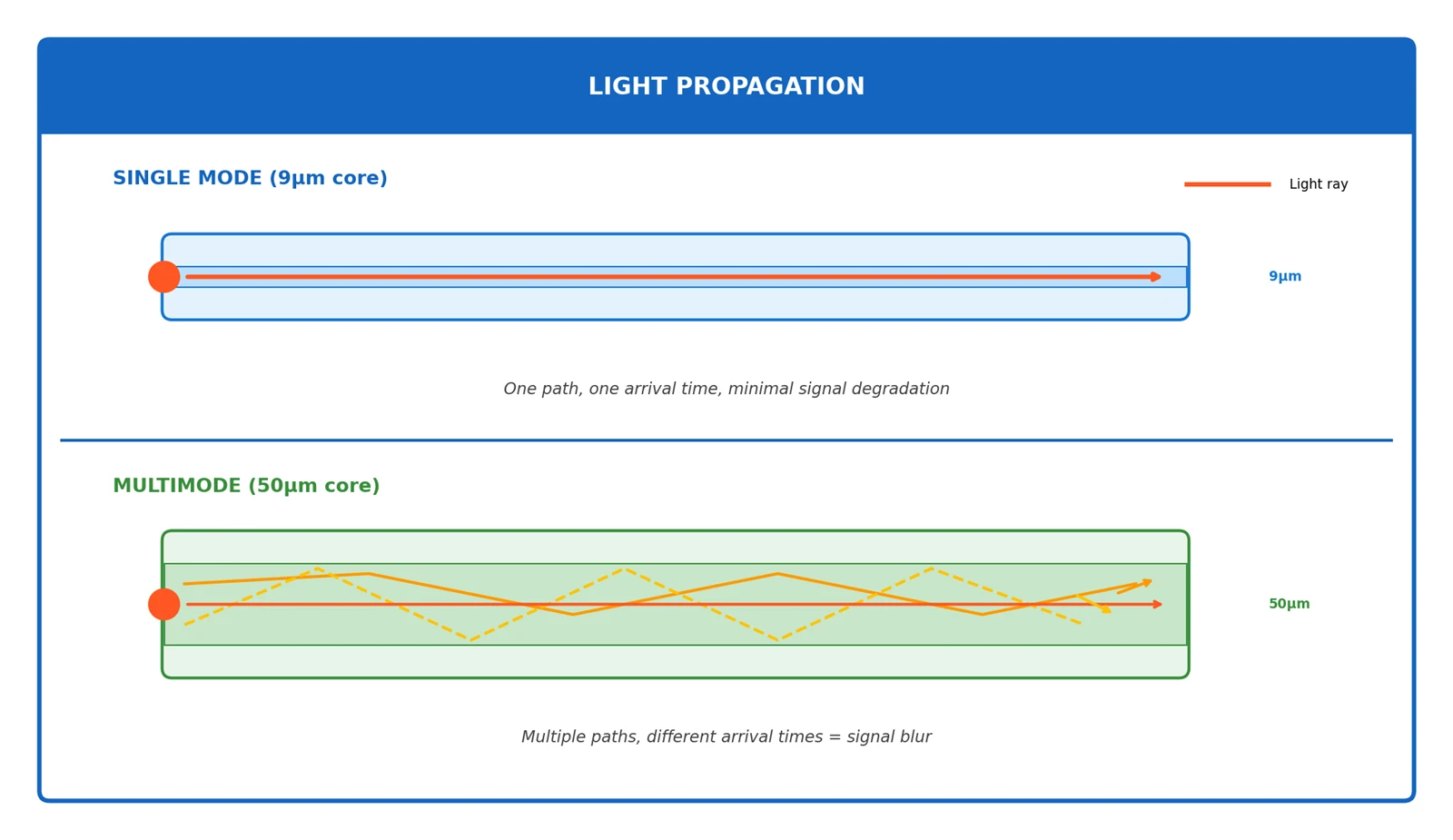

Nov yog ib qho piv txwv uas ua tau haujlwm:
Ib hom fiber ntau zoo li rab phom sniper-ib lub beam meej, mus deb, yuav tsum tau precision optics. Lub 9µm core (kwv yees li 1/10th qhov dav ntawm tib neeg cov plaub hau) tso cai tsuas yog ib txoj kev teeb pom kev zoo, tshem tawm cov "echoes" uas degrade signals nyob deb.
Multimode fiber zoo li rab phom-ntau pellets (hom teeb) nthuav tawm, ua haujlwm nyob ze, yooj yim rau lub hom phiaj. Lub 50µm lossis 62.5µm core cia lub teeb bounce nyob ib ncig ntawm ntau pua txoj kev sib txawv, uas yog qhov zoo rau luv luv tab sis tsim teeb meem rau lub sijhawm (modal dispersion) raws li qhov kev ncua deb nce.
Qhov no tsis yog kev kawm nkaus xwb - nws cuam tshuam ncaj qha rau qhov deb npaum li cas koj lub teeb liab tuaj yeem taug kev thiab ceev npaum li cas.
Hom Fiber cuam tshuam li cas rau koj qhov kev xaiv Connector
Nov yog yam uas cov lus qhia feem ntau tsis qhia rau koj: ib hom thiab ntau hom fibers siv cov khoom sib txuas ntawm lub cev -tab sis qhov kev ua tau zoo sib txawv kiag li.
Connector Compatibility Matrix
|
Hom Connector |
Tib hom Compatible |
Multimode Compatible |
Daim ntawv thov zoo tshaj plaws |
|
LC (Lucent) |
Yog lawm |
Yog lawm |
High -cov ntaub ntawv ceev ceev, SFP/SFP+ transceivers |
|
SC (Subscriber) |
Yog lawm |
Yog lawm |
FTTH, telecom, kev sib txuas lus dav dav |
|
FC (zeeg) |
Yog lawm |
Yog lawm |
Cov cuab yeej ntsuas, siab -ib puag ncig kev co |
|
ST (Ntawv Qhia) |
Yog lawm |
Yog lawm |
Cov kab ke qub qub, ntau hom LANs |
|
MPO/MTP |
Yog lawm |
Yog lawm |
40G / 100G / 400G parallel optics |
|
E2000 |
Yog lawm |
Yog lawm |
High-kev ruaj ntseg, plua plav- cov ntawv tiv thaiv |
Kev nkag siab tseem ceeb:Thaum cov connectors zoo tib yam, ib hom connectors xav taunruj tolerances. Ib lub connector nrog 0.3dB ntxig poob yog qhov siv tau rau ntau hom tab sis tuaj yeem ua rau kev sib txuas tsis ua haujlwm nyob rau hauv ntev -haul ib hom ntawv thov.
Polish Hom: APC vs UPC
|
Hom Polish |
Rov Los Los |
Zoo tshaj rau |
Xim Code |
|
UPC (Ultra Physical Contact) |
>50dB ib |
Multimode, general ib hom |
Xiav (SM) lossis Beige (MM) |
|
APC (Angled Physical Contact) |
>60dB ib |
CATV, PON, analog video, ntev -haul SM |
Ntsuab |
Evolux Tswv yim:Tsis txhob ua phooj ywg APC connectors nrog UPC connectors- lub kaum sab xis ferrule yuav ua rau ob qho tib si xaus thiab ua rau lub teeb liab ploj. PebLC APC connectorsfeature precision 8℃kaum polish rau siab tshaj plaws rov qab poob.
Patch Cord Xaiv los ntawm Fiber Hom
Thaum xaj fiber ntau optic thaj qaum, hom fiber ntau dictates txhua yam:
|
Specification |
Tib hom Patch Cord |
Multimode Patch Cord |
|
Fiber tub ntxhais |
9/125 µm (OS2) |
50/125 µm (OM3 / OM4 / OM5) lossis 62.5 / 125 µm (OM1 / OM2) |
|
Jacket Xim |
Daj |
Txiv kab ntxwv(OM1/OM2),Aqua(OM3/OM4),Txiv qaub ntsuab(OM5) |
|
Hom Insertion Poob |
<0.2 dB |
<0.3 dB |
|
Lub wavelength |
1310nm, 1550nm |
850nm, 1300nm |
|
Khoov Radius |
30mm (tus qauv), 15mm (khoov-insensitive) |
25mm (tus qauv) |
Evolux Khoom tsom teeb:Pebib hom thiab multimode thaj cordsmuaj nyob rau hauv ntev ntawm 0.3m mus rau 500m, nrog duplex, simplex, armored, thiab uniboot configurations. Tag nrho cov patch cords undergo 100% optical kuaj ua ntej xa zaub mov.
Cov Specifications Qhov Tseem Ceeb
Core & Cladding: Lub cev lub cev
|
Parameter |
Tib hom |
Multimode |
|
Core Diameter |
9 µm (8.3µm hauv qee qhov tshwj xeeb) |
50 µm (OM3/4/5) lossis 62.5 µm (OM1/2) |
|
Cladding Txoj kab uas hla |
125 µm |
125 µm |
|
Numerical Aperture |
0.12-0.14 |
0.200 ± 0.015 (OM3/4) |
|
Hom Field Diameter |
9.2 µm @ 1310nm |
N/A |
Vim li cas qhov no tseem ceeb:Qhov me me 9µm ib hom core yog ob qho tib si foom koob hmoov thiab foom phem. Nws yuav tsum tau laser-kev ua kom zoo nyob rau lub sijhawm sib txuas thiab kev sib txuas (tsav cov nqi kev teeb tsa), tab sis nws zoo li tshem tawm cov qauv sib txawv.
Attenuation: Teeb liab poob ib mais
|
Hom Fiber |
@850nm |
@ 1300 nm |
@1310 nm |
@ 1550 nm |
|
Tib hom OS2 |
N/A |
N/A |
0.35 dB/km |
0.22 dB/km |
|
Multimode OM3 |
3.0 dB/km |
1.0 dB/km |
N/A |
N/A |
|
Multimode OM4 |
3.0 dB/km |
1.0 dB/km |
N/A |
N/A |
|
Multimode OM5 |
3.0 dB/km |
1.0 dB/km |
N/A |
N/A |
Qhov takeaway:Ib hom ntawm 1550nm poob tsuas yog 0.22 dB ib kilometer- uas yog kwv yees14 x aztshaj multimode ntawm 850nm. Tshaj 10km khiav, qhov sib txawv ntawm lub teeb liab siv tau thiab zoo li qub.
Bandwidth: Lub Ceiling Ceev
|
Hom Fiber |
Bandwidth (MHz · km) |
Lub ntsiab lus |
|
OM 1 |
200 @ 850 nm |
Txoj cai, zam rau kev txhim kho tshiab |
|
OM 2 |
500 @ 850 nm |
Txoj cai, zam rau kev txhim kho tshiab |
|
OM 3 |
2000 @ 850nm |
10G txog 300m, 40G txog 100m |
|
OM 4 |
4700 @ 850nm |
10G txog 400m, 100G txog 150m |
|
OM 5 |
28000 @ 953nm |
SWDM4 optimized, 400G-npaj |
|
OS 2 |
Theoretically unlimited |
Txwv tsuas yog los ntawm transceiver technology |
Nov yog yam uas cov neeg muag khoom tsis qhia rau koj:OM5's "28000 MHz·km" suab zoo kawg nkaus, tab sis nws tsuas yog qhov tseem ceeb rau SWDM (Short Wavelength Division Multiplexing). Rau tus qauv SR4 optics, OM5 ua tau zoo ib yam rau OM4.
MPO/MTP: High -Density Game Changer
Rau cov chaw zov me nyuam khiav 40G, 100G, lossis 400G, qhov kev xaiv txuas feem ntau tseem ceeb dua li hom fiber ntau. MPO / MTP connectors pab kom parallel optics uas yooj yim tsis tuaj yeem nrog kev sib txuas ntawm LC / SC.
Tib hom vs Multimode hauv MPO / MTP daim ntawv thov
|
Ceev |
Ib hom kev daws teeb meem |
Multimode Solution |
Fiber suav |
|
40G |
40GBASE-LR4 (LC Duplex, WDM) |
40GBASE-SR4 (MPO-12) |
2vs8 ua |
|
100G |
100GBASE-LR4 (LC Duplex, WDM) |
100GBASE-SR4 (MPO-12) |
2vs8 ua |
|
400G |
400GBASE-DR4 (MPO-8) |
400GBASE-SR8 (MPO-16) |
8vs 16 |
Kev lag luam - tawm yog qhov tseeb:
Tib homsiv tsawg fibers tab sis kim dua transceivers
Multimodesiv fiber ntau tab sis pheej yig dua VCSEL-raws li transceivers
MPO/MTP Polarity thiab poj niam txiv neej
Qhov no yog qhov uas ntau lub installation mus yuam kev:
|
Lub sij hawm |
Lub ntsiab lus |
Thaum siv |
|
Hom A (ncaj) |
Nyem rau ntawm qhov khawm |
Cov txheej txheem txheem, khib tus lej ntawm kev sib txuas |
|
Hom B (rov qab) |
Nyem mus khawm khawm |
Feem ntau, txawm tus naj npawb ntawm kev sib txuas |
|
Hom C (Pairs Flipped) |
Cov khub sib txuas sib txuas |
Duplex breakout apps |
|
Txiv neej (Pins) |
Nws muaj cov pins qhia |
Feem ntau ntawm cov khoom siv sab |
|
Poj niam (Tsis muaj Pins) |
Tsis muaj pins qhia |
Feem ntau ntawm thaj qaum / lub cev sab |
Evolux Expertise:PebMTP / MPO thaj cordsmuaj nyob rau hauv 8, 12, thiab 24-fiber configurations nrog hom A, B, los yog C polarity. Peb kuj tseem muab MTP-rau-LC breakout cables rau kev hloov pauv ntawm kev sib txuas ntawm qhov sib txuas thiab duplex.
Qhov tiag -World Matrix
Qhov no yog qhov chaw roj hmab sib ntsib txoj kev. Kuv tau tso ua ke qhov kev sim ntsuas qhov deb, tsis yog tus lej spec ntawv xwb:
Ethernet Standards Distance Comparison
|
Ceev |
Txuj |
Tib hom OS2 |
OM 3 |
OM 4 |
OM 5 |
|
1gbps ua |
1000BASE-LX |
10km ua |
550m* |
550m* |
550m* |
|
1gbps ua |
1000BASE-SX |
N/A |
550m |
550m |
550m |
|
10 Gbps |
10GBASE-LR |
10km ua |
N/A |
N/A |
N/A |
|
10 Gbps |
10GBASE-SR |
N/A |
300m |
400m |
400m |
|
25 Gbps |
25GBASE-LR |
10km ua |
N/A |
N/A |
N/A |
|
25 Gbps |
25GBASE-SR |
N/A |
70m |
100m |
100m |
|
40 Gbps |
40GBASE-LR4 |
10km ua |
N/A |
N/A |
N/A |
|
40 Gbps |
40GBASE-SR4 |
N/A |
100m |
150m |
150m |
|
100 Gbps |
100GBASE-LR4 |
10km ua |
N/A |
N/A |
N/A |
|
100 Gbps |
100GBASE-SR4 |
N/A |
70m |
100m |
100m |
|
400 Gbps |
400GBASE-DR4 |
500m |
N/A |
N/A |
N/A |
|
400 Gbps |
400GBASE-SR8 |
N/A |
70m |
100m |
100m |
* Yuav tsum tau hom txias thaj cable
Kev nkag siab tseem ceeb:Daim ntawv ceeb toom yuav ua li cas multimode kev ncua deb shrink heev raws li speeds nce. Ntawm 25G, OM3 maxs tawm ntawm 70 meters xwb-NW nyuam qhuav txaus rau ib kab ntawm racks nyob rau hauv ib tug loj cov ntaub ntawv chaw.
Tus nqi sib npaug: Nws yog qhov nyuaj dua li qhov koj xav
Tus nqi Transceiver (Q1 2025, Tshaj Modules)
|
Ceev |
Tib hom |
Multimode |
Nqe Delta |
|
1G SFP |
$10 |
$9 |
+$1 (11%) |
|
10G SFP + |
$27 |
$20 |
+$7 (35%) |
|
25G SFP28 |
$59 |
$39 |
+$20 (51%) |
|
40G QSFP + |
$309 |
$39 |
+$270 (692%) |
|
100G QSFP28 |
$499 |
$99 |
+$400 (404%) |
|
400G QSFP-DD |
$1,200 |
$450 |
+$750 (167%) |
40G anomaly:Vim li cas 40G ib hom 8x kim dua? Nws siv plaub laser wavelengths (LR4=4 x 1310nm CWDM), thaum multimode SR4 siv plaub qhov sib luag fibers nrog pheej yig VCSELs. Qhov no yog qhov chaw qab zib uas multimode yeej yeej ntawm tus nqi.
Tus Nqi Tag Nrho Cov Tswv Cuab: A 10-Xyoo Saib
Cia kuv qhia qhov kev suav tiag los ntawm qhov project 2024:
Scenario:500-node cov ntaub ntawv chaw, qhov nruab nrab txuas nrug 150m, npaj rau 10G hnub no, 100G hauv 5 xyoos
|
Nqi Factor |
Multimode (OM4) |
Tib hom (OS2) |
|
Fiber cable (ntsuas) |
$89,000 |
$67,000 |
|
Initial transceivers (10G x 1000) |
$20,000 |
$27,000 |
|
Txhim kho transceivers (100G x 500) |
$49,500 |
$249,500 |
|
10-Xyoo Tag Nrho |
$158,500 |
$343,500 |
"Tos, multimode yeej los ntawm $ 185K?"
Tsis ceev. Nov yog qhov tshwm sim thaum peb txuas mus rau 15 xyoo thiab ntxiv 400G:
|
Nqi Factor |
Multimode Txoj Kev |
Tib hom Txoj Kev |
|
Tag nrho yav dhau los |
$158,500 |
$343,500 |
|
400G upgrade (250 txuas) |
$112,500 |
$300,000 |
|
Tab sis tos... |
OM4 maxes ntawm 100m rau 400G |
OS2 txhawb 500m+ |
|
Recabling rau 400G |
+ $ 45,000 (30% ntawm qhov txuas) |
$0 |
|
15-Xyoo Tag Nrho |
$316,000 |
$643,500 |
Lub ntsiab lus twist:Txawm nrog recabling, multimode tseem yeej nyob rau hauv no scenario. Tab sis -thiab qhov no tseem ceeb heev- lub sijhawm koj 400G txuas tshaj 100m, ib hom yuav tsum tau ua tsis hais txog kev nqis peev yav dhau los.
Kuv Honest Recommendation on Nqi
"Yog tias koj tab tom tsim kev tsim kho vaj tse uas yuav tsum tau ua kom dhau xyoo 2030, tus nqi them ib leeg yog kev tuav pov hwm, tsis them nyiaj."
Kev lag luam kev sib txuas lus kom meej meej txav mus rau ib hom. Intel's Silicon Photonics, Broadcom's 800G roadmap, thiab hyperscaler architectures txhua tus nyiam ib hom. OM5 yuav tsum tau txuas ntxiv qhov cuam tshuam ntawm multimode, tab sis kev saws me nyuam tau kub kub.

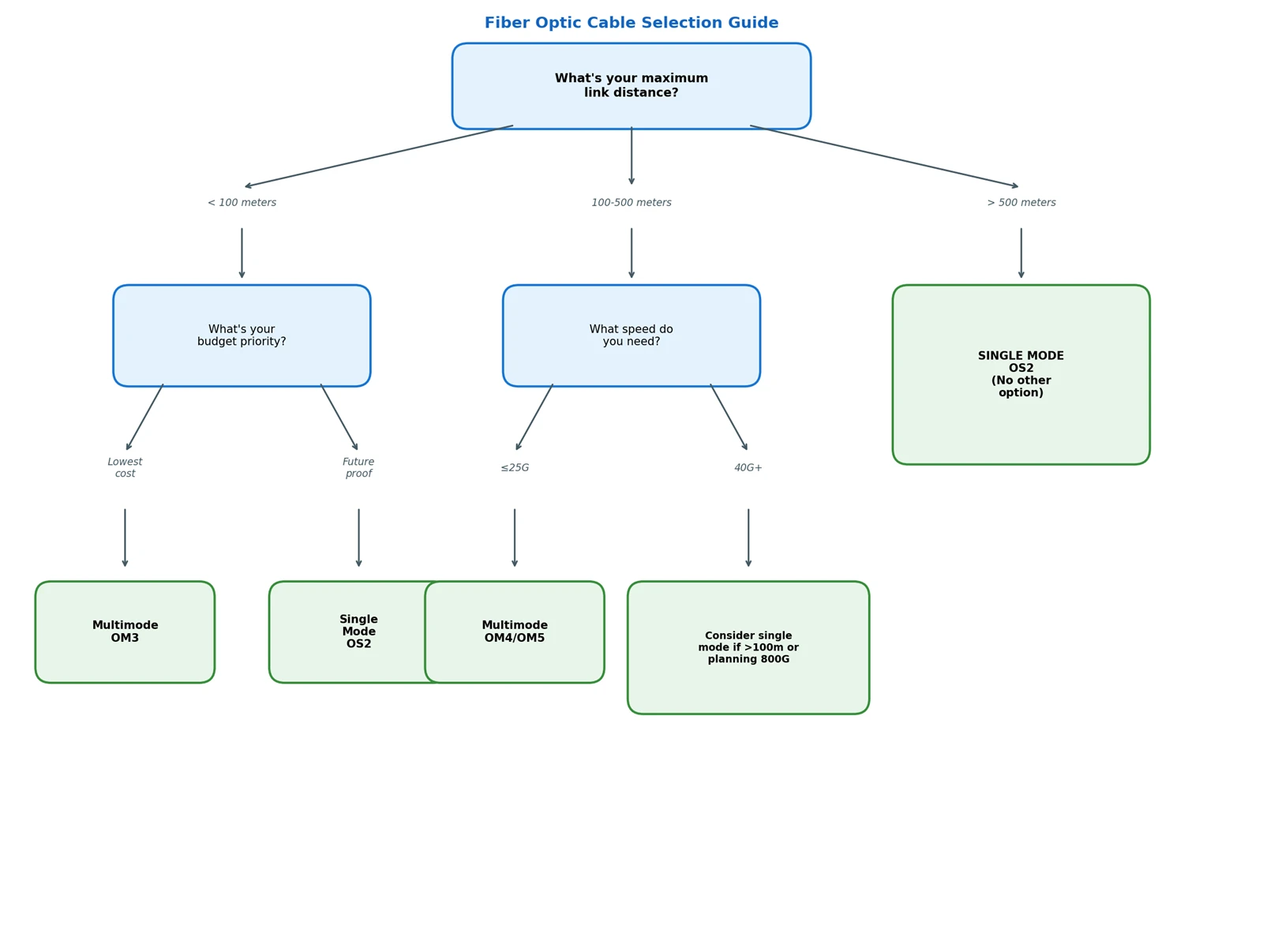

Txoj Kev Txiav Txim Siab: Ib Daim Ntawv Qhia Txog Kev Ua Haujlwm
Tiag -Kev Tshawb Fawb Ntiaj Teb
Case: E- Lub Chaw Ua Haujlwm Ua Haujlwm Ua Lag Luam (Phoenix, AZ)
Kev sib tw:200,000 sq.
Pib Npaj:OM4 multimode thoob plaws
Dab tsi tshwm sim:Lub caij ntuj sov kub hauv qhov tsis yog - huab cua- cov chaw tswj tau ua rau muaj teeb meem tsis txaus ntseeg. Multimode lub siab attenuation ua ke nrog tshav kub-induced connector expansion tsim intermittent tsis ua hauj lwm.
Kev daws:Hybrid deployment-OM4 rau huab cua- tswj cov ntaub ntawv hauv chav sib txuas, ib hom rau txhua qhov txuas uas dhau los ntawm qhov kub thiab txias- thaj chaw sib txawv.
Zaj Lus Qhia: Kub kam rau siab tseem ceeb. Tib hom qhov qis qis qis dua muab cov paj ntau dua rau ib puag ncig kev ntxhov siab.
FTTH & PON Networks: Qhov twg Tib Hom Dominates
Hauv Fiber-rau--Kev xa tawm hauv tsev (FTTH), ib hom fiber ntau yog qhovtsuas yog kev xaiv tswv yim. Nov yog vim li cas, thiab yuav ua li cas PLC splitters ua rau nws kev lag luam:
Vim li cas FTTH Yuav Tsum Ua Ib Hom
|
Kev xav tau |
Tib hom Advantage |
|
Nyob deb |
Pab cov neeg rau npe 20km + los ntawm lub chaw haujlwm hauv nruab nrab |
|
Splitter Loss |
Tolerates 1:64 phua ratios (17dB poob) |
|
Lub wavelength |
Txhawb triple -play (1310nm nce, 1490nm down, 1550nm video) |
|
Yav tom ntej-Cov pov thawj |
Tib fiber ntau txhawb GPON → XGS-PON → 50G-PON |
PLC Splitter Xaiv Phau Ntawv Qhia
PLC (Planar Lightwave Circuit) splitters faib cov teeb liab kho qhov muag los pab ntau tus neeg siv khoom los ntawm ib qho fiber ntau:
|
Split Ratio |
Insertion Loss |
Hom Siv Case |
|
1:2 |
3.8dB ib |
Tsev cov ntsiab lus nkag |
|
1:4 |
7.2dB ib |
MDUs me (8-16 units) |
|
1:8 |
10.5 dB |
Cov tsev nruab nrab |
|
1:16 |
13.5 dB |
Loj MDUs, tsev kawm ntawv |
|
1:32 |
16.5 dB |
Txheem FTTH faib |
|
1:64 |
19.5dB ib |
High -kev xa tawm hauv nroog |
Form Factor Options:
Tsis muaj fiber ntau- Rau cov tais diav hauv txoj kev txee
Mini module- Compact, rau lub thawv davhlau ya nyob twg
ABS lub thawv- Rugged, rau kev faib tawm sab nraum zoov
LGX cassette- Rack-mount, rau lub hauv paus chaw ua haujlwm
Rack Mount (1U / 2U)- Siab -ODF kev sib xyaw ua ke
Evolux Solution:PebPLC splittersTxhawb kev sib piv ntawm 1: 2 txog 1: 64 nrog zoo sib xws (<1.5dB). Available with SC, LC, or FC connectors pre-terminated, or as bare fiber for field splicing. All units are Telcordia GR-1209/1221 compliant.
Case: Tsev Kho Mob Campus Network (Boston, MA)
Kev sib tw:Lub tsev kho mob loj + 4 satellite vaj tse, nyob deb li ntawm 200m mus rau 2.3km, HIPAA ua raws li kev xav tau network segmentation, 10G hnub no nrog 100G npaj rau PACS duab
Kev txiav txim siab:Ib hom OS2 rau txhua qhov kev sib tshuam - txuas hauv tsev, OM4 hauv cov tsev
Kev pom zoo:CTO tau hais rau kuv tias, "Peb tau them nqi multimode rau lub tsev txuas ntev tshaj plaws ntawm 400m. Nws ua haujlwm. Tom qab ntawd kev cai lij choj tau ceeb toom peb tias cov neeg mob cov ntaub ntawv txuas yuav tsum tau rov ua dua. Peb txoj kev rov qab los ntawm cov qauv nres tsheb yog 600m. Ib hom yog tib lo lus teb."
Zaj Lus Qhia: Ib txwm qhia koj txoj hauv kev rov ua dua, tsis yog thawj txoj hauv kev xwb.
Case: Financial Trading Floor (Chicago, IL)
Kev sib tw:Ultra- qhov yuav tsum tau muaj latency tsawg (<5 microseconds switch-to-switch), 100G fabric, 50m average link length
Surprising xaiv:OM4 multimode
Kev xav:Ntawm 50m nrug, multimode transceivers 'VCSEL lasers yeej muaj lub sijhawm nce sai dua li ib hom DFB lasers. Qhov sib txawv latency yog nanoseconds, tab sis nyob rau hauv siab -frequency trading, nanoseconds yog nyiaj.
Zaj Lus Qhia: Latency optimization tej zaum kuj nyiam multimode rau luv luv, ceev heev txuas.
2026 Technology Trends Koj Yuav Tsum Paub
Qhov nce ntawm 800G thiab Tshaj
IEEE 802.3df tus qauv (tsim 2024) qhia:
800GBASE-SR8:Multimode, 8 kab x 100G, max 50m ntawm OM4
800GBASE-DR8:Tib hom, 8 x 100G, 500m ncav cuag
Daim ntawv ceeb toom qhov kev nplua nplua ntau yam them ntawm 800G- tsuas yog 50 meters xwb. Rau hyperscale cov ntaub ntawv chaw nrog kab ntev tshaj 30m, qhov no yuav luag tsis muaj npoo.
Co-Packaged Optics (CPO) thiab Silicon Photonics
Intel, Broadcom, thiab AMD yog tag nrho cov betting ntawm silicon photonics - uas yog inherently ib hom tshuab. CPO integrates optical transceivers ncaj qha mus rau hloov ASICs, thiab kev siv thaum ntxov (xav tias 2026-2027) yog hom nkaus xwb.
Qhov no txhais li cas:Cov tiam tom ntej ntawm networking hardware yuav optimized rau ib hom. Multimode tsis ploj mus, tab sis kev nqis peev hauv kev nce qib nws tau qeeb heev.
Khoov-Insensitive Fiber
Ob hom fiber ntau tam sim no muaj khoov- tsis pom kev sib txawv (ITU-T G.657 rau ib hom, OM4-BI rau multimode). Cov no ua kom nruj dua nkhaus radii yam tsis muaj teeb liab poob-tseem ceeb heev rau qhov chaw ua haujlwm siab.
Kev pom zoo:Nco ntsoov qhia khoov-sensitive fiber ntau rau kev teeb tsa tshiab. Tus nqi premium yog negligible (<5%), and it dramatically simplifies cable management.
Feem ntau yuam kev kom zam
Qhov yuam kev 1: Sib xyaw fiber ntau yam tsis muaj hom txias
Qhov teeb meem:Ib tug neeg txuas ib hom transceiver rau multimode fiber ntau (los yog vice versa), cia siab tias nws yuav "tsuas yog ua haujlwm."
Qhov tshwm sim tiag tiag:Ntawm 1G nrog 1000BASE-LX optics thiab hom txias thaj chaw cable, qhov no tuaj yeem ua haujlwm ntev txog 550m. Ntawm 10G thiab siab dua, nws tsis ua haujlwm txhua. Lub modal mismatch ua rau muaj teeb meem loj degradation.
Txoj cai:Tsis txhob sib xyaw cov fiber ntau yam tsis muaj kev pom zoo ntawm engineering thiab cov xov tooj cua kom raug.
Qhov yuam kev 2: Tsis quav ntsej cov khoom txuas zoo
Qhov teeb meem:Siv cov khoom sib txuas pheej yig lossis kev ua kom huv tsis raug.
Lej:Ib qho khoom siv qias neeg tuaj yeem qhia 1-3 dB ntawm kev poob. Ntawm 300m OM4 txuas ntawm 100G, koj cov peev nyiaj poob tag nrho tsuas yog kwv yees li 2.6 dB. Ib tug phem connector thiab koj nyob nraum dhau nyiaj txiag.
Txoj cai:Kev nqis peev hauv cov khoom sib txuas zoo, huv si ua ntej txhua qhov kev sib txuas, tshuaj xyuas nrog cov khoom siv fiber ntau.
Lub luag haujlwm ntawm Pigtails hauv Fiber Termination
Thaum txhim kho kev ruaj ntseg fiber ntau,pigtailsyog tus choj ntawm raw cable thiab connectorized khoom:
|
Hom Pigtail |
Daim ntawv thov |
Evolux Cov Lus Pom Zoo |
|
Ib hom LC / UPC |
Data Center thaj vaj huam sib luag, ODF |
Lub tsho daj, 0.9mm nruj buffer |
|
Ib hom LC/APC |
PON networks, CATV |
Ntsuab connector, 0.9mm los yog ribbon |
|
Ib hom SC/APC |
FTTH terminal thawv |
Ua ntej -connectorized rau kev nruab ceev |
|
Multimode LC OM4 |
Server-rau- hloov kev sib txuas |
Aqua tsho, laser - optimized |
|
MPO / MTP 12-fiber |
Kev tshem tawm ntawm lub cev |
Ntxuam- tawm mus rau LC kom tawg |
Vim li cas pigtails tseem ceeb:Factory-tawm pigtails tau lav kev ua haujlwm kho qhov muag (feem ntau<0.2dB insertion loss). Field-terminated connectors often exceed 0.3dB and have higher failure rates.
Evolux Product Line:Pebfiber ntau optic pigtailstuaj hauv LC, SC, FC, thiab ST configurations nrog OS2 ib hom lossis OM1-OM5 multimode fiber ntau. Muaj nyob rau hauv 0.9mm nruj-buffered los yog 12/24-fiber ribbon hom, ntev ntawm 0.5m mus rau 5m.
Kev lag luam-Kev xaiv Fiber tshwj xeeb
Cov kev lag luam sib txawv muaj cov kev cai tshwj xeeb uas cuam tshuam rau ib hom kev txiav txim siab ntau hom:
Telecommunications & ISPs
|
Kev xa tawm |
Pom zoo Fiber |
Cov ntsiab lus tseem ceeb |
|
FTTH/FTTP |
Tib hom OS2 |
PLC splitters, SC / APC pigtails, davhlau ya nyob twg thawv |
|
Central Office |
Tib hom OS2 |
High -Density ODF, LC connectors |
|
Xeem Mile |
Tib hom OS2 |
Sab nraum zoov- ntsuas patch cords, IP68 enclosures |
Evolux Telecom Solutions:Peb ua haujlwm rau 50+ cov neeg siv xov tooj thoob ntiaj teb nrog qhov kawg-rau-kawg FTTH cov khoom suav nrog ua ntej- txuas txuas xaim xaim, 1:32 LGX splitters, thiab phab ntsa-mount lub thawv txuas.
Data Centers
|
Tier |
Hom kev sib txuas |
Cov lus pom zoo |
|
Ntiv-Nplooj (<100m) |
100G / 400G SR |
OM4 MPO lub cev cables |
|
Tsim kev sib txuas |
100G/400G DR |
Ib hom MPO-8 |
|
DCI (Campus) |
400 g LR |
Ib hom LC duplex |
Evolux Data Center Solutions:Peb cov MTP/MPO lub cev cables thiab breakout sib dhos yog tsim los rau 40G / 100G / 400G parallel optics nrog ultra- tsis tshua muaj qhov poob (<0.35dB per connector).
5G Networks
|
Ntu |
Nyob deb |
Hom Fiber |
Cheebtsam |
|
Fronthaul |
100 m-10km |
Tib hom |
Armored thaj qaum, weatherproof adapters |
|
Midhaul |
10-40 km |
Tib hom |
Tsawg- poob LC connectors, splice enclosures |
|
Backhaul |
40-80 km |
Tib hom |
APC connectors, siab - cais cais |
Evolux 5G Solutions:Peb cov khoom lag luam- qib sab nraum zoov patch cables feature IP67 / IP68 waterproofing, UV-cov tsho tiv thaiv, thiab ua haujlwm kub ntawm -40℃txog +85℃.
Kev Kho Mob & Kev Kho Mob Imaging
Kev txiav txim siab tshwj xeeb:Cov tsev kho mob xav tau EMI- tiv thaiv kab mob rau MRI suites thiab phais neeg hlau.
|
Daim ntawv thov |
Kev xav tau |
Kev daws |
|
PACS Imaging |
10G + bandwidth,<5ms latency |
Tib hom qaum qaum, OM4 nkag |
|
Kev phais nyob deb |
Zero pob ntawv poob, txoj kev rov ua dua |
Dual ib hom rings |
|
Kev Saib Xyuas Neeg Mob |
IoT nplai, kho yooj yim |
Ua ntej-tawm multimode |
Smart Cities & Industrial IoT
|
Ib puag ncig |
Kev sib tw |
Pom zoo Fiber |
|
Sab nraum zoov sensors |
Kub kub heev, noo noo |
Ib hom, IP68 connectors |
|
Hoobkas pem teb |
EMI, kev co, roj raug |
Multimode armored, muaj adapters |
|
Tsheb khiav |
Ntev ntev ntawm kev sib tshuam |
Tib hom, splice enclosures |
yuam kev 3: Tsis nco qab txog thaj vaj huam sib luag ntom ntom
Qhov teeb meem:Kev npaj fiber ntau khiav yam tsis xav txog kev txwv thaj chaw.
Qhov Tseeb:Tib hom LC connectors thiab multimode LC connectors yog lub cev zoo tib yam. Tab sis ib hom ntawm cov tub ntxhais me me xav tau kev ua siab ntev dua nyob rau hauv siab - ntom ntom panels. Cov peev nyiaj 15-20% ntau dua rau ib hom vaj huam sib luag vaj huam sib luag.
Qhov yuam kev 4: Tshaj -Specifying Multimode
Qhov teeb meem:Txhim kho OM5 "tsuas yog nyob rau hauv rooj plaub" thaum OM4 yuav txaus.
Qhov Tseeb:OM5 cov txiaj ntsig tsuas yog ua tiav nrog SWDM4 transceivers. Yog tias koj siv tus qauv SR4 / SR8 optics, OM5 thiab OM4 ua tau zoo ib yam. Txuag 25% tus nqi them tshwj tsis yog tias koj muaj cov phiaj xwm SWDM tshwj xeeb.
Cov lus nug nquag
Q: Kuv puas tuaj yeem yav tom ntej - pov thawj los ntawm kev txhim kho ob hom fiber ntau?
A:Yog lawm, thiab ntau lub tuam txhab ua raws nraim qhov no - nws hu ua "hybrid" lossis "parallel" infrastructure. Khiav ib hom rau nraub qaum / uplinks thiab multimode rau txheej txheej. Tsuas yog khaws cov ntaub ntawv nruj thiab xim coding.
Q: Kuv tus neeg muag khoom hais tias multimode yog "zoo txaus" rau 400G. Lawv puas yog?
A:Technically yog, tab sis nrog caveats . 400GBASE-SR8 ua haujlwm ntawm OM4 txog 100m. Txawm li cas los xij, nws xav tau 16 fibers (8 TX + 8 RX) piv rau ib hom 2 fibers rau 400GBASE-DR4. Qhov tseem ceeb ntawm tus nqi ntawm MTP-16 vs LC duplex infrastructure ua ntej txiav txim siab.
Q: Yuav ua li cas txog fiber ntau rau lub desktop? Hom twg?
A:Rau feem ntau qhov chaw ua haujlwm hauv qab 100m, multimode OM3 muaj kev lag luam zoo tshaj plaws. Kev zam: Yog tias koj nyob hauv ib puag ncig hauv tsev kawm ntawv qhov twg cov kev sib txuas hauv desktop tuaj yeem sib sau ua ke ntev dua, ib hom ua kom yooj yim rau kev tsim qauv.
Q: Puas yog ib hom kev nyuaj rau txiav tawm hauv thaj teb?
A:Nws yog, keeb kwm. Niaj hnub ua ntej - polished connectors thiab fusion splicers tau tshem tawm qhov sib txawv no ntau. Kev txiav tawm teb ntxiv txog 10-15% sijhawm / tus nqi them rau ib hom piv rau ntau hom. Rau kev ruaj ntseg infrastructure, qhov no yog negligible.
Q: Peb yog ib lub lag luam me nrog 5-tus neeg rau zaub mov chav. Puas muaj qhov teeb meem no?
A:Ua siab ncaj? Tej zaum tsis yog. Ntawm qhov me me, siv txhua yam koj cov keyboards tuaj nrog rau transceivers, yuav cov fiber ntau sib xws, thiab tsis txhob xav ntau dhau. Cov lus qhia no yog rau kev tsim kho vaj tse uas yuav tsum tau ua kom ntev mus rau kaum xyoo thiab ntsuas qhov loj.
Kuv Cov Lus Pom Zoo rau 2026
Tom qab txhua yam saum toj no, ntawm no yog kuv qhov kev coj ncaj ncees:
Rau Data Centers (Txhua Qhov Loj)
Mus rau ib hom rau txha nraub qaum / nplooj ntawv sib txuas.400G / 800G Roadmap yog ib hom tseem ceeb. Them tus nqi transceiver tam sim no lossis them tus nqi them rov qab tom qab.
Rau Enterprise Campus
Tib hom rau lub tsev - mus rau -lub tsev, multimode OM4 hauv cov tsev.Qhov kev sib xyaw ua ke no sib npaug tus nqi thiab yav tom ntej - pov thawj.
Rau Industrial/Harsh Environments
Tib hom, ib txwm.Qhov qis attenuation muab cov npoo rau qhov kub thiab txias viav vias, kev co, thiab kev sib kis kab mob sib kis.
Rau Tsev Labs thiab Kev Lag Luam Me
Dab tsi yog qhov pheej yig tshaj plaws thiab phim koj cov iav.Ntawm qhov ntsuas no, qhov kev sib txawv ntawm kev sib txawv tsis ua rau kev ua kom zoo dua.
Nws tsis yog hais txog Fiber, Nws yog hais txog kev ua kom tiav
Ib hom vs multimode kev sib cav feem ntau tau teeb tsa raws li "qhov twg zoo dua"-tab sis qhov ntawd yog cov lus nug tsis raug.Cov lus nug zoo yog "qhov kev daws teeb meem fiber ntau ua tiav kuv daim ntawv thov xav tau dab tsi?"
Ntawm Evolux Fiber, peb tau kawm tias kev xa mus ua tiav nyob ntawm:
Xaiv hom fiber ntaurau koj qhov kev ncua deb thiab bandwidth xav tau
Kev sib txuas cov connectors thiab adaptersrau koj cov khoom siv thiab ib puag ncig
Qhia meej hom polish kom raug(APC vs UPC) rau koj daim ntawv thov
Xaiv cov hlua uas tsim nyog thiab pigtailsnrog kev txheeb xyuas qhov ua tau zoo optical
Kev npaj rau kev txhim kho yav tom ntejtsis kim re-cabling
Ib hom muaj physics ntawm nws sab: qis poob, unlimited bandwidth peev xwm, thiab kev lag luam momentum. Multimode muaj kev lag luam ntawm nws sab: pheej yig dua transceivers, yooj yim installation, thiab kaum xyoo ntawm pov thawj kev ntseeg ntawm luv luv.
Cov kws tsim qauv zoo tshaj plaws hauv lub network tsis xaiv sab -lawv xaiv qhov tsim nyog rau txhua ntu ntawm lawv cov txheej txheem, nrog cov khoom zoo uas yuav tsis dhau los ua qhov tsis muaj zog txuas.
Tau txais kev cob qhia kws tshaj lij rau koj qhov project
Tsis paub tseeb tias cov tshuaj fiber ntau zoo li cas rau koj qhov kev xa tawm?Peb pab pawg kws tshaj lij ntawm Evolux Fiber tau pab tsim kev sib txuas daws teeb meem rau cov chaw zov me nyuam cov ntaub ntawv, kev sib txuas lus hauv xov tooj, thiab kev lag luam hauv tsev kawm ntawv hauv 50+ lub teb chaws.
Peb muab:
- Kev sab laj kev cob qhia pub dawb
- Kev cai thaj qaum thiab pigtail configurations
- Tsawg MOQ rau prototyping thiab pilot project
- 24/7 engineering txhawb
- Kev sib tw OEM / ODM tus nqi
