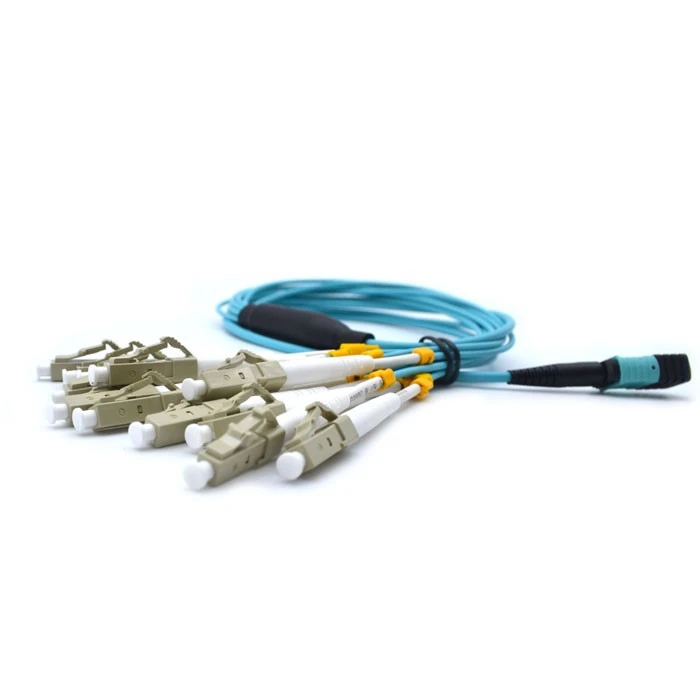

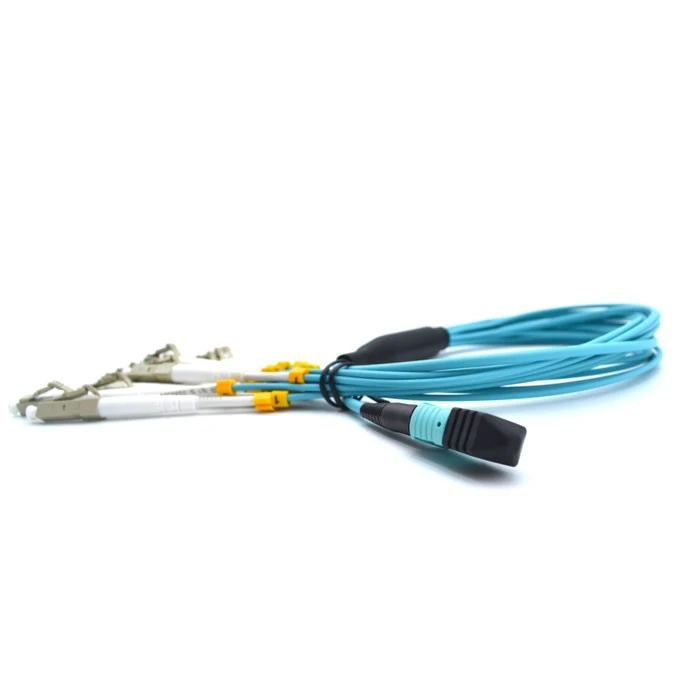

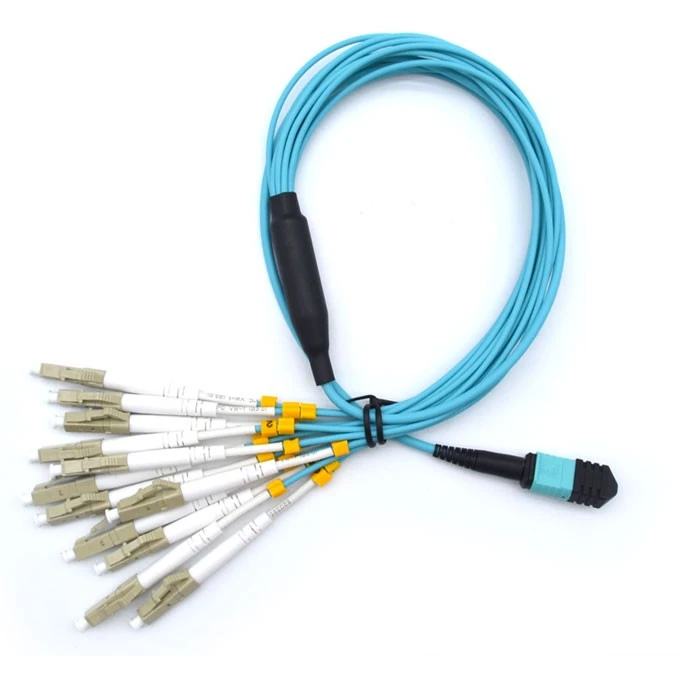

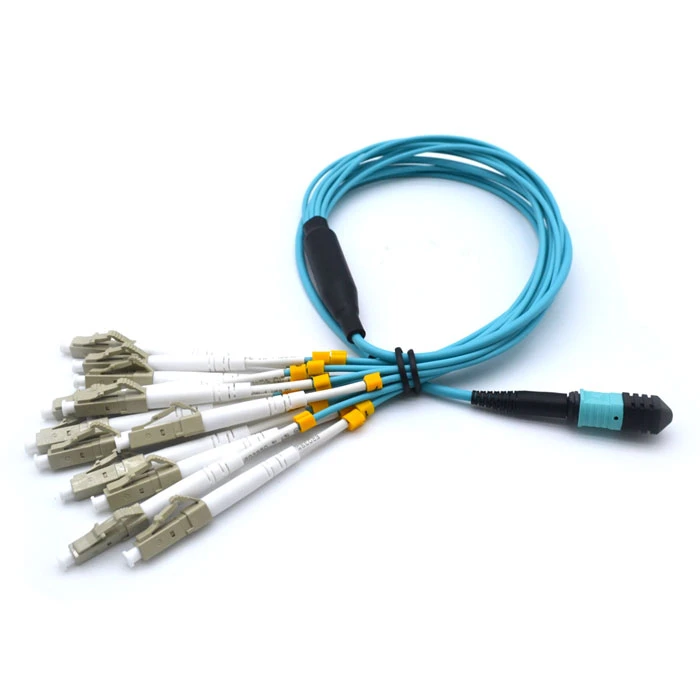

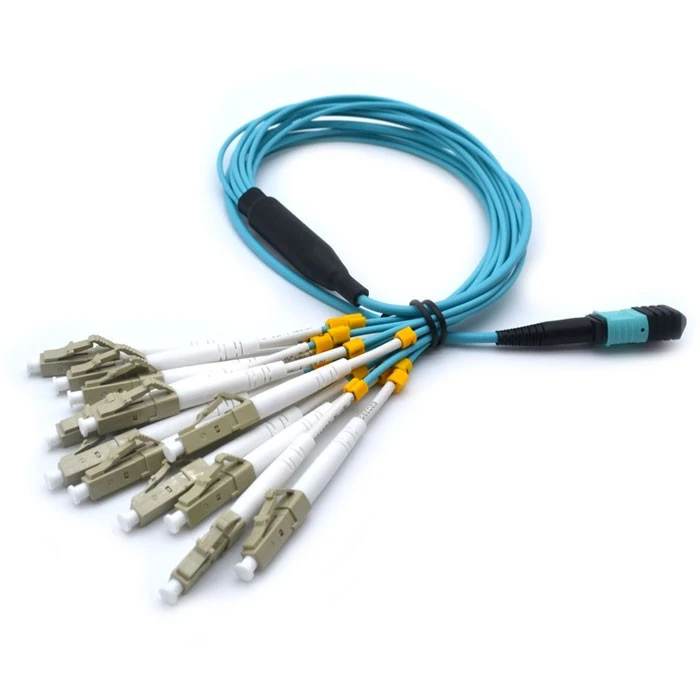

Qhia qhovOM4 Multi-Fiber 100Gb Multimode 50/125 Fiber Optic Cable MTP/MPO Rau LC Breakout 12 Fiber! Cov kab hluav taws xob ua haujlwm siab no nta 12 Fiber MTP® / MPO rau LC breakout tsim, xa cov ntaub ntawv tshwj xeeb kis tau tus mob. Ua nrog Corning OM4 50/125 Laser-Optimized Multimode Fiber (LOMMF), cov kab no raug ntsuas rau 100Gb daim ntawv thov. Txhua qhov fiber ntau raug txiav nrog sleek Ceramic ferrule LC connectors, kom ntseeg tau kev sib txuas. Cov kab hluav taws xob yog OFNP Plenum Rated thiab tsim los rau qhov chaw muaj kev kub ntxhov, nrog lub tsho aqua-xim 2.0 hli OD. Zoo meej rau cov chaw zov me nyuam thiab kev sib txuas lus, cov cable no ua tau raws li qhov xav tau ntawm kev sib txuas lus niaj hnub no.
Vim li cas thiaj xaiv US?
Ntawm Shenzhen Evolux Fiber Co., Ltd, peb muab qhov tseem ceeb tshaj plaws thiab kev tsim kho tshiab hauv txhua yam khoom peb muab. Ntawm no yog vim li cas koj yuav tsum xaiv pebOM4 Multi-Fiber 100Gb Multimode 50/125 Fiber Optic Cable MTP/MPO Rau LC Breakout 12 Fiberkab:
- Kev txawj ntse: Peb tshwj xeeb hauv cov kev daws teeb meem kho qhov muag fiber ntau rov qab los ntawm kev paub ntau xyoo hauv kev tshawb fawb thiab kev tsim kho.
- Kev ntseeg tau: Peb cov khoom tau raug kuaj nruj kom ntseeg tau qhov ua tau zoo tshaj plaws thiab ua haujlwm ntev.
- Kev Pab Txhawb Cov Neeg Siv Khoom: Peb muab kev pabcuam tshwjxeeb los pab koj nrog kev teeb tsa thiab kev nug tomqab muag.
- Customization: Tailor kev daws teeb meem kom tau raws li koj cov kev xav tau tshwj xeeb, los ntawm hom fiber ntau rau cov qauv sib txuas.
Khoom Specifications
|
Kev sib haum xeeb |
MTP® Compatible MPO Connector - MTP® (Multi-fiber Termination Push-on), yog ib lub cim lag luam ntawm US Conec. |
Kev piav qhia |
MPO 8 Fiber Breakout Cable|OM4 Multi-Fiber 100Gb Multimode 50/125 Fiber Optic Cable |
|
Yam khoom |
MPO / MTP Fiber Optic Breakout Cable |
Hom kab |
Txiv neej rau txiv neej Pre-terminated Fiber Optic Jumpers / Fiber Network Patch Cables |
|
Hom Connector |
MPO Fiber Connector rau LC Simplex Breakout Connectors |
Kev txiav txim |
MPO / MTP Poj Niam (tsis muaj pins) rau 12 x LC Txiv neej Fiber Optic Connectors |
|
Connector 1 |
MTP/MPO - 12 Strand Multi-fiber Poj niam Connector nyob rau hauv ib tug Push-On Enclosure (tsis muaj pins) |
Connector 2 |
12 LC Simplex, 1.25mm daim ntawv zoo, ceramic ferrule, connectors. |
|
Optical Hom Hom |
OM4 Laser Optimized Multimode Fiber (LOMMF) - 50/125um core/cladding|100G GbE 100GBase-SR10 150m, 40G GbE 40GBase-eSR4 QSFP+ 550m, 40G GbE 40GBase-SR4 150m, 10G GbE 10GBase-SR 400m, 1G 50GBSmX (w/mode-conditioning). |
Core / Cladding |
50/125µm - 50 micron txoj kab uas hla fiber ntau / 125 micron txoj kab uas hla cladding (1 micron yog 1 ib lab / 1 meter) |
|
Cov khoom siv tseem ceeb |
Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber thiab txuas ntxiv xa cov iav tshiab daws teeb meem rau fiber ntau optic cables. |
Hom Hom |
Multimode - Siv rau kev kub ceev fiber ntau optic kev sib tham hauv cov tsev, cov chaw zov me nyuam, kev sib txuas lus, thiab lwm yam, tseem hu ua MM, MMode |
|
Technology |
Laser-Optimized Multimode Fiber (LOMMF) |
Nyob deb |
5 50 m |
|
Network Ceev |
10 Gb / s, 40 Gb / s, thiab 100 Gb / s Transmission (OM4) |
1 Gb Ethernet Dist |
OM4 nrug yog 1040 Meters ntawm 850nm / 600 Meters ntawm 1310nm. |
|
10Gb Ethernet Dist |
OM4 nrug yog 550 Meters ntawm 850 nm / 300 Meters ntawm 1310 nm |
Bandwidth |
OM4 GbE Laser Optimized Fiber - 3500MHz-km @ 850nm, 4700MHz-km @ 1300nm|Optimized rau VCSELS ( ntsug-kab noj hniav nto-emitting lasers). |
|
Strand suav |
12 Fiber Strands |
Jacket Xim |
Aqua - Qhov no yog cov qauv tsho xim rau OM3 / OM4 multimode fiber ntau jumper qaum / fiber ntau thaj cables. |
|
Jacket Khoom |
Plenum-rated (OFNP) |
Ua raws |
ROHS raws |
|
Cia Kub |
-40 degree C rau + 70 degree C |
Ua haujlwm kub |
-20 degree C rau + 70 degree C |
Khoom nta
- High Density: Txhua lub cable xa mus rau 12 Simplex LC connectors, ua rau nws zoo tagnrho rau qhov chaw nyob ib puag ncig.
- Zoo Fiber: Siv Corning OM4 50/125 fiber ntau, kom ntseeg tau cov teeb liab zoo thiab bandwidth.
- Kev Ntsuas Zoo: Kev tshuaj xyuas tag nrho thiab kuaj raws li ANSI/TIA/EIA-455-171-A-2001 cov qauv los ntawm cov kws tshaj lij tsim nyog.
- Kev Txhim Kho Yooj Yim: Tsim los rau kev sib koom ua ke ncaj qha rau hauv cov tes hauj lwm uas twb muaj lawm.
- Kev Siv Ntau Yam: Haum rau ntau yam kev siv ceev, nrog rau cov chaw zov me nyuam thiab kev sib txuas lus.
Cov khoom siv
CovOM4 Multi-Fiber 100Gb Multimode 50/125 Fiber Optic Cable MTP/MPO rau LC Breakout 12 Fiberyog ntau yam ntau yam, haum rau:
- Data Centers: Txuas servers, keyboards, thiab cia khoom siv rau kev xa cov ntaub ntawv ceev.
- High-Speed Networks: Zoo tagnrho rau 40Gb thiab 100Gb Ethernet tes hauj lwm hla luv luv.
- Kev Sib Txuas Lus: Muab cov kev sib txuas siab bandwidth rau lub suab, video, thiab cov ntaub ntawv.
- Parallel Optical Transceivers: Txhawb kev sib kis ntawm cov khoom siv kho qhov muag rau kev txhim kho cov ntaub ntawv.
- High-Bandwidth Video Applications: Ua kom muaj kev sib txuas ruaj khov rau HD thiab 4K streaming.
Kev Tswj Xyuas Zoo
Peb ntseeg hais tias tsuas yog muab qhov zoo tshaj plaws. Peb cov txheej txheem tswj kom zoo muaj xws li:
- Kev sim nruj: Txhua kab, xws liOM4 Multi-Fiber 100Gb Multimode 50/125 Fiber Optic Cable MTP/MPO rau LC Breakout 12 Fiber, tau dhau los ntawm kev ntsuas kev ua tau zoo kom ua tau raws li cov qauv kev lag luam.
- Cov Kws Tsim Nyog Tsim Nyog: Peb pab pawg kws tshaj lij xyuas kom txhua yam khoom ua tau raws li cov qauv ntsuas nruj.
Kev Pabcuam OEM
Peb muab kev pabcuam OEM raws li koj qhov kev xav tau tshwj xeeb. Txawm hais tias koj xav tau kev cai ntev, hom txuas tshwj xeeb, lossis ntim tshwj xeeb, peb muaj peev xwm ua tau raws li koj xav tau.
FAQ
Txog Peb
Shenzhen Evolux Fiber Co., Ltd yog lub chaw muab kev pabcuam zoo tshaj plaws ntawm kev kho qhov muag fiber ntau. Founded hauv 2013 thiab raws li nyob rau hauv Shenzhen, Suav teb, peb tshwj xeeb hauv kev tshawb fawb, kev loj hlob, tsim, thiab kev faib khoom ntawm cov khoom siv fiber ntau zoo. Rau kev nug txog lubOM4 Multi-Fiber 100Gb Multimode 50/125 Fiber Optic Cable MTP/MPO rau LC Breakout 12 Fiber, tiv tauj peb ntawmsales@evoluxfiber.comthiabshanna@evoluxfiber.com. Paub qhov txawv nrog peb!
