Dab tsi ntau -Gig Ceev Koj Lub Network Xav Tau?
A 5G Ethernet chaw nres nkoj - raug hu ua 5GBASE-T raws li IEEE 802.3bz tus qauv - xa 5 gigabits ib pliag dhau tus qauv Cat5e lossis Cat6 tooj liab cabling, zaum nruab nrab ntawm kev siv dav dav 2.5 Gigabit Ethernet thiab siab dua {{10} Gigabit Gist.Rau ib tus neeg tsim lossis txhim kho lub network txuas hnub no, cov lus nug tsis yog tias Gigabit Ethernet puas nrawm txaus. Hauv ntau qhov chaw, nws tsis yog - tsis yog thaum WiFi 6E cov ntsiab lus nkag mus thawb 2.4 Gbps, NAS cov khoom xa tuaj nrog ntau -gig NICs, thiab ISPs hauv thaj chaw loj metro tam sim no muab 2-gig cov phiaj xwm vaj tse. Cov lus nug tiag tiag yog nyob deb npaum li cas dhau 1 Gbps koj yuav tsum mus, thiab qhov kev hloov kho tshiab tau raug nqi li cas hauv kev kho vajtse, cabling, thiab nyuaj.
Phau ntawv qhia no taug kev los ntawm qhov sib txawv ntawm 1G, 2.5G, thiab 5G Ethernet chaw nres nkoj, qhov kev tsim kho vaj tse uas txhua tus xav tau, thiab yuav ua li cas txiav txim siab seb qib twg haum rau koj qhov kev teeb tsa tshwj xeeb - seb qhov ntawd puas yog chaw ua haujlwm hauv tsev, chaw ua lag luam me, lossis ntau yam -AP kev xa tawm hauv tsev kawm ntawv. Cov lus pom zoo ntawm no qhia txog cov qauv zoo sib xws los ntawm SMB thiab kev lag luam network xa tawm siv IEEE 802.3bz- cov cuab yeej ua raws.
Multi-Gig Ethernet txhais tau li cas
Tau ob xyoo lawm, Gigabit Ethernet yog lub qab nthab rau tooj liab -raws li kev sib txuas hauv zos. 1000BASE-T tus qauv, tau lees paub rov qab rau xyoo 1999, xa 1 Gbps tshaj Cat5e cabling thiab dhau los ua qhov chaw nres nkoj ceev ntawm txhua yam ntawm cov neeg siv khoom routers mus rau cov chaw lag luam. Nws ua haujlwm. Rau ib ntev lub sij hawm, tsis muaj dab tsi nyob rau hauv lub raug network tsim txaus tsheb khiav mus saturate nws.
Qhov ntawd tau hloov pauv thaum wireless ceev tau dhau los ntawm wired backhaul. WiFi 5 (802.11ac) tuaj yeem tshaj 1 Gbps aggregate throughput. WiFi 6 (802.11ax) thawb tus nqi theoretical dhau 9.6 Gbps. Mam li nco dheev lub bottleneck nyob tom qab AP, tsis nyob rau hauv pem hauv ntej ntawm nws: ib tug nkag point muaj peev xwm ntawm 2+ Gbps tau raug pub los ntawm ib tug Gigabit uplink, thiab txhua tus neeg siv ntawm sab wireless tau qhia tias 1G qab nthab.
IEEE tau teb rau xyoo 2016 nrog 802.3bz, uas txhais tau hais tias ob theem tshiab ceev - 2.5GBASE-T thiab 5GBASE-T. Qhov kev xaiv tsim tseem ceeb yog rov qab cabling compatibility. Ob qho qauv tau tsim los khiav ntawm tib lub Cat5e thiab Cat6 cables twb tau teeb tsa hauv ntau lub tsev, siv tib lub RJ45 txuas. Tsis muaj rewiring. Tsis muaj qhov tshiab patch panels. Qhov kev txiav txim siab ib leeg yog qhov ua rau ntau-gig kev saws me nyuam ua tau zoo - thiab nws yog vim li cas koj pom 2.5G cov chaw nres nkoj tshwm rau ntawm cov motherboards loj, WiFi routers, thiab NAS li niaj hnub no.
Kev txiav txim siab ceev nrooj
Ua ntej dhia mus rau hauv cov ntsiab lus, ntawm no yog luv luv version. Hauv feem ntau SMB thiab kev xa tawm hauv tsev, qhov kev txiav txim siab los rau plaub tus qauv:
- Feem ntau cov khoom siv hauv chaw ua haujlwm (lub tshuab luam ntawv, VoIP, cov chaw ua haujlwm yooj yim):Nyob ntawm 1G - cov khoom siv no tsis muaj ntau-gig NICs thiab yuav sib tham ntawm Gigabit txawm li cas los xij.
- WiFi 6/6E cov ntsiab lus nkag lossis NAS nrog ntau-gig ports:Hloov kho mus rau 2.5G - nws tshem tawm Gigabit bottleneck ntawm tus nqi qis tshaj.
- Kev hloov ntaub ntawv hnyav, kho video, lossis siab -kev sib sau AP:Nce mus txog 5G - qhov kev nkag mus ntxiv yog qhov tseem ceeb thaum cov ntaub ntawv txuas mus ntxiv yog tus qauv.
- Pem teb- mus rau- pem teb txuas, inter- lub hauv paus caj dab, los yog nyob deb tshaj 100 m:Fiber uplinks - tooj liab tops tawm ntawm 100 meters; fiber ntau tuav 10G + tshaj kilometers.
Tus so ntawm phau ntawv qhia no piav qhia txog qhov laj thawj thiab kev sib pauv tom qab txhua qhov kev xaiv ntawd.
1G vs. 2.5G vs. 5G: Qhov twg Qhov txawv Av
Cov lej ceev ceev yog ncaj nraim - 1,000 Mbps, 2,500 Mbps, 5,000 Mbps - tab sis qhov sib txawv tiag tiag tshwm sim hauv cov kev xav tau hauv vaj tse, cov khoom siv hluav taws xob, nqi, thiab txhua qib ua tau zoo hauv kev xyaum.
| Parameter | 1G (1000BASE-T) | 2.5G (2.5GBASE-T) | 5G (5GBASE-T) |
|---|---|---|---|
| Max hla kev | 1gbps ua | 2.5gbps ua | 5gbps ua |
| IEEE qauv | 802.3ab (1999) | 802.3 tzs (2016) | 802.3 tzs (2016) |
| Yam tsawg kawg nkaus cable | Cat5 e | Cat5e (txog 100 m) | Cat5e (txog 100 m); Cat6 pom zoo |
| Txuas | RJ 45 | RJ 45 | RJ 45 |
| Kev siv fais fab | ~ 0.5 W rau qhov chaw nres nkoj | ~ 1-2 W rau qhov chaw nres nkoj | ~ 2-4 W rau qhov chaw nres nkoj |
| Hloov chaw nres nkoj nqi (kwv yees) | $2–5 | $8–15 | $15–30 |
| Rov qab sib xws | 10/100 Mbps | 10/100/1000 Mbps | 10/100/1000/2500 Mbps |
| Tej yam siv | General chaw ua hauj lwm, cuab yeej cuab tam | WiFi 6 AP uplink, NAS, home prosumer | Kev kho video, ntau-kwj 4K, siab- ceev AP |
Tus nqi kwv yees qhia txog kwv yees tus nqi lag luam thaum ntxov 2026 rau kev tswj hwm thiab tsis tswj hwm ntau-gig hloov chaw nres nkoj. Tus nqi tiag tiag txawv ntawm tus neeg muag khoom, suav qhov chaw nres nkoj, thiab teeb tsa tshwj xeeb.
Ob peb lub ntsiab lus uas yuav muaj teeb meem ntau dua li cov khoom siv raw. Ua ntej, 2.5G tau dhau los ua tus qauv de facto ntau-gig tier hauv cov neeg siv khoom thiab cov khoom siv kho mob. Feem ntau WiFi 6 thiab WiFi 6E routers tam sim no xa nrog tsawg kawg yog ib qho 2.5G WAN chaw nres nkoj. Ntau qhov nruab nrab -NAS cov khoom siv suav nrog 2.5G NICs. Cov tuam txhab tsim khoom lag luam tau hloov pauv ntau ntawm 1G mus rau 2.5G ntawm cov khoom lag luam tseem ceeb txij li ib puag ncig xyoo 2022. Qhov kev hloov pauv no txhais tau tias 2.5G iav yog qhov yooj yim rau qhov chaw thiab pheej yig dua.
Thib ob, 5G Ethernet nyob hauv qhov nqaim dua - tsawg kawg rau tam sim no. Nws tshwm nyob rau hauv siab dua - kawg tswj cov keyboards, cov ntsiab lus kev lag luam nkag mus los ntawm ntau yam SSIDs, thiab chaw ua haujlwm ua cov ntaub ntawv hloov pauv mus rau lub network cia. Cov khoom siv muaj nyob thiab ua haujlwm zoo, tab sis tus nqi hwm tshaj 2.5G tseem ceeb. Rau ntau qhov kev teeb tsa, 2.5G twb tshem tawm Gigabit bottleneck yam tsis tas yuav muaj peev txheej ntxiv.
Cabling: Yam koj twb muaj tej zaum ua haujlwm
Qhov no yog ib feem uas feem ntau surprises cov neeg npaj ib tug multi -gig upgrade. Ob leeg 2.5GBASE-T thiab 5GBASE-T tau tshwj xeeb tsim los ua haujlwm tshaj li kev teeb tsa Cat5e cabling ntawm tag nrho 100-meter nrug uas tau txiav txim los ntawm cov qauv cabling. Cat6 muab chav taub hau ntxiv thiab feem ntau pom zoo rau 5G khiav hauv ib puag ncig nrog ntau dua crosstalk - bundled cables nyob rau hauv nruj conduit, piv txwv li - tab sis nws tsis yog nruj me ntsis raws li 802.3bz specification.
Qhov kev cuam tshuam zoo: yog tias koj lub tsev raug xaim nrog Cat5e txhua lub sijhawm hauv 20 xyoo dhau los, koj tuaj yeem hloov kho los ntawm Gigabit mus rau 2.5G lossis 5G los ntawm kev hloov pauv thiab qhov kawg kho vajtse ib leeg. Tsis rub cov kab tshiab. Tsis muaj re- txiav tawm thaj vaj huam sib luag. Rau cov chaw ua haujlwm ib puag ncig thiab kev teeb tsa hauv tsev, qhov no ua rau ntau -gig ib qho ntawm tus nqi tshaj plaws - txhim kho kev nrawm nrawm muaj - koj tab tom yuav cov chaw nres nkoj, tsis yog kev tsim kho vaj tse.
Uas tau hais tias, cable zoo tseem ceeb dua ntawm qhov nrawm dua li nws ua ntawm Gigabit. Cov jacks tsis zoo, kinked cables, lossis khiav uas nyuam qhuav ua rau 100-meter txwv ntawm 1G tej zaum yuav tsis sib tham txog kev ntseeg siab ntawm 5G. Hauv SMB kev xa tawm peb muaj teeb meem, feem ntau culprit tom qab sib txuas sib txuas tee tom qab ntau -gig upgrade yog ib qho hlua khi rau hauv khib - tsis yog kab rov tav cabling. Yog tias koj pom cov teeb meem kev sib tham, sim cov neeg raug liam tias khiav nrog cov ntawv pov thawj cable ntsuas rau lub hom phiaj ceev ua ntej hloov kho qhov hloov pauv.
Thaum Copper khiav tawm ntawm txoj kev: Lub luag haujlwm ntawm Fiber Uplinks
Ntau-gig tooj liab tswj cov txheej txheem nkag tau zoo, tab sis txhua lub network thaum kawg xav tau ib lub nraub qaum uas tooj liab tsis tuaj yeem muab. Raws li kev nkag tau- txheej ceev nce ntawm 1G mus rau 2.5G thiab 5G, qhov sib sau bandwidth xav tau ntawm cov keyboards thiab cov tub ntxhais loj hlob sib npaug. Kev thauj khoom tag nrho 24-chaw nres nkoj 2.5G hloov tuaj yeem tsim kom txog li 60 Gbps ntawm cov tsheb sib sau ua ke - thiab cov tsheb yuav tsum muaj txoj hauv kev mus rau qhov tseem ceeb.

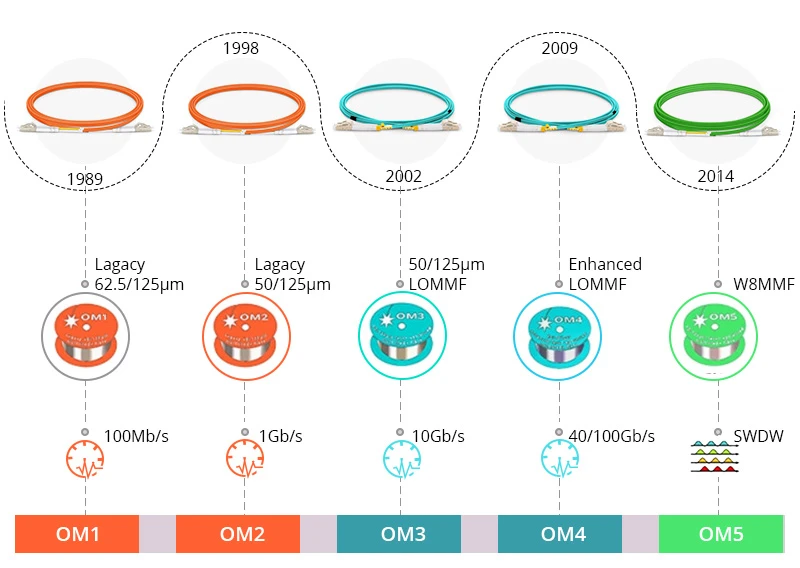

Qhov no yog qhov twg fiber uplinks khwv tau lawv qhov chaw. Tswj ntau-gig keyboards feem ntau suav nrog ib lossis ob qhov SFP + lossis SFP28 qhov uas lees txais fiber ntau optic transceivers. Rau kev khiav hauv cov ntaub ntawv txee los yog nruab nrab ntawm cov racks uas nyob ib sab,OM3 los yog OM4 multimode fiber ntauua ke nrog luv - ncav cuag optics tuav 10G yooj yim ntawm kev ncua mus txog 300-400 meters. Ua ntej- xausLC-rau-LC fiber ntau thaj qaumyog tus qauv interconnect rau cov kev sib txuas.
Rau pem teb - mus rau - pem teb los yog lub tsev - mus rau - lub tsev pob txha khiav,tib - hom fiber ntaunrog OS2 specification yog lub neej ntawd. Ua ke nrog LR (Long Reach) optics, ib qho - hom txhawb nqa 10G hla qhov deb mus txog 10 km - zoo tshaj qhov twg tus qauv tooj liab tuaj yeem xa tau. Qhov kev xaiv ntawm ib qho -hom thiab multimode cuam tshuam rau txhua qhov txuas hauv qhov txuas: transceivers, patch cords, adapters, thiab termination hardware tag nrho cov xav tau kom phim cov fiber ntau.

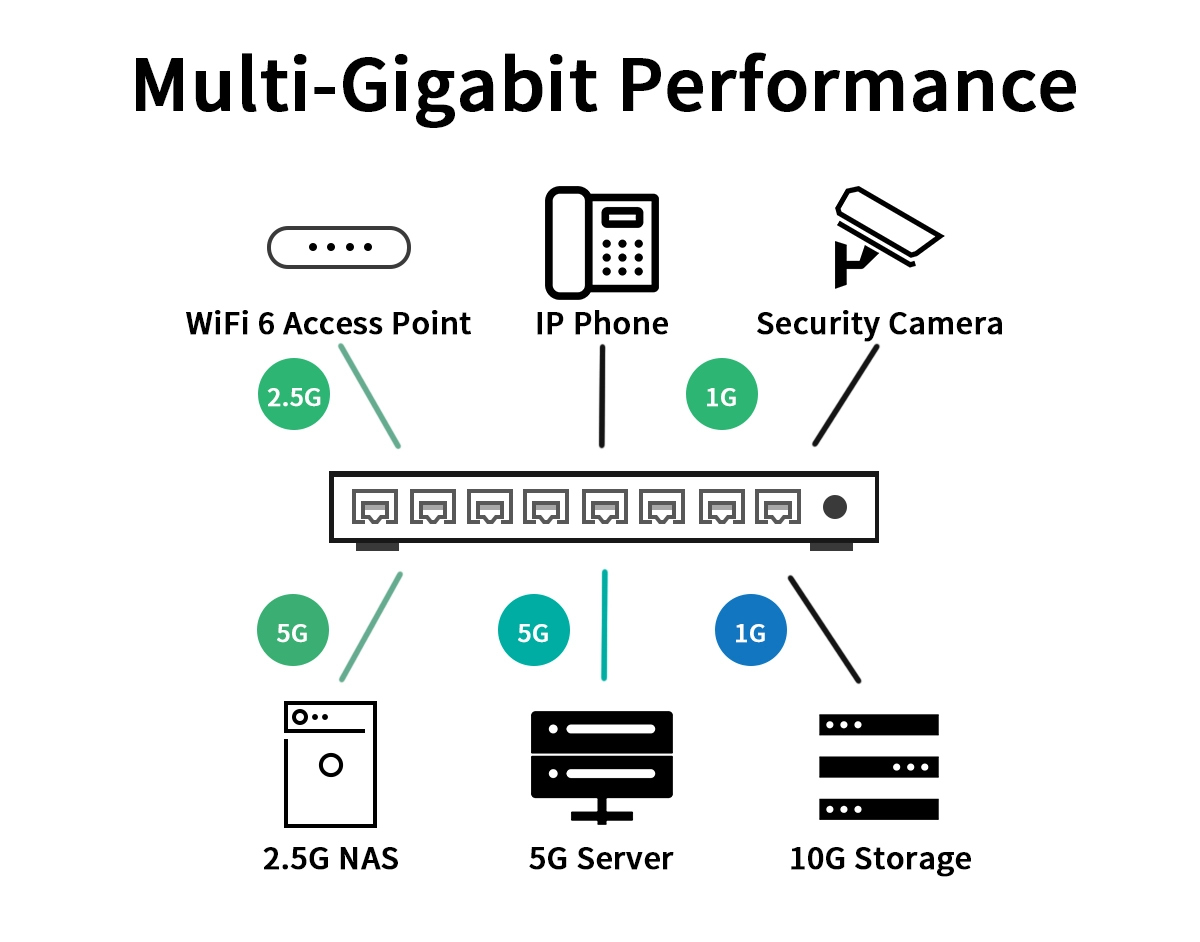

Ib qho kev tsim qauv zoo sib xws hauv kev xyaum: ntau-gig tooj liab ntawm txheej nkag (2.5G lossis 5G chaw nres nkoj pub APs thiab desktops), nrog fiber ntau uplinks sib sau ua ke cov tsheb mus rau kev faib lossis txheej txheej ntawm 10G lossis 25G. Txoj hauv kev no ua rau tus nqi ib qho chaw nres nkoj qis ntawm ntug thaum muab lub taub hau bandwidth uas nws tseem ceeb tshaj plaws - ntawm qhov sib sau ua ke. Connector zoo tseem ceeb ntawm no; polished tsis zoo los yog paugfiber optic thaj cordsqhia qhov kev poob qis uas tuaj yeem ua rau qhov sib txuas ntawm cov npoo ntawm kev khiav ntev dua.
Txhim kho qhov yuam kev ntawd nyiaj txiag pov tseg
Ob peb tus qauv tshwm sim tsis tu ncua hauv ntau-gig kev xa tawm. Feem ntau: yuav ntau -gig hloov tab sis txuas nrog Cat5 (tsis yog Cat5e) thaj qaum. Original Cat5 tau ntsuas rau 100 MHz thiab tsim rau 100BASE-TX. Nws feem ntau yuav tsis txhawb 2.5GBASE-T ntseeg tau, thiab 5GBASE{14}}T tsis muaj lus nug. Cat5e (nrog nruj dua crosstalk specifications) yog qhov tsawg kawg nkaus. Cat6 (250 MHz) muab cov paj zoo dua rau 5G, tshwj xeeb tshaj yog rau kev khiav ntev dua. Nws tsim nyog kuaj xyuas txhua qhov txuas hauv cov saw hlau - suav nrog cov hlua khi ntawd ib tus neeg rub tawm tom qab ntawm lub tub rau khoom.
Lwm qhov teeb meem nquag: xav tias txhua qhov chaw nres nkoj ntawm ntau -gig hloov khiav ntawm tib qhov ceev. Ntau tus nqi pheej yig ntau-gig hloov pauv sib xyaw hom chaw nres nkoj - plaub 2.5G chaw nres nkoj ntxiv rau yim 1G chaw nres nkoj, piv txwv li. Nyeem qhov chaw nres nkoj specifications ua ntej deploying. Muab ntau-gig ports rau cov khoom siv uas tau txais txiaj ntsig zoo: APs, NAS, kho cov chaw ua haujlwm. Txuas lub tshuab luam ntawv laser mus rau 2.5G chaw nres nkoj yuav tsis ua kom nrawm rau leej twg luam ntawv.
Thaum tshav kub kub yog ib qho yooj yim rau underestimate. Multi-gig PHY chips rub lub zog ntau dua Gigabit-tsuas yog silicon, thiab lub zog ntawd dhau los ua cua sov. Fanless desktop keyboards uas ua tau zoo ntawm 1G tuaj yeem cuam tshuam lossis nthuav tawm qhov chaw nres nkoj tsis ruaj khov thaum txhua qhov chaw nres nkoj sib tham ntawm 2.5G lossis 5G hauv qab kev thauj mus los. Yog tias kev ua haujlwm ntsiag to tseem ceeb hauv koj qhov chaw ib puag ncig - chav sib tham, chav ua haujlwm hauv tsev - nrhiav cov keyboards tshwj xeeb tsim los rau cov kiv cua tsis muaj ntau-gig ua haujlwm nrog cov thermal dissipation txaus.
Qhov twg Txhua Qhov Ceev Tier Fits hauv Kev Xyaum
Gigabit (1G)tseem yog txoj cai hu rau cov ntsiab lus kawg uas tsis tsim lossis siv cov tsheb hnyav. Cov tshuab luam ntawv, IP xov tooj, chaw ua haujlwm yooj yim, IoT sensors - cov khoom siv no feem ntau xa nrog 1G NICs thiab tsis siv rau qhov chaw nres nkoj siab dua. Hauv cov chaw ua haujlwm feem ntau, feem ntau ntawm cov phab ntsa jacks tseem txuas rau Gigabit cov khoom siv, thiab qhov ntawd tsis zoo li yuav hloov pauv nyob rau lub sijhawm ze.
2.5Gyog qhov chaw qab zib rau kev hloov kho tshiab niaj hnub no. Yog tias koj tab tom siv WiFi 6 lossis WiFi 6E cov ntsiab lus nkag, 2.5G uplink cia AP ua haujlwm ze dua rau nws cov qhab nia dhau los es tsis txhob cuam tshuam los ntawm 1G txuas txuas. Tib yam siv rau NAS li, media servers, thiab chaw ua haujlwm uas nquag txav cov ntaub ntawv hauv ntau -gigabyte ntau. Hauv feem ntau SMB ib puag ncig, 2.5G muab qhov kev ua tau zoo tshaj plaws nce toj ib duas.
5Gua rau muaj kev nkag siab zoo rau qhov xav tau ntau dua: siab- qhov ceev wireless xa tawm qhov twg ntau APs sib sau cov neeg siv khoom hnyav, kev kho video ua haujlwm rub cov ntaub ntawv loj los ntawm lub network khaws cia hauv lub sijhawm, lossis server-rau- hloov cov txuas uas xav tau ntau dua 2.5G tab sis qhov twg 10G yuav dhau mus - ua haujlwm. Hauv peb qhov kev paub dhau los, 5G qhov chaw txais yuav zoo li muaj zog tshaj plaws hauv kev tswj cov keyboards tsom rau SMB thiab nruab nrab -kev lag luam ib puag ncig uas cov peev nyiaj tso cai rau kev hloov kho lub hom phiaj es tsis yog tag nrho 10G buildout.
Cov lus nug nquag
Q: Kuv puas xav tau cov Cables tshiab los siv 2.5G lossis 5G Ethernet Chaw nres nkoj?
A: Feem ntau, tsis yog. Ob leeg 2.5GBASE-T thiab 5GBASE-T yog tsim los ua haujlwm tshaj Cat5e cabling uas twb muaj lawm mus txog 100 meters, raws li IEEE 802.3bz specification. Cat6 raug pom zoo rau 5G nyob rau hauv ib puag ncig nrog cov kab nrib pleb los yog khiav ze ntawm qhov kev ncua deb. Original Cat5 cabling (ua ntej-Cat5e) feem ntau tsis muaj qhov kev sib tham sib tham uas xav tau rau kev ntseeg siab ntau-gig signaling - txawm tias cov txiaj ntsig tuaj yeem sib txawv nyob ntawm lub hnub nyoog cable, kev txiav tawm zoo, thiab kev khiav ntev.
Q: Puas yog 5G Ethernet Chaw nres nkoj zoo ib yam li 5G Cellular?
A: Tsis yog. Cov no yog cov thev naus laus zis tsis sib xws uas tshwm sim los qhia "5G" daim ntawv lo. 5G Ethernet chaw nres nkoj muab 5 Gbps wired connectivity ib IEEE 802.3bz. 5G cellular (NR) yog wireless mobile broadband standard txhais los ntawm 3GPP. Txawv speeds, txawv lub cev tawm, txawv qauv lub cev.
Q: Lub 5G Chaw nres nkoj puas tuaj yeem ua haujlwm nrog lub cuab yeej uas tsuas yog txhawb nqa Gigabit?
A: Yog. Multi-gig ports yog rov qab sib xws los ntawm kev tsim. 5GBASE-T chaw nres nkoj yuav pib- sib tham mus rau 2.5G, 1G, 100M, lossis 10M raws li lub peev xwm txuas nrog. Tsis xav tau kev teeb tsa ntawm phau ntawv - kev sib tham txuas yog tsis siv neeg.
Q: Thaum twg Fiber ntau ua rau muaj kev nkag siab ntau dua -Gig Copper?
A: Fiber ntau yuav yog qhov kev xaiv zoo dua thaum khiav tshaj 100 meters, thaum koj xav tau ceev tshaj 5 Gbps (10G, 25G, los yog siab dua), los yog thaum electromagnetic cuam tshuam yog ib qho kev txhawj xeeb - Hoobkas pem teb, tsev kho mob duab suites, thiab ib puag ncig zoo sib xws. Nws kuj yog qhov nruab nrab nruab nrab rau kev hloov pauv- rau- hloov uplinks hauv txhua lub network uas cov txheej txheem nkag tau khiav ntawm 2.5G lossis siab dua, vim tias kev sib sau ua ke feem ntau xav tau 10G + lub pob txha muaj peev xwm.
Q: Qhov txawv ntawm 2.5G thiab 5G nyob rau hauv nqe lus ntawm tiag tiag -Kev Pabcuam Ntiaj Teb?
A: Rau feem ntau hauv tsev thiab chaw ua haujlwm me me, 2.5G tshem tawm Gigabit bottleneck ntawm tus nqi qis tshaj thiab nrog cov khoom siv dav tshaj plaws. Qhov dhia los ntawm 2.5G mus rau 5G ua ob npaug ntawm kev xa tawm, uas yog qhov tseem ceeb rau kev hloov pauv cov ntaub ntawv loj ({4}} cov ntaub ntawv tsim tawm, cov ntaub ntawv rov ua dua) lossis rau cov ntsiab lus nkag mus rau cov neeg siv khoom hnyav. Yog tias koj qhov kev ua haujlwm niaj hnub tsis cuam tshuam nrog kev hloov pauv ntau -gigabyte cov ntaub ntawv ua ntu zus, 2.5G feem ntau xa tawm qhov zoo tshaj plaws rov qab los ntawm kev txhim kho peev.
Q: Npaj Koj Ntau -Gig Upgrade
A: Txawm hais tias koj tab tom tsiv los ntawm Gigabit mus rau 2.5G ntawm txheej txheej nkag, xa 5G chaw nres nkoj rau siab -bandwidth workstations, lossis ntxiv fiber ntau uplinks los txhawb kev nce kev sib sau ua ke, cov kev txiav txim siab hauv vaj tse uas koj ua tam sim no yuav ua rau koj lub network ua haujlwm tau ntau xyoo. Tau txais txoj cai sib xyaw ntawm tooj liab chaw nres nkoj ceev, cabling, thiabfiber ntau optic interconnectsnyob ntawm koj qhov profile tshwj xeeb, qhov yuav tsum tau nyob deb, thiab cov phiaj xwm loj hlob. Yog tias koj tab tom ua haujlwm los ntawm cov kev sib pauv no thiab xav tau kev pab xaiv txoj hlua khi, cov khoom sib txuas, lossis hom fiber ntau rau koj tus qauv tsim, peb pawg neeg tsim khoom tuaj yeem taug kev los ntawm kev xaiv nrog koj.
