High-Density LC Fiber Connector Solutions: Uniboot Vs. Push-Pull

Rack vaj tse yog kim, thiab bandwidth xav tau nce nce. Qhov ntawd yog qhov tseeb. Cov lus nug tsis yog seb koj puas xav tau cov khoom siv fiber ntau denser- nws yog qhov koj yuav tsim nws yam tsis tau tsim kev npau suav phem.

Ob lub LC fiber connector tsim tau tshwm sim raws li qhov mus- rau kev daws teeb meem: uniboot cables thiab thawb- rub tab connectors. Lawv daws teeb meem sib txawv. Xaiv qhov tsis ncaj ncees lawm ua rau koj lub sijhawm, nyiaj txiag, lossis ob qho tib si.

Txoj Kev Uniboot

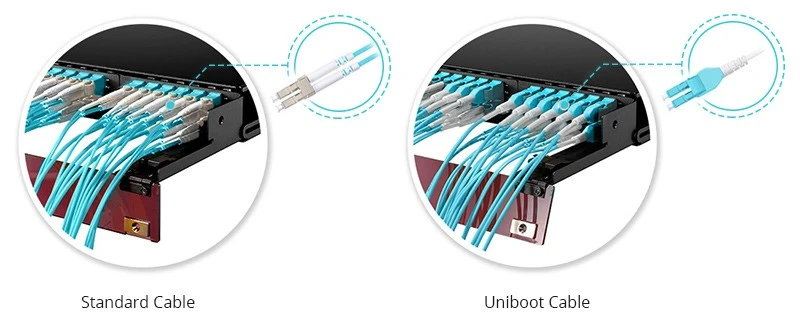

Standard LC duplex thaj cable muaj ob qhov sib cais 3.0mm lub tsho khiav ib sab, txhua tus nqa ib qho fiber ntau. Tam sim no daim duab 48 ntawm cov crammed rau hauv 1U enclosure. Sab nraub qaum ntawm koj lub khib zoo li spaghetti, airflow yog choked, thiab hmoov zoo taug qab txhua yam.

Uniboot hloov cov ntawv ntawd. Ob lub fibers khiav hauv ib lub tsho 2.0mm, txiav mus rau hauv ib qho kev sib koom ua ke hauv tsev. Koj tab tom saib kwv yees li ib nrab ntawm cov xov tooj cable -qee zaus zoo dua.

Ntawm no yog qhov uas nws tau txais tswv yim. Peb pab neeg ua haujlwm engineering tau sim ntsuas qhov ntom ntom hla ntau hom kab thaiv hauv peb lub hlis dhau los. Cov txiaj ntsig tau zoo sib xws:

Kev sim ua nrog OM4 cables ntawm 25℃ambient. CFM ntsuas tom qab tso pa nrog cov txheej txheem kiv cua.

Cov lej muaj peev xwm zoo ib yam ntawm daim ntawv, tab sis txhua tus neeg uas tau ua haujlwm puv HD vaj huam sib luag paub qhov txawv. Nrog tus qauv duplex, koj tab tom sib ntaus cov cables kom tau txais 20% kawg ntawm cov chaw nres nkoj. Uniboot xwb... haum.

Polarity Hloov

Nyob rau hauv tiag tiag -kev xa tawm thoob ntiaj teb, kev ua yuam kev polarity feem ntau mus nrhiav tsis tau mus txog rau theem kawg ntawm qhov project. Txawm tias tag nrho cov ntawv sau thiab kuaj 200-fiber Pod, qhov kawg -feeb hloov ntawm A-B mus rau AA polarity ua rau muaj kev puas tsuaj loj los yog hloov pauv cov khoom lag luam thaum siv cov hlua khi ib txwm siv.

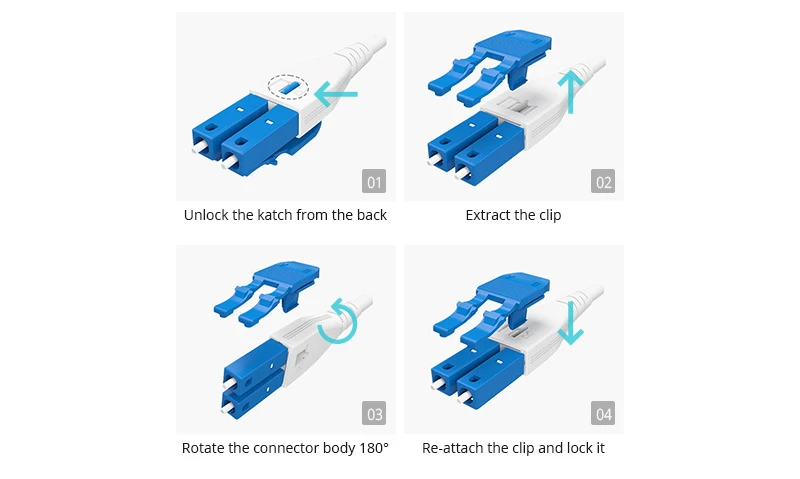

Nrog ib txwm duplex cables, koj tab tom rov- txiav tawm lossis xaj cov kab tshiab. Nrog switchable uniboot connectors, koj pop lub vaj tse, tig lub fiber ntau txoj haujlwm, thiab koj ua tiav. Tsis muaj cuab yeej. Tsis muaj splicing. Siv sijhawm li 20 vib nas this ib zaug koj tau ua ob peb zaug.

Cov txheej txheem sib txawv los ntawm cov chaw tsim khoom, tab sis feem ntau cov qauv tsim ua haujlwm ntawm tib lub hauv paus ntsiab lus - ob lub LC ferrules tuaj yeem hloov kho nyob rau hauv vaj tse los pauv Tx thiab Rx alignment. Qee tus siv lub tshuab flip; lwm tus xav kom koj xaub cov ferrules tawm thiab rov muab lawv thim rov qab.

Push-Pull Tab Connectors

Cov teeb meem sib txawv, txawv kev daws teeb meem.

Standard LC connectors siv ib sab latch-koj nyem nws kom tso. Ua haujlwm zoo thaum koj muaj ntiv tes tshem tawm. Tsis ua hauj lwm thaum cov khoom sib txuas yog stacked 2 hli sib nrug hauv 96-chaw nres nkoj vaj huam sib luag thiab qhov koj xav tau yog nyob rau hauv nruab nrab ntawm kab peb.

Push-rub tabs hloov qhov kev tso tawm mechanism. Es tsis txhob ncav rau ib sab latch, koj tuav lub tab txuas ntxiv thiab rub ncaj rov qab. Ib txhais tes. Ib tsab ntawv tsa suab. Cov chaw nres nkoj uas nyob ib sab nyob tso.

Qhov no tseem ceeb tshaj qhov koj xav. Peb tau teem sijhawm cov kws tshaj lij ua cov txheej txheem niaj hnub txav ntawm tib yam 48- chaw nres nkoj vaj huam sib luag- ib qho thauj khoom nrog tus qauv LC, ib qho nrog thawb - rub. Lub sijhawm nruab nrab ntawm kev txiav thiab rov txuas dua ib qho chaw nruab nrab ntawm lub vaj huam sib luag:

n=50 kev sim rau ib hom kev sib txuas, sib xyaw ua ke ntawm cov kws tshaj lij

Qhov sib txawv 5-thib ob tsis zoo li ntau txog thaum koj tab tom ua 200-chaw nres nkoj tsiv teb tsaws thaum lub qhov rais tu. Thiab cov kev tsis sib haum xeeb no? Txhua tus yog ib qho kev pabcuam cuam tshuam nrog rau lub sijhawm daws teebmeem ntxiv.

Thaum twg los ua ke ob leeg: Uniboot nrog Push-Pull

Qee lub tuam txhab muab uniboot cables nrog kev sib koom ua ke - rub tabs. Koj tau txais cov txiaj ntsig kev ceev cable ntxiv rau cov txiaj ntsig kev siv tau. Nws yog qhov kev xaiv zoo tshaj -feem ntau 30-50% kim dua li tus qauv uniboot-tab sis rau kev xa tawm hyperscale qhov twg cov nqi zog dwarf cov nqi, lej feem ntau ua haujlwm.

Raws li peb cov kev paub dhau los, ntawm no yog cov neeg siv khoom profile uas tau txais txiaj ntsig zoo tshaj plaws los ntawm uniboot + thawb- rub ua ke:

Ultra-High-Density (UHD) Patch Panel Cov neeg siv

Thaum koj ntim 96 lossis 144 LC chaw nres nkoj rau hauv 1U hneev taw, cov qauv txuas txuas ua rau lub cev tsis tuaj yeem ncav cuag. Ntawm qhov ntom ntom no, thawb- rub tab tsis yog qhov zoo - rau - muaj - lawv yog qhov tsawg kawg nkaus rau kev ua haujlwm. Koj cov ntiv tes tsis tuaj yeem nkag mus rau ib sab latch thaum cov khoom sib txuas tau muab tso rau nruj.

AI Compute Clusters thiab HPC Ib puag ncig

AI kev cob qhia ua haujlwm yog latency-sensitive thiab cabling- hnyav, feem ntau cuam tshuam nrog loj heev 400G / 800G breakout deployments. Rau tus txha nraub qaum-ntxuav nplooj ntawv txhawb nqa GPU pawg, peb pom zoo kom ua ke no thoob plaws hauv cov txheej txheem tseem ceeb. Cov cheeb tsam no pom qhov txuas txuas mus tas li thiab muaj peev xwm nthuav dav sai sai - koj xav tau cov khoom sib txuas uas yuav tsis ua rau koj pab pawg ops qeeb.

Kev daws teeb meem rau AI / HPC Kev xa tawm

GPU pawg cabling muaj cov kev cai tshwj xeeb: suav cov chaw nres nkoj siab, nruj khoov vojvoog txwv, thiab kev txhawj xeeb txog kev tswj xyuas thermal. Peb muab kev cai- cov khoom siv ntev cable tsim tshwj xeeb rau koj qhov rack layout- suav nrog kev sib tw -ntev bundles rau kev hloov- mus rau -GPU kev sib txuas uas txo qis cable slack thiab ua kom airflow. Ua ntej-labeled thiab xim-coded los ntawm kev ua haujlwm (kho ntaub, GPU kev sib txuas, kev tswj hwm network) kom nrawm xa mus.

Colocation Providers thiab tej thaj chaw deb tes ua haujlwm

Yog tias koj tus qauv kev lag luam nyob ntawm siab - ntim MACs (tsav, ntxiv, hloov pauv) ua los ntawm cov kws tshaj lij ntawm tes, cov kev xaiv txuas ncaj qha cuam tshuam cov nqi yuam kev. Ib qho -nias polarity hloov ntawm uniboot connectors tuaj yeem txo qhov kev teeb tsa tsis raug los ntawm 80% lossis ntau dua. Qhov ntawd yog tsawg dua daim pib teeb meem tshwm sim los ntawm kev rov qab polarity thiab tsawg lub sij hawm nkim rau kev daws teeb meem yooj yim.

Txoj Cai Lij Choj Retrofits nrog Thermal Constraints

Hauv cov chaw laus cov ntaub ntawv uas cov tais cable twb muaj peev xwm thiab txoj hauv kev airflow raug cuam tshuam, kev sib pauv mus rau uniboot tam sim ntawd tso tawm li ntawm 50% ntawm koj qhov chaw cable. Kev txhim kho cua ntws los ntawm cov khoom hauv qab tuaj yeem txo cov nqi cua txias -peb tau pom cov xwm txheej uas qhov kev hloov pauv no tau poob qis kub -txoj kev kub ntawm ob peb degrees.

Sib piv cov kev daws teeb meem rau koj qhov teeb meem tiag tiag

Tsis yog txhua qhov kev xa tawm xav tau tus txuas zoo tshaj plaws. Ntawm no yog li cas peb feem ntau tsim kev sib tham nrog cov neeg siv khoom:

Koj qhov mob taub hau tseem ceeb yog kab mob kab mob

Uniboot yog koj cov lus teb. Qhov txo qis ~ 50% hauv txoj kab uas hla cable txhais tau hais tias koj cov tais cable thiab cov thawj coj ntsug tau muaj chaw ua pa. Cov nyiaj tshwj xeeb: txo qhov hnyav ntawm cable txo qis rau cov khoom sib txuas hauv lub sijhawm.

Hom haum:ToR keyboards, siab - cov kab server ceev, nyob qhov twg koj tab tom khiav 50+ thaj cables los ntawm tib txoj kev.

Koj qhov mob taub hau loj yog vaj huam sib luag siv tau

Push-rub tabs daws qhov no. Yog tias koj cov thev naus laus zis ua haujlwm tsis tu ncua hauv tag nrho - cov vaj huam sib luag thauj khoom thiab koj tab tom pom kev cuam tshuam nrog lossis hnov ​​​​lus tsis txaus siab txog kev nkag, qhov no yog qhov kho.

Hom haum:Core/Aggregation thaj vaj huam sib luag, ntsib-kuv chav, txhua lub vaj huam sib luag uas nyob twj ywm 80%+ populated thiab pom MAC kev ua haujlwm li niaj zaus.

Koj qhov mob taub hau loj yog kev tswj polarity

Switchable uniboot connectors tshem tawm qhov yuav tsum tau npaj ntau lub cable polarities thiab tiv thaiv kev txiav tawm qhov yuam kev. Yog tias koj tau mus pw hmo ntuj qhia ib lub thawv A-A cables vim ib tug neeg xaj A-B, koj paub tus nqi ntawm no.

Hom haum:Kev xa tawm tshiab nrog qhov tsis paub meej lossis hloov pauv qhov xav tau ntawm polarity, cov koom haum ua qauv ntawm ib lub cable SKU rau cov khoom lag luam yooj yim.

Ib leeg -SKU Inventory Program

Ntxub ntawm kev tswj ntau lub polarities thiab ntev? Peb tuaj yeem pab koj tsim tus qauv ntawm cov khoom sib txuas uniboot nrog kev xaiv ntev ntev (feem ntau 1m, 2m, 3m, 5m) uas suav nrog 95% + ntawm cov neeg siv. Txo cov khoom lag luam nyuaj, tshem tawm kev txiav txim yuam kev, thiab ua kom yooj yim kev cob qhia rau koj pab neeg ua haujlwm.

Koj tab tom tsim rau 400G / 800G thiab tshaj

Lub LC fiber connector yuav tsis ploj mus txhua lub sijhawm sai sai no -400G-FR4 thiab 400G-LR4 transceivers siv LC duplex interfaces, thiab lawv yog cov pob txha ntawm feem ntau kev lag luam 400G xa tawm. Tab sis cov kev xav tau ceev ntawm cov kev ceev no ua rau kev tswj xyuas cable tseem ceeb.

Rau 400G breakout daim ntawv thov- qhov twg ib qho QSFP -DD chaw nres nkoj kiv cua tawm mus rau 4x100G server kev sib txuas -uniboot cables nrog laub- rub tabs muab rau koj kom huv si installation. Cov kab hluav taws xob txo qis tawm hauv chav rau qhov nce cua ntws uas siab dua -wattage transceivers xav tau.

400G / 800G Custom Breakout Solutions

High -kev ceev breakout cabling yog qhov uas customization muab tus nqi tshaj plaws. Peb tsim:

MTP-rau-LC breakout harnesses nrog kev cai ceg ntev sib phim rau koj cov khib nyiab geometry

Direct-Txuas txuas tooj liab (DAC) thiab cov khoom siv kho qhov muag (AOC) cov rooj sib txoos hauv qhov tsis yog- tus qauv ntev

Hybrid harnesses combining ntau hom connector (MTP-8 rau LC, MTP-12 rau LC, thiab lwm yam) rau cov khoom sib xyaw ua ke

Tsawg-Txoj kev xaiv kev poob (tsawg dua lossis sib npaug rau 0.15dB IL) rau txuas ntxiv - ncav cuag lossis ntau yam - hop applications

Txhua qhov kev sib dhos yog 100% kuaj rau koj cov kev qhia tshwj xeeb ua ntej xa khoom -kev poob qis, rov qab poob, thiab kev txheeb xyuas polarity suav nrog.

Tiag -Lub Ntiaj Teb Daim Ntawv Thov Scenario

Ib puag ncig sib txawv ntxhov siab sib txawv ntawm kev sib txuas ua haujlwm. Nov yog qhov peb tau pom ua haujlwm hla ntau hom kev xa tawm:

Hyperscale Data Centers

Cov chaw no optimizes kev khiav hauj lwm ceev. Thaum koj siv ntau txhiab qhov kev sib txuas hauv ib lub lis piam, cov khoom siv ua haujlwm ua tus nqi tag nrho. Uniboot nrog laub- rub tabs yog tus qauv nce ntxiv rau kev tsim kho tshiab- tus nqi them ua ntej them rov qab sai dua los ntawm kev xa tawm sai dua thiab txo tus nqi yuam kev.

Hom spec:OS2 ib leeg -mode, 2.0mm uniboot nrog thawb- rub, hloov tau polarity, ua ntej- kuaj thiab sau npe. Lengths standardized rau 1m, 2m, 3m, thiab 5m kom txo qis cov khoom lag luam nyuaj thaum npog feem ntau khib-rau-rack scenarios.

Hyperscale Custom Program

Rau kev xa tawm ntawm 10, 000+ cables, peb muab:

Kitting los ntawm khib lossis pod: Ua ntej-txheej cable bundles ntim raws nraim li xav tau rau txhua qhov chaw teeb tsa

Custom labeling: Koj lub npe, koj cov xim xim, luam tawm ntawm lub Hoobkas

Kev xa khoom theem: Nkoj rau koj lub sijhawm, tsis yog peb li -tej txhua lub limtiam raws li koj cov theem xa tawm

Dedicated inventory buffer: Kev ruaj ntseg cov khoom muaj nyob rau ntawm peb lub chaw, muaj nyob rau tib lub sij hawm shipping -lub lim tiam

Volume pricing siv. Tiv tauj peb kom paub meej cov kev pab cuam.

Enterprise Data Centers

Mixed infrastructure thiab ncua sij hawm rov ua dua tshiab txhais tau tias koj feem ntau ua haujlwm nrog cov qauv txuas uas twb muaj lawm. Txoj kev ua tau zoo feem ntau yog tier: uniboot lossis thawb- rub hauv siab- cov khoom ceev, cov qauv duplex hauv qis dua - qhov chaw ntom ntom uas tus nqi them tsis raug cai.

Yog tias koj tab tom rov txhim kho qhov chaw uas twb muaj lawm, tsom mus rau uniboot xa mus rau koj qhov siab tshaj - txoj hauv kev ua ntej. Txoj kev nyem tam sim no feem ntau ua rau kev nthuav dav txoj hauv kev.

Enterprise Starter Kits

Tsis tau npaj siab ua kom muaj kev tsiv teb tsaws siab ntau -? Peb muab cov khoom ntsuas ntsuas uas muaj kev sib xyaw ntawm uniboot thiab thawb- rub cov kab hauv qhov ntev. Ntsuam xyuas lawv hauv koj ib puag ncig, tau tes- ntawm cov lus tawm tswv yim los ntawm koj pab neeg, tom qab ntawd ua kom muaj kev ntseeg siab.

Telecom Central Offices thiab Colo Meet -Kuv Chav

Kev ntseeg siab thiab kev tsim qauv tsim kev txiav txim siab ntawm no. Ntau tus neeg nqa khoom tuav pov hwm cov npe muag khoom nrog cov kev sib txuas tshwj xeeb. Push-rub tabs muaj txiaj ntsig tshwj xeeb hauv cov khoom siv kho qhov muag uas cov kws tshaj lij xav tau nkag mus rau ib tus neeg sib txuas yam tsis muaj kev cuam tshuam rau cov kab hluav taws xob nyob ib sab.

Qhov ntau- tus neeg xauj tsev ntawm colo ib puag ncig kuj tsim kev lav phib xaub rau- kev sib txuas huv ntawm cov neeg muab kev pabcuam tseem ceeb, thiab thawb- rub cov qauv tsim kom txo tau qhov kev pheej hmoo ntawm kev cuam tshuam thaum hla- txuas ua haujlwm.

Carrier -Qib Custom Manufacturing

Peb txhawb kev cai tshwj xeeb uas xav tau los ntawm cov neeg nqa khoom loj thiab cov neeg ua haujlwm colo:

Ua raws li cov kev tso cai tshwj xeeb thiab qhov poob rov qab qhov pib

Kev cai lub tsho xim rau cov neeg xauj tsev

Extended durability xeem (1000+ mating cycles)

Tag nrho cov ntaub ntawv traceability ib cable

RoHS, REACH, thiab cov ntawv pov thawj hauv cheeb tsam

Twb tau nyob rau hauv daim ntawv teev npe muag khoom pom zoo? Qhia rau peb paub koj qhov yuav tsum tau ua -peb yuav phim lawv raws nraim.

Specs Qhov Tseem Ceeb

Thaum koj tab tom ntsuam xyuas LC fiber connector xaiv, ntawm no yog dab tsi los nrhiav tshaj li kev lag luam:

Insertion Loss

Kev lag luam tus qauv rau random mating yog tsawg dua los yog sib npaug rau 0.30dB. Premium connectors ntaus tsawg dua los yog sib npaug rau 0.15dB tiv thaiv tus tswv siv. Qhov tshwj xeeb nruj dua qhov teeb meem ntau dua li cov peev nyiaj sib txuas tau thinner ntawm cov ntaub ntawv ntau dua.

Txhawm rau muab 0.30dB hauv kev xam pom: nws yog qhov sib npaug rau ntxiv 120 meters ntawm tus qauv ib zaug - hom fiber ntau rau koj qhov txuas. Tsis muaj kev puas tsuaj rau ib qho kev sib txuas, tab sis nws ntxiv thaum koj tab tom chaining ntau lub ntsiab lus.

Kev Cai Loss Specifications

Rau cov ntawv thov uas yuav tsum tau ua kom nruj dua -ntev- kev txuas txuas, DWDM systems, lossis ntau -hop architectures-peb muab cov cables tsim thiab sim ua kom tsawg dua lossis sib npaug li 0.15dB lossis txawm tsawg dua lossis sib npaug rau 0.10dB qhov poob. Txhua lub nkoj xa mus nrog ib daim ntawv qhia txog kev ntsuas tus kheej uas qhia qhov ntsuas qhov tseeb, tsis yog "dhau / tsis ua haujlwm" tawm tsam qhov pib ua haujlwm.

Rov Los Los

Ntau dua lossis sib npaug rau 50dB rau UPC polish, Ntau dua lossis sib npaug rau 60dB rau APC. Kev poob qis dua (dB ntau dua) txhais tau tias tsawg dua cov teeb liab rov qab mus rau qhov chaw - tseem ceeb rau analog video, DWDM, thiab qee qhov siab - cov ntawv thov digital ceev.

Mechanical Durability

Nrhiav 500+ mating cycle ratings. Hauv siab -MAC ib puag ncig, cov khoom sib txuas pom ntau qhov kev ua. Pheej yig connectors pib degrading ib ncig ntawm 200-300 cycles; zoo connectors tswj spec los ntawm 1000+.

Extended Durability Options

Rau ib puag ncig nrog kev ua haujlwm siab MAC tshwj xeeb (kev lag luam hauv tsev, cov chaw tshaj tawm, cov chaw sim), peb muab cov khoom sib txuas ntsuas rau 1500+ mating cycles nrog kev txheeb xyuas qhov ua tau zoo. Nug txog peb qhov txuas ntxiv - txoj haujlwm txuas lub neej.

Ib lo lus ceev ntawm Kev Kho

Siab - qhov ceev txhais tau tias ntau cov khoom sib txuas hauv qhov chaw tsawg dua, uas txhais tau tias muaj kev sib kis ntau dua. Ib qho hmoov av ib zaug ntawm lub ntsej muag kawg ntawm ferrule tuaj yeem cuam tshuam qhov poob ntawm 1dB lossis ntau dua - uas yog qhov sib npaug ntawm kev ntxiv 400 meters ntawm fiber ntau rau koj qhov txuas.

Kev kho yog yooj yim tab sis tsis yog - sib tham tau: tshuaj xyuas thiab ntxuav txhua qhov txuas ua ntej sib yuav. Ib qho -nias cov tshuaj ntxuav ua haujlwm rau kev kho sai; rau cov kab mob qias neeg, IPA-dawb lint-dawb so tom qab los ntawm cov ntaub so qhuav. Ib txwm tshuaj xyuas tom qab ntxuav kom paub tseeb.

Yog tias koj pab neeg tsis tau ua qhov kev ntseeg no, pib. Nws tiv thaiv daim pib teeb meem ntau dua li lwm yam kev coj ua.

Thaum twg The Premium Them Nqi?

Wb tham cov lej. Tus nqi sib kis ntawm hom connector yog tiag tiag tab sis feem ntau me dua li cov neeg xav tias:

Tus nqi kwv yees; Nws txawv ntawm qhov ntim, fiber ntau, thiab tus neeg muag khoom.

Kev so-txawm yog lej nyob ntawm koj tus nqi zog thiab kev xa tawm. Rau 1,000-cable xa mus qhov twg uniboot txuag 2 feeb ib cable thaum lub sijhawm teeb tsa, koj tab tom saib kwv yees li 33 teev ntawm kev txuag nyiaj. Ntawm $ 75 / teev tag nrho cov neeg siv khoom thauj khoom tus nqi, qhov ntawd yog $ 2,500-feem ntau txaus los npog cov khoom sib txuas nrog cov npoo sab laug.

Qhov twg tus lej tau txais yuam kev yog nyob rau hauv kev saib xyuas tsis tu ncua. Yog tias koj qhov chaw pom 50 thaj txav mus rau ib hlis thiab thawb- rub cov tabs txuag 5 vib nas this ntawm ib qho kev txav thaum tiv thaiv ib qho kev sib tsoo tsis sib xws hauv ib hlis, tus nqi sib npaug ntau dua 5-xyoo kev tsim kho lub neej ntxiv.

TCO Case Study: Mid -Size Financial Data Center

Peb nyuam qhuav ua tiav tag nrho cov nqi ntawm cov tswv cuab tsom xam rau cov kev pabcuam nyiaj txiag rau cov neeg siv khoom tsiv lawv cov huab cua ntiag tug. Nov yog cov lej tiag tiag zoo li:

Deployment Profile:

Qhov chaw loj: ~ 120 txee

Scope: Core hloov txheej rau kev faib tawm, 5,000 LC -LC thaj cables

Kev sib piv: Standard duplex LC vs. uniboot nrog thawb- rub tabs

Tus nqi sib piv:

Kev ua haujlwm suav ntawm $ 75 / teev tag nrho loaded. Cov xwm txheej rov qab los suav nrog lub sijhawm kws tshaj lij ntxiv rau kev kwv yees kev cuam tshuam kev lag luam.

Cov khoom siv nyiaj ua ntej tau txais txiaj ntsig tseem ceeb los ntawm kev teeb tsa kev ua haujlwm txuag hauv ib xyoos. Los ntawm xyoo peb, tus neeg siv khoom tau ua ntej-thiab tsib- xyoo TCO tau pom ze li ntawm $ 24,000 hauv kev txuag ntawm kev xa tawm me me. Rau cov chaw loj lossis cov uas muaj ntau dua MAC, ROI ncua sij hawm compresses loj.

Kev cai TCO Analysis

Xav pom cov lej rau koj ib puag ncig tshwj xeeb? Peb muab TCO qauv pub dawb rau cov sijhawm tsim nyog. Muab koj cov ntaub ntawv chaw nyob - suav cov txee, MAC ntim, tus nqi ua haujlwm, hom txuas tam sim no- thiab peb yuav tsim qhov kev sib piv customized uas qhia txog cov nqi them rov qab thiab ncua sij hawm them rov qab.

Ua Tus Hu

Nov yog tsob ntoo txiav txim siab peb taug kev cov neeg siv khoom:

Qhov feem ntau yuam kev peb pom? Tshaj -qhia nyob rau hauv qis- qhov chaw ntom ntom thaum nyob hauv - qhia qhov tseeb qhov tseem ceeb. Ib qho chaw uas tso cov khoom sib txuas hwm txhua qhov chaw yog nkim nyiaj. Ib qho chaw uas skimps ntawm connectors nyob rau hauv lawv 96-chaw nres nkoj aggregation panels yog tsim rau yav tom ntej mob taub hau. Sib piv cov kev daws teeb meem rau cov kev txwv tshwj xeeb hauv txhua cheeb tsam ntawm koj cov infrastructure.

Rau cov koom haum tsim qauv kev sib txuas lus tshwj xeeb thoob plaws ntau qhov chaw, cov txheej txheem xaiv cov khoom siv fiber ntau tau txais txiaj ntsig los ntawm ob txhais tes- ntawm kev ntsuam xyuas nrog cov vaj huam sib luag tiag tiag. Cov khoom siv ua piv txwv cia koj pab neeg xav tias qhov sib txawv ua ntej cog lus rau kev txiav txim loj.

Design Consultation Service

Npaj kev tsim kho tshiab lossis kev txhim kho loj? Peb pab pawg kws tshaj lij tuaj yeem tshuaj xyuas koj lub network topology thiab pom zoo kom muaj lub tswv yim sib txuas ua kom zoo rau koj cov kev xav tau tshwj xeeb:

Kev tsim kho cov ntaub ntawv: ua kom tiav cov sijhawm cable nrog qhov ntev, qhov ntau, thiab cov lus qhia tshwj xeeb

Kev ua kom zoo ntev ntev: txo cov khoom pov tseg thiab txhim kho kev zoo nkauj nrog txoj cai - cov cables loj

Kev npaj xa mus rau theem: Ua ntej siab - thaj chaw cuam tshuam, ncua qis dua - kev hloov pauv tus nqi

Kev sau ntawv tshwj xeeb: Pab koj pawg neeg yuav khoom tawm qhov tseeb, raug RFQs

Qhov kev pabcuam no yog pub dawb rau cov haujlwm tshaj qhov ntim tsawg kawg nkaus.

Tom ntej no yog dab tsi

Lub LC fiber connector tau ua cov ntaub ntawv chaw ua haujlwm rau ob xyoo lawm, thiab nws yuav tsis mus qhov twg sai sai no. Tab sis txoj kev uas peb siv LC yog hloov zuj zus mus - cov vaj huam sib luag denser, qhov chaw nruj dua, cov ntaub ntawv ntau dua. Uniboot thiab thawb- rub cov qauv yog cov lus teb ncaj qha rau qhov tseeb.

Yog tias koj tab tom npaj cov txheej txheem uas yuav tsum tau ntsuas los ntawm 100G hnub no mus rau 400G lossis 800G tag kis, qhov kev txiav txim siab txuas koj ua tam sim no yuav txhawb nqa qhov kev loj hlob lossis txwv nws. Tau txais txoj cai upfront yog pheej yig dua li retrofitting tom qab.

Cov lus nug txog kev teeb tsa tshwj xeeb lossis xav tau kev pab spec'ing kev xa tawm? Peb pawg kws tshaj lij tau pom feem ntau ntawm cov rooj plaub ntug thiab tuaj yeem taw qhia koj txog qhov ua haujlwm hauv ib puag ncig zoo sib xws.

Cov ntaub ntawv

Telecommunications Industry Association. TIA-568.3-D: Optical Fiber Cabling thiab Cheebtsam Standard.

IEC 61754-20:2012 - Fiber optic interconnecting devices thiab passive Cheebtsam - Fiber optic connector interfaces - Hom LC connector tsev neeg.

Corning Optical Communications. "800G: Dab tsi Data Center Cov Neeg Ua Haujlwm Yuav Tsum Paub." Technical Brief, 2024.

IEEE 802.3cu-2021 - Tus Qauv rau Ethernet Hloov Kho: Lub Cev Lub Cev thiab Cov Txheej Txheem Kev Tswj Xyuas rau 100 Gb/s thiab 400 Gb/s Kev Ua Haujlwm dhau ib zaug-Mode Fiber.
