MDU yog dab tsi? (Lub tswv yim)

MDU sawv cev rau Multi-Dwelling Unit. Hauv kev lag luam hauv xov tooj thiab kev sib txuas lus, lo lus no hais txog lub tsev nrog ntau tsev neeg ywj pheej. Cov piv txwv muaj xws li cov tsev tsev, cov tsev kawm ntawv cov tsev so, tsev so, thiab cov tsev ua haujlwm.

Cov ntsiab lus MDU fiber ntau lossis MDU fiber ntau optic hais txog kev xa tawm fiber ntau-rau--tsev (FTTH) tes hauj lwm rau ntau- tsev tsev. Qhov no yog ib txoj kev xa tawm txawv dua li kev xa mus rau cov tsev nyob (SDU, Ib Leeg-Lub Tsev Nyob):

Kev sib piv	SDU	MDU
Cov neeg siv kev faib tawm	Tshaj tawm, ib tsev neeg ib lub qauv	Concentrated, ntau units ib lub tsev
Kev siv Cable	Dedicated cable rau ib tsev neeg	Sib koom caj qaum, branched te
Txoj kev sib cais	Feem ntau sab nraum zoov	Tiered splitting hauv lub tsev
Cable Complexity	Yooj yim	Yuav tsum tau ua tib zoo npaj

Tau txais lub tswv yim tseem ceeb ntawm MDU yog dab tsi hauv kev sib txuas lus, tam sim no peb muaj kev nkag siab zoo dua ntawm kev xa ib qho kev daws teeb meem MDU fiber ntau.

Cov lus qhia no tuaj yeem daws teeb meem dab tsi rau koj?

Qhov no yog ib qho kev qhia ua haujlwm fiber ntau MDU. Txawm hais tias koj yog tus kws tshaj lij network npaj MDU fiber optic project / tus neeg yuav khoom uas yuav tsum nkag siab lub ntsiab lus ntawm MDU hauv xov tooj / tus thawj tswj vaj tsev uas xav nkag siab tias MDU sawv cev rau hauv xov tooj.

Los yog tsuas yog ib tus neeg nyiam tshaj lij uas xav nkag siab cov ntsiab lus ntawm MDU cable cabling, koj yuav pom cov ntaub ntawv tseem ceeb MDU qhov project ntawm no.

Kuv yuav sivEvolux Fiber cov khoomua piv txwv vim tias peb cov khoom lag luam npog cov khoom siv tseem ceeb rau MDU cabling: fiber ntau optic connectors, thaj cords, pigtails, PLC splitters, davhlau ya nyob twg thawv, thiab adapters-cov no yog cov feem ntau siv passive Cheebtsam nyob rau hauv MDU fiber ntau installation.

Cov tswv yim dab tsi yuav tsum tau siv rau ntau qhov sib txawv ntawm MDUs?

Kev nkag siab txog qhov loj ntawm koj MDU yog qhov tseem ceeb ua ntej peb tuaj yeem pib siv lub tswv yim, vim tias txoj kev xa tawm txawv. Qhov no txiav txim seb muaj pes tsawg tus splitters, lub thawv davhlau ya nyob twg, thiab fiber ntau optic cabling koj xav tau. MDU telecom tej yaam num tau muab faib ua peb hom raws li tus naj npawb ntawm cov plag tsev thiab tsev neeg:

MDU hom	Pem teb	Chav tsev	Kabling Strategy	Pom zoo Splitting Architecture
Tsawg-Rise MDU	Tsawg dua lossis sib npaug li 3 plag tsev	Tsawg dua lossis sib npaug li 12 units	Centralized, khoom siv sab nraum lub tsev	Tib -theem 1:16
Nruab nrab -Rise MDU	4-10 pem teb	12-128 units	Distributed, khoom siv chav + pem teb terminals	Ob -theem 1:8 × 1:8
Siab -Rise MDU	>10 pem teb	>128 units	Tiered, ntau chav faib khoom	Ob -theem 1:16 × 1:8

MDU Fiber network zoo li cas?

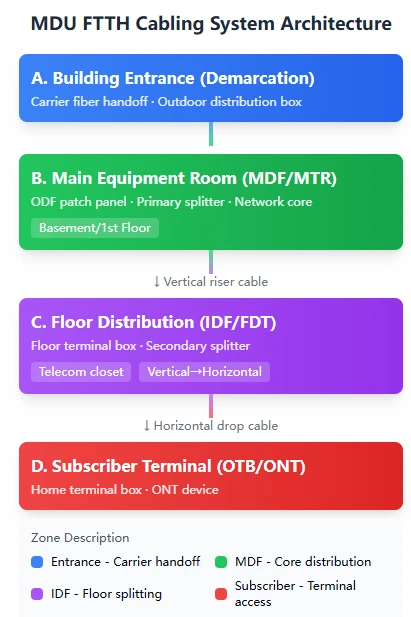

Nov yog daim duab qhia los pab koj nkag siab: Ua tiav MDU fiber optic network muaj plaub thaj chaw, txuas ntxiv los ntawm tus neeg teb xov tooj kawg mus rau tus tswv tsev kawg:

MDU FTTH Cbaling System Architecture

Txoj hauj lwm ntawm MDU fiber ntau installation yog txuas rau plaub thaj chaw siv cov khoom tsim nyog.

Yuav ua li cas configuration yog xav tau rau lub ntsiab khoom siv chav tsev?

Koj puas nco qab qhov loj ntawm koj MDU? Tom qab ntawd peb tuaj yeem pib nkag siab yuav ua li cas teeb tsa cov khoom siv tseem ceeb hauv chav. Chav tsev cov cuab yeej siv tseem ceeb yog lub luag haujlwm tseem ceeb rau kev txiav tawm sab nraud fiber ntau optic, lub ntsiab routing, thiab kev faib tawm, cuam tshuam rau tag nrho cov peev txheej network thiab scalability. Kuv tau teev cov khoom tsim nyog ncaj qha rau koj siv:

Evolux Fiber Recommended Equipment Configuration

Hom khoom siv	Specifications	Daim ntawv thov	Vim li cas thiaj xaiv qhov no
Khib -Mount ODF	4U, 144/288-core	Nruab nrab -MdU loj (60-200 units)	Muaj peev xwm, nthuav dav yooj yim
Swb-Tawm ODF	2U, 48/96-core	Medium MDU (24-60 units)	Kev ua haujlwm yooj yim, tus nqi zoo
Kho ODF	2U, 48-core SC / 96-core LC	Small MDU (<24 units)	Cov qauv yooj yim, tus nqi qis
Phab ntsa-Mount Fiber Box	1U/2U, 12/24/48-chaw nres nkoj	Qhov chaw- txwv qhov xwm txheej	Tsis xav tau qhov chaw hauv pem teb

ODF (Optical Distribution Frame) yog ib qho tseem ceeb ntawm cov cuab yeej siv hauv chav tsim khoom. Evolux's ODF thaj vaj huam sib luag muaj ob peb yam tseem ceeb: zoo nkauj zoo nkauj, tsim nyog thaiv, yooj yim mus nrhiav, thiab yooj yim installation-cov no yog qhov tseem ceeb tshwj xeeb tshaj yog rau kev kho tom qab.

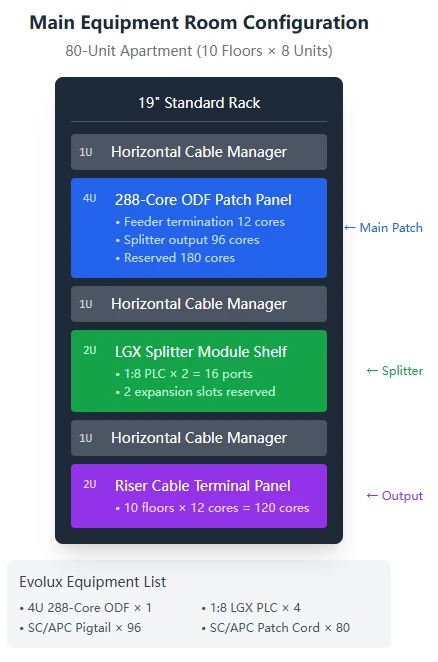

Ib qho piv txwv tshwj xeeb los ntawm Evolux: Cov txheej txheem teeb tsa rau 80- chav tsev nyob nruab nrab-nce

Yog tias koj qhov project tseem yog lub tsev 10-zaj dab neeg nrog 8 units hauv ib pem teb, tag nrho 80 units, ces koj chav tsev khoom tseem ceeb tuaj yeem teeb tsa raws li hauv qab no:

Main Equipment Room Configuration

Cov npe khoom siv hauv kev daws teeb meem:·

4U 288-core khib-mount ODF × 1
1:8 LGX PLC splitter × 4 (2 nyob rau hauv kev siv, 2 ntawm standby)
SC/APC pigtail 1m × 96
SC / APC thaj qaum 2m × 80
1U kab rov tav cable tswj khib × 3

PLC optical splitter yog dab tsi? Nws siv li cas hauv MDU?

Cov neeg ua haujlwm tsuas yog muab 1-2 fibers optical (xws li 1-2 PON chaw nres nkoj) lossis qee cov fibers tsawg, tab sis peb yuav tsum txuas rau kaum lossis ntau pua tsev neeg. Nyob rau hauv cov ntaub ntawv no, ib tug optical splitter yog siv los daws qhov teeb meem no los ntawm "tig ib tug mus rau hauv ntau." Lub PLC optical splitter siv lub hauv paus ntsiab lus ntawm kev kho qhov muag waveguide rau "kev sib cais" ib lub teeb ntawm lub teeb rau hauv ntau lub teeb. Piv txwv li, 1: 8 splitter muaj 1 input thiab 8 outputs, nrog rau txhua qhov tso zis muaj kwv yees li 1/8 ntawm lub teeb liab thawj lub zog.

Cov xwm txheej sib txawv ntawm daim ntawv thov yuav tsum tau siv cov splitters nrog cov khoom siv sib xws:

Hom pob	Cov yam ntxwv loj	Qhov twg rau nruab	Thaum siv
Liab Fiber	Tsawg tshaj plaws	Yuav tsum muaj kev tiv thaiv ntxiv	Kev cai splicing scenarios
Mini Hlau Tube	3 × 40mm	Sab hauv lub thawv terminal	Thawj qhov kev xaiv rau pem teb splitting
ABS Box	100 × 80 × 10mm	Standalone installation	Sab nraum zoov lossis qhov chaw dav
LGX Cassette	Standard module	Hauv ODF khib	Cov khoom siv tseem ceeb hauv chav splitting
Txuas - hauv daim npav	Daim npav - loj	Distribution box slots	Pem teb faib lub thawv

Splitting Ratio Reference Table:

Split Ratio	Theoretical Poob	Loss tiag	Daim ntawv thov
1:2	3.0dB ua	3.2-3.8 dB	Cascade ua ntej-theem
1:4	6.0dB ib	6.5-7.2 dB	Me me qis-nce MDU
1:8	9.0db ua	9.5-10.5 dB	Medium MDU, feem ntau
1:16	12.0 dB	12.5-13.5 dB	Centralized splitting
1:32	15.0 dB	15.5-17.0 dB	Loj MDU thawj splitting
1:64	18.0 dB	18.5-20.5 dB	Ultra- cov xwm txheej ceev heev

Koj puas yuav tsum xaiv ib qho -theem lossis ob-theem splitting?

Ib leeg-theem splitting yuav muab ib tug loj splitter (piv txwv li, 1:32) nyob rau hauv qab daus, ncaj qha faib cov fiber rau txhua tsev neeg mus rau 32 txoj kev. Txoj hauv kev no yog qhov yooj yim hauv cov qauv thiab muaj cov ntsiab lus sib cais tsawg dua, tab sis cov cabling yog qhov nyuaj vim muaj ntau cov fiber ntau optic cables.

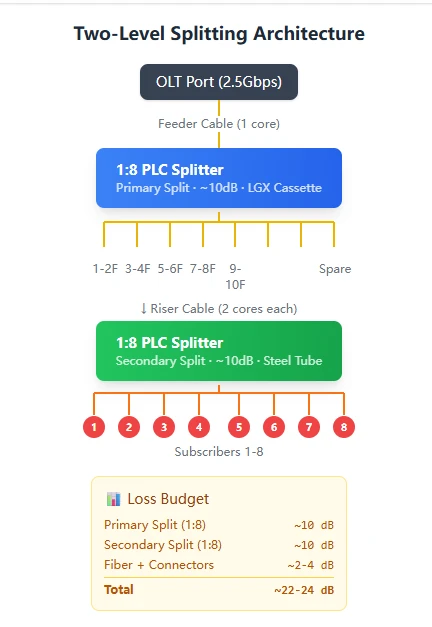

Ob -theem splitter yuav tsum tso ib tug 1: 8 splitter rau hauv qab daus, thiab ces lwm 1: 8 splitter nyob rau hauv txhua pem teb, zoo pab 8 x 8=64 tsev neeg. Txoj kev no yuav tsum tau siv fiber ntau optic cables tsawg dua thiab hloov tau yooj yim dua, tab sis qhov sib cais ntxiv ua rau cov fiber ntau poob los ntawm kwv yees li 10dB.

Two-Level Splitting Architecture

Rau MDUs uas muaj ntau tshaj 30 tsev neeg, peb pom zoo kom ob-theem splitting. Qhov no yog txoj hauv kev tseem ceeb rau MDU fiber ntau installation.

Yuav ua li cas xaiv lub thawv davhlau ya nyob twg?

Hauv pem teb thaiv qhov chaw yog qhov "kev sib tshuam taw tes" ntawm ntsug qaum kho qhov muag cables thiab kab rov tav kab rov tav - cov kab hluav taws xob kho qhov muag nyob rau hauv riser "av" ntawm no, thiab tom qab ntawd ceg mus rau ntau qhov kev kho qhov muag txuas mus rau txhua tsev neeg.

Sab Hauv Tsev Terminal Boxes

Khoom	Chaw nres nkoj suav	Qhov Loj (mm)	Nta	Daim ntawv thov
Mini Terminal Box	2- chaw nres nkoj	86×86×23	Ultra-nyias, phab ntsa-flush mount	Subscriber nkag
Standard Terminal Box	4- chaw nres nkoj	120×80×25	Phab ntsa-mount, dawb tiav	Subscriber/me me pem teb
Nruab nrab Terminal Box	8- chaw nres nkoj	180×120×35	Ua tau - hauv splice tais	Kev faib tawm hauv pem teb
Loj Terminal Box	16/24 - chaw nres nkoj	280×200×50	Yuav tsev splitter	Pem teb loj faib

Sab nraum zoov Waterproof Terminal Boxes

Yog tias lub txee dai khaub ncaws ntub dej, lossis qhov chaw faib khoom yog sab nraum zoov, siv hom dej tsis zoo:

Khoom	Chaw nres nkoj suav	Kev tiv thaiv ntsuas	Daim ntawv thov
8-Port Waterproof Box	8- chaw nres nkoj	IP65	Damp ib puag ncig/semi- sab nraum zoov
16-Port Waterproof Box	16 - chaw nres nkoj	IP65	Pem teb sab nrauv faib
24-Port Waterproof Box	24- chaw nres nkoj	IP65	Cov plag tsev loj/ntau- cab kuj

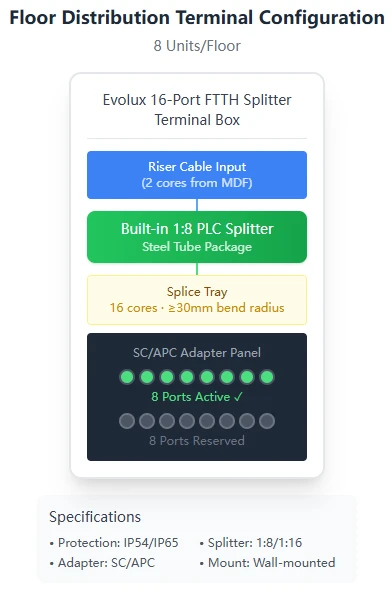

Floor Terminal Box Installation Diagram:

Floor Distribution Terminal Configuration

Yuav ua li cas xaiv fiber ntau optic cable? Hom twg yuav tsum siv rau qhov chaw sib txawv?

MDU cable xaiv yuav tsum tau txiav txim siab ntawm qhov chaw teeb tsa, cov ntsiab lus suav suav, thiab nplaim taws- ntsuas qhov ntsuas tsis zoo. Ntau hom fiber ntau optic cables yog siv nyob rau hauv ntau qhov chaw:

Riser Backbone Cables

Yam khoom qauv	Core suav	Hom Fiber	Jacket	Kev ntsuas hluav taws	Daim ntawv thov
GJFJV	2-24 core	G652D/G657A1	LSZH	Riser	Sab hauv riser thawj xaiv
GJSFJV	6-24 hli	G657A1	LSZH + Hlau daim kab xev	Riser	Thaum xav tau kev tiv thaiv ntxiv
GYFTY	12-288 : kuv	G652D	PE	Sab nraum zoov- ntsuas	Sab nraum lub tsev nkag

Kab rov tav Distribution Cables

Yam khoom qauv	Core suav	Hom Fiber	Jacket	Nta	Daim ntawv thov
GJXZY	2-24 core	G657A2	LSZH	Micro-tube, hloov tau	Kev faib tawm Hallway
GJPFXJH	12-48 hli	G657A	LSZH	Multi-cov tub ntxhais kaw ntom nti	FTTB pem teb

Tso Cable

Yam khoom qauv	Core suav	Sab nraud	Hom Fiber	Jacket	Daim ntawv thov
GJXFH (Butterfly)	1-4 core	2 × 3mm	G657A1/A2	LSZH	Hauv tsev poob
GJXFH (Tus kheej-Kev txhawb nqa)	1-4 core	2 × 5mm	G657A2	LSZH + Hlau Hlau	Aerial poob
GJYXFCH	2-12 core	Hloov	G657A2	LSZH	Aerial / sab nraum zoov
Tight Buffer	1-2 core	3.6-4.8 hli	G657A1	LSZH-OFNP	Cov kab hluav taws xob sab hauv

Ua MDU xav tau G657 fiber optic cable rau kev teeb tsa hauv tsev?

G657 series yog "khoov-sensitive fiber," txhais tau tias nws tuaj yeem ua haujlwm nrog lub vojvoog me me heev yam tsis muaj qhov poob ntxiv. Qhov no ua rau nws zoo tagnrho rau txoj hauv kev cov ces kaum thiab nruj conduit khoov.

Txuj	Yam tsawg kawg nkaus Khoov Radius	Ntxiv Loss @1550nm	Evolux khoom
G.657A1	10 mm	Tsawg dua los yog sib npaug rau 0.25 dB @ 10mm / 10 lem	Standard poob cable
G.657A2	7.5mm ib	Tsawg dua los yog sib npaug rau 0.03 dB @ 15mm / 10 lem	Tight qhov chaw poob
G.657B3	5 hli	Tsawg dua los yog sib npaug rau 0.15 dB @ 5mm / 1 tig	Khoov heev scenarios

Lub thawv fiber optic davhlau ya nyob twg nyob qhov twg?

Lub thawv fiber ntau optic davhlau ya nyob twg yog qhov kawg nres rau fiber ntau optic cables kom ncav cuag tus neeg siv lub tsev - optical modem (ONT) txuas ntawm no.

Tsev Terminal Box Xaiv

Scenario	Cov khoom pom zoo	Specifications	Nta
Standard Residential	Mini FTTH Terminal Box	2- chaw nres nkoj, dawb	86-hom vaj huam sib luag, phab ntsa-khoov mount
Upscale Residential	Recessed Terminal Box	2-chaw nres nkoj, zais	Coordinates nrog décor
Cov neeg siv khoom lag luam	Standard Terminal Box	4- chaw nres nkoj	Txhawb ntau ONTs lossis cov kab thaub qab
Sab nraum zoov ONT	Waterproof Terminal Box	2-chaw nres nkoj, IP65	Sab nraum zoov installation, waterproof

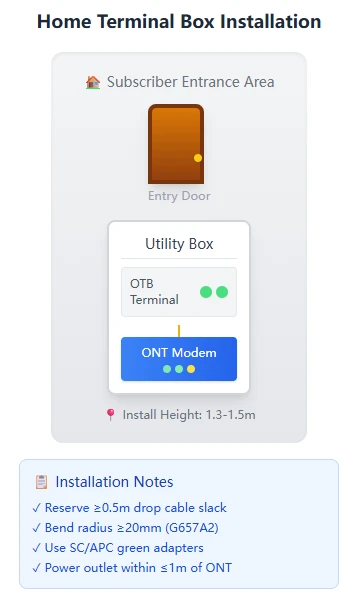

Installation Location thiab Key Points Diagram:

Home Terminal Box Installation

Fiber Optic Connectors thiab Adapters: Cov khoom siv me me no tseem ceeb heev

Hauv MDU fiber ntau tes hauj lwm, connectors thiab adapters, txawm tias me me, yog siv nyob rau hauv ntau qhov ntau thiab ua lub luag haujlwm tseem ceeb -lawv yog lub luag haujlwm rau "plug-thiab-play" kev sib txuas ntawm optical fibers.

Common Connector Hom

Hom	Qhov tshwm sim	Kev siv tseem ceeb
SC/APC	Ntsuab square taub hau	PON network tus qauv, xav tau rau MDU
SC/UPC	Blue square taub hau	Tsis yog-PON scenarios
LC	Lub taub hau me me	High- qhov xwm txheej ceev, feem ntau hauv ODF
FC	Round threaded taub hau	Cov cuab yeej cuab tam qub

Peb pom zoo kom siv SC / APC nrog cov txuas ntsuab tsis tu ncua. Qhov no yuav pab kom tsis txhob muaj qhov tsis raug.

Yuav ua li cas txog MDUs loj?

Peb tuaj yeem siv cov kev daws teeb meem siab -MPO/MTP:

Rau loj MDU fiber optic tej yaam num nrog ntau tshaj 200 cov neeg siv, ib txwm ib txwm - cov tub ntxhais connectors yog heev tsis zoo. Evolux's MPO / MTP kev daws teeb meem tuaj yeem txhim kho kev xa mus ua haujlwm tau zoo.

MPO / MTP thaj vaj huam sib luag specifications

Khoom	Specifications	Core Density	Daim ntawv thov
MPO/MTP Patch Vaj Huam Sib Luag 1U	96-ntu	96 cores / 1 U	Nruab nrab MDU lub ntsiab faib
MPO/MTP Patch Vaj Huam Sib Luag 1U	144-ntu	144 cores / 1 U	Loj MDU lub ntsiab faib
MPO/MTP Patch Vaj Huam Sib Luag 3U	288-ntu	96 cores / U	Ntxiv - loj MDU
MPO / MTP Patch Vaj Huam Sib Luag 4U	384/576-ntu	96-144 cores / U	Qib Data Center

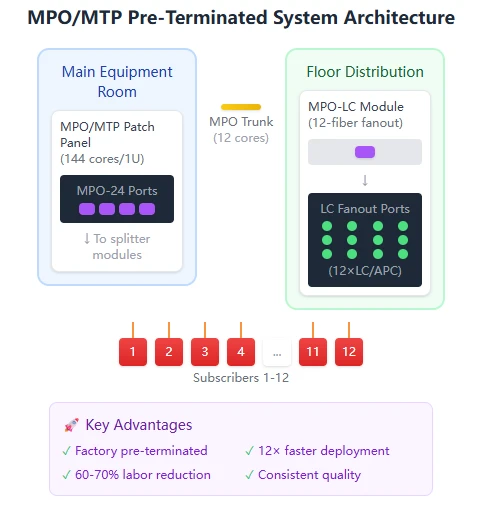

Qhov zoo ntawm MPO ua ntej-tawm tshuab:

MPO/MTP Pre-Terminated System Architecture

Cov lus nug nquag

Product Quick Lookup & Poob xam

Yuav Ua Li Cas Xaiv ODF Patch Vaj Huam Sib Luag?

Tus neeg siv Scale	Cov khoom pom zoo	Specifications	Hom Connector
<20 units	1 ua fix	24-core	SC
20-40 units	1U Swb-Tawm	48-core	SC / LC
40-80 units	2U Swb-Tawm	96-ntu	LC
80-150 units	4U Rack-Rack	144-ntu	LC
150-250 units	4U Rack-Rack	288-ntu	LC/MPO
250+ units	MPO Siab -Density	576-npo +	MPO-LC

Yuav xaiv Splitter li cas?

Splitting theem	Split Ratio	Hom pob	Qhov chaw teeb tsa
Thawj theem	1:8/1:16	LGX Cassette	ODF khib
Qhov thib ob	1:8	Hlau Tube / ABS Box	Pem teb terminal box
Theem ib leeg	1:16/1:32	ABS Box	Sab nraum zoov faib lub thawv

Yuav xaiv Cable li cas?

Qhov chaw thov	Cov khoom pom zoo	Core suav	Hom Fiber
Sab nraum zoov Feeder	GYFTY	12-48 hli	G652D
Sab hauv tsev Riser	GJFJV	24-48 : kuv	G657A1
Hallway Kab rov tav	GJXZY	12-24 hli	G657A2
Nyob sab hauv tsev	GJXFH/Tight Buffer	1-2 core	G657A1/A2
Tawm sab nraum zoov	GJXFH Tus Kheej -Kev txhawb nqa	1-2 core	G657A2

Yuav xaiv Terminal Box li cas?

Qhov chaw teeb tsa	Cov khoom pom zoo	Chaw nres nkoj suav	Kev tiv thaiv ntsuas
Subscriber nkag	Mini Terminal Box	2- chaw nres nkoj	IP20
Floor Closet (hauv tsev)	Standard Terminal Box	8/16 - chaw nres nkoj	IP54
Pem teb txee (Damp)	Waterproof Terminal Box	8/16/24 - chaw nres nkoj	IP65
Sab nraum zoov Distribution	Waterproof Distribution Box	16/24 - chaw nres nkoj	IP65

Yuav xam Li Cas Loss Budget?

PON systems muaj kev txwv kev siv nyiaj txiag (feem ntau 28-32dB). Tshaj nws thiab koj yuav muaj kev tso tseg. Thaum ua MDU fiber ntau installation, koj yuav tsum xam cov nyiaj poob ua ntej.

Loss Sources

Hom poob	Tus nqi	Sau ntawv
Fiber poob	0.35-0.4 dB/km	Ob peb puas meters ntawm lub tsev ntxiv 1-2dB
Splitter Loss	10-17 dB	Nyob ntawm qhov sib cais
Connector Poob	0.3-0.5 dB / ib	Txhua qhov sib txuas sib txuas
Splice Loss	0.05-0.1 dB / txhua	Nrog zoo splice zoo
