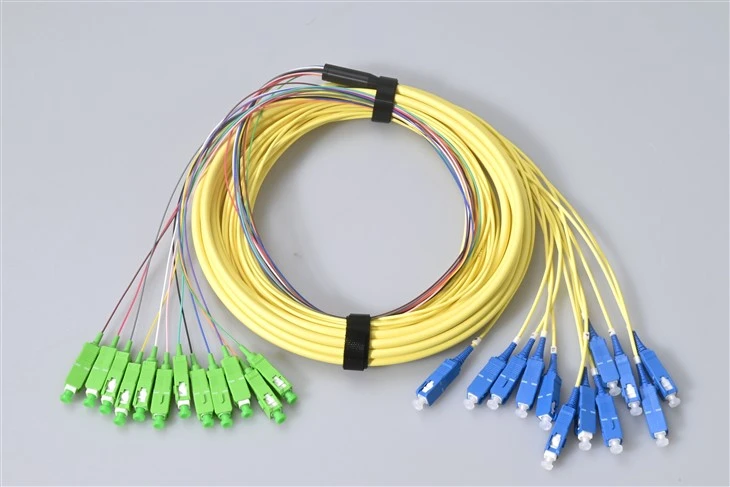

Dab tsi yog 12-Core SC Fiber Optic Patch Cord?
Lub 12-core SC fiber optic thaj qaum sib sau ua ke 12 tus neeg fibers rau hauv ib lub cable, ua kom yooj yim rau kev tswj hwm fiber ntau hauv cov chaw zov me nyuam thiab chaw sib tham hauv xov tooj. Nws ntaSC fiber ntau optic connectorsnrog UPC polishing ntawm ib kawg thiab APC polishing ntawm lwm qhov, ua kom ncaj qha kev sib txuas ntawm ntau hom sib txawv yam tsis muaj kev hloov pauv hloov pauv. Los ntawm kev hloov ntau yam simplex lossis duplex thaj qaum, qhov no 12-fiber SC jumper cable ua rau txo cov khib nyiab khib nyiab thiab cable tais ntim.
Muaj nyob rau hauv Singlemode OS2 (9/125µm, G.657.A1) thiab Multimode OM1–OM5 (50/125 & 62.5/125µm), qhov SC UPC rau APC hybrid thaj qaum txhawb kev sib txuas ceev ntawm 1G txog 400G Ethernet. Nws yog ib qho kev daws teeb meem rau kev hla - txuas ODF thav duab,PLC splitterkev sib txuas, los yog streamlining fiber faib nyob rau hauv GPON central chaw ua hauj lwm thiab cov ntaub ntawv chaw faib terminals.
Specification
| Parameter | Chav tsev | FC, SC, LC / Armored fiber ntau thaj qaum | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion poob (tseem ceeb) | dB | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.3 |
| Rov qab poob | dB | Ntau dua lossis sib npaug li 45 | Ntau tshaj los yog sib npaug rau 50 | Ntau tshaj los yog sib npaug rau 60 | Ntau tshaj los yog sib npaug rau 30 | Ntau dua lossis sib npaug li 45 | Ntau tshaj los yog sib npaug rau 50 | Ntau tshaj los yog sib npaug rau 30 | Ntau dua lossis sib npaug li 45 | Ntau tshaj los yog sib npaug rau 50 | Ntau dua lossis sib npaug li 35 | Ntau dua lossis sib npaug li 55 | Ntau dua lossis sib npaug li 75 |
| Ua haujlwm wavelength | nm | 1310, 1550 | 1310, 1550 | 1310, 1550 | 1310, 1550 | ||||||||
| Exchangeability | dB | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | ||||||||
| Kev vibration | dB | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | ||||||||
| Ua haujlwm kub | degree | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Cia kub | degree | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable txoj kab uas hla | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Connectivity Solutions
Chaw Ua Haujlwm Central: OLT → ODF
Txuas lub APC kawg rau hauv GPON/XGS-PON OLT (uas yuav tsum tau qis rov qab- rov qab) thiab UPC kawg rau hauv ODF thaj vaj huam sib luag. Ib tug 12-core SC fiber thaj cable hloov ib lub kaum os tus neegSC singlemode fiber ntau optic thaj qaum, txiav lub sij hawm installation thiab cable tais sau txog li 80%. Singlemode OS2 txhawb kev sib kis mus txog 20 km ntawm 1310/1550 nm.
Data Center: Patch Vaj Huam Sib Luag Hla-Txuas
Siv siab -qhov ceev SC cross- txuas ntawm MDA thiab EDA qhov chaw faib khoom. Ib qho 12-fiber SC cable rub muab 12 qhov txuas txuas rau nplooj ntawv- qaum lossis rog- tsob ntoo topologies. Siv OM3 / OM4 multimode rau 10G / 25G / 40G / 100G luv-mus txog kev sib tshuam.
Nta
Tight-Buffered 12-Fiber Cable
Lub nruj- cov qauv buffered tiv thaiv tag nrho 12 fiber ntau cores thiab txuas ntxiv lub neej muaj txiaj ntsig ntawm SC fiber ntau thaj cable. Aramid yarn reinforcement muab ntau dua los yog sib npaug rau 100 N tensile lub zog rau txhim khu kev qha rub hauv cov neeg coob coob.
Singlemode & Multimode SC Options
Muaj nyob rau hauv singlemode (9/125µm, OS2 G.657.A1) thiab multimode (50/125 & 62.5/125µm, OM1–OM5). Jacket xaiv muaj xws li LSZH (default), OFNR riser (UL 1666), thiab OFNP plenum (UL 910) kom tau raws li cov cai hauv tsev sib txawv.
Yooj yim Push-Pull Operation
Lub SC fiber optic connector nta lub laub-rub snap- hauv kev tsim zoo ib yam li RJ-45. Cov cuab yeej no- pub dawb mechanism tso cai rau koj thawb rau lub rooj thiab rub kom tso tawm - tsis tas yuav tsum muaj kev sib tw - ua kom qhov chaw nres nkoj siab ceev thiab txhim khu kev qha.
Tsawg dua los yog sib npaug rau 0.2 dB Low Insertion Poob
Tsawg dua lossis sib npaug li 0.2 dBqis insertion poobnrog precision zirconia ceramic ferrule maximizes optical teeb liab lub zog thiab kis tau tus mob zoo. Txhawb nqa 500+ mating cycles tsawg dua lossis sib npaug li 0.1 dB repeatability.
Tsim los rau Sab Hauv Tsev Siab -Ntev Fiber Installation
Engineered rau siab - daim ntawv thov ceev- txo qis cable khib nyiab, optimizing fiber ntau tswj, thiab ceev xa mus rau cov nqi qis dua.
Daim ntawv thov
FTTH/FTTx & PON Networks
- OLT-rau-ODF siab- qhov ntom ntom patching hauv cov chaw ua haujlwm hauv nruab nrab
- GPON / XGPON / XGS-PON splitter ncej txuas
- SC APC / UPC hybrid bridging tsis hloov pauv hloov pauv hloov
Data Centers & Enterprise
- MDA / EDA thaj vaj huam sib luag hla- txuas
- ToR thiab EoR hloov fiber ntau interconnection
- 1G txog 400G Ethernet caj qaum txuas
Kev sib txuas lus
- DWDM / CWDM mux / demux module patching
- 4G / 5G puag chaw nres tsheb fronthaul thiab backhaul
- CATV headend analog teeb liab infrastructure
Kev Xeem & Tshwj Xeeb
- OTDR tso tawm cable thiab ntxig tsis siv
- Ntau-channel R&D kho qhov muag kuaj lub rooj zaum
- Kev kho mob thiab muaj fiber ntau sensor tes hauj lwm
FAQ
Q: Dab tsi yog qhov txawv ntawm UPC thiab APC xaus ntawm SC fiber ntau thaj qaum?
A: APC kawg (ntsuab) muaj 8-degree angled ferrule - rov poob ntau dua lossis sib npaug li 60 dB, xav tau los ntawm cov khoom siv PON thiab CATV transmitters. UPC kawg (xiav) muaj lub tiaj dome polish ntawm Ntau dua lossis sib npaug ntawm 50 dB (singlemode) lossis Ntau dua lossis sib npaug rau 30 dB (multimode), tus qauv rau Ethernet keyboards. Qhov no SC UPC rau APC hybrid thaj qaum txuas ob hom sib txuas yam tsis muaj kev hloov pauv hloov pauv. Ntsuab ib txwm mus rau APC adapters, xiav rau UPC.
Q: Puas yog qhov no 12-core SC thaj qaum muaj nyob rau hauv ob qho tib si thiab ntau hom?
A: Yog. OS2 singlemode (G.657.A1, 1310/1550 nm, mus txog 40 km+) thiab txhua qib multimode: OM1 (62.5/125), OM2, OM3, OM4, OM5 (50/125, 850/1300 nm). Qhia hom fiber ntau thaum xaj; tsis muaj nqi ntxiv rau cov qib txheem.
Q: Vim li cas thiaj xaiv 12-fiber SC jumper cable es tsis txhob siv cov hlua ib leeg?
A: Ib qho 12-core cable hloov kaum ob caisSC fiber ntau optic thaj qaum. Cable tray filling poob kwv yees li 80%, kev teeb tsa sai dua, thiab txhua qhov fiber ntau yog TIA-598 xim-coded rau kev txheeb xyuas cov channel tam sim. Hauv siab - qhov ceev ODF lossis cov ntaub ntawv chaw hla kev sib txuas, qhov sib txawv ntawm kev tswj lub sijhawm thiab kev huv ntawm khib yog qhov tseem ceeb.
Q: Kuv yuav tsum tau txais dab tsi los ntawm SC fiber thaj cable?
A: Specification tsawg dua lossis sib npaug rau 0.2 dB (UPC) thiab Tsawg dua lossis sib npaug rau 0.3 dB (APC). Feem ntau cov khoom xa tuaj nyob ib ncig ntawm 0.12–0.15 dB rau UPC, 0.15–0.18 dB rau APC - txhua tus tub ntxhais kawm ib tus zuj zus. Cov ntaub ntawv xeem suav nrog yam tsis tau them nqi ntawm kev thov.
Q: Kuv puas tuaj yeem ntsaws SC APC connector rau hauv UPC chaw nres nkoj?
A: Tsis txhob. Lub kaum sab xis 8-degree tsim qhov sib txawv ntawm huab cua tiv thaiv lub tiaj tus adapter - koj yuav pom 2–3 dB + poob thiab muaj kev pheej hmoo khawb ob qho tib si ferrules. Qhov ntawd yog dab tsi no hybrid SC thaj qaum tiv thaiv: txhua qhov txuas tsuas yog ua tau raws li nws hom kev hloov pauv hloov.
Q: Kuv yuav xaiv lub tsho twg rau 12-core SC fiber ntau cable?
A: LSZH(default) - cov pa luam yeeb tsawg, xoom halogen, ua raws li cov cai hluav taws kub thoob ntiaj teb feem ntau.OFNR- UL 1666 riser- ntsuas rau ntsug khiav.OFNP- UL 910 plenum- ntsuas rau huab cua- tuav qhov chaw.PVC- general-lub hom phiaj, tus nqi qis tshaj. Txhua qhov kev xaiv sib qhia tib lub sijhawm ua haujlwm.
