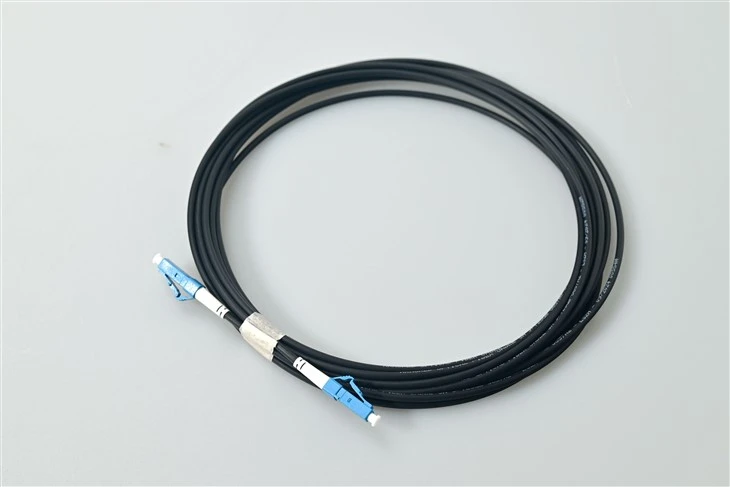

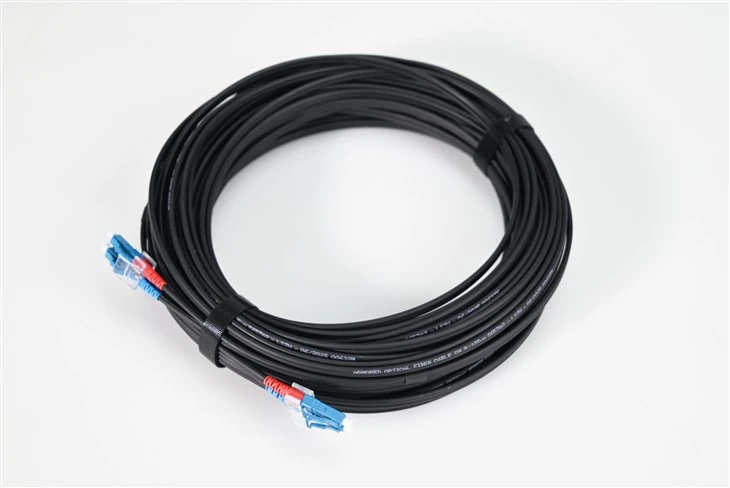

LC LC thaj cable yog dab tsi?
LC -LC fiber ntau optic thaj qaumyog ib tug me me compact thaj cable nrov heev siv nyob rau hauv ntau daim ntaub ntawv. Cov kev daws teeb meem hauv lub network no suav nrog kev sib txuas lus hauv xov tooj, LANs, cov ntaub ntawv ua haujlwm, kev txiav cov cuab yeej thiab cov chaw faib khoom. LC-LC patch cords yog tsim los xa cov kev daws teeb meem ceev Ethernet hauv Gigabit daim ntawv thov thiab ATM daim ntawv thov nrog qhov chaw tsawg dua.
Specification
| Parameter | Chav tsev | FC, SC, LC / Armored fiber ntau thaj qaum | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion poob (tseem ceeb) | dB | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.3 | Tsawg dua los yog sib npaug li 0.3 |
| Rov qab poob | dB | Ntau dua lossis sib npaug li 45 | Ntau tshaj los yog sib npaug rau 50 | Ntau tshaj los yog sib npaug rau 60 | Ntau tshaj los yog sib npaug rau 30 | Ntau dua lossis sib npaug li 45 | Ntau tshaj los yog sib npaug rau 50 | Ntau tshaj los yog sib npaug rau 30 | Ntau dua lossis sib npaug li 45 | Ntau tshaj los yog sib npaug rau 50 | Ntau dua lossis sib npaug li 35 | Ntau dua lossis sib npaug li 55 | Ntau dua lossis sib npaug li 75 |
| Ua haujlwm wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Exchangeability | dB | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | ||||||||
| Kev vibration | dB | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | Tsawg dua los yog sib npaug li 0.2 | ||||||||
| Ua haujlwm kub | degree | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Cia kub | degree | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable txoj kab uas hla | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Nta
Raws li Kev Xav Tau Loj Loj rau SFF Solutions
LC connectors yog tsim nrog tsuas yog ib tug 1.25mm txoj kab uas hla ferrule uas yog ib tug zoo kom zoo dua rau densely populated fiber optic network. LC connector yog tsim raws li tus qauv IEC 61754-20 rau kev sib txuas siab xws li hauv SFP, XFP thiab SFP + transceivers.
Singlemode lossis Multimode LC-LC, Riser lossis Plenum Rated
Peb muab khoom sivLC-LC fiber optic cable sib dhos nrog ib hom thiab ntau hom kev xaiv, nrog ib hom (9/125 OS1, OS2), duplex thiab multimode (50/125 thiab 62.5/125) xaiv. Koj tuaj yeem xaiv yog tias nws yog rau daim ntawv thov riser lossis kev sib txuas plenum lossis yog tias koj xav kom nws ua tiav, koj tuaj yeem tiv tauj peb kom paub ntau ntxiv txog peb cov kev pabcuam OEM / ODM rau LC-LC patch cords.
Yooj yim thiab yooj yim rub tawm
Ua tau nrog ib qho yooj yim snap nyob rau hauv configuration, LC-LC kev twb kev txuas yog nruab nrog locking mechanisms uas zoo ib yam li cov tuav tuav ntawm ib tug RJ45 connector. Tam sim no nws yog ib qho yooj yim mus txuas thiab disconnect lub connector ntawm lub cuab yeej. Lub xauv tabs yog txhaj tshuaj- molded nrog txhim khu kev ruaj ntseg nyob rau hauv tiv thaiv rub, hom, snags, thiab cuam tshuam thaum lub sij hawm cabling installation thiab tu.
Muaj kev nyab xeeb thiab kuaj fiber ntau los ua ke nrog qis qis qis
Peb lub patch cords yog 100% optically tshuaj xyuas thiab kuaj kom coj cov kev nkag qis tsis tshaj 0.02 dB.
Daim ntawv thov
Xim -Code Data Center Cable Management
Dub simplex LC fiber ntau cables muab qhov pom kev sib txawv hauv ib puag ncig uas xim -coding pab nyob rau hauv kev sib cais ceev ceev. Pab pawg ua haujlwm hauv network tswj hwm ntau txhiab qhov kev sib txuas siv cov dub-jacketed LC UPC qaum los xaiv cov VLANs tshwj xeeb, tawm- ntawm -band tswj kev sib txuas, lossis cov chaw sim tshwj xeeb.
SFP thiab SFP + Transceiver Patching
Lub 1.25mm me me daim ntawv tseem ceeb ferrule ntawm no LC simplex cable sib tw qhov chaw nres nkoj compact ntawm SFP, SFP +, thiab XFP optical modules. Cov kws tsim khoom siv siab - qhov hloov ceev nrog 48-chaw nres nkoj SFP + kab ntawv cia siab rau slim dub LC thaj cords kom txo tau cov kab hluav taws xob tsawg. Rau sab mating ntawm cov transceivers,LC duplex fiber ntau optic adapters rau siab -ntaus vaj huam sib luag installationyog tus qauv interface tivthaiv.
Tshaj tawm Routing thiab Master Control Rooms
Cov chaw hauv TV feem ntau ua qauv ntawm cov dub fiber ntau jumpers rau video router khi kab kom txo tau qhov pom kev cuam tshuam hauv studio teeb pom kev zoo. Lub simplex LC UPC tsim suits unidirectional SDI - hla - fiber ntau txoj kev uas tsuas yog ib qho kev xa tawm lossis tau txais strand xwb.
Laboratory thiab Test Bench Instrumentation
Optical test engineers txuas OTDR units, optical zog ntsuas, thiab spectrum analyzers siv dub LC simplex thaj cables uas sawv tawm tsam cov xim siv fibers. Qhov qis 0.2dB ntxig qhov poob specification kom paub meej qhov ntsuas tsawg kawg thaum lub sijhawm ntsuas ntsuas.
Secure tsoom fwv thiab nyiaj txiag Networks
Cov khoom siv nrog cov cai tswj xyuas cov kab ke nruj me ntsis siv cov dub LC singlemode thaj cords ntawm cov kev faib lossis cov rhiab network. Cov xim tsis yog- qauv xim tiv thaiv kev sib tsoo hla- kev sib txuas nrog dav dav - lub hom phiaj daj singlemode cabling.
Sab nraum zoov-rau-Indoor Demarcation Points
Cov kws kho mob txiav tawm sab nraum zoov armored cables ntawm lub tsev cov ntsiab lus nkag feem ntau hloov mus rau dub sab hauv tsev simplex LC jumpers ua ntej patching rau hauv lub ntsiab faib ncej. Cov xim sib txawv kom meej meej cim demarcation ntawm cov nroj tsuag sab nraud thiab thaj chaw cabling.
FAQ
Q1: Vim li cas thiaj xaiv lub tsho dub es tsis yog cov qauv daj rau ib qho singlemode LC thaj cable?
A: Dub LC simplex cables ua haujlwm tshwj xeeb rau kev tswj xyuas cable. Cov neeg ua haujlwm hauv cov ntaub ntawv siv lawv kom pom kev sib cais kev tswj xyuas kev khiav tsheb, kev sim circuits, lossis kev ruaj ntseg hauv lub network los ntawm kev sib txuas ntawm cov kab daj singlemode.
Q2: Puas yog qhov yooj yim LC UPC cable tau tshaj nrog duplex SFP + transceivers?
A: SFP + modules cais TX thiab RX cov chaw nres nkoj, txhua tus txais ib qho yooj yim LC connector. Ib khub ntawm dub LC simplex thaj cords tuaj yeem hloov tau ib lub duplex cable thaum muaj kev ywj pheej ntawm kev xa tawm thiab tau txais txoj hauv kev zoo dua.
Q3: Qhov 1.25mm ferrule loj txhais li cas rau qhov chaw nres nkoj ceev?
A: Lub 1.25mm ceramic ferrule yog ib nrab ntawm txoj kab uas hla ntawm SC lossis FC connectors, tso cai ob zaug ntawm qhov chaw nres nkoj suav hauv tib lub vaj huam sib luag. High- qhov ceev LC thaj vaj huam sib luag haum 72 lossis 144 chaw nres nkoj hauv ib chav tsev khib. Rau kev sib piv sib sib zog nqus ntawm yuav ua li cas LC pawg tiv thaiv loj dua - hom ntawv txuas hauv qhov chaw ntom ntom, saibsiab -qhov ceev LC fiber ntau connector kev daws teeb meem rau cov ntaub ntawv chaw thiab kev lag luam cabling.
Q4: Yuav ua li cas rub -tab xauv tshuab ua kom yooj yim txij nkawm?
A: Kev txhaj tshuaj-moulded latch ntawm txhua LC UPC connector tso tawm nrog tus ntiv tes xoo yooj yim, zoo ib yam li RJ45 ntsaws. Cov kws kho mob ua haujlwm rau cov kab mob congested patch panels txaus siab rau cov cuab yeej -dawb disconnect uas txo qhov kev puas tsuaj fiber ntau.
Q5: Kuv tuaj yeem xav tau dab tsi los ntawm LC simplex singlemode cable?
A: Lub Hoobkas kuaj tau lees paub qhov kev poob qis tsawg dua lossis sib npaug rau 0.2dB ib khub sib txuas sib txuas. Qhov kev zam nruj no khaws cia cov peev nyiaj siv hluav taws xob kho qhov muag hla kev sib txuas ntev ntev hauv kev sib txuas lus sib txuas lus.
Q6: Puas yog cov khoom siv lub tsho dub LSZH lossis PVC?
A: Ob qho kev xaiv lub tsho yog muaj. Qhia rau LSZH rau sab hauv tsev plenum lossis riser ib puag ncig uas hluav taws xob ua raws cai yuav tsum muaj tsawg- pa taws, halogen- cov ntaub ntawv dawb. PVC tsho tshaj plaws - lub hom phiaj khib patching.
Q7: Kuv puas tuaj yeem xaj qhov ntev ntev rau khib-rau- khib simplex khiav?
A: Yog. OEM simplex LC singlemode cables muaj nyob rau hauv qhov ntev ntawm 0.5 meters txog 100 meters. Cov neeg yuav khoom ntau cov khoom siv dub fiber ntau thaj cords rau kev xa tawm loj tau txais tus nqi ntim.
Q8: Puas yog xim dub puas cuam tshuam rau kev ua haujlwm kho qhov muag?
A: Tsis yog. Jacket pigmentation tsis cuam tshuam rau hauv fiber ntau lossis txuas polish. Cov dub simplex LC UPC cable ua tau raws li qhov zoo tib yam ntxig qhov poob thiab rov qab poob specifications raws li qhov sib npaug daj. Yog tias koj tseem tab tom ntsuas qhov sib txawv ntawm tus connector hom,Cov tswv yim sib txawv ntawm LC thiab SC fiber optic thaj qaum connectorsnpog cov kev lag luam tseem ceeb-offs rau cov xwm txheej xa mus.
